MDH - Grinder NUOVA SIMONELLI - Free user manual and instructions

Product type	Professional coffee grinder
Brand	Nuova Simonelli
Model	MDH
Intended use	Grinding coffee beans for professional use
Height	110 mm
Width	165 mm
Depth	73 mm
Net weight	5 kg
Gross weight	6 kg
Voltage	220-240 V ~ 50/60 Hz or 110 V ~ 60 Hz
Power consumption	260 W (220-240 V) / 225 W (110 V)
Motor speed	1350 rpm (220-240 V) / 1600 rpm (110 V)
Productivity	3.8 to 4.1 kg/h
Hopper capacity	Approximately 1 kg (estimated)
Grind adjustment	Graduated knob (fine to coarse)
Dispensing modes	Manual and timed
Portafilter fork	Removable, two positions
Motor protection	Thermal (automatic shutdown on overheating)
Estimated lifespan	1000 hours of operation
Burr replacement	Every 250 kg of ground coffee (flat burrs)
Cleaning	Brush and vacuum for air intake; damp cloth for base
Operating conditions	Ambient temperature -5 °C to +40 °C
Standards	Compliant with EU directives (WEEE, etc.)

Frequently Asked Questions - MDH NUOVA SIMONELLI

How to adjust the grind fineness?

Turn the adjustment knob (4) to the right for a finer grind, to the left for coarser. Perform this adjustment when the motor is running to avoid jamming.

How to use manual mode?

Press the selection button (6) to set to 'M'. Place the portafilter on the fork (8) and push it against the actuator (9) to start dispensing. Release to stop.

How to use timed mode?

Select 'T' with button (6). Set the dispensing time with the recessed knob (7) (turn to increase/decrease dose). Place the portafilter on the fork to activate dispensing; it stops automatically after the programmed time.

What to do if the motor stops during use?

This is likely the thermal protection cutting off the motor. Unplug the appliance immediately, let it cool down, then resolve the cause (e.g., overload, obstruction) before restarting.

How to clean the grinder?

Before any cleaning, unplug the appliance. Frequently clean the air intake (10) with a brush and vacuum. For the base, use a damp cloth. Never use water jets or steam cleaners.

When should the burrs be replaced?

It is recommended to replace the flat burrs every 250 kg of ground coffee. Contact a specialized technician for this operation.

What type of coffee to use?

Only use coffee beans intended for espresso. Never insert metal objects or other foods into the hopper.

Can I leave the grinder plugged in permanently?

It is not recommended to leave the appliance plugged in unnecessarily. Unplug it when not in use, especially at night or during prolonged absence.

What to do if the dispensing spout is blocked?

Turn off and unplug the appliance before any intervention. Use a brush or toothpick to gently unblock the spout (10). Never insert utensils while the motor is running.

How to install the portafilter fork?

The fork (8) is removable and can be positioned in one of the two holes provided depending on the type of portafilter. Simply insert it until it stops.

USER MANUAL MDH NUOVA SIMONELLI

EN USER HANDBOOK (Translation of the Original Instructions)

FR MANUEL D'INSTRUCTIONS (Traduction des Instructions Originales)

Red and black industrial coffee maker with glass lid and control panel (no visible text or symbols)

3 | AVVERTENZE E SICUREZZE
7 PRECAUTIONS AND SAFETY FEATURES
11 NOTES ET DISPOSITIFS DE SECURITE
15 WARNHINWEISE UND SICHERHEITSEINRICHTUNGEN
19 ADVERTENCIAS Y DISPOSITIVOS DE SEGURIDAD
23 INFORMAZIONI GENERALI / GENERAL INFORMATIONS / INFORMATIONS
GENERALES / ALLGEMEINE INFORMATIONEN / INFORMACIÓN GENERAL
24 DATI TECNICI / TECHNICAL DATA / DONNEES TECHNIQUES /
TECHNISCHE DATEN / DATOS TÉCNICOS
26 DESCRIZIONE DELL'APPARECCHIO / APPLIANCE DESCRIPTION /
DESCRIPTION DE L'APPAREIL / BESCHREIBUNG DES GERÄTS /
DESCRIPCIÓN DEL APARATO
28 ISTRUZIONI D'USO / INSTRUCTIONS FOR USE / INSTRUCTIONS D'EMPLOI /
BETRIEBSANLEITUNG / INSTRUCCIONES DE USO
34 PULIZIA E MANUTENZIONE / CLEANING AND MAINTENANCE /
NETTOYAGE ET ENTRETIEN / PULIZIA E MANUTENZIONE /
LIMPIEZA Y MANTENIMIENTO
40 | RICERCA GUASTI / TROUBLESHOOTING / RECHERCHES PANNES /
STÖRUNGSSUCHE / LOCALIZACIÓN DE AVERÍAS

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Machine design has taken into account all reasonable user safety precautions; nevertheless, particular conditions of installation and/or handling may create unforeseen situations beyond the installer's control which will require case-by-case evaluation of residual risks. We recommend keeping the following in mind:

• Always handle the machine with care to avoid the danger of its falling.
- The packing materials (carton, cellophane, staples, polystyrene, etc..) can cut, wound or create hazards if used improperly or handled carelessly. Store such materials out of reach of children and irresponsible persons.

- This symbol on the appliance or package means that the appliance must not be considered as normal household refuse but that it must instead be delivered to an appropriate collection centre for the recycling of electric and electronic appliances. Make sure that this appliance is disposed of correctly and you too will be making your contribution to the prevention of negative effects on health and the environment, which could otherwise be caused by inad-

Symbol of a trash bin crossed with a diagonal line, no text or labels present

equate disposal. Recycling materials helps to preserve our natural resources. For more information about how to recycle this product, you can contact your local council office, local refuse disposal service or the retailer from whom you purchased the appliance.

- Before carrying out any installation or adjustment process, be sure to have read and thoroughly understood the warnings in this manual.

- The company cannot be held liable for any damage to people or property resulting from failure to respect the instructions concerning safety, installation and maintenance contained in this manual.

- The power cord of this appliance must never be replaced by the user. In the event of damage, switch off the appliance and only contact professionally qualified technicians for its replacement.

- Should you decide to no longer use this type of appliance, we recommend that you make it inoperative: unplug the appliance from the mains socket and cut off the power cord.

- All defects and/or anomalous machine behaviour should be reported immediately to authorized installation and/or maintenance personnel.

- Before connecting the machine, check that electrical power supply corresponds to the specifications on the data plate.

- Should the machine plug not be compatible with your socket, have the plug replaced with a suitable type by a qualified technician, who should also check that the section of the wires supplying the power outlet is suitable for the machine power requirements.

- Avoid use of multiple-plug adapters and extension cords.

• The ground wire must be connected; the electrical system must meet the standards set by local safety laws and regulations.
• The machine must be installed only by authorized, qualified personnel.
• Check that the machine components have suffered no damage during shipping; in the case defects or anomalies are found, interrupt installation and request replacement.

APPLICATIONS AND USE

• This grinder dispenser has been devised for professional use by trained personnel.
• The grinder/dispenser must be used only for the application for which it was designed; that is, grinding roasted coffee beans. Any other use must be considered improper and therefore dangerous.
• The manufacturer shall not be held responsible for damages deriving from improper, erroneous or unreasonable use of the machine.
• The appliance must not be used by children or people with reduced, physical, sensorial or mental abilities. It must also never be used by people without the necessary skills and experience unless under supervision or during training. Do not allow children to play with this equipment at any time.
• The machine is not designed for use in extreme environmental conditions and in any case at temperatures outside the -5^ to +40^ range.
• The user must respect the general safety regulations in force in the country in which the machine is installed as well as the rules of common sense, and shall be responsible for ensuring that periodic machine maintenance is correctly performed.
• The persons installing and using the machine and performing machine maintenance shall inform the manufacturer of any defects or damages due to wear that might jeopardize the original safety features of the machine.
• The installer shall be responsible for checking that the machine is installed in tolerable environmental conditions such as to not to create health or safety hazards for those using the machine.
• Any responsibility deriving from components manufactured and installed on the machine shall be assumed by the respective manufacturers; responsibility attributable to the persons authorized to use the machine shall be assumed by the customer.
• The machine is designed for 24-hour intermittent service. The machine components are designed and built to ensure at least 1000 hours' operation.

• Good cleaning and maintenance also contribute to determining long machine life.
  • These appliances are intended to be used for commercial application (kitchen of restaurant, canteens, hospitals) and in commercial enterprises (bakeries, butcheries, etc.), but not for continuous mass production of food.

• Never touch the machine with damp or wet hands.

• Never use the machine when barefoot.
• Never attempt to unplug the machine by pulling the power cord or the machine itself.
• Do not expose the machine to atmospheric agents (sun rain, etc..).
• Never allow the machine to be used by children or by irresponsible persons.
• Always use the appliance on a flat, steady surface that is able to support its weight.
• Always unplug the machine from the power supply before performing any cleaning or maintenance operations.
• Do not clean the appliance with water, steam cleaners or detergents.
• In the case of machine breakdown or malfunction switch the machine off and do not tamper with it.
• For repairs contact only an authorized service center and request use of original spare parts.
• Non-observance of the above precautions may make the machine unsafe for future use.
• Do not leave the machine switched on when not in use. Unplug the machine when not in use.
• Do not obstruct the ventilation and/or heat dissipation openings and/or slits nor introduce water or any other liquids into same.
• Do not obstruct the ventilation and/or heat dissipation openings and/or slits nor introduce water or any other liquids into same.
• Never insert spoons, forks or other utensils into the pouring lip (10), or into the coffee grain container (2) for any reason whatsoever while the appliance is operating.
• Always switch off the appliance before removing blockages from the pouring lip.
• Never place the appliance in water or other liquids.
• Should a foreign body stop the motor, switch the machine off immediately and contact an authorized service center.

WARNING

Those machines bearing the “EL. MOTOR WITH THERMAL PROTECTION” indication are equipped with device which protects the motor from overheating. When this device is engaged, do not attempt to operate the machine: isolate the machine from the power supply and eliminate the cause of the trouble before re-starting.

This manual is designed for use by the user of the machine and/or by those performing maintenance on the machine and must be considered an integral part of the machine itself.

This manual provides information concerning correct use and appropriate maintenance of the machine, as well as useful indications for ensuring user safety.

This manual must be preserved for the entire working life of the machine and must be transferred, together with the machine, to future users or owners. The information contained in this manual must not be construed as substituting the safety prescriptions and the technical data regarding installation and operation carried on the machine itself and on the packing materials.

This manual reflects the current state of machine technology and shall not be considered obsolete solely because updated at a later date on the basis of acquired experience.

The manufacturer reserves the right to make modifications to this manual with no obligation to update previous versions except in exceptional cases.

Improper use of the machine or use in manners other than those described in this manual shall invalidate the guarantee conditions and shall release the manufacturer from all responsibility, the machine must be used only by adult, responsible persons.

This manual must be preserved with care: the manufacturer declines all responsibility for damages to persons or things or to the machine itself deriving from improper use or use in manners other than those described herein or in the case the maintenance and safety precautions described herein are not respected.

PRESERVATION OF THE MANUAL

This manual must at all times be available to the machine user and/or the persons performing maintenance on the machine, who must be provided with full information regarding correct machine use and residual risks.

This manual must be preserved in a clean, dry place away from sources of heat. This manual must be used in a manner such as not to damage any part of its contents.

Do not remove, tear out or re-write any part of this manual for any reason.

In case of loss of this manual or for further information, please contact your area retailer or the manufacturer.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

CONSERVATION DU MANUEL

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

In order to identify the appliance, read the code after “MATRICOLA” (serial number) on the label applied on this manual or on the appliance itself and select the corresponding voltage.

FR

Technical diagram of a device with numbered parts labeled for identification

IT

1 Container lid
2 Coffee bean container
3 Coffee bean container tab
4 Grinding adjusting knob
5 ON/OFF switch
6 Mode select button timer/manual
7 Time adjust dial for delivery (pull out)
8 Filter holder fork
9 Grinding start key
10 Dispensing spout

FR

Technical diagram of a mechanical component with a red arrow pointing to a feature (no text or symbols present)

IT

• After having plugged the appliance in, push the tab (3) at the bottom of the coffee bean container (2) to close it.

COFFEE

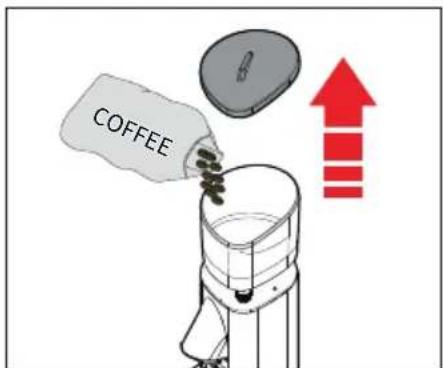

- Remove the cover (1) from the container (2) and fill it with coffee beans.

Hand inserting a small electronic component into a curved device (no text or symbols visible)

- Bring the switch (5) to on position. The red indicator light on the switch will light up.

Technical diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

• Aprire la linguetta (3).

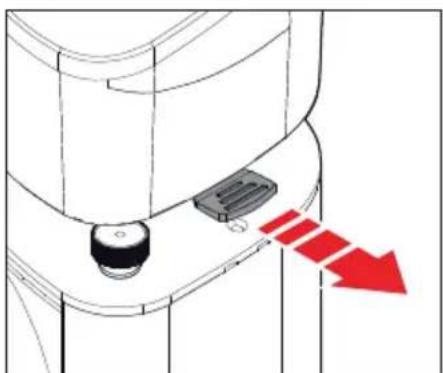

- Pull the tab (3).

FR

Diagram illustrating mechanical assembly with red arrows indicating force directions and a magnified view of internal components.

Diagram showing a kitchen mixer with a red arrow indicating motion, alongside a control panel with rotary buttons and a 12.5V indicator.

IT

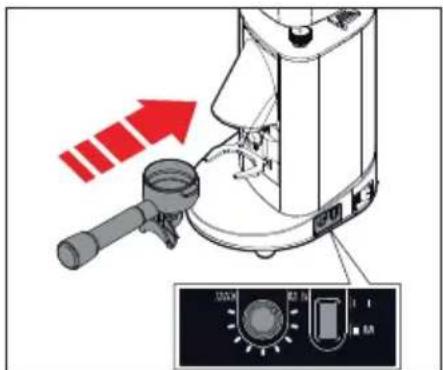

- According to the filter holder used, insert the removable fork in one of the two available positions.

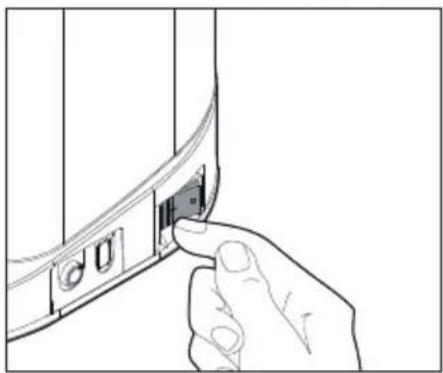

- In MANUAL mode (activated by pressing selection key (6) "M" position) rest the filter holder bowl on the fork (8) and insert it to engage with the filter holder catch, pushing it forwards until it comes into contact with the button (9) to expel the ground coffee from the spout (10).

- When the filter holder bowl is moved away, coffee dispensing will stop.

Diagram showing a kitchen brush applying material to a device with a red arrow indicating compression direction and a control panel labeled 'Control knob'.

- In TIMER mode (activated by pressing the selection key (6) "T" position), the dispensing time for ground coffee can be set using the pull out dial next to the button (6), which needs to be turned to increase or reduce the amount of coffee ground.

- This version of the appliance will continue to dispense coffee when the filter holder cup is moved away, since dispensing will now depend on the set time.

FR

To avoid the blockage of the spout (10) hold the filterholder on the fork (8).

4.1

REGOLAZIONE

MACINATURA

4.1

GRINDING

SETTING

Diagram of a kitchen appliance with red curved arrows indicating rotation or flow (no text or symbols)

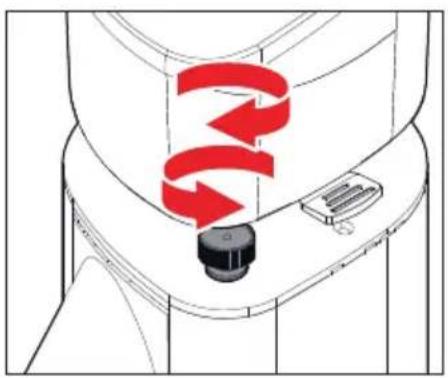

Set grinding by means of the adjusting knob (4), by rotating it clockwise to make powder finer or anticlockwise to increase the size of its grain as shown on the knob (4).

FR

DE

ES

ATTENTION

Unplug the appliance before performing any cleaning and maintenance operation.

ATTENTION

Do not pull the power cable or the appliance itself to disconnect the plug from the power supply socket.

5.1

CLEANING

Cleanliness is a basic aspect for the proper functioning of the coffee grinder with a dosing unit. A neglected coffee grinder with dosing unit may have a negative impact on coffee dispensing as well as on the accuracy of dose and grinding. Before cleaning, make sure the appliance is unplugged.

FR

ATTENTION

Often clean (several times a day) the dispensing spout through a brush and a vacuum cleaner.

In case such operations are not carried out, the aromatic oily part contained in coffee may turn rancid with negative consequences on coffee, furthermore the lack of cleanliness may jeopardize regularity of the dose itself.

Clean the base by means of a damp cloth.

FR

Maintenance is to be performed only by skilled personnel authorized by the manufacturer.

ATTENZIONE

Do not carry out improvised or precarious repairing and do not use non original spare parts.

In order to ensure a proper functioning of the appliance, check and eventually replace the blades every 250 kg of ground coffee for flat blades.

FR

5.2

ENTRETIEN

DE

5.2

WARTUNG

ES

5.2

MANTENIMIENTO

ATTENTION

Contact skilled personnel.

FR

EC DECLARATION OF CONFORMITY

nuova

SIMONELLI®

SIMONELLI GROUP

Via E. Betti, 1 - 62020 Belforte del Chienti (MC) – ITALY

Declare under our responsibility that the product:

MACINADOSATORE PER CAFFÈ MODELLI

MODELLO: MDH

COFFEE GRINDER MODELS

MODEL: MDH

VERSIONE: 110 - 220/240 V / 50-60 Hz

VERSION: 110 - 220/240 V / 50-60 Hz

SERIE: AA

SERIES: AA

MATRICOLA DAL: 0001-18

to which this declaration relates, following the provisions of the directives:

2014/30/EU - 2014/35/EU - 2011/65/EU - 2012/19/EU

Data: Aprile 2018

Date: April 2018
