Product type	Radio alarm clock with 4-in-1 wireless charging station
Dimensions	169 x 75 x 57 mm
Power supply	DC 9V, 2.7A via Type-C connector
Main functions	Wireless charging for phone (5W/7.5W/10W), watch (2.5W), earphones (5W); USB-A port (5V/1A); alarm with daily alarm; 24h clock; LED night light; display brightness control
Safety	Do not expose to water; use only the supplied adapter; have repairs carried out by a professional; do not open the casing
Maintenance	Unplug before cleaning; use a soft, dry cloth; do not use abrasive products
Spare parts	CR2032 button cell battery for clock backup
Warranty	2 years by Bigben Interactive

Frequently Asked Questions - CL750I THOMSON

How to set the alarm?

Press and hold the MODE button for more than 2 seconds. The hours flash, use UP/DOWN to adjust, then briefly press MODE to go to minutes. Press MODE again to save. The alarm rings for a maximum of 15 minutes and stops automatically.

How to wirelessly charge a phone?

Place your compatible phone in the center of the wireless charging area. The indicator light turns on. If the indicator flashes, reposition the device. Charging stops automatically when the battery is full. The indicator then turns off.

What to do if the charging indicator flashes?

Flashing indicates a charging error. Make sure your device is placed correctly in the center of the area and that it is Qi compatible. Remove any metal objects between the charger and the device.

How to replace the backup battery?

Unplug the power? No, it is recommended not to unplug to avoid losing settings. Remove the safety screw, turn the cover counterclockwise, replace the battery with a CR2032 respecting polarity (printed side facing you). Replace the cover and screw back.

My alarm does not ring, what to do?

Check that the alarm icon is lit on the display. If not, long press UP to activate it. Make sure the alarm time is set correctly. The volume is fixed but the alarm emits a beep sound.

Can I charge multiple devices at the same time?

Yes, the CL750I has three separate wireless charging zones (phone, watch, earphones) and a USB-A port. You can charge multiple devices simultaneously, within the limit of the total power supplied by the adapter.

How to adjust the display brightness?

Press the clock display switch to cycle through levels: 100%, 50%, 20% or off.

Can I use a power adapter not supplied?

No, use only the supplied power adapter (DC 9V/2.7A) to avoid damage. Using another adapter may damage the device and void the warranty.

How to clean the device?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use abrasive products or harsh cleaners. Avoid any contact with water.

What to do if the screen displays nothing?

Check that the power adapter is correctly plugged in and the outlet is working. If the screen remains off, try unplugging and re-plugging the device. If the problem persists, contact technical support at 09 69 39 79 59.

USER MANUAL CL750I THOMSON

Smartphone with digital display and charging case, no visible text or symbols on device body

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

Démarrage

Technical diagram of a handheld device with numbered parts and labeled parts in Chinese

Blue circular icon with white pictogram of a person handing a box to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

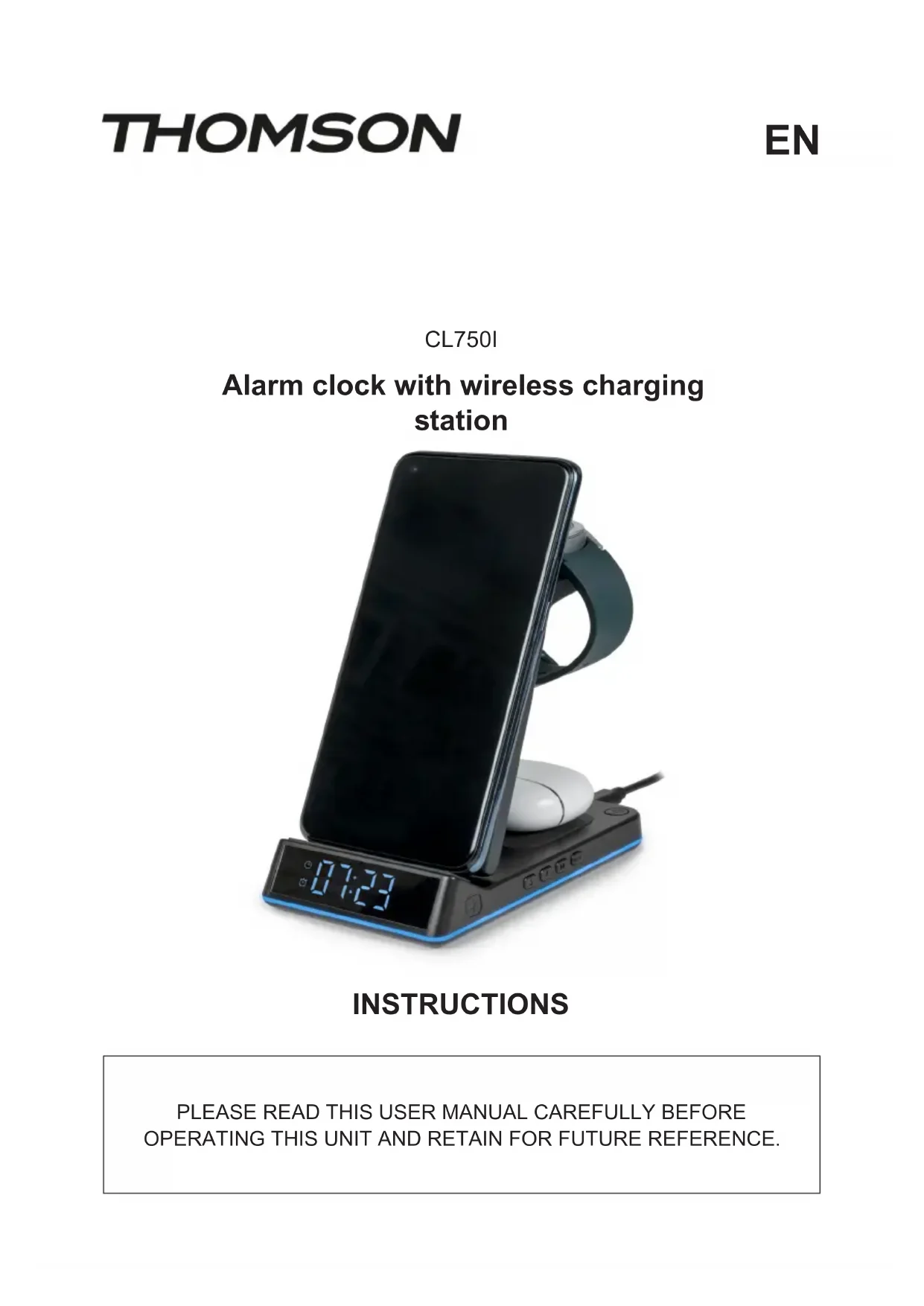

Alarm clock with wireless charging station

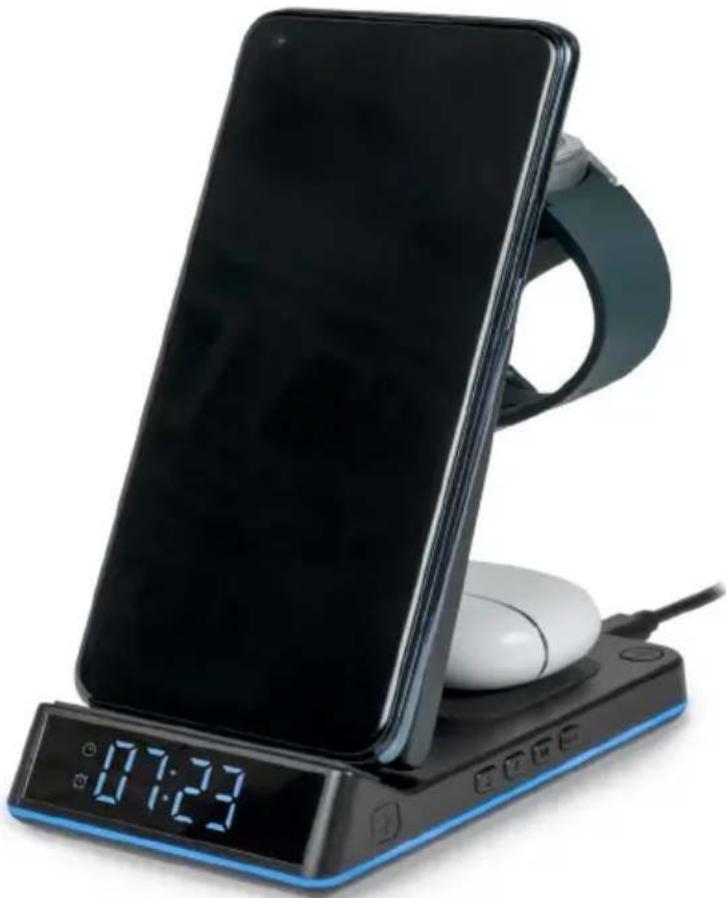

Smartphone with digital display and charging tray, no visible text or symbols on device body

INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 12		Recharge your mobile phone	15
Safety warning and notice 12		Specifications	16
Contents of the box 14		Warning about batteries	17
Functions 14		Care of the environment	18
Product description	14	Additional information	18
Operation	15	Declaration of conformity	19

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.

13. Make sure you have enough space for ventilation. Place the product on a stable surface.

14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance.

Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

1. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this appliance from the mains if necessary.
2. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
3. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
4. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
5. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
6. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
7. When using the product, it should be placed at least 20 cm away from the human body.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are strong enough to present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

• 1 x 4-in-1 wirelesscharger clock
- 1 mains adapter

- 1 CR2032 button battery (already installed in the appliance: remove the insulating plastic strip)

- Instructions

Functions

• LED night light
• Alarm clock
• Mobile phone holder
  • Wireless charger for mobile phone, watch, earphones
  • Charging range ≤ 8mm
  • USB-A port for charging

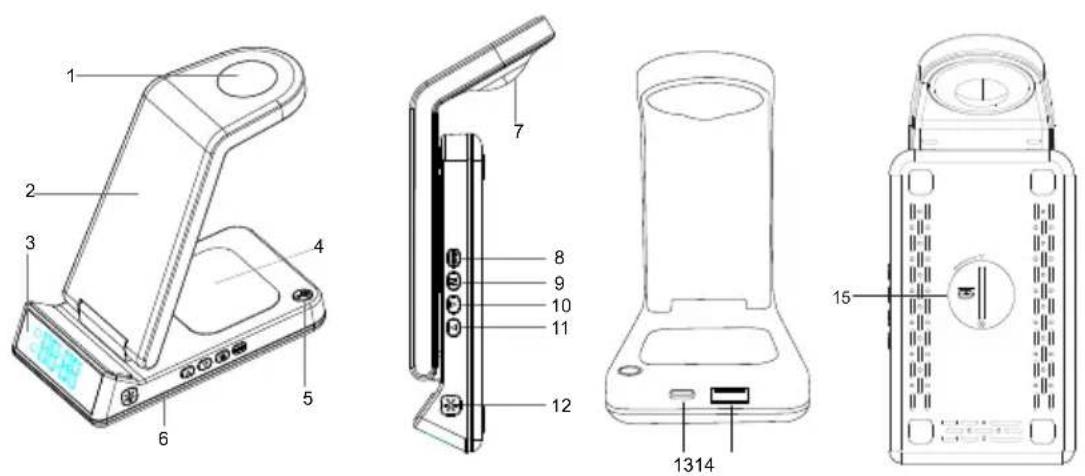

Product description

1. Wireless charging zone for smart watch
2. Wireless charging zone for compatible mobile phone
3. Time display
4. Wireless charging zone for wireless earphones

5. Night light switch
   Press this button to turn on/off the LED night light

6. Mobile phone charging indicator light

Light on = charging in progress

Flashing light = charging error.

Light off = sleep mode / full charge / off

1. LED night light

2. Clock screen switch

Press to adjust the dimmer of the time display: 100-50-20-0%;

1. MODE button

Press and hold for 2 seconds to set alarm;

Press and hold for 5 seconds to set the time;

Tap to switch between 2-digit hour and minute setting;

1. DOWN button

Tap to set time and alarm.

Press and hold to turn off alarm mode.

1. UP button

Tap to set time and alarm.

Press and hold to turn on alarm mode.

1. Touch button indicator light

Tap this button to turn on/off the charging indicator light of the compatible mobile phone.

1. Type-C interface

2. USB port (5 V/1 A)

3. Backup battery compartment

Remove insulation strip before use.

Operation

1. Plug the mains adapter into the mains socket and the Type-C connection to the Type-C interface on the wireless charger.
2. Once the appliance is connected, the indicator light flashes quickly and then turns off. The time display lights up.

IMPORTANT: DO NOT USE THIS MAINS ADAPTER WITH OTHER APPLIANCES.

WARNING: Do not place any coins and/or metal objects in the wireless charging area to avoid any effect on the metal objects from overheat.

Recharge your mobile phone

1. Place your compatible device in the centre of the wireless charging zone for compatible mobile phone.
2. The charging indicator light comes on when your phone is charging.
3. The charging indicator flashes if your device has not been placed correctly on the charging area.
4. When charging is complete, the indicator turns off.

Note: If you disable the indicator light function, the indicator will not light up.

The iPhone 8 does not turn off the wireless charging indicator light when fully charged.

Charge your earphones wirelessly

1. Place your TWS earphones in the centre of the wireless charging zone for wireless earphones.
2. Check the charging status using the indicator on your device.
3. Various brands of wireless earphones with a wireless charging function can be charged on this area.

Charge your smart watch

1. Place your watch in the centre of the wireless charging zone for smart watch.

2. The watch face lights up to show that it is charging.

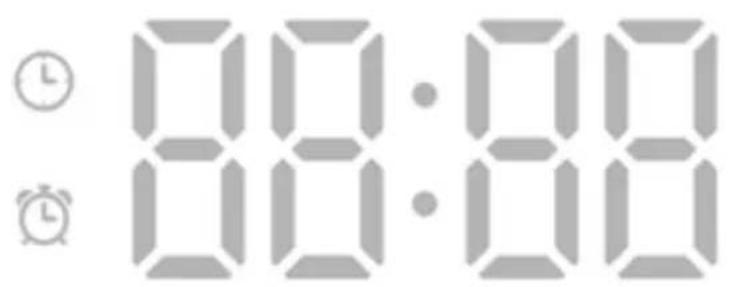

Clock

1. The clock/alarm clock display selection is aided by some small icons.
2. Press and hold the UP button for more than 3 seconds to activate the alarm function. The alarm icon lights up. Press and hold the DOWN button for more than 3 seconds to turn off the alarm function.
3. The appliance is in clock mode by default when turned on, and the time icon lights up.

8:00:00 8:00:00

Setting the alarm

Press and hold the MODE button for more than 2 seconds. The alarm clock icon and the hours start flashing. Press the UP and DOWN buttons to increase or decrease the hours, and tap the MODE button to set the minutes. The minutes start flashing. Press the UP or DOWN buttons to increase or decrease the minutes;

Tap the MODE button to save the alarm setting and switch to the time display. The last alarm setting will be used.

When the alarm sounds, press any function button to silence it. If you do not press any button, the alarm will automatically stop after 15 minutes.

Note: this appliance does not have SNOOZE function

The alarm function is triggered every day by default.

Press the DOWN button for more than 3 seconds to turn off the alarm clock function, and the alarm clock icon will turn off.

Press and hold the UP button to activate the alarm clock function, and the alarm clock icon will light up.

Time setting

Press and hold the MODE button for more than 5 seconds. The clock icon and the hours start flashing. Press the UP and DOWN buttons to increase or decrease the hours, and tap the MODE button to set the minutes. The minutes start flashing. Press the UP or DOWN buttons to increase or decrease the minutes;

Tap the MODE button to display the time

Note: The product only used the 24-hour format.

Specifications

Model number: CL750I

Power supply: DC 9V/2.7A Type-C

Wireless output for mobile phone: 5W/7.5W/10W

Wireless output for earphone: 5 W

Wireless output for watch: 2.5 W

USB output: DC 5V/1A

Conversion efficiency: 80 % - 85 %

Alarm clock backup battery: 1 x CR2032 3V

Product dimensions (folding): 169 x 75 x 57mm

Note:

The wireless charging function only works with compatible devices.

This product uses a CR2032 backup battery for the clock. When replacing the battery, do not unplug from the mains power, otherwise the clock/alarm clock settings will be lost.

To remove the battery, remove the locking screw and turn the cover anticlockwise to access the battery.

Remove the battery and replace it with a battery of the same type (CR2032). The printed side of the battery should be facing you.

Replace the cover, turn it clockwise and reattach the locking screw. Every two years, check that the battery is still working.

Important points

• Do not use or store the product in direct sunlight or in extreme high temperatures for extended periods.
• Do not charge in close proximity to magnetic cards, magnetic recording media and precision instruments.
• Do not disassemble or modify this product.
• Do not touch the mains adapter with wet hands.
• Keep this product away from water or other liquids.
• To clean the product, disconnect the power supply.
• Ambient temperature range for operating the product: -20 to 45°C
• Warning: do not use the adapter with other products.

Warning about batteries

This product contains one or more batteries.

• Use batteries correctly to prevent any injury or fire caused by a leak, overheating, explosion, erosion or other damage.
• Keep new and used batteries out of the reach of children or any vulnerable person. Stop using the product if the battery compartment does not close properly.
• If the liquid from an alkaline battery comes into contact with the skin and/or eyes, rinse immediately with fresh water and consult a physician.
• If an alkaline battery leaks, wipe up the liquid with a cloth and replace the battery with a new one.
• Do not swallow the battery/ies. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• Use AA Ni-MH, alkaline or lithium batteries.
• Do not charge these batteries. Charging non-rechargeable batteries causes gas and/or heat emissions that can cause explosions and/or fires.
• Do not use different types of battery or a mixture of new and old batteries at the same time.
• Insert the batteries according to the correct polarity (+ and -).
• Do not put the same battery poles in contact with each other.
• Remove dead batteries quickly. There is a risk of the battery exploding if this is not replaced correctly or if the appliance is not used for a period of time.

• Replace the battery with an identical or equivalent model.

• The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.

• Do not heat batteries and do not dispose of them in fire or water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these need to be scrapped.
• Be environmentally friendly when scrapping batteries
• Do not dispose of batteries in ordinary household waste.
• When scrapping batteries, be sure to comply with the local regulations in force in this matter.

BATTERY WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

Blue circular icon with white pictogram of a person handing over a box to a child (no text or symbols)

Care of the environment

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• THOMSON is a trademark of Talisman Brands, Inc. used under licence by Bigben Interactive.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• THOMSON and the THOMSON logo are trademarks operated under licence by Bigben Interactive – for more information: www.thomson-brand.com.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the CL750I type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Support

www.bigben-interactive.co.uk/support

[e-mail]

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Smartphone with digital display and charging case, no visible text or symbols on device body

Two triangular warning symbols: a lightning bolt symbol and an exclamation mark, commonly used in safety or hazard prevention contexts.

Technical diagram of a portable electronic device with labeled parts including front, side, and top views

Blue circular icon with white pictogram of a person handing over a box to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Smartphone with digital display and charging case, no visible text or symbols on device body

ISTRUZIONI PER L'USO

LEGGERE IL PRESENTE MANUALE CON ATTENZIONE PRIMA DI METTERE IN FUNZIONE IL DISPOSITIVO E CONSERVARLO PER UNA CONSULTAZIONE FUTURA.

Avvio 31

Technical diagram of a handheld device with numbered parts and labeled internal components

8:00:00 8:00:00

TENERE FUORI DALLA PORTATA DEI BAMBINI

Blue circular icon with white pictogram of a person handing a box to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

Smartphone with digital display and charging case, no visible text or symbols on device body

Technical diagram of a portable electronic device with labeled parts including front, side, and top views

Blue circular icon with white pictogram showing a person handing a document to a child (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Smartphone with digital display and charging case, no visible text or symbols on device body

BEDIENUNGSANLEITUNG

Technical diagram of a portable electronic device with labeled parts including front, side, and top views

Blue circular icon with white human and child silhouettes, no text or symbols present

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Digital washing machine with a smartphone, mouse, and charging tray (no visible text or symbols)

GEBRUIKSAANWIJZING

ALVORENS DIT APPARAAT TE GEBRUIKEN, LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR DEZE VOOR TOEKOMSTIGE RAADPLEGING.

Technical diagram of a handheld device with numbered parts and labeled parts in Chinese

Blue circular icon with white pictograms of a person and child interacting (no text or symbols)

Milieubescherming

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Digital washing machine with a smartphone and mouse, displaying time approximately 17:23 (no text or symbols on the device body)

INSTRUKCJA OBSŁUGI

Technical diagram of a handheld device with numbered parts and labeled internal components

8:00:00 8:00:00

Ustawianie budzika

Blue circular icon with white pictograms of a person handing a document to a child (no text or symbols)

Ochrona środowiska

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]
