Digitool MX32 - Professional audio equipment PEAVEY - Free user manual and instructions

Product type	Programmable digital audio processor
Model	Digitool MX32
Brand	Peavey
Dimensions (W x D x H)	48.26 cm x 33.34 cm x 8.89 cm (19" x 13.125" x 3.5")
Net weight	5 kg (11 lb)
Power supply	100-240 V AC, 50/60 Hz (universal)
Power consumption	35 W
Audio inputs	16 microphone/line inputs on Euroblock terminal, isolated, with +48V phantom power per channel
Audio outputs	16 line outputs on Euroblock terminal, isolated and buffered
AES/EBU digital input	2 stereo AES inputs (up to 192 kHz)
Display	Color graphic LCD screen
Control and navigation	3 rotary encoders (Menu, Function, Parameter), Adjust button, Edit button, 16 Mute buttons with indicators, 5-segment VU meters
DSP processing	32-bit floating point, complete routing matrix, parametric EQ, high-pass/low-pass filters, delay up to 2.5 s, compressor/limiter, noise gate, Automix, signal generator
Configuration connectivity	USB type B port (front), Ethernet 10/100 port (rear)
External control	RS-485 on RJ-45 (2 connectors), 8 CV inputs (0-10 V or passive potentiometer)
Firmware update	Yes, on-site via USB or Ethernet
Operating temperature	Not specified, but do not expose to heat sources
Maintenance and cleaning	Use a dry cloth only. Do not expose to moisture or liquids.
Reparability	Contains no user-serviceable parts. Refer servicing to Peavey authorized service personnel.
Safety	Grounding mandatory. Do not open. Risk of electric shock.
Included accessories	Power cord, Euroblock terminals (likely)

Frequently Asked Questions - Digitool MX32 PEAVEY

How to connect Digitool MX32 to a computer for configuration?

Use the USB type B port on the front panel or the Ethernet port on the back. Download the free configuration software from http://aa.peavey.com/download/ and follow the installation instructions.

What to do if the screen stays black?

Check that the device is properly plugged into a working power outlet and that the power switch is in the on position. If the problem persists, contact Peavey support.

How to activate +48V phantom power on an input?

In the Input -> Hardware menu, select the desired channel and enable the +48V option. Mute the input first to avoid damage.

What is the function of the Mute buttons and VU meters?

The 16 Mute buttons mute the sound of inputs or outputs (depending on Input/Output selection on the MX32). The 5-segment VU meters indicate signal level. Red LED means muted, green means active.

How to use the AES/EBU input?

Connect an AES3 digital source to the appropriate AES input. In the Input -> Hardware menu, select the AES source for the odd/even channel pair. The receiver accepts sample rates from 24 to 192 kHz.

How to adjust input sensitivity?

Go to the Input -> Hardware menu for each input. Use the Input Sensitivity parameter to adjust from -40 dBu to +24 dBu in 0.5 dB steps. Observe the input VU meter to avoid clipping.

Is it possible to control the MX32 remotely?

Yes, via the RS-485 port (RJ-45 connectors) with Peavey wall controllers like the D1V or D4S. You can also use the PC software via USB/Ethernet.

How to reset the device to factory defaults?

In the Utilities menu, select Factory Reset and confirm. Note that this erases all saved presets.

What type of cable to use for CV inputs?

You can connect a switch or a 10 kΩ maximum potentiometer between the (+) terminal and ground (GND). For external voltage, apply 0 to +10 V referenced to ground.

How to protect the device from dust?

Clean regularly with a dry, lint-free cloth. Avoid using solvents. Store the device in a dry, dust-free place.

USER MANUAL Digitool MX32 PEAVEY

Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus. Before using this apparatus, read the operating guide for further warnings.

Protective earthing terminal. The apparatus should be connected to a mains socket outlet with a protective earthing connection.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electrical products, basic cautions should always be followed, including the following:

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.

11. Only use attachments/accessories provided by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Never break off the ground pin. Write for our free booklet "Shock Hazard and Grounding." Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.

16. If this product is to be mounted in an equipment rack, rear support should be provided.

17. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

18. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.

19. The on/off switch in this unit does not break both sides of the primary mains. Hazardous energy can be present inside the chassis when the on/off switch is in the off position. The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

20. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours Sound Level dBA, Slow Response

8 90
6 92
4 95
3 97
2 100
1 1/2 102
1 105
1/2	110
1/4 or less

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Earplugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.

b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.

b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.

b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.

c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

Logo referenced in Directive 2002/96/EC Annex IV(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005

The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005

Correct Disposal of this product. This marking indicates that this product should not be disposed with other house hold wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems, or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

FCC Compliancy Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, that may cause undesired operation.

Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user's authority to use the equipment.

Note - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS • 39305 [phone] • FAX [phone] • www.peavey.com • 80305780 • ©2011

ENGLISH

Digitool® MX16, MX32 and LIVE

The Digitool MX 16, MX32 and Live are a family of digital audio processing units built on the rich history of the original Digitool MX and designed for the audio professional. These products have the power and flexibility to perform loudspeaker management functions in addition to matrix mixing, room combining and other audio processing functions for installed and portable sound systems. Each model features a full-color display screen, front navigation and editing controls, front panel input and output mute buttons and LED meters to simply configuration. They can also be configured using a Windows application via USB or Ethernet.

FEATURES:

• Full-color, graphic LCD for easy front panel control
- Windows GUI for setup and control
- 8 mic/line inputs and 8 line outputs (MX16 and LIVE)
• 16 mic/line inputs and 16 line outputs (MX32)
• 48V phantom power switchable on each input
- 5-segment LED meters on inputs and outputs
- Front panel input and output mute buttons
- Stereo AES input MX16 and LIVE (2 stereo AES inputs on the MX32)
- 8 CV "control voltage" inputs that can be programmed as level and mute controls
- RS-485 input for external control of level, mute and preset recall
- Front-panel USB "B" port for setup
- Rear-panel Ethernet port for setup
• Euro terminal block termination on MX16, MX32
- XLR input and output connectors on Digitool LIVE
- Rear-panel ears and strap for easy cable management
- Firmware can be field updated
• 100V to 240VAC 50/60 Hz power inlet

PROCESSING FUNCTIONS INCLUDE:

• Full matrix routing with mute and level control at each cross-point
- Input and output filters including: PEQ, hi-shelf, lo-shelf, hi-pass, all-pass and horn-EQ
- Crossover filters to fourth order, including Butterworth, Bessel and Linkwitz-Riley alignments
- Delay of up to 2.5 seconds on each input and output with sample period resolution
- Gate and compressor on every input
- Compressor/limiter on every output
- Digitally controlled analog input and output level controls for maximum dynamic range
• 4 audio-triggered, priority mute buses
- Automix capability
- Signal generator
- Copy/Paste of input and output settings
- Preset storage and recall (8 internal preset locations)

This document provides an overview of the features and functions of these products and details pertaining to installation. For additional information pertaining to the processing functions and screen controls, download the Graphical User Interface at http://aa.peavey.com/download/. The Help screens provide useful information.

digitool™ LIVE digital programmate audio multi processor parameter menu function adjust program set inputs 1 2 3 4 5 6 7 8 output 1 2 3 4 5 6 7 8 input 1 2 3 4 5 6 7 8 input 1 2 3 4 5 6 7 8 input 1 2 3 4 5 6 7 8 input 1 2 3 4 5 6 7 8 input 1 2 3 4 5 6 7 8 input 1 2 3 4 6 7 8 input 1 2 3 4 6 7 8 input 1 2 3 4 6 7 8 input 1 2 3 4 6 7 8 input 1 2 3 4 6 7 8 input 1 2 3 4 6 7 8 input 1 2 3 4 6 8 input 1 2 3 4 6 8 input 1 2 3 4 6 8 input 1 2 3 4 6 8 input 1 2 3 4 6 8 input 1 2 3 4 6 8 input 1 2 3 4 6 8 input 1 2 3 4 6 9 input 1 2 3 4 6 9 input 1 2 3 4 6 9 input 1 2 3 4 6 9 input 1 2 3 4 6 9 input 1 2 3 4 6 9 input 1.20000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

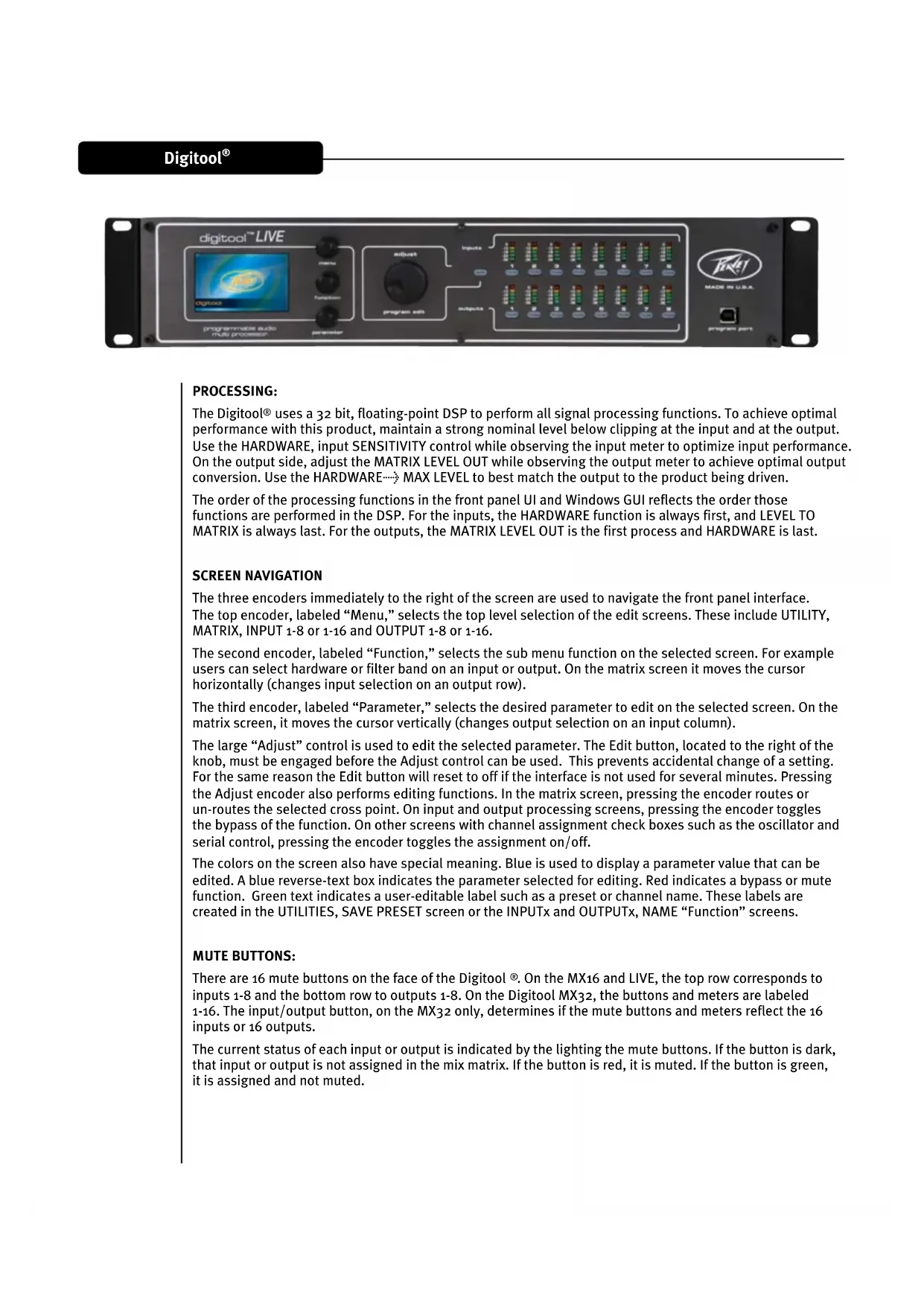

PROCESSING:

The Digitool® uses a 32 bit, floating-point DSP to perform all signal processing functions. To achieve optimal performance with this product, maintain a strong nominal level below clipping at the input and at the output. Use the HARDWARE, input SENSITIVITY control while observing the input meter to optimize input performance. On the output side, adjust the MATRIX LEVEL OUT while observing the output meter to achieve optimal output conversion. Use the HARDWARE....> MAX LEVEL to best match the output to the product being driven.

The order of the processing functions in the front panel UI and Windows GUI reflects the order those functions are performed in the DSP. For the inputs, the HARDWARE function is always first, and LEVEL TO MATRIX is always last. For the outputs, the MATRIX LEVEL OUT is the first process and HARDWARE is last.

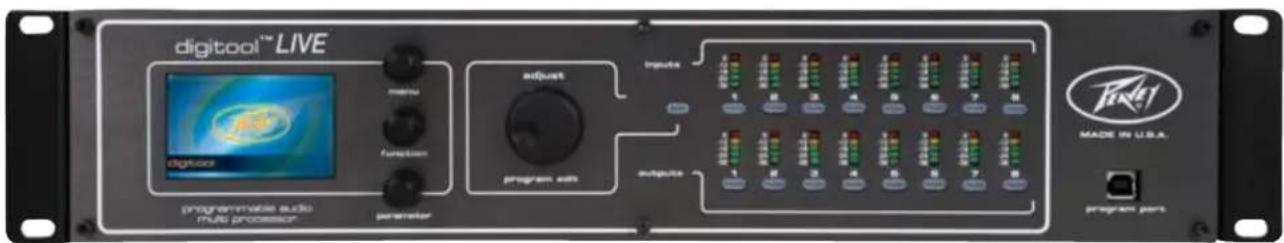

SCREEN NAVIGATION

The three encoders immediately to the right of the screen are used to navigate the front panel interface. The top encoder, labeled "Menu," selects the top level selection of the edit screens. These include UTILITY, MATRIX, INPUT 1-8 or 1-16 and OUTPUT 1-8 or 1-16.

The second encoder, labeled "Function," selects the sub menu function on the selected screen. For example users can select hardware or filter band on an input or output. On the matrix screen it moves the cursor horizontally (changes input selection on an output row).

The third encoder, labeled "Parameter," selects the desired parameter to edit on the selected screen. On the matrix screen, it moves the cursor vertically (changes output selection on an input column).

The large “Adjust” control is used to edit the selected parameter. The Edit button, located to the right of the knob, must be engaged before the Adjust control can be used. This prevents accidental change of a setting. For the same reason the Edit button will reset to off if the interface is not used for several minutes. Pressing the Adjust encoder also performs editing functions. In the matrix screen, pressing the encoder routes or un-routes the selected cross point. On input and output processing screens, pressing the encoder toggles the bypass of the function. On other screens with channel assignment check boxes such as the oscillator and serial control, pressing the encoder toggles the assignment on/off.

The colors on the screen also have special meaning. Blue is used to display a parameter value that can be edited. A blue reverse-text box indicates the parameter selected for editing. Red indicates a bypass or mute function. Green text indicates a user-editable label such as a preset or channel name. These labels are created in the UTILITIES, SAVE PRESET screen or the INPUTx and OUTPUTx, NAME "Function" screens.

MUTE BUTTONS:

There are 16 mute buttons on the face of the Digitool ^® . On the MX16 and LIVE, the top row corresponds to inputs 1-8 and the bottom row to outputs 1-8. On the Digitool MX32, the buttons and meters are labeled 1-16. The input/output button, on the MX32 only, determines if the mute buttons and meters reflect the 16 inputs or 16 outputs.

The current status of each input or output is indicated by the lighting the mute buttons. If the button is dark, that input or output is not assigned in the mix matrix. If the button is red, it is muted. If the button is green, it is assigned and not muted.

METERS:

As described in the mute button section above, the top row of meters display the input level of the eight inputs in the MX16 and LIVE. On the MX32, the input/output select button determines the function of the meters and mute buttons. When inputs are selected (green LED labeled “Inputs” is lit), all 16 inputs are simultaneously displayed. When the yellow “Outputs” LED is lit, all 16 outputs are displayed.

The input meters indicate the signal level after analog to digital conversion. The input processing does not affect the meter reading. The meter aids in setting the hardware input sensitivity and is referenced to digital full-scale (the input clip point) of the converter. The “0” LED illuminates a couple of dB prior to the onset of clipping to give a warning in advance of actual clipping. The input meter is not affected by the input mute.

The output meters indicate the signal level just prior to conversion from digital to analog. All processing within the Digitool will be reflected in the meter level. However, the MAX OUTPUT LEVEL, HARDWARE control does not affect the meter. The meter indicates the approximate signal level below the max output level set in hardware. The “0” LED illuminates a couple of dB prior to the onset of clipping to give a warning in advance of actual clipping.

USB PORT:

This port can be used for connection to a computer for external setup and control of the Digitool. A program for setting and controlling the Digitool is available as a free download on line at http://aa.peavey.com/download/. Instructions for download and installation can be found on this site.

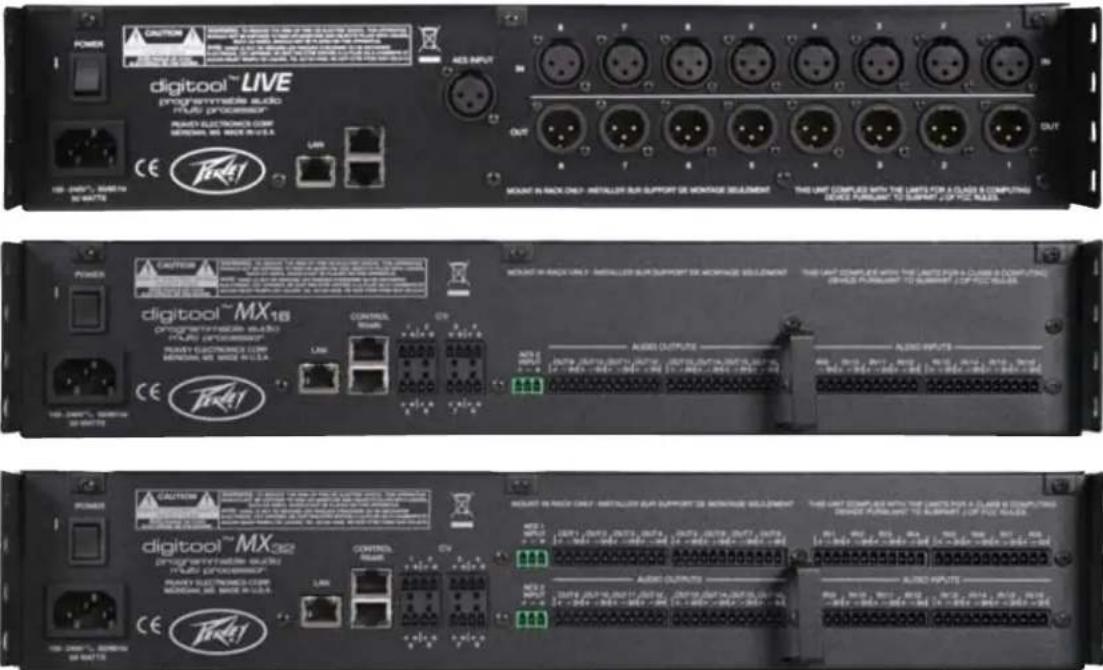

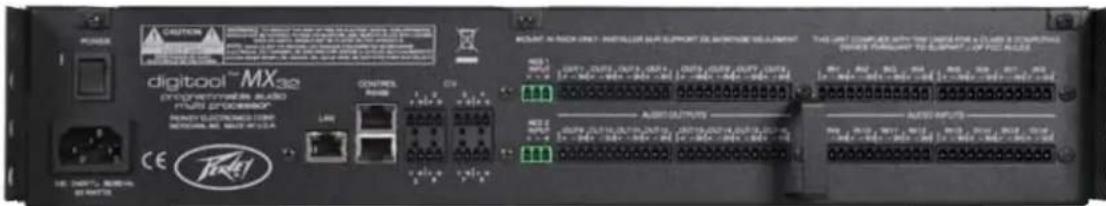

DIGITOOL BACK PANEL:

DIGITOL™ LIVE OPTICAL ELECTRONICS MEMS TYPE OPOTOCOMY POWER ELECTRONICS COM GENERAL BE BACK IN U.S.A. CE LAN MOUNT IN BACK ONLY - INSTALLER OUT SUPPORT DE MONTAGE SEALMENT OUT THE UNIT COMPUS AT THE LIMIT FOR A CLASS & COMPUTING BEET PURCHAT TO CARRY OF THE DATA. DIGITOL™ MX16 OPTICAL ELECTRONICS MEMS GENERAL BE BACK IN U.S.A. CE LAN MOUNT IN BACK ONLY - INSTALLER OUT SUPPORT DE MONTAGE SEALMENT ALL-LED OUTPUT MKT 1 DATA OUTPUT (DATA) OUTPUT MKT 2 DATA OUTPUT (DATA) OUTPUT MKT 3 DATA OUTPUT (DATA) OUTPUT MKT 4 DATA OUTPUT (DATA) OUTPUT MKT 5 DATA OUTPUT (DATA) OUTPUT MKT 6 DATA OUTPUT (DATA) OUTPUT MKT 7 DATA OUTPUT (DATA) OUTPUT MKT 8 DATA OUTPUT (DATA) OUTPUT MKT 9 DATA OUTPUT (DATA) OUTPUT MKT 10 DATA OUTPUT (DATA) OUTPUT MKT 11 DATA OUTPUT (DATA) OUTPUT MKT 12 DATA OUTPUT (DATA) OUTPUT MKT 13 DATA OUTPUT (DATA) OUTPUT MKT 14 DATA OUTPUT (DATA) OUTPUT MKT 15 DATA OUTPUT (DATA) OUTPUT MKT 16 DATA OUTPUT (DATA) OUTPUT MKT 17 DATA OUTPUT (DATA) OUTPUT MKT 18 DATA OUTPUT (DATA) OUTPUT MKT 19 DATA OUTPUT (DATA) OUTPUT MKT 20 DATA OUTPUT (DATA) OUTPUT MKT 21 DATA OUTPUT (DATA) OUTPUT MKT 22 DATA OUTPUT (DATA) OUTPUT MKT 23 DATA OUTPUT (DATA) OUTPUT MKT 24 DATA OUTPUT (DATA) OUTPUT MKT 25 DATA OUTPUT (DATA) OUTPUT MKT 26 DATA OUTPUT (DATA) OUTPUT MKT 27 DATA OUTPUT (DATA) OUTPUT MKT 28 DATA OUTPUT (DATA) OUTPUT MKT 29 DATA OUTPUT (DATA) OUTPUT MKT 30 DATA OUTPUT (DATA) OUTPUT MKT 31 DATA OUTPUT (DATA) OUTPUT MKT 32 DATA OUTPUT (DATA) OUTPUT MKT 33 DATA OUTPUT (DATA) OUTPUT MKT 34 DATA OUTPUT (DATA) OUTPUT MKT 35 DATA OUTPUT (DATA) OUTPUT MKT 36 DATA OUTPUT (DATA) OUTPUT MKT 37 DATA OUTPUT (DATA) OUTPUT MKT 38 DATA OUTPUT (DATA) OUTPUT MKT 39 DATA OUTPUT (DATA) OUTPUT MKT 40 DATA OUTPUT (DATA) OUTPUT

Power Inlet: IEC inlet 100-240 VAC 50/60 Hz

AUDIO INPUTS:

All of the Digitool® audio inputs are balanced. The input sensitivity can be adjusted in the Input menu under the HARDWARE function. The sensitivity is continuously adjustable from line level to mic. +48 V phantom power can also be enabled on that screen. Remember, it is always a good idea to mute the input whenever you engage or disengage phantom power. Unbalanced sources can be connected to a Digitool input by connecting the signal to the (+) input and shield to (-). If a ground reference is needed for the input source, the shield can also be connected to the ground connection. However, do not engage the +48 phantom power on inputs with unbalanced sources. This could result in damage to that source.

AES INPUT:

The Digitool has a stereo AES/EBU receiver that accepts AES3 encoded, stereo digital audio. It has an integrated wide-range sample rate converter that will accept common audio sample rates up to 192 kHz. The converter has a 140 dB dynamic range. The AES input can be selected on the input HARDWARE screen in odd/even channel pairs.

AUDIO OUTPUTS:

The audio outputs are servo balanced. This ensures that the output level is the same when driving a balanced or properly connected unbalanced input. The maximum output level produced by a full scale digital signal, measured in dBu, can be set in the OUTPUTx menu, HARDWARE screen. This adjusts the gain of the output circuitry after digital to analog conversion so that dynamic range can be maximized. If it is necessary to drive an unbalanced input, the (+) output terminal is typically connected to the receiving product's signal input and the shield to ground. The (-) output terminal should be connected to ground at the Digitool output terminals.

CONTROL RS-485 PORT:

For convenience, there are two RJ-45 connectors connected to the Digitool RS-485 control port. This port is used to connect serial controller products such as the Peavey Architectural Acoustics D1V and D4S. The function of these controllers is programmed within the Digitool and can be used to adjust signal levels, mute signals and recall system presets. The Digitool provides limited power on this connector to supply connected remote modules. See the specifications section for details.

The D4S has two different control modes. "Switch mode" commands are used to perform mute functions. "Trigger mode" commands are used to recall presets. The D4S and D1V each can serve 4 consecutive device ID numbers (With the dip switches on those control modules set to 1 for example, serial control IDs 1-4 can be controlled by that module. See the manual of the wall control module for details).

CV:

There are eight control-voltage (CV) ports on the rear of the Digitool. These inputs have an internal voltage supply that simplifies connection of an external control. A switch or potentiometer (variable resistor) can be directly connected between the (+) and the GND terminals of a CV input. If a potentiometer is used, a value of 10 k Ohms or less is recommended. Closing the switch, setting the potentiometer for minimum resistance or inputting oV, sets the selected CV control to maximum level or un-mute.

The CV input can also be controlled by an external voltage. Driving the + input from a low impedance voltage source, overrides the internal supply allowing the external voltage to take control. The external voltage source should be from 0 to +10 Volts referenced to the ground terminal.

SECURITY:

There are several levels of security that can be activated on your Digitool. These include the ability to lock local editing, remote editing and the front panel mute buttons. The security setup screen is located under the UTILITIES menu. The default password is 1234. When you lock the Digitool, be sure to change the password and store that password in a safe place. If you encounter problems, contact Peavey Digitool support at [e-mail]

DIGITOOL® MX16/32/LIVE SPECS

AUDIO INPUTS:

Circuitry: Balanced

Max Input Level: +24dBu (determined by sensitivity setting)

Max Sensitivity for Full Scale: -40dBu

Source Select: Mic/Line, AES-R (even channels), AES-L (odd channels)

Sensitivity Settings: -39 dBu to +24 dBu in 12 dB steps

Input Impedance: 24 dBu to -6 dBu sensitivity setting = 10K Balanced (LINE)

-7 dBu to -40 dBu sensitivity setting = 2.2K Balanced (MIC)

Phantom Power: +48V, enabled per channel

Crosstalk: Better than 70 dB (@ 1kHz)

Common Mode Rejection: Better than 70 dB (@1k Hz)

Equivalent Input Noise: (EIN) -124 dBu 150 Ohm source. 22 Hz to 22 kHz un-weighted

ADC Dynamic Range: 109 dB un-weighted

112 dB A-weighted

AUDIO OUTPUTS:

Circuitry: Enhanced servo balanced.

Maximum Output Level: +24 dBu (determined by output level setting)

Max Output Level Settings: 24 dBu to +24 dBu

Output Impedance: 100 ohms, balanced, 50 ohms unbalanced

DAC Dynamic Range: 110 dB un-weighted

113 dB A-weighted

I/O CONNECTORS:

MX16 & 32: Euro plug 3.81mm (0.150") Pluggable terminal block

LIVE: XLR, Pin 2 Hot

ANALOG INPUT TO OUTPUT:

Total Harmonic Distortion: < .01% Input to Output, one channel assigned, 22-22kHz BW

Frequency Response: 10Hz to 20kHz +/- 0.5% dB

Latency: 1.7 msec (analog input to analog output)

METERING:

Sixteen 5-Segment Arrays: 8 input and 8 output MX16/LIVE

16 input or 16 output (switchable) MX32

Meter levels (dBFS): -36 dB, -24 dB, -18 dB (GREEN); -12 dB (YELLOW); 0 dB (RED)

Input levels are taken at the ADC outputs, before the mutes.

Output levels are taken at the DAC inputs, not at the connectors.

(The maximum output level adjustment is after the DAC.)

DIGITAL:

Internal Sample Rate: 48kHz

AES Input: Sample rate converted. Accepts 24 kHz to 192 kHz sample rates

Delay: Up to 2.5 Seconds on every input and output with 20.8 uS resolution.

Distance calculation on delay screens based on speed of sound=1130 ft/Sec

CONTROL:

Serial (RS-485): Half-Duplex 57.6 kBaud, 1 port with 2 multiple drop RJ-45 connectors.

+15V, 250mA power is provided on the connector. (+15V pin 4, Gnd pin 5) If more power is required,

it must be externally sourced.

ETHERNET: 10BaseT/100BaseT, address is DHCP or Static

USB: 2.0 Full speed, "B" connector

CV Inputs: o to 10V with an external voltage applied, or remote passive potentiometer

GENERAL:

Dimensions: 19" W x 13.125" D x 3.5" H (48.26cm x 33.34cm x 8.89cm)

Shipping: 22.5" x 21" x 6.625" carton, 15 lbs

Net Weight: 11 lbs. (5 kg)

AC Power Input Voltage: 100 VAC to 240 VAC, 47Hz to 63Hz universal power supply

Power Consumption: 20Watts (MX16/LIVE), 35Watts (MX32)

DEUTSCH

LIVE: XLR, Pin 2 Hot

ANALOG-EINGANG ZU AUSGANG:

DIGITOL™ LIVE PROGRAMMER BLADE PUJG PROGRAMMER PEACH ELECTRONICS CORP MOUNTING AS: WHITE / U.S.A. CE LAN OUT BEET INPUT BEET OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIRS OUTPUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR SOUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S OUT AIR S INCHINIC AIR SOUT AIR SOUT CUSTO WITH THE LIME FOR A ORDER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BEET INPUT ONLY INSTALLER RUN SUPPORT OF MOUNTING RADIUS. BEET OUTPUT ONLY INSTALLER RUN SUPPORT OF MOUNTING RADIUS. BEET OUTPUT CUSTO WITH THE LIME FOR A ORDER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BEET OUTPUT CUSTO WITH THE LIME FOR A ORDER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BEET OUTPUT CUSTO WITH THE LIME FOR A ORDER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BEET OUTPUT CUSTO WITH THE LIME FOR A ORDER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BEET OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BEET OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BEET OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BEET OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BUTTER OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BUTTER OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BUTTER OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BUTTER OUTPUT CUSTO WITH THE LIME FOR A LOWER IN ComputING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BUTTER OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING SERVICE PURSUANT TO CURRENT OFFICE RADIUS. BUTTER OUTPUT CUSTO WITH THE LIME FOR A LOWER IN COMPUTING

LIVE: XLR, Pin 2 Hot

INGRESSO ANALOGICO VERSO L'USCITA:

Consumo elettrico: 20Watt (MX16/LIVE), 35Watt (MX32)

ESPAÑOL

Digitool® MX16, MX32 y LIVE

DIGITOL™ LIVE OPTICENTIVE BLOCK PANER PROCOMBER PLAINT ELECTRICAL CAMP MINIMAL AIR MADE IN U.S.A. CE LINE OUT OUT DALE INPUT COMPACT WITH THE LIGHTS FOR A PLANE & COMPUTING ORANGE PURSUANT TO CIRCUATE OF PCC RATES. DIGITOL™ MX16 (OBJECTIVE AUDIO) PANER PROCOMBER PLAINT ELECTRICAL CAMP MINIMAL AIR MADE IN U.S.A. CE LINE CONTROL POWER DALE OUTPUTS DALE INPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE INPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE INPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUTS DALE OUTPUT SUTTER MUX160000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Entrada de energia: entrada IEC 100-240 VAC 50/60 Hz

ENTRADAS DE ÁUDIO:

USB: 2.0 Full speed, conector "B"

Dimensões: 19" W x 13,125" D x 3.5" H (48,26cm x 33,34cm x 8,89cm)

LIVE: XLR, Pin 2 Hot

ANALOG INGÅNG TILL UTGÅNG:

Nettovikt: 11 lbs. (5 kg)

Nettopaino: 11 lbs. (5 kg)

Virrankulutus: 20 W (MX16/LIVE), 35 W (MX32)

中文

DIGITOL™ MX18 (PROFESSIONAL ELECTR) PAN 20000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 UNIT: 436.5 MHz CE TREY AEROS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACross OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACROSS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACONS OUTPUTS ACON 21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/21/

DIGITOL™ MX32 programmable audio Multi processor CE Fokel 10: 24/07. 50 MHz 24: 18/07. 50 MHz Control RANGE DIN AUST OUTPUTS DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data Data

电源插座:IEC标准插口,100-240伏交流电,50/60赫兹

音频输入：

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian • MS • 39305

[phone] • FAX [phone] • www.peavey.com • ©2012 • 31700076

PEAVEY ELECTRONICS CORPORATION LIMITED WARRANTY

Effective Date: 11/01/2011

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category Duration
Guitars/Basses, Amplifiers, Preamplifiers, Mixers, Electronic Crossovers and Equalizers 2 years *(+ 3 years)
Drums 2 years *(+ 1 year)
Enclosures 3 years *(+ 2 years)
Digital Effect Devices and Keyboards and MIDI Controllers 1 years *(+ 1 year)
Microphones 2 years
Speaker Components 1 year(incl. Speakers, Baskets, Drivers, Diaphragm Replacement Kits and Passive Crossovers)
Tubes and Meters	90 Days
Cables Limited Lifetime
AmpKit Link, Xport, Rockmaster Series, Strum'n Fun, RetroFire, GT & BT Series Amps	1 year
Marvel Jr. Guitar	90 Days

[* Denotes additional Warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by Warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for Warranty service, the consumer must pay initial shipping charges. If the repairs are covered by Warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. OR

(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of Warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied Warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this Warranty or services received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone].

Features and specifications are subject to change without notice.

U.S. CUSTOMER WARRANTY REGISTRATION

Optional Product Extended Warranty Registration

Give us some information and put your extended warranty into effect!

Please take a few minutes to fill out this information/survey sheet to help us get to know and serve you better.

To save time, submit your warranty registration online at www.peavey.com/support/warrantyregistration

1.

First Name Initial Last Name

Street Address

City State/Province Postal Code

( )

Telephone Number E-mail Address

( ) - -

Fax Number Date of birth

Gender □M □F

2.

Model ____ Serial #

Date of Purchase Price Paid

3.

Name of store where purchased

City State

1. Top two (2) reasons why you purchased from this store/dealer:

□ Availability of product	□ Past favorable experience
□ Friend/Relative's recommendation	□ Best price
□ Store credit card	□ Advertised special
□ Knowledgeable staff	□ Convenient location
□ Availability of lessons	□ Received as a gift
□ Technical instruction	□ Other____

1. Where do you most often shop for music and sound products?

□ Independent retailer □ Newspaper ads

□ Mass market retailer □ Internet/Web sites

□ Mail order magazines □ Other.

1. What two (2) factors most influenced your purchase of this product?

☐ Peavey brand name ☐ Product appearance

Craftsmanship Durability

□ Features for price □ Prior experience with Peavey

□ Bundled accessories □ Packaging

□ Sound quality □ Other.

1. How did you learn about this Peavey product? (select best answer)

□ Magazine review	□ Teacher's recommendation
□ Newspaper review	□ Catalog or flyer
□ Radio advertisement	□ Saw in store
□ Advertised special	□ Use by professional
□ Friend/Relative's recommendation	□ Other ____
□ Salesperson's recommendation

1. Which other brands/models did you consider?

2. How would you describe your level of musicianship/technical expertise?

☐ Beginner - Never played or taken less than one (1) year of lessons

☐ Intermediate - One (1) to five (5) years of lessons or playing

☐ Advanced - More than five (5) years of lessons or playing; play professionally

1. Education: (select best answer)

□ High school

Some college

□ Completed college

□ Graduate school

1. Which best describe your family income? (select best answer)

☐ Under \15,000 ☐ \75,000 - \$99,999

□ \15,000 - \24,999 □ \100,000 - \149,999

☐ \25,000 - \34,999 ☐ Over - \$150,000

□ \35,000 - \49,999

□ \50,000 - \74,999

1. Which of the following is your primary source of information on musical products: (select best answer)

□ Television □ Mail order catalogs

□ Radio □ Direct mail

□ Internet □ Literature from manufacturer

□ Newspaper □ Other

□ Magazines

1. What is your main motivation for buying new equipment?

□ Replacing old product □ Impulse

□ Want new and leading edge □ Need for improved performance

equipment □ New technology

☐ Fullfill a specific need ☐ Availability of product

□ Supplement existing products □ Other

Value

1. Please list your three most frequently visited Web sites.

2. http://

3. http://

4. http://

5. In your opinion, what could Peavey do to improve its products and/or service? Please use the space below to tell us your answer.

Meridian, Ms 39302-5108

P.O. Box 5108

Attn: Warranty Department

Corporation

Peaey Electronics

Abstract black-and-white graphic design resembling stylized mountain peaks or a stylized bird (no text or symbols)

Here Postage Place
