Product Type	Ultrasonic Humidifier / Aroma Diffuser
Brand	CAMRY
Model	CR 7970
Power Supply	24 V DC, 0.5 A (12 W) via power adapter
Mains Voltage	220-240 V ~ 50 Hz
Water Tank Capacity	100 ml
Misting Capacity	20-30 ml/hour
Ultrasonic Frequency	2.4 MHz
Misting Modes	Continuous and intermittent (30 seconds on/off)
Lighting	Warm LED with light mode and dimmer
Automatic Shut-off	Yes, when water is absent
Essential Oils Usage	All essential oils, aromatic oils, complex oils, scented water
Recommended Oil Dosage	0.10 to 0.15 ml per 100 ml of water
Cleaning	Every 3 days with mild detergent and soft cloth
Descaling	Diluted white vinegar, rinse with clean water
Prohibited Maintenance	Do not use medical diluent phenylethanol
Safety	Usable by children over 8 years under supervision; do not immerse; do not cover the air outlet
In Case of Spillage	Unplug, empty water, air dry for 24 hours
Included Accessories	Power adapter
Usage	Household only, on a flat and stable surface

Frequently Asked Questions - CR 7970 CAMRY

How to turn on the device and choose the misting mode?

Plug in the power adapter. Press the right button MIST once for continuous misting. Press a second time for intermittent mode (30s on/off). A third time stops misting.

How much water and essential oil to add?

Fill the water tank up to 100 ml maximum. Add 0.10 to 0.15 ml of essential oil per 100 ml of water. Use cold or lukewarm water.

What to do if the device turns off immediately after pressing MIST?

Check that there is enough water in the tank (minimum required). Make sure the adapter is properly connected. If the water level is too low, the device turns off automatically.

How to clean the diffuser?

Unplug the device. Open the top cover, empty remaining water. Clean with a soft cloth moistened with warm water and mild detergent. Rinse and dry. Perform this cleaning every 3 days.

Can I use any essential oil?

Yes, all essential oils, aromatic oils, complex oils, or scented waters are suitable. Respect the recommended dosage to avoid discoloration.

How to activate the LED light?

Press the left button LIGHT. A first press turns on the warm light in light mode. A second press switches to dimmer mode. A third press turns off the light.

What to do in case of water leakage?

Immediately unplug the device. Open the top cover and empty remaining water. Shake gently to remove internal water through the drain hole. Let air dry for 24 hours before reuse.

Why is the mist weak or irregular?

Check the water level: too low or too high can cause irregular mist. Clean the ultrasonic chip (K) and air inlets (H) if dirty. Ensure ambient temperature and humidity are normal.

How to descale the device?

Add diluted white vinegar to the water tank to dissolve limescale. Let it sit, then rinse thoroughly with clean water. Wipe with a soft cloth. Never use strong cleaners.

Can the device be used continuously?

It is recommended to turn off the device after a long period of use and let it rest for 60 minutes to avoid damaging the ultrasonic chip.

USER MANUAL CR 7970 CAMRY

White digital air purifier with diamond-shaped mesh top and control buttons labeled LIGHT, MIST, and carry (no text or symbols on body)

CR 7970

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Warranty conditions are different if the device is used for commercial purposes.

1. Before using the device, read the user manual and follow the instructions contained therein. The manufacturer is not liable for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for home use only. Do not use it for other purposes that are inconsistent with its intended use.
3. The device should only be connected to a 220-240 V \~ 50 Hz power socket. In order to increase the safety of use, many electrical devices should not be connected to one power circuit at the same time.
4. Be especially careful when using the device when children are around. Do not allow children to play with the device and do not allow children or people unfamiliar with the device to use it.
5. WARNING: This equipment can be used by children over 8 years of age and persons with reduced physical, sensory or mental abilities, or persons without experience or knowledge of the equipment, if it is carried out under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and user maintenance should not be performed by children, unless they are over 8 years of age and are supervised.
6. Always remove the plug from the power socket after use by holding the power socket with your hand. DO NOT pull on the net cord.
7. Do not immerse the cord, plug or the entire appliance in water or any other liquid. Do not expose the device to weather conditions (rain, sun, etc.) or use it in high humidity conditions (bathrooms, damp mobile homes).
8. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair facility in order to avoid a hazard.
9. Do not use the appliance with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as it may cause electric shock. Return the damaged device to the appropriate service center for inspection or repair. Any repairs may only be made by authorized service points. Improperly performed repair may result in serious danger to the user.
10. Place the appliance on a cool, stable, level surface, away from heating appliances such as electric cookers, gas burners, etc.
11. Do not use the device near flammable materials.
12. The power cord must not hang over the edge of the table or touch hot surfaces.
13. Do not leave the device switched on or the mains adapter unattended.
14. For additional protection, it is advisable to install a residual current device (RCD) in the

electrical circuit with a rated residual current not exceeding 30 mA. Please consult an electrician for this.

1. It is forbidden to insert fingers or any other objects into openings in the device casing.
2. Do not cover the discharge opening.
3. After finishing work, empty the device of water before storing it away.
4. If the device will not be used for a long time, disconnect it from the mains.
5. Do not move the machine when there is water in the internal tank.
6. Do not place any objects on the device.
7. The device should only be used with recommended fragrances. The use of other substances may result in a toxic or fire hazard.
8. The device may only be used with efficient ventilation.
9. An unusual smell, noise, or abnormal heating indicates a product or power adapter failure, immediately remove the power adapter from the wall outlet and stop using the device.
10. Please do not put the adapter in water or use it when it is wet. Do not store the power supply in a damp place.

BEFORE FIRST USE

1. Keep in mind that high humidity levels can encourage the growth of biological organisms in the environment.
2. Do not allow the area around the device to become damp or wet. If moisture occurs, lower (reduce) the mist output. Do not allow absorbent materials such as carpets, curtains, tablecloths to get wet.
3. Place this device on a flat surface. Do not place this product on a carpet, rug or other uneven place.
4. Do not place this device near electrical appliances such as TV or sound equipment, etc. Do not let it splash directly on furniture, clothes or walls, etc.

Through the ultrasonic wave, the diffuser breaks the water and essential oil into tiny particles a cold mist diffuses a fresh aroma.

WHICH OIL TO CHOOSE?

This aroma diffuser requires the use of water. There are no restrictions on what kind of oil is added to the water, both essential oil/aroma oil/complex oils / fragrance water are suitable for use.

PRODUCT DESCRIPTION: Aroma Diffuser CR 7970

A. Spray nozzle

B. Top cover

C. Inner cover

D. Air outlet

E. Water tank

F. Housing

G1. Spray button "MIST

G2. Blacklight button "LIGHT"

H. Air inlet

I. DC connector

J. Drain hole

K. Chip spraying ultrasonic waves

USE

Place the device in the place of intended use and do not move it during use.

1. Hold the product upright and remove the top cover (B) vertically. (Fig.1)

2. Connect the DC plug of the power adapter to the DC connector of the device (I). (Fig.2)

3. Add water to the water tank (E) using a measuring cup / glass and do not exceed the maximum water level equal to a volume of 100 ml. Only tap water or purified water is suitable for this product. Do not add water during use when the device is running. (Fig.3) Only add cold or lukewarm water. Pour the aroma oil into the water tank. The recommended dose is 0.10-0.15 ml per 100 ml of water. Essential oil can cause discoloration. If it accidentally spills, wipe it off quickly with a cloth.

NOTE: Do not block the spray nozzle to avoid damaging the product.

1. Replace the top cover (B) vertically to keep the diffuser tight. (Fig.4)

Note: The top cover (B) should be closed before use.

1. Connect the plug of the AC adapter to the power socket, the device is now in standby mode.

SPRAY ADJUSTMENT: button G1.

• Press the spray button (right button) "MIST" once: the device sprays the mist continuously until the device switches off automatically due to the consumption of water previously poured in.
• Press the spray button (right button) "MIST" again: the device will switch to intermittent mode. It will alternately generate mist for 30 seconds and stop producing mist for another 30 seconds. The cycles will repeat until the water in the tank runs out, then the device will turn off automatically.

- Press the spray button (right button) "MIST" a third time: the device stops generating mist. (Fig.5)

LIGHT ADJUSTMENT: button G2.

- Press the backlight button (left button) "LIGHT" once: you will turn on the warm light in bright mode,

- Press the backlight button (left button) "LIGHT" again: you will turn on the warm light in dimmer mode.

- Press the backlight button (left button) "LIGHT" a third time: the light will be turned off. (Fig.6)

1. If there is no water in the water tank (E), the diffuser will be turned off automatically even when you press the spray button.

2. The product cannot be used if there is no water in the water tank (E).

NOTE: The mist concentration may vary slightly, which is normal. Different types of water, humidity, temperature and air velocity affect spray intensity.

1. Before replacing with another oil, please clean the device according to the maintenance instructions.

2. Never leave water in the tank (E), when the device is not in use.

3. After working for a long time, turn it off for 60 minutes to avoid damaging the ultrasonic wave chip restart it.

ACCIDENTAL LEAK

If you accidentally knock over this device during use, follow these steps:

1. Turn off the power. Detach the device and open the top cover (B) to pour out all the remaining water from the water tank (E).
2. Gently shake the device to drain the internal water through the drainage hole (J) in the base.
3. Air dry the device in a safe place for 24 hours.

DESCALING

If the aroma diffuser has scale sediment caused by water, can add white vinegar to the water to dissolve the scale and then rinse with water. Then, use soft cloth to wipe the water. Never use strong cleansing agent.

TROUBLESHOOTING

If this product is not working normally, please follow these steps for self-troubleshooting before sending the return to the seller:

PROBLEM 1: The product automatically turns off in one second when the spray button "MIST" G1 is turned on.

POSSIBLE CAUSE: Inadequate amount of water.

SOLUTION: Please add water to the water tank.

POSSIBLE CAUSE: The power adapter is not connected to the device.

SOLUTION: Make sure the power adapter is connected to the product. To check whether the connection is successful, please remove the plug from this product and reconnect it

PROBLEM 2: No spray or abnormal spray

POSSIBLE CAUSE: Inadequate amount of water.

SOLUTION: Please add water to the water tank if there is not enough. If the water level inside the water tank is higher than the maximum water level mark, the mist will be sprayed irregularly, abnormally. Drain the water so that it is below the "MAX" level.

POSSIBLE CAUSE: The ultrasonic spray chip (K) is dirty.

SOLUTION: Please clean the water tank (E) and chip (K).

POSSIBLE CAUSE: Lower air inlet holes (H) are dusty.

SOLUTION: If the air inlet holes (H) are dusty, the volume of air drawn in will be reduced significantly and the air momentum will not be enough to spray the mist. Clean the air intake.

PROBLEM 3: Leakage

POSSIBLE CAUSE: Inner (C) and top cover (B) are not closed properly.

SOLUTION: Close both covers securely.

POSSIBLE CAUSE: Room temperature is too low or humidity is too high.

SOLUTION: If the temperature or humidity of the working environment is too low or too high, mist and water drops will accumulate on the surface of the device. Turn off the device.

CLEANING AND MAINTENANCE

Please clean the device according to the steps below every 3 days of use:

1. When cleaning, disconnect the device from the mains.
2. Open the top cover (B), pour out all the remaining water from the water tank by gently shaking the device.
3. Dilute a little neutral kitchen detergent in warm water, then clean the device with a cloth.
4. If you notice dirt on the inside of the air outlet (D), remove the top cover (B) and clean it.

5. Please do not use medical diluent phenylethanol for maintenance, otherwise the device may be damaged.

6. If it is not used for a long time, pour out the remaining water from the water tank (E), and store the device in a dry and cool place after cleaning.

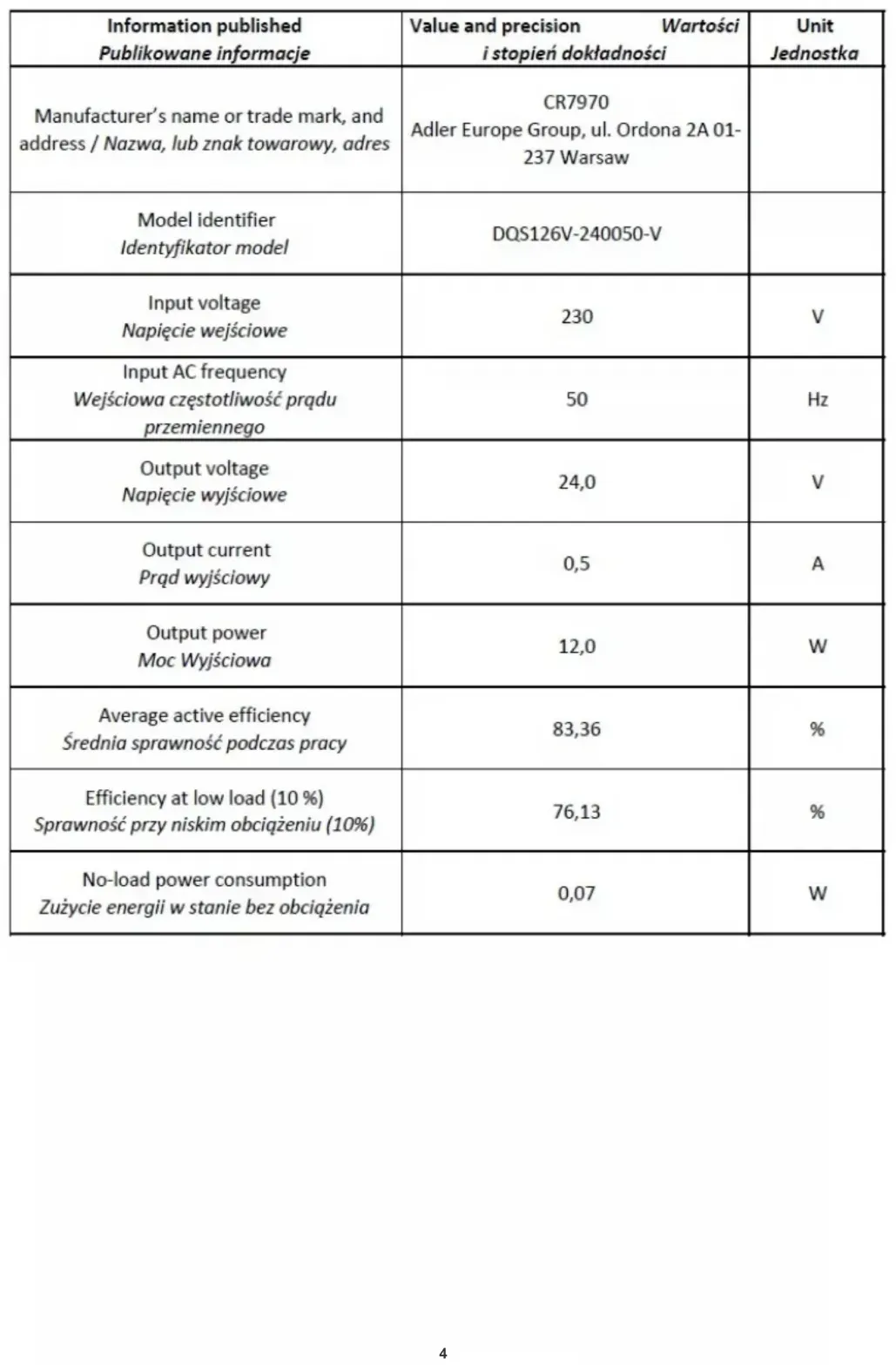

Technical data:

24V - 0.5A (12W)

Water tank volume: 100ml

Mist capacity: 20-30ml/hour

Ultrasonic frequency: 2.4MHz

Included: adapter

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
