USER MANUAL CR 7964 CAMRY

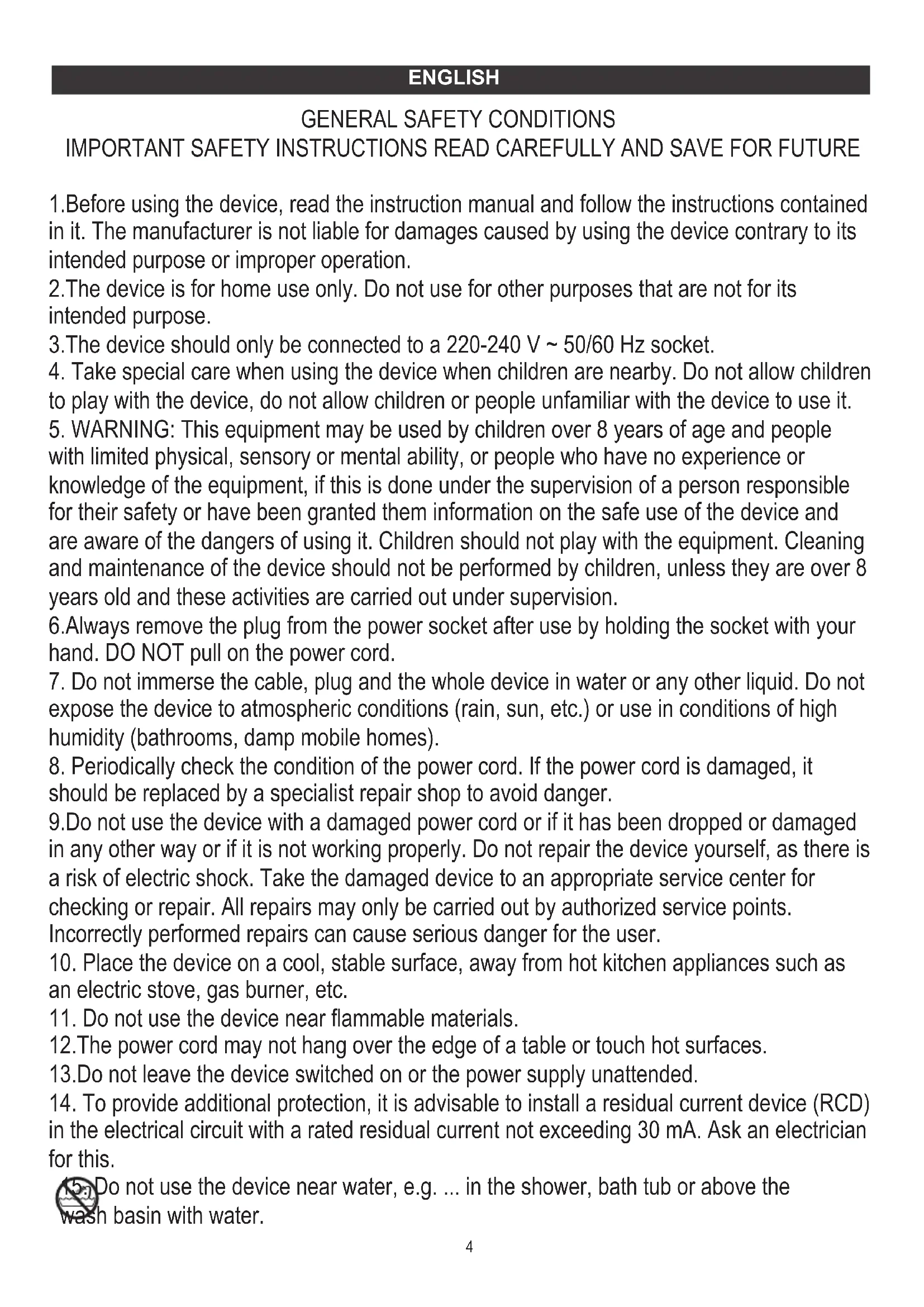

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND SAVE FOR FUTURE 1.Before using the device, read the instruction manual and follow the instructions contained in it. The manufacturer is not liable for damages caused by using the device contrary to its intended purpose or improper operation. 2.The device is for home use only. Do not use for other purposes that are not for its intended purpose. 3.The device should only be connected to a 220-240 V ~ 50/60 Hz socket.

4. Take special care when using the device when children are nearby. Do not allow children

to play with the device, do not allow children or people unfamiliar with the device to use it.

5. WARNING: This equipment may be used by children over 8 years of age and people

with limited physical, sensory or mental ability, or people who have no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or have been granted them information on the safe use of the device and are aware of the dangers of using it. Children should not play with the equipment. Cleaning and maintenance of the device should not be performed by children, unless they are over 8 years old and these activities are carried out under supervision. 6.Always remove the plug from the power socket after use by holding the socket with your hand. DO NOT pull on the power cord.

7. Do not immerse the cable, plug and the whole device in water or any other liquid. Do not

expose the device to atmospheric conditions (rain, sun, etc.) or use in conditions of high humidity (bathrooms, damp mobile homes).

8. Periodically check the condition of the power cord. If the power cord is damaged, it

should be replaced by a specialist repair shop to avoid danger. 9.Do not use the device with a damaged power cord or if it has been dropped or damaged in any other way or if it is not working properly. Do not repair the device yourself, as there is a risk of electric shock. Take the damaged device to an appropriate service center for checking or repair. All repairs may only be carried out by authorized service points. Incorrectly performed repairs can cause serious danger for the user.

10. Place the device on a cool, stable surface, away from hot kitchen appliances such as

an electric stove, gas burner, etc.

11. Do not use the device near flammable materials.

12.The power cord may not hang over the edge of a table or touch hot surfaces. 13.Do not leave the device switched on or the power supply unattended.

14. To provide additional protection, it is advisable to install a residual current device (RCD)

in the electrical circuit with a rated residual current not exceeding 30 mA. Ask an electrician for this.

15. Do not use the device near water, e.g. ... in the shower, bath tub or above the

wash basin with water.5

16. When the appliance is used in a bathroom, remove the plug from the socket after use,

as the proximity of water is a hazard even when the appliance is turned off.

17. Do not allow the device to get wet. In the event that the device falls into water,

immediately remove the plug from the wall socket. Do not put your hands in water when the machine is connected to the network. It must be checked by a qualified electrician before using it again.

18. Do not hold the device with wet hands.

19. Always turn off the device when putting it away.

20. Never turn on the device without water.

24. Do not add any chemicals to the tank, the base or the steam outlet. Do not add

aromatic oils, salts, descaling tablets, powders or cleaning substances to the water.

25. The water inlet cap / water tank cover should always be tightly closed.

26. Make sure the humidifier's mist outlet is not directed directly at walls, furniture, electrical

outlets, electrical and electronic devices, or children. Too high humidity in a room can lead to moisture accumulation, causing bacteria and fungi to grow, and damage to walls, furniture, and wallpapers.

27. Do not block the ventilation of the device. Keep a distance of at least 20 cm from the

device. Do not block the humidifier water mist outlet.

28. Do not use the device if there is a risk of condensation. Moisture can form on the inside

and outside of the device when: - the device is moved from a cold to a warm place, - the heating system has just been switched on, - the device is used in a room with high humidity, - the device is cooled by the air conditioning cooling system. When moisture condensation occurs in the device, it may not work properly or may be damaged in extreme cases. In this case, do not use the device and let it dry for a few hours.

29. Do not tilt, turn over or attempt to top up or pour water from the machine during

30. Do not remove the tank from the base of the device during operation of the humidifier.

31. The filled water tank is heavy. When carrying it, keep it underneath as well.

32. Do not use a humidifier if you find water leaks from under the device.

33. Do not leave water in the humidifier when it is not being used.

34. Clean the humidifier after each use cycle. Follow the cleaning instructions in this

35. Never allow sedimentation, moisture or water to remain in the humidifier base tank (this

may cause contamination or even damage to the ultrasonic atomizer).

36. During prolonged operation of the device, the water mist emitted by the humidifier may

fall to the floor and cause moisture.6

37. Do not lift the water tank by the water mist outlet.

38. It is prohibited to insert metal chips, wire, needles and other foreign objects into the

product or into the housing gaps, otherwise it may cause electric shock or malfunction. The device is designed to work in rooms with a temperature of 5-40 ° C and a relative humidity of 80%. DESCRIPTION OF THE DEVICE: ULTRASONIC HUMIDIFIER (picture A) A1. Water mist outlet A2. Water tank A3. Base A4. LCD Control panel A5. Water tank cover A6. Remote control A7. Water descaling filter LCD CONTROL PANEL (figure B) B1. ON / OFF button B2. humidification intensity button HUMIDIFY B3. TIMER button B4. HYGROSTAT button B5. SLEEP button B6. Timer icons 1/2/4/8 hours B7. Water shortage icon B8. Humidity and temperature indicator B9. Humidification intensity indicator 1/2/3 (low / medium / highest) USING (picture C) Make sure the device is unplugged. 1.Remove the water tank cover (A5). Remove the water tank (A2) from the base of the machine (A3) 2.Top up the water tank (A2) only when the machine is switched off from the power supply. Do not pour water into the tank above the maximum level. Do not pour water into the housing gaps shown in Figure C. 3.Place the filled water tank on the base (A3). 4.Close the water tank cover (A5). 5.Connect the device to the power supply. The device will emit a single sound and will wait for setting the operating mode. 6.Touch the power button (B1), the LCD screen will light up and the device will start working. - Continuous operation: Turn on the humidifier with the ON / OFF (B1) button. The humidity level (B9) and the current humidity and room temperature level (B8) will be displayed. The default humidification intensity level after starting is 3 (highest). To change the humidification intensity, press the HUMIFIDY (B2) button. The intensity adjustment is 3-stage, each press of the button (B2) changes the level by 1. The intensity level is visualized by the humidification intensity indicator (B9). - Delayed shutdown: to program the device off after a certain time, press the TIMER (B3) button while the device is operating. Each pressing the TIMER (B3) button will change , the programmed time cyclically: 1/2/4/8 hours. Pressing the TIMER button (B3) again to cancel the delayed shutdown setting. The selected delay time of shutdown the device is visualized by the appropriate timer icon (B6). - Constant humidity setting: While the device is operating, press the HUMIDIFY (B4) button to enter the constant humidity mode. The default setting is 45%. Each press of the button changes the programmed constant humidity within the range of 45-90% by 5%. The display in field B8. will flash the selected humidity value five times, then it will return to the displaying interchangeably present humidity and temperature in the room. The device will start when the humidity drops below the selected level from the declared value, and turn off after exceeding the programmed humidity. - Sleep mode: This product has the function of intelligent air humidification during sleep. Activates the 65% intelligent constant humidity function by touching the SLEEP button (B5) in the operating state. The humidity indicator (B8) on the screen is flashing. After 5 seconds, it automatically turns off the display screen and maintains the previously selected operating settings. After starting the sleep function, the display screen is illuminated by pressing the function button (B2 or B3 or B4) to display the current settings on the screen. If no operation is performed for 5 seconds, the screen will go blank again. To deactivate the sleep function, press the SLEEP (B5) button twice. The remote control (A6) operates the device in the same way as the control panel buttons on the device housing. Low water indication: the low water information icon (B7) will be displayed. The delayed switch-off and constant humidity setting is canceled. 7. Press the power button (B1) again so that the device stops working and goes into standby mode. Unplug the power plug.7 To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin. DEUTSCH

CLEANING AND MAINTENANCE OF THE DEVICE

1. Turn off the device and unplug the power plug from the wall socket when filling with water and cleaning.

2. Remove the water tank (A2) from the base, empty it. Do not keep the same water in the tank for more than 2 days.

3. Wash the water tank to remove settlements and dirt. Dry the tank.

4. Gently wipe the inside of the humidifier base and the water descaling filter (A7) gently to dry.

5. Replace the water descaling filter every 1-2 years. The filter is dirty and needs to be replaced when it become white color. NOTE: Do not allow the base of the humidifier to get wet in water. NOTE: Do not wash the humidifier with warm water. TECHNICAL DATA Power supply: 220-240V ~ 50 / 60Hz Power: 25 W Water tank capacity: 4.2 liters Battery remote control CR2025 1 piece Humidification capacity: max 300 ml / hour Volume: <35 Db ALLGEMEINE SICHERHEITSBEDINGUNGEN WICHTIGE SICHERHEITSHINWEISE SORGFÄLTIG DURCHLESEN UND FÜR DIE ZUKUNFT AUFBEWAHREN
