Rallybar XL - Soundbar JBL - Free user manual and instructions

Product Type	Bluetooth® Universal Soundbar for Outdoor Vehicles
Brand	JBL
Model	Rallybar XL
Dimensions (W x D x H)	897.5 x 126.7 x 118 mm (housing) / 897.5 x 135.2 x 118 mm (with brackets)
Net Weight	9.45 kg
Power Supply	9.6 - 16 V DC, 40 A fuse
Output Power	300 W RMS / 600 W peak
Transducers	8 x 70 mm woofers, 2 x 25 mm tweeters, 4 passive radiators
Frequency Response	45 Hz - 40 kHz
Signal-to-Noise Ratio	> 80 dB
Connectivity	Bluetooth 5.3, USB (FAT16/32, max 64 GB), 3.5 mm AUX input, 3.5 mm AUX output
Lighting	MAP (playback) and customizable RGB (8 patterns, 9 colors)
Special Features	Broadcast mode, Party mode (up to 2 Bluetooth devices), Demo mode, Deep sleep, Factory reset
Firmware Update	Via USB drive (FAT32/FAT16)
Box Contents	Soundbar, mounting screws, security cables, hex keys, straps, clamps, wiring harness, quick guide
Maintenance	Clean with a soft dry cloth. Avoid moisture and solvents.
Safety	Use the supplied security cable. Disconnect the battery before installation. Do not open or repair yourself.
Spare Parts and Repairability	Contact JBL customer service or an authorized dealer.

Frequently Asked Questions - Rallybar XL JBL

How to connect the soundbar via Bluetooth?

Press the Bluetooth button on the bottom panel to enter pairing mode. The indicator flashes blue. On your smartphone, select 'JBL RALLYBAR XL'. Once connected, the indicator becomes solid blue. The speaker remembers up to 8 devices.

How to install the soundbar on a vehicle?

Use the supplied mounting tabs and attach them to the soundbar in the desired positions (8 positions for XL). Mount the C-clamps and rubber strips around a vehicle tube. Tighten securely and attach the security cable to prevent falling.

How to adjust the RGB lighting?

Long press (2 seconds) the lighting button to cycle through patterns: Rock, Flow, Cross, Ripple, Flash, Static1, Static2, Mix, DIY, OFF. To customize, enter the RGB DIY menu by pressing the 'Bluetooth' and 'Play/Pause' buttons simultaneously for 2 seconds.

What to do if the soundbar does not turn on?

Check that the main power switch is set to 'ON'. Check the +12V and GND connections. Ensure the 40 A fuse near the battery is not blown. If necessary, replace it with a fuse of the same rating.

How to use Broadcast mode with multiple speakers?

Press the + and - buttons simultaneously for 2 seconds to enter Broadcast mode. Repeat on the other soundbars. The main soundbar plays music and synchronizes audio and RGB lighting. Local sources (USB, Bluetooth, AUX) can interrupt the mode.

How to perform a firmware update?

Download the latest firmware from the JBL website and copy it to a USB drive in FAT32. Turn off the soundbar. Hold the + and Bluetooth buttons while turning on the main switch. Release after 1 second to start the update.

What USB formats are supported?

The soundbar supports USB drives formatted in FAT16 or FAT32, with a maximum capacity of 64 GB. Audio files are played in alphabetical order, up to 8 subfolder levels.

How to reset the soundbar to factory settings?

Press the + and - buttons simultaneously for more than 10 seconds. The soundbar restores its factory settings.

What is the difference between Sleep and Deep Sleep modes?

Deep Sleep is activated after 15 minutes without Bluetooth or action, or 1 hour with Bluetooth inactive. In Deep Sleep, only MAP lighting can be turned on, the power indicator flashes white. Press the power button to exit Deep Sleep.

How to connect an external subwoofer?

Use the Aux-out (3.5 mm) jack on the soundbar. Connect it to the Aux-in input of an amplified subwoofer (such as the JBL BASSPRO GO). The subwoofer will then reproduce low frequencies in addition.

USER MANUAL Rallybar XL JBL

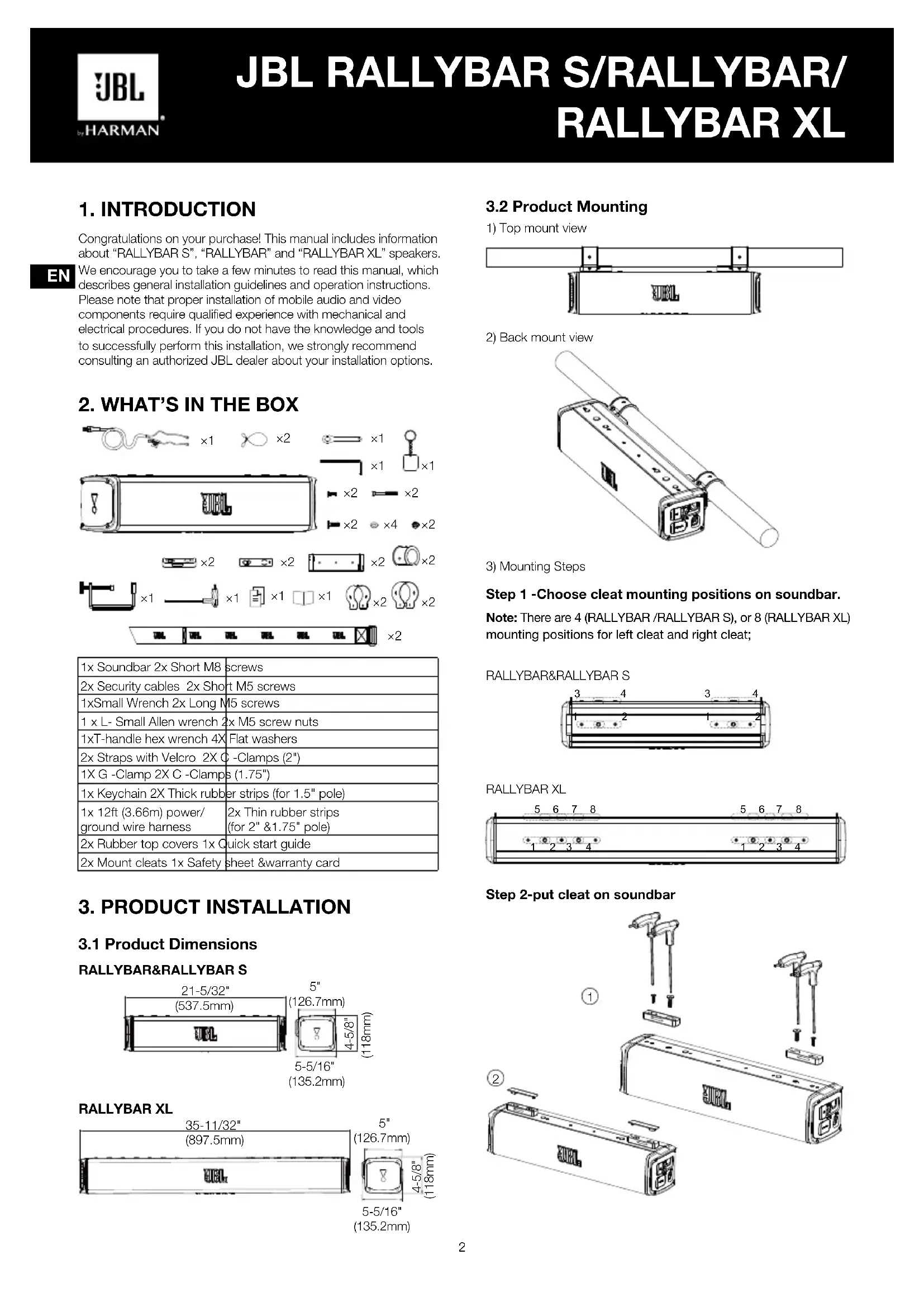

JBL RALLYBAR S/RALLYBAR/ RALLYBAR XL

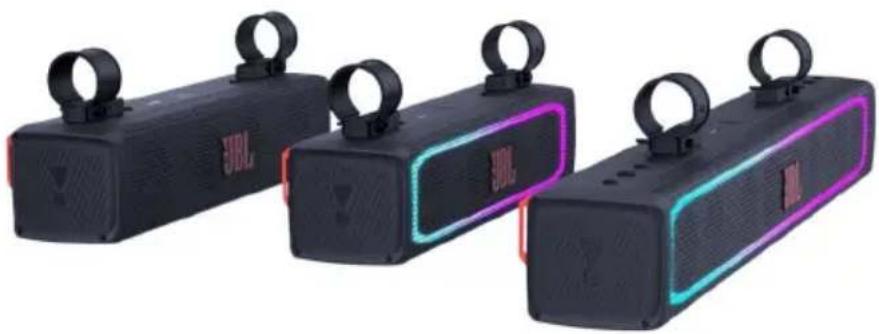

Three black JBL-branded sound amplifiers with neon lighting and matching earphones, displayed side by side (no visible text or symbols on devices)

RALLYBAR S RALLYBAR RALLYBAR XL

Owner's Manual

EN

Mode d'emploi

FR

1. INTRODUCTION....2
2. WHAT'S IN THE BOX.... 2
3. PRODUCT INSTALLATION .... 2

3.1 Product Dimensions 2
3.2 Product Mounting 2

1. WIRING AND POWER ON .... 3

4.1 WIRING 3
4.2 Power on 4

1. PRODUCT OVERVIEW .... 4

5.1 Side panel....4
5.2 Bottom Panel 4

1. USING YOUR RALLAYBAR....5

6.1 Bluetooth connection 5
6.2 USB Connection 5
6.3 AUX connection 5
6.4 Source Priority 6

1. ADVANCED USAGE....6

7.1 MAP Lights Effect 6
7.2 RGB Lights Effect....6
7.3 RGB Lights Brightness Setting 6
7.4 RGB Lights DIY Setting....7
7.5 Broadcast mode 7
7.6 Party Mode 8
7.7 DEMO Mode 8
7.8 DEEP STANDBY MODE 8
7.9 FACTORY RESET 8
7.10 Firmware Upgrade Service 9

1. SPECIFICATION 9
2. TROUBLESHOOTINGS .... 10

1. INTRODUCTION

Congratulations on your purchase! This manual includes information about "RALLYBAR S", "RALLYBAR" and "RALLYBAR XL" speakers.

We encourage you to take a few minutes to read this manual, which describes general installation guidelines and operation instructions. Please note that proper installation of mobile audio and video components require qualified experience with mechanical and electrical procedures. If you do not have the knowledge and tools to successfully perform this installation, we strongly recommend consulting an authorized JBL dealer about your installation options.

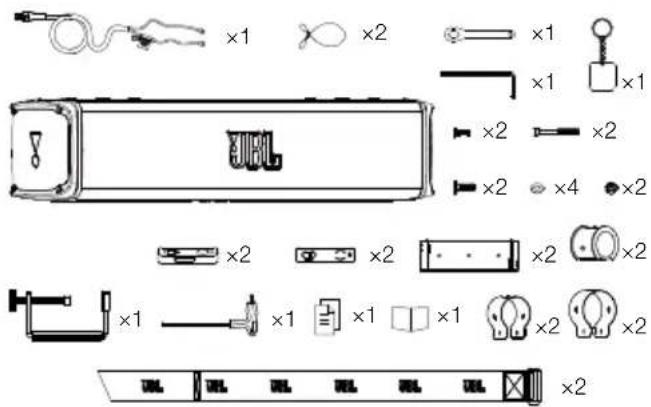

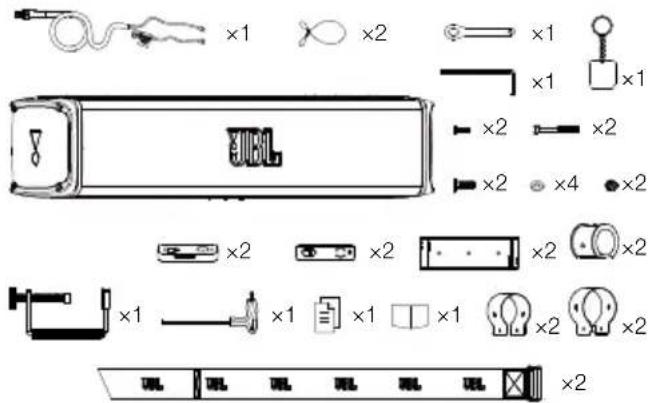

1. WHAT'S IN THE BOX


Technical diagram showing various electrical components and symbols with labels like 'x1', 'x2', and '×1' for different types of devices.

1x Soundbar 2x Short M8	screws
2x Security cables 2x Short M5 screws
1xSmall Wrench 2x Long M5 screws
1 x L- Small Allen wrench 2x M5 screw nuts
1xT-handle hex wrench 4X Flat washers
2x Straps with Velcro 2X C -Clamps (2")
1X G -Clamp 2X C -Clamps (1.75")
1x Keychain 2X Thick rubber strips (for 1.5" pole)
1x 12ft (3.66m) power/ground wire harness	2x Thin rubber strips(for 2" &1.75" pole)
2x Rubber top covers 1x Q	quick start guide
2x Mount cleats 1x Safety sheet &warranty card

3. PRODUCT INSTALLATION

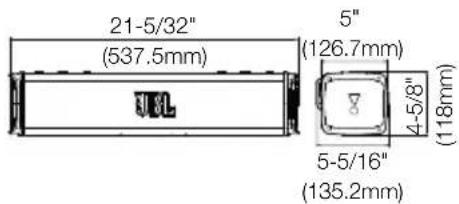

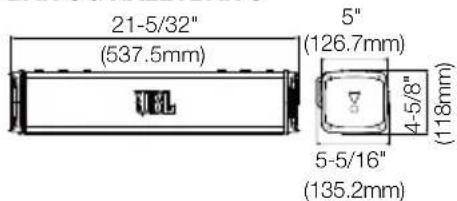

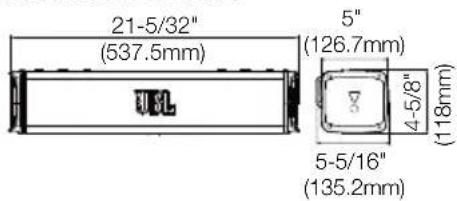

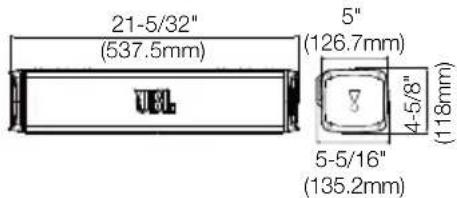

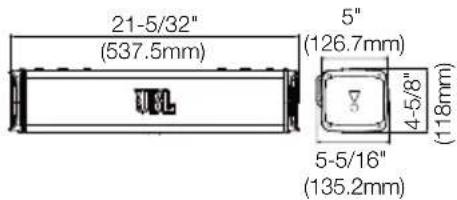

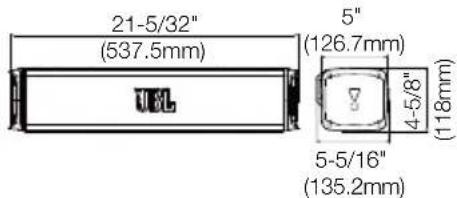

3.1 Product Dimensions

RALLYBAR&RALLYBAR S

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

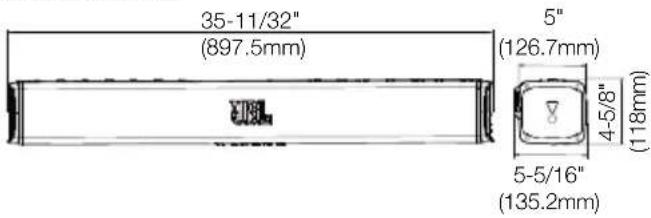

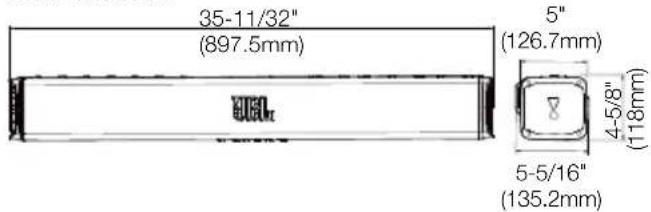

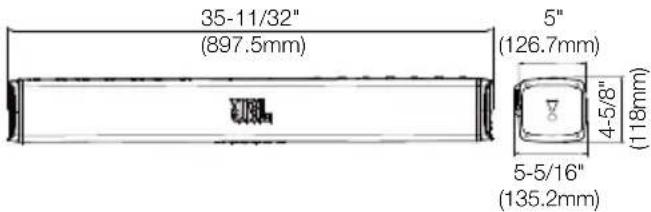

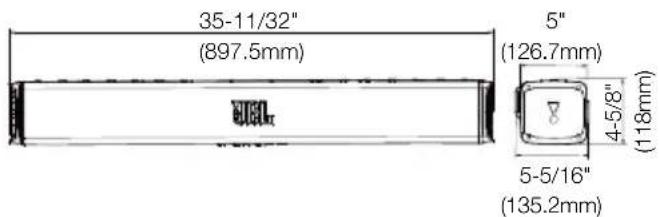

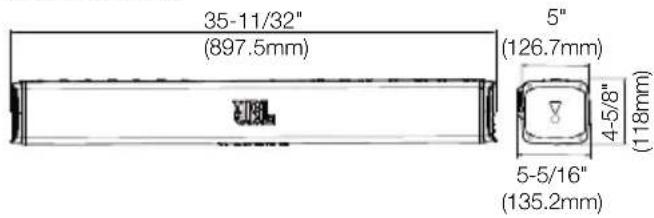

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

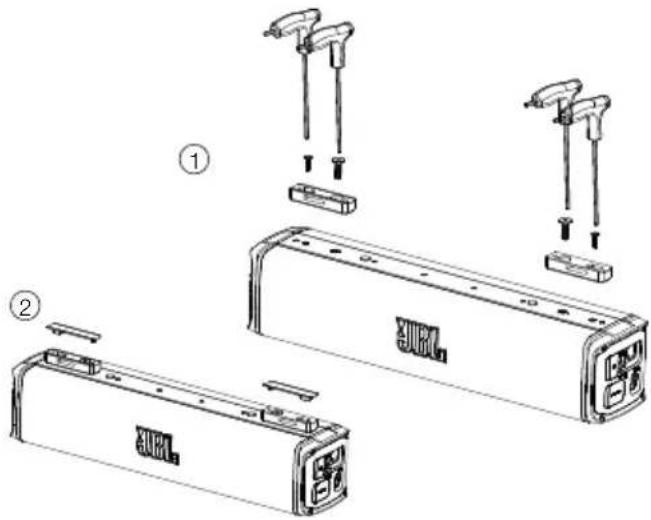

3.2 Product Mounting

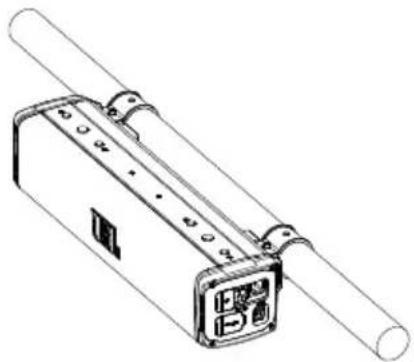

1) Top mount view

Pure mechanical assembly diagram showing a rectangular component with mounting brackets and a label 'SUEL' (no text or symbols beyond the label)

2) Back mount view

Technical line drawing of a mechanical device with cylindrical body and control panel (no text or symbols)

3) Mounting Steps

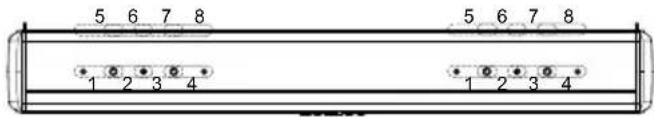

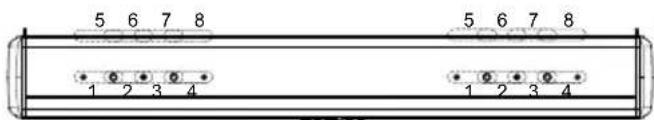

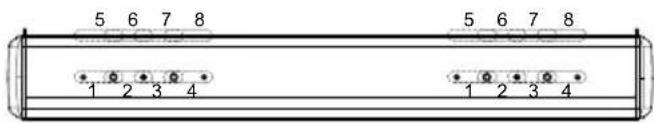

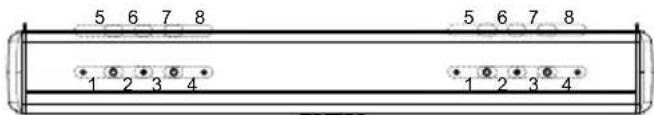

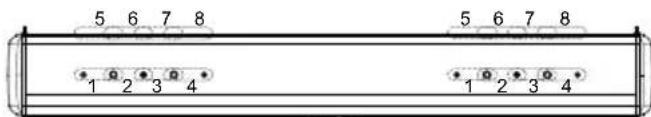

Step 1 - Choose cleat mounting positions on soundbar.

Note: There are 4 (RALLYBAR /RALLYBAR S), or 8 (RALLYBAR XL) mounting positions for left cleat and right cleat;

RALLYBAR&RALLYBAR S

3 4 3 4 1 2 1 2

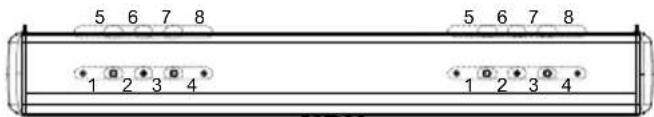

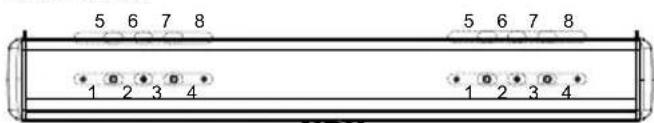

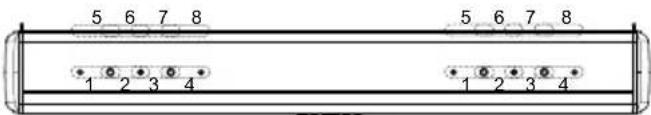

RALLYBAR XL

5 6 7 8 5 6 7 8 1 2 3 4 1 2 3 4

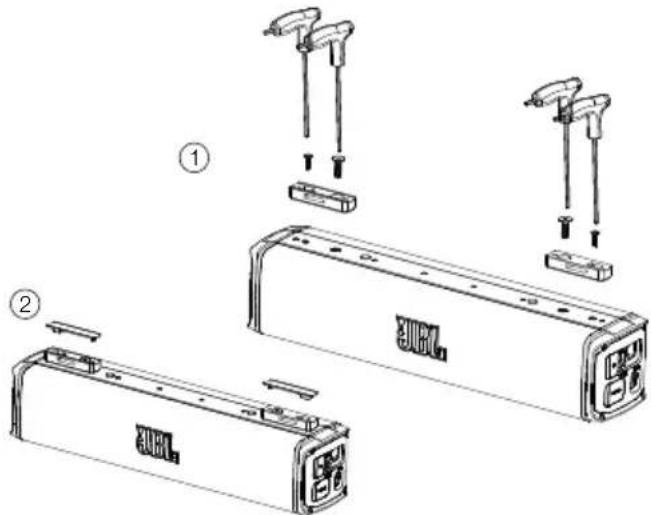

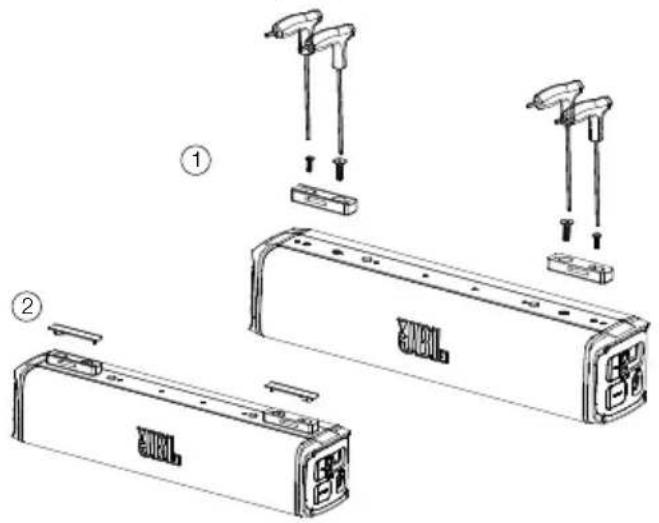

Step 2-put cleat on soundbar

Technical diagram showing exploded view of a battery pack with labeled components and parts

Step 3-Choose C-Clamps and rubbers based on your pole size.

Option 1:

2" 2" + =

Option 2:

1.75" + = 1.75"

Option 3:

1.75" + = 1.5"

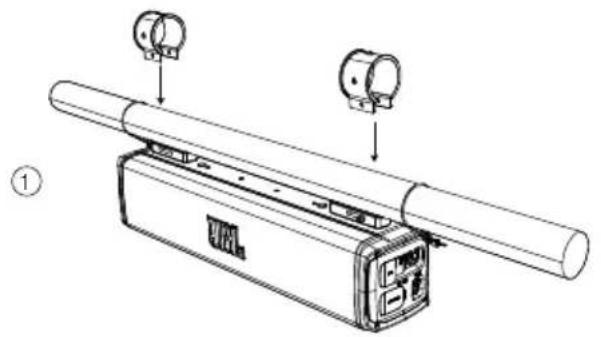

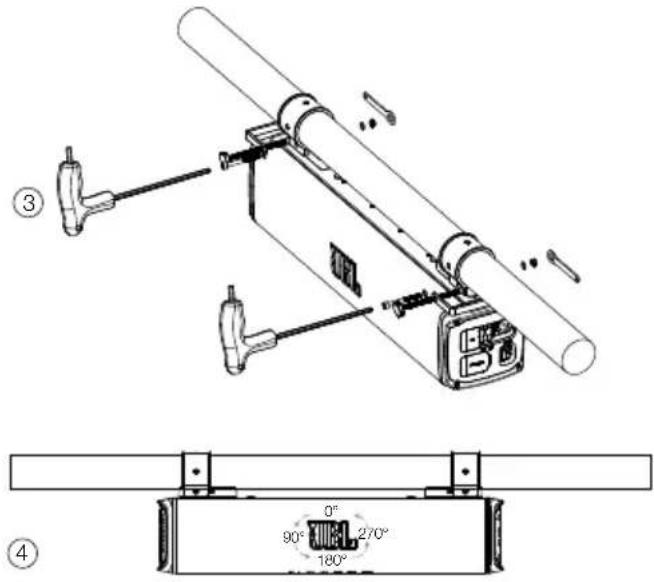

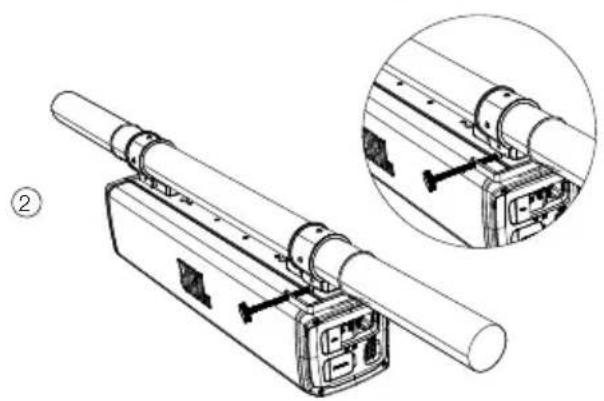

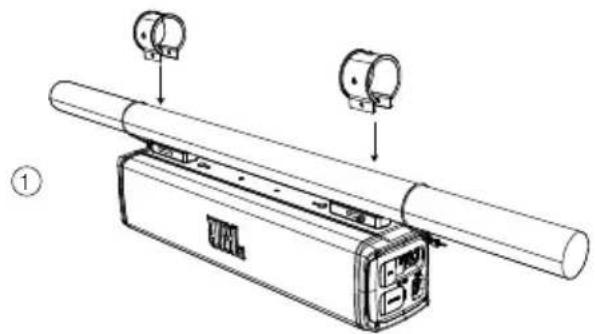

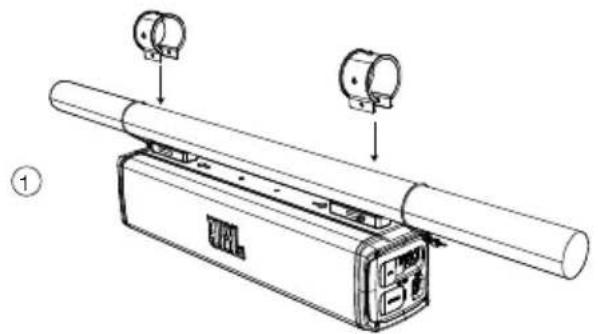

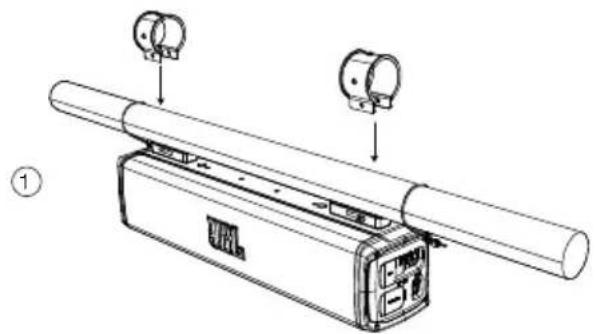

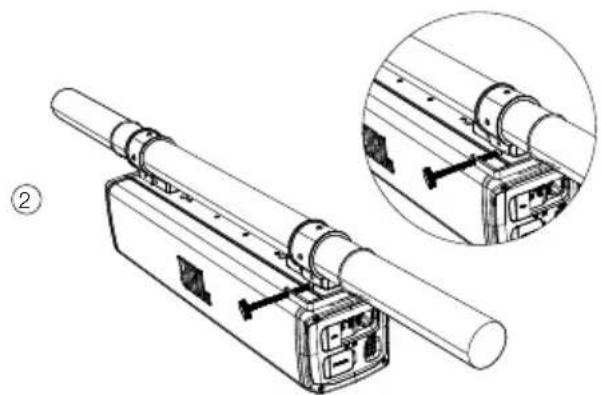

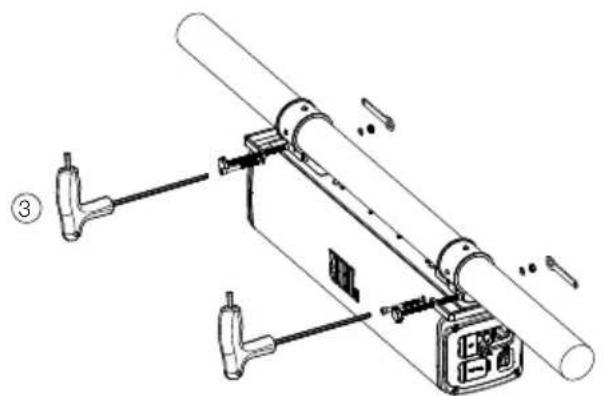

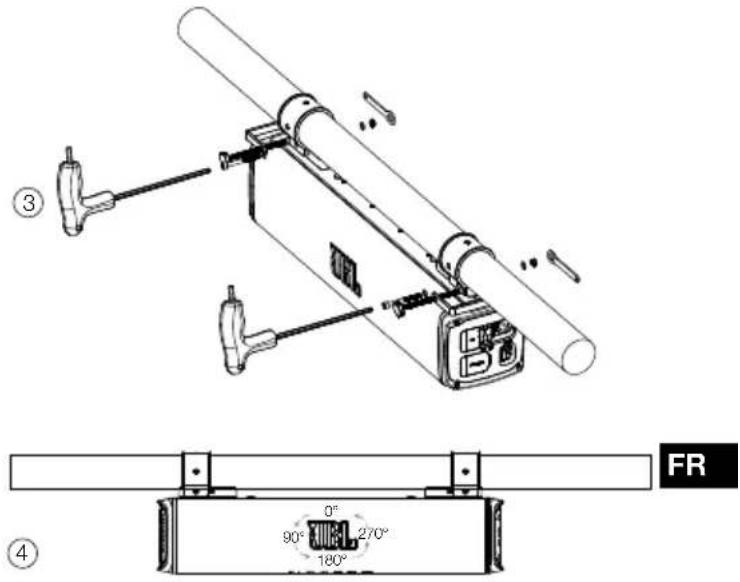

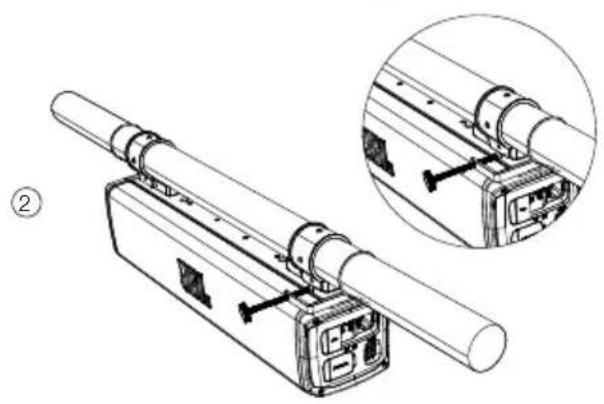

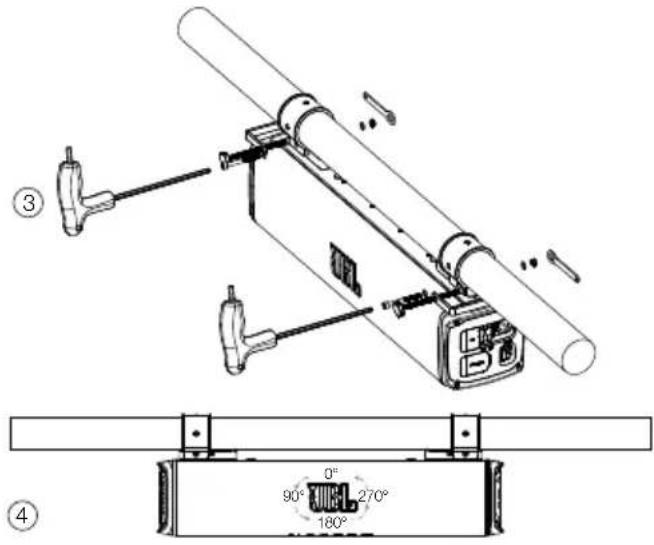

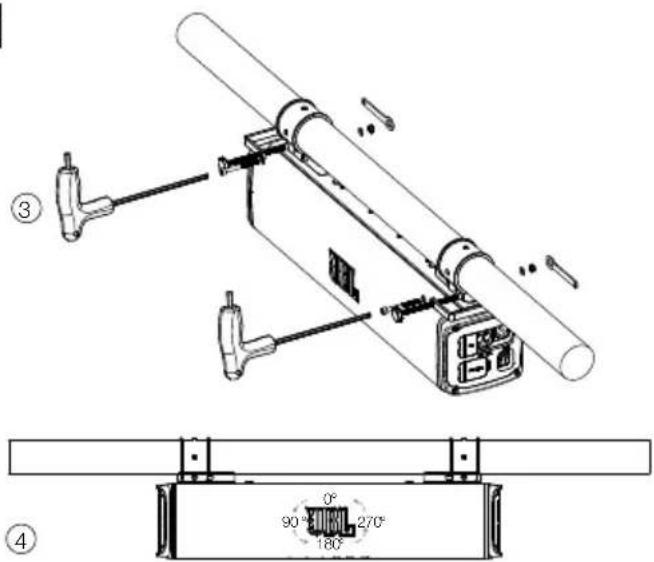

Step 4-Mount soundbar on the pole.

Technical diagram showing assembly of a mechanical device with labeled parts and directional arrows indicating assembly steps.

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts, including tool holders and a digital display unit.

0° 90° 270° 180° ④

Remarks: JBL logo badge is rotatable.

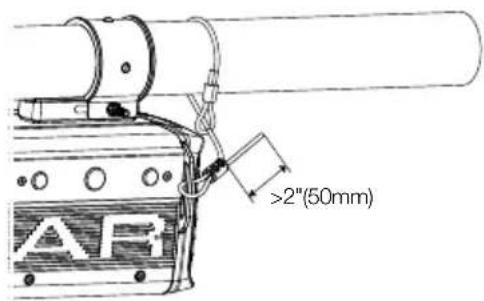

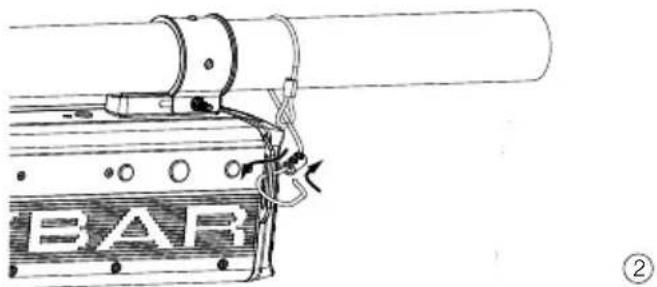

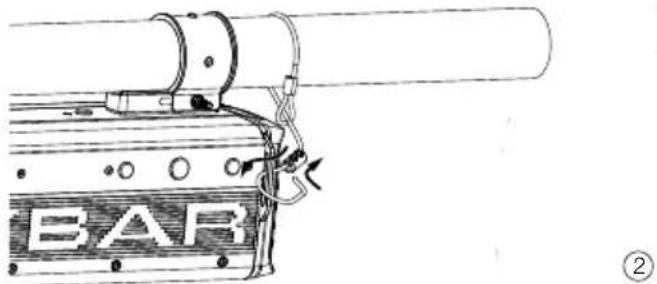

Step 5-Safety Cable

Loose the safety cable screws

Simple line drawing of a string with a loop and a curved arrow, no text or symbols present

Tight the safety cable screws

Technical line drawing of a mechanical device with a labeled component 'BAR' and directional arrows (no readable text or symbols beyond label)

Simple line drawing of a tool with an arrow indicating rotation (no text or symbols)

Note: Before using the L-hex wrench to tighten the cable, please make sure the distance is over 2"(50mm) from the cable end.

>2"(50mm)

4. WIRING AND POWER ON

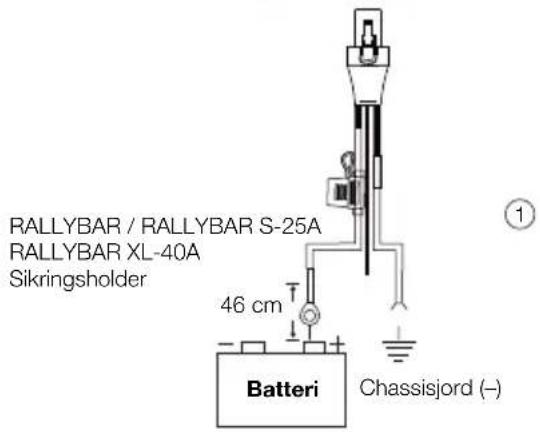

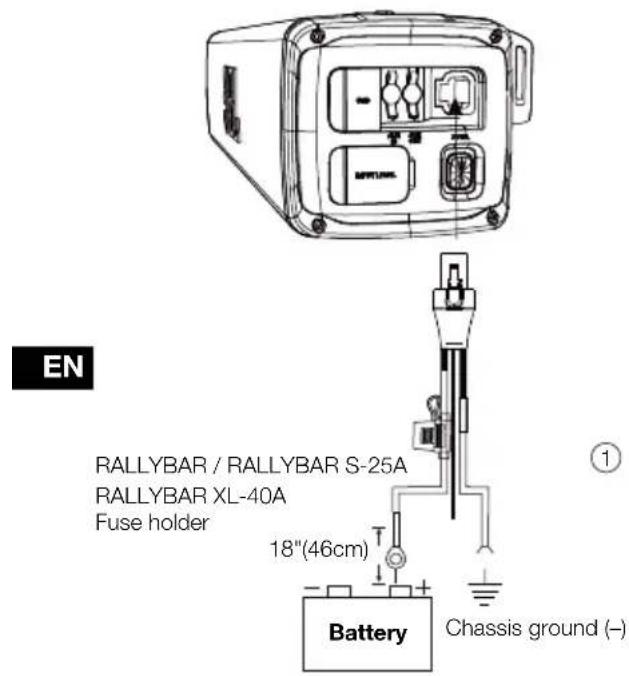

4.1 WIRING

Power: Connect the red +12V power wire in the wire harness to the positive terminal of the vehicle battery. The wire harness includes an inline 25A ATC fuse (RALLYBAR&RALLYABR S) or 40A ATC fuse (RALLYBAR XL), and 5/16" ring terminals. The ring terminals can be cut off if they're not needed, but the fuse should always be kept within 18"(457mm) of the battery

Ground: Connect the black GND wire in the wire harness to bare metal of the vehicle's chassis, such as at a seat belt bolt.

NOTE: 1. Use the provided power wire harness only 2. If possible, remove any paint from the chassis for best contact. It is recommended to use a star washer below the ring connector for a secure connection; 2. Disconnect the vehicle's battery to avoid an electrical short.

Plug-in: Plug the power connector into the "Power" port on side of the speaker.

EN RALLYBAR / RALLYBAR S-25A RALLYBAR XL-40A Fuse holder 18"(46cm) Battery Chassis ground (-)

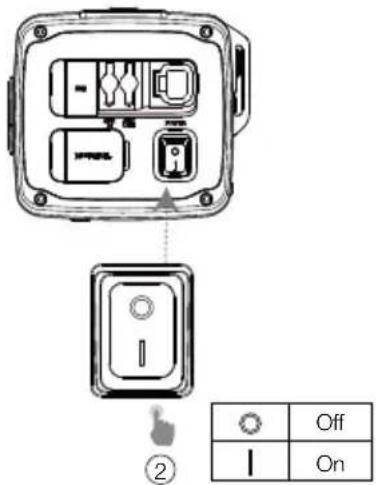

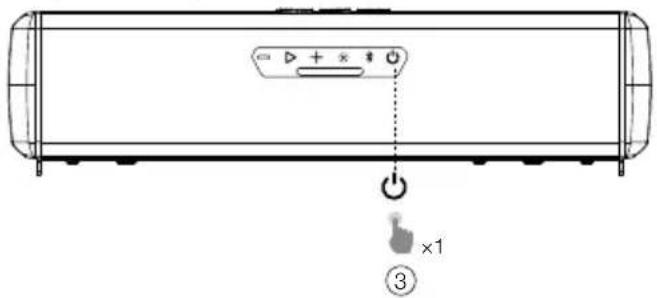

4.2 Power on

Main Power Switch: Press the main power switch on the side panel to turn on and turn off the speaker.

Once turn on the main power, the Power button(on the bottom backlight will be white color and start to get slow flash, which shows the speaker is on Deep standby mode.

Diagram showing a device with labeled buttons and an icon, alongside a table for 'Off' and 'On' options.

Note: on the Deep standby mode, only the MAP Light can be turned on/off by short pressing light button.

Press Power button: Press the power button, the backlight of the power button will become constant white, which shows that the speaker is on operation mode.

= ▷ + * * ◦ ● x1 ③

	Off	Main power switch is off
	White (Flashing)	Main power switch is on-(Deep standby mode)
	White (Constant)	Operation mode on
	Red (Constant) (15 seconds)	Protection: OVP/UVP/OTP

5. PRODUCT OVERVIEW

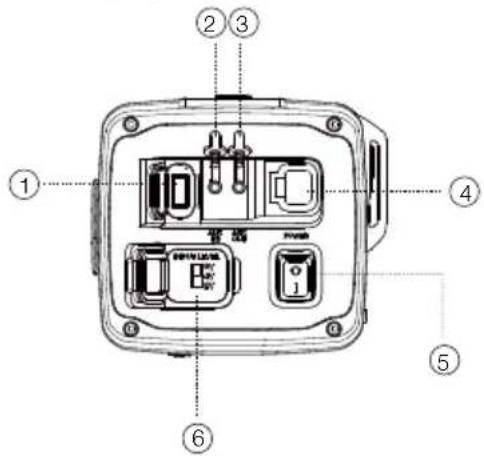

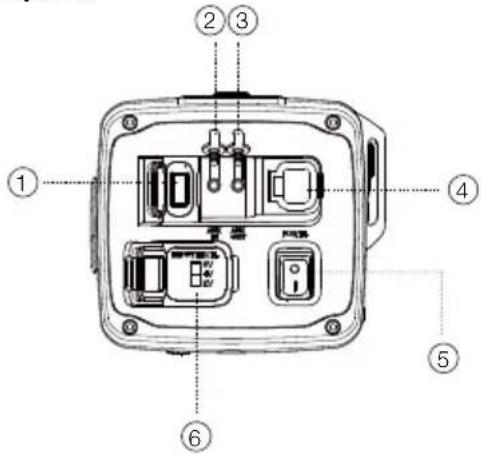

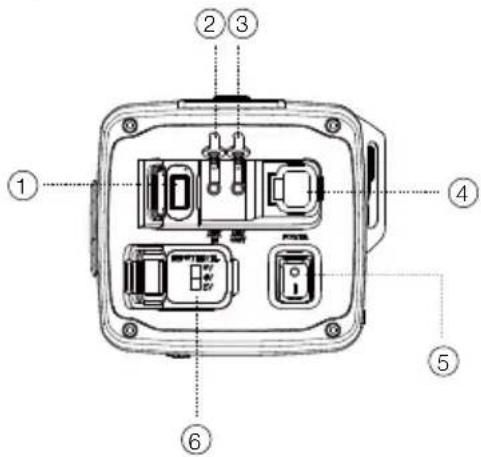

5.1 Side panel

Technical diagram of an electrical switchgear box with numbered components for identification

1. USB

- Connect to a USB storage device.

1. Aux-in

- Connect to an external audio device through a 3.5mm audio cable (not supplied).

1. Aux-out

- Connect to a secondary soundbar, amplified Subwoofer through a 3.5mm audio cable (not supplied)

1. Power

- Connect to vehicle battery.

1. Main Power Switch

- Press to switch power on and power off. It is power on, is power off.

1. Input Level

- Provides 3 different Gain settings when use AUX-IN to connect with head unit: 2V, 4V, and 6V. (2Vrms: 0.35Vrms - 2Vrms; 4Vrms: 0.7Vrms - 4Vrms; 6Vrms: 1.05Vrms - 6Vrms)

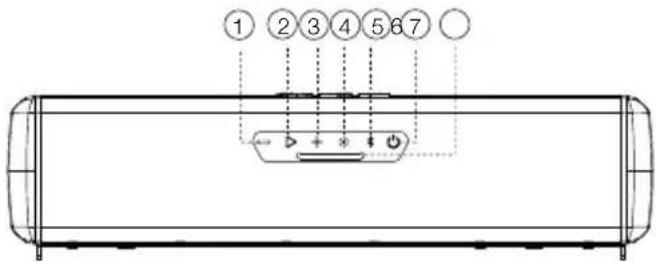

5.2 Bottom Panel

① ② ③ ④ ⑤ ⑥ ⑦ ○ ← ▶ + * + ●

7 MAP Lights

NO.	BUTTON	$hort Press Long press
1	—	Press to decrease the volume level step by step	decreasing volume continually (Press and hold 1 second)
2	▷	Press to play or pause the music.;Press twice to play the next track.;Press three times to play the previous track.
3	+	Press to increase the volume level step by step	Increasing volume continually (Press and hold 1 second)
NO.	BUTTON	Short Press Long press
4		Press to switch MAP lights based on sequence: 100% brightness -> 50% brightness -> OFF	Press and hold for 2 seconds to switch light show patterns based on sequence: Rock -> Flow -> Cross->Ripple->Flash->Static1 -> Static2 -> Mix -> DIY -> OFF
5		Press to enter Bluetooth pairing mode.	Press and hold for 5seconds to disconnect all Bluetooth devices and enter Bluetooth pairing mode
6		Press to switch between Operation mode and Deep standby mode

6. USING YOUR RALLAYBAR

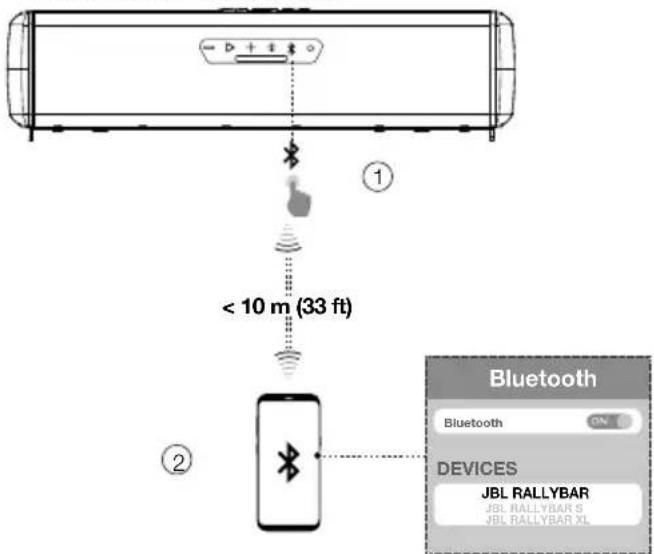

6.1 Bluetooth connection

You can use your RALLYBAR as an external speaker for your Bluetooth enabled smartphone or tablet.

1) Press ✗ to enter Bluetooth pairing mode.
2) Select "JBL RALLYBAR", "JBL RALLYBAR S" or "JBL RALLYBAR XL" to connect.
3) Once successfully connected, audio will stream from your Bluetooth device to this speaker.

- D + E ① < 10 m (33 ft) ② Bluetooth Bluetooth ON DEVICES JBL RALLYBAR JBL RALLYBAR S JBL RALLYBAR XL

*	Off	Power off
	White (Constant)	In operation mode But no Bluetooth connection
	Blue (Constant)	Bluetooth connected
	Blue (Flashing)	Bluetooth pairing

Notes:

• This speaker can memorize a maximum of 8 paired devices. The ninth paired device will replace the first one.
• Bluetooth performance can be affected by the distance between this product and your Bluetooth device and the environment of operation.

To terminate the Bluetooth-enabled device:

• Turn off this speaker.
• Disable Bluetooth on your device; or Move this speaker beyond the Bluetooth operational range.

To reconnect the Bluetooth-enabled device:

• When you turn on this speaker next time, it tries to reconnect the last connected device automatically;
• If not, manually select "JBL RALLYBAR", "JBL RALLYBAR S" or "JBL RALLYBAR XL" on your Bluetooth device to start a connection

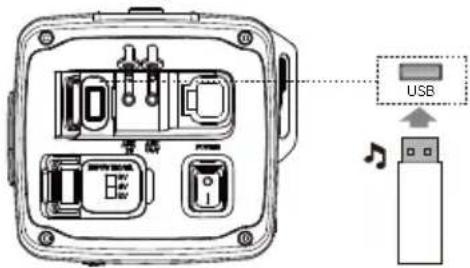

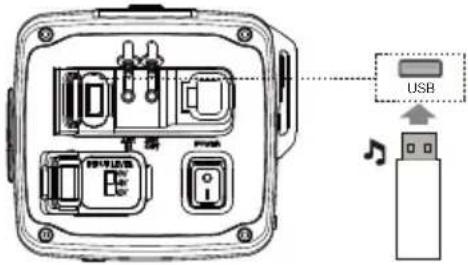

6.2 USB Connection

With your RALLYBAR, you can enjoy music that is stored on a USB storage device such as an MP3 player. Plug your USB storage device into the USB port of your RALLYBAR. The music will play automatically. If not, please check if the USB device contains playable audio contents.

Diagram showing internal components of an electronic device with USB connection to a USB port, including ports labeled in Chinese.

EN

Supported Audio Format

Extension	Codec Sample rate	Bitrate
WAV PCM	44.1KHz ~	192KHz	< 5Mbps
	LPCM 44.1KHz ~	192KHz	< 5Mbps
MP3 MPEG	1 layer1/2/3 32KHz ~	48KHz	32Kbps ~320Kbps
	MPEG2 layer1/2/3 16	KHz ~24KHz	8Kbps ~160Kbps
	MPEG2.5 layer3 8KHz ~12KHz	8Kbps ~160Kbps

Tip:

1. The speaker plays audio files on the USB storage device from the root folder to the last level of subfolders in alphabetical sequence. Up to 8 levels of subfolders are supported.
2. Supported USB Drive File System: FAT16, FAT32

6.3 AUX connection

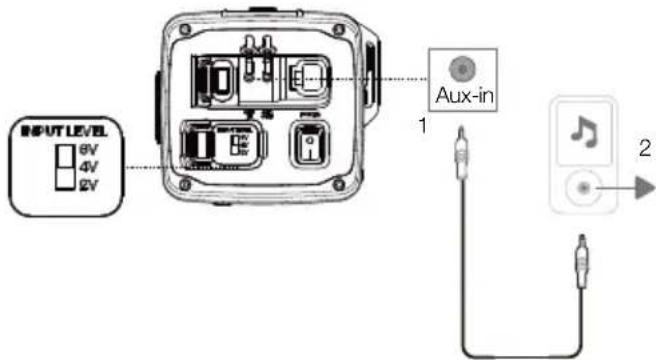

6.3.1 Aux-In connection

1. Connect a 3.5mm audio cable (not supplied) to:
2. the Aux-out port of your portable audio device or headunit in the car.
   • the AUX-in port of this speaker
3. Turn on your portable audio device or head unit and it starts playing.

INPUT LEVEL 6V 4V 2V Aux-in 1 2

Notes:

• if use Aux-in to connect the head unit and this speaker, you may need a RCA to 3.5mm cable or adapter (not supplied).
• there are 3 different INPUT LEVEL options to choose from when use AUX-IN to connect with head unit to avoid noise: 2Vrms (0.35Vrms - 2Vrms); 4Vrms (0.7Vrms - 4Vrms); 6Vrms (1.05Vrms - 6Vrms).

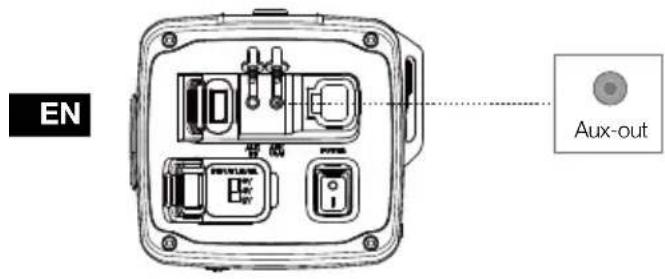

6.3.2 Aux-out connection

There is Aux-out available for you to connect with external speaker or subwoofer (for example, JBL BASSPRO GO, which is sold separately on www.jbl.com).

1. Connect a 3.5mm audio cable (not supplied) to:

• the Aux-out port of RALLYBAR
• the AUX-in port of external speaker or subwoofer

EN Aux-out

6.4 Source Priority

1. 1st priority - USB disk >2nd Priority -Bluetooth >3rd Priority Aux-in, only one source will play at one time.
2. Higher priority can break in lower priority source; Starting a source with higher priority will always interrupt a source with lower priority.

Source Situation 1: when USB disk is on soundbar.

	USB disk source is playing	USB disk source is not playing	Remarks
Bluetooth Source	if Bluetooth source want to play, user need press play/pause button on the RALLYBAR to stop the music from USB disk, then play the music from Bluetooth source	Bluetooth source can break-in directly	Control buttons (PLAY /PAUSE, VOLME +; VOLUME -) on soundbar will control the USB disk source
AUX-in Source	Need press play/pause button on RALLYBAR to stop the music from USB Disk and play the music from Aux-in source directly	Aux-in source can break-in and play directly.

Source Situation 2: when there is Bluetooth connection on soundbar.

	Bluetooth source is playing	Bluetooth source is not playing	Remarks
USB disk Source	1. plug in the USB disk, the music from USB disk will start playing directly2. if USB disk already on RALLYBAR and Bluetooth source is playing, Pressing play/pause button on the RALLYBAR will stop the Bluetooth music and play the music from USB disk	USB disk source can break-in directly	Control buttons (PLAY /PAUSE, VOLME +; VOLUME -) on soundbar will control the USB disk source
AUX-in Source	Need press play/pause button on RALLYBAR to stop the music from Bluetooth source and play the music from Aux-in source directly	Aux-in source can break-in and play directly.	Control buttons (PLAY /PAUSE, VOLME +; VOLUME -) on soundbar will control the Bluetooth source

Source Situation 3: When there is AUX-IN connection on soundbar.

	AUX-IN source is playing	AUX-IN source is not playing
USB Disk Source	USB disk can break in and play directly
Bluetooth Source	Bluetooth source can break-in and play directly.

7. ADVANCED USAGE

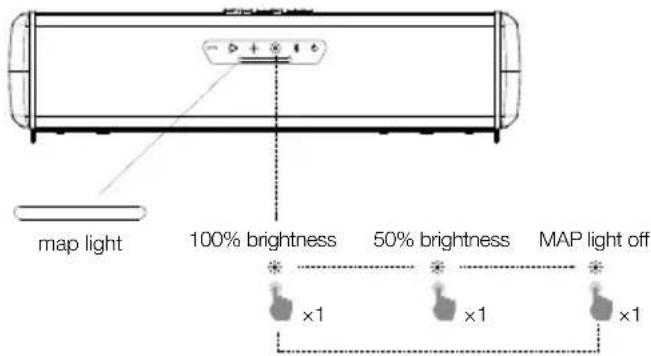

7.1 MAP Lights Effect

Short Press 📍 switch MAP lights effect: Map Lights on at 100% brightness, Map Lights on at 50% brightness, Off

map light 100% brightness 50% brightness MAP light off x1 x1 x1

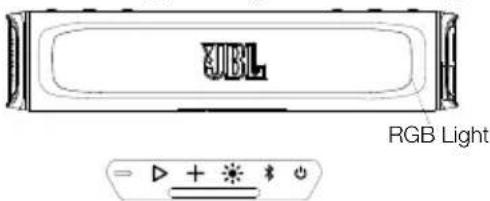

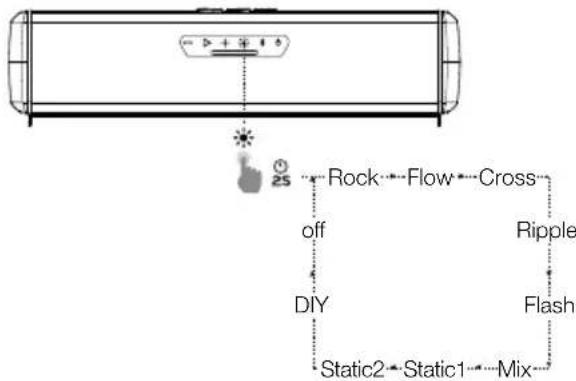

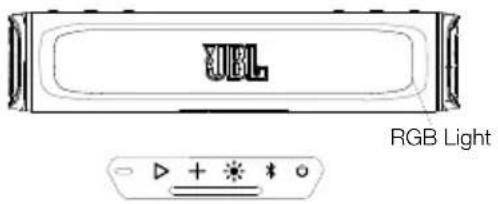

7.2 RGB Lights Effect

Press button and hold for 2 seconds to select your preferred lights patterns: Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix -> DIY -> OFF

JBL RGB Light

Button Press Behaviors
		RGB Light pattern change
		Turn off RGB light

Notes:

• Press and hold the ▶ and ● buttons simultaneously 2 seconds to quickly turn off the RGB lights on front.
• The DIY pattern will be your latest saved Pattern based on your RGB Light DIY setting

7.3 RGB Lights Brightness Setting

JBL RGB Light - ▶ + * * *

Button Press Behaviors
		RGB Light Brightness Setting Mode

Button Backlights Status

Off	Power off
White (Constant)	In operation mode
White (Flashing)	1. In RGB Light DIY menu mode2. In RGB Brightness menu mode

RGB Light Brightness Adjustment Level

Level 1: Minimal

Level 2: 50% Brightness

Level 3: 70% Brightness

Level 4: Max Brightness

1. Press and hold+ and buttons simultaneously 2 seconds to enter or exit from RGB lights brightness menu mode
2. Short press + to increase the brightness level; press to decrease from current brightness level
3. press ▷ to save the Brightness selection and exit from the Brightness menu mode

Notes:

• When in RGB lights brightness menu mode, the backlights of the +, and buttons will be white flashing status.
• There are 4 levels brightness selection: Minimal, 50%, 70%, Max
• The brightness level selection is for all RGB lights patterns.
• If there is no action in the brightness menu mode over 2 minutes, RGB lights brightness menu mode will automatically exit but brightness adjustment will not be saved.
  -Press + and buttons simultaneously 2 seconds to exist, brightness adjustment will not be saved.
• Only press ▶ button to confirm, then the brightness adjustment could be finally saved.
• If press the main power switch to shut down the speaker directly, the brightness adjustment will not be saved properly for next time usage, only user press the power button to enter the deep standby mode first then press the main power switch to shut down power, then DIY setting will be finally saved.

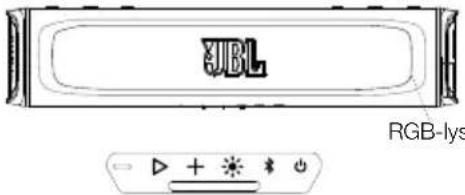

7.4 RGB Lights DIY Setting

IBL RGB Light

Button Press Behaviors
+	2S	RGB Light DIY Setting Mode

Button Backlights Status

Off	Power off
White (Constant)	In operation mode
White (Flashing)	In RGB Light DIY menu modeIn RGB Brightness menu mode

Off	Power off
White (Constant)	In operation mode
Blue (Constant)	In RGB Light DIY menu mode

Light Pattern

1. Rock2. Flow3. Cross4. Ripple5. Static6. Mix

Primary Color Zone

1. Aquamarine2. Blue3. Green4. Orange5. Purple6. Red7. White8. Yellow9. Off

Secondary Color Zone

1. Aquamarine2. Blue3. Green4. Orange5. Purple6. Red7. White8. Yellow9. Off

1. Press and buttons simultaneously 2 seconds to enter or exit RGB Lights DIY menu.
2. Press + or buttons to choose from 6 Light pattern: Rock, Flow, Cross, Ripple, Static and Mix.
3. Press ▷ button to confirm the pattern selection and enter the Primary Color Zone menu at the same time
4. Press + or buttons to choose from 9 Light colors: Aquamarine, Blue, Green, Orange, Purple, Red, White, Yellow and Off.
5. Press ▷ button to confirm the Primary color selection and enter the Secondary Color Zone menu at the same time.
6. Press + or buttons to choose from 9 Light colors: Aquamarine, Blue, Green, Orange, Purple, Red, White, Yellow and Off.
7. Press ▷ button to confirm the secondary color selection and exit RGB Lights DIY menu.

Notes:

• When in RGB lights DIY menu mode, the backlights of the +, and ▶ buttons will be white flashing status, the backlight of button will be constant Blue at the same time.
• If there is no action in the RGB lights DIY menu mode over 2 minutes, RGB lights DIY menu mode will automatically exit but DIY setting will not be saved.
  -Press + and ● buttons simultaneously 2 seconds to exit, brightness adjustment will not be saved.
• Only press ▶ button to confirm, then the DIY setting will be finally saved and exit.
• Latest saved DIY setting will cover the previous DIY setting, there is only one latest pattern to be saved under DIY pattern.
• If press the main power switch to shut down the speaker directly, the DIY adjustment will not be saved properly, only user press the power button to enter the deep standby mode first then press the main power switch. The DIY setting will be finally saved for next time.

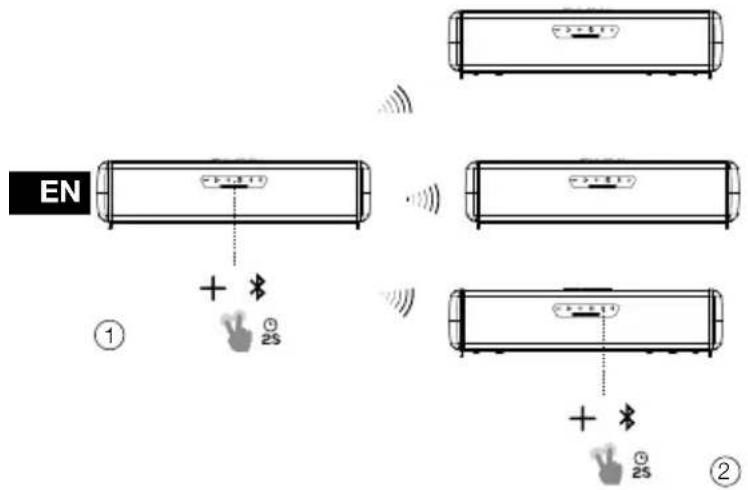

7.5 Broadcast Mode

Broadcast Mode allows you to play your audio through multiple soundbar speakers. The backlights of + button will be constant blue when soundbar on Broadcast Mode

Button Backlights Status

Blue (Constant)

Broadcast mode on

1. Press and buttons simultaneously 2 seconds to enter or exit Broadcast mode.
2. Repeat Step 1 for all additional soundbars.
3. When in broadcast mode the backlight of + button will be constant blue status.

EN ① + * 0 25 ②

Notes:

• Broadcast Mode is compatible with AUX-IN, USB-Disk and Bluetooth input sources.
• Both audio and the RGB light will synchronize on broadcast mode
• Local source (Bluetooth/AUX-IN&USB) can break-in broadcasting mode: Secondary soundbar receives music from other soundbar only when local source not playing on Secondary soundbar
• In Broadcast mode, only the Primary soundbar will synchronize the volume or RGB light change to other soundbar, while the Secondary/third /forth.... soundbar will not synchronize the volume change to other soundbar.
• RALLYBAR can connect with RALLYBAR, RALLYBAR S and RALLYBAR XL in Broadcast mode
• Multiple soundbars Broadcast mode connect scenarios example below:

	A soundbar	B soundbar	C soundbar	Result
Scenario 1	playing music when enter broadcast mode	Not playing music when enter broadcast mode	/ A is primary	B is Secondary
Scenario 2	playing music when enter broadcast mode	playing music when enter broadcast mode	/ Both A and B	are primary, cannot connect to each other; need one of the 2 soundbars stopping music to become secondary.
Scenario 3	playing music when enter broadcast mode	playing music when enter broadcast mode	Not playing music when enter broadcast mode	Both A and B are primary, C will connect A or B randomly to become the secondary

Pure diagram of a cylindrical object with internal components and a plus symbol below (no text or labels)

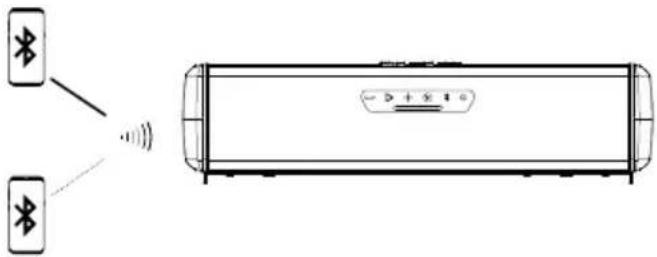

7.6 Party Mode

One soundbar have simultaneous connection of up to two Bluetooth ^® devices.

Diagram showing audio signal transmission from two speakers to a rectangular device with speaker icon and control buttons

Notes:

• When turn off the soundbar speaker, it will only connect the device with the latest action automatically, user need manually connect the second device.
• Maximum 2 devices connect at same time, Last action on one of the devices will always take the control.
• Third device cannot find soundbar speaker's name when there are 2 Bluetooth devices are connected.

7.7 DEMO Mode

Button Press Behaviors
		To enter or exit DEMO mode

To enter or exit from DEMO MODE, press and hold "Bluetooth"&"play/pause" button at same time 5 seconds

NOTES:

• Only AUX audio can work, USB & Bluetooth is disabled
• Long Press light button will switch to next pattern. short press for MAP lights turn on/off/50%

Every 30 seconds, auto switch to next light pattern in following sequences:

Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix if no action for 1 hours, device will auto switch to default pattern Rock

7.8 DEEP STANDBY MODE

The product will enter into Deep standby mode

• If there is no Bluetooth connection and there is no any action over 15 minutes.
• If there is Bluetooth connection and there is no any action over 1 hour.

Note:

• Power button's backlight is on white and slow flash status and rest buttons' backlights are off, if product is on Deep standby mode
• The MAP light can be turned on or off in Deep standby mode, while if there is no any button press action over 15 minutes, MAP lights will shut-off automatically.
• Press the power button, the product will exist from deep standby mode

7.9 FACTORY RESET

To restore the factory settings, Press and buttons simultaneously 10 seconds.

7.10 Firmware Upgrade Service

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating the USB signal.

Button Press		Behaviors
			Firmware version check
+ *			firmware upgrade

1. Firmware Version Check:

When main power switch is on and soundbar in operation mode, Press and hold "volume down" & "BT" button at same time over 10 seconds, the machine voice out the firmware version number

1. Firmware Upgrade by U Disk (Flash drive)

1) Download the latest firmware to a USB stick (the USB Disk file system need to be FAT32 or FAT16) and plug the USB Stick into USB port.
2) Make sure the main power switch is off. Press and hold the "volume up" & "BT" button at same time then turning on the main power switch, after 1 second, release hand from the "volume up" & "BT" buttons to trigger the firmware upgrade.

Note:

- You can download the latest firmware on JBL Website (www.JBL.com) If there is new firmware release

1. SPECIFICATION

RALLYBAR RALLYBAR $ RALLYBAR XL
Product Description	21" Bluetooth® Universal Outdoor Vehicle Soundbar with LED lights and 150Wrms amplifier	21" Bluetooth® Universal Outdoor Vehicle Soundbar with 150Wrms amplifier	35" Bluetooth® Universal Outdoor Vehicle Soundbar with LED lights and 300Wrms amplifier
Transducers:	4 x 2.75" (70mm) woofers;2 x 1" (25mm) Tweeters;2 x 7.2" (182.8mm) x 3" (76.2mm) Racetrack Passive Radiators	4 x 2.75" (70mm) woofers;2 x 1" (25mm) Tweeters;2 x 7.2" (182.8mm) x 3" (76.2mm) Racetrack Passive Radiators	8 x 2.75" (70mm) woofers;2 x 1" (25mm) Tweeters;4 x 7.2" (182.8mm) x 3" (76.2mm) Racetrack Passive Radiators
Output Power:	150WRMS; 300W PEAK (IEC60268)	150WRMS; 300W PEAK (IEC60268)	300WRMS; 600W PEAK (IEC60268)
THD at Rated RMS Power: <1% <1% <1%
Voltage Range: 9.6 - 16VDC	9.6 - 16VDC 9.6 - 16VDC
Quiescent Current Draw:	<0.9A	<0.9A	<0.9A
Maximum Current Draw:	25A 25A 40A
Frequency response:	45Hz-40kHz 45Hz-40kHz 45Hz-40kHz
Signal-to-noise Ratio:	>80 dB >80 dB >80 dB
Cable type	12AWG.	12AWG.	10 AWG.
Cable length	12 Feet (3.66m)	12 Feet (3.66m)	12 Feet (3.66m)
Bluetooth® Version	5.3	5.3	5.3
Bluetooth® Profile	A2DP V1.3, AVRCP V1.6	A2DP V1.3, AVRCP V1.6	A2DP V1.3, AVRCP V1.6
Bluetooth® transmitter frequency range	2400 MHz - 2483.5 MHz	2400 MHz - 2483.5 MHz 2400 MHz	- 2483.5 MHz
Bluetooth® transmitter power	≤ 15 dBm (EIRP)	≤ 15 dBm (EIRP)	≤ 15 dBm (EIRP)
Aux-In	2Vrms (0.35Vrms - 2Vrms);4Vrms (0.7Vrms - 4Vrms);6Vrms (1.05Vrms - 6Vrms):(3.5 mm connector)	2Vrms (0.35Vrms - 2Vrms);4Vrms (0.7Vrms - 4Vrms);6Vrms (1.05Vrms - 6Vrms):(3.5 mm connector)	2Vrms (0.35Vrms - 2Vrms);4Vrms (0.7Vrms - 4Vrms);6Vrms (1.05Vrms - 6vrms):(3.5 mm connector)
Aux-Out	2 Vrms (3.5 mm connector)	2 Vrms (3.5 mm connector)	2 Vrms (3.5 mm connector)
USB Drive File System	FAT16, FAT32	FAT16, FAT32	FAT16, FAT32
USB Drive Maximum Capacity	64GB	64GB	64GB
Soundbar Housing Dimension (L x W x H)	21-5/32" x 5" x 4-5/8"(537.5 x 126.7 x 118mm)	21-5/32" x 5" x 4-5/8"(537.5 x 126.7 x 118mm)	35-11/32" x 5" x 4-5/8"(897.5 x 126.7 x 118mm)
Soundbar Dimension (L x W x H)	21-5/32" x 5-5/16" x 4-5/8"(537.5 x 135.2 x 118mm)	21-5/32" x 5-5/16" x 4-5/8"(537.5 x 135.2 x 118mm)	35-11/32" x 5-5/16" x 4-5/8"(897.5 x 135.2 x 118mm)
Soundbar Weight	11.57 lbs (5.25 kg)	11.46 lbs (5.2 kg)	20.83 lbs (9.45 kg)
Packaging dimensions (W x H x D)	24" x 9" x 7.6"(611 x 229 x 193mm)	24" x 9" x 7.6"(611 x 229 x 193mm)	38.2" x 9" x 7.6"(971 x 229 x 193mm)
Gross weight	17.14 lbs (7.79 kg)	17 lbs (7.74 kg)	27.5 lbs (12.52 kg)

9. TROUBLESHOOTINGS

Caution:

- Never try to repair the product by yourself. If you have any problems while using this product, check the following points before you request service.

Problem Causes and	Solutions
No sound (Standby indicator is off) •	Check that the soundbar's +12V and GND connections have been properly made.• Check if the fuse on the +12V wire located near the battery is blown; if so, replace it with an identical fuse.
No sound from the speaker • Ensure	that the soundbar is powered on and operation mode is on• Adjust volume.• Ensure that a sound source is active and not muted.
Bluetooth device cannot connect with the soundbar	• Ensure that the Bluetooth function of the device is enabled.• The soundbar is already connected with another Bluetooth device. Hold ➤ button on the soundbar for more than 5 seconds to disconnect and pair with a new device.
Poor audio quality from a connected Bluetooth device.	The Bluetooth reception is poor. Move the device closer to the soundbar, or remove any obstacle between the device and the soundbar.
No response from some buttons	The product may be in demo mode. In demo mode, all the USB&Bluetooth input sources and buttons except ➤ are disabled. Hold ➤ and simultaneously for more than 5 seconds to exit.
USB DISK FIRMWARE Upgrade failed and soundbar get brick or Soundbar hang up after unplugging U-disk during upgrading process	In this case, please re-do the firmware upgrade process again to make the soundbar work: make main power switch off. Press and hold the “volume up” & “BT” button at same time then turning on the main power switch, after 1 second, release hand from the “volume up” & “BT” buttons to trigger the firmware upgrade.
Cannot auto resume USB music after deep stand by or main power on/off	Press play/pause button to resume soundtrack play from USB disk

TABLE DES MATIÈRES

1. INTRODUCTION.... 12
2. CONTENU DE LA BOÎTE....12
3. INSTALLATION DU PRODUIT....12

Diagram showing various electrical components and symbols with labels like 'x1', 'x2', and connection points

3. INSTALLATION DU PRODUIT

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical device with cylindrical components and a control panel (no text or symbols)

Technical diagram showing exploded view of a battery pack with labeled components and parts

2" 2" + =

Option 2 :

1.75" + = 1.75"

Option 3 :

1.75" + = 1.5"

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with two views (one showing internal components, one showing external housing), no text or symbols present.

Technical diagram of a mechanical device with labeled components and angular measurements, including a FR component inset.

Simple line drawing of a string with a loop and a curved arrow, no text or symbols present

→ + * * ×1 ③

Technical diagram of an electrical switchgear box with numbered components and internal compartments

1. USB

Diagram showing internal components of an electronic device with USB and music device connections

Formats audio reconnus

Extension	Codec Fréquence	d'échantillonnage	Débit binaire
WAV PCM	44,1 kHz - 192 kHz < 5 Mb	it/s
	LPCM	44,1 kHz - 192 kHz < 5 Mbit/s
Extension	Codec Fréquence	d’échantillonnage	Débit binaire
MP3 MPEG	1 layer1/2/3 32 kHz	- 48 kHz 32 kbit/s -	320 kbit/s
	MPEG2 layer1/2/3	16 kHz - 24 kHz 8 kbit/s -	160 kbit/s
	MPEG 2.5 layer 3 8	kHz - 12 kHz 8 kbit/s -	160 kbit/s

Conseil :

1. Rock

2. Flow

3. Cross

4. Ripple

5. Static

6. Mix

1. Aigue-marine

2. Bleu

3. Vert

4. Orange

5. Violet

6. Rouge

7. Blanc

8. Jaune

9. Éteint

1. Aigue-marine

2. Bleu

3. Vert

4. Orange

5. Violet

6. Rouge

7. Blanc

8. Jaune

9. Éteint

FR

Diagram illustrating wireless signal transmission between two devices, showing 25s hand signals and signal waves.

Remarques :

Diagram showing two devices with wireless signals, one emitting sound waves to the other, connected by a device panel.

Remarques :

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

FR

1. INTRODUKTION....22
2. HVAD ER DER I ÅESKEN 22
3. INSTALLATION AF PRODUKTET 22

3.1 Produktets mål 22
3.2 Montering af produktet 22

1. LEDNINGSF∅RING OG TÆNDING....24

4.1 LEDNINGSF∅RING 24
4.2 Tænd....24

1. PRODUKTOVERSIGT 24

5.1 Sidepanel....24
5.2 Bundpanel 24

1. BRUG AF DIN RALLYBAR....25

6.1 Bluetooth-forbindelse 25
6.2 USB-forbindelse 25
6.3 AUX-forbindelse 25
6.4 Prioritet for kilden 26

1. AVANCERET BRUG....26

7.1 MAP-lyseffekt 26
7.2 RGB-lys-effekt 27
7.3 Indstilling af RGB-lysets lysstyrke 27
7.4 Indstilling af DIY-RGB-lys 27
7.5 Broadcast-tilstand 28
7.6 Party-tilstand....28
7.7 DEMO-tilstand 28
7.8 DYB STANDBYTILSTAND 29
7.9 NULSTILLING 29
7.10 Firmwareopgradering 29

1. SPECIFICATIONER....29
2. FEJLFINDING 30

1. INTRODUKTION

2. HVAD ER DER I AESKEN

Diagram showing various electronic components and symbols with labels like 'x1', 'x2', and '×1' for different types of devices or connectors.

3. INSTALLATION AF PRODUKTET

3.1 Produktets mål

RALLYBAR&RALLYBAR S

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure mechanical assembly diagram showing a rectangular component with mounting brackets and a central label (no text or symbols)

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

3) Monteringstrin

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled parts and component details

2" 2" + =

Mulighed 2:

1.75" + = 1.75"

Mulighed 3:

1.75" + = 1.5"

Trin 4 - Monter soundbaren på stangen.

Technical diagram showing mechanical assembly with labeled components and directional arrows

Technical line drawing of a mechanical device with two views of internal components (no text or symbols)

Technical diagram of a mechanical device with labeled components and angular measurements, including a 180° angle and 90°/270° reference.

Simple line drawing of a string with a loop and a numbered label (1), no text or symbols present.

>2"(50mm)

4. LEDNINGSF∅RING OG TÆNDING

4.1 LEDNINGSF∅RING

Technical diagram of a device rear panel with labeled ports and buttons

RALLYBAR / RALLYBAR S-25A RALLYBAR XL-40A Sikringsholder 46 cm Batteri Chassisjord (–)

4.2 Tænd

→ + * t + ③ ×1

Technical diagram of an electrical outlet with numbered components for identification

1. USB

- Tilslut en USB-lagerenhed.

1. Aux-ind

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

USB RGB-Iy5

USB RGB-lys

Knap Tryk Funktion
+	2S	RGB-lys DIY-indstillingstilstand

Status for knapbaggrundsbelysning

Sluk	Sluk
Hvidt (konstant)	I driftstilstand
Hvidt (blinker)	I RGB-lys DIY-menutilstandI RGB-lysstyrke-menutilstand

7.5 Broadcast-tilstand

Diagram illustrating wireless signal transmission between two devices, showing + and - symbols with 25-second intervals.

Bemærk:

Diagram showing wireless signal transmission between two devices with a speaker icon and power lines

Bemærk:

Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix

Diagram of an electronic device showing internal components and a USB connection to a device with music note.

Knap Tryk Funktion
		Kontrol af firmwareversion
		Firmwareopgradering

1. Kontrol af firmwareversion:

RALLYBAR & RALLYBAR S

21-5/32" (537.5mm) VSL 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

3) Montageschritte

RALLYBAR & RALLYBAR S

3 4 3 4 1 2 1 2

RALLYBAR XL

5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4

Technical diagram showing exploded view of a battery pack with labeled components and parts

2" 2" + =

Option 2:

1.75" + = 1.75"

Option 3:

1.75" + = 1.5"

Technical line drawing of a mechanical device with two cylindrical components and a base housing (no text or symbols)

Technical line drawing of a mechanical device with two views of internal components (no text or symbols)

Technical diagram of a mechanical device with labeled components and angular measurements, including a 180° angle indicator.

Simple line drawing of a string with a loop and a numbered label (1), no text or symbols present.

= ▷ + + + + ×1 ③

Technical diagram of an electrical switchgear box with numbered components for identification

1. USB

① ② ③ ④ ⑤ ⑥ ⑦ ○ ▶ ▶ ▼ *

Bluetooth Bluetooth ON DEVICES JBL RALLYBAR JBL RALLYBAR S JBL RALLYBAR XL

Diagram of an electronic device showing internal components and USB connection to a USB port, with a note indicating music playback.

1. Rock
2. Flow
3. Cross
4. Ripple
5. Static
6. Mix

Diagram illustrating two device configurations with labeled components and signal waves, including hand icons and 25-second mark indicators.

Hinweise:

Diagram showing two electronic components connected to a cylindrical device with labeled ports and signal waves

Hinweise:

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating the USB signal.

21-5/32" (537.5mm) VSL 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure mechanical assembly diagram showing a rectangular component with mounting brackets and a central label (no text or symbols)

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

RALLYBAR Y RALLYBAR S

3 4 3 4 2 1 2

RALLYBAR XL

5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled components and parts

2" 2" + =

Opción 2:

1.75" + = 1.75"

Opción 3:

1.75" + = 1.5"

Technical line drawing of a mechanical device with two circular components and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical device with two views (top and side), no visible text or symbols

Technical diagram of a mechanical device with labeled components and angular measurements, including a 180° angle and 90°/270° reference.

Simple line drawing of a string with a loop and a curved arrow, no text or symbols present

= ▷ + + + + ×1 ③

Technical diagram of an electrical switchgear box with numbered components and labeled ports

1. USB

Bluetooth Bluetooth DEVICES JBL RALLYBAR JBL RALLYBAR S JBL RALLYBAR XL

1. Rock
2. Flow
3. Cross
4. Ripple
5. Static
6. Mix

Diagram illustrating wireless signal transmission between two devices, showing 25s hand signals and signal waves.

Notas:

Diagram showing a device with two ports and a speaker icon, likely illustrating audio or sound propagation.

Notas:

Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

ES

1. TEKNISET TIEDOT....59
2. VIANMÄÄRITYS 60

1. ESITTELY

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled components and parts

2" 2" + =

Vaihtoehto 2:

1.75" + = 1.75"

Vaihtoento 3:

1.75" + = 1.5"

Technical line drawing of a mechanical device with two circular components and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical device with two views of internal components (no text or symbols)

Technical diagram of a mechanical device with labeled components and angular measurements, including a 180° angle and 90°/270° reference.

Simple line drawing of a string with a loop and a numbered label (1), no text or symbols present.

Technical diagram of an electrical switchgear box with numbered components and labeled parts

1. USB

Diagram of an electronic device showing internal components and a USB connection to a USB jack, with a note indicating music.

1. Rock
2. Flow
3. Cross
4. Ripple
5. Static
6. Mix

Diagram illustrating wireless signal transmission between two devices, showing 25s hand signals and signal waves.

Huomautuksia:

Diagram showing wireless signal transmission between two devices with speaker icons and a control panel

Huomautuksia:

7.8 SYVÄ VALMIUSTILA

Diagram showing internal components of an electronic device with USB and music player connections

1. CABLAGGIO ED ACCENSIONE....64

4.1 CABLAGGIO 64
4.2 Accensione 64

1. PANORAMICA DEL PRODOTTO 64

5.1 Pannello laterale....64
5.2 Pannello inferiore....65

1. UTILIZZO DELLA RALLYBAR....65

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled components and parts

2" 2" + =

Opzione 2:

1.75" + = 1.75"

Opzione 3:

1.75" + = 1.5"

Technical line drawing of a mechanical device with two circular components and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical assembly with two views (one showing internal components, one showing external assembly), no text or symbols present.

Technical diagram of a mechanical device with labeled components and angular measurements, including a 180° angle indicator.

Simple line drawing of a string with a loop and a hook, no text or symbols present

4. CABLAGGIO ED ACCENSIONE

4.1 CABLAGGIO

Diagram of a device panel with labeled buttons and a finger icon indicating '×1' operation

Technical diagram of an electrical switchgear box with numbered components and labeled ports

1. USB

① < 10 m (33 ft) ② Bluetooth Bluetooth DEVICES JBL RALLYBAR JBL RALLYBAR S JBL RALLYBAR XL

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music.

Diagram illustrating sound wave propagation between two devices, showing signal waves and hand gestures with 25 dB mark indicators.

Note:

Diagram showing wireless signal transmission between two devices with speaker icon and control buttons

Note:

Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

Diagram showing various electrical components and symbols with labels like 'x1', 'x2', and '×1' for different types of devices or connectors.

3. PRODUCTINSTALLATIE

RALLYBAR & RALLYBAR S

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

3.2 Product monteren

1) Bovenaanzicht montage

Pure mechanical assembly diagram showing a rectangular component with mounting brackets and a central label (no text or symbols)

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

3) Montagestappen

RALLYBAR & RALLYBAR S

3 4 3 4 1 2 1 2

RALLYBAR XL

5 6 7 8 5 6 7 8 1 2 3 4 1 2 3 4

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled components and parts

2" 2" + =

Optie 2:

1.75" + = 1.75"

Optie 3:

1.75" + = 1.5"

Technical line drawing of a mechanical device with two circular components and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Technical diagram of a mechanical device with labeled components and angular measurements

Simple line drawing of a string with a loop and a numbered label (1), no text or symbols present.

>2"(50mm) AF

4. BEDRADING EN STROOM AAN

4.1 BEDRADING

Technical diagram of an electrical switchgear box with numbered components and labeled ports

1. USB

Diagram of an electronic device showing internal components and a USB connection to a USB device with music notes.

Opmerkingen:

1. Rock

2. Flow

3. Cross

4. Ripple

5. Static

6. Mix

Primaire kleurzone

Diagram illustrating a multi-camera system with 25s display and signal transmission, showing device placement and reception.

Opmerkingen:

Diagram showing two connected devices with signal waves, one labeled with a star and the other with a plus symbol.

Opmerkingen:

Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix

7.10 Firmware-upgradeservice

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

1. Firmware-upgrade door U Disk (flashstation)

NL 9. PROBLEEMOPLOSSING

Voorzorg:

1. INNLEDNING....82
2. ESKENS INNHOLD 82
3. INSTALLERING AV PRODUKTET 82

Diagram showing various electrical components and symbols with labels like 'x1', 'x2', and '×1' indicating different types of devices or connectors.

RALLYBAR OG RALLYBAR S

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

2) Bakmontert

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

3) Monteringstrinn

Trinn 1 - Velg klemmenes monteringsposisjoner på lydplanken.

RALLYBAR OG RALLYBAR S

3 4 3 4 1 2 1 2

RALLYBAR XL

5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4

Trinn 2- Sett klemmen på lydplanken

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled components and parts

Trinn 3 - Velg C-klemmer og gummibånd utfra stangstørrelsen.

Alternativ 1:

2" 2" + =

Alternativ 2:

1.75" + = 1.75"

Alternativ 3:

1.75" + = 1.5"

Trinn 4 - Monter lydplanken på stangen.

Technical line drawing of a mechanical device with two circular components and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical assembly with two views (one showing internal components, one showing external components) and no visible text or symbols.

Technical diagram of a mechanical device with labeled components and angular measurements, including a 180° angle and 90°/270° reference.

Merknader: JBL-logoemblemet kan roteres.

Simple line drawing of a string with a loop and a curved arrow, no text or symbols present

→ + * + ③ x1

	Av	Hovedstrømbryteren er av
	Hvitt (blinker)	Hovedstrømbryteren er på- (dyp standby-modus)
	Hvitt (kontinuerlig)	Driftsmodus er på
	Rødt (kontinuerlig)(15 sekunder)	Beskyttelse: OVP/UVP/OTP

5. PRODUKTOVERSIKT

5.1 Sidepanel

Technical diagram of an electrical switchgear box with numbered components for identification

1. USB

- Koble til en USB-lagringsenhet.

1. Aux-inn

Diagram of an electronic device showing internal components and a USB connection to a USB jack, with a note indicating music.

Merknader:

Diagram of an electronic device showing internal components and a USB connection to a USB jack, with a note indicating music.

JBL RGB-lys

7.4 DIY-innstilling for RGB-lys

JBL RGB-lys

Knapp Presse Atferd
+	2S	DIY-innstillingsmodus for RGB-lys

Diagram illustrating wireless signal transmission between two devices, showing + and - symbols with 25-second readouts.

Merknader:

• Strommemodus er kompatibelt med inngangskildene AUX-INN, USB-disk og Bluetooth.

• Både lyd og RGB-lys synkroniseres i strømmemodus

• Lokal kilde (Bluetooth/AUX-INN og USB) kan overstyre strømmemodus: Sekundær lydplanke mottar musikk fra andre lydplanker bare når en lokal kilde ikke avspilles på den sekundære lydplanken

• I kringkastingsmodus vil bare den primære lydplanken synkronisere volumet eller RGB-lyset endres til den andre lydplanken, mens den sekundære/tredje/fjerde ... lysplanken ikke synkroniserer volumendringen til andre lydplanker.
• RALLYBAR kan koble til RALLYBAR, RALLYBAR S og RALLYBAR XL i kringkastingsmodus
• Flere tilkoblingsscenarioer for lydplanker i strømmemodus nedenfor:

Diagram showing a device with two ports and a speaker icon, connected by signal lines.

Merknader:

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

Diagram showing various electronic components and symbols with labels like 'x1', 'x2', and '×1' indicating different types of devices or connectors.

PT-BR

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure mechanical assembly diagram showing a rectangular component with mounting brackets and a central label (no text or symbols)

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

RALLYBAR e RALLYBAR S

3 4 3 4 1 2 1 2

RALLYBAR XL

5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled components and parts

2" 2" + =

Opção 2:

1.75" + = 1.75"

Opção 3:

1.75" + = 1.5"

Passo 4 - Monte a barra no suporte.

Technical line drawing of a mechanical device with two circular components and a cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical assembly with two views (one showing internal components, one showing external components) and no visible text or symbols.

Technical diagram of a mechanical device with labeled components and angular measurements, including a 180° angle and 90°/270° reference.

Simple line drawing of a string with a loop and a numbered label (1), no text or symbols present.

BAR PT-BR ② ③

Desligado Liga

→ + * * 0 ×1 ③

Technical diagram of an electrical outlet with numbered components and labeled ports

1. USB

Diagram of an electronic device showing internal components and USB connection to a USB port, with a note indicating music playback.

Formatos de áudio suportados

Extensão	Codec Taxa de	amostragem	Bitrate
WAV PCM	44,1 kHz -	192 kHz	<5 Mbps
	LPCM 44,1 kHz -	192 kHz	<5 Mbps
MP3 MPEG1 layer 1/2/3 32 kHz		-48 kHz	32 Kbps -320 Kbps
		MPEG2 layer 1/2/3 16 kHz -24 kHz	8 Kbps -160 Kbps
		MPEG2.5 layer3 8 kHz -12 kHz	8 Kbps -160 Kbps

Dica:

Diagram illustrating wireless signal transmission between two devices, showing 25s hand icons and signal waves.

Observações:

Diagram showing two electronic components connected to a cylindrical device with speaker and signal icons, likely illustrating a sound or audio system.

Observações:

Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

INNEHÅLLSFÖRTECKNING

1. INLEDNING.... 103
2. DETTA FINNS I LÅDAN 103
3. PRODUKTINSTALLATION 103

Diagram showing various electronic components and symbols with labels like 'x1', 'x2', and '×1' indicating different types of devices or connectors.

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

3.2 Montering av produkten

1) Vy uppifrån

Pure mechanical assembly diagram showing a rectangular component with mounting brackets and a central label (no text or symbols)

2) Vy från baksidan

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled components and parts

2" 2" + =

Alternativ 2:

1.75" + = 1.75"

Alternativ 3:

1.75" + = 1.5"

Technical diagram of a mechanical device with labeled components and angular measurements, including a 180° angle and 90°/270° reference.

Simple line drawing of a string with a loop and a curved arrow, no text or symbols present

AF >2"(50mm)

4. KABELDRAGNING OCH STRÖM

4.1 KABELDRAGNING

Diagram showing a device with labeled buttons and an icon, alongside a table for Av and På.

→ + * * ③ ×1

Technical diagram of an electrical switchgear box with numbered components for identification

1. USB

Diagram showing internal components of an electronic device with USB and music player labels

Obs!

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

JBL RGB-Iju

JBL RGB-lju

JIBL RGB-ljus

1. Rock

2. Flow

3. Cross

4. Ripple

5. Static

6. Mix

Primär färgzon

Diagram illustrating wireless signal transmission between two air conditioners, showing + and - symbols with 25s labels.

Obs!

Diagram showing wireless signal transmission from two devices to a rectangular device with a display screen and control buttons

Obs!

Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

Technical diagram showing various electrical component symbols and labels, including bulbs, switches, and a toolbar with '×1' and '×2' indicators.

RALLYBAR 与 RALLYBAR S

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

3.2 产品安装

1) 顶部安装视图

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

2) 背面安装视图

Technical line drawing of a mechanical component with cylindrical body and internal components (no text or symbols)

3) 安装步骤

RALLYBAR 与 RALLYBAR S

3 4 3 4 1 2 1 2

RALLYBAR XL

5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4

ZH-CN

第 2 步：把夹板放到条形音箱上

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled parts and component details

2" 2" + =

选项2:

1.75" + = 1.75"

选项3:

1.75" + = 1.5"

第 4 步：在支杆上安装条形音箱。

Technical diagram showing mechanical assembly with labeled components and directional arrows

Technical line drawing of a mechanical assembly with two views (one showing internal components, one showing external components) and no visible text or symbols.

ZH-CN

Technical diagram of a mechanical device with numbered components and angular measurements, including a 30-degree angle and 90°/180° reference.

备注：JBL 标志徽章可以旋转。

第5步：安全绳

松开安全绳螺钉

Simple line drawing of a string with a loop and a curved arrow, no text or symbols present

拧紧安全绳螺钉

BAR ②

Simple line drawing of a tool with an arrow indicating rotation (no text or symbols)

>2"(50mm) AF

4. 布线和通电

4.1 布线

= ▷ + * * Ⓧ ×1 ③

Technical diagram of an electrical switchgear box with numbered components and Chinese labels

1. USB

- 连接 USB 存储设备。

1. AUX-IN (辅助输入)

① <10 m (33 ft) ② Bluetooth Bluetooth ON DEVICES JBL RALLYBAR JBL RALLYBAR S JBL RALLYBAR XL

ZH-CN

1. Rock
2. Flow
3. Cross
4. Ripple
5. Static
6. Mix

原色区域

Diagram illustrating wireless signal transmission between two devices, showing clock signals and hand gesture icons with 25-second duration labels.

注：

FLUTT + * ① 25

Diagram showing a device with a plus and minus symbol, plus an icon labeled '2S' and a hand gesture.

②

7.6 派对模式

Diagram showing wireless signal transmission from two devices to a device with indicator lights and power lines

注：

Rock -> Flow -> Cross -> Ripple -> Flash -> Static1 -> Static2 -> Mix

Diagram of an electronic device showing internal components and a USB connection to a USB port, with a note indicating music playback.

Diagram showing various electrical components and symbols with labels like '×1' and '×2', including a battery box and circuit breakers.

1x Soundbar 2x Sekrup M8 pendek
2x Kabel keamanan 2x Sekrup M5 pendek
1x Kunci kecil 2x Sekrup M5 panjang
1x Kunci L kecil 2x Mur sekrup M5
1x Kunci T segi enam 4x Ring datar
2x Tali pengikat Velcro 2x Klem C (2")
1x Klem G 2x Klem C (1,75")
1x Gantungan kunci 2x Potongan karet tebal(untuk tiang 1,5")
1x Wire-harness daya/ground 12 kaki (3,66 m)	2x Potongan karet tipis(untuk tiang 2" & 1,75")
2x Karet pelindung atas 1x Panduan memulai cepat
2x Gerigi pemasangan 1x Lembar panduankeselamatan & kartu garansi

3. PEMASANGAN PRODUK

3.1 Dimensi Produk

RALLYBAR & RALLYBAR S

21-5/32" (537.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

RALLYBAR XL

35-11/32" (897.5mm) 5" (126.7mm) 4-5/8" (118mm) 5-5/16" (135.2mm)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

2) Tampak belakang

Technical line drawing of a mechanical device with cylindrical body and internal components (no text or symbols)

RALLYBAR & RALLYBAR S

3 4 3 4 1 2 1 2

RALLYBAR XL

5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4

Technical diagram showing exploded view of a refrigerant air conditioner unit with labeled parts and component details

2" 2" + =

Opsi 2:

1.75" + = 1.75"

Opsi 3:

1.75" + = 1.5"

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical device with two views of internal components (no text or symbols)

Technical diagram of a mechanical device with labeled components and angular measurements

Simple line drawing of a string with a loop and a numbered label (1), no text or symbols present.

▶ + * * 0 ×1 ③

	●Mati	Sakelar daya utama mati
		Sakelar daya utama menyala- (mode Siaga Dalam)
		Mode operasional aktif
		Perlindungan: OVP/UVP/OTP

5. GAMBARAN UMUM PRODUK

5.1 Panel samping

Technical diagram of an electrical switchgear box with numbered components for identification

1. USB

① < 10 m (33 ft) ② Bluetooth Bluetooth DEVICES JBL RALLYBAR JBL RALLYBAR S JBL RALLYBAR XL

*	● Mati	Mematikan
	○ Putih (Konstan)	Dalam mode operasional tanpa koneksi Bluetooth
	● Biru (Konstan)	Bluetooth tersambung
	○ Biru (Berkedip)	Pemasangan Bluetooth

Catatan:

Diagram of an electronic device showing internal components and USB connection to a USB port, with a note indicating music playback.

Diagram illustrating wireless signal transmission between two devices, showing 25s hand signals and signal waves.

Catatan:

Diagram showing wireless signal transmission from two input devices to a device with a display and control buttons

Catatan:

Diagram of an electronic device showing internal components and a USB connection to a terminal block with music note

Tombol Tekan	Reaksi
		Cek versi firmware
		pembaruan firmware

1. Cek Versi Firmware:

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

FR
