573 - Fan Vornado - Free user manual and instructions

Product type	Fan
Brand	Vornado
Model	573
Dimensions (L × W × H)	35.6 × 66 × 58.4 cm
Weight	0.72 kg
Power supply	230 V – 50 Hz AC
Power	100 W
Speeds	Multiple (3 speeds)
Protection class	I
Removable grille	Yes, with finger guard
Removable blade	Yes, for cleaning
Non-slip feet	Yes, silicone
Use	Indoor only
Main functions	Air circulation, energy saving
Cleaning	Removable grille and blade for cleaning with soapy water
Safety	Finger guard, auto shut-off not specified
Spare parts	Grille, blade, cord (via after-sales service)
Repairability	Vornado authorized service center
Warranty	Limited manufacturer warranty
Certifications	CE, RoHS, Low Voltage Directive

Frequently Asked Questions - 573 Vornado

How to clean the Vornado 573 fan?

First unplug the appliance. Remove the grille by turning it to the left, then clean it with a damp cloth. For the blade, remove the nut (if present) and pull the blade forward. Clean with a damp cloth and mild soap. Do not immerse in water.

How to remove the fan grille?

Unplug the appliance. Use a screwdriver to remove the locking screw. Turn the grille counterclockwise to unlock it, then pull it forward.

How to remove the fan blade?

Unplug the appliance. Remove the grille. If a nut is present (model 573 does not have one), loosen it. Pull the blade horizontally to disengage it from the motor shaft. Clean with a damp cloth.

What to do if the fan does not turn on?

Check that the cord is properly plugged into a 230 V outlet. Try another outlet. Check the speed setting. If nothing works, the appliance may be defective: stop using it and contact Vornado after-sales service.

The fan is making noise, what should I do?

An abnormal noise may come from a loose blade or an obstruction. Unplug the appliance, check that the blade is properly secured and that no object is blocking the grille. If the noise persists, contact an authorized repair center.

Can I use the fan outdoors?

No, the Vornado 573 is designed for indoor use only. Exposing it outdoors or to humidity can damage the motor and create a risk of electric shock.

How to adjust the fan speed?

Use the control knob to select the desired speed: low, medium, or high. Multiple speeds allow you to adjust the airflow to your comfort.

Is the warranty valid in Europe?

Yes, the product comes with a limited manufacturer warranty valid in Europe. For any claim, keep the proof of purchase and contact Vornado customer service.

Can I use a speed controller with this fan?

No, it is strongly advised not to use a solid-state speed control device with this product. This could pose a risk of fire or electric shock.

What to do if the fan stops suddenly?

This may be due to a residual current device (RCD) tripping. Try plugging the appliance into an outlet not protected by an RCD. If the problem persists, have the outlet checked by an electrician.

USER MANUAL 573 Vornado

we expect this product to be PERFECT

if it's not WE will make it right.

Important Safety Instructions 4

10

Troubleshooting 13

Product Information 14

Warranty 15

Dermop 16 Nederwands 42 Eotigal 32 Lohm 90 Schwerdt 108

IMPORTANT INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING.

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. Please refer to our website for the most current version of our owner's guide.

The following Warning messages are throughout this owners guide:

DANGER

Indicates a hazard with a HIGH level of risk which, if not avoided, will result in death or serious injury. Please pay special attention to any instructions given to avoid this threateningly dangerous risk.

WARNING

Indicates a hazard with a MEDIUM level of risk which, if not avoided, could result in death, serious injury, minor or moderate injury or potential property damage.

IMPORTANT INSTRUCTIONS

Indicates additional information that will assist in the care of handling of the device.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only. This product is not intended for commercial or industrial uses. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

WARNING - When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

WARNING

Risk to Children and Other at Risk Groups of People.

This appliance can be used by children aged from 12 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.
This product and its packaging material are not toys and should be kept out of reach of children.

AWARNING

Risk from Unintended Use and Handling. Please take care to follow these guidelines to avoid risks to people or property.

Do Not use this product outdoors or directly exposed to weather.

Do Not use this device in tropical humid climates. If the product is brought in from the cold to a warm area (e.g., during transport), condensation can occur within the unit. Let the device reach room temperature, before using it.
Do Not use this product on wet surfaces. Do not use this product in a bathtub, shower or locate product where it may fall into a bathtub, laundry, swimming pool or other water container.

Do Not immerse this product in water or allow water to drip into the motor housing.
Do Not use near furnaces, fireplaces, stoves or other high-temperature heat sources.
Do Not position this product too close to draperies or other loose fabrics as they may be drawn into the product, cutting off airflow and damaging the motor.
Do Not carry this product by the cord, or use the cord as a handle as it can damage internal wiring. Do not unplug product by pulling on cord or place the cord under strain. To unplug, grasp the plug, not the power cord.
Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.

Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. To avoid a tripping hazard, safely coil/store the power cord.
Do Not tamper with or modify this product in any way.
Do Not allow the power cord to come in contact with water or wet locations. Do Not place power cord near heat sources, such as heaters or radiators.

ELECTRICAL CONNECTION: Only a proper 230V-50Hz AC outlet may be used to connect to public power supply.

DANGER

Risk from Electrical Shock. Contact with wires or components that are under voltage could be potentially fatal!
- Do Not touch the product with wet or damp hands. - Do Not operate any product with a damaged

card or plug or after the product malfunctions, has been dropped or damaged in any manner. Discard product, or return to authorized service facility for examination and/or repair in order to avoid a hazard
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- Do Not stretch the power cord or put the cord under strain.
- Do not insert or allow foreign objects to enter any input or output opening as they may cause risk of electric shock or fire, or damage the product.
- Turn off all controls before unplugging. Unplug from wall outlet if not in use for extended periods of time.
- Do Not open appliance housing. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center. Only original replacement parts may be used.
For safety reasons, always unplug the unit in the event of a thunderstorm.

AWARNING

Risk from Improper Installation. Please take care to follow these guidelines to avoid risks to people or property.

Ensure that well power outlet is easily accessible so unit can be disconnected during an emergency.
To reduce the risk of fire or electrical shock, do not use this product with any external (solid state) speed control device.
To reduce the risk of fire or electric shock and injury to persons, do not use in a window.

Information Regarding the EC Declaration of Conformity

This product conforms with all relevant and necessary EC directives, including:
Low Voltage Directive (LVD)
Electromagnetic Compatibility Directive (EMC)
- Energy Related Product Directive (ERP)
- Restriction of Hazardous Substances Directive (RoHS)

The complete Declaration of Conformity is registered and can be obtained from the importer.

PACKAGE RECYCLING: The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

> Dispose of all packaging materials in an environmentally responsible manner.

Waste Electrical and Electronic Equipment Disposal: This marking indicates that this product

should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

E

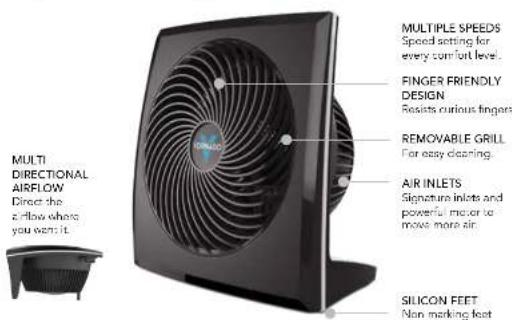

FEATURES

Save energy by maximizing the performance of heating and cooling systems. When you use a Vornado Air Circulator, you will not have to set your summertime thermostat as low or your winter-time thermostat as high.

CLEANING

GRILL REMOVAL (Models 270, 279) Screwdriver required.

WARNING: To reduce the risk of electrical shock and injury to persons, power off and unplug the circulator before removing grill.

1. Remove the screw located at the 6 o'clock position.
2. Rotate the grill counter clockwise to unlock and then lift it
3. To remodel the grill, position the grill with the logo slightly turned to the left and rotzo clockwise. Replace the screw.

Note: The motor is permanently lubricated and requires no cooling.

CLEANING

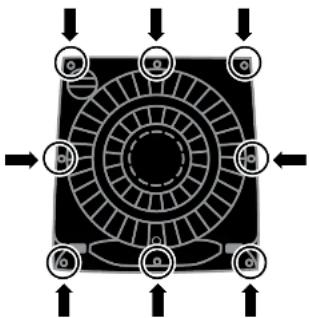

GRILL REMOVAL (Models 573,673,679) Screwdriver required.

WARNING: To reduce the risk of electrical shock and injury to persons, power off and unplug the circulator before removing grill.

1. Remove the 8 screws around the perimeter of the frame and lift off.
2. To reinstall the grill, line up screw holes and replace screws.

10 English

CLEANING

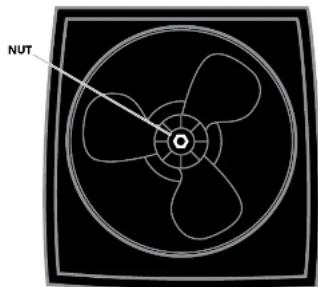

BLADE REMOVAL Piers required.

WARNING: To reduce the risk of electrical shock and injury to persons, power off and unplug the circulator before removing blade.

1. First, remove the nut from the shaft by turning the nut clockwise to loosen (model 573 has no nut). If included, remove washers and set aside. Pull the blade straight out from the shaft.
2. Wipe the Blade with a damp cloth. If your circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place blade in the dishwasher. The excessive heat can distort the plastic.
3. To react back - be certain the flat side of the shaft aligns directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer as this could result in bearing damage. It included, reinstall provided wackers and nut.

12 English

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

The unit fails to power on.

Unit is not plugged in. Plug Power Cord into electrical outlet.

Airflow is weak or slow.

Eraure unit fan speed setting is selected.

Unit is damaged or in need of repair. Fee usage and unplug. Contact Consumer Services for assistance.

The outlet is worn or damaged. Try another outlet or contact a qualified electrician.

Airlow is blocked. Remove obstruction.

Adjust direction of airflow towards the user.

GFCI has tripped.

Under certain conditions, it is possible for a reset GFCI Ground Fault Circuit Interrupter outlet to trip when the user is changing speeds on a Vornado circulator. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified technician to check the GFCI outlet.

ADDITIONAL PRODUCT INFORMATION

Mauke#			###
Description S######## Unit Value
Input Voltage V220-240
Minu Voltage Frequency Hz
Protection Class Class III
Dimensions		WxH=6mm	5.4x2.2x (16)
Weight Appar# (g) 1723
F#### P#####	#	W#### (##)	38.1
M##### F#### P##### #	#	###	12.19
S###### Volat	SW	W###/W##	0.02
E####### P#### C#########	#	W###	0.0
Limited Sound Level	Low	300A	62.2
M##### Air Volatility	#	m###	3.60
M##### ######## #######	IPC 68879: 1988 (rev) (1997)
S###### Volat	GSI 12300 2007
Contact Details For Obtaining More Information	V#### A### 11C 11c Last 12 ### ### Andro# 13 67007 USA

14 Engie

LIMITED WARRANTY*

We expect this product to be perfect. If you're not satisfied with this product, let us know.

Limited Warranty and repair terms and conditions

You will receive a voluntary "5-year manufacturer's warranty from all of purchasers on materials and warranties of the product. This external manufacturer's warranty is said for all customers in Europe. The legal claims are unaffected by this additional regulation.

The manufacturer assumes no responsibility for damage caused by filus. The manufacturer shall not import or repurchase product use. Any such actions will mark the product warranty.

This warranty does not apply to defects resulting from abuse of the Product, modification, or resale, repair or service of the Product by anyone other than Verando or an Authorized Service Center. Violating, improper maintenance, or any other cause for the product damages which occur in this version or are located to units of God.

Any nominal product modification, capable by machine/tractant carrier, or of no approved improvement, shall be considered and any material used in the product shall be supplied by the manufacturer.

Fecnns are the mages through fraggrs prinl cne re use of the prentant

not according to the manual. For example, but not limited to: 1) the product is prepared to openness, actuate temperature, environmental conditions, corrosion, oxidation, it clauds are rolled over the device; otherwise, it is possible to make a mechanical test that are not within the reasonable range of influence of the main structure.
Perequlia for preacng in the service depaement is the supson of a receipt or an invoice.
All electrical connection, data and instructions for the installation, correction and testing of the system are provided for use correspond to the International available information at time of printing.
The contents of this manual may differ slightly from the actual product.
Observe any additional requirements.
All company names and products names are trademarks of their respective owners. All rights reserved.
Refer to back cover of owner's guides for the Incentor Information and your Authorised Service Center.

Dgnrednncnneaein

2.2.3 Companca AUC ADC,OS 07002 US Patent pending, Sankara/Industries Ltd., China (in action). Licensee is to be notified by the former UK IEC
