E 118 - Slicer Ritter - Free user manual and instructions

Product type	Universal slicer
Brand	Ritter
Model	E 118
Use	Domestic
Power supply	Mains (voltage and power according to rating plate)
Cutting thickness	0 to 14 mm
Operating modes	Short time and continuous
Maximum continuous operating time	5 minutes
Safety - Blade guard	Position 0 covers the blade
Safety - Stop	Stops when released or returned to 0
Cleaning - Removable parts	Washable in warm water, not dishwasher safe
Cleaning - Blade	Removable with a coin
Maintenance	Lubricate guide with petroleum jelly
Included accessories	Carriage, food pusher, receiving tray
Optional accessory	Smooth blade for meat and cold cuts
Warranty	2 years
Power cord	With integrated cord storage
Warning	Do not cut frozen products, bones, stone fruits
Repairability	Authorized Ritter after-sales service
Compliance	EC Directives (2004/108, 2006/95, etc.)

Frequently Asked Questions - E 118 Ritter

How to adjust the cutting thickness?

Turn the cutting thickness adjustment knob (2) to select the desired thickness, from 0 to approximately 14 mm. Position 0 covers the blade for safety.

Can I use the slicer in continuous mode?

Yes, push the switch beyond the resistance until it clicks. The blade rotates continuously without holding. Do not exceed 5 minutes of continuous use.

How to clean the blade?

Unplug the appliance and set the thickness knob to 0. Use a coin to unscrew the blade clamping device. Remove the blade and clean it in warm water, but not in the dishwasher. Dry it thoroughly before reassembling.

Is the blade removable?

Yes, the blade can be easily disassembled using a coin inserted into the clamping device (7). Turn counterclockwise to remove it.

What to do if the appliance does not start?

Check that the appliance is properly plugged in and the outlet works. Make sure the switch is correctly pressed. If the problem persists, consult an authorized after-sales service.

Can I slice frozen foods?

No, never cut frozen products, bones, foods with large pits, fillet roasts, or packaged foods. This could damage the appliance or cause injury.

How to store the power cord?

Use the integrated cord storage under the appliance. Do not bend the cable or wrap it around the appliance.

How to change the blade?

First unplug the appliance. Remove the blade by turning the clamping device with a coin. Replace it with a new blade (available as a special accessory) and retighten. Reassemble the parts in reverse order.

What is the maximum operating time?

In continuous mode, do not exceed 5 minutes at a time. The appliance must then cool down. In short-time mode, you can use the appliance in pulses with no strict limit, but always under supervision.

What to do in case of breakdown?

Contact the Ritter after-sales service in your country. Do not try to repair the appliance yourself. Visit www.ritterwerk.de for authorized centers.

USER MANUAL E 118 Ritter

	deenfr
1	Einschalter(Kurzbetrieb / Dauerbetrieb)	Switch (temporary / continuous operation)	Commutateur (Mode courte durée/Mode continu)
2	Schnittstärke-Verstellknopf Slice thickness adjustment knob		Bouton de réglage de l'épaisseur de coupe
3	Schneidgut-Auffangschale Slice tray Plateau de réception des tranches
4	Typenschild Type label Plaque signalétique
5	Netzkabel Mains cable Câble secteur
6	Rundmesser Rotary blade Lame
7	Messerverschluss Blade catch Dispositif de serrage de la lame
8	Schneidgutschlitten Slice carriage Chariot
9	Restehalter	Left-over holder	Pousse-restes
10	Kabeldepot	Cable compartment	Range cordon
11	Anschlagplatte	Stop plate	Plaque protège lame

	it	es	nl
1 Interruttore (Utilizzo breve / Utilizzo continuato)		Inerruptor de encendido (Funcionamiento breve / Funcionamiento continuo)	Aan-/uitschakelaar (korte werking / continue werking)
2 Manopola di regolazione per lo spessore di taglio		Regulador del grosor de corte	Snijdikteknop
3 Vassoio per alimenti		Bandeja de recepción del producto cortado	Opvangschaal voor snijwaren
4	Targhetta	Placa de identificación	Typeplaatje
5 Cavo elettrico		Cable de red	Netsnoer
6 Lama		Cuchilla circular	Rond mes
7 Dispositivo di serraggio della lama		Cierre de la cuchilla	Messluiting
8 Carrello		Carro para el producto	Snijwarenslede
9 Pressasalumi		Sujetarrestos	Restenhouder
10	Alloggiamento per il cavo	Compartimento para cable	Snoeropbergvak
11	Piano mobile	Placa de tope	Aanslagplaat

Technical line drawing of a mechanical assembly with a coiled cable and plug (no text or symbols)

Technical line drawing of a mechanical assembly with a circular component and a slot, no visible text or symbols

Technical line drawing of a mechanical assembly with a central component and surrounding components (no text or symbols)

Line drawing of a hand holding a circular object next to a mechanical component (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component into a rectangular block (no text or symbols visible)

Illustration of hands using a mechanical device to interact with a textured surface (no text or symbols)

Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands operating a mechanical device with arrows indicating motion (no text or symbols)

Hand turning a circular button on a wooden surface (no text or symbols visible)

de Gebrauchsanleitung......4
en Operating instructions....9
fr Mode d'emploi 13
it Istruzioni d'uso....17
es Instrucciones de uso.... 21
nl Gebruiksaanwijzing....25
no Bruksanvisning.... 29
CS Návod k obsluze 33
hu Használati utasítás 37
pl Instrukcja obsługi......41
sk Návod na použitie....45
Sl Navodilo za uporabo 49
ru Руководство по использованию......53

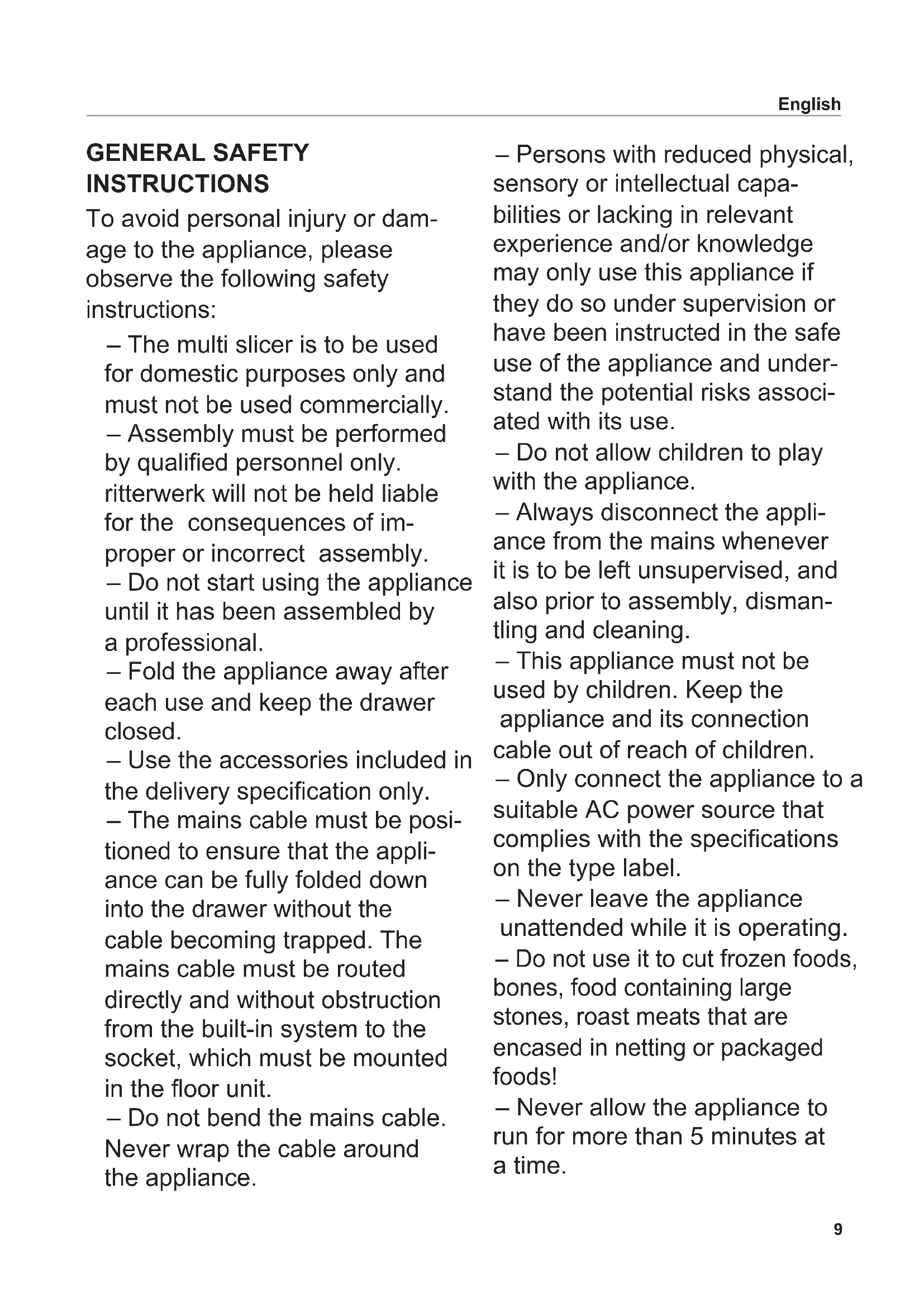

GENERAL SAFETY INSTRUCTIONS

To avoid personal injury or damage to the appliance, please observe the following safety instructions:

• The multi slicer is to be used for domestic purposes only and must not be used commercially.
• Assembly must be performed by qualified personnel only.
  ritterwerk will not be held liable for the consequences of improper or incorrect assembly.
• Do not start using the appliance until it has been assembled by a professional.
  – Fold the appliance away after each use and keep the drawer closed.
• Use the accessories included in the delivery specification only.
• The mains cable must be positioned to ensure that the appliance can be fully folded down into the drawer without the cable becoming trapped. The mains cable must be routed directly and without obstruction from the built-in system to the socket, which must be mounted in the floor unit.
• Do not bend the mains cable. Never wrap the cable around the appliance.

- Persons with reduced physical, sensory or intellectual capabilities or lacking in relevant experience and/or knowledge may only use this appliance if they do so under supervision or have been instructed in the safe use of the appliance and understand the potential risks associated with its use.

- Do not allow children to play with the appliance.

- Always disconnect the appliance from the mains whenever it is to be left unsupervised, and also prior to assembly, dismantling and cleaning.

- This appliance must not be used by children. Keep the appliance and its connection cable out of reach of children.

- Only connect the appliance to a suitable AC power source that complies with the specifications on the type label.

– Never leave the appliance unattended while it is operating.

- Do not use it to cut frozen foods, bones, food containing large stones, roast meats that are encased in netting or packaged foods!

– Never allow the appliance to run for more than 5 minutes at a time.

Risk of electric shock

- Always remove the mains plug from the socket in the event of a malfunction, before cleaning and when the appliance is not in use. When doing so, pull on the plug and not on the cable.

– Never immerse the appliance in water. Never expose the appliance to rain or any other form of moisture.

If the appliance falls into water, unplug the cable from the mains socket before removing the appliance from the water. Have the appliance inspected at an authorized service location before using it again.

- Always ensure that your hands are completely dry before using the appliance. Do not use the appliance if it is wet or damp or while you are standing on a damp surface. Do not use the appliance outdoors.

- Stop using the appliance immediately if any parts are damaged. Send the complete appliance to the ritter after-sales service in this case. - If the mains cable is damaged, it must be replaced by the manufacturer, the manufacturer's after-sales service or a similarly qualified person to eliminate risk of personal injury.

Risk of injury

- This appliance must not be used without a slice carriage or a left-over holder, unless the size and shape of the food to be sliced means that these parts cannot be used.

- The appliance must be switched off before changing accessories or add-on parts which move when operated.

- The rotary blade is extremely sharp.

- Never touch the rotating blade when the appliance is operating!

- Switch the appliance off before cleaning it; pull the mains plug out off the socket and turn the slice thickness adjustment knob to the "0" position.

- The rotary blade will continue to run for a short time after being switched off.

Unfold the illustrations at the front and back of this manual. Please read these instructions thoroughly before you start to use the appliance. Keep these operating instructions in a safe place and ensure that they are included with the appliance if passing it on to a third party. Alternatively, these operating instructions are available at www.ritterwerk.de.

INTENDED USE

The multi slicer is used to slice household foods.

If the appliance is used for a purpose other than this, or if it is operated incorrectly, severe injuries may occur or the appliance may be damaged. All warranty and liability claims will be rendered null and void in this case.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Preparation

Before you use the appli- ance for the first time, have a specialist install it in a suitable drawer.

Clean the appliance before allowing it to come into contact with any food (see CLEANING).

Setting up the appliance

- Set the appliance down on a flat, non-skid surface close to a mains socket.

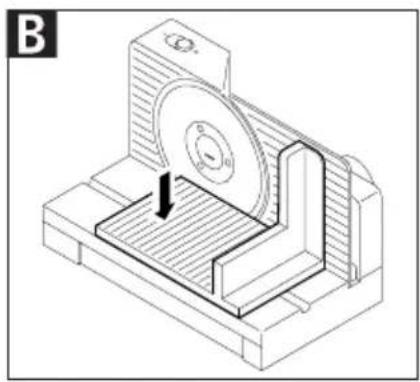

A Using a small amount of force, push the slice carriage (8) vertically into the guide groove on the appliance until it audibly locks into place.

B Slide the left-over holder (9) onto the slice carriage's handle.

C Unwind the mains cable (5) to the length required from the cable compartment (10) under the appliance and insert the mains plug into the socket.

SLICING

D Use the slice thickness adjustment knob (2) to set the required thickness.

Note:

The slice thickness adjustment scale is not a millimetre scale. For safety reasons, the "0" position is designed to cover the blade.

E Place the food to be sliced onto the slice carriage (8). Use the left-over holder (9) to press it up against the stop plate (11).

F Protect your hands, by always using the slice carriage and, where applicable, the leftover holder. Exception: Excessively large foods to be sliced.

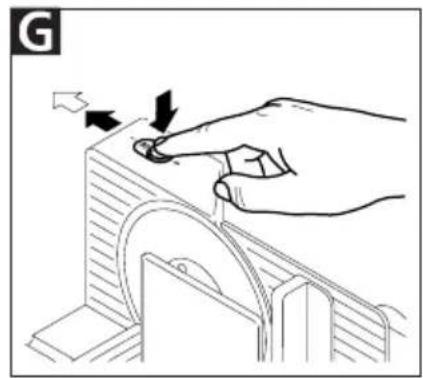

G Turn the appliance on using the switch (1). Two operating modes are available:

Temporary operation: Press the switch and slide it towards the arrow until you feel some resistance. The rotary blade (6) runs as long as the switch is pressed and held down in this position.

Continuous operation: Press the switch and slide it towards the arrow beyond the resistance point until it latches into place. The rotary blade runs without the switch having to be pressed and held down, until you push the switch back into the "0" position.

Note:

Never use the appliance for more than a maximum of 5 minutes in continuous operation.

- With the appliance running, gently feed the food to be sliced into the path of the rotary blade.

- When finished slicing, wait until the rotary blade has come to a complete stop.

• After each use, turn the slice thickness adjustment knob to the "0" position, in order to cover up the sharp rotating blade and to avoid any injuries.

H Pull the slice tray (3) to the right and out of the appliance.

CLEANING

Caution:

Switch the appliance off before cleaning it; pull the mains plug out off the socket and turn the slice thickness adjustment knob (2) to the "0" position.

Clean the multi slicer regularly to prevent the accumulation of food residue. The rotary blade must also be cleaned regularly as described below to prevent its surface from rusting.

Note:

Over time, an accumulation of food residue may cause damage to the surface of the rotary blade, causing it to rust.

Preparation

- Remove the slice tray (3) and the left-over holder (9).

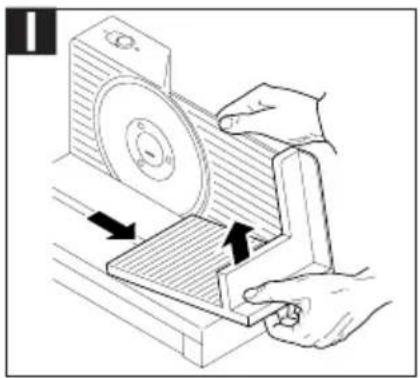

Pull the slice carriage (8) forward and then lift it up and out of the guide groove.

Removing the rotary blade:

K Place a suitable coin on the blade catch (7) and turn it in an anticlockwise direction.

• Take hold of the rotary blade at its rotational centre and remove it.

Cleaning after each use

Wipe down the housing and all removed parts, including the rotary blade, with a damp cloth.

Occasional cleaning

• Give all removed parts, including the rotary blade, a thorough wash in warm soapy water (not in the dishwasher!).
• Clean the housing behind the blade using a dry cloth/brush. Note:

Do not use any abrasive cleansers, sponges with rough surfaces or hard brushes to clean the appliance.

• Dry all parts that you have washed.
• Grease the rotary blade's gear wheel with a little Vaseline.
• Fit the rotary blade back into the appliance.

MAINTENANCE

Your multi slicer is maintenance-free. However, we recommend that you occasionally apply a little Vaseline to the rails for the slice carriage to keep them lubricated and ensure that the carriage continues to move easily.

STORAGE

Keep the appliance out of the reach of children.

To store the cable, always use the cable compartment integrated into the appliance.

DISPOSAL

At the end of its service life this product may not be disposed of as part of normal domestic waste. It must be taken to a dedicated collection point for recycling electrical and electronic devices. This is indicated by the symbol on the product, the operating instructions or the packaging.

The materials can be used again in accordance with their identification. The re-use, material-sensitive recycling or other forms of recycling of old appliances enables you to make a vital contribution to protecting our environment.

Please consult with the disposal office at your local authority.

REACH DIRECTIVE

A special, non-toothed rotary blade is also available for use with sliced meat, sausage and ham.

SERVICE, REPAIRS AND SPARE PARTS

Please contact your local after-sales service for all service, repairs and spare partsmatters!

This appliance complies with the following regulations and directives:

• 2004/108/EC
• 2006/95/EC
• 1935/2004/EC
  – EuP 2009/125/EC
• 2011/65/EU

The appliance thus complies with the CE specifications.

Mains voltage/power consumption: Refer to the type label on the underside of the appliance.

Slice thickness:

0 mm to approx. 14 mm

WARRANTY

This ritter appliance comes with a two-year manufacturer's warranty, starting with the date of purchase and in accordance with the EU warranty directives. In the event of a warranty claim or for servicing, the appliance must always be sent to the appropriate national customer service centre.
