USER MANUAL HPG1 VELLEMAN

See the product page on our website for the latest available manual

Survey of the connections and controls 6

Charging the generator 7

Function generator set-up 7

Waveform menu 8

Sweep menu....8

Warranty 25

General information....26

NL

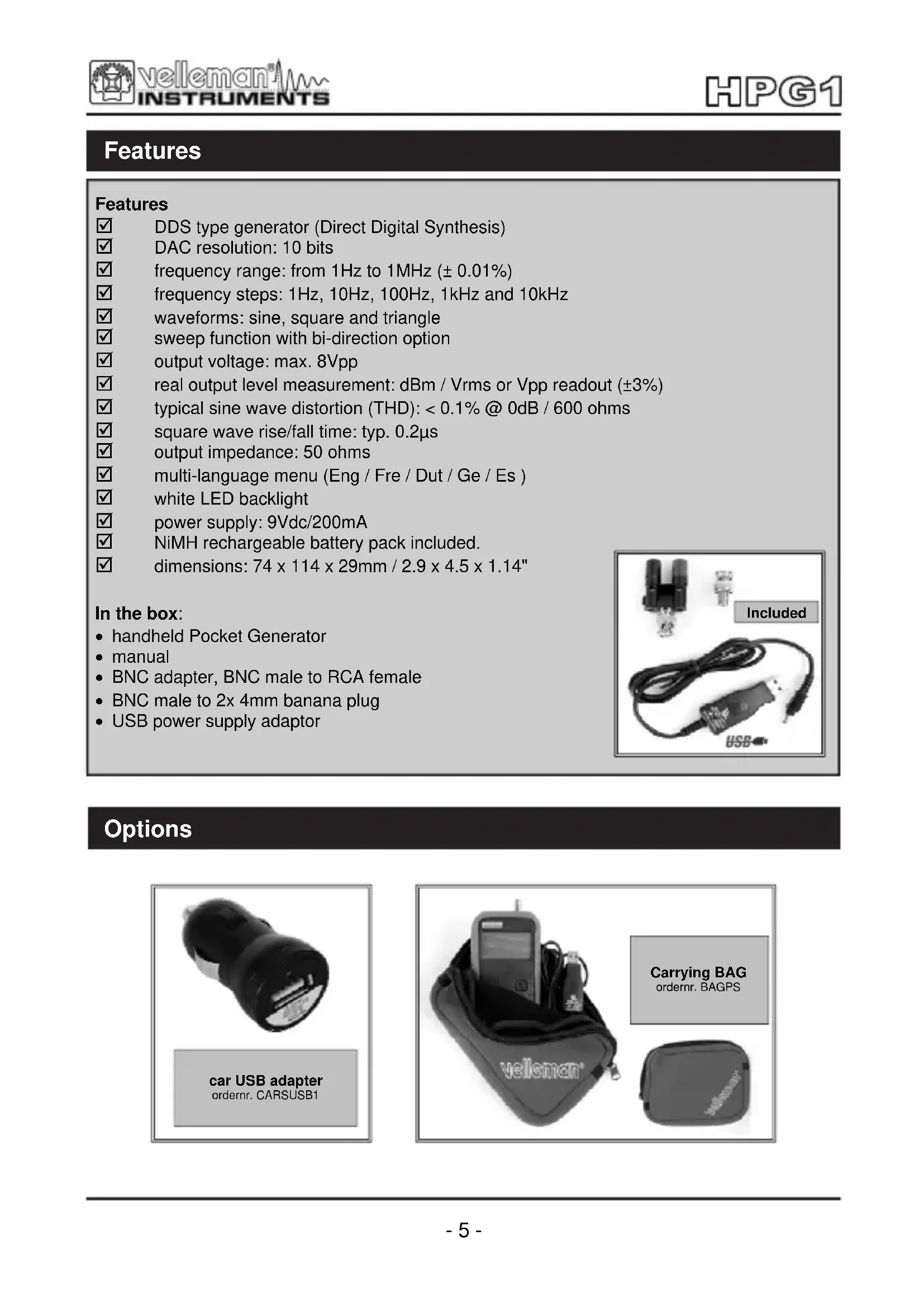

☑ DDS type generator (Direct Digital Synthesis)
☑ DAC resolution: 10 bits
☑ frequency range: from 1Hz to 1MHz ( ± 0.01%)
☑ frequency steps: 1Hz, 10Hz, 100Hz, 1kHz and 10kHz
☑ waveforms: sine, square and triangle
☑ sweep function with bi-direction option
☑ output voltage: max. 8Vpp
☑ real output level measurement: dBm / Vrms or Vpp readout (±3%)
☑ typical sine wave distortion (THD): < 0.1% @ 0dB / 600 ohms
√ square wave rise/fall time: typ. 0.2μs
☑ output impedance: 50 ohms
multi-language menu (Eng / Fre / Dut / Ge / Es)
white LED backlight
power supply: 9Vdc/200mA
☑ NiMH rechargeable battery pack included.
☑ dimensions: 74 x 114 x 29mm / 2.9 x 4.5 x 1.14"

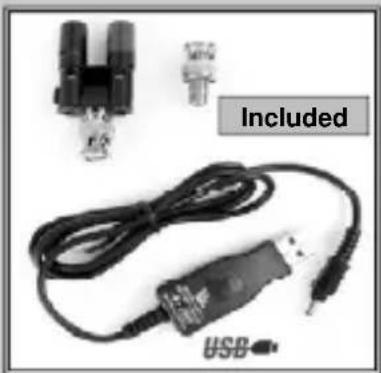

Product photo showing a USB cable with two connectors and a small metallic connector, labeled 'Included' (no readable text or symbols on the main subject)

In the box:

• handheld Pocket Generator
• manual
  • BNC adapter, BNC male to RCA female
  • BNC male to 2x 4mm banana plug
  • USB power supply adaptor

Options

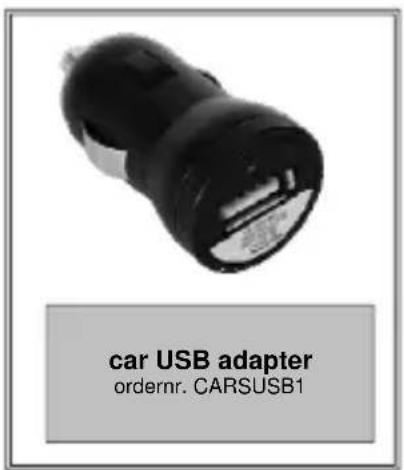

car USB adapter ordernr. CARSUSB1

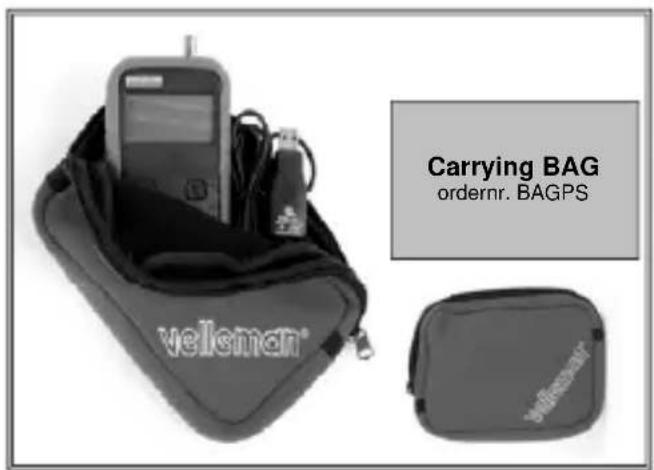

Velsman® Carrying BAG ordernr. BAGPS

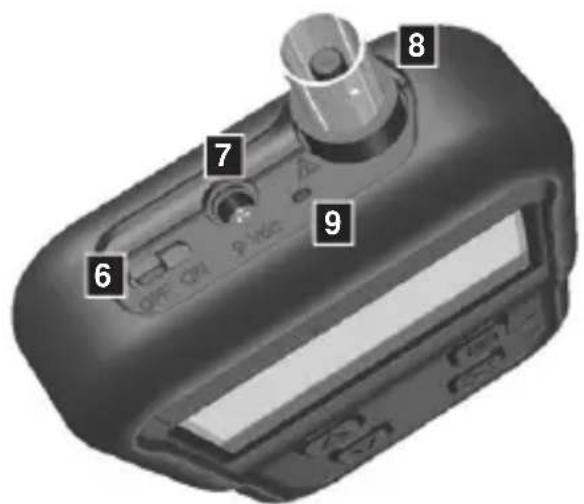

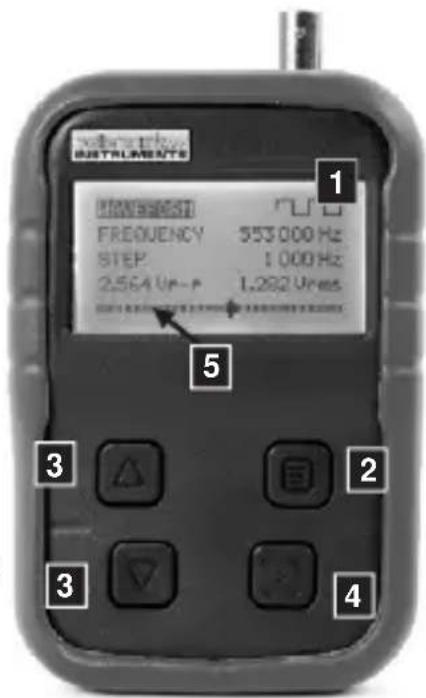

Survey of the connections and controls

1) Signal and menu display
2) Menu button / menu selection up
3) Up and Down set buttons
4) Settings menu / menu selection down
5) Output level indicator
6) On/Off switch
7) DC input (9V/200mA)
8) BNC output connector

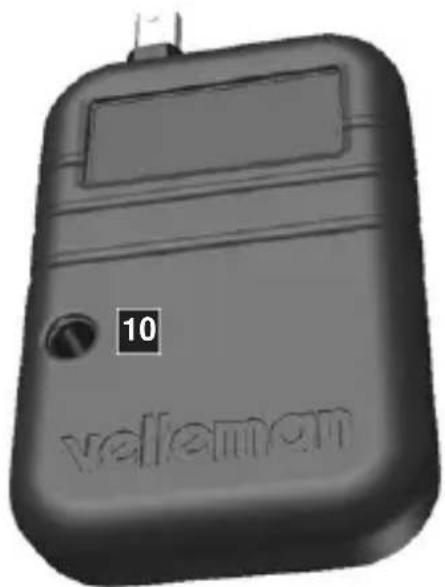

10) Only for service

9) Charge LED: Will light when the batteries are being charged

INVESTMENT FREQUENCY 553000 Hz STEP 1000 Hz 2.564 Vrms 1.282 Vrms 1 5 3 2 4

6 OFF ON 8 9 7

10 valleman

Charging the generator

Coiled black cable with a USB port and connector, no visible text or symbols

There are several charging options:

Use the included USB charger, plugged into a computer USB port, a mains to USB adaptor, a car 12V to USB adaptor or any USB type socket that can supply 5V/500mA.

For use during charging, it is strongly advised to use a 9Vdc/min 200mA mains adaptor.

Charging of completely drained batteries can take up to 7 hours. The charge LED indicator will light while the generator is charging.

Note: The charge LED will remain on as long as the charger is plugged in.

Function generator set-up

Access the set-up menu by keeping the settings button 4 pressed

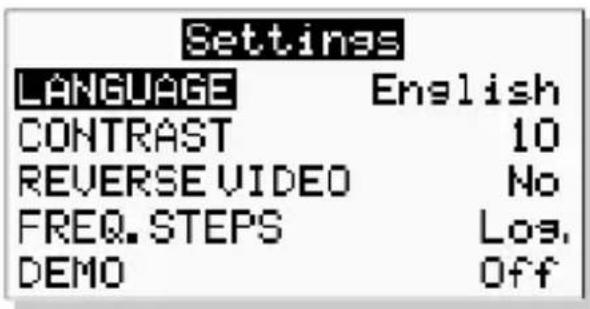

Settings LANGUAGE English CONTRAST 10 REVERSE VIDEO No FREQ.STEPS Los. DEMO Off

You can:

• Change the user interface language
• Adjust the display contrast or reverse the display (black with white dots)
• Change the way the frequency is changed if you keep the up/down button pressed (Log. will make the frequency change faster).
• Start or Stop the DEMO mode (useful for demonstration or testing)
• Press and hold the setting button 4 to leave the menu and store the settings

WAVEFORM MENU (shown, if sweep is OFF, see further)

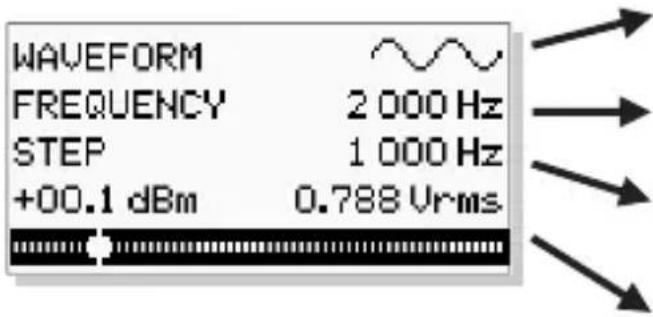

WAVEFORM FREQUENCY 2 000 Hz STEP 1 000 Hz +00.1 dBm 0.788 Vrms

Select the desired waveform (sine, square or triangle)

Select the desired frequency (1Hz ... 1.000.000Hz)

Select the desired frequency step (1Hz, 10Hz, 100Hz, 1kHz or 10kHz) this setting is used for above frequency change

Select the desired output level (dBm/Vrms or Vpp depends on signal)

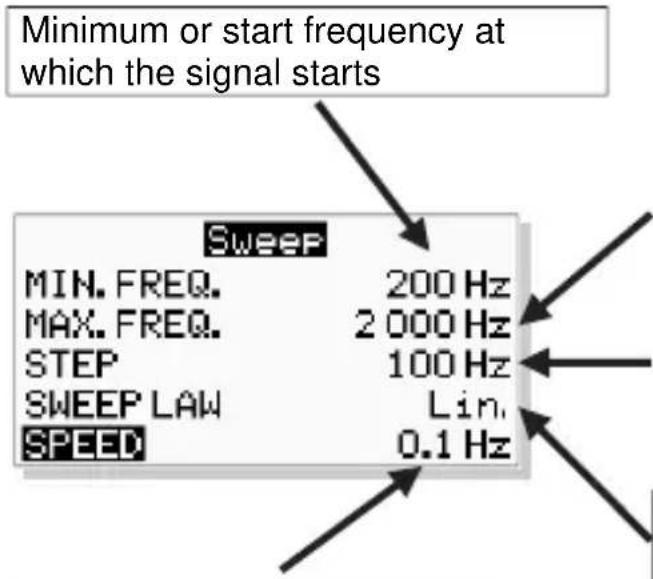

SWEEP MENU > access or exit by keeping the menu button pressed

A sweep generator generates a frequency which changes with respect to time and is a practical device for recording frequency characteristics, or to make automated measurements.

Minimum or start frequency at which the signal starts Sweep MIN. FREQ. 200 Hz MAX. FREQ. 2 000 Hz STEP 100 Hz SWEEP LAW LIN. SPEED 0.1 Hz

Maximum or stop frequency at which the signal stops

Select the desired frequency step (1Hz, 10Hz, 100Hz, 1kHz or 10kHz) this setting is used for above frequency change

Speed at which the signal sweeps from minimum to maximum or turn the sweep function OFF

WAVEFORM Sweep On +00.2 dBm 0.794 Vrms

Waveform screen if Sweep is On

Selection of the loop sweep function of the signal:

• Lin.: linear from minimum to maximum, then restart from min to max.
• Log : logarithmic from minimum to maximum, then restart from min to max.
• Bi-lin : linear from minimum to maximum and back to minimum ...
• Bi-log : logarithmic from minimum to maximum and back to minimum ...

Keep the menu button pressed to exit the sweep menu, if the sweep is active then you will see the screen on the left. You can select the desired waveform and output level

Eigenschappen

Eigenschappen

Product photo showing a USB cable with two connectors and a labeled 'Inclusief' (no other text or symbols visible)

Coiled black cable with a USB port and connector, no visible text or symbols

GOLFVORM Sweep Aan +00.2 dBm 0.794 Vrms

Product photo showing a USB cable and two connected electrical connectors (no text or symbols visible)

Coiled black cable with a USB connector and terminal connector (no visible text or symbols)

Close-up of a black cylindrical object with a small label, possibly a flashlight or connector (no visible text or symbols on the object itself)

Black-and-white photo of a Vellsman device with a handheld device and accessories, placed in a pouch (no visible text or symbols on the device itself)

Tragetasche
Bestellnummer. BAGPS

Coiled black cable with a USB port terminal, no visible text or symbols

Close-up of a USB cable with two connectors and a labeled 'Incluido' (no other text or symbols visible)

Incluye:

Labeled diagram of a device with numbered components and control buttons

Black handheld electronic device with 'vellemar' branding and a small screen (no readable text beyond branding)

Coiled black cable with a USB connector and terminal connector (no visible text or symbols)

This product is guaranteed against defects in components and construction from the moment it is purchased and for a period of TWO YEAR starting from the date of sale. This guarantee is only valid if the unit is submitted together with the original purchase invoice. VELLEMAN Ltd. limits its responsibility to the reparation of defects or, as VELLEMAN Ltd. deems necessary, to the replacement or reparation of defective components. Costs and risks connected to the transport, removal or placement of the product, or any other costs directly or indirectly connected to the repair, will not be reimbursed by VELLEMAN Ltd. VELLEMAN Ltd. will not be held responsible for any damages caused by the malfunctioning of a unit.

WAARBORG

Symbol of a trash bin crossed with diagonal lines, no text or labels present

UK To all residents of the European Union NL Aan alle ingezetenen van de Europese Unie FR Aux résidents de l'Union Européenne D An alle Einwohner der Europäischen Union ES A los ciudadanos de la Unión Europea

Important environmental information about this product

This symbol on this unit or the package, indicates that disposal of this unit after its lifecycle could harm the environment. Do not dispose the unit as unsorted municipal waste; it should be disposed by a specialized company for recycling. This unit should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If any doubt contact your local authorities about waste disposal rules.
