Product type	DAB+ / FM / Internet / Bluetooth digital radio
Brand	Schwaiger
Model	DAB650 513
Dimensions (W × D × H)	300.6 x 158.6 x 115.6 mm
Net weight	~ 1.800 g
Power supply	AC 100-240V ~50/60Hz, DC 9V / 3.0A output
Power consumption	27 W
Standby power consumption (WLAN off)	< 1.00 W
Standby power consumption (WLAN on)	< 2.00 W
Speaker output power	2 × 5 W RMS
Radio frequencies	FM 87.50 - 108.00 MHz, DAB 174.928 - 239.200 MHz
Connectivity	Wi-Fi 2.4 GHz (2412-2472 MHz), Bluetooth® V4.2
Bluetooth range	approximately 8 meters
USB port	USB 5V / 1A (charging)
Headphone jack	3.5 mm jack
Display	Backlit LCD (estimate)
Reception modes	Internet Radio, Podcasts, DAB, FM, Bluetooth
Functions	Wake up/Alarm (2), Snooze, Sleep timer, 10 presets per mode, Equalizer (Flat, Classic, Rock, Pop, Jazz)
Remote control	Yes (AAA batteries not included)
Display languages	Multilingual (French available)
Maintenance	Wipe with a slightly damp, lint-free cloth. Do not use abrasive products.
Safety	Unplug before cleaning, do not expose to water, do not open.
Recycling	WEEE, do not dispose of with household waste.
Repairability	No user-serviceable parts, refer to qualified service personnel.
Package contents	Main unit, power adapter, remote control, instruction manual

Frequently Asked Questions - DAB650 513 Schwaiger

How to connect the radio to my Wi-Fi network?

During initial setup, the installation wizard guides you. You can also go to Menu > System Settings > Network > Network Wizard. Select your Wi-Fi network, then enter the password or use the WPS button on your router.

How to set the alarm?

Press the ALARM button on the remote control. Select alarm 1 or 2, then set activation (Daily, Once, etc.), time, source (Buzz, DAB, FM, Internet) and volume. Confirm by selecting Save.

What is the Bluetooth range?

The operational range between the device and a Bluetooth® peripheral is approximately 8 meters in direct line of sight. Obstacles may reduce the range.

How to save a station as a preset?

Listen to the desired station, then press and hold the PRESET button until 'Save preset' appears. Select one of the 10 slots and confirm with SELECT.

What to do if the radio stops responding?

Unplug the power adapter from the mains, wait a few seconds, then plug it back in. This resets the device. If the problem persists, contact customer service.

How to update the software?

Go to Menu > System Settings > Software Update. Choose 'Auto-check setting' for automatic checking or 'Check now' to check immediately. Ensure the radio is connected to mains power during the update.

Can I use the UNDOK app?

Yes, download the UNDOK app from Google Play or the App Store. Connect your smartphone or tablet to the same Wi-Fi network as the radio. Launch the app and select your device (DAB650) to control the modes (Internet, DAB, FM, Bluetooth).

How to listen to DAB radio?

Press the MODE button, select 'DAB radio' using the navigation keys, then confirm with SELECT. The radio performs an automatic station search. Use the ▲/▼ keys to browse the station list and SELECT to listen.

How to clean the device?

First unplug the power adapter. Wipe the housing with a slightly damp, lint-free cloth. Do not use products containing alcohol, ammonia, or abrasives. Do not spray liquid directly onto the device.

What to do if a DAB station is not found?

Make sure the DAB/FM antenna is fully extended. You can perform a manual search via DAB Menu > Manual Tuning to scan channels. If the signal is weak, reposition the antenna or move the radio closer to a window.

USER MANUAL DAB650 513 Schwaiger

DAB 650

SCHWAIGER®

BEDIENUNGSANLEITUNG UND SICHERHEITSHINWEISE
DAB+ INTERNET RADIO, STEREO
OPERATING AND SAFETY INSTRUCTIONS
DAB+ INTERNET RADIO, STEREO
MODE D'EMPLOI ET CONSIGNES DE SÉCURITÉ
RADIO INTERNET STÉRÉO DAB+
ISTRUZIONI PER L'USO E AVVERTENZE DI SICUREZZA
RADIO STEREO INTERNET DAB+
E MANUAL DE INSTRUCCIONES E INDICACIONES DE SEGURIDAD
RADIO ESTÉREO INTERNET DAB+
BI BEDIENINGSHANDLEIDING EN VEILIGHEIDSINSTRUCTIES
DAB+ STEREO INTERNETRADIO
BRUKSANVISNING OCH SÄKERHETSINFORMATION
DAB+ INTERNET STEREO RADIO

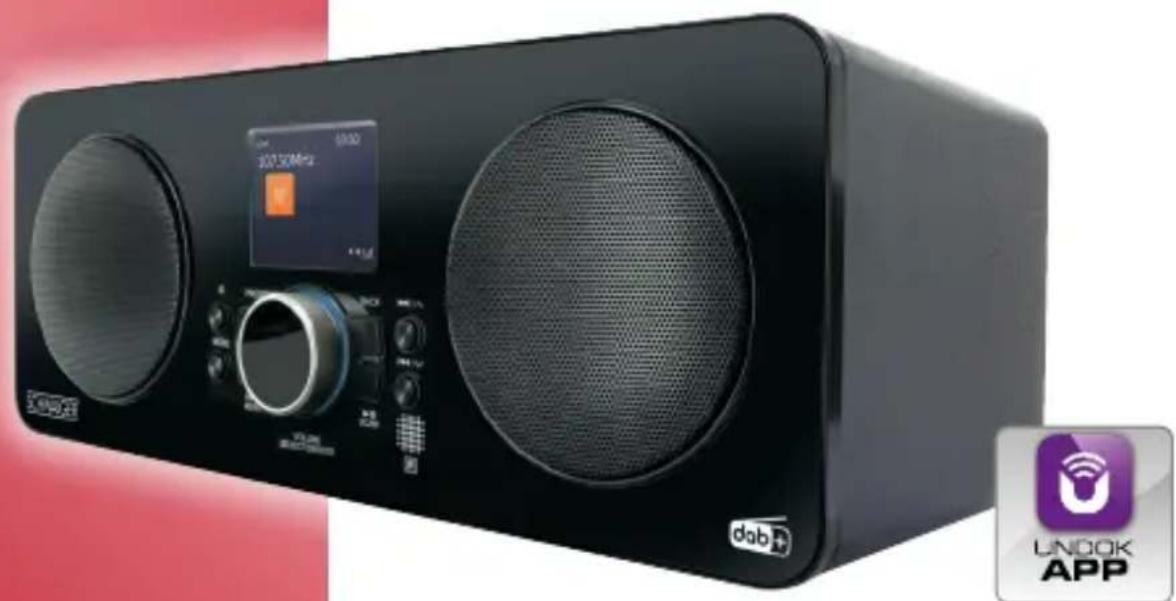

Black portable electronic device with two speakers and a digital display, next to an 'UNOOK APP' app icon (no text on device body)

DIGITALRADIO

DAB+

Alternative Methode:

Alternative Methode:

Ensemblename/Frequenz

Alternative Methode:

Alternative Methode:

• Read all the instructions carefully before using the unit and keep them for future reference.
• Check that the voltage marked on the rating label matches your mains voltage.
• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
  • The mains socket must be located near the unit and should be easily accessible.
• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires. Avoid exposure to direct sunlight and other sources of heat.
• Never place any type of candle or naked flame on the top of or near the unit.
• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.
• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure that a minimum of 10cm should be kept around the apparatus for ventilation.

Safety

• Always disconnect the unit from the mains supply before connecting/ disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
• This unit will become warm when used for a long period of time. This is normal and does not indicate a problem with the unit.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Mains Adapter

• Make sure the unit is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.
• If the mains adapter is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted sound.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Service/Maintenance

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.
• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
• Do not use liquids to clean the unit.

The symbol indicates DC voltage.

The symbol indicates polarity of d.c. power connector.

The symbol indicates AC voltage.

The symbol indicates class II equipment.

For indoor use only.

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

The mains plug of power adapter is used as the disconnect device, The socket-outlet shall be installed near the equipment and shall be easily accessible.

CAUTION

Risk of explosion if battery is replaced by an incorrect type.

WARNING

• To avoid replacement of a battery with an incorrect type Don't disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a Battery.
• Don't leaving a battery in an extremely high temperature surrounding environment.
  • To avoid battery subjected to extremely low air pressure.
• Under the environment with radio-frequency disturbance, the product may malfunction and could self-recover when the interference disappear.

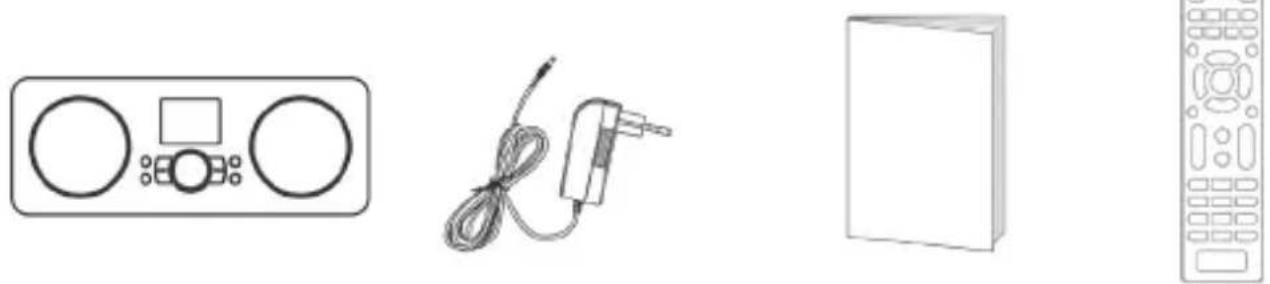

UNPACKING

Remove all items from the packaging. Retain the packaging. If you dispose of it, please do so according to local regulations.

The following items are included:

Main Unit

Mains Adapter

Instruction Manual

Remote

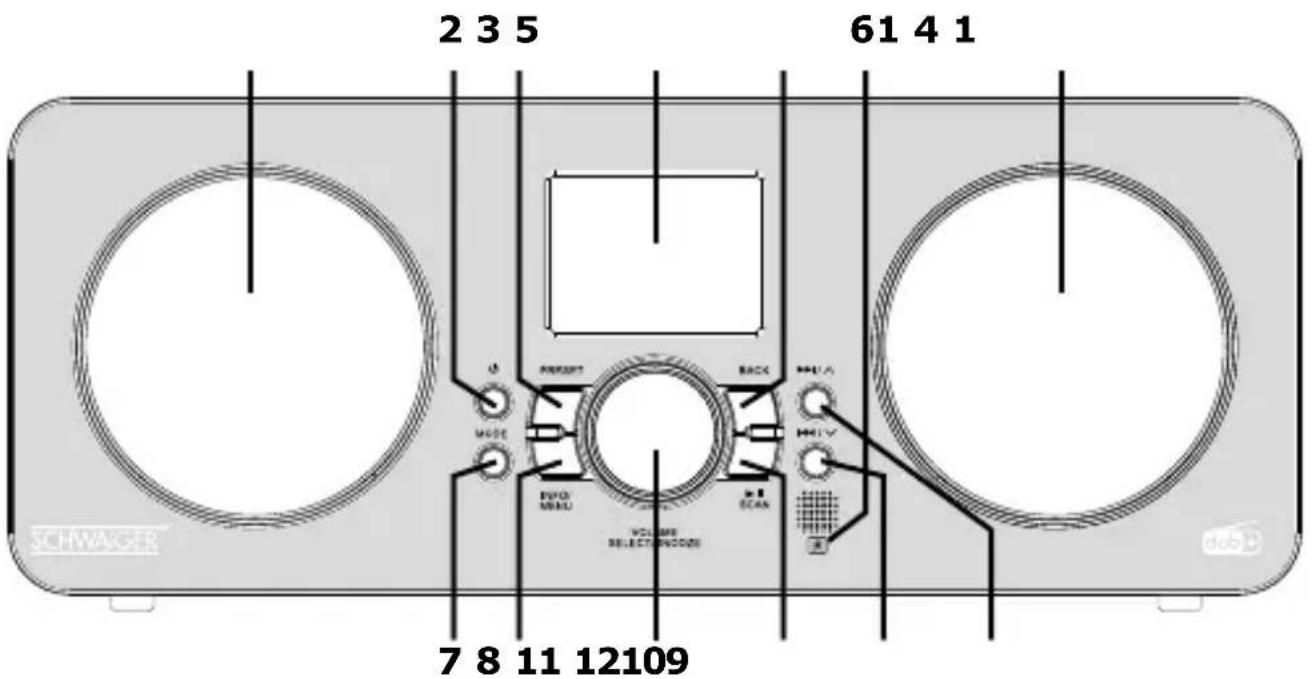

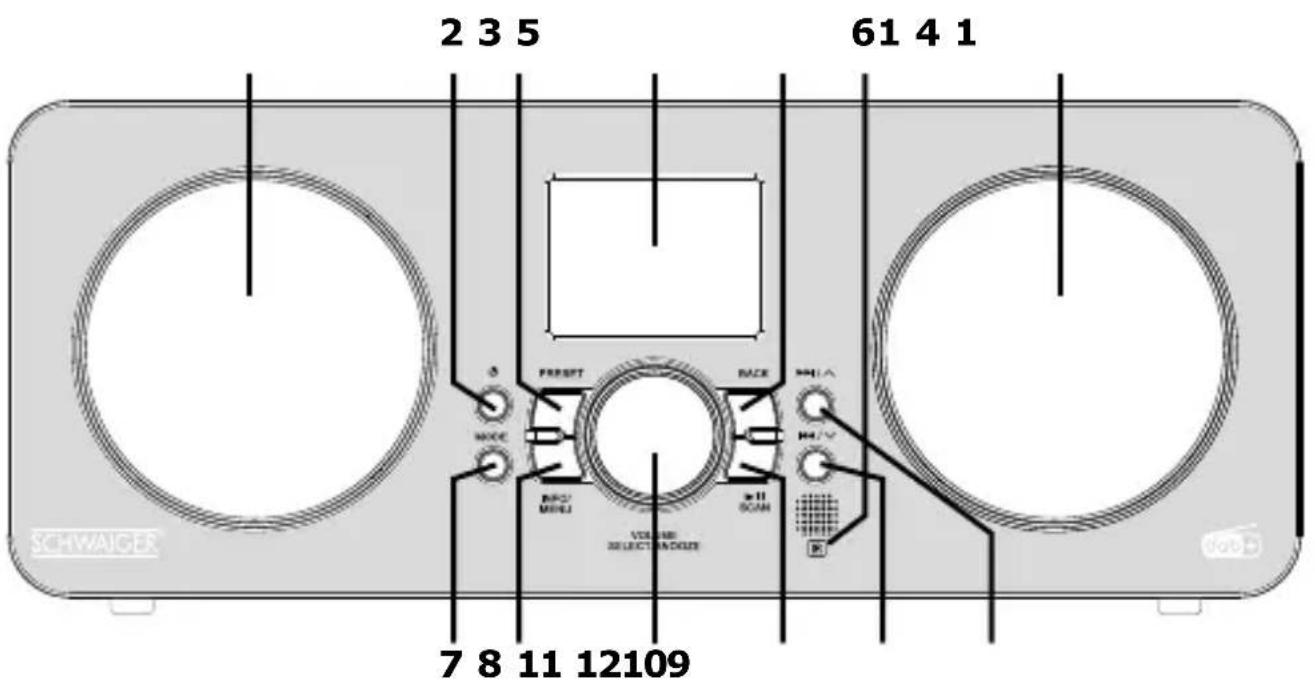

PRODUCT OVERVIEW

1. SPEAKERS
2. STANDBY BUTTON
3. PRESET BUTTON
4. DISPLAY
5. BACK BUTTON
6. REMOTE CONTROL SENSOR
7. MODE BUTTON

8. INFO/MENU BUTTON

9. VOLUME/SELECT/SNOOZE DIAL

10. SCAN BUTTON
11. BUTTON
12. ▶▶| BUTTON

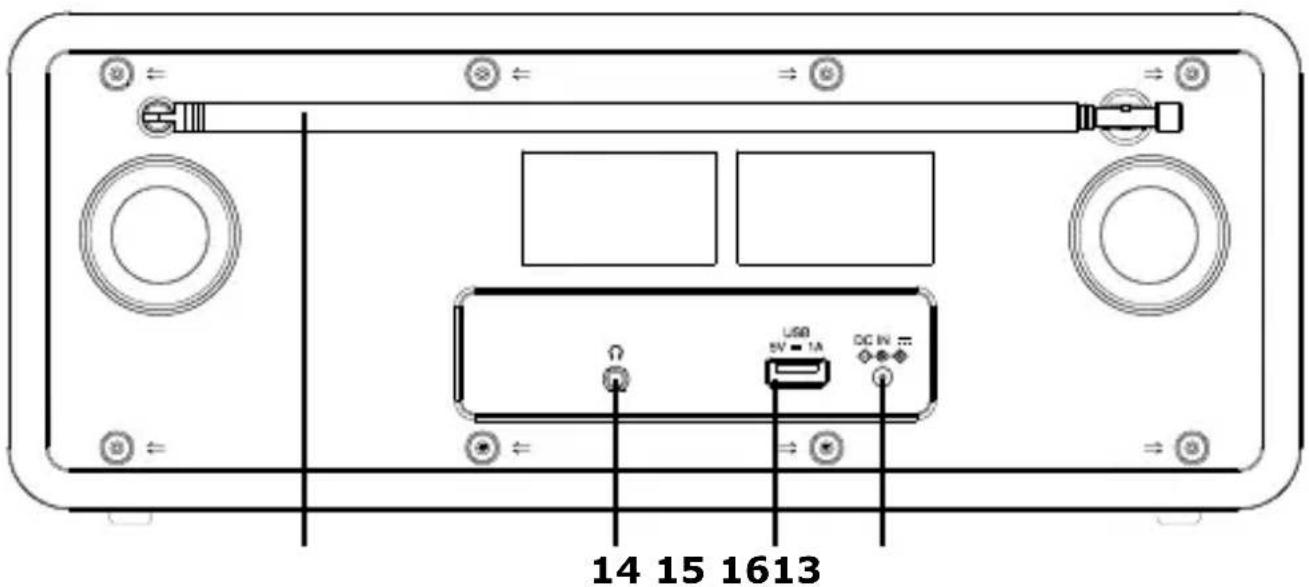

13. ROD ANTENNA
14. EARPHONE JACK
15. USB 5V — 1A Charging Port
16. DC IN SOCKET

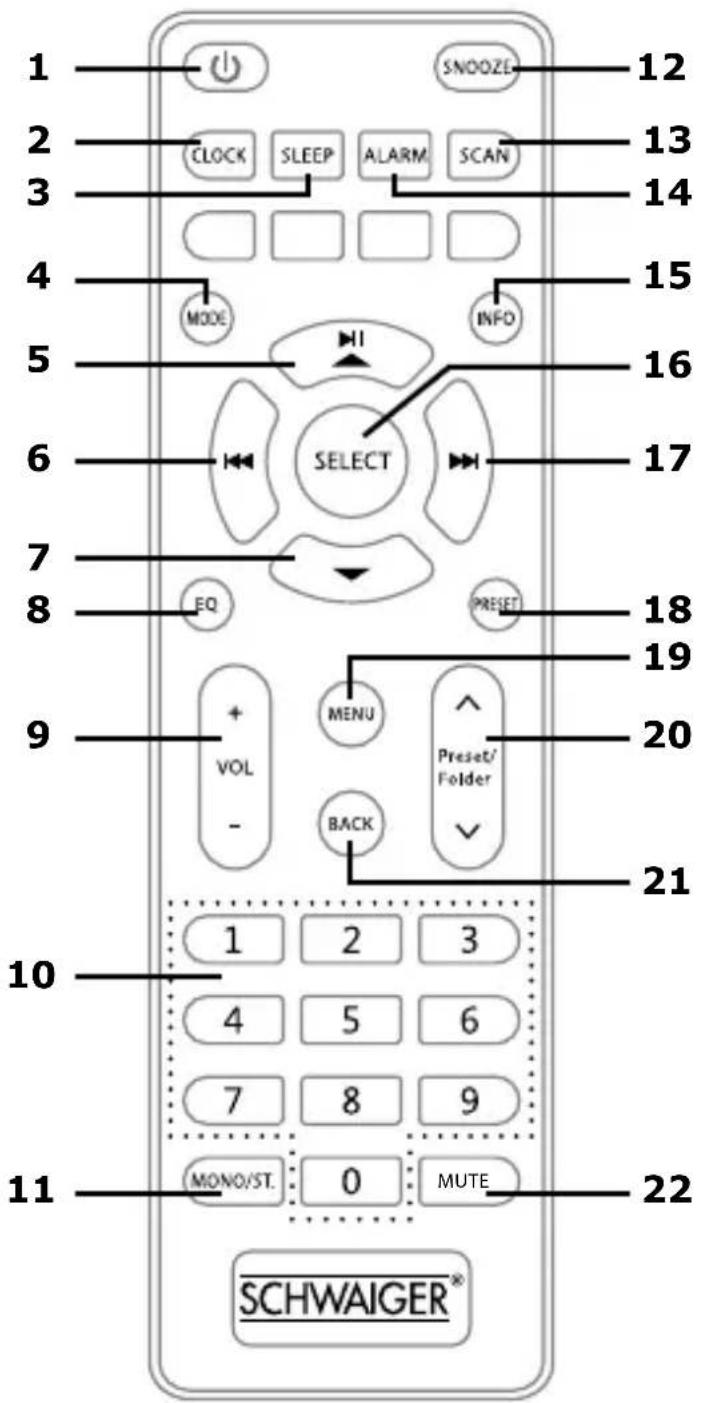

REMOTE CONTROL

1. STANDBY BUTTON

2. CLOCK BUTTON

3. SLEEP BUTTON

4. MODE BUTTON

5. ▶/▲BUTTON

6. BUTTON

7. BUTTON

8. EQ BUTTON

9. VOLUME + / - BUTTON

10. Number BUTTONS

11. MONO/ST. BUTTON

12. SNOOZE BUTTON

13. SCAN BUTTON

14. ALARM BUTTON

15. INFO BUTTON

16. SELECT BUTTON

17. ▶▶| BUTTON

18. PRESET BUTTON

19. MENU BUTTON

20. PRESET/FOLDER

1. BACK BUTTON

2. MUTE BUTTON

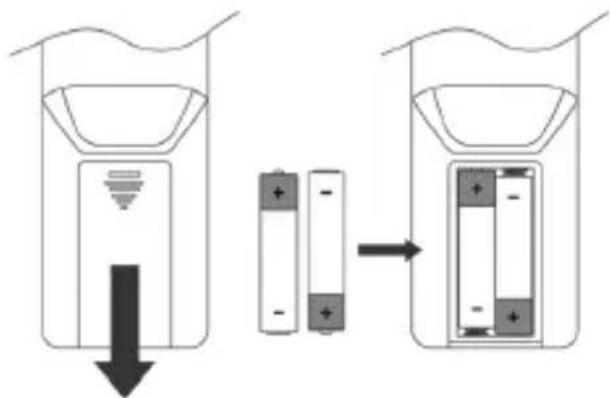

Battery Replacement for the Remote Control

1. Open the battery cover.
2. Insert 2 x AAA battery (not included). Make sure to match the (+) and (-) ends of the battery with the (+) and (-) ends indicated in the battery compartment.
3. Close the cover

Handling the Battery

» Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.

»Only use the battery type indicated in this manual.

» Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local regulations.

» Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.

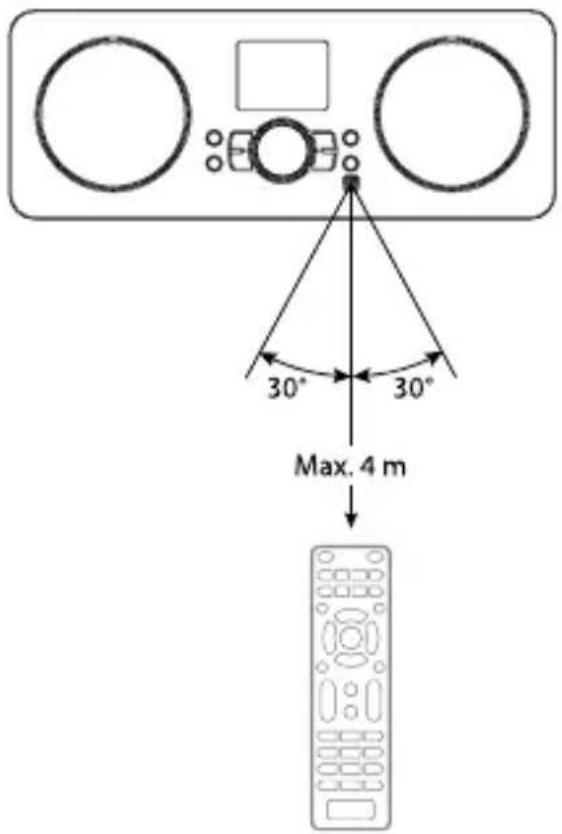

Remote control operation range

The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 4 metres away and within a maximum of 60^ arc.

Note that the operating distance may vary depending on the brightness of the room.

POWER SOURCE

Mains Power

Connecting the unit to any other power source may damage the unit.

1. Unwind the mains adapter cable to its full length. Connect the end of the cable to the DC IN ◇-●-+ Socket at the rear of the unit and then connect the mains adapter to the mains socket. Make sure the mains adapter is firmly inserted into the mains socket. The unit is now ready to use.

2. To switch the unit off completely, unplug the mains adapter from the mains socket.

Charging from the USB charging port

You can charge your device through the USB socket on this unit with a USB cable (not supplied).

• The maximum current for USB charging is 1A.
• All devices for USB charging are not guaranteed.

Network Connection

This product only supports wireless network connection for network access and did not support wired LAN connection.

Wireless network

1. Check first of all whether the control lamps (LINK/ACT) of your router light up.
2. Proceed with the operations described in the below "Initial Set-Up". It is recommended to run through the setup wizard in the System Settings section.

» This unit cannot be connected to a standalone modem directly. A router or a modem incorporated with a router has to be used. Since there are various connection configurations, please follow the specifications and instructions of your telecommunication carrier, Internet service provider, and router setting guidebook.

Initial Set-Up

When you first connect the unit to the mains socket, the display will show the welcome screen then with Language menu shown up, press the ▶▶/ ∧ ▶◀◀/ √ buttons on the unit or press ▼ ▶|| ▲ buttons on remote control to select the language of your choice, then press VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.

Then the privacy policy page will come up.

Please visit the website mentioned in the page for the details of the privacy policy. Press VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to accept for next step.

1. To launch the initial Setup wizard, press the ▶▶/ ∧ ▶◀/ √ buttons on the unit or press ▶◀/ ▶▶ buttons on remote control to select [YES], then press VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.
2. Press the ▶/▶/ ∧ ▶/√ buttons on the unit or press ▶/▶/▲ buttons on remote control to select the following options, then press VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm the setting:

Date/Time 12/24 hour format	Set 12 hours or 24 hours display
Auto Update Choose how you want the time to be automatically updated.Update from DAB/ Update from FM/ Update from Network/ No update
Set timezone Select a time zone.	(Only available when Auto update from Network is on.)
Daylight savings Select daylight	savings. (Only available when Auto update from Network is on.)
Network settings Choose whether keep network connected.Yes/ No

1. The display will show "Network wizard scanning....". Your radio will now scan for your wireless network, this may take a few seconds then a list of all the wireless networks will appear on the screen. Press the ▶▶/ ∧ ▶◀/ √ buttons on the unit or press ▼/ ▶▶ ▲ buttons on remote control to select your wireless network, then press VOLUME/ SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.
2. Press the ▶▶/ ✗ ▶◀/ √ buttons on the unit or press ▼ ▶|| ▲ buttons on remote control to select Push Button/Pin/Skip WPS, then press VOLUME/ SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.

Connecting using the WPS button on your router

Connecting using the WPS (Wi-Fi Protected Setup) button on your router is a quick and easy way to connect your radio without having to type in a password.

If your router has a WPS button you will notice [WPS] at the front of your network name.

1. Press the ▶▶/ ∧ ▶◀/ √ buttons on the unit or press ▼/ ▶/ ▲ buttons on remote control to select Push Button, then press VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.
2. You will now see a message on the screen telling you to press the WPS button on your router. Press the WPS button on your router. Check your routers instruction manual if you are unsure which button is the WPS button.
3. Press the VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm. Your radio will now connect to your router, this may take a few seconds.

Connecting using your wireless network password

If your router has not got a WPS button you will now be asked to enter your wireless network password, or you can select SKIP WPS which also take you to the password screen.

1. Press the ▶▶/ ∧ ◀◀/ ∨ buttons on the unit or press ▼/ ▶/ | / ▲/ ◀◀ buttons on remote control to select each letter/number of your password. Then press VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to enter the selected letter/number.
2. When you have entered your password, press the ▶/ ▶/ ∧ ▶/ √ buttons on the unit or press ▼/ ▶/ ▶/ ▲ ▶/ ▶/ ▶/ buttons on remote control to select OK on the right of the screen.
3. After your radio has connected, press the MENU button to exit the menu.

»Note:

Settings can be changed at any time in Menu-System Settings-Network-Network wizard

GETTING STARTED

» This instruction manual explains the basic instruction for operating this unit. Unless otherwise stated, all operations described are based on remote control use.

Powering ON/OFF

1. Press the button on the unit or remote control to switch the unit on.
2. Press the ⏻ button on the unit or remote control to switch the unit back to standby on mode.

Selecting Modes

Press the MODE button on the unit or remote control to enter MODE menu. Then press the ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/ ▶/

Internet Radio, Podcasts, DAB, FM and Bluetooth®. Press VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote to confirm selection.

» When the unit is idle for approximately 15 minutes in Internet radio, Podcasts, DAB or Bluetooth® mode (with external unit disconnected), it will automatically switch to Standby. To switch the unit off completely, remove the mains plug from the main socket.

»Please turn the unit off completely to save energy when not in use.

Navigating the Menu

1. Press and hold INFO/MENU button on the unit or press the MENU button on the remote control to access the menu.
2. Press the ▶▶/ ∧ ◀◀/ ∨ buttons on unit or press the ▼/ ▶▶/or▲/ ◀◀/ ▶▶/buttons on the remote to select your choice.
3. Press the VOLUME/SELECT/SNOOZE dial on unit on the unit or SELECT button on the remote control to confirm your selection.

Adjusting the Volume

• Turn VOLUME/SELECT/SNOOZE dial on the unit or press the VOL +/- buttons on the remote control to adjust the volume.
• To temporarily mute the sound press the MUTE button on the remote control. Turn the VOLUME/SELECT/SNOOZE dial on unit, or press the MUTE button again, or press the VOL +/- buttons on remote control to resume normal listening.

SYSTEM SETTINGS

- Press and hold INFO/MENU button on unit or press MENU button on remote control to display the menu. Press the ▶▶/ ∧ |◀◀/ √ buttons on the unit or press ▼ / ▶||/ ▲ buttons on remote control to select System settings and then press VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.

Equaliser

This system supports a variety of equalizers and sound effects.

- Press the EQ button to access Equaliser menu

Alternatively,

- During System settings mode, press the ▼/ ▶/ ▲ buttons to select Equaliser and then press the SELECT button to confirm.

1. The display will show : FLAT > CLASSIC > ROCK > POP > JAZZ

2. Press the ▼ ▶ ▲ buttons to select and then press the SELECT button to confirm.

Network

1. During System Settings mode, press the ▼/ ▶|| ▲buttons to select Network and press the SELECT button to confirm.
2. Press the ▼ / ▶/ ▲ buttons to select from the following settings, and then press the SELECT button to confirm.

Network wizard S	SID - select the desire wireless network. Rescan - Scan for available networks. Manual config - select wireless network with DHCP enable/disable.
PBC Wlan setup	Press the WPS button on the modem device that you wish to connect with. Then press the VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to continue.
View settings Display the setting on the unit.
Manual settings Select DHCP enable/disable.
NetRemote PIN Setup	To define a PIN number to be entered before being able to connect to the unit remotely over a network
Network profile View the connected network.
Clear network settings	To delete the connected network memory in Network profile.
Keep network connected	To define whether remains connected to its network in Standby mode and when not in Network radio mode.

1. Press the BACK button on unit or remote control to return back to the previous menu.

Time/Date

The Time/Date can be automatically set once it has been connected to the Internet, DAB or FM radio station with time/date information. You may also adjust the Time/Date manually.

• Press the CLOCK button to access Set Time/Date.
  Alternatively,
• During System settings mode, press the ▼ / ▶/ ▲ buttons to select Time/Date and press the SELECT button to confirm. Press the ▼ / ▶/ ▲ buttons to select Set Time/Date and press the SELECT button to confirm.
• The date digits will flash on the display.
• Press the ▼ / ▶/ ▲ buttons to adjust the day and then press the SELECT button to confirm.
• Repeat above Step (2) to set the Month/Year/Hour/Minute.
• The date and time settings are now complete.

For the other settings under Time/Date, press the ▼/ ▶|| ▲ buttons to select from the following options and then press the SELECT button to confirm.

Auto update Update from DAB/FM/Network/No update
Set format 12 / 24 hour format.
Set timezone Select a time zone. (Only available when Auto update from Network is on.)
Daylight savings	Select daylight savings. (Only available when Auto update from Network is on.)

» The default auto time update setting is "Update from Network". If you would like to manually set the time, it is recommended to turn the Auto update function off.

Inactive Standby

Use the Inactive Standby to turn off the unit after a certain time in play mode.

1. During System settings mode, press the ▼ / ▶/ ▲ buttons to select Inactive Standby and press SELECT button to confirm.

2. Press ▼ / ▶/ ▲ buttons to select between Off, 2 hours, 4 hours, 5 hours and 6 hours. Press SELECT button to confirm.

Language

1. During System settings mode, press the ▼/ ▶|| ▲ buttons to select Language and then press the SELECT button to confirm.

2. Press the ▼/▲ buttons to change the display language of your choice.

3. Press the SELECT button to confirm.

Factory Reset

There may be times when you need to reset your unit back to the factory settings especially when you have moved house. If you experience reception problems you may want to reset and try again. If you move to another part of the country and pick up the local and national DAB stations in that area, your previously tuned channels may no longer be available.

1. During System settings mode, press the ▼ / ▶/ ▲ buttons to select Factory reset, and press the SELECT button to confirm.

2. Press the ◀◀◀ ▶▶▶! buttons to select [Yes], and press the SELECT button to confirm or select [No] to cancel.

» After the system reset, all the tuned stations, Internet, DAB & FM preset stations will be erased.

Software update

1. During System settings mode, press the ▼/ ▶/ ▲ buttons to select Software update and then press the SELECT button to confirm.
2. Press the ▼ / ▶ ▲ buttons to select „Auto-check setting“ or „Check now“, and then press the SELECT button to confirm.

» Before downloading software, ensure that the radio is plugged into a stable mains power connection.
» Interrupting the mains supply during software download can lead to functional disturbances and/or damage to the unit!

Setup wizard

The setup wizard is available in the System settings section; you can run through this to configure settings for date/time and network. Once this has finished, your radio is ready to use.

Info

1. During System settings mode, press the ▼ /▶|| ▲ buttons to select Info and then press the SELECT button to confirm.
2. The software version, Radio ID and Friendly name will show on the display.

Privacy policy

To see the Privacy policy page, press MENU to go to System settings -Privacy policy. After Factory reset, you need to accept the Privacy policy again.

Backlight

1. During System settings mode, press the ▼ / ▶||/ ▲ buttons to select Backlight and then press the SELECT button to confirm.
2. For the other settings under Backlight, press the ▼/ ▶/ ▲ buttons to select the following options and then press the SELECT button to confirm.

Timeout On / 10 sec	sec / 20 sec / 30 sec / 45 sec / 60 sec / 90 sec / 120 sec /180 sec
Power-on level High / Medium / Low
Standby level Medium / Low

Internet Radio

To listen to internet radio your radio must be connected to the internet. Try to position your radio as close as possible to your router to get the best connection speeds. When Internet Radio mode is selected, the radio connects with the Frontier Silicon Internet radio portal to download a list of stations. Once a station is selected, the radio will connect directly to that station.

Press the MODE button on the unit or remote control, then press the ▶▶/ ✗ |◀◀/ √ buttons on unit or press ▼/▶/ /▲/ |◀◀ ▶▶▶| buttons on remote control to select „Internet radio“ mode. Press the VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.

Station List

During Internet Radio mode, press and hold INFO/MENU button on unit or press MENU button on remote control to access the menu.

Press the ▼ / ▶/ ▲ buttons to select [Station List] and press the SELECT button to confirm.

When internet radio is restarted, the last listened stations is automatically selected. To return to [Station List], press BACK button.

If it is the first time listen internet radio, the radio will in [Station List].

1. Press the ▼ / ▶/ ▲ buttons to select from the following options, and then press the SELECT button to confirm.

Countries You can	search specifically for stations from your country. Within this scope, it will display local radio stations in your location.
History You can select recently used station from that category with most recent stations appeared at the top of the list.
Search You can search stations using various keywords. The name and a description of your selected station will show on the display.
Location You can select for stations from a list of countries available
Popular Select station from a list of the most popular internet stations from around the world.
Discover Select stations from various categories in the menu: Origin, Genre or Language.

Press the BACK button on the unit or remote control can move back a menu level.

Preset Stations

The preset Internet radio stations are stored in the radio and cannot be accessed from other radios.

1. To store a preset, you must first be listening to the station that you would like to save. Press and hold the PRESET button until the display shows the „Save to Preset“.
2. Select one of the 10 presets to store the current station by pressing ▼/▶/▼▲ buttons to select the number and press the SELECT button to confirm.

Recalling a Stored Station

1. To select a preset, press the PRESET button, and then press the ▼/ ▶|| ▲ buttons to select one of the listed preset stations.
2. Press the SELECT button to confirm the selection.

Alternatively,

• Press Preset/Folder ^ / buttons to switch through the preset station list
• Or press the number buttons on remote control to switch to the preset station („0” for preset station 10).
• If there no station be saved, it will show Preset empty

» Operation of Preset and Recall stations are same for Internet Radio, Podcasts, DAB and FM.

Internet Radio Display Modes

Every time you press the INFO/MENU button on unit or INFO button on the remote control, the display will show the following display modes:

Channel Info/Description - Language/Location - Bit rate/Sound format / Sampling rate- Playback buffer - Date

PODCASTS

To listen to Podcasts your radio must be connected to the internet. Try to position your radio as close as possible to your router to get the best connection speeds.

Press MODE button on unit or remote control, then press the ▶▶/ ∧ ▶◀/ √ buttons on unit or press▼/ ▶∥ / ▶/ ▶◀ ▶▶! buttons on remote control to select „Podcasts” mode. Press the VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.

When radio is restarted, the last listened stations is automatically selected. To return to [Podcast List], press BACK button.

If it is the first time listen Podcasts radio, the radio will in [Podcast List].

1. Press the ▼ / ▶/ button to select from the following options, and then press the SELECT button to confirm.

Countries You can search specifically for stations from your country. Within this scope, it will display local radio stations in your location.

Search You can search stations using various keywords. The name and a description of your selected station will show on the display.

Popular Select station from a list of the most popular internet stations from around the world.

Location You can select for stations from a list of countries available

Discover Select stations from various categories in the menu: Origin, Genre or Language.

Press the BACK button on the unit or remote control can move back a menu level.

Saving and Recalling Preset Station

Refer to „Preset Stations“ and „Recalling a Stored Station“ under Internet Radio section for instruction.

DAB OPERATION

Save to Preset
1.	[Not set]
2.	[Not set]
3.	[Not set]
4.	[Not set]
5.	[Not set]

Press MODE button on unit or remote control, press the ▶/▲/ ∧ ▶/▼ buttons on unit on unit or press ▼/▲/ /▲/ ▶/▼ buttons on remote control to select „DAB radio“ mode. Press the VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm. The unit will enter DAB mode and perform the auto scan function. During the scan the display will show “Scanning... ” together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far. Once the scan has finished, the unit will select the first alpha numerically found station.

To explore the found stations, press on the radio the ▶▶/ ∧ ◀◀/ √ buttons or the ▼/ ▶/ ▲ buttons on the remote control to select and press the SELECT button to confirm.

Station List

1. During DAB mode, press the MENU button to access DAB menu.
2. Press the ▼ / ▶/ ▲ buttons to select Station list and then press the SELECT button to confirm.
3. A list of DAB stations will show on the display.

Auto Scan

Press the MENU button, and then press the ▼/ ▶/ ▲ buttons to select Scan. Press the SELECT button to confirm to activate auto scan.

1. The display will show "Scanning..." and a progress slide bar.
2. All the stations that have been found will be stored automatically. To explore and listen to the found stations, press the ▼ / ▶/ ▲ buttons to select and then press the SELECT button to confirm.

Manual Tuning

As well as the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning.

1. Press MENU on the remote control to display the menu.
2. Press the ▼ / ▶|| / ▲ buttons to select Manual tune, and press the SELECT button to confirm.
3. The display will show the multiplex 5A to 13F.
4. Press the ▼ / ▶/ ▲ buttons to select the channel, and press the SELECT button to confirm.
5. Now view the Station List and you will find any new radio stations that have been manually tuned in.

DAB DISPLAY MODES

Every time you press the INFO/MENU button on unit or INFO button on the remote control, the display will show the following display modes:

DLS - Programme Type - Ensemble/Frequency - Signal error/Strength - Bit rate/Codec/Channels - Date

DLS (Dynamic Label Segment)

This is a scrolling message giving real-time information, e.g. song titles, news headlines, etc.

Programme Type

This describes the „style“ or „genre“ of the programme that is being broadcast.

Ensemble Name/Frequency

This display the name of the multiplex that contains the station you are listening to and the frequency. A multiplex is a collection of radio stations that are bundled and transmitted on one frequency. There are national and local multiplexes. Local ones contain stations that are specific to that area.

Signal Error/ Signal Strength

The error is shown as a number. If the number is 0, it means the signal received is error free and the signal strength is strong. If the error rate is high, it is recommended to reposition the radio aerial or reposition the unit. The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

Bit Rate / Codec / Channels

The display will show the digital audio bit rate being received with additional information about the audio codec and channel configuration.

Date

This displays the current date provided automatically by the broadcaster.

Inactive channels

You may remove all unavailable stations from the list.

1. During DAB mode, press the MENU button and press the ▼/ ▶/□ buttons to select Inactive channels, press SELECT button to confirm.
2. Press the ◀◀◀ ▶▶▶I buttons to select YES and press the SELECT button to confirm. Or select NO to cancel.

DRC (Dynamic Range Compression)

If you are listening to music with high dynamic range in a noisy environment, you may wish to compress the audio dynamic range.

1. During DAB mode, press the MENU button and press the ▼/ ▶/□ ▲ buttons to select DRC, press the SELECT button to confirm.
2. Press the ▼ / ▶/ ▲ buttons to select DRC high/low/off and press the SELECT button to confirm the setting.

Station Order

You may wish to arrange the station listing order.

1. During DAB mode on the radio, press the MENU button and then press the ▼ / ▶/ ▲ buttons to select Station order, press SELECT button to confirm.
2. Press the ▼ / ▶ ▲ buttons to select Alphanumeric/Ensemble and press the SELECT button to confirm the setting.

Saving and Recalling Preset Station

Refer to „Preset Stations“ and „Recalling a Stored Station“ under Internet Radio section for instruction.

FM OPERATION

To switch the unit to FM mode, Press MODE button on unit or remote control, press the ▶▶/ ^ / ▶◀/ √ buttons on unit or press ▼/ ▶◀/ ▶◀/ ▶▶I buttons on remote control to select „FM radio” mode. Press the VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm.

The display will show the frequency.

Auto Scan

- Press the SCAN button on the radio to start searching for a station. Once a station has been found, the scanning will stop automatically.

Alternatively,

- Press and hold the ▼/ ▶/ ▲ buttons to start searching for a station.

»The search may not stop at a station with a very weak signal

Manual Tuning

To search for FM stations manually, press the ▼/ ▶|| ▲ buttons repeatedly until your desired frequency is reached.

» With FM radio, it may be necessary to fine tune each station by pressing ▼ / ▶▲ buttons repeatedly. Each press will adjust the frequency by 0.05 MHz. If reception is still poor, adjust the position of the aerial or try moving the radio to another location.

FM Display Modes

Every time you press the INFO/MENU button on unit or INFO button on the remote control, the display will show the following display modes:

Radio Text – Programme Type – Frequency – Date

RDS Radio Text

This is a scrolling message information about the current programme.

Programme Type

This describes the "Style" or "Genre" of music that is being broadcast.

Station Name / Frequency

When an RDS station is received, the name of that station will be displayed, or if not the frequency will be displayed.

Date

This displays the current date provided automatically by the broadcaster.

Scan Setting

1. Press the MENU button on the radio to access FM menu.
2. Press the ▼ / ▶/ ▲ buttons to select Scan setting and then press the SELECT button to confirm.
3. Press the ◄◀ ▶▶▶ buttons to select Yes to receive strong signal only and then press the SELECT button to confirm.

Audio Setting

1. Press the MONO/ST. button on the remote control to toggle between the Mono only or Mono/Stereo selection.

Alternatively,

1. Press the MENU button to access the main menu.
2. Press the ▼ / ▶/ ▲ buttons to select Audio setting and press the SELECT button to confirm.
3. Press the |◀◀ ▶▶▶ buttons to select YES to listen in mono only or NO to let the unit select Stereo or Mono automatically.
4. Press the SELECT button to confirm.

Saving and Recalling Preset Station

Refer to „Preset Stations“ and „Recalling a Stored Station“ under Internet Radio section for instruction.

The unit has a Bluetooth® function that can receive a signal within 8 metres. Pair the unit with a Bluetooth® device to listen to music:

1. Press MODE button on unit or remote control, then press the▶▶/ ∧ ▶◀◀/ ∨ buttons on unit or press ▼ / ▶∥ /▲ / ▶◀◀ ▶▶▶I buttons on remote control to select „Bluetooth® Audio” mode. Press the VOLUME/SELECT/SNOOZE dial on unit or SELECT button on remote control to confirm. The Bluetooth® logo will start to flash to show the unit in pairing mode.
2. Activate your Bluetooth® device and select the search mode.
3. "DAB 650" will appear on your Bluetooth® device list.
4. Select "DAB 650" and enter "0000" for the password if necessary. Once connected the Bluetooth® logo on the screen will stop flashing. Your device is now paired with the unit.
5. Press and hold ▶/SCAN button on unit or ▶/▲ button on remote control can disconnect existing Bluetooth® connection, with other Bluetooth® devices able to locate and make connection with the unit.
6. To disconnect the Bluetooth® function, switch to another function on the unit or disable the function from your Bluetooth® device.

Playing Music via Bluetooth®

You may need to adjust the volume on your radio and Bluetooth® device.

• Press the ▶/SCAN button on unit or ▶/▲button on remote control to play/pause music or
• Press the ▶▶/ ∧ |◀◀/ √ buttons on unit or |◀◀ ▶▶▶| buttons on remote control to skip to the previous/next track.

» The operational range between the unit and the device is approximately 8 metres.
» For better signal reception, remove any obstacles between the unit and the Bluetooth® device.

»Compatibility with all devices and media types is not guaranteed.

»Some mobile phones with the Bluetooth® function may connect and disconnect as you make and end calls. This is not an indication of a problem with your unit.

NET REMOTE - App UNDOK

The device gives a feature of NetRemote by smartphone or tablet in iOS or Android system. By downloading the assigned app named UN-DOK, you can view all the modes of Internet radio, Podcasts, DAB, FM and Bluetooth®. Search UNDOK from Google Play or Apple Store for UNDOK app, and install it to your smartphone or tablet.

Before using the UNDOK app, make sure the device and the smartphone or tablet are in the same WiFi network. Launch the app. The app initializes and scans for the device in the network. Tap the device to make the NetRemote connection.

• Once the smartphone or tablet has already accessed the device, they will automatically connect the next time when you open the app again.
• Be aware that if another smartphone or tablet with the app in the same network has access with the device; the original connection will be cut off.

When it is the first time that you connect the device to the unit, the app may ask you to enter the PIN. Default PIN is 1234. For details of changing the PIN for security, please refer to System Settings section: Network - NetRemote PIN Setup.

Select your desired mode in the main page. You may then control the selected mode on your smartphone or tablet and on the device simultaneously.

SLEEP SETTING

This function allows you to program the unit to turn to standby mode by itself after a set period of time.

1. To activate the sleep function on the radio, press the MENU button on the remote control to display the function main menu. Press the ▼/ ▶/ ▲ buttons to select Main menu, and then press the SELECT button to confirm.
2. Press the ▼ / ▶|| / ▲ buttons to select Sleep, and then press the SELECT button to confirm.
3. Press the ▼ / ▶/ ▲ buttons to select sleep timer, and then press the SELECT button to confirm.

→ Sleep OFF → 15minutes → 30minutes → 45minutes → 60minutes

1. When your desired sleep timer is set active, "C" will show on the display. Also the time remaining until switch off is displayed next to the symbol in the display.
2. When the sleep timer counts down to zero, the unit will turn to standby mode. To turn the sleep function off while the sleep timer is still counting down, repeat step 1-3 to select "SLEEP OFF".

SETTING THE ALARM

1. Press the ALARM button on the remote control, the display shows "Alarm (1 or 2): Off [hh:mm]".
2. Press the ▼ / ▶ ▶ ▲ buttons to select the Alarm number (1 or 2) and then press the SELECT button to start the setting of the following parameters.

Press the confirm ▼ / ▶/ ▲ buttons to select then press the SELECT button to

Enable Off/ Daily/ Once/ Weekends/ Weekdays
Time (Alarm On time)
Mode Buzz / Internet radio / DAB / FM
Preset Last Listened/ (Preset station)
Volume 0-32
Save Save and confirm the alarm setting

1. Finally, select "Save" and press the SELECT button to save the alarm setting. The display will show Alarm Saved. When the alarm is set, the alarm icon will appear on the display.
2. To temporarily switch off alarm, press the VOLUME/SELECT/SNOOZE dial on unit or SNOOZE button on remote control to activate Snooze function when alarm sounds. Press the VOLUME/SELECT/SNOOZE dial on unit or SNOOZE button on remote control repeatedly to set snooze period time of 5, 10, 15 or 30 minutes in turn. The set snooze time will show on the display and unit will go to standby.
3. To turn off the alarm when it sounds, press the ⏻ or ALARM button.

To cancel Alarm, refer to steps 1-3 to set alarm Off. The alarm icon will disappear from display.

USING EARPHONES

You can connect your earphones (not include) by plugging into the earphone socket at the rear of the unit. Turn down the volume before connecting earphones. Slowly raise the volume with the earphones on until you reach your desired level.

» Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using earphones, especially for extended periods of time.

MAINTENANCE

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips. If you require additional assistance

General

Problem Solution
No power. • Ensure the mains plug is connected.• Make sure that you select the ON mode.
No sound from the unit.	Please try either one of the solutions below:• Make sure that the unit is not muted. Press VOL +/- buttons resume normal listening.• Press Standby button on the unit to switch the unit to standby mode. Then press the button again to switch the unit on.• Unplug the unit from the mains socket, then plug them again. Switch on the unit.
The unit does not respond when pressing any buttons.	The unit may freeze up during use. Switch the unit off and then on again at the mains socket to reset the unit.

The product may have noise (1KHz signal) in the presence of strong electromagnetic fields, in case of malfunction due to these strong electromagnetic fields, user need to wait till resume normal operation without intervene.

RADIO DAB/FM

Problem Solution
Poor radio reception. • Make sure the DAB/FM aerial is fully extended.• Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
Desired station not found.	• Weak signal. Search manually.• If reception is still poor, adjust the position of the aerial.

INTERNET RADIO

Problem Solution
No connection.• Make sure	the Wi-Fi router is plugged in and working.Reconnect the radio to your Wi-Fi router.Check you radio is within 5m of your router.
Can’t hear the radio station	Sometimes the Wi-Fi connection is temporary lost or connection is weak, check the Wi-Fi connection or move the radio closer to your router.Not all radio stations transmit 24 hours a day, they might not be transmitting.Not all radio stations transmit at the same volume level you may need to increase the volume.

BLUETOOTH®

Problem Solution
I cannot find “DAB 650” on my Bluetooth® device.	·Ensure the Bluetooth® function is activated on your Bluetooth® device.·Repair the unit with your Bluetooth® device.
Can’t hear the music • You	may need to increase the volume on the radio and Bluetooth® device.

If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again

Standby power consumption:
WiFi off: < 1.00 W (standard standby mode)
WiFi on: < 2.00 W (network standby mode)
SPECIFICATION

Model DAB650 513
Power Supply Input: AC 100-24	0V ~50/60Hz, 1AOutput: DC 9V 3.0A
Power Consumption 27 W
Speaker Output Power 2 × 5W	RMS
Working Environment - Temperature	0 ~ 35 °C
Net Weight ~ 1.800 g
Unit Dimension (W) × (D) × (H)	300.6 x 158.6 x 115.6 mm
Radio Frequency FM 87.50 - 10	8.00 MHzDAB 174.928 - 239.200 MHz
Manufacturer's name and address	DONGGUAN BECKY ELECTRONICS TECH CO., LTD, Yinyong Industrial Zone, Jinma Road, HengLi Town, Dongguan City, Guang-dong Province, China
Model Number BQ30A-0903000-G
Input Voltage and Input AC frequency	100-240V ~ 50-60Hz Max. 800mA
Output voltage DC 9.0V
Output current 3.0A
Output power 27.0W
Average active efficiency 86.7%
Efficiency at low load (10%) 77.0%
No-load power consumption 0.09W
How to activate wireless network port:Connect the unit with powerSwitch to wireless mode (e.g. Internet)
How to deactivate wireless network port:Go to Main menu - System settings - Network - Keep network connected. Select No and then press SELECT button to keep network disconnected
Bluetooth® version Version V4.2
	Maximum transmitted power	2 dBm
	Frequency band 2402	- 2480 MHz
Wifi Maximum	transmitted power	15 dBm
	Frequency band 2412	- 2472 MHz

»Note:

» The equipment will enter network standby mode after approx. 15 minutes.
» FM is exceptional, it is inappropriate for the intended use of equipment if the apparatus didn't receive radio signal on FM mode.
»In Internet radio, Podcasts, DAB radio and Bluetooth® Audio mode, the
» unit will automatically go to Standby mode after 15 minutes, if it has no audio playback. Press Standby button to resume.

Features and specifications are subject to change without prior notice.

Simplified declaration of conformity as per the RED Directive

Schwaiger GmbH hereby declares that the described radio system product complies with Directive 2014/53/EU and other directives applicable to the product. The complete EU declaration of conformity is available online at: http://konform.schwaiger.de

Disposal

Do not dispose of batteries or electric and electronic devices in the normal household waste. The consumer is legally obliged to return electrical and electronic devices and batteries that are at the end of their useful life to the point of sale or public collection points that have been set up for this purpose. Legisla-

tion in the country of use governs individual details regarding disposal. The symbol on the product, the user guide or the packaging indicates this legal requirement.

Disclaimer

Schwaiger GmbH does not accept any liability or warranty for damages that are sustained due to improper installation or mounting, improper use of the product or non-compliance with the safety instructions.

Manufacturer's information

Dear Customer, please contact our Technical Support if you need technical advice and your retailer is unable to help you.

Office Hours (Technical Support in German)

Monday to Friday: 8:00 a.m. - 5:00 p.m.

HOTLINE

[phone]

MESURES DE SÉCURITÉ

Gestion des piles

SOURCE D'ALIMENTATION

Channel Info/Description - Language/Location - Bit rate/Sound format / Sampling rate - Playback buffer - Date

PODCASTS

DLS (Dynamic Label Segment)

DLS (Dynamic Label Segment)

Simple diagram with two circles, a square, and a circle with dots (no text or symbols)

Simple line drawing of a cable and plug device (no text or symbols)

Blank white rectangular box with no visible text or symbols

Unidad principal

Adaptador de red

Manejo de las pilas

DLS (Dynamic Label Segment)

DRC (Dynamic Range Compression)

Simple diagram with two circles, a square, and a circular object inside a rectangle (no text or symbols)

Huvudapparat

Nätdel

Simple line drawing of a cable and plug device (no text or symbols)

Blank white rectangular book or document with no visible text, symbols, or markings

Bruksanvisning

Fjärrstyning

PRODUKTÖVERSIKT

1. HÖGTALARE
2. STANDBY-KNAPP
3. MINNESKNAPP
4. DISPLAY
5. RETUR-KNAPP
6. FJÄRRKONTROLLSENSOR
7. MODUS-KNAPP

8. INFO/MENY-KNAPP

9. LJUDSTYRKA/VAL/SLUMMER-VRIDRATT

10. ▶ SÖKNINGS-KNAPP

11. -KNAPP
12. -KNAPP
13. STAVANTENN
14. HÖRLURSUTTAG
15. USB 5V — 1A laddningsuttag
16. STRÖMFÖRSÖRJNINGSUTTAG

FJÄRRSTYNING

1. STANDBY-KNAPP
2. KLOCK-KNAPP
3. SOV-KNAPP
4. MODUS-KNAPP
5. ▶/▲-KNAPP
6. KNAPP
7. KNAPP
8. FREKVENSUTJÄMNINGS-KNAPP
9. LJUDSTYRKEKNAPP + / -
10. SIFFERKNAPPAR
11. MONO/STEREO-KNAPP
12. SLUMMER-KNAPP
13. SÖKNINGS-KNAPP
14. ALARMKNAPP
15. INFO-KNAPP
16. VÄLJARKNAPP
17. -KNAPP
18. MINNESKNAPP
19. MENY-KNAPP
20. MINNE/MAPP
    ^/ v KNAPP
21. RETUR-KNAPP
22. PAUS-KNAPP

5

BRUKSANVISNING

Further languages of the operating instructions can be found under
