Brand	Schwaiger
Model	KVK75 533
Product Type	Coaxial Cable
Cable Type	RG-6
Impedance	75 Ohms
Length	1.5 m
Connector Type	F-Type (Male)
Shielding	Double Braided + Foil
Conductor Material	Copper-Clad Steel
Dielectric	Polyethylene Foam
Jacket Material	PVC
Jacket Color	Black
Operating Temperature	-20°C to +60°C
Weight	Approx. 80 g
Packaging	Retail Box
Frequency Range	Up to 1 GHz
Attenuation	≤ 20 dB/100m @ 1 GHz
Compliance	RoHS, CE
Cleaning Instructions	Wipe with dry cloth; avoid moisture
Safety Notes	Do not bend sharply; avoid kinks
Spare Parts Availability	Not applicable (integrated cable)
Repairability	Not repairable; replace if damaged

Frequently Asked Questions - KVK75 533 Schwaiger

What is the impedance of the Schwaiger KVK75 533 coaxial cable?

The impedance is 75 Ohms, standard for video and audio signals.

Can this cable be used for satellite TV?

Yes, the KVK75 533 is suitable for satellite TV, cable TV, and antenna connections, thanks to its 75 Ohm impedance and F-type connectors.

What is the maximum frequency supported?

It supports frequencies up to 1 GHz, covering most broadcast and satellite bands.

Is the cable shielded?

Yes, it features double braided and foil shielding to minimize interference and signal loss.

What is the length of this cable?

The length is 1.5 meters, suitable for short distance connections.

Can I cut and terminate the cable myself?

The cable is pre-terminated with F-type connectors. Cutting and re-terminating is possible with proper tools, but may affect performance.

Is the cable indoor or outdoor rated?

It is designed for indoor use with a PVC jacket. For outdoor installation, use a weatherproof enclosure.

What connectors are attached?

It comes with F-type male connectors on both ends, standard for coaxial devices.

How do I clean the cable?

Wipe with a dry, soft cloth. Do not use liquids or solvents to avoid damaging the jacket.

What should I do if the cable is damaged?

If the cable is cut or the connectors are damaged, replace the entire cable to ensure proper signal quality.

USER MANUAL KVK75 533 Schwaiger

Coiled black cable with two metallic connectors, no text or symbols visible

Antenna Connection Cable (75 dB)

IEC plug > IEC jack

This SCHWAIGER® antenna connection cable is suitable for antenna systems and cable TV systems. It is shielded twice, which makes it less prone to any kind of signal interference.

The cable is used between the antenna socket and a receiver.

Product packaging with Chinese text and a medical device display showing waveform data

ARTICLE INFORMATION

Article Nr KVK75 533

EAN 4004005205565

Last updated: 23.03.2016

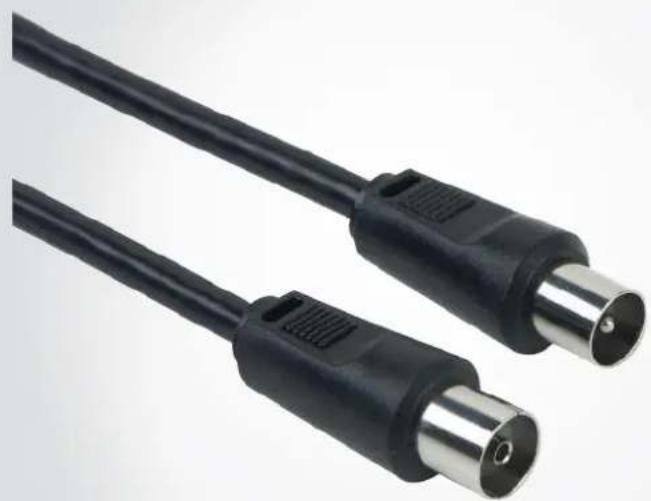

Close-up of two black audio/video cables with metallic connectors (no text or symbols visible)

• shielded twice for less electromagnetic signal interference
• shielding consists of aluminium foil and wire mesh
- for connecting a device equipped with an antenna connection to an antenna socket
• example for connection: antenna socket > cable receiver

TECHNICAL DATA

quality * Standard

Connections 1x IEC connector

1x IEC jack

Impedance 75 Ohm

Plugs plastic

contact: metal

Cable design 0.5 mm (inner conductor)

2.8 mm (dielectric)

5 mm (sheath)

Shielding value 75 dB

Shielding shielded twice

Inner conductor CCS

Cable length 7.5 m

Colour black

packaging sealed blister SBL04

Diagram of a multi-layered cable or tube with numbered components, showing internal structure and cross-sections.

1 Exterior insulation
2 Braid
3 Aluminium foil
4 Dielectric (inner insulation)
5 Inner conductor
