WT 534 - Alarm clock radio TECHNOLINE - Free user manual and instructions

Product type	Clock radio
Brand	TECHNOLINE
Model	WT 534
Dimensions (approx.)	15 x 10 x 8 cm
Weight (approx.)	300 g (without adapter)
Main power supply	DC 5V 600 mA power adapter (included)
Backup power supply	1 CR2032 battery (included)
Main features	DCF77 radio-controlled, two alarms, time and temperature projection, indoor temperature, calendar up to 2099
Projection	180° rotation, distance approx. 2 m
Temperature units	°C or °F selectable
Time format	12/24 h
Days languages	English, German, Italian, French, Spanish, Dutch, Danish
Care and cleaning	Clean with a dry cloth; do not immerse in water; avoid corrosive products
Safety precautions	Indoor use only; do not expose to moisture, shocks, flames; do not open
Batteries	Use only lithium batteries; respect polarity; do not recharge; remove if discharged
Spare parts and repairability	Replacement power adapter (same specs); standard CR2032 battery; no user-serviceable parts
General information	Compliant with directives 2014/53/EU and ROHS 2011/65/EC

Frequently Asked Questions - WT 534 TECHNOLINE

How to set the time manually on the WT 534?

Press the SET button for 2 seconds. The display shows RCC ON/OFF blinking. Use + or - to change, then SET to go to the next setting: 12/24h, time zone, hour, minute, date format, year, month, date, day language. Press SET at the end to exit.

Why doesn't the time synchronize automatically?

Make sure DCF77 reception is enabled (RCC ON). Place the clock at least 2.5 m from electronic devices, near a window. Synchronization occurs at 1am, 2am, and 3am. If it fails, it retries up to 5 times at the next full hour.

How to activate or deactivate alarms?

Press the ALARM button. Each press toggles between alarm 1 only (icon 1), alarm 2 only (icon 2), both (icons 1 and 2), and none (no icon).

How to set the alarm time?

Press ALARM once to display alarm 1 or twice for alarm 2. Hold ALARM for 2 seconds: the hour blinks. Adjust with + or -, press ALARM to confirm, then set minutes. Press ALARM to finish.

How to use the snooze function?

When the alarm sounds, press the SNOOZE button (touch-sensitive on top) to stop temporarily. The alarm repeats after 8 minutes. You can repeat this cycle indefinitely.

How to change the temperature unit?

Press the + or - button (depending on model) to switch between °C and °F. The indoor temperature displays with the chosen unit.

The projection does not work, what should I do?

Check that the power adapter is plugged in (projection only works on mains). Press the rotation button to adjust projection. If the display is off, projection turns off; adjust the backlight.

How to replace the backup battery?

Open the battery compartment cover at the back. Insert a CR2032 battery respecting polarity (+/-). Close the cover. The battery keeps time in case of power outage.

How to clean the clock?

Use a dry, soft cloth. Do not use abrasive cleaners or solvents. Do not immerse the device in water. Avoid moisture and dust.

Where to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to a collection point (store, recycling center). Used batteries should be returned to the retailer or recycling center.

USER MANUAL WT 534 TECHNOLINE

1: Time
2: Time signal reception icon
3: Alarm icon
4: Low battery indicator
5: Projection window
6: Indoor temperature
7: Weekday
8: Date and month
9: Projection rotation button
10: Operation buttons (+ / - / ALARM / SET)
11: Power adapter input jack
12: Battery cover
13: Snooze function touch field

Features

• DCF77 radio controlled time function
  Calendar up to the year 2099
• Week days in 7 languages selectable: English, German, Italian, French, Spanish, Dutch and Danish
• Time optional in 12/24 hour format.
• 2 daily alarms with snooze function (8 minutes duration)
• Projection of time and temperature

180 degree rotation of projection direction
- Indoor temperature
- Temperature alternatively in ^ C or ^ F
Table standing

Initial operation

• Connect the included power cable with the socket on the backside of the clock and then connect the cable to a fitting power source.
• All icons on the LCD screen will light up for 3 seconds and you will hear a signal tone. The clock will detect the indoor temperature and then start to search for the DCF77- time signal.
• Remove the plastic strip from the battery compartment to put the battery into operation. The battery is used as back-up.

Note:

Please use the original power adapter included with this product or a power adapter with the same specifications.

Battery changing

Open the battery compartment cover and insert 1 x CR2032 batteries by observing the correct polarity ("+") and "−" marks) into the battery compartment. Close the battery compartment cover again.

Reception of the radio signal

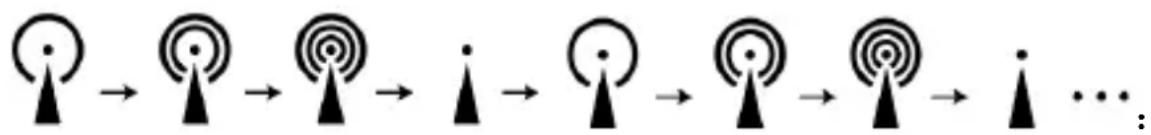

• Press and hold the “ ” button for 2 seconds to start the DCF77 time signal search manually. The “ icon is flashing, which indicates that the DCF77 signal search is active. The dynamic display indicates that the signal is normal.

Receiving and signal detected

: Received successfully

: The previous reception was successful, but the last reception failed

: Time signal search is set to OFF

• At 1:00 /2:00 / 3:00 (AM), the clock automatically carries out the synchronization procedure with the DCF77 signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the system will automatically attempt synchronization at the next full one hour. This procedure is repeated automatically up to total 5 times.
• During DCF77 signal reception, press the “ ” button once to stop searching for the time signal.

Notes:

• A flashing radio mast icon indicates that the DCF77 signal reception has started
• A continuously displayed radio mast icon indicates that the DCF77 signal was received successfully
• We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors
• Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.
  During the DCF77 reception, only the "SNOOZE" and "—" button have a function, other button operation have no function. If you want to carry out other functions of operation, please press the

" button to exit the DCF77 reception.

• During time signal reception, the backlight and projection will be temporarily turned off. The brightness will be restored after the signal search is finished.

Manual time setting

Press and hold the" (SET) button for 2 seconds and the RCC

ON/OFF display starts to flash. Press the “+” or “-” button to set the radio-controlled time function to ON or OFF.

• Press the “ ” button to confirm this setting point and continue to the next setting point. The sequence of setting points is as follows: RCC ON/OFF 12/24Hr Time zone Hour Minute Date format (D/M or M/D) Year Month Date Weekday language

• Press the " " button to confirm the last item to end the setting

procedures and the clock will return to the normal display mode.

Notes:

• If there is no button operation within 20 seconds, the clock will automatically quit the setting and return to normal time display.
  While setting the value, press and hold the “+” or “-” button to quickly adjust the setting values.
• When choosing the 12Hr format, if “PM” is displayed before the hours, it means that the hour is post meridiem.
• The 7 languages that show week abbreviations are listed below:

Language / Weekday	English ENG	German GER	French FRE	Spanish SPA
Monday	MON	MON	LUN	LUN
Tuesday	TUE	DIE	MAR	MAR
Wednesday	WED	MIT	MER	MIE
Thursday	THU	DON	JEU	JUE
Friday	FRI	FRE	VEN	VIE
Saturday	SAT	SAM	SAM	SAB
Sunday	SUN	SON	DIM	DOM

Language	Italian	Dutch	Danish
/ Weekday	ITA	DUT	DAN
Monday	LUN	MAA	MAN
Tuesday	MAR	DIN	TIR
Wednesday	MER	WOE	ONS
Thursday	GIO	DON	TOR
Friday	VEN	VRI	FRE
Saturday	SAB	ZAT	LOR
Sunday	DOM	ZON	SON

Activating/deactivating the daily alarm

• Press the “ ” button once and the LCD will display the icon, (A) which means that only alarm 1 is activated.
• Press the “+” button again and the LCD will display the (2) icon, which means that only alarm 2 is activated.
• Press the “ ” button again and the LCD will display the and (1) icons, which means that alarm 1 and alarm 2 are both activated.
• Press the “+” button again and the LCD will display no icons, which means that alarm 1 and alarm 2 both deactivated.

Daily alarm setting

• Press the “ ” (ALARM) button once to display alarm 1 time. Press the “ ” button again to display the alarm 2 time. Press the “ ” button again to return to normal time display.

• When alarm 1 is displayed, press and hold the “ ” button for 2 seconds and the hour of the alarm 1 time starts to flash. Press the “ ” or the “ ” button to set the required hour.

• Press button “ ” to confirm your setting and the minute of the alarm 1 time starts to flash. Press the “ ” or the “ ” button to set the required minute.
• Press button “ ” to confirm your setting and to end the setting of alarm 1.
• When alarm 2 is displayed, press and hold the “ ” button for 2 seconds and the hour of the alarm 2 time starts to flash. Press the “ ” or the “ ” button to set the required hour.
• Press button “ ” to confirm your setting and the minute of the alarm 2 time starts to flash. Press the “ ” or the “ ” button to set the required minute.
• Press button “ ” to confirm your setting and to end the setting of EN7

alarm 2.

Notes:

• If there is no button operation within 20 seconds, the clock will automatically quit the setting and return to normal time display.
  While setting the value, press and hold the “+” or “-” button to quickly adjust the setting values.
• The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.

Turn OFF the alarm sound

• When the alarm tone is ringing, press any button except the "SNOOZE" button to stop the alarm sound.
• The alarm will sound again on the next day.

Snoopze function

When the alarm tone is ringing, press the "SNOOZE" button to end the alarm sound and enter snooze mode. The alarm signal sounds again after a 8 minute snooze duration.

Temperature in ^ C or ^ F

Press the " button once to switch the temperature unit to ^ C or ^ F .

Backlight and projection function DC-adapter mode

• When using the power adapter, the backlight and projection will always light up. Press the “ ” button to adjust the backlight brightness or turn it off. The setting order for the brightness is: light medium dark OFF light medium dark......

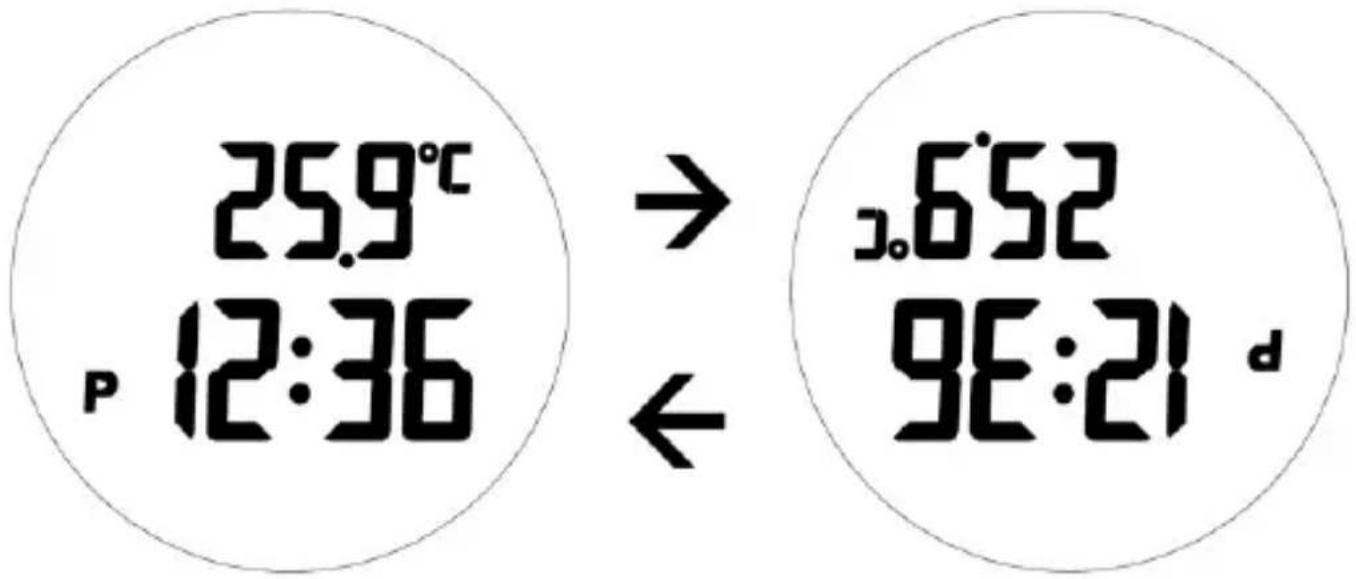

• Press the " " button and the projection will rotate by 180 degrees.

Notes:

• When the projection is triggered, the projection distance is about 2 meters.
• Continuous projection is only possible by using the power adapter.
• When receiving radio waves, the backlight and projection will be temporarily off, and the brightness will be restored after the signal search is finished.

Declaration of conformity

Hereby, Technotrade declares that this product WT534 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665005348

Specifications

Indoor temperature measurement ranges: -9.9°C (14.2°F) ~ 50°C (122°F)
Power Supply: TC-0500600-01A power adapter DC5V 600mA (included), 1 x CR2032 battery (included, for back-up)

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
  among tall buildings

• inside concrete buildings

• near electrical appliances (computers, TV's, etc) and metallic structures

• inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only lithium batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-) .
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to

bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European

countries with a separate waste collection system.
