Product type	Radio alarm clock
Brand	TECHNOLINE
Model	WT 549
Power supply	Mains adapter 4.5 V / 150 mA (HX075-0500600-AG) + 2 AAA 1.5 V LR03 batteries (not included)
Display	Positive LCD with color backlight (white, red, orange, yellow, green, cyan, blue, purple)
Clock	Radio-controlled DCF-77, 12/24 h format, manual setting, time zone (-1 to +2 h), perpetual calendar 2000-2099, weekday in 7 languages
Projection	Time projection up to 2 meters, 180° rotation possible
Alarms	2 independent alarms with snooze, crescendo volume, duration 2 minutes
Indoor temperature	-9.9 °C to 50 °C (14.2 °F to 122 °F)
Outdoor temperature	-40 °C to 70 °C (433 MHz wireless sensor, up to 3 channels)
Weather forecast	Based on pressure sensor, valid for 12-24 h
Transmitter frequency	433 MHz, max power 8 dBm
Included accessories	Mains adapter, user manual (multilingual downloadable from www.technoline.de)
Maintenance	Clean with a soft dry cloth. Do not expose to water, direct sunlight, extreme temperatures or dust.
Safety	Use only non-rechargeable alkaline batteries. Observe polarity. Do not open the device. Do not throw into fire.
Repairability	Not specified by the manufacturer. The device contains no user-serviceable parts.

Frequently Asked Questions - WT 549 TECHNOLINE

How to manually set the time on the WT 549?

Press and hold the MODE SET button for 2 seconds. The year flashes. Use + and - to set the year, then press MODE SET to move to month, day, language, time zone, 12/24 format, hours, minutes, and finally temperature unit. Press MODE SET after each setting.

How to set the alarm?

Make sure the alarm switch on the back is set to ON. Press MODE SET once to display alarm 1, twice for alarm 2. Press and hold ALARM for 2 seconds, the hours flash. Use + and - to set, press ALARM for minutes, then again for snooze delay.

The projection does not work, what to do?

Continuous projection requires the mains adapter. Check that the adapter is plugged in. With the adapter, press the - button to choose brightness (high/low/off). In battery mode, projection only activates for 8 seconds after pressing SNOOZE/LIGHT.

The clock does not receive the DCF signal, why?

Place the clock near a window, away from electrical devices (TV, computer) and metal structures. Maintain a distance of at least 2.5 m from interference sources. Concrete walls can weaken the signal. If reception fails, an automatic retry will occur at the next full hour.

How to change the backlight color?

Press the Loop button to activate automatic color change. For a fixed color, disable Loop then press Rainbow to cycle through colors: white, red, orange, yellow, green, cyan, blue, purple.

How to display the maximum and minimum temperature?

Press the ALARM-MEM button once to view the recorded maximum temperature, twice for the minimum. A third press exits the display.

What does the low battery icon mean?

The low battery icon appears in the outdoor temperature window when the outdoor sensor batteries are low. Replace the sensor batteries immediately with new ones.

How to add an additional outdoor sensor?

Press and hold the +/CH button for 2 seconds to start sensor search. Ensure the new sensor is powered on and nearby. The clock can handle up to 3 channels (sensors).

Are the weather forecasts reliable?

The forecasts are based on an internal pressure sensor and are valid for the next 12 to 24 hours. They give a general indication (sunny, cloudy, rainy) but do not replace professional weather reports.

How to reset the device to factory settings?

To reset, remove the batteries and unplug the mains adapter for a few minutes. Then reconnect the adapter and reinsert the batteries. The clock will restart and begin searching for the DCF signal.

USER MANUAL WT 549 TECHNOLINE

B2 B3 B4 B5 B6 B7 B8 B9 RODE SET MOU ALARM LOOP + CH - ALARM1 ON OFF COLOR RAINBOW ALARM2 ON OFF DC 4.5V B10 B11

B1: "Snooze/Light" Taste

B2: "Rainbow" Taste

B5: "Mem/Alarm" Taste

B6: "Loop" Taste

B7: “+/ch” Taste

Line drawing of an electrical enclosure connected to a wall-mounted device via cable (no text or symbols)

Hinweis:

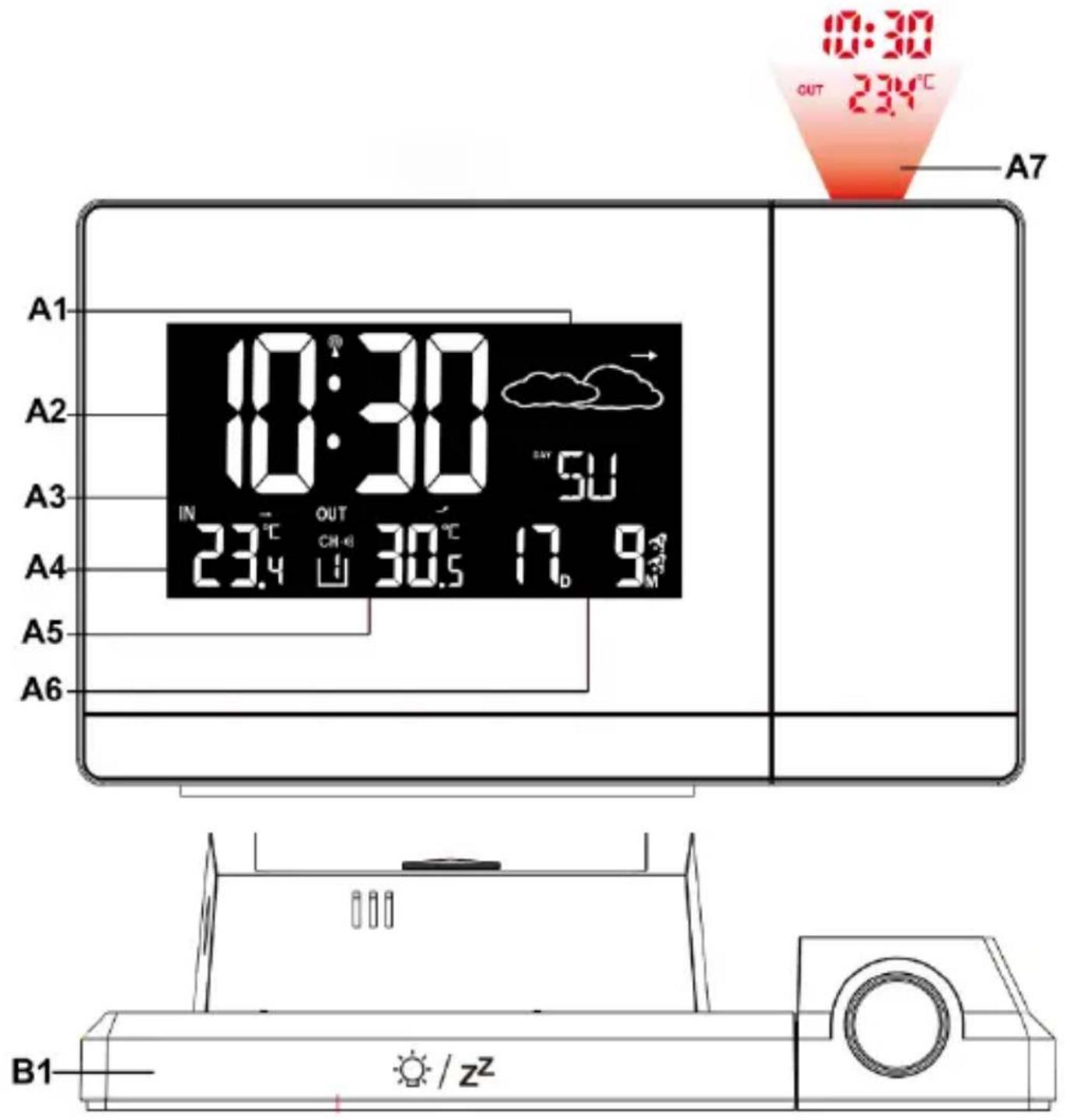

A1: Weather Forecasting
A2: Time
A3: Week
A4: Indoor Temperature
A5: Outdoor Temperature
A6: Calendar
A7: Projection display

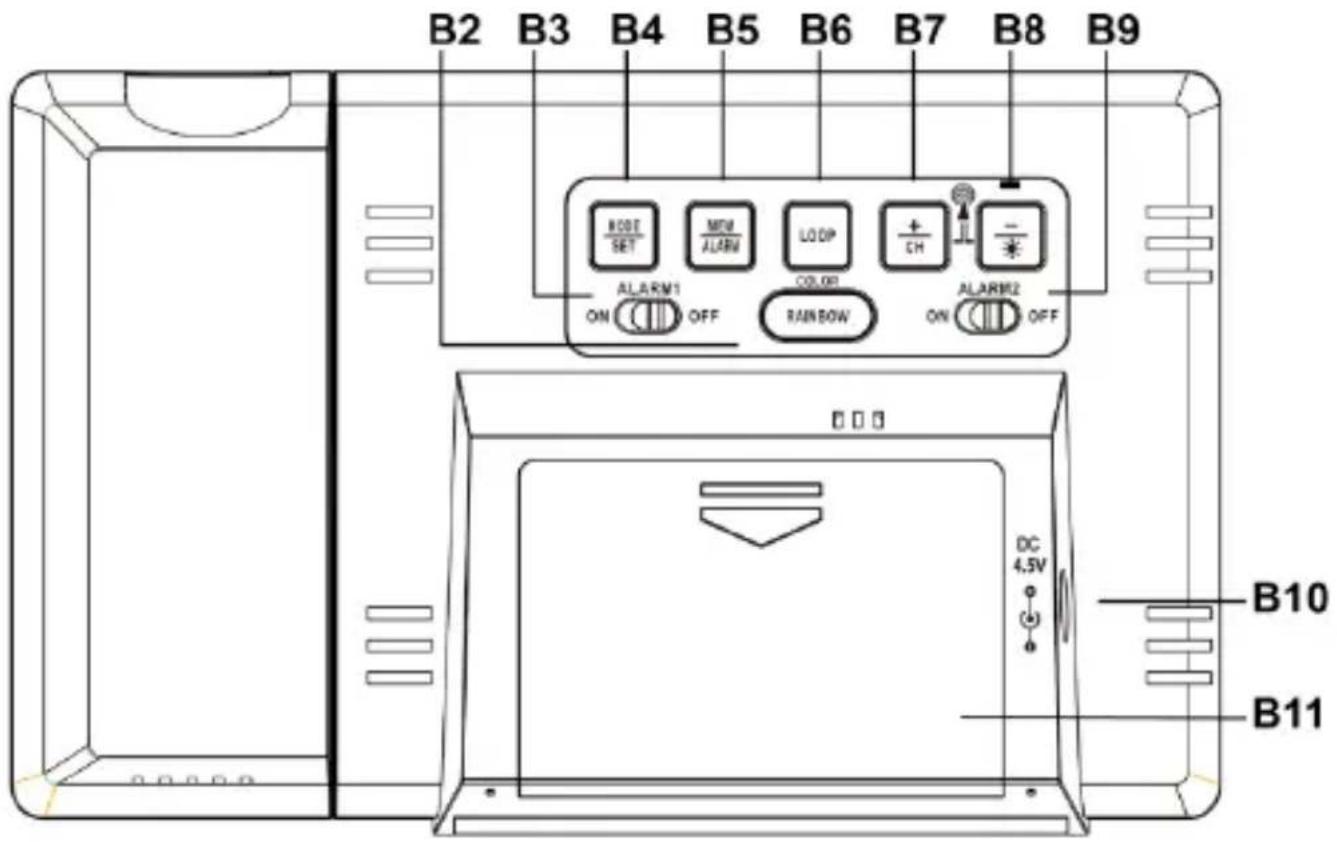

Part B – Back button and power

B1: "Snooze/Light" button

EN2

B2: "Rainbow" button
B3: Alarm1 on/off shift switch
B4: "Mode/Set" button
B5: "Mem/Alarm" button
B6: "Loop" button
B7: “+/ch” button
B8: “-/light” button
B9: Alarm2 on/off shift switch
B10: Power supply socket
B11: Battery compartment

Features:

• Radio controlled DCF-77 clock
• 12/24 hour time format
• Time zone setting (-1/+2h)
- Manual time setting
- Projection of the time
- Date and weekday display (7 languages)
• Temperature alternatively in °C or °F
- Alarm and automatic snooze function
- Indoor measurement range: -9.9°C \~ 49.9°C
• Power: DC-adapter HX075-0500600-AG (included), battery

1.5V "AAA" LR03 size x 2 pcs (not included)

Initial operation

• Connect the included power supply with the socket on the backside
• Alternatively you can use batteries. Open the clocks battery compartment cover.
• Insert 2 x AAA batteries observing polarity [ “+” and “−” marks].
• When you insert the batteries, all icons on the LCD display will light up for 3 seconds, you will hear a beep tone and the clock detects indoor temperature.
• Then the clock will enter the radio controlled time signal reception mode.

Projection function:

• Continuous projection is only possible by using the power adapter
• When using the DC-adapter supply, touch the “-” button can choose high brightness / low brightness / no backlight brightness. The projection will always work.
• Press and hold the " " button to rotate the projection by 180°.

Backlight and Projection function

Battery Mode

- Touch once “SNOOZE/LIGHT” button to active backlight and projection for 8 seconds (the projection switch in “ON” position)

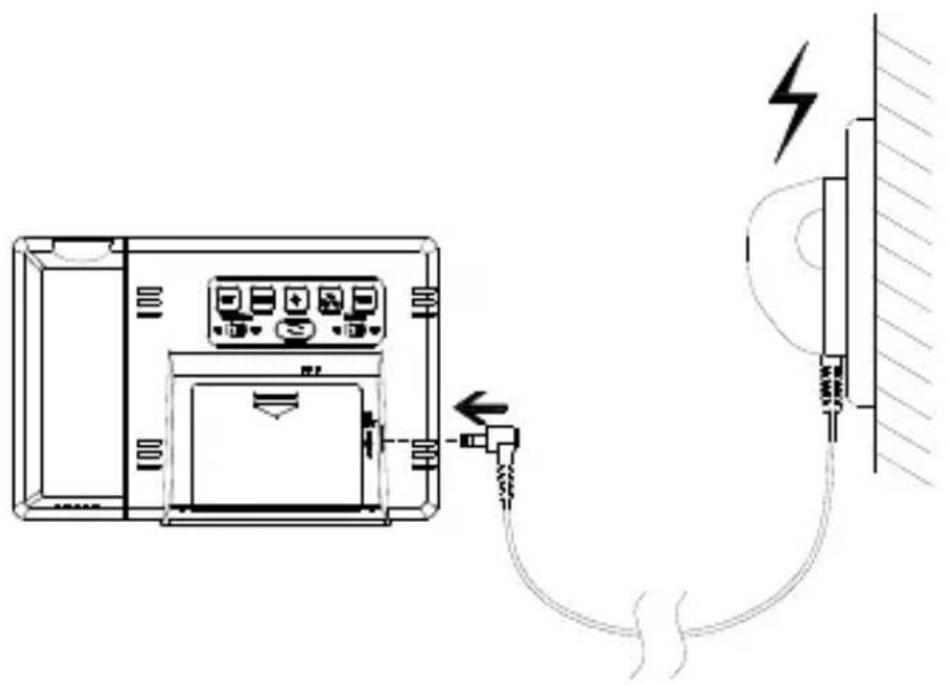

DC-adapter Mode

- When using the DC-adapter supply, touch the “-” button can choose high brightness / low brightness / no backlight brightness. The projection will always work.

Diagram of an electrical device connected to a wall-mounted cable with a lightning bolt symbol (no text or labels present)

Please note:

- When the projection is triggered, the projection distance is about 2 meters.

Reception of the Radio signal

• The clock automatically starts the DCF signal search of any restart or changing of new fresh batteries. The radio mast icon starts to flash.
• At 1:00 /2:00 / 3:00 am, the clock automatically carries out the synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast icon disappears from the display), the system will automatically attempt another synchronization at the next full hour. This procedure is repeated automatically up to total 5 times.

- To start manual DCF signal reception, press and hold down the “+” and “-” buttons for two seconds. If no signals received within 7 minutes, then the DCF signal search stops (the radio mast icon disappears) and start again at the next full one hour.

Please note:

• A flashing radio mast icon indicates that the DCF signal reception has started

• A continuously displayed radio mast icon indicates that the DCF signal was received successfully

• We recommend a minimum distance of 2.5 meters to all sources of interference, such as televisions or computer monitors

• Radio reception is weaker in rooms with concrete walls (e.g.: in cellars) and in offices. In such extreme circumstances, place the system close to the window.
• During the radio controlled clock signal receive mode, only the "SNOOZE" button function, other buttons have no function.

Manual time setting

• Press and hold the “MODE-SET” button for 2 seconds and the Year display 2015 starts to flash. Now use “+” and “-” buttons to set the year.
• Press “MODE-SET” button to confirm your setting, the Month and Date icon display starts to flash. Now use “+” and “-” buttons to set the date display on Month/Date or Date/Month.
• Press “MODE-SET” button to confirm your setting, the Month display starts to flash. Now use “+” and “-” buttons to set the month.

• Press “MODE-SET” button to confirm your setting, the Date display starts to flash. Now use “+” and “-” buttons to set the date.

• Press “MODE-SET” button to confirm your setting, the language selection for the Weekday displays starts to flash. Now use “+” and “-” buttons to select a language: German, English, French, Italian, Spanish, Dutch, Danish

• Press “MODE-SET” button to confirm your setting, the Time zones start to flash, Now use “+” and “-” buttons set the time zone (-1 to +2). For Germany the time zone is 0, for UK it is -1.
• Press the “MODE-SET” button and the 12/24 hour mode display starts to flash. Now use “+” and “-” buttons to set the 12/24 hour mode.
• Press “MODE-SET” to confirm your setting, the hour display starts to flash. Now use “+” and “-” buttons to set the hour.
• Press “MODE-SET” to confirm your setting, the Minute displays starts to flash. Now use “+” and “-” buttons to set the minute.
• Press the "MODE-SET" button to confirm the setting and the °C / °F temperature display will flash. Press the "+" or "-" button to change the format.
• Press the "MODE-SET" button to confirm the setting and the weather forecast will start to flash. Press the "+" or "-" button to set the current weather situation.
• Press “MODE-SET” to confirm your setting and to end the

setting procedures.

Please note:

- After 30 seconds without pressing any button, the clock switches automatically from Set Mode to Normal Time Mode.

Setting the daily alarms:

• Please toggle the alarm switch to ON position, LCD display the “ ” icon, the alarm function is ON, toggle the alarm switch to OFF position, the “ ” icon will disappears from the display, the alarm function is OFF.
• Press “MODE-SET” button once, to switch display to first alarm time. Press “MODE-SET” button twice, to switch display to second alarm time.
• Press and hold “ALARM” button for 2 seconds until hour of the first Alarm time starts to flash. Use the “+” and “-” buttons to set the required hour.
• Press “ALARM” button to confirm your setting, The Minute of the Alarm time starts to flash. Use the “+” and “-” buttons to set the minute.
• Press “ALARM” button for 2 until hour of the second Alarm time starts to flash. Use the “+” and “-” buttons to set the required

hour.

• Press “ALARM” button to confirm your setting, The Minute of the Alarm time starts to flash. Use the “+” and “-” buttons to set the minute.
• Press “ALARM” button to confirm your setting. The snooze time of the Alarm starts to flash. Use the “+” and “-” buttons to set the Snooze time.
• Press “ALARM” button to confirm your setting and to end the setting procedure.

Please note:

• After 30 seconds without pressing any button the clock switches automatically from setting mode to Normal clock mode.
• The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
• Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard.

Switching off the alarm signal

- Press any button except the "Snooze" button to stop the alarm

signal. It is not necessary to reactivate the alarm. It switches itself automatically to the alarm time which has already been set.

Snooze function

- Touch the “Snooze” button the alarm signal sounds to get to SNOOZE mode. The alarm signal sounds again after the Snooze time.

Color change display

- Press "Loop" button to turn on or off the backlight color change.

- Turn off the loop function and press "Rainbow" button, the backlight will change its color in this sequence: white > red > orange > yellow > green > cyan > blue > purple

Checking MAX/MIN temperature records

- Press “ALARM-MEM” button once to check the maximum temperature records. Press it twice to check the minimum records. Press it again to exit.

Weather forecast

- The station contains a built-in sensitive pressure sensor to predict the weather forecast for the next 12-24 hours.

Viewing the channel

- The default channel is Channel 1. In normal time mode, press “+/CH” button to view the channels from 1 to 3.

- Press and hold “+/CH” button for 2 seconds to start the sensor search.

Temperature trend

- The temperature-trend indicator shows the trends of changes in the forthcoming few minutes. Arrows indicate a rising, steady or falling trend.

Low battery indicator

- If the low battery indicator “” displays in the outdoor temperature window, it indicates that the battery power of the transmitter is not enough, and you should replace the batteries at once.

Hereby, Technotrade declares that this product WT549 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at:

Projection distance: 1.0\~2.0meter

IN Temperature measuring range: -9.9\~50°C/14.2\~122°F

Out Temperature measuring range: -40°C\~70°C/-40°F\~158°F

Transmission frequency: 433 MHz

Maximum transmission power: 8 dBm

Temperature alternatively in °C or °F

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance

• nearby mountains and valleys
- near freeway, railway, airports, high voltage cable etc.

- near construction site

- among tall buildings

• inside concrete buildings

- near electrical appliances (computers, TV's, etc) and metallic structures

- inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  • Install batteries correctly by matching the polarities (+/-).
  • Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of

charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful

life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

Aspect du produit

A7 10:30 OUT 23.4°C A1 A2 10:30 SUN IN OUT CH-6 30.5 17.9 23.4 LI 30.5 17.9 A3 A4 A5 A6 B1 / z²

B2 B3 B4 B5 B6 B7 B8 B9 BOOT SET ON ALARM1 OFF MOUT ALARM LOOP COLOP RAINBOW CH ON ALARM2 OFF DC 4.5V B10 B11

Diagram of an electrical enclosure connected to a wall-mounted device via cable, showing wiring and grounding symbols (no text or labels)

Prière de noter :

Note: Instruction manual in 8 languages

In addition to this printed user manual, you can download the user manual in 8 languages from the official website www.technoline.de .
