W 600 FLEXIO 18V - Paint spray WAGNER - Free user manual and instructions

Product Type	Cordless paint sprayer (paint sprayer)
Brand	Wagner
Model	W 600 FLEXIO 18V
Power Supply	Lithium-ion battery 18 V (PBA 18V, 2.5 Ah)
Charger	AL 1810 CV, input 220-240 V~, output 14.4-18 V, 1000 mA
Charging Time	Approx. 120 min (80%), 154 min (100%)
Use	Liquid coatings: paints, stains, varnishes, primers, etc.
Container Capacity (Standard)	800 ml
Container Capacity (Wall Extra I-Spray)	1300 ml
Spray Power	200 W
Max. Flow Rate (Wall Extra I-Spray)	500 ml/min
Max. Viscosity (Wall Extra I-Spray)	4000 mPas
Total Weight (with battery)	1.7 kg
Battery Weight	0.37 kg
Sound Pressure Level	76 dB(A)
Vibration Level	< 2.5 m/s²
Job Size (stains)	Approx. 30 m of fence
Job Size (varnishes)	Approx. 9 doors
Job Size (wall paint)	Approx. 26 m² of wall
Removable Nozzles	Standard and Wall Extra I-Spray (included)
Settings	Air flow, spray pattern (horizontal, vertical, round), material flow
Maintenance	Clean nozzle and air cap after use; replace air filter if necessary
Warranty	3 years + 1 additional year upon registration (3+1)

Frequently Asked Questions - W 600 FLEXIO 18V WAGNER

How to charge the battery of the Wagner W 600 FLEXIO 18V?

Plug the AL 1810 CV charger into a mains socket (220-240 V). Insert the battery into the charger; the LED flashes during charging. Full charge takes about 154 min. Remove the battery once charged (LED solid).

What types of paint can I use with this device?

The W 600 accepts a wide range of liquid coatings: solvent-based and water-based paints, stains, varnishes, primers, 2-component paints, etc. Use the Standard nozzle for fluid products (red Perfect Spray logo) and the Wall Extra I-Spray nozzle for wall paints (green Perfect Spray logo). Do not use abrasive or flammable products.

How to adjust the spray pattern?

Turn the air cap to switch from a flat vertical jet to a flat horizontal jet (or round with the Standard nozzle). For the Wall Extra I-Spray nozzle, use the adjustment lever to increase/reduce the jet size. Always tighten the union nut before spraying.

What to do if paint does not come out of the nozzle?

Check that the device is on and the battery is charged. Clean the nozzle and dip tube if clogged. Ensure the container is screwed on tightly and that the vent hole is not blocked. Increase the material flow if necessary.

How to clean the spray gun after use?

Turn off the device and remove the battery. Unscrew the container, empty excess paint. For the Wall Extra I-Spray nozzle: disassemble the air cap and union nut, clean nozzle and cap with a brush and solvent or water. Never use sharp metal objects. Wipe the exterior with a damp cloth.

Can the spray gun be used without a battery?

No, the W 600 FLEXIO 18V is a cordless device operating exclusively with a compatible PBA 18V battery (min. 2.5 Ah). It cannot be used with mains power.

What safety precautions should be observed?

Always wear protective goggles and a suitable mask. Work in a well-ventilated area. Never direct the spray at people or animals. Cover sockets and switches before painting. Do not spray flammable liquids and keep the device away from ignition sources.

Is the air flow adjustable?

Yes, use the + and - buttons on the spray gun to adjust the air flow. For very fluid products (stains), reduce the air flow. For viscous products (wall paints), increase it. The adjustment is made in steps.

How to maintain and replace the air filter?

Check the air filter after each use. To replace it, press the two locks on the cover, remove the old filter and insert a new one (ref. 2430342). Never operate the device without a filter.

Is there an extended warranty for this product?

Yes, Wagner offers a 3-year warranty, extendable by 1 year (total 4 years) if you register your product within 28 days of purchase at go.wagner-group.com/3plus1. The warranty covers material and manufacturing defects.

USER MANUAL W 600 FLEXIO 18V WAGNER

Line drawing of a precision surveying instrument with control panel and base mount (no text or symbols)

UNIVERSAL SPRAYER

W 600 FLEXIO 18V

ORIGINAL-

BETRIEBSANLEITUNG

DE EN FR NL

ÜBERSICHT / OVERVIEW / APERÇU GÉNÉRAL / OVERZICHT ① 21 9 7 6 5 4 3 2 1 10 12 11 16 15 14 17 20 13 TEST POSTER 19 18

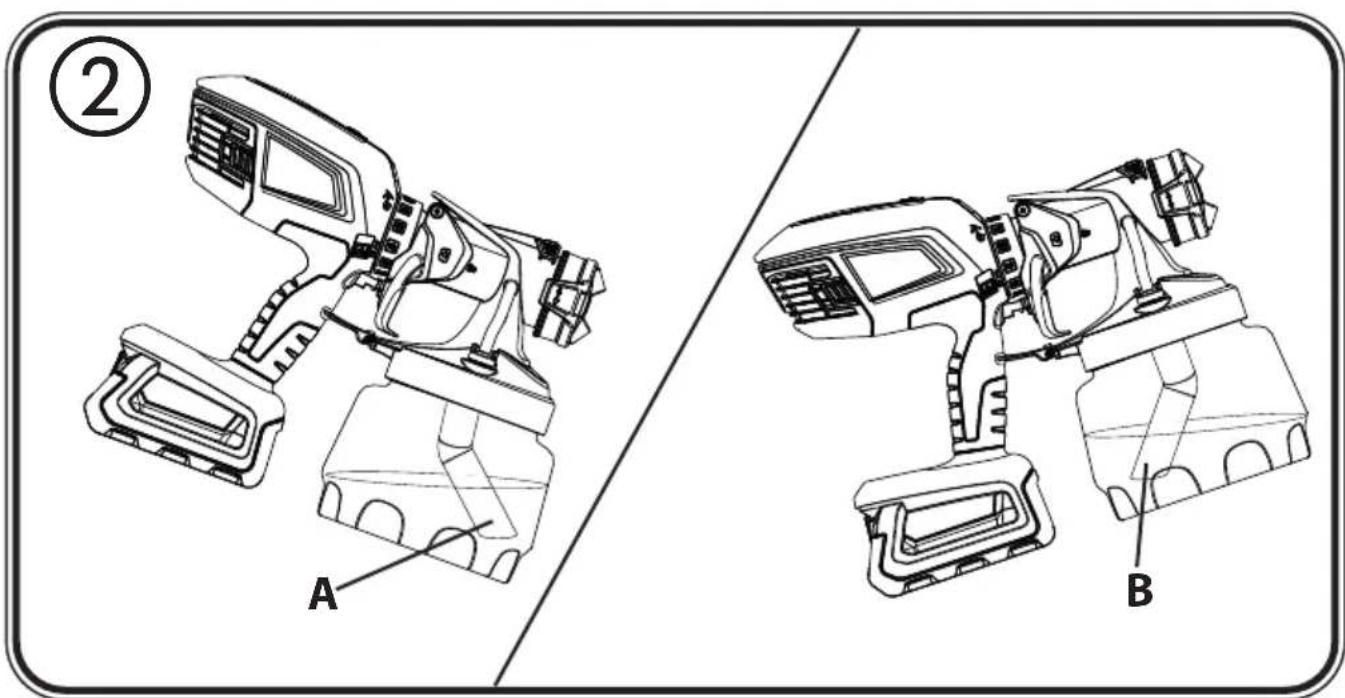

② A B

Diagram illustrating the step-by-step installation of a spray gun, showing how to press or click a device from components like a door and lock.

④ 1 I = ON 0 = OFF ⑤ 2 1

⑥ A B

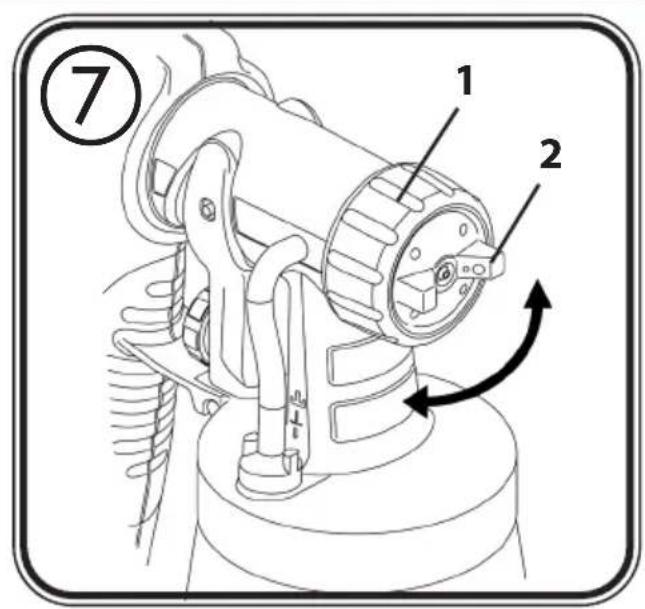

⑦ 1 2

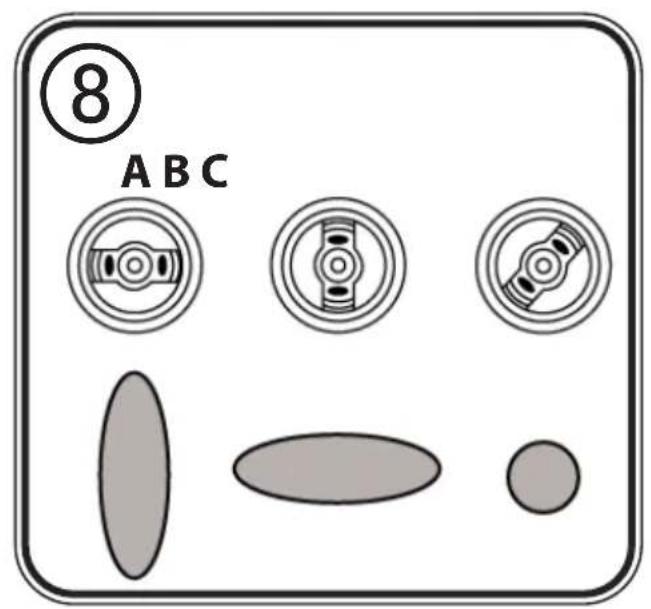

⑧ ABC

9 1 2 1 12 11

10

11 2 1 12 11 2 1

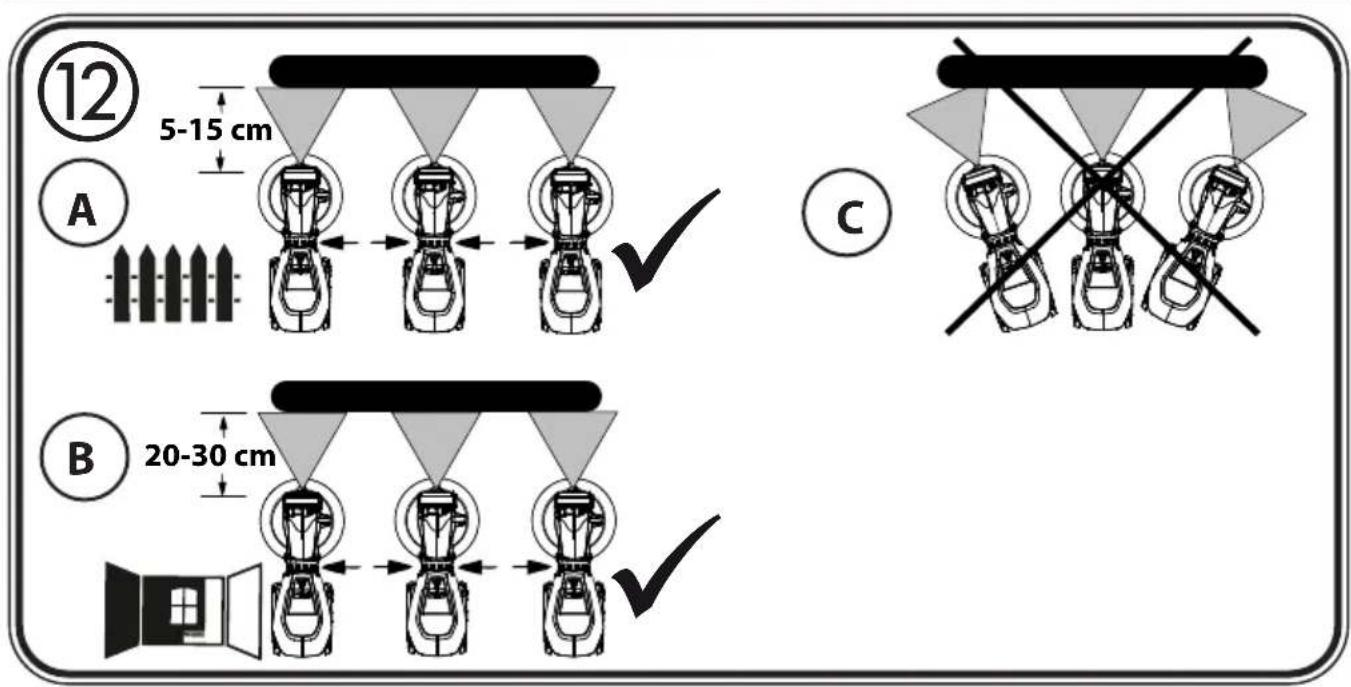

(12) 5-15 cm A B 20-30 cm C

17 4

18 2

⑲ 1

Technical diagram of a mechanical component with labeled parts 2 and 3

20

21 3 1 2

Technical diagram of a car interior showing labeled components including dashboard, airbags, and engine compartment

23 1 2 3 4 5 6 7

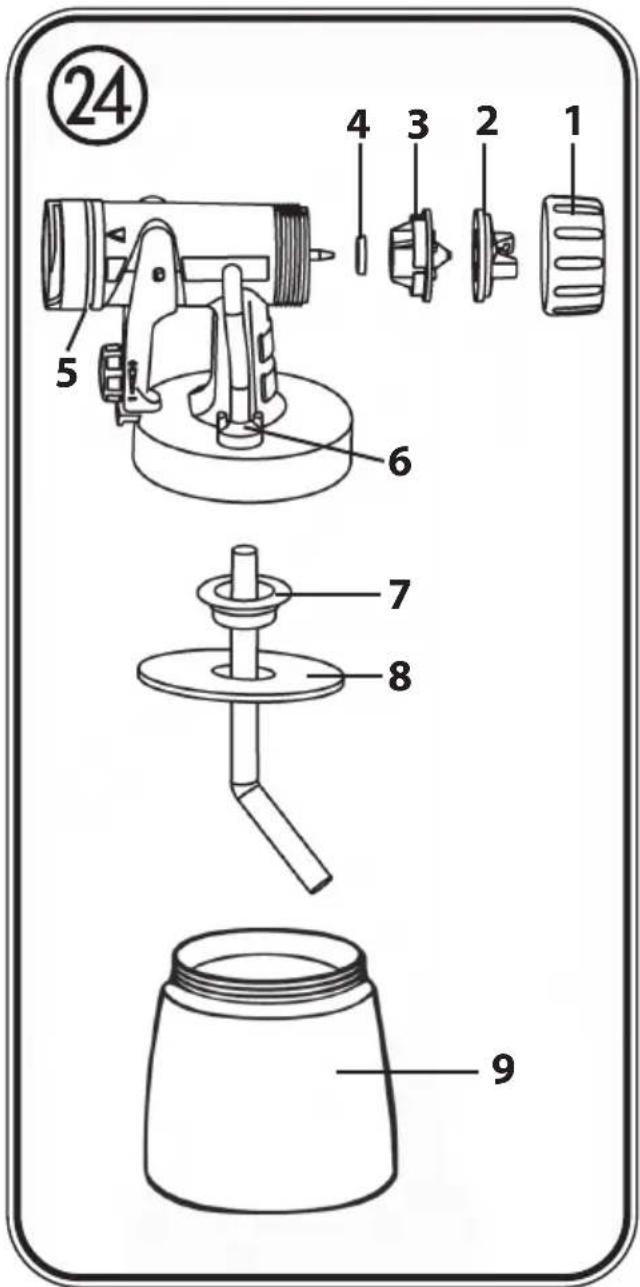

24 4 3 2 1 5 6 7 8 9

25
ERSATZTEILE / SPARE PARTS / PIÈCES DE RECHANGE / ONDERDELEN

Exploded diagram of a medical device with labeled parts including a handheld device, internal compartments, and a mobile phone.

1 - 22

.23 - 44

.45 - 66

.67 - 88

●●●●●●●●●●●●●●●●●●●●●●●●

HERZLICHEN DANK FÜR IHR VERTRAUEN

Line drawing of a car interior with a valve and handle (no text or symbols)

Illustration of a mechanical device and its screen (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Illustration of hands cleaning a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical device with a downward arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical device and its corresponding view with a window (no text or symbols)

Illustration of a spray gun and a row of black bullet points (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

https://go.wagner-group.com/hf-warranty-conditions

QR code image containing encoded data, no visible human-readable text

Translation of the original operating instructions

MANY THANKS FOR PLACING YOUR TRUST IN US

We would like to congratulate you on purchasing this brand product from Wagner; we are sure that you will enjoy working with it greatly.

Please read the Operating Manual carefully and observe the safety information before starting the device. Store the Operating Manual in a safe place close to the product in case it needs to be used by someone else.

We would be happy to be of assistance if you have any questions, suggestions or requests. Please contact us via the phone number included on the back page or via our homepage, www.wagner-group.com/service.

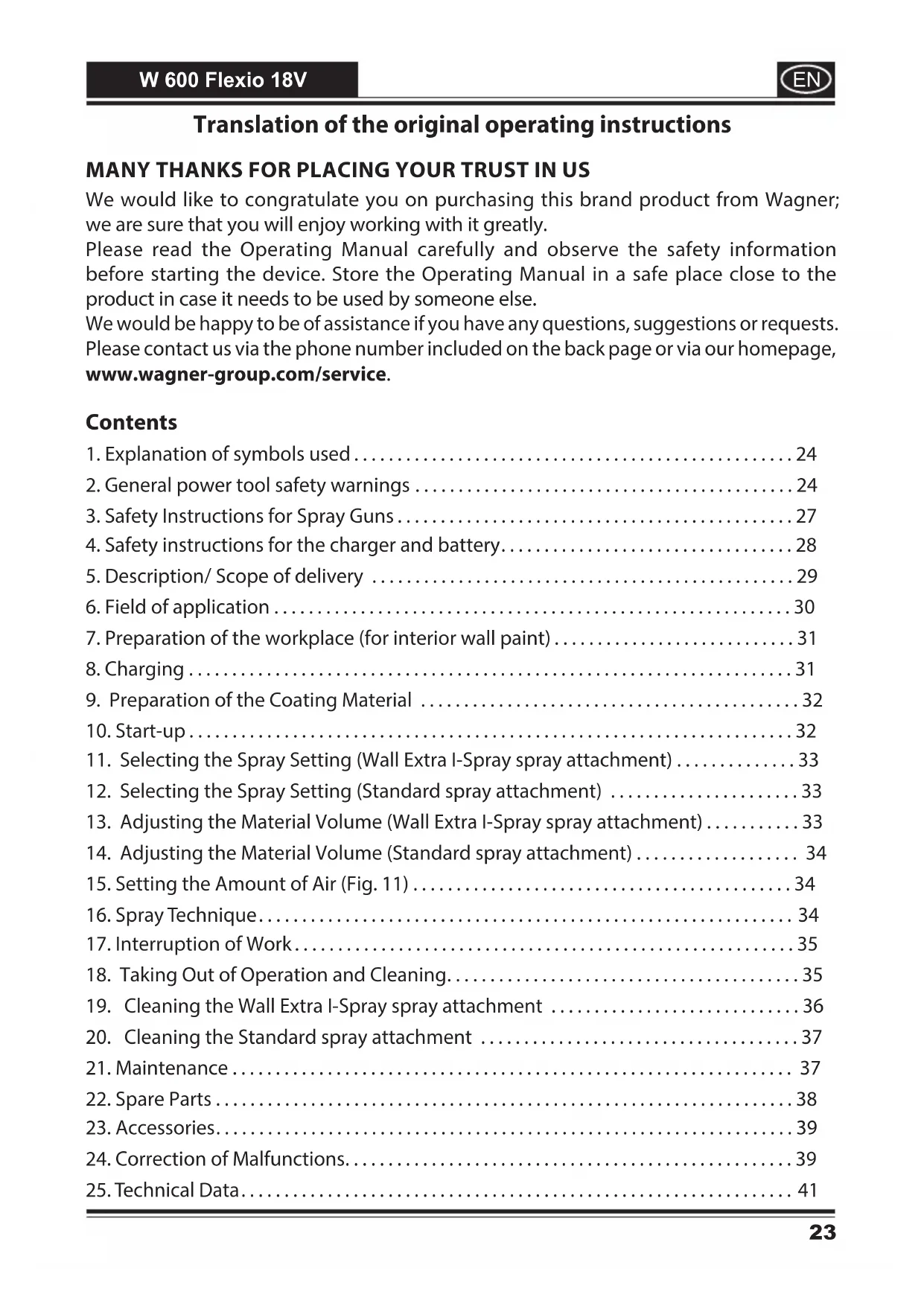

Contents

1. Explanation of symbols used....24
2. General power tool safety warnings .... 24
3. Safety Instructions for Spray Guns....27
4. Safety instructions for the charger and battery....28
5. Description/ Scope of delivery ..... 29
6. Field of application 30
7. Preparation of the workplace (for interior wall paint) 31
8. Charging 31
9. Preparation of the Coating Material 32
10. Start-up 32
11. Selecting the Spray Setting (Wall Extra I-Spray spray attachment) 33
12. Selecting the Spray Setting (Standard spray attachment) 33
13. Adjusting the Material Volume (Wall Extra I-Spray spray attachment) ..... 33
14. Adjusting the Material Volume (Standard spray attachment) 34
15. Setting the Amount of Air (Fig. 11)....34
16. Spray Technique.... 34
17. Interruption of Work....35
18. Taking Out of Operation and Cleaning....35
19. Cleaning the Wall Extra I-Spray spray attachment 36
20. Cleaning the Standard spray attachment 37
21. Maintenance 37
22. Spare Parts 38
23. Accessories....39
24. Correction of Malfunctions....39

25. Technical Data.... 41

26. Environmental protection.... 42

27. Important Note regarding Product Liability! 42

1. Explanation of symbols used

	This symbol indicates a potential danger for you or for the device. Under this symbol you can find important information on how to avoid injuries and damage to the device.
	Danger of electrical shock
	Indicates tips for use and other particularly useful information.
	Wear suitable eye protection while working.
	Wear a suitable mask while working.

2. General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications

provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

a) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

3. Safety Instructions for Spray Guns

- Caution! Wear breathing equipment: Paint mist and solvent vapors are damaging to health. Always wear breathing equipment and only work in well ventilated rooms or using supplementary ventilating equipment. It is advisable to wear working clothing, safety glasses, ear protection and gloves.

CAUTION: DANGER OF INJURY!

Never point the spray stream towards human beings or animals.

Sockets and plugs must be masked. Risk of an electric shock as a consequence of sprayed material entering the socket!

Attention! Never operate the device if the nozzle seal is either damaged or missing. If the nozzle seal is either missing or damaged liquids can enter the device and increase the risk of an electric shock. Check the nozzle seal before each use and tighten the union nut.

• Do not use the spray guns to spray flammable substances.
• The spray guns are not to be cleaned with flammable solvents.
• Caution against dangers that can arise from the sprayed substance and observe the text and information on the containers or the specifications given by the substance manufacturer.
• Do not spray any liquid of unknown hazard potential.
• The device may not be used in workplaces covered by the explosion-protection regulations.
• To avoid the hazard of explosion when spraying, provide for effective natural or artificial ventilation.
• There must be no sources of ignition such as, for example, open fires, smoke of lit cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the vicinity during spraying.
• When working with the W 600 indoors as well as outdoors ensure that no solvent vapors are sucked in by the spray gun.
• The spray gun is not a toy; children must therefore not be allowed to handle it or play with it.
• Remove the battery before carrying out any work on the spray gun.
• Cover areas that are not to be sprayed. When working keep in mind that wind, for example, may transport paint mist over great distances and cause damage.
• Never open the device yourself in order to carry out repairs in the electrical system!
• The units may only be used with a functional valve. If paints rise in the ventilating hose (Fig. 1, item 16) do not operate the unit further! Dismantle and clean the ventilating hose, valve and diaphragm and replace the diaphragm if necessary.
• Do not lay the spray gun.

With original WAGNER accessories and spare parts, you have the guarantee that all safety regulations are fulfilled.

4. Safety instructions for the charger and battery

Only use the tool with BOSCH POWER FOR ALL compatible PBA 18V batteries with at least 2.5 Ah and suitable chargers. The battery voltage must match the battery charging voltage of the charger. Do not charge non-rechargeable batteries. Otherwise there is a risk of fire and explosion.

• Keep the charger away from rain or moisture. Water penetrating into a power tool increases the risk of an electric shock.
• Keep the charger clean. There is a risk of electric shock due to contamination.
• Before every use, check the charger, cable and plug. Do not use the charger if it is damaged. Do not open the charger yourself and only have it repaired by qualified specialist personnel using original spare parts. Damaged chargers, cables and plugs increase the risk of electric shock.
• Do not operate the charger on easily combustible surfaces (e.g. paper, textiles, etc.) or in combustible environments. There is a risk of fire due to the heating of the charger during charging.
• The battery is delivered partially charged. To ensure full battery performance, fully charge the battery in the charger before first use.
• Only use the battery in the manufacturer's products. This is the only way to protect the battery from dangerous overloading.
• Keep batteries out of the reach of children.
• Do not open the battery. There is a risk of a short circuit.
• Vapours may also escape if the battery is damaged or used improperly. Take in fresh air and consult a doctor if you have any symptoms. The vapours may irritate the respiratory tract.
• If the battery is defective, liquid may leak out and wet adjacent objects. Check affected parts. Clean them or replace them if necessary.
• The battery can be damaged by sharp objects such as nails or screwdrivers or by external force. An internal short circuit may occur and the battery may burn, smoke, explode or overheat.
• Never service damaged batteries. All maintenance of batteries should only be carried out by the manufacturer or authorised service centres.
• Protect the battery from heat, e.g. also from permanent sunlight, fire, dirt, water and moisture. There is a risk of explosion and short circuit.
• Operate and store the battery only at an ambient temperature between -20^ and +50^ . Do not leave the battery in the car in summer, for example. At temperatures < 0^ , performance may be restricted depending on the unit.
• Charge the battery only at ambient temperatures between 0^ and +35^ . Charging outside the temperature range can damage the battery or increase the risk of fire.

5. Description/ Scope of delivery

Description/ Scope of delivery (Fig. 1)
1) Nozzle 2) Air cap (to set the working direction)
3) Union nut 4) Spray jet width adjustment
5) Wall Extra I-Spray spray attachment 6) Material volume adjustment
7) Air volume control 8) Battery indicator
9) Air filter cover 10) ON/OFF switch (located on both sides)
11) Trigger 12) Rechargeable battery*
13) Battery lock* 14) Container

Description/ Scope of delivery (Fig. 1)

15) Valve 16) Ventilating hose
17) Stirring rod 18) Feed hopper (2 pcs.)
19) Practice poster 20) Standard spray attachment
21) Charger* 22) Replacement nozzle seal (Standard spray attachment)**
23) Lubricating grease**

* Not included with all models.
** This is inside the container: remove it before starting operations!

6. Field of application

Many different coating substances can be processed with the W 600.

Depending on the coating material, a different spray attachment and power level must be used:

Coating Materials Suitable for Use Spray attachment Level
Low-viscoiding substances:Water- and solvent-based paints, finishes, primers, 2-component paints, clear finishes, automotive finishes, staining sealers and wood sealer-preservatives. All coating materials with the red Perfect Spray logo
Interior wall paint (dispersions and latex paint)All coating materials with the green Perfect Spray logo	Wall Extra I-Spray

Coating Materials Not Suitable for Use

Materials that contain highly abrasive components, plaster, facade paint, caustic solutions and acidic coating substances. Flammable materials.

7. Preparation of the workplace (for interior wall paint)

Sockets and plugs must be masked. Risk of an electric shock as a consequence of sprayed material entering the socket! Mask all the areas and objects that are not to be spray painted, or remove them from the work area. No liability is assumed for damage due to overspray. Silicate paint corrodes glass and ceramic surfaces upon contact! All such surfaces must therefore be completely covered.

Pay attention to the quality of the adhesive tape used. Do not use excessively strong adhesive tape on wallpaper and painted surfaces, in order to avoid damaging these surfaces when removing the tape. Remove adhesive tape slowly and evenly; do not use jerky movements. Do not leave adhesive tape on surfaces any longer than necessary, in order to minimise the possibility of residues when removing. Also observe the adhesive tape manufacturer's instructions.

8. Charging

Before connecting to the mains, make sure that the mains voltage corresponds to the specification on the charger's rating plate.

1. Plug the mains plug of the charger into the socket (the battery charging indicator (9) lights up constantly).

2. Insert the battery into the charger, the battery charging indicator (9) starts flashing.

9

If the battery charge indicator lights up constantly when the battery is inserted, the battery is either fully charged or overheated and must first cool down.

1. Once the battery is fully charged, remove the battery from the charger.
2. Unplug the mains plug of the charger from the socket.

Battery indicator

Green = Sufficient battery charge

Orange = Only minor work still possible

Flashing = Battery must be charged orange

Diagram showing a battery connected to two medical device parts with a labeled component '8'

9. Preparation of the Coating Material

- Mix the material well in the original container. When using interior wall paint, an agitator is recommended.

W 600 has been developed for use with all conventional paints in their undiluted form. If the surface is smooth and the paint you are using is very thick and gel-like, dilute it by 10%. Dilution can be necessary if the atomisation is coarse or if the flow rate is too low even at the maximum setting.

Detailed information about the various materials and the maximum permitted dilution can be found on the manufacturers' technical data sheets (e.g. available on the Internet).

Spray material that is at least at room temperature provides a better spray result.

10. Start-up

• Unscrew the container from the spray gun.
• Aligning suction tube. (Fig. 2)

If the suction tube is positioned correctly, the container contents can be sprayed without almost any residue.

When working on lying objects: Turn the suction tube forwards. (Fig. 2 A)

Spraying work when working on overhead objects: Turn the suction tube rearwards. (Fig. 2 B)

• Place the container on a paper base and pour in the prepared coating substance with the aid of the feed hopper included in the scope of supply (Fig. 1, 17). Screw the container tightly onto the spray gun.

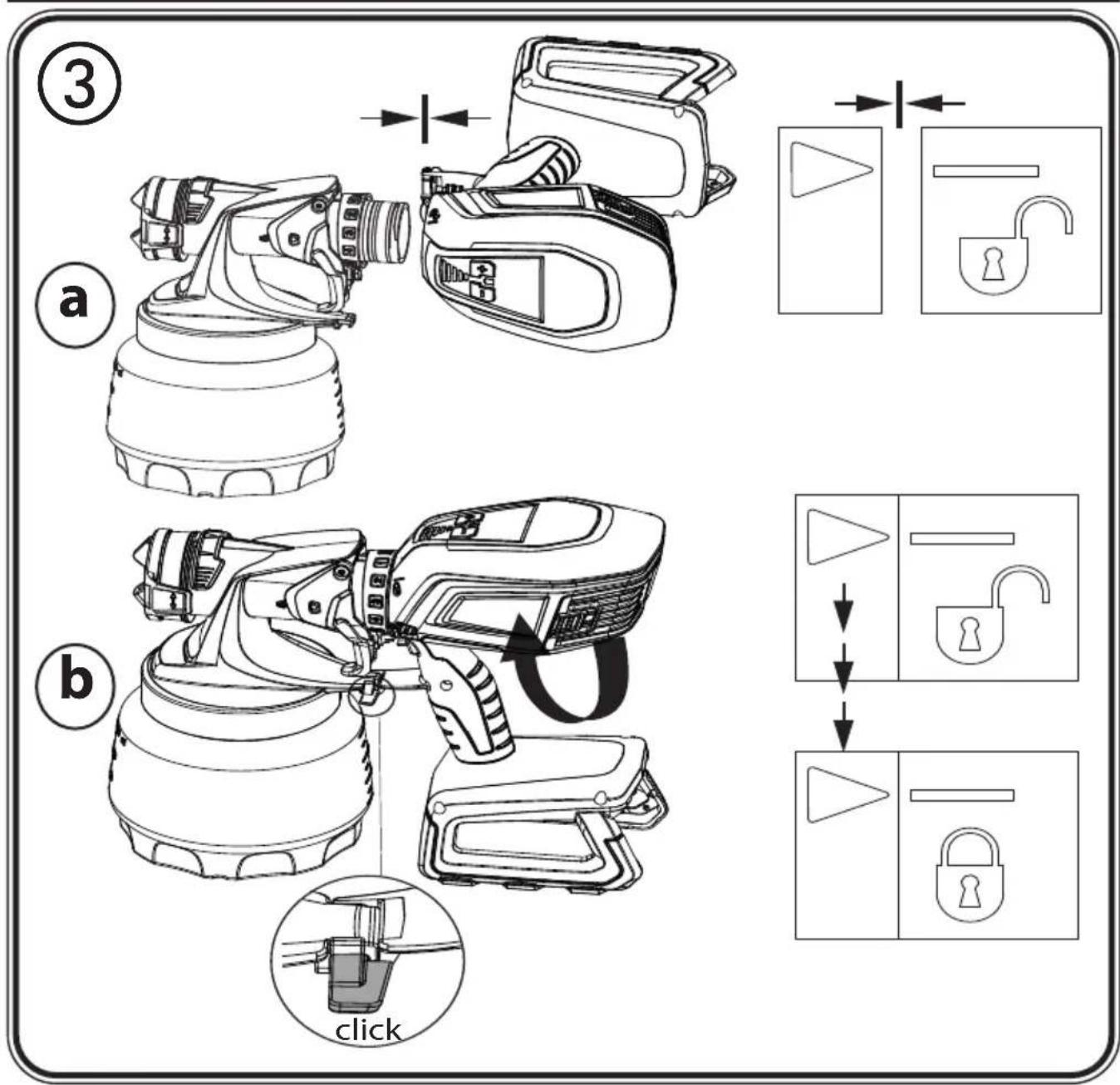

• Connect the front part with the rear part of the gun (Fig. 3).
• Insert battery.

Check that the battery is securely and firmly inserted. A battery that becomes detached during operation can cause damage to property or personal injury.

• Switch the unit on (Pos. I) using the ON/OFF switch (fig. 4, 1).
• Adjust the spray setting on the spray gun.

The enclosed practice poster is ideal for familiarising yourself with operation of the spray gun. After trying out the first spray coatings, it makes sense to test it further on cardboard or a similar surface in order to find out the right flow rate of paint and air for the best spray pattern. Detailed information about these settings can be found in chapter 11-15.

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

11. Selecting the Spray Setting (Wall Extra I-Spray spray attachment)

Technical illustration of a mechanical device and its corresponding screen (no text or symbols)

WARNING! Danger of injury! Never pull the trigger guard while adjusting the air cap.

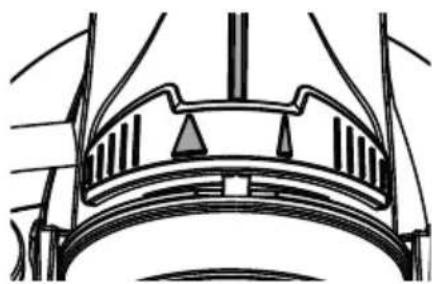

2 different spray jet shapes can be set by turning the air cap (fig. 5, 1)

Tighten the union nut (Fig. 5, 2) fully so that no paint is able to penetrate the device. Check regularly whether the union nut has worked loose during operation.

Fig. 6 A = vertical flat jet → for horizontal surfaces

Fig. 6 B = horizontal flat jet → for vertical surfaces

Use the red adjustment lever to also switch between a wide (and a narrow () spray jet.

Technical line drawing of a mechanical component or bracket (no text or symbols)

12. Selecting the Spray Setting (Standard spray attachment)

Simple line drawing of a spray gun and a fence with six vertical bars (no text or symbols)

WARNING! Danger of injury! Never pull the trigger guard while adjusting the air cap.

With the union nut (fig. 7, 1) slightly unscrewed, turn the air cap (2) to the desired spraysetting position (arrow). Then tighten the union nut.

Fig. 8 A = vertical flat jet → for horizontal surfaces

Fig. 8 B = horizontal flat jet → for vertical surfaces

Fig. 8 C = circular jet → for corners, edges and hard-to-reach surfaces

13. Adjusting the Material Volume (Wall Extra I-Spray spray attachment)

Technical line drawing of a mechanical device and its corresponding 3D view with a window (no text or symbols)

The volume of material can be set by turning the material volume control (Fig. 9, 1) in steps from 1 (minimum) to 12 (maximum).

14. Adjusting the Material Volume (Standard spray attachment)

Illustration of a spray gun and a row of black bars (no text or symbols)

Set the material volume by turning the regulator on the trigger guard of the spray gun. (Fig. 10)

lower material volume → turn anti-clockwise (-)

higher material volume → turn clockwise (+)

15. Setting the Amount of Air (Fig. 11)

Depending on the viscosity of the material to be sprayed and the finish of the object to be coated, it may be advisable to vary the amount of air. Very low viscosity materials, such as watery glazes do not have to be atomised with the maximum amount of air. In this case it is advisable to reduce the amount of air and thus minimize the spray vapour.

This also applies for the use of the Detail and Corner&Reach spray attachment (accessory).

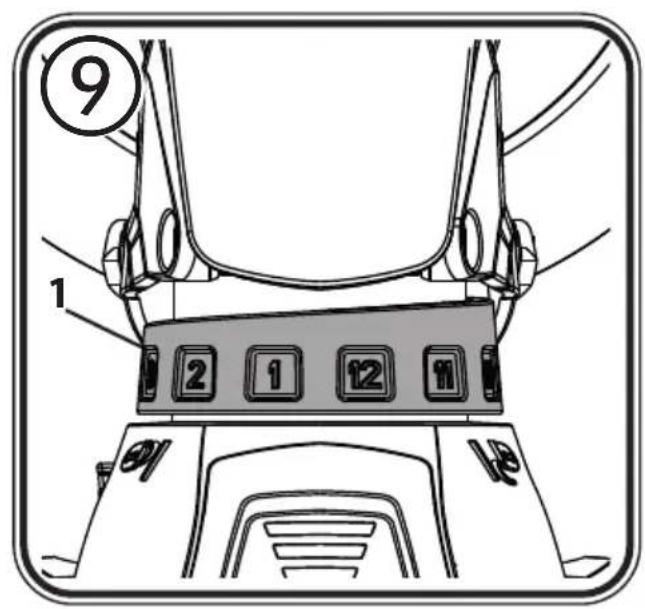

Increase the air volume by pressing the + button (Fig. 11, 1) and reduce it by pressing the - button (Fig. 11, 2).

thin paint

Level 1 to Level 3

think paint (e.g. interior wavepoint) Level 5

16. Spray Technique

The spray result depends heavily on the smoothness and cleanliness of the surface to be sprayed. Therefore the surface should be carefully prepared and kept free of dust.

• Cover all surfaces not to be sprayed.
• Cover screw threads or similar parts of the target object.

Important: Start at the edge of the area to be sprayed. Start the spray movement first of all, and then press the trigger. Avoid interruptions within the area to be sprayed.

- The spray movement should come from the arm, not just from the wrist. This ensures that a uniform distance is maintained between the spray gun and the spray surface during the spray operation. Select a distance of 5 - 15 cm, depending on the desired spray jet width. When you are using interior wall paint, the distance should be about 20-30 cm (approx. one stirring rod in length).

Fig. 12 A/ 12 B: CORRECT Even distance to the object.

Fig. 12 C: INCORRECT An uneven distance will result in uneven paint application.

• Move the spray gun evenly cross-wise or up-and-down, depending on the spray pattern setting.
• An even movement of the spray gun results in an even surface quality.

Important: Wipe off the nozzle and air cap regularly to make sure they do not get blocked.

Hand holding a mechanical component, no visible text or symbols

"Cross spray" when using paint with a poor covering capacity or if the surface is highly absorbent (Fig. 13).

- Interior wall paint in strong colour shades should be applied at least twice (allow first paint coat to dry first). This will ensure good coverage.

For larger projects, it is useful to have a charged spare battery ready to continue working without interruption.

17. Interruption of Work

• Turn the machine off.
• Put the machine down only on a level, clean surface. Otherwise the machine could tip over!
• During longer breaks, vent the container by briefly opening and then closing it again.
• Clean nozzle openings after an interruption in operation.
• When processing 2-component varnishes, clean the device immediately.

18. Taking Out of Operation and Cleaning

Proper cleaning is the prerequisite for problem-free operation of the paint application device. No warranty claims are accepted in case of improper or no cleaning.

Never hold the spray gun rear part under water or immerse it into liquids. Clean the housing only with a moistened cloth.

1) Turn the machine off. Vent the container in case of longer breaks and after the work

has been terminated. This can be done by briefly turning open and then closing the container or by pulling the trigger guard and letting the paint into the original paint container.

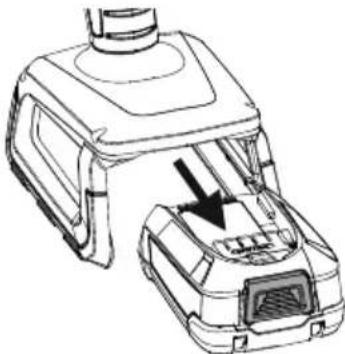

2) Press the battery lock (13) and remove the battery when you have finished your work.

3) Divide the spray gun. Press the hook (Fig. 3 b "click") slightly downwards. Turn the gun front part and gun rear part against each other and take them apart.

Technical line drawing of a mechanical device with a black arrow indicating a component (no text or symbols present)

4) Unscrew the container. Empty any remaining coating material back into the material tin.
5) Preclean the container and feed tube with a brush. Clean the ventilating bore (Fig. 14, 1).

19. Cleaning the Wall Extra I-Spray spray attachment

Illustration of a mechanical device next to an open door with a window (no text or symbols)

CAUTION! Never clean seals, diaphragm and nozzle or air holes of the spray gun with metal objects. The ventilation hose and diaphragm are only solvent-resistant to a limited extent. Do not immerse in solvent, only wipe.

1) The unit may only be operated with an integer diaphragm (Fig. 15, 3). If any paint has penetrated to the ventilation hose, check and clean the membrane (see the Maintenance chapter).
3) Move the air cap (Fig. 16, 1) to the vertical position for easier removal and lift it off.
4) Unscrew the union nut (fig. 16, 2). Clean the air cap (1) and nozzle (3) with a brush and solvent or water.

Attention! Never remove the red nozzle seal from the nozzle. If the nozzle seal is either missing or damaged liquids can enter the device and increase the risk of an electric shock.

5) Clean the outside of the spray gun and container with a cloth soaked in solvent or water.
6) Assemble the parts again (see "Assembly").

Assembly

Attention! Never operate the device if the nozzle seal is either damaged or missing. If the nozzle seal is either missing or damaged liquids can enter the device and increase the risk of an electric shock.

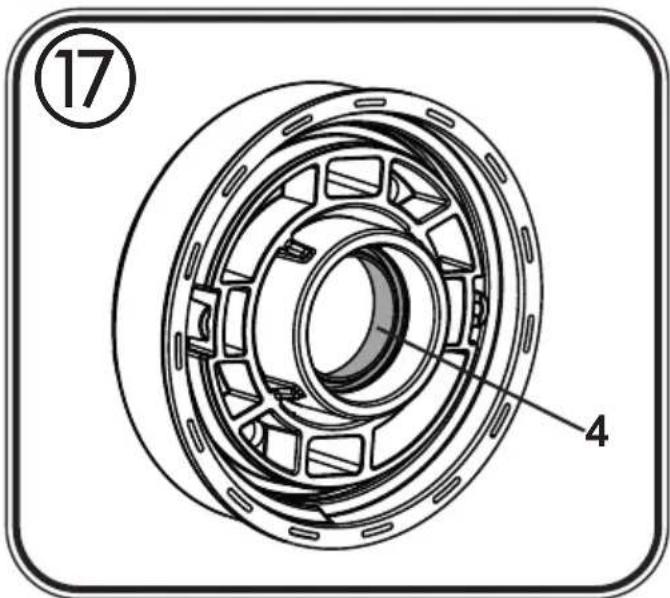

1) Check the nozzle seal (fig. 17, 4) in the nozzle.
2) Screw the union nut (Fig. 18, 2) onto the gun and tighten it.

Tighten the union nut (Fig. 18, 2) fully so that no paint is able to penetrate the device.

3) Engage the air cap (Fig. 19, 1) with the union nut. Check if the air cap has properly locked into place on both sides. (Fig. 19, 2)
4) Place the container seal from below on the suction tube and slide it over the collar, while turning the container seal slightly.
5) Insert the suction tube with container seal in the gun body.

In order to mount the gun more easily apply lubricating grease (enclosed) liberally to the O-ring at the gun front part. (Fig. 23, 3)

20. Cleaning the Standard spray attachment

CAUTION! Never clean seals, diaphragm and nozzle or air holes of the spray gun with metal objects. The ventilation hose and diaphragm are only solvent-resistant to a limited extent. Do not immerse in solvent, only wipe.

6) The unit may only be operated with an integer diaphragm (Fig. 15, 3). If any paint has penetrated to the ventilation hose, check and clean the membrane (see the Maintenance chapter).
7) Unscrew the union nut and remove the air cap and nozzle. (Fig. 20) Clean the air cap, nozzle seal and nozzle with a brush and solvent or water.
8) Clean the outside of the spray gun and container with a cloth soaked in solvent or water.
9) Assemble the parts again (see "Assembly").

Assembly

Attention! Never operate the device if the nozzle seal is either damaged or missing. If the nozzle seal is either missing or damaged liquids can enter the device and increase the risk of an electric shock.

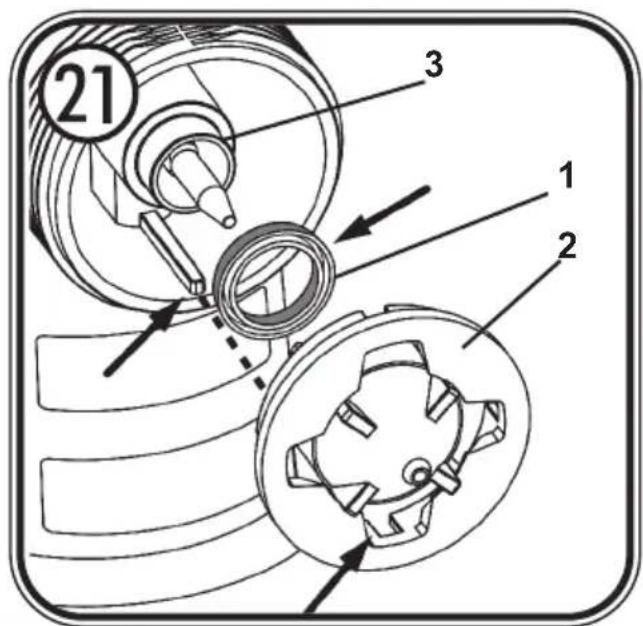

1) Push the nozzle seal (fig. 21, 1) over the needle (3); the groove (slot) should point towards you.
2) Put the nozzle (fig. 21, 2) onto the gun body and find the correct position by turning it.
3) Put the air cap onto the nozzle and tighten it using the union nut.
4) Place the container seal from below on the suction tube and slide it over the collar, while turning the container seal slightly.
5) Insert the suction tube with container seal in the gun body.

In order to mount the gun more easily apply lubricating grease (enclosed) liberally to the O-ring at the gun front part. (Fig. 24, 5)

21. Maintenance

Air filter

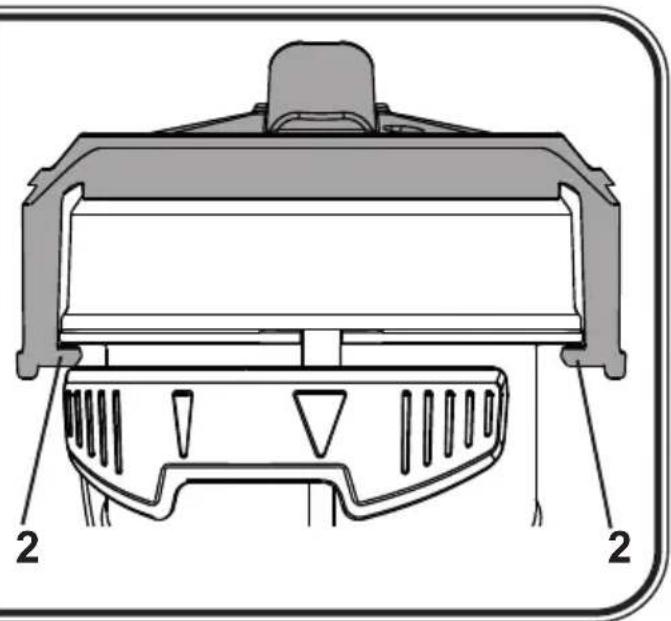

WARNING! Never operate the machine without the air filter; dirt could be sucked in and interfere with the function of the machine. Check the air filter after each use for contaminants. Disconnect plug before changing parts.

1) Press both locks (Fig. 22, 1) and remove the filter cover.
2) Remove the air filter (2) and replace depending on contamination.
3) Insert the new air filter into the holders (3).
4) Click the filter cover in place again.

Ventilating hose / Valve

1) Pull the ventilating hose (Fig. 15, 1) at the top from the gun body. Screw off the valve cover (2). Remove the diaphragm (3). Carefully clean all parts or replace in the event of damage.
2) Place the diaphragm (Fig. 15, 3) with the pin facing upwards on the bottom section of the valve. Also see the marking on the gun body.
3) Place on the valve cover (Fig. 15, 2) and screw it closed.
4) Place the ventilating hose (Fig. 15, 1) on the valve cover and on the nipple at the gun body.

22. Spare Parts

Spare Parts List Wall Extra I-Spray spray attachment (Fig. 23)
Pos.	Designation Order No.
	Wall Extra I-Spray spray attachment complete with 1300 ml container	2361 746
1 Air cap 2382 753
2 Union nut and nozzle 2382 751
3 O-ring of spray attachment 2362 875
4 Ventilating hose, valve cover, diaphragm 2382 754
5 Suction tube 2389 021
6 Container seal 2389 023
7 Container with cover 1300 ml (only for Wall Extra I-Spray spray attachment)		2305 155

Spare Parts List Standard spray attachment (Fig. 24)
Pos.	Designation Order No.
	Standard spray attachment complete with 800 ml container 2361 730
1	Union nut 2362 873
2	Air cap 2362 877
3	Nozzle	2362 878
4	Nozzle seal	0417 706
5	O-ring of spray attachment	2362 875
6	Ventilating hose, valve cover, diaphragm	2304 027
7	Suction tube (no marking or R)*	2362 876
	Suction tube (marking AR or AU)*	2367 410
8	Container seal (no marking or R)*	2323 039
	Container seal (marking AR or AU)*	2370 527
9	Container with cover 800 ml	0413 909

* Before placing the order, please check the bottom of the inside of your spray attachment to see if there is a marking there. Do this by unscrewing the container and removing the container seal.

Technical line drawing of a mechanical component with no visible text or symbols

Spare Parts List W 600 (Fig. 25)
Pos.	Designation Order No.
1 Air filter 2430342
2 Air filter cover 2430341
3 Stirring rod 2304 419
4 Rechargeable battery (Li-Ion, PBA 18 V, 2.5 Ah) 2432719
5 Charger EU (AL 1810 CV)		2432723
		Charger UK (AL 1810 CV)
	Lubricating grease (no fig.) 2315 539

23. Accessories

The CLICK&PAINT SYSTEM with additional spray attachments and accessories offers the right tool for each work.

Further information about the WAGNER range of products for renovating is available under www.wagner-group.com

24. Correction of Malfunctions

Problem	Cause	Remedy
No coating material emerges from the nozzle	Device not switched on (trigger cannot be pulled)Battery flat, faulty or incompatibleNozzle cloggedFeed tube cloggedMaterial quantity too smallFeed tube looseNo pressure build-up in containerVentilating bore (Fig. 14, 1) clogged	Press the ON/OFF switch on the side of the deviceCharge or replaceCleanCleanIncrease the quantity of materialInsertTighten containerClean
Coating material drips from the nozzle	Nozzle looseNozzle wornNozzle seal is missing or wornCoating material assembly at air cap, nozzle or needle	TightenChangeChangeClean
Atomisation too coarse	Coating material too thickMaterial volume too largeNozzle cloggedAir cap assembled incorrectlyAir filter heavily soiledToo little pressure build-up in containerAmount of air too low	DiluteReduce the material volumeCleanSnap air cap properly into place (fig. 19, 2)ChangeTighten containerIncrease air quantity
Spray jet pulsates	Coating material in container running outAir filter heavily soiledNozzle seal is missing or worn	RefillChangeChange
Coating material causes "paint tears"	Too much coating material applied.	Reduce the material volume
Too much fog of coating material (Overspray)	Distance to the object too largeToo much coating material appliedAmount of air too high	Reduce distanceReduce the material volumeDecrease air quantity
Paint in the ventilating hose	Diaphragm soiledDiaphragm defective	Clean the diaphragmReplace the diaphragm
Poor covering capacity on the wall	Spray material is too coldHighly absorbent surface or paint with poor covering capacityDistance too large	The material you are spraying should be at room temperatureCross spray (Fig. 13)Closer to the object

25. Technical Data

Technical Data
Max. viscosity (Interior wall paint/Wall Extra I-Spray spray attachment):	4000 mPas
Rechargeable battery (PBA 18 V, 2.5 Ah): Li-Ion,	18 V , 2.5 Ah---
Atomizing output: 200 W
Max. flow rate (Interior wall paint/Wall Extra I-Spray spray attachment):	500 ml/min
Charger (AL 1810 CV):
Input voltage	220-240 V~ , 50-60 Hz;
Output voltage	14.4-18 V
Charging current	1000 mA
Protection Class (charger):	□/II
Charging time: approx. 120 min (80%), 154 min (100%)
Size of project:
Varnishes	approx. 30 m fence
Paint	approx. 9 doors
Wall paint	approx. 26 m^2 wall
Sound pressure level*: 76 dB (A); Uncertainty K = 4 dB
Sound pressure output*: 87 dB (A); Uncertainty K = 4 dB
Oscillation level*: < 2.5 m/s^2 ; Uncertainty K = 1.5 m/s^2
Weight:
Rechargeable battery	0.37 kg
Total	1.7 kg

* Measured in accordance with EN 62841-1

Information about the oscillation level

The specified oscillation level has been measured according to a standard test procedure and can be used to compare against electric tools.

The oscillation level is also for determining an initial assessment of the vibrational strain.

Attention! The vibration emission value can differ from the specified value when the electric tool is actually in use, depending on how the electric tool is being used. It is necessary to specify safety measures to protect the operating personnel. These measures are based on an estimated shutdown during the actual conditions of use (all parts of the operating cycle are taken into consideration here, for example periods when the electric tool is switched off, and, when it is switched on but running without any load).

26. Environmental protection

At the end of its service life, the appliance, including accessories and packaging, must be recycled in an environmentally friendly manner. Separate packaging materials by type and put them in the recyclables collection. Old appliances and rechargeable batteries/batteries must not be disposed of with household waste. Help protect the environment by taking the appliance and the battery to a local disposal point, contact our customer service team or make enquiries at a specialist shop.

27. Important Note regarding Product Liability!

According to an EU directive, the manufacturer is only liable without limitation for faults in the product if all parts come from the manufacturer or have been approved by the manufacturer and have been mounted to the device and are operated properly. If third-party accessories or spare parts are used, the manufacturer is exonerated wholly or partly from his/her liability if use of the third-party accessories or spare parts have caused a defect in the product.

3 + 1 year guarantee on this WAGNER DIY product

In addition to the statutory warranty for this product, J. Wagner GmbH, based in 88677 Markdorf, Germany, grants you a guarantee (device guarantee) of 36 months for this product. This guarantee is extended by a further 12 months if the product is registered within 28 days of purchase on the Internet at https://go.wagner-group.com/3plus1.

The guarantee includes the free repair of defects which are demonstrably caused by the use of unsuitable materials in the product's manufacture or by assembly errors, as well as the free replacement of faulty components provided there are no guarantee exclusions.

The statutory material defect rights to which you as the purchaser are entitled for the intended purpose from the time of handover of the purchased item are not restricted by the guarantee. The guarantee, along with your statutory warranty rights, will expire if the device has been opened by persons other than authorised WAGNER service personnel. The detailed guarantee conditions can be obtained on request from our authorised WAGNER partners (see website or operating instructions) or in text form on our website:

https://go.wagner-group.com/hf-warranty-conditions

QR code image containing encoded data, no visible human-readable text

- Modifications reserved -

EU Declaration of conformity

We declare under sole responsibility that this product conforms to the following relevant stipulations:

2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU, 2012/19/EU

Applied harmonised norms:

EN 62841-1, EN 50580, EN 62133-2,

EN 60335-1, EN 60335-2,

EN 55014-1, EN 55014, EN 61000-3-2, EN 61000-3-3

The EU declaration of conformity is enclosed with the product.

If required, it can be re-ordered using order number 2424598.

UKCA Declaration of conformity

We declare under sole responsibility that this product conforms to the following relevant regulations:

Supply of Machinery (Safety) Regulations 2008

Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012

Applied harmonised standards

BS EN 62841-1, BS EN 50580, BS EN 62133-2, BS EN 60335-1, BS EN 60335-2-29,

BS EN 55014-1, BS EN 55014-2, BS EN IEC 61000-3-2, BS EN 61000-3-3

Warning (charger only)

If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

Warning:

Do not connect the blue or brown wire to the earth terminal of the plug! The wires in this mains lead are coloured in accordance with the following code:

Fit a BS 1363A approved plug Blue to be connected to N (neutral) Make sure that the outer sheath of the cable is held firmly by the clamp N L Fit the recommended fuse Brown to be connected to L (live) Never use a light socket

blue = neutral brown = live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• Should the moulded plug have to be replaced, never re-use the defective plug or attempt to plug it into a different 13 A socket. This could result in an electric shock.
• Should it be necessary to exchange the fuse in the plug only use fuses approved by ASTA in accordance with BS 1362. 5 Amp fuses may be used.
• To ensure that the fuse and fuse carrier are correctly mounted please observe the provided markings or colour coding in the plug.
• After changing the fuse, always make sure that the fuse carrier is correctly inserted. Without the fuse carrier, it is not permissible to use the plug.
• The correct fuses and fuse carriers are available from your local electrical supplies stockist.

Diagram showing a battery connected to two labeled components with an arrow pointing to component 8

Line drawing of a car interior with a valve and handle (no text or symbols)

Technical illustration of a mechanical device and its corresponding screen (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Illustration of a spray gun and a row of black rectangular objects (no text or symbols)

Illustration of a telescope and its screen (no text or symbols)

Illustration of a spray gun and a row of black vertical bars (no text or symbols)

Illustration of a hand cleaning a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

Illustration of a surveying instrument and its open window (no text or symbols)

Technical line drawing of a mechanical component with labeled part B253AR (no other text or symbols)

https://go.wagner-group.com/hf-warranty-conditions

QR code image containing encoded data, no visible human-readable text

Line drawing of a car interior with a valve and handle, showing no text or symbols

Illustration of a mechanical device and its corresponding screen (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand cleaning a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

Technical line drawing of a mechanical component with labeled part B253AR (no other text or symbols)

https://go.wagner-group.com/hf-warranty-conditions

QR code image containing encoded data, no visible human-readable text

GB Inspiration of a very special kind

Are you on the look-out for your next project? Then take a look at our project finder. Here, you'll find practical guides on renovation, decoration and DIY. Make your home unique. Make it beautiful!

Black-and-white photo of a woman sitting on a wooden deck with potted plants and a glass coffee table, no visible text or symbols.

Interior scene of a person sitting in a chair near a window with a potted plant and bookshelf (no visible text or symbols)

Person pushing a wheelbarrow beside a wooden fence in a garden setting (no visible text or symbols)

Interior scene of a child playing with a wooden play structure in a room, surrounded by furniture and wall art (no visible text or symbols)

D Mehr Inspiration? wagner-group.com/projects
GB More inspiration? wagner-group.com/projects

Black-and-white photo of a woman operating a lawn mower on a wooden deck, surrounded by garden and trees (no visible text or symbols)

D

J. WAGNER GMBH

41-605 Swietochlowice

T+48/32/346 37 00

F +48/32/346 37 13

SCH

ORKLA HOUSE CARE AB

Box 133

564 23 Bankeryd

Sweden

T [phone]

ROM

ROMIB S.R.L.
