USER MANUAL Fresh Express Plus DJ756G MOULINEX

Gruyère X X X X Chocolat X X X Pain sec / biscottes

Coarse Grating cone (red)

Fine Grating cone (orange)

Coarse grinding cone (yellow) (depending on model) F Storage accessory

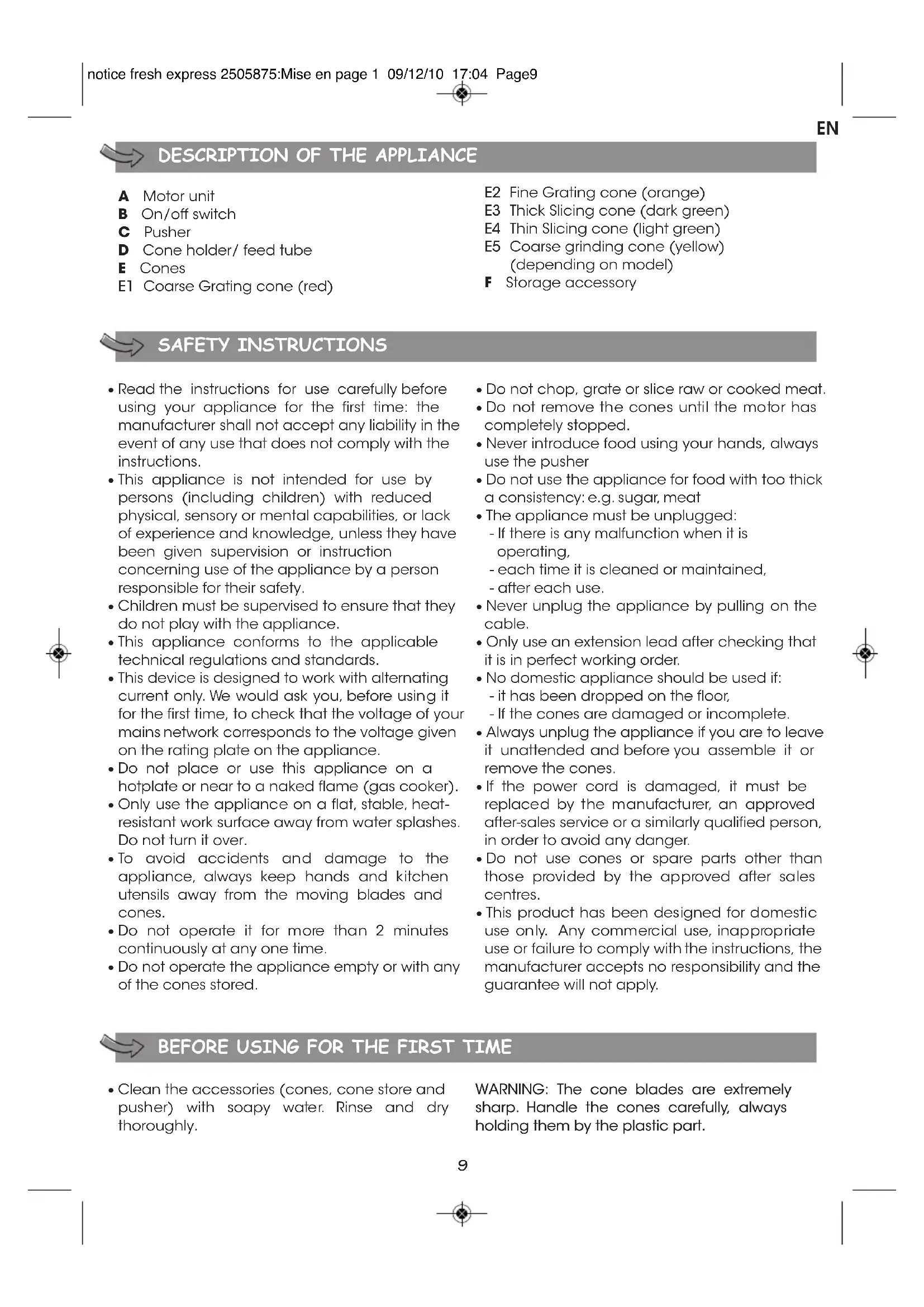

• Read the instructions for use carefully before using your appliance for the first time: the manufacturer shall not accept any liability in the event of any use that does not comply with the instructions.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children must be supervised to ensure that they do not play with the appliance.

• This appliance conforms to the applicable technical regulations and standards.

• This device is designed to work with alternating current only. We would ask you, before using it for the first time, to check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance.

• Do not place or use this appliance on a hotplate or near to a naked flame (gas cooker).

• Only use the appliance on a flat, stable, heat- resistant work surface away from water splashes. Do not turn it over.

• To avoid accidents and damage to the appliance, always keep hands and kitchen utensils away from the moving blades and cones.

• Do not operate it for more than 2 minutes continuously at any one time.

• Do not operate the appliance empty or with any of the cones stored.

• Do not chop, grate or slice raw or cooked meat.

• Do not remove the cones until the motor has completely stopped.

• Never introduce food using your hands, always use the pusher

• Do not use the appliance for food with too thick a consistency: e.g. sugar, meat

• The appliance must be unplugged: - If there is any malfunction when it is operating, - each time it is cleaned or maintained, - after each use.

• Never unplug the appliance by pulling on the cable.

• Only use an extension lead after checking that it is in perfect working order.

• No domestic appliance should be used if: - it has been dropped on the floor, - If the cones are damaged or incomplete.

• Always unplug the appliance if you are to leave it unattended and before you assemble it or remove the cones.

• If the power cord is damaged, it must be replaced by the manufacturer, an approved after-sales service or a similarly qualified person, in order to avoid any danger.

• Do not use cones or spare parts other than those provided by the approved after sales centres.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Clean the accessories (cones, cone store and pusher) with soapy water. Rinse and dry thoroughly.

WARNING: The cone blades are extremely

sharp. Handle the cones carefully, always holding them by the plastic part.

notice fresh express 2505875:Mise en page 1 09/12/10 17:04 Page910 USE Tips for good results: The ingredients you use must be firm to get satisfactory results and avoid accumulation of food in the holder. Do not use the appliance to grate or slice food that is too hard such as sugar or pieces of meat. Cut the food to make it easier to feed through the feeder tube. For best preparation results please use the yellow drum only for nuts, chocolate and parmesan cheese. Do not use the yellow drum to prepare potatos. For preparing potato pancakes (Kartoffelrösti, traditional German recipe) please use the orange drum.

WARNING: Before running the appliance, always make sure that the cone is perfectly positioned

on the motor drive unit (Figs.3 & 4). Your product is fitted with an On/Off button (B). To run the appliance continuously, hold this button down. F.A.Q. :

• Choose the cone which corresponds to the desired use.

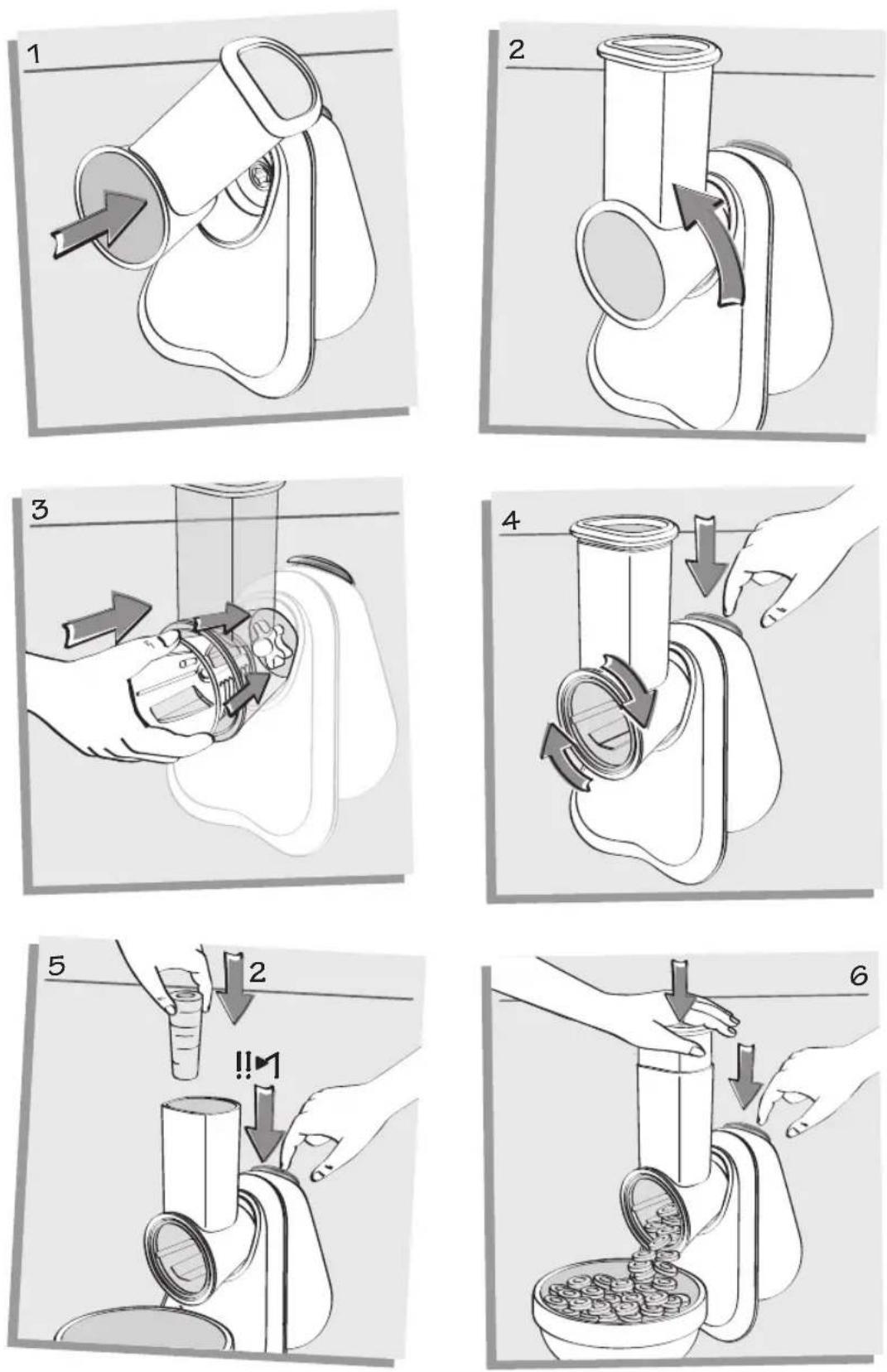

• Fit the cone holder (D) on the motor unit (A) (Fig.1) by giving it a quarter turn to the left (Fig.2)

• Place the chosen cone into the opening at the front of the holder (D) . The cone should be correctly positioned all the way into the drive (Fig.3)

• Plug in the appliance.

• Press the On/Off button (B) once or twice to lock the cone (Fig.4)

• Insert the food through the feed tube (D) and push the food down using the pusher (C) (Fig.6)

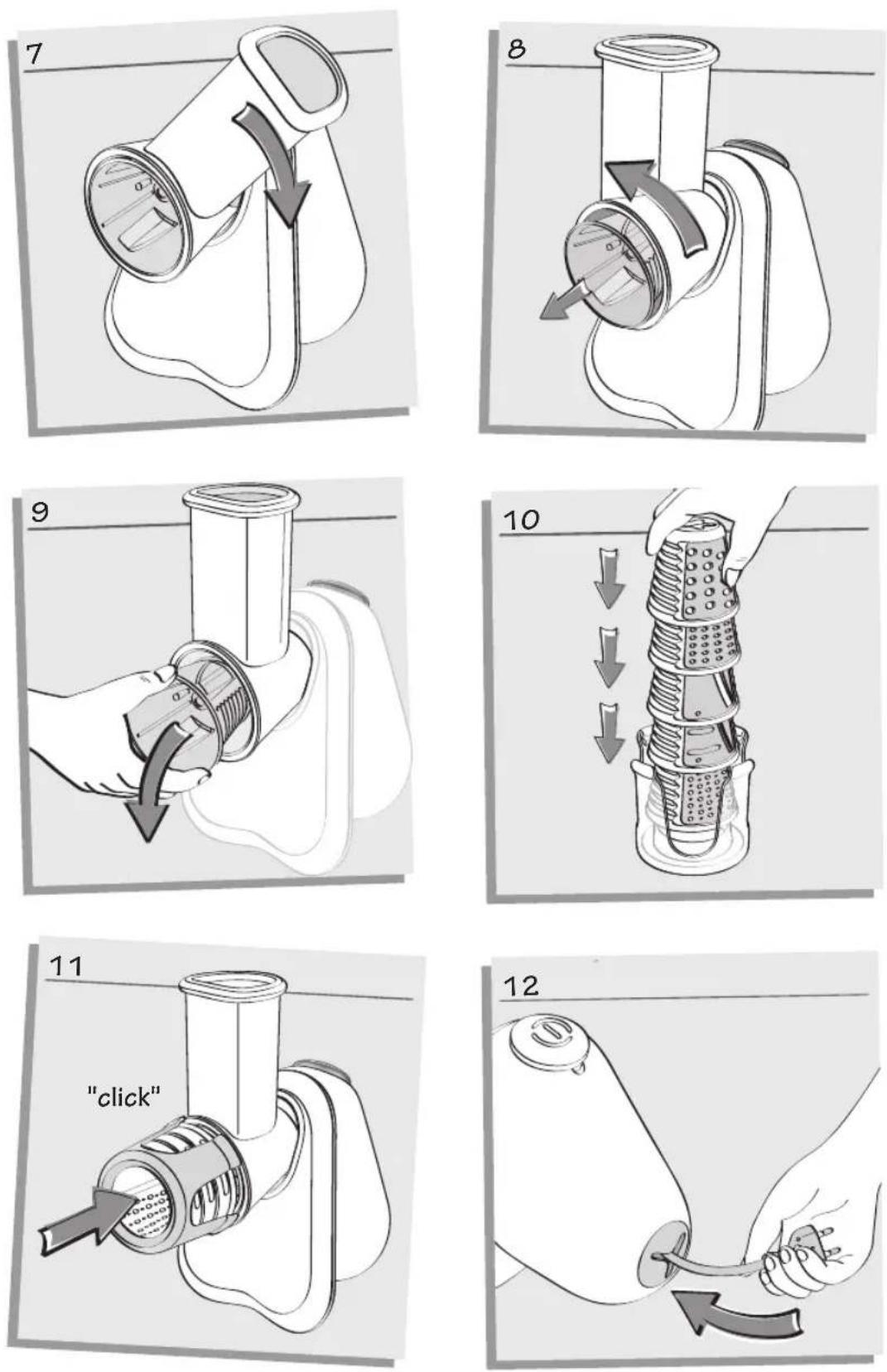

• To change the cone, turn the holder (D)

quarter turn to the right (Fig.7) , then return it to the upright position (Fig.8) . Remove the cone (Fig.9)

• "The Cone is not properly held in place inthe holder, I can't hear the clip lock".• "I can't remove the accessory after use".• “The cone holder is fairly hard to fit andremove, is this normal?"Simply ensure that the cone is slotted all the way onto the drive (Fig.3). Press the on/off button first before inserting food into the feedtube to ensure the cone is correctly locked into place (Fig.4) To remove the cone after use, unlock (Fig.7)the holder then relockthe holder (Fig.8)and the cone will fall out by itself (Fig.9) Yes when the appliance is new. With use it will become easier toinstall and remove.

Warning: Press the On/Off button first before

inserting food into the feeder (Fig.5). Use the cone recommended for each type of food: Course Grating cone

(red) Fine Grating cone E2 (orange) Thick Slicing cone E3 (dark green) Thin Slicing cone E4 (light green) Course Grinding cone E5 (yellow) Carrots X X X X Courgettes X X X X Potatoes X X X X Cucumber X X X X Pepper X X X Onions X X Beets X X Cabbage (white/red) X X Apples X X Parmesan cheese

Gruyère X X X X Chocolate X X X Dry bread/biscuits

Dark green cone THICK SLICING (E3) Gratin dauphinois (serves 4) 800 g potatoes, 250 ml milk, 200 ml single cream, 1 clove of garlic, 2 egg yolks, 100 g gruyère cheese, salt and pepper.Slice the potatoes using the ThickSlicing cone (E3) . Put the slices in adish which has been buttered andrubbed with the clove of garlic. In a large bowl, mix the egg yolks, milk,and ream. Pour this mixture over the potatoes.Season and sprinkle with gruyèregrated using the Coarse Grating cone (E1) . Bake at 200°C (¯ 1h). Light green cone THIN SLICING (E4) Greek salad (serves 4) 1 cucumber, 2 large tomatoes, 1 red pepper, 1 green pepper, 1 medium white onion, 200 g feta cheese,50 g black olives (optional),4 tablespoons olive oil, 1 lemon, 30 g fresh herbs (choose one:basil, parsley, mint, coriander)Slice the cucumber into thin slicesusing the Thin Slicing cone (E4)

Cut the peppers into 2, remove theseeds and white parts. Slice the onionand the peppers.Cut the tomatoes and feta cheese intosmall cubes. Mix all the ingredients in alarge bowl, and add the olives. Preparethe dressing by mixing the oil with thelemon juice. Mix gently and sprinklethe salad with chopped fresh herbs. Red cone COURSE GRATING (E1) Summer Gratin (serves 6) 6 small courgettes, 2 potatoes, 1 onion, 1 cup cooked rice, 1 egg, 1 glass milk (about 150 ml), 150 g gruyere cheese,butter. Grate the courgettes and the potatoesusing the Course Grating cone (E1)

Slice the onion with the Thick Slicingcone (E3) . Brown all the vegetables inbutter. In an ovenproof dish, placealternating layers of vegetables,cooked rice, vegetables, cooked riceetc. Add the milk beaten together withthe egg, salt and pepper.Sprinkle with grated cheese and a fewknobs of butter. Place in the oven at180°C (20 min). Orange cone FINE GRATING (E2) Coleslaw (serves 4) ¼ white cabbage, 2 carrots, 3 tablespoons mayonnaise,3 tablespoons cream, 2 tablespoons wine vinegar,2 tablespoons caster sugar. Slice the white cabbage using theThick Slicing cone (E3) and grate thecarrots using the Fine Grating cone (E2) . Mix them in a bowl. Prepare thedressing by mixing the mayonnaise,cream, oil, vinegar and sugar.Season the grated vegetables with thesauce, stir and leave to stand for 1hour in the refrigerator. Yellow cone COURSE GRATING (E5) Apple gratin with almonds (serves 4) 6 apples, 60 g brown sugar, 50 g butter, 50 g whole almonds, 200 ml cream, 1 teaspoon groundcinnamon.Peel, seed and cut the apples intoquarters. Slice using the Thin Slicingcone (E4) and brown with 30 g ofbutter. Lightly butter an oven dish andarrange the caramelised apples at thebottom. Grind the almonds to apowder using the Course cone (E5) . In a bowl, mix the ground almonds,cream and cinnamon. Pour themixture over the apples and sprinklewith brown sugar. Bake the dish at160°C (45 min). notice fresh express 2505875:Mise en page 1 09/12/10 17:04 Page1112

CLEANING THE APPLIANCE

• Always unplug the appliance before cleaning the motor unit (A)

• Do not immerse the motor unit, do not run it under water. Wipe the motor unit down with a damp cloth. Dry it carefully.

• The store (D) , the cones (E1, E2, E3, E4, E5) and the storage accessory (F) can go in the dishwasher basket at the top using the “ECO” or “LIGHT SOIL” programme.

• Handle the cones with care because their blades are extremely sharp.

• Should the plastic parts become stained with foodstuffs such as carrots, rub them with a cloth dipped in a little cooking oil and then clean as usual.

• All of the cones (E1, E2, E3, E4, E5*) can be stored on the appliance. Stack the five cones (Fig.10) and position them in the opening at the front of the holder (D) (Fig.11) . The storage accessory (F) clips over the opening at the front of the holder (D) (Fig.11)

• Storing the power cord: push the cord into the cavity provided for this purpose (CORD STORAGE) (Fig.12)

Your appliance is designed to operate for many years. However, the day you plan to replace it, do not throw it away with normal household rubbish or in a landfill but take it to a suitable collection point. Environment protection first! Your appliance contains a lot of recoverable or recyclable material. Leave it at a local civic waste collection point so that it can be recycled. If you have any problems or queries please call our Helpline

Gruyère X X X X Chocolate X X X Pan seco/ biscottes

Queijo Gruyère X X X X Chocolate X X X Pão seco/tostas
