Product type	Food processor
Brand	Moulinex
Model	QA506GB1
Power	1000 W
Power supply	220-240 V, 50/60 Hz
Bowl capacity	4.5 L
Speeds	1 to 10
Main functions	Dough hook, whisk, chopper, grater, slicer, blender
Dimensions (L x W x H)	40 x 30 x 30 cm
Weight	5.5 kg
Included accessories	Bowl, lid, dough hook, whisk, chopper, grating and slicing discs
Care and cleaning	Removable parts dishwasher safe
Bowl material	Shock-resistant tempered glass
Safety	Safety lock, overload protection, non-slip base
Repairability	Repairability score 8.3/10, spare parts available
Warranty	2 years
Country of manufacture	France

Frequently Asked Questions - QA506GB1 MOULINEX

How to assemble the Moulinex QA506GB1 food processor?

Place the bowl on the base and turn it clockwise. Attach the accessory (dough hook, whisk, or chopper) onto the central shaft. Lower the arm and engage the safety lock.

What is the maximum bowl capacity?

The bowl has a capacity of 4.5 liters, ideal for preparing up to 1.5 kg of dough or 2 L of liquid preparation.

Can I wash the accessories in the dishwasher?

Yes, all accessories (bowl, lid, dough hook, whisk, chopper, discs) are dishwasher safe. Dry them thoroughly before storing.

My food processor does not start, what should I do?

Check that the bowl and lid are correctly locked. Make sure the speed button is on '0' and the appliance is plugged in. If the problem persists, contact customer service.

What types of dough can I prepare with the dough hook?

The dough hook is suitable for leavened dough (brioche, bread), shortcrust pastry, shortbread, and pizza dough. Avoid very hard dough or large quantities.

How to use the grating disc?

Insert the support disc into the bowl, place the grating disc (coarse or fine grater) and engage the lid. Feed the robot through the chute with vegetables, push with the pusher.

The food processor makes noise or vibrates, is that normal?

A slight noise and vibration are normal when operating at high speed. Make sure the appliance is on a stable surface and the load does not exceed the maximum capacity.

Where can I find spare parts?

Spare parts (bowl, accessories, lid) are available on the Moulinex website or from authorized retailers. Use the reference QA506GB1 to order.

Can I use the food processor to blend hot liquids?

No, the food processor is not suitable for hot liquids. Allow preparations to cool below 60°C before blending. For soups, use the blender separately.

How to clean the motor base?

Clean the motor base with a damp cloth, do not immerse. Avoid abrasive products. Dry well before storing.

USER MANUAL QA506GB1 MOULINEX

Line drawing of a modern kitchen mixer with control panel and side-mounted dish (no text or symbols)

A

B

CDL

E

Line drawing of a mechanical component with a circular opening and side port (no text or symbols)

F

G

H

N

Illustration of a kitchen mixer with a rotating handle and handle, no text or symbols present

Illustration of a kitchen manual presser with a downward arrow indicating compression or lifting (no text or symbols present)

Illustration of a hand using a manual mixer to press meat into a bowl, no text or symbols present

Line drawing of a modern blender with a mug beside it, no text or symbols present

ACCESSOIRES DISPONIBLES

Warning : Please read the “safety guidelines” booklet and instructions carefully before initial use.

BEFORE FIRST USE

• Before using for the first time, wash all accessory parts in soapy water (except for the attachment (E): see § Cleaning) Rinse and dry.

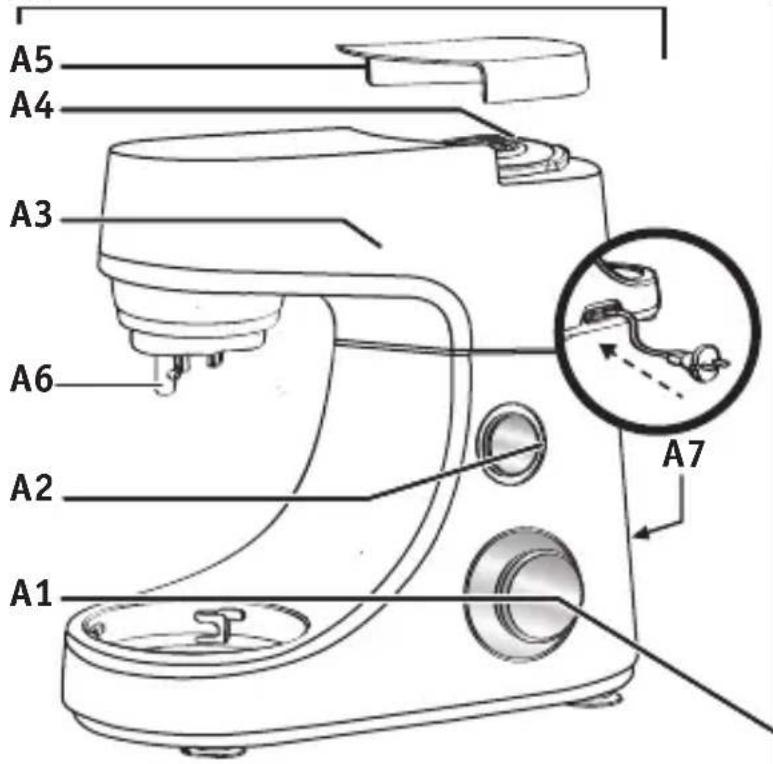

• Place the appliance on a flat, clean and dry surface. Make sure that the selector button (A1) is in «0» position and plug in your appliance.
• You have several options for starting your appliance: (see diagram A1):

- Intermittent operation (pulse):

Turn the selector button (A1) to the «pulse» position. Using a succession of pulses can give you better control when preparing certain foods.

- Continuous operation:

Turn the selector button (A1) to the desired position from «1 to 6/max» or «1 to 8» (depending on model), depending on the food you are preparing. You can change it as required during preparation.
- To stop the appliance, turn the button (A1) to «0».

Important: The appliance will start only if the cover (A5) and the head (A3) are locked. The appliance will stop immediately if you unlock the cover (A5) and/or the head (A3) during operation. Lock the cover and/or the head, turn the control button (A1) to the «0» position, and then start the appliance normally by selecting the desired speed.

1 - MIXING / KNEADING / BEATING / EMULSIFYING / WHISKING

You can prepare up to 1.8 kg light dough and heavy dough made with up to 500 g flour using the stainless bowl (B1) and its lid (B2) depending on the food.

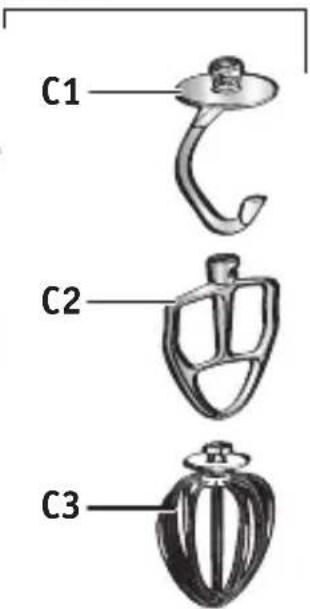

ACCESSORIES USED : Stainless steel bowl (B1), Lid (B2), Kneader (C1) or mixer (C2) or balloon whisk (C3).

1.1 - ASSEMBLING THE ACCESSORIES

Follow the diagrams from 1.1 to 1.4.

1.2 - USAGE, TIPS AND DISMANTLING

• Start by turning the selector button (A1) to the desired position according to the recipe.
• You can add food through the hole in the lid (B2) during preparation.
• To stop the appliance, turn the button (A1) to «0».

Tips :

KNEADING (Maximum time of use: 13 minutes)

- Use the kneader accessory (C1) at speed «1». You can knead up to 500 g of flour (e.g. white bread, grain bread, short crust pastry, etc.).

MIXING (Maximum time of use: 13 minutes).

• Use the mixer (C2) at speed «1 to 6/max» or «1 to 8» (depending on model).

• You can mix up to 1,8 kg of light dough (light cake mixture, sponge cake, biscuit or cookie dough).

• Never use the mixer (c2) to knead heavy dough and fresh pasta dough (lasagne, rigatoni, bigoli, etc.).

• BEATING / EMULSIFYING / WHISKING (Maximum time of use: 10 minutes).
• Use the balloon whisk (c3) at speed «1 to 6/max» or «1 to 8» (depending on model).
• You can prepare: mayonnaise, aioli, sauces, whisked egg whites (up to 10 egg whites), whipped cream (up to 500 ml), meringues etc.
• Never use the balloon whisk (C3) to knead heavy dough or mix light dough.

Dismantling the accessory: Wait for the appliance to come to a complete stop and proceed in the reverse order of the assembly. diagrams from 1.4 to 1.1.

2 - BLENDING / MIXING (DEPENDING ON MODEL)

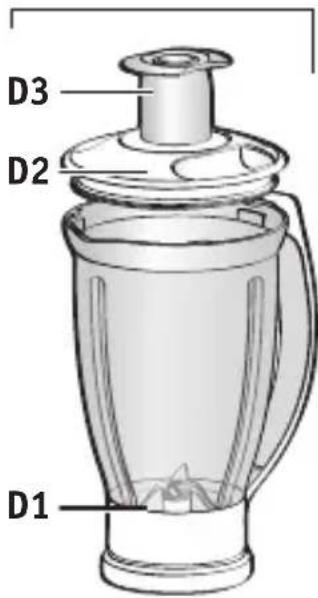

Depending on the nature of the food, you can use the blender (D) to prepare up to 1.5 L of thick mixtures and 1.25 L of liquid mixtures.

ACCESSORIES USED : Blender jug (D ou L).

2.1 - ASSEMBLING THE ACCESSORIES

Follow the diagrams from 2.1 to 2.3 and 10.

2.2 - USAGE, TIPS AND DISMANTLING (Maximum time of use: 3 minutes).

• Start by turning the selector button (A1) to the desired position (from speed «4 to 6/Max» or «7 to 8» (depending on model) or «pulse») according to the recipe. Use the «Pulse» position for better mixing control and for a better blending of your preparation.
• You can add food through the hole in the measuring cap (D2, L5) during preparation.

Tips :

- You can prepare :

• finely blended soups, cream soups, stewed fruit, milkshakes and cocktails.
• liquid batter (pancake, fritters, Yorkshire pudding, waffles, clafoutis and custard flans).

- If ingredients stick to the sides of the bowl when mixing, stop the appliance and wait until the blades have stopped completely. Remove the blender and push the food down onto the blades using a spatula, and put your blender back on the appliance to continue processing..

Dismantling the accessory : Wait for the appliance to come to a complete stop before removing the blender jug and proceed in the reverse order of the assembly, diagrams from 2.3 to 2.1 and 10.

3 - MINCING (DEPENDING ON MODEL)

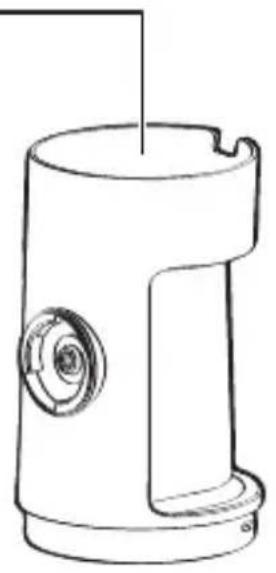

ACCESSORIES USED : Attachment holder (E), Assembled mincer head (F)

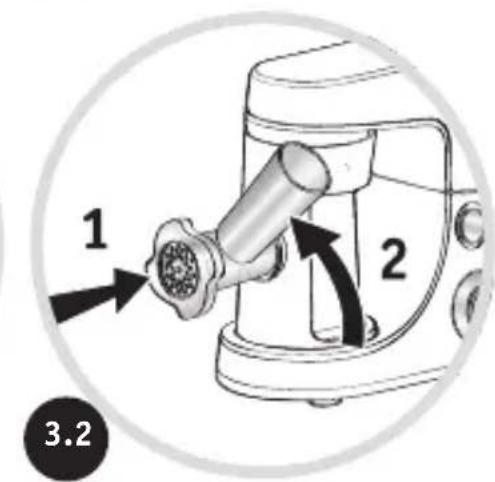

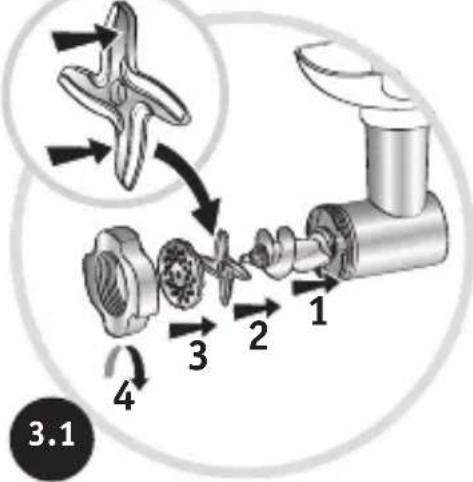

3.1 - FITTING THE MINCER ATTACHMENT

Follow the diagrams 9, 10, and then from 3.1 to 3.3.

3.2 - USAGE, TIPS AND DISMANTLING

• Run the appliance by turning the selector (A1) to speeds «3 to 4» or «5 to 7» (depending on model).
• Push the meat, piece by piece, down the feed tube, using the pusher (F7). Never push the ingredients down the feed tube with your fingers or any other utensil.
• You can chop up to 3 kg of meat, Maximum time of use: 10 minutes.

Tips :

• Prepare all of the foodstuffs to be minced (for meat, remove the bones, gristle and tendons and cut it into pieces of approximately 2 x 2 cm).
• Make sure that frozen meat is thoroughly thawed.

Dismantling the accessory : Wait for the appliance to come to a complete stop and proceed in the reverse order of the assembly diagrams 10, from 3.3 to 3.1 and then 9.

4 - GRATING / SLICING (DEPENDING ON MODEL)

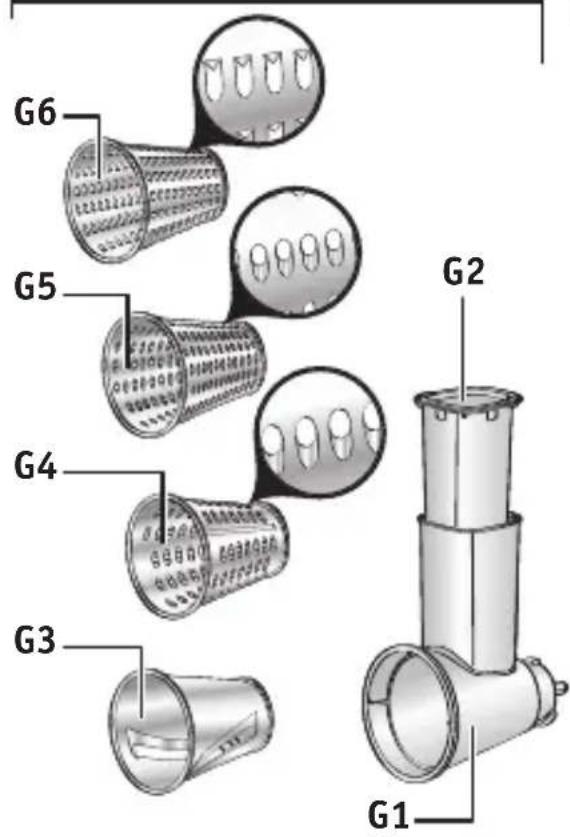

ACCESSORIES USED : Attachment holder (E), Assembled vegetable slicer (G), Drums (depending on model)

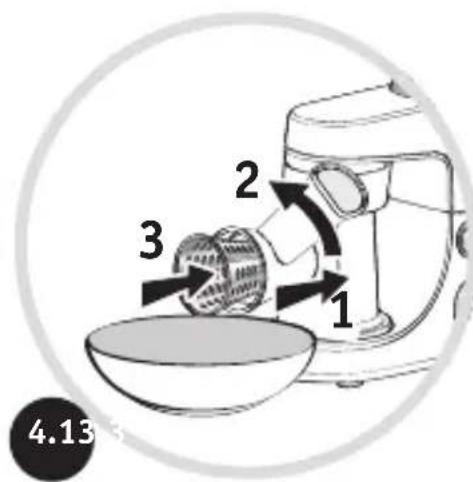

4.1 - ASSEMBLING THE ACCESSORIES

Follow the diagrams 10, 9 and then from 4.1 to 4.2.

4.2 - USAGE, TIPS AND DISMANTLING

• Run the appliance by turning the selector (A1) to speed «3 or 5» (depending on model) to slice and to speed «4 or 7» (depending on model) to grate.
• Place the food in the feed tube on the body and press down with the pusher (G2).

Never push the ingredients with your fingers or any other utensil.

• You can prepare up to 2 kg of food, maximum time of use: 10 min.
• Use the drums to:
• Grate coarsely (G4) / grate finely (G5) : carrots, celery, potatoes, cheese, etc.
• Slice thickly (G3) : potatoes, carrots, cucumbers, apples, beetroot, etc.
• Potato shredder (G6): potatoes, parmesan, etc.

Dismantling the accessory : Wait for the appliance to come to a complete stop and proceed in the reverse order of the assembly, diagrams 10, 4.2, 4.1 and 9.

5 - EXTRACTING JUICE FROM FRUIT AND VEGETABLES (DEPENDING ON MODEL)

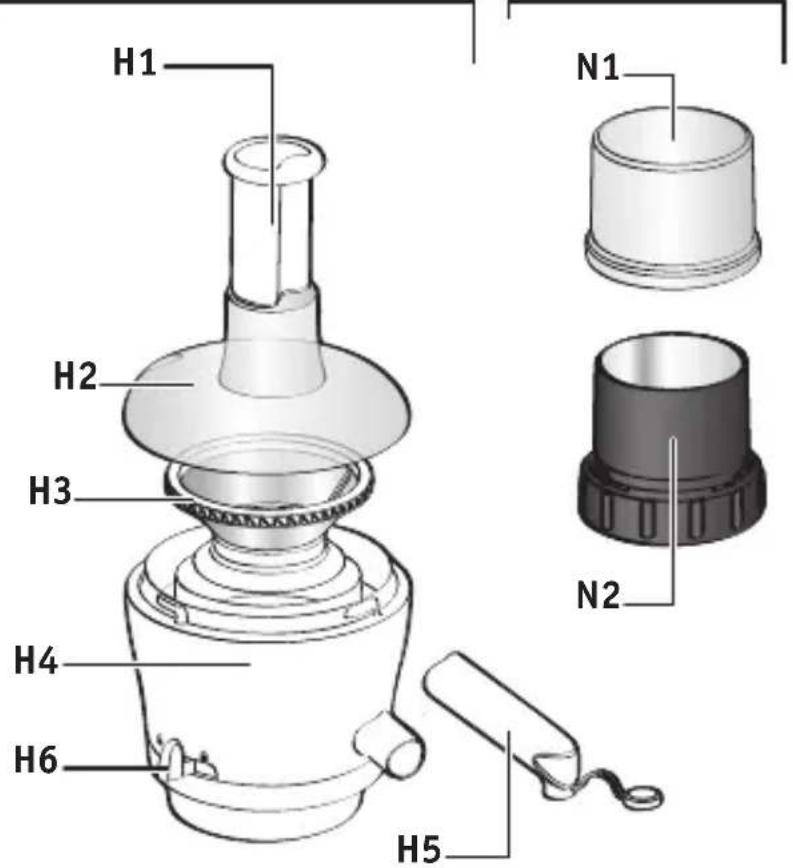

ACCESSORIES USED : Assembled juice extractor (H)

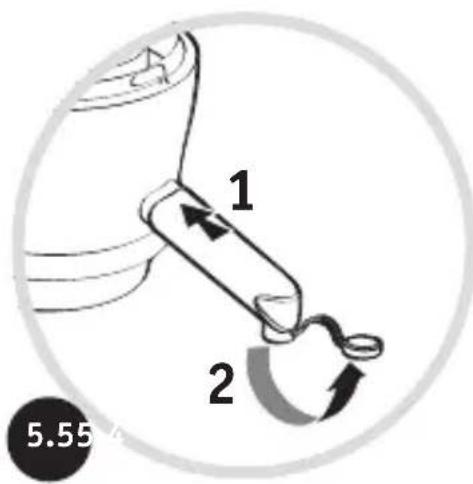

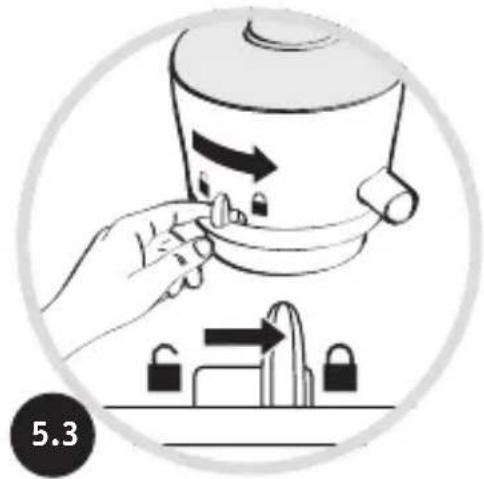

5.1 - ASSEMBLING THE JUICE EXTRACTOR

Follow the diagrams from 5.1 to 5.6.

5.2 - USAGE, TIPS AND DISMANTLING (maximum time of use: 10 minutes.)

• Cut the fruits and/or vegetables into pieces.
• Run the appliance by turning the selector (A1) to speed «3 or 5» (depending on model).
• Insert the ingredients down the feed tube in the lid (H2) push them slowly using the pusher (H1).
• Do not process 500 g of food more than 5 times continuously, without allowing your appliance to cool down completely
• Important : clean the filter (H3) and the juice collector (H4) after every 300g of ingrédients.

Tips :

• You can make juice from: carrots, tomatoes, apples, grapes, raspberries, etc. but it is not possible to extract juice from certain fruits and vegetables: bananas, avocado pears, blackberries, some varieties of apples, etc...
• Peel fruits with thick skins; remove stones and the core of pineapples.
• Drink the juices immediately after preparation.

Dismantling the accessory : Wait for the appliance and rotary filter to come to a complete stop before removing the accessory from the appliance. Proceed in the reverse order of the assembly, diagrams from 5.6 to 5.1.

6 - FINELY CHOPPING SMALL QUANTITIES (DEPENDING ON MODEL)

ACCESSORIES USED : Mini chopper lid (N1), Mini chopper bowl (N2)

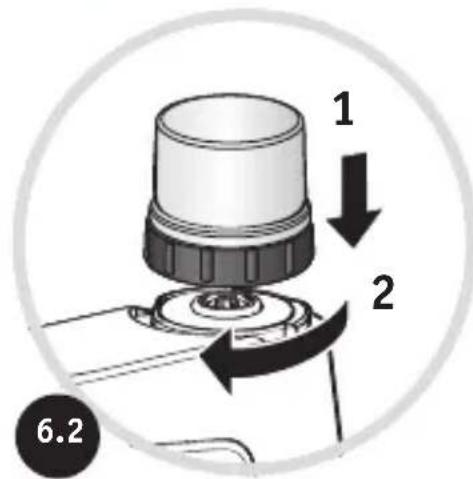

6.1 - ASSEMBLING THE ACCESSORIES

Follow the diagrams 10, 6.1 and 6.2.

6.2 - USAGE, TIPS AND DISMANTLING

- You can finely chop with the mini chopper :

- fresh herbs : 10g max. / 10secs max. / speed «4 or 7» (depending on model)

- dried fruits / Beef (boneless and trimmed meat) : 100g max. / 10secs max. / speed «1»

- vegetable puree : 150g max. / 20secs max. / «pulse» or speed «1»

- This grinder is not designed for hard products like coffee beans, hard spices nor liquids.

Dismantling the accessory : Wait for the appliance to come to a complete stop and proceed in the reverse order of the assembly, diagrams 10, 6.2 and 6.1.

7 - ADJUSTING THE CORD LENGTH (see A7)

8 - ROUGH CHOPPING SMALL QUANTITIES (DEPENDING ON MODEL)

ACCESSORIES USED : Assembled grinder.

- Chop in a few seconds by pulsing: dried figs, dried apricots, etc. Quantity / max time : 100g / 5s

CLEANING

• Unplug the appliance.
• Do not immerse the motor unit (A) or the attachment (E) in water or under running water. Wipe them with a dry or slightly damp cloth.
• Disassemble completely and rinse the accessories quickly after use.

Handle the blades with care to prevent injury. (diagram 10).

- Wash, rinse and dry the accessories: they are dishwasher-safe, except for all the metal components in the mincer head: body (F), the kneader (C1) and the mixer (C2).

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

please refer to the chapter «before first use».

Your appliance still does not work? Contact an authorised service centre (see the list in the service booklet).

AVAILABLE ACCESSORIES

See page 59 and visit the brand website.

Caution: this booklet contains instructions for additional accessories. Please keep safe for future reference. Please contact the Customer Service for further information on how to purchase accessories.
