AD811162 - Food Processor MOULINEX - Free user manual and instructions

Product type	Food processor (mini chopper / blender)
Brand	Moulinex
Model	AD811162
Power supply	220-240 V, AC
Bowl capacity	0.6 L (max liquid)
Power	Not specified (estimated 200-400 W)
Speed	Single (on/off by pulse)
Functions	Chop, knead, blend, emulsify
Accessories included	Bowl (B), lid (E), knife (D), drive shaft (C)
Bowl material	Plastic (indicative markings)
Knife material	Stainless steel (very sharp blades)
Safety	Double safety: bowl + lid locking, button must be held down
Cleaning	Bowl, lid and knife dishwasher safe (top basket, Eco program). Wipe motor unit with a damp cloth.
Maintenance	Do not immerse motor unit. Unplug before cleaning. Handle knife with care.
Use	Household use only
Warranty	Standard manufacturer warranty (excluding professional use)
Repairability	Power cord replaceable by manufacturer or approved service center
Dimensions (approx.)	20 x 20 x 25 cm (estimated)
Weight (approx.)	1.5 kg (estimated)

Frequently Asked Questions - AD811162 MOULINEX

How to assemble the food processor for first use?

Wash the bowl, lid and accessories with soapy water. Place the bowl on the motor unit by turning it to the left until it stops. Put the knife on the drive shaft and clip it, then place the assembly in the bowl. Finally, put the lid on by turning it to the left until it stops. The appliance will only work if the bowl and lid are correctly locked.

Why does my food processor not start?

Check that the bowl and lid are properly locked in place (turned fully to the left). The appliance has a double safety: without bowl or lid correctly positioned, it cannot operate. Also make sure to keep the on/off button pressed continuously.

What types of preparations can I make with this food processor?

You can chop (meat, onions, garlic, parsley, almonds, etc.), knead doughs (bread, pizza, cake), blend soups or baby food, and make recipes like hummus, bolognese sauce or pound cake. The operating time is short (10 to 30 seconds per step).

What is the maximum amount of food to put in the bowl?

For liquids, do not exceed the max level (0.6 L). For solids, follow the guidelines: for example, 200 g of meat or onions, 250 g of flour for dough. The bowl markings are indicative and account for the volume occupied by the knife.

How to easily clean the bowl after use?

Pour a glass of water and a few drops of dish soap into the bowl, then run the appliance for 5 to 10 seconds with the knife. Rinse under the tap. The bowl, lid and knife can also go in the dishwasher (top basket, Eco program).

Is the knife dangerous?

Yes, the blades are very sharp. Handle with care during use and cleaning. Do not leave it soaking in the sink. Wait for the knife to stop completely before opening the lid.

Can I leave the food processor plugged in all the time?

No, it is essential to unplug the appliance after each use, before cleaning or in case of malfunction. Never pull on the cord to unplug it. If the cable is damaged, have it replaced by the manufacturer or a professional.

What precautions to take for liquid preparations?

Do not exceed the max level indicated on the bowl. Use the pulse function to avoid overflowing. For soups, the maximum quantity is 0.6 L with a mixing time of 15 seconds.

Is the food processor suitable for kneading bread dough?

Yes, it can knead up to 250 g of flour for bread or pizza dough. The kneading time is about 10 seconds. Then remove the dough and let it rest for 1 hour before baking.

How to prevent food from sticking to the walls?

If pieces stick (meat, onions), stop the appliance, scrape them off with a spatula, distribute them in the bowl and do 2 to 3 additional pulses. Work in pulses for better control.

USER MANUAL AD811162 MOULINEX

Line drawing of a bottle with a pointed tip and internal structure (no text or symbols)

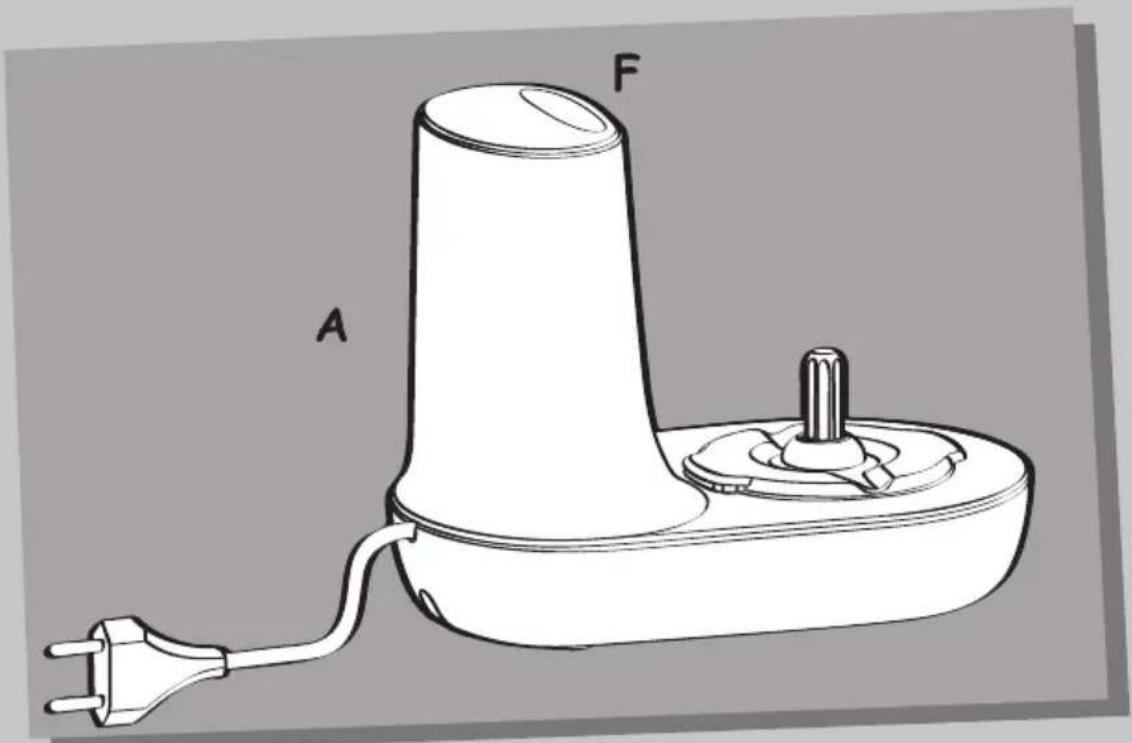

ABloc moteur

BBol

CEntraîneur

DCouteau

ECouvercle

• Before using your appliance for the first time, please read these instructions carefully: the manufacturer cannot be held responsible for any incorrect use or failure to follow the instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not operate the appliance when empty or when the accessories are stored inside the bowl.
• This appliance complies with the technical rules and standards in force.
• It is designed to operate solely with A.C. voltage. Before first use, check that the voltage on the rating plate of the appliance matches that of your electrical installation.
• Do not place or use this appliance on a hot hob or close to a flame (gas cooker).

• The appliance should only be used on a flat, stable, heat-resistant work top away from splashes of water. Do not turn it upside down.

• Do not remove the lid before the knife has completely stopped.
  • The appliance must be unplugged:

*if a problem occurs during operation,
* each time before cleaning or maintenance,
*after use.

• Do not unplug the appliance by pulling on the power cord.
• Only use an extension lead after checking that it is in perfect condition.
• A household appliance must not be used if:

*it has been dropped,
*the knife is damaged or incomplete.

• Always unplug the appliance from the mains if it is left unattended and before fitting / removing accessories or cleaning it.
• Wait until the tools have completely stopped before opening the lid.
• If the power cord is damaged, it must be replaced by the manufacturer, the After-sales service or a similarly qualified person in order to avoid any danger.

This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

BEFORE USING FOR THE FIRST TIME

- Wash the bowl (B), the lid (E) and the accessories (C, D) with soapy water. Rinse and dry.

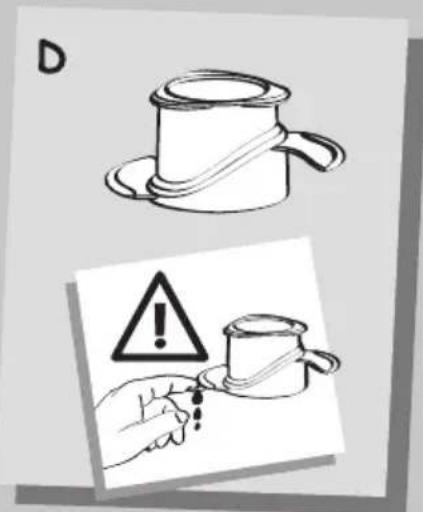

Caution: the blades are very sharp, handle the knife (D) with care when using or cleaning your appliance.

USE

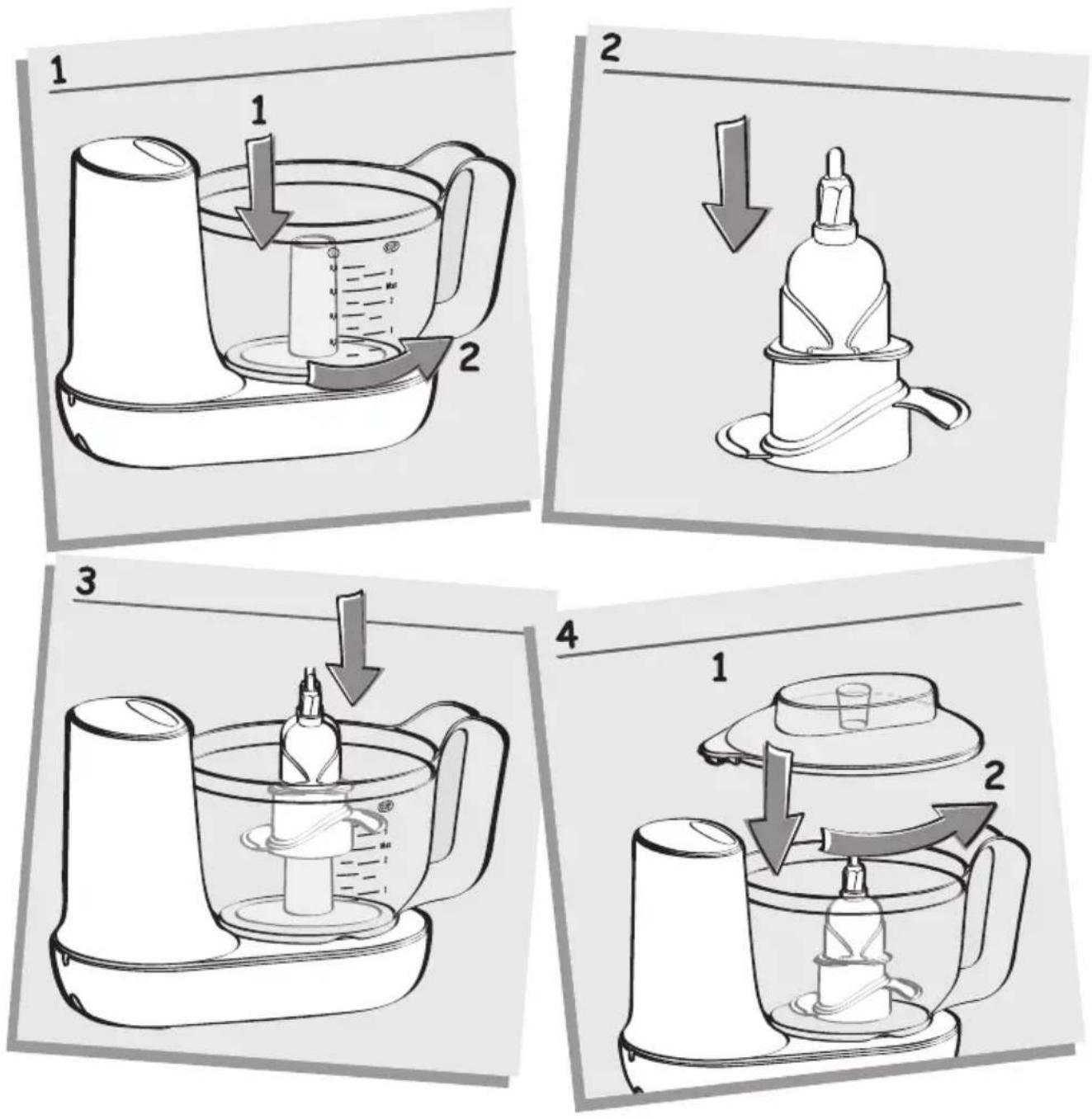

• Fitting the bowl (B) into position: Place the bowl (B) on the motor unit (A) then turn it to the left to lock it (anti-clockwise) until it reaches the stop (fig. 1).
• Place the knife (D) on the drive (C). The knife (D) must be properly positioned, until

it clicks onto the spindle (fig. 2). Put this unit in the bowl (fig. 3).

• Fitting the lid (G) into position:

Place the lid (G) on the bowl (B) then turn it to the left (anti-clockwise) up to the stop (fig. 4).

WARNING :

Your appliance is fitted with a double safety device: it cannot be started if the bowl or lid are not fitted. If the bowl or lid are not turned fully so that they clip into place, the appliance will not operate.

Your appliance has an ON/OFF button (F), for continuous operation, keep it pressed in.

For liquid preparations, do not fill above the maximum level marked on the bowl.

RECOMMENDATIONS FOR USE

FUNCTION MAX. QUANTITY	TIME
CHOPPING
•Parsley	30 g	10 s
•Onions, shallots	200 g	10 s
•Garlic	150 g	10 s
•Rusks	50 g	10 s
•Almonds	100 g	15 s
•Raw ham	200 g	10 s
•Meat	200 g	10 s
KNEADING
•Bread or pizza dough	250 g flour	10 s
•Chocolate cake	3 eggs	15 s
or sponge cake	120 g flour
BLENDING
•Soup	0.6 l	15 s

Recommendations to obtain good results:

Use pulse operation. If pieces of food remain stuck to the sides of the bowl (meat, onions...), push the ingredients back down into the bowl with a spatula and operate the appliance with

2 or 3 extra pulses.

The graduations of the bowl take account of a volume calculated with the knife fitted, and are only provided as a guide.

RECIPES

HUMMUS BI TAHINI

(mashed chickpeas with sesame seeds)

100 g of dry chick peas, 1 small teaspoon of salt, 5 cl of tahini, 5 cl of lemon juice, 5cl of cooking juices, 1 clove of garlic, 1 dash of olive oil, fresh parsley, paprika.

Leave the chickpeas to soak for 12 hours. Rinse them and put them in a casserole and cover with water. Bring them to the boil and simmer over a low heat for 1 hour and a half. Drain them and keep a little cooking liquid by aside. Peel Remove the skin from the chick peas.

In the bowl (B) with the knife (D) mounted on the drive (C), pour in the chick peas with other ingredients.

Mix until you obtain a smooth cream, around 20 seconds. Chop the parsley for decoration.

BREAD DOUGH

In the bowl (B) with the knife (D) mounted on the drive (C), pour add 250 g of white bread flour, 15 cl of warm water, 1 pinch of fine salt and 12 sachet of baking dried yeast powder. Operate the appliance for 10 seconds. Remove the dough ball from the bowl. Leave to settle rise for 1 hour and cook at 200°C for around about 45 minutes.

PIZZA DOUGH

In the bowl (B) with the knife (D) mounted on the drive (C). pour Add 150 g of white bread flour, 12 sachet of baking dried yeast powder, a pinch of salt, 9 cl of warm water and 2 tablespoons of olive oil. and then Then operate the appliance for 10 seconds.

Remove the dough ball from the bowl and leave

it to rise until the dough has doubled in volume (1 hour) for about 1 hour or until doubled in volume. Roll out the dough and garnish as required.

BOLOGNAISE SAUCE

In the bowl (B) with the knife (D) mounted on the drive (C). Place 1 onion, 1 sliced carrot, 1 clove of garlic and 1 stick of celery. Chop using pulsed operation pulse. Fry with a little fat in a little oil and leave to simmer for 10 minutes.

Place in the bowl (B) equipped with the cutter knife (D) 200 g of meat lean beef steak cut into cubes and some parsley. Mince Chopp for 10 seconds. Add the minced chopped meat to the vegetables and fry gently for 10 minutes on a medium heat. Stir during cooking. Add 300 g of puréed tomato sauce. Season with salt and black pepper. Leave to simmer for 15 minutes.

BABY FOOD (from 6 months):

1 courgette, 1 aubergine, 1 tomato, 12 onion, 1 pinch of salt, 1 teaspoon of olive oil.

Wash the vegetables and cut them into cubes. Cook them in a saucepan of boiling water for

around 30 minutes. In the bowl (B) with the knife (D) mounted on the drive(C). Add all the cooked vegetables with olive oil and mix for 20 to 30 seconds.

POUND CAKE

In the bowl (B) with the knife (D) mounted on the drive (C). place Add 2 eggs, 120 g of caster sugar, 1 pinch of salt, 120 g of melted butter and 2 tablespoons of rum. Operate the appliance for 10 seconds. Add 120 g of plain flour and 12 sachet of baking powder. Operate the appliance for 15 seconds. Cook Bake in a preheated oven at 180°C for 30 to 40 minutes.

CHOCOLATE CAKE

In a saucepan, melt 120 g of cooking plain chocolate and 120 g of unsalted butter. Pour into the bowl (B) equipped with the cutter knife (D), add 120 g of caster sugar and 3 eggs. Mix for 10 seconds to obtain a frothy mixture. Add the melted chocolate, 40 g of plain flour, one sachet of baking powder and 5 cl of milk. Operate the appliance for 15 seconds. Cook Bake in a preheated oven at 160°C for 30 to 40 minutes.

CLEANING

• Always unplug the appliance before cleaning the drive motor unit (A).
• Do not immerse the drive motor unit(A), and do not place it under running water. Clean the drive motor unit (A) with a damp cloth. Dry it carefully.
• Handle the cutter knife (D) with care as the blades are very sharp.
• Do not soak the cutter knife(D) with crockery in the sink to prevent a cutting accident.
• To make the bowl (B) easier to clean after use, pour 1 glass of water and a few drops of

washing-up liquid into the bowl and operate the appliance for 5 to 10 seconds with the cutter knife (D) then rinse under the tap.

• If the plastic parts are discoloured by ingredients such as carrots, rub them with a cloth soaked in cooking oil straight after using; then clean as usual.
• The bowl (B), the lid (E) and the knife (D) can all be may be washed cleaned in the dishwasher in the upper basket tray using the "ECO" or "SLIGHTLY SOILED" programme.

RECYCLING

Help protect the environment!

i

Your appliance contains many materials that may be recovered or recycled.

→

Leave it at a local civic waste collection point.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] - Ireland or consult our website - www.moulinex.co.uk
