Product type	LED desk lamp
Brand	Novus
Model	Attenzia
Use	Indoor, home or professional office
Power supply	24 V DC via power adapter (100-240 V, 50-60 Hz)
Power consumption	9 W (Attenzia task) / 20 W (Attenzia complete)
Luminous flux	749 lm (task) / 1708 lm (complete)
Color temperature	4000 K (neutral white)
Color rendering index (CRI)	> 80 (R_a > 80)
Protection class	III (very low safety voltage)
Protection rating	IP20 (dry locations only)
Power supply included	Model Sunny SYL1460-2424 (task) or SYS1541-2424 (complete)
Main functions	On/off, dimming (hold switch), automatic shut-off after 10 h, power reduction in case of overheating
Light sources	Integrated LEDs not replaceable by user
Mounting	Desk mounting (base or clamp)
Safety	Do not look directly at LEDs; only use with supplied Novus power supply; do not use with dimmer; do not expose to water
Cleaning	Unplug before cleaning; use a dry cloth; do not wash with water
Operating temperature	15 °C to 32 °C
Operating humidity	15% to 95% (non-condensing)
Warranty	Normal wear and damage due to improper use are not covered

Frequently Asked Questions - Attenzia Novus

How to turn the Attenzia lamp on and off?

Briefly press the multifunction switch to turn the lamp on or off.

How to adjust the brightness?

Hold down the multifunction switch to continuously adjust the brightness.

Can I use the lamp with a wall dimmer?

No, the lamp must be plugged into a non-dimmer outlet to work properly.

What should I do if the lamp turns off automatically?

It is normal: if the switch is not operated for more than 10 hours, the lamp will turn off automatically. Briefly press to turn it back on.

How to clean the Attenzia lamp?

First unplug the power supply. Use a dry cloth to clean the lamp. Never wash it with water.

Can I replace the LEDs myself?

No, the LEDs are not user-replaceable. Only the manufacturer or an authorized technician can replace them.

Is the lamp suitable for reading?

Yes, with a color temperature of 4000 K and a color rendering index above 80, it provides comfortable lighting for reading and working.

What accessories are included?

The lamp comes with its power supply (Sunny model) and depending on the version, a base or a clamp.

Does the lamp heat up?

In case of excessive temperature, the lamp automatically reduces its light output to prevent overheating.

Where can I find the complete manual?

The complete manual is available for free download in PDF format at notice-facile.com.

USER MANUAL Attenzia Novus

Attenzia complete Attenzia task

1. i

EN 1.1. Declaration of Conformity: We declare under our sole responsibility that this NOVUS office desk light the pertinent health and safety requirements of the EC Directive on General Product Safety*. The device complies with the following standards: ** according to the requirements of directives ***. Issued at ****.

Translation of the original operating instructions.... 9

FR

Line drawing of a person sitting at a desk using a lamp (no text or symbols)

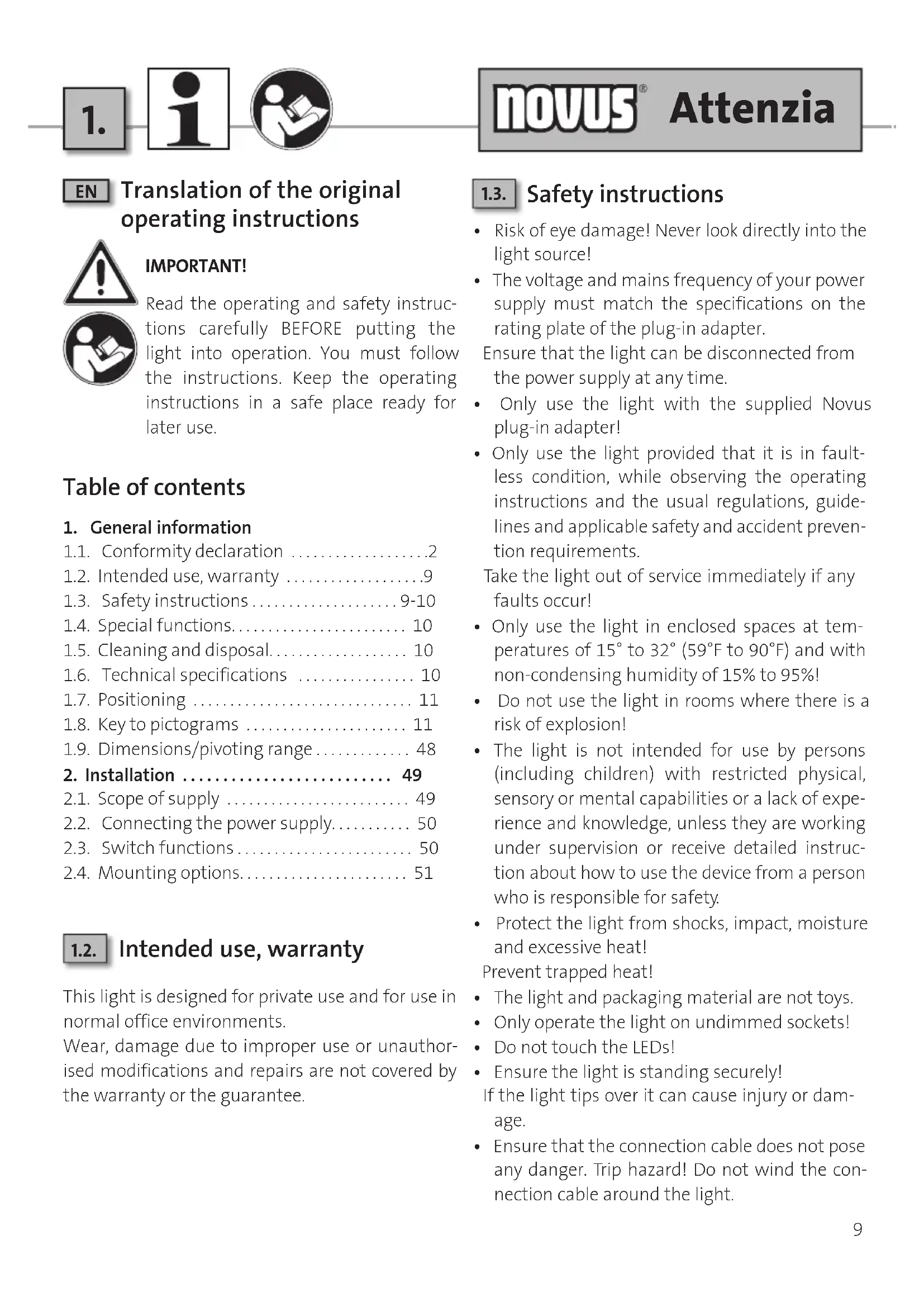

EN Translation of the original operating instructions

IMPORTANT!

Read the operating and safety instructions carefully BEFORE putting the light into operation. You must follow the instructions. Keep the operating instructions in a safe place ready for later use.

Table of contents

1. General information

1.1. Conformity declaration .....2
1.2. Intended use, warranty .....9
1.3. Safety instructions 9-10
1.4. Special functions.... 10
1.5. Cleaning and disposal.... 10
1.6. Technical specifications ..... 10
1.7. Positioning 11
1.8. Key to pictograms 11
1.9. Dimensions/pivoting range 48

2. Installation 49

2.1. Scope of supply 49
2.2. Connecting the power supply..... 50
2.3. Switch functions 50
2.4. Mounting options.... 51

1.2. Intended use, warranty

This light is designed for private use and for use in normal office environments.

Wear, damage due to improper use or unauthorised modifications and repairs are not covered by the warranty or the guarantee.

1.3. Safety instructions

• Risk of eye damage! Never look directly into the light source!
• The voltage and mains frequency of your power supply must match the specifications on the rating plate of the plug-in adapter.

Ensure that the light can be disconnected from the power supply at any time.

• Only use the light with the supplied Novus plug-in adapter!
• Only use the light provided that it is in fault-less condition, while observing the operating instructions and the usual regulations, guidelines and applicable safety and accident prevention requirements.

Take the light out of service immediately if any faults occur!

- Only use the light in enclosed spaces at temperatures of 15° to 32° (59°F to 90°F) and with non-condensing humidity of 15% to 95%!

- Do not use the light in rooms where there is a risk of explosion!

- The light is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or a lack of experience and knowledge, unless they are working under supervision or receive detailed instruction about how to use the device from a person who is responsible for safety.

- Protect the light from shocks, impact, moisture and excessive heat!

Prevent trapped heat!

• The light and packaging material are not toys.

- Only operate the light on undimmed sockets!

- Do not touch the LEDs!

- Ensure the light is standing securely! If the light tips over it can cause injury or damage.

- Ensure that the connection cable does not pose any danger. Trip hazard! Do not wind the connection cable around the light.

- The light source of this light may only be replaced by the manufacturer or a service technician authorised by the manufacturer.

1.4. Special functions

• If the multifunction switch is not used for more than 10 hours, the desk light switches off automatically.
• If the operating temperature becomes excessively high while the desk light is switched on, the luminosity will be automatically reduced.

1.5. Cleaning and disposal

Risk of injury!

• Disconnect the light from the power supply.
• Do not clean the light with water. Risk of damage!
• To prevent damage to the light, check the compatibility of the cleaning agent.

Dispose of the light properly in an environmentally friendly way at an authorised collection point. Do not dispose of any parts of the light in domestic waste. (For the European market.)

1.6. Technical specifications

Light Attenzia task Attenzia complete

Rated voltage 24 V DC 24 V DC
Power consumption + current Approx. 9 W / 0.4A Approx. 20 W / 0.84A
Protection class III III
Protection rating	IP 20 / only use for dry locations	IP 20 / only use for dry locations
Luminous flux	749 lm	1.708 lm
Colour temperature	4000K	4000K
Colour rendering index	85.3 R_a >80	84.4 R_a >80

Power supply unit	Attenzia task and complete	Attenzia task and complete (US only!)
Model	Sunny SYL1460-2424	Sunny SYS1541-2424
Item number	870-0885	870-0893
Rated voltage	100-240 V, 50-60Hz	100-240 V, 50-60 Hz
Input current	max. 1A	max. 1 A
Output	max. 24 V DC, 24 W, 1 A	max. 24 V DC, 24 W, 1 A
Protection rating	IP 20 / only use for dry locations	IP 20 / only use for dry locations
Protection class	II (double insulation)	II (double insulation)

1. i

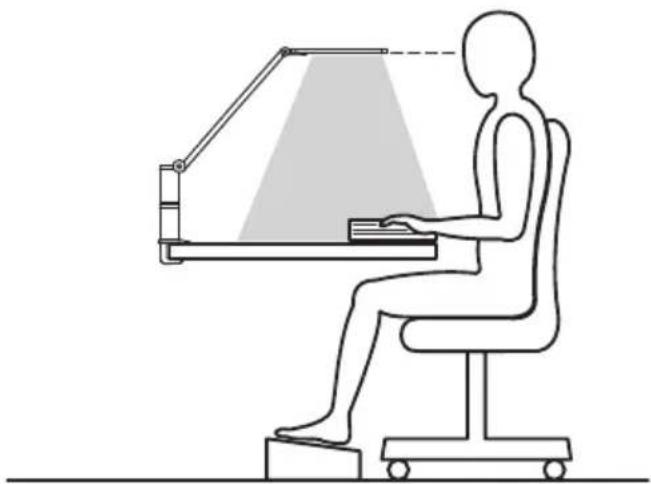

1.7. Positioning

When positioning the light, ensure that other people are not dazzled by it, and that the light is not reflected in a mirror.

The pivots of the light must not be moved beyond the intended swivelling angle. This can cause damage to the light.

novus® Attenzia

Line drawing of a person sitting at a desk using a computer, viewed from the side (no text or symbols present)

1.8. Key to pictograms

User information/safety instructions

Important information

WARNING

Caution, risk of electric shock.

Disconnect device from the power supply. The power plug is used to disconnect the power supply.

Connect device to the power supply. The mains connection must conform to the light's specifications!

Action area

Attenzia Clamp

Compliance with the relevant EU safety directives (For the European market)

The certification attests that the product complies with the device and product safety legislation

For the European market.

For the US market and Canada.

Protection class II (double insulation, no earthed plug required)

Protection class III for EU = SELV - safety extra low voltage for US = LVLE - low voltage limited energy

Maximum luminosity Press multifunction switch briefly twice

ON/OFF Press multifunction switch briefly once

Dim - Press and hold down multifunction switch

The product must only be installed and used in dry, enclosed interior spaces.
