Product type	Removable key switch for alarm system
Brand	ABUS
Model	SE1000
Use	Activation/deactivation of intrusion or panic alarm systems, control of other electronic devices
Switching modes	Permanent or impulse (adjustable)
Mounting types	Surface or flush mount
Dimensions (surface mount)	85 x 114 x 42 mm (W x H x D)
Dimensions (flush mount)	106 x 134 x 42 mm (W x H x D)
Weight	450 g
Protection rating	IP55
LED power supply	10 – 15 V DC
Max. consumption per LED	2 mA
Contact load	30 V DC / 0.5 A
Number of contacts	3 (changeover contacts)
LED display	Bicolor red/yellow
Protection	Cylinder protection rosette, cover contact and wall tamper protection (surface variant)
Housing material	Stable weather-resistant plastic
Delivery contents	4 special housing screws with angled hex key, 1 round gasket (SE1000), 4 wall plugs Ø6 mm with screws 4.5×35 mm
Safety	Cover contact and wall tamper protection (surface variant)
Maintenance	Clean with a soft, dry cloth; do not use aggressive products

Frequently Asked Questions - SE1000 ABUS

How to install the ABUS SE1000 removable key switch?

Loosen the cover screws with the angled hex key, remove the cover, remove the two screws of the plate, then gently pull out the plate. Mark the fixing holes on the wall, drill, insert the cable, fix the back part, connect the terminals according to the diagram (see manual), then reassemble the plate and cover, tightening the screws.

Can I use this switch to control a garage door?

Yes, the SE1000 removable key switch can control other electronic devices such as machinery or garage doors, depending on the setting (permanent or impulse). Respect the maximum contact load (30 V DC / 0.5 A).

What is the difference between permanent and impulse modes?

In permanent mode, the switch maintains the state (ON/OFF) after turning the key. In impulse mode, it sends a brief pulse when the key is turned, then returns to the initial state. The factory setting is permanent.

How do I change the switching mode from permanent to impulse?

Remove the upper part of the clamp at the push buttons and set it aside. This changes the switch behavior to impulse mode. The procedure is described in the installation manual.

What should I do if the LED does not light up?

Check the power supply: the LED requires a voltage of 10-15 V DC and consumes max. 2 mA. Ensure the connections are correct and the wiring follows the diagram. If the problem persists, contact ABUS after-sales service.

Is the switch weather-resistant?

Yes, the housing is stable and weather-resistant with a protection rating of IP55, protecting against dust and water jets. Use the supplied round gasket to ensure sealing in surface mounting.

What are the dimensions of the ABUS SE1000?

Surface mount: 85 x 114 x 42 mm (WxHxD). Flush mount: 106 x 134 x 42 mm (WxHxD). Weight is 450 g.

How many contacts does the switch have?

It has 3 changeover contacts (inverters), allowing switching of multiple circuits. Maximum load per contact is 30 V DC / 0.5 A.

Can I mount the switch flush?

Yes, the SE1000 is designed for surface or flush mounting. For flush mounting, use the dimensions of the flush mount housing (106x134x42 mm) and follow the provided installation instructions.

What is included in the SE1000 delivery?

The delivery includes: 4 special housing screws with angled hex key, 1 black round gasket (only for SE1000), 4 wall fixing plugs Ø6 mm with screws 4.5×35 mm, and installation manual.

USER MANUAL SE1000 ABUS

Thank you for purchasing this surface-fitted/flush-fitting key switch. You made the right decision in choosing this state-of-the-art technology, which complies with the current standards of domestic and European regulations. The CE has been proven and all related certifications are available from the manufacturer upon request. To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instructions.

Notes

The key switch is equipped with a burglary/tamper sensor and is used for switching on or off the alarm system of an entire location or sections of the location.

It can also be used for controlling other electronic equipment such as machines, garage doors, etc.

The key switch functions as an impulse or permanent contact, depending on the settings. The key switch is well protected against external interference, thanks to the cover contact and the anti-removal wall contact (surface-fitted model only), as well as the reinforced fascia plate, which prevents removal of the high-quality ABUS cylinder.

Main features

• Surface-fitted or flush-fitting key switch
• Stable, weatherproof casing
• Reinforced fascia plate to prevent lock removal
  Cover contact and anti-removal wall contact (surface-fitted model only)
  Permanent or impulse contact
• Coloured LEDs (red/yellow)
• Modern, attractive design

Scope of delivery

4 special casing screws with key
1 circular seal black (SE1000 only)
1 sealing plate white (SE1100 only)
4 x 6mm wall plugs including 4.5 × 35mm screws

Description

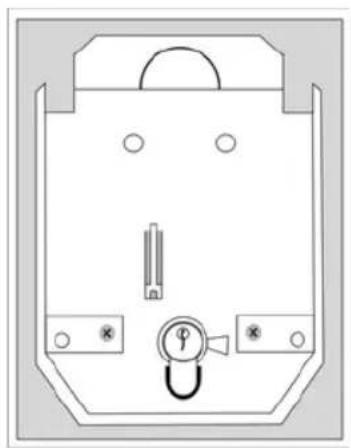

Fig.1 Casing open (with PCB)

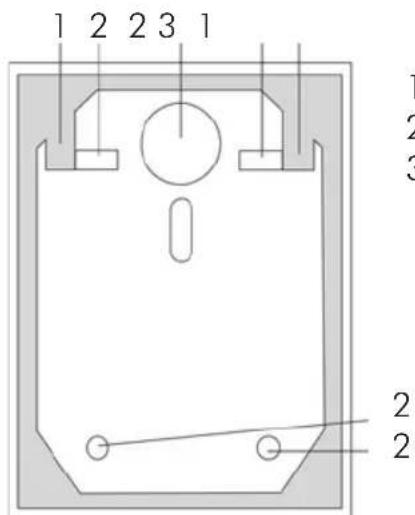

Fig. 2 Casing without PCB

1 PCB holder
2 Wall fixing
3 Cable hole

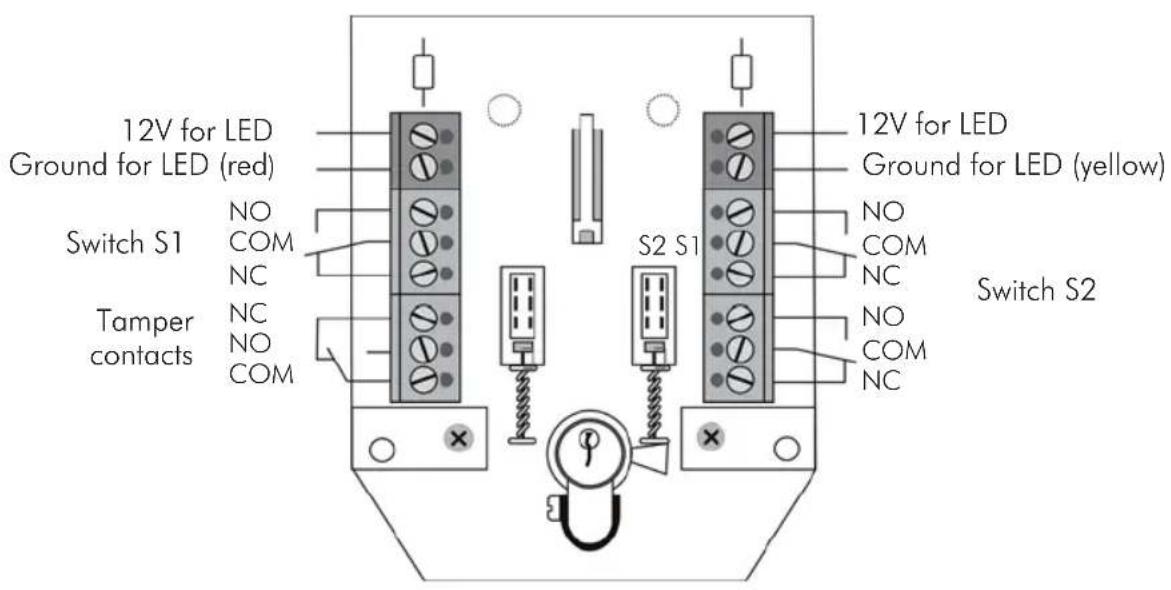

Connections

Note:

The switch position described applies when the cover is open.

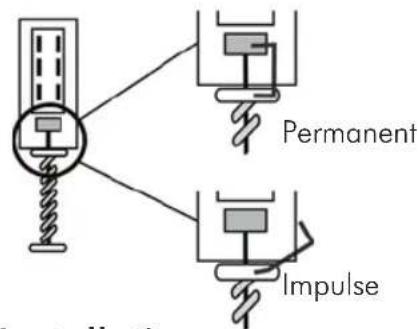

Changing switch mode (impulse/permanent contact)

1. The factory setting of the key switch is permanent contact. To change the switch mode:

2. Remove the upper part of the clamp and swing it to the side.

3. The key switch is now set to impulse mode.

Installation

1. Using the key supplied, unscrew the cover screws and remove the cover plate.
2. Remove the two PCB screws on the left and right of the cylinder.
3. Pull the cylinder and PCB carefully upwards and out.
4. Use the back of the key-switch case as a template for marking the drill holes (2). Drill the holes for the fixing screws.
5. Pull the connector cable through the opening provided.
6. Fix the casing to or in the wall.
7. Connect the cables to the terminal block (8) as described.
8. Replace the PCB in the casing, replace the cover (1) and tighten the cover screws. Make sure that the sealing ring sits firmly in the housing groove.

Technical data

Voltage supply LED	10-15 V DC
Max. power consumption per LED 2mA	A
Maximum contact capacity	30V DC / 0.5A
Dimensions (surface fitting)	85 x 114 x 42mm (WxHxD)
Dimensions (flush fitting)	106 x 134 x 42mm (WxHxD)
Protection type IP55
Number of contacts	3 (switchable)
Weight 450g

The manufacturer reserves the right to make technical modifications without prior notice.
