Product type	Homematic IP switching module for brand switches
Dimensions (W x H x D)	52 x 52 x 31 mm
Weight	55 g
Power supply	230 V / 50 Hz
Max. current consumption	6 A
Standby power consumption	0.2 W
Max. switching power	1380 W (ohmic load)
Load type	Ohmic load
Relay	Changeover relay
Cable cross-section	Solid and flexible, 0.75 to 2.5 mm²
Installation	In flush-mounted boxes DIN 49073-1, Legrand Batibox, Agro
Protection rating	IP20
Measurement category	CAT III
Ambient temperature	-5 to +40 °C
Radio frequency band	868.0-868.6 MHz / 869.4-869.65 MHz
Max. radio transmission power	10 dBm
Radio range in free field	280 m typ.
Duty cycle	< 1 % per h / < 10 % per h
Minimum load (two-way/cross)	1 W
Maintenance	No maintenance required
Cleaning	Soft, clean, dry and lint-free cloth
Safety	Observe warnings: installation by electrician, disconnect power before working
Repairability	Entrust repairs to a specialist

Frequently Asked Questions - HmIPBSMI Homematic IP

How to install the Homematic IP HmIPBSMI switching module?

Installation must be carried out by a qualified electrician. First, turn off the circuit breaker, then remove the existing switch. Connect the module according to the wiring diagrams (two-way, cross, etc.) observing terminals L, N, 1, 2. Mount the supplied adapter, screw the module into the flush-mounted box, then replace the frame and rocker. Then, perform the pairing via the Homematic IP app.

What are the prerequisites for installation?

You must have electrical knowledge (the 5 safety rules). The flush-mounted box must conform to DIN 49073-1, Legrand Batibox or Agro. The device requires a neutral conductor (N) and a 230 V / 50 Hz power supply. Use solid or flexible cables from 0.75 to 2.5 mm².

How to pair the device to the Homematic IP Access Point?

After installation, open the Homematic IP app, select 'Add device'. The pairing mode is active for 3 minutes. If needed, reactivate it by briefly pressing the system button (A) with a pointed object. Enter the last 4 digits of the SGTIN or scan the QR code. Confirm in the app. The green LED confirms success.

What to do if the LED flashes red after a command?

A long red flash indicates a failed operation or a duty cycle limit reached. Check that the receiver is reachable, and there is no overload or blockage. Wait until transmission is possible (max 1 h for duty cycle). If the problem persists, refer to the 'Error correction' section of the manual.

How to reset the HmIPBSMI to factory settings?

Remove the rocker. Press the system button (A) with a pointed object for 4 seconds until rapid orange flashing. Release, then press again for 4 seconds until green LED. Release to finish. The device restarts and you can reintegrate it into the system.

What cable cross-sections are allowed for connection?

The module accepts solid or flexible cables (with or without ferrules) from 0.75 mm² to 2.5 mm². Observe this cross-section to ensure good contact and avoid overheating.

What is the maximum power supported by the module?

The maximum switching power is 1380 W for ohmic load. For halogen lamps, LEDs, etc., refer to the load table in the manual. The current consumption must not exceed 6 A. Overload causes automatic shutdown.

How to clean the switching module?

Use a soft, clean, dry, lint-free cloth. Do not use cleaners containing solvents, as they could attack the plastic housing. Before any cleaning, disconnect the power supply.

What does the duty cycle mean and what to do if it is reached?

The duty cycle is a regulatory limit of the transmission time in the 868 MHz band: maximum 1% per hour (36 seconds). If the limit is reached, the device stops transmitting temporarily and the LED flashes long red. Wait up to one hour for the function to be restored.

What types of flush-mounted boxes are compatible?

The module is designed for switch boxes conforming to DIN 49073-1, Legrand Batibox boxes and Agro flush-mounted boxes. Ensure you use a suitable box for safe mounting.

USER MANUAL HmIPBSMI Homematic IP

Printed in Hong Kong

1 Homematic IP Switch Module for brand switches - international
1 Operating manual

Documentation © 2022 eQ-3 AG, Germany

All rights reserved. Translation from the original version in German. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the information contained in this manual is reviewed on a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or the consequences thereof.

All trademarks and industrial property rights are acknowledged.

Printed in Hong Kong

Changes may be made without prior notice as a result of technical advances.

157367 (web)

Version 1.0 (04/2022)

Table of contents

1 Information about this manual 28
2 Hazard information 28
3 Function and device overview 31
4 General system information 32
5Adapters for brand switch systems 32
6 Start-up 32

6.1 Installation instructions 32
6.2 Installation overview 34
6.3 Installation 34
6.4 Pairing 35

7 Troubleshooting 36

7.1 Command not confirmed 36
7.2 Duty cycle 37
7.3 Automatic disconnection in case of overload 37
7.4 Error codes and flashing sequences 38

8 Restoring factory settings 38
9 Maintenance and cleaning. 39
10 General information about radio operation 39
11 Technical specifications 40

1 Information about this manual

Please read this manual carefully before beginning operation with your Homematic IP device. Keep the manual so you can refer to it at a later date if you need to.

If you hand over the device to other persons for use, please hand over this manual as well.

Symbols used:

Attention!

This indicates a hazard.

Note.

This section contains important additional information!

2 Hazard information

Do not open the device. It does not contain any parts that need to be maintained by the user. There is a risk of electric shock if the device is opened. If you have any doubts, have the device checked by an expert.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

Do not use the device if there are signs of damage to the housing, control elements or connecting terminals, for example. If you have any doubts, have the device checked by an expert.

The device may only be operated in dry and dust-free environments and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, excessive cold and mechanical loads.

The device is not a toy: do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc. can be dangerous in the hands of a child.

We accept no liability for damage to property or personal injury caused by improper use or the failure to observe the hazard warnings. In such cases, all warranty claims are void. We accept no liability for any consequential damage.

The device may only be used for fixed installations. The device must be securely attached within a fixed installation.

The actuator is part of the building installation. Observe the relevant national standards and directives during planning and set-up. The device has been designed solely for operation on a 230 V/50 Hz AC supply. Only qualified electricians (to VDE 0100) are permitted to carry out work on the 230 V mains. The applicable accident prevention regulations must be observed while such work is being carried out. To avoid electric shocks from the device, please disconnect the mains voltage (trip the miniature circuit-breaker). Non-compliance with the installation instructions can cause fire or introduce other hazards.

When connecting to the device terminals, take the permissible cables and cable cross sections into account.

Loads connected to the relay outputs require sufficient insulation.

Please take the technical data (in particular the maximum permissible switching capacity of the relay and the type of load to be connected) into account before connecting a load. All load data relates to ohmic loads. Do not exceed the capacity specified for the device.

No SELV/PELV power circuits may be connected to the connecting terminals of the relay outputs.

Exceeding this capacity could lead to the destruction of the device, fires or electric shocks.

The circuit to which the device and the load will be connected must be protected by a circuit breaker in accordance with EN60898-1 (stripping characteristic B or C, max. 16 A rated current, min. 6 kA breaking capacity, energy limitation class 3). Installation regulations according to VDE 0100 and HD382 or 60364 must be observed. The circuit breaker must be easily accessible to the user and marked as the disconnecting device for the actuator.

Before the actuator is connected, remove the fuse from the fuse box.

Except for configuration, the device may only be operated with an associated switch cover.

The device has not been designed to support safety disconnection.

Devices with electronic power supply units (e.g. TV or high voltage LED light sources) are no ohmic loads. They can generate inrush currents of more than 100 A. Switching such kind of loads may lead to premature wear of the actuator. In such cases, we recommend using inrush current limiters at the switching outputs.

If you use the device in a security application it has to be operated in connection with an UPS (uninterruptible power supply) in order to bridge possible power failure.

The device must only be operated within residential buildings.

Using the device for any purpose other than that described in this

operating manual does not fall within the scope of intended use and will invalidate any warranty or liability.

3 Function and device overview

The Homematic IP Switch Module for brand switches is suitable for installation in a flush-mounting box for switches from a wide range of manufacturers. Once installed, the device switches a connected load (e.g. a lamp) on and off and measures the energy consumption.

The Switch Module enables connected loads to be easily controlled using the switch's push-button rocker, via wireless remote control or the Homematic IP app.

Using the app, you can always get an overview of the energy consumption and costs of connected loads.

The adapters for different switches allow you to replace switches made by popular manufacturers with an intelligent Homematic IP installation. Using existing or planned switches and cabling reduces the cost of installation to a minimum. The design, colour and finish of switches that have already been installed does not change, since existing frames and rockers can continue to be used.

Device overview (see figure 1):

(A) System button (pairing button and LED)
(B) Connecting terminal for 2 (lamp/corresponding supply cable (normally open))
(C) Connecting terminal for 1 (corresponding supply cable (normally closed))
(D) Connecting terminal for N (neutral conductor)
(E) Connecting terminal L^ (phase conductor)

4 General system information

This device is part of the Homematic IP smart home system and works with the Homematic IP protocol. All devices of the system can be configured comfortably and individually with the user interface of the Central Control Unit CCU3 or flexibly via the Homematic IP smartphone app in connection with the Homematic IP cloud. All available functions provided by the system in combination with other components are described in the Homematic IP Wired Installation Guide. All current technical documents and updates are provided at www.homematic-ip.com.

5 Adapters for brand switch systems

To achieve compatibility with as many manufacturers as possible and make integration in different designs easier, different rocker adapters are available as accessories. A separate list on compatibility with standard switch series can be found in the website download area www.homematic-ip.com.

Further information on installing the adapter can be found in the operating instructions for the corresponding adapter.

6 Start-up

6.1 Installation instructions

Please read this entire section before starting to install the device.

Before installation, please note the device number (SGTIN) labelled on the device as well as the exact installation location in order to make later allocation easier. You can also find the device number on the QR code sticker supplied.

Please note! Only to be installed by persons with the relevant electro-technical knowledge and experience!\*

Incorrect installation can endanger

• your own life,
• and the lives of other users of the electrical system.

Incorrect installation also means that you are running the risk of serious damage to property, e.g. from fire. You risk personal liability for personal injury and property damage.

Consult an electrician!

*Specialist knowledge required for installation:

• The following specialist knowledge is particularly important during installation:
• The "5 safety rules" to be used disconnect from mains; safeguard from switching on again; check that no voltage is present in system; earth and short circuit; cover or cordon off neighbouring live parts;
• Select suitable tool, measuring equipment and, if necessary, personal safety equipment;
• Evaluation of measuring results;
• Selection of electrical installation material for safeguarding shut-off conditions;
  IP protection types;
• Installation of electrical installation material;
• Type of supply network (TN system, IT system, TT system) and the resulting connecting conditions (classical zero balancing, protective earthing, required additional measures etc.).

The device may only be installed in the following commercially available switch boxes (device boxes):

According to DIN 49073-1
- Batibox-type switch boxes from Legrand
- Agro flush-mounting back boxes

The device may only be operated with adapters and an associated, fitted switch cover. The switch cover may only be removed during configuration.

Please observe the hazard information in section see "2 Hazard information" on page 28 during installation.

A minimum load of 1 W is required for operating in two-way or cross circuits.

Permitted cable cross sections for connecting to the device are:

Rigid cable [mm2] flexible cable with/without ferrule [mm2]

0.75 – 2.50 0.75 – 2.50

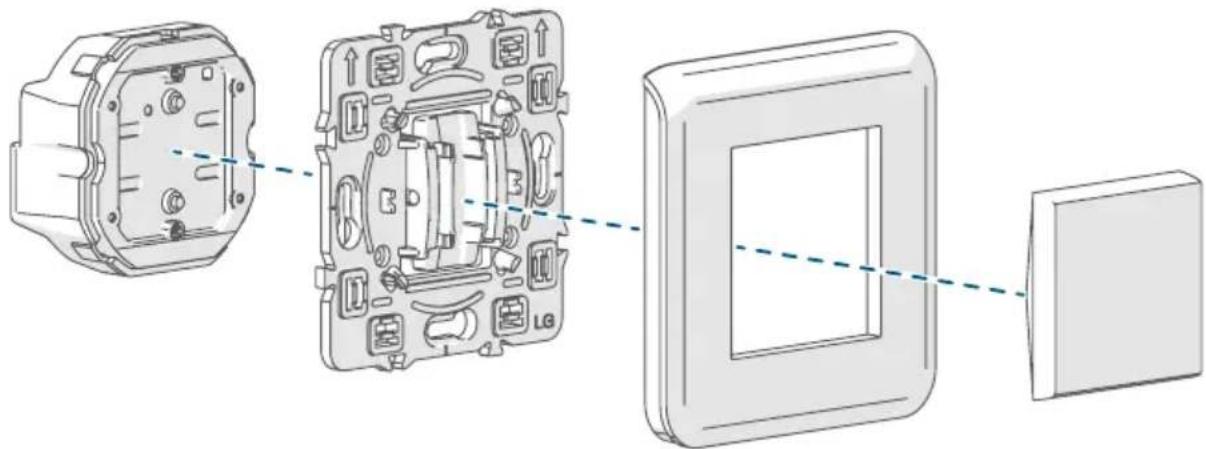

6.2 Installation overview

Homematic IP Switch Module for brand switches

Suitable adapter

Frame (example)

Rocker (example)

6.3 Installation

To remove an existing switch, follow the instructions of the respective switch manufacturer.

You can use the Switch Module in the following circuits:

• On-off circuit (see figure 3)
• Two-way circuit (see figure 4)
• Intermediate switch circuit (see figure 5)

To install the Switch Module, proceed as follows:

• Switch off the circuit breaker for the power circuit (see figure 2).

• Place a suitable adapter on the switch module and screw it tight using the enclosed screws (see figure 6). For further details on installation, refer to the operating instructions for the adapter.

• Connect the Switch Module as required according to figure 3, 4 or 5.
• Loosen the screws of the flush-mounted box and screw the box slightly outwards.
• Insert the Switch Module with the mounted adapter onto the screws in the flush-mounted box and screw the screws back in (see figures 7+8).
• Place the frame of your switch series on the Switch Module (see figure 9).
• Insert the rocker into the frame (see figure 10).
• Switch the circuit breaker of the power circuit back on again.
• The Switch Module is now ready for operation and can be connected to the Homematic IP access point (see see "6.4 Pairing" on page 35).

6.4 Pairing

Please read this entire section before starting the pairing procedure.

First set up your Homematic IP access point via the Homematic IP app to enable operation of other Homematic IP devices within your system. For further information, please refer to the operating manual of the access point.

You can connect the device either to the access point or to the Homematic Central Control Unit CCU3. For detailed information, please refer to the Homematic IP User Guide, available for download in the download area of www.homematic-ip.com.

To integrate the device into your system and enable it to communicate with other Homematic IP devices, you must first add the device to your Homematic IP access point.

To add the device, please proceed as follows:

• Open the Homematic IP app on your smartphone.
• Select the menu item "Add device".
• After installation, the pairing mode remains activated for 3 minutes.

If the time has exceeded, you can manually restart the pairing mode for another 3 minutes by removing the rocker and pressing the system button (A) briefly with a pointed object (see figure 11).

• Your device will automatically appear in the Homematic IP app.
• To confirm, enter the last four digits of the device number (SG-TIN) in your app or scan the QR code. The device number can be found on the sticker supplied or attached to the device.
• Wait until pairing is completed.
  If connecting was successful, the LED (A) lights up green. The device is now ready for use.
  If the LED lights up red, please try again.
• Select the desired solution for your device.
• In the app, give the device a name and allocate it to a room.

7 Troubleshooting

7.1 Command not confirmed

If at least one receiver does not confirm a command, the device LED (A) lights up red at the end of the failed transmission process. The failed transmission may be caused by radio interference (see see "10 General information about radio operation" on page 39). This may be caused by the following:

• Receiver cannot be reached.
• Receiver is unable to execute the command (load failure, mechanical blockade, etc.).
• Receiver is faulty.

7.2 Duty cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range.

In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation. During normal operation, the duty cycle is not usually reached. However, repeated and radio-intensive pairing processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by one long red lighting of the device LED (A), and may manifest itself in the device temporarily not working. The device starts working correctly again after a short period (max. 1 hour).

7.3 Automatic disconnection in case of overload

If the device is overloaded with load currents greater than 6 A or with loads with more than 1380 W power, after a short delay time, this leads to the Switch Module's automatic disconnection. The safety disconnection is reported with an error message via the app or WebUI.

To be able to use the device again, you must remove the overload and disconnect the device from the mains and then reconnect it. Alternatively, you can wait 30 minutes after removing the overload ("restart lock"). The Switch Module can then be switched on again. The Switch Module is not automatically switched on after the restart lock has expired.

7.4 Error codes and flashing sequences

Flashing code Meaning	Solution
Short orange flash-ing	Radio transmission/attempting to transmit/data transmission	Wait until the transmission is completed.
1x long green flash Transmision con-firmed	You can continue operation.
1x long red flash Transmision failed or duty cycle limit is reached	Please try again (see „7.1 Command not confirmed" on page 36 or see „7.2 Duty cycle" on page 37).
Short orange flash-ing (every 10 s)	Pairing mode active	Enter the last four numbers of the device serial number to confirm (see see „6.4 Pairing" on page 35).
6x long red flashes Device defective Please	see your app for error message or contact your retailer.
1x orange and 1x green flash	Test display You can	continue once the test display has stopped.

8 Restoring factory settings

The device's factory settings can be restored. If you do this, you will lose all your settings.

To restore the factory settings of the device, please proceed as follows:

• Remove the rocker (if necessary).
• Press and hold down the system button (A) for 4 s with a pointed object (e.g. a pen) until the LED will start flashing orange quickly (see figure 12).
• Release the system button.
• Press and hold down the system button again for 4 seconds, until the LED lights up green (see figure 13).
• Release the system button again to conclude the procedure.

The device will perform a restart. After the restart, you can again integrate your device into your Homematic IP system.

9 Maintenance and cleaning

The product does not require any maintenance. Enlist the help of an expert to carry out any repairs.

The mains voltage must be disconnected before the device is removed (trip the miniature circuit-breaker). Only qualified electricians (to VDE 0100) are permitted to carry out work on the 230V mains.

Clean the device using a soft, lint-free cloth that is clean and dry. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

10 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity have an important role to play, as do on-site structural/screening conditions.

Hereby, eQ-3 AG, Maiburger Str. 29, 26789 Leer/Germany declares that the radio equipment type Homematic IP HmIP-WUA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.homematic-ip.com

11 Technical specifications

Device short description: HmIP-BSM-I

Supply voltage: 230V / 50Hz

Current consumption: 6 A max.

Standby power

consumption: 0.2 W

Minimum load for cross or

two-way circuit: 1 W

Max. switching capacity: 1380 W

Load type: Ohmic load

Relay: Changeover contact

Cable type and cross section: rigid and flexible cable, 0.75 - 2.5mm^2

Installation: only in the following switch boxes:

• According to DIN 49073-1

• Batibox-type switch boxes from

Legrand

• Agro flush-mounting back boxes

Protection rating: IP20

Measurement category: CAT III

Ambient temperature: -5 to +40 °C

Dimensions (W x H x D): 52 x 52 x 31 mm

Weight: 55 g

Radio frequency band: 868.0-868.6 MHz

869.4-869.65 MHz

Max. radio transmission power: 10 dBm

Receiver category: SRD category 2

Type radio free-field range: 280 m

Load type		Relay
Ohmic load	-	6 A
Incandescent lamp load	-	1000 W
Self-ballasted lamps (LED/compact fluorescent lamp)		200 W
HV halogen lamps 1000 W
Electronic transformers for LV halogen lamps	1000 W
Iron core transformers for LV halogen lamps	1000 W
Fluorescent lamps (uncompensated)	1000 W
Fluorescent lamps (parallel compensated)	1000 W
Electric radiators and other electric heating systems (ohmic load)	3.5 A (200,000 switching cycles)

Subject to modifications.

Instructions for disposal

Do not dispose of the device with normal domestic waste! Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive.

Information about conformity

The CE mark is a free trademark that is intended exclusively for the authorities and does not imply any assurance of properties.

For technical support, please contact your retailer.

Legrand, type Batibox

Printed in Hong Kong

A工程技术 of the energy storage system is a key component of the energy storage system. It is important to understand that the energy storage system is not only a means for the storage of energy but also for the distribution of power and electricity.

Printed in Hong Kong

Free download of the Homematic IP app!

Download on the App Store

ANDROIDAPPON

Google play

Bevollmächtigter des Herstellers: Manufacturer's authorised representative

eQ-3 AG

Maiburger Straße 29
26789 Leer / GERMANY
www.eQ-3.de
