USER MANUAL HMIP-SWDO-PL Homematic IP

Mounting instruction and User manual

White cylindrical electronic device with a small rectangular opening and a circular button on the side (no visible text or symbols)

Lieferumfang

Anzahl Bezeichnung

Printed in Hong Kong

Simple line drawing of a cylindrical object with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

3

Simple line drawing of a hand holding a tool with a blue arrow indicating direction (no text or symbols)

4 3 mm 3 mm

6

① 70 mm ②

7

Technical line drawing of a mechanical device with screwdriver and clamped parts (no text or symbols)

8

Illustration of a hand holding a battery with two blue arrows indicating direction (no text or symbols present)

9

+ 4 s L

10

4 s

11

4 s ↓ ← → → ✓

Inhaltsverzeichnis

1 Homematic IP Window / Door Contact – optical, plus
2 Double-sided adhesive strips
2 Screws 2.2 x 13 mm
1 Reflecting sticker (for dark surfaces)
2 1.5 V LR03/micro/AAA batteries
1 User manual
1 Supplement sheet with safety instructions

Documentation © 2022 eQ-3 AG, Germany

All rights reserved. Translation from the original version in German. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the information contained in this manual is reviewed on a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or the consequences thereof.

All trademarks and industrial property rights are acknowledged.

Printed in Hong Kong

Changes may be made without prior notice as a result of technical advances.

158567 (web)

Version 1.1 (12/2023)

Table of contents

1 Information about this manual....34
2 Hazard information....34
3 Function and device overview ....36
4 General system information ....37
5 Start-up 38

5.1 Pairing 38
5.1.1 Connect to an Access Point....38
5.1.2 Direct pairing with a Homematic IP device.....40
5.2 Mounting 42
5.2.1 Selecting a suitable mounting location ..... 42
5.2.2 Adhesive strip or screw mounting.... 43

6 Replacing batteries 45

7 Troubleshooting 46

7.1 Weak batteries....46
7.2 Command not confirmed....46
7.3 Duty cycle 47
7.4 Error codes and flashing sequences 48

8 Restore factory settings....49

9 Maintenance and cleaning....50

10 General information about radio operation....51

11 Technical specifications....52

1 Information about this manual

Read this manual carefully before beginning operation with your Homematic IP components. Keep the manual so you can refer to it at a later date if you need to. If you hand over the device to other persons for use, hand over this manual as well.

Symbols used:

Attention!

This indicates a hazard.

Please note:

This section contains important additional information.

2 Hazard information

Do not open the device. It does not contain any parts that can be maintained by the user. In the event of an error, have the device checked by an expert.

We do not assume any liability for damage to property or personal injury caused by improper use or the failure to observe the hazard information. In such cases, any claim under warranty is extinguished! For consequential damages, we assume no liability!

Do not use the device if there are signs of damage to the housing or control elements, for example, or if it demonstrates a malfunction. If in doubt, have it checked by a specialist.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

The device may only be operated indoors and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

The device is not a toy; do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc. can be dangerous in the hands of a child.

This device operates using non-visible infra-red light. Please keep a minimum distance of 20 cm between the device and your eyes!

The device is only intended for use within residential, business and commercial areas as well as in small enterprises.

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and shall invalidate any warranty or liability.

3 Function and device overview

The Homematic IP Window / Door Contact reliably detects opening and closing of windows and doors by an integrated infrared-sensor.

Open windows and doors are immediately displayed in the Homematic IP app – even while being out and about you can keep a close eye to your windows and doors.

The window / door contact offers a long battery lifetime of up to 7 years. Thanks to the battery operation and radio communication, the device can be flexibly mounted and offers easy installation on window and door frames using the supplied mounting material.

Thanks to the integrated tamper contact you are immediately informed via the app about any manipulation of the window and door contact.

Strong extraneous light and contamination of the sensor can lead to functional disorders.

Device overview (see figure 1):

(A) Electronic unit
(B) Cover
(C) Battery compartment
(D) Screw holes
(E) Infra-red sensor
(F) System button (teach-in button and LED)

4 General system information

This device is part of the Homematic IP smart home system and works with the Homematic IP protocol. All devices of the system can be configured comfortably and individually with the user interface of the Central Control Unit CCU3 or flexibly via the Homematic IP smartphone app in connection with the Homematic IP cloud. All available functions provided by the system in combination with other components are described in the Homematic IP Wired Installation Guide. All current technical documents and updates are provided at www.homematic-ip.com.

5 Start-up

5.1 Pairing

Read this entire section before starting the teach-in procedure.

You can pair the Homematic IP Window / Door Contact with either the Homematic IP Access Point (HmIP-HAP) or the Homematic IP CCU3 central control unit, or directly with one or more Homematic IP devices. After direct pairing, configuration must be done directly on the device. After pairing with the access point, configuration is done via the Homematic IP app.

5.1.1 Connect to an Access Point

First set up your Homematic IP Access Point via the Homematic IP app to enable operation of other Homematic IP devices within your system. For further information, refer to the operating manual of the Access Point.

You can connect the device either to the Access Point or to the Homematic Central Control Unit CCU3. For further information, refer to the Homematic IP user guide.

To integrate the device into your system and enable it to communicate with other Homematic IP devices, it has to

be connected to your Homematic IP Access Point first.

To connect it, proceed as follows:

• Open the Homematic IP app on your smartphone.
• Select the menu item "Add device".

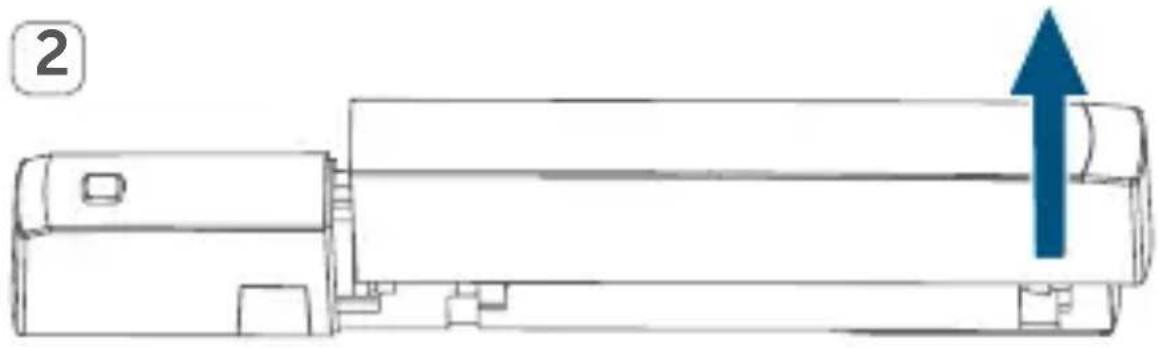

• Open the battery compartment (C) by first pulling the cover cap (B) a little backwards and then upwards (see figure 2).
• Remove the insulation strip from the battery compartment of the window / door contact.
• Teach-in mode remains activated for 3 minutes.

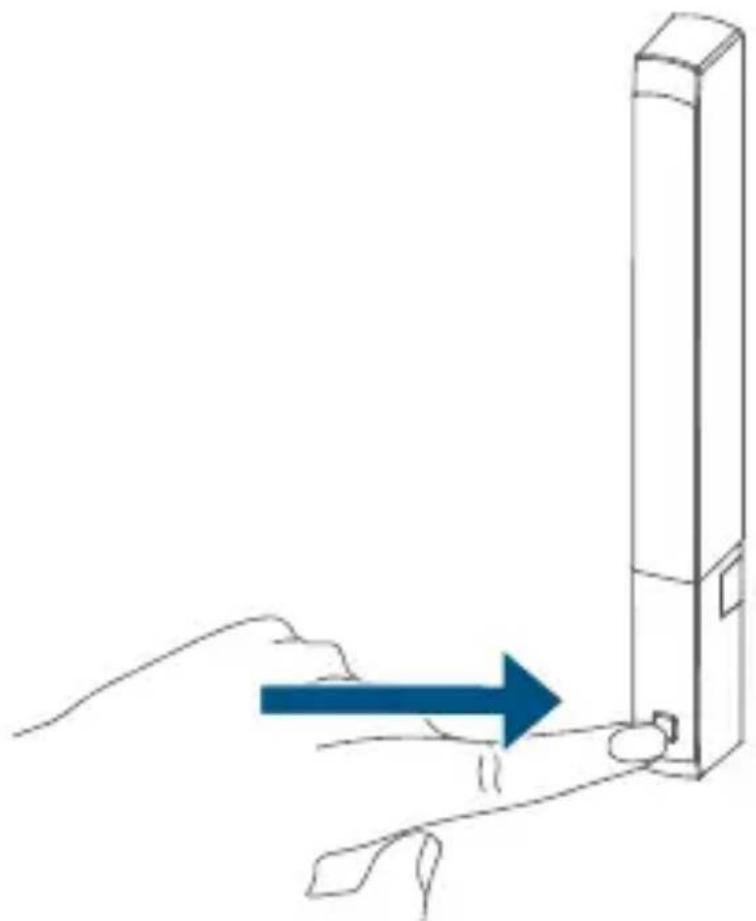

You can manually start the teach-in mode for another 3 minutes by pressing the system button (F) shortly (see figure 3).

• Your device will automatically appear in the Homematic IP app.
• To confirm, enter the last four digits of the device number (SGTIN) in your app or scan the QR code. Therefore, please see the sticker supplied or attached to the device.
• Please wait until teach-in is completed.
• If teaching-in was successful, the LED (F) lights up green. The device is now ready for use.
• If the LED lights up red, please try again.
  • In the app, select in which applications you want

to use your device (climate control and/or security, for example).

• Allocate the device to a room and give the device a name.
• Do not yet place the cap!

5.1.2 Direct pairing with a Homematic IP device

You can pair the Homematic IP Window / Door Contact with a Homematic IP Radiator Thermostat (e.g. HmIP-eTRV-B-2) and/or a Homematic IP Wall Thermostat (e.g. HmIP-WTH-B).

Please make sure you maintain a distance of at least 50 cm between the devices.

You can cancel the pairing procedure by briefly pressing the system button (F) again. This will be indicated by the device LED (F) lighting up red.

To connect the device with another Homematic IP device, the pairing mode of both devices must be activated. To do this, proceed as follows:

• Open the battery compartment (C) by pulling the cap (B) first backwards a little and then upwards (see figure 2).
• Remove the insulation strip from the battery compartment.

• Reattach the cover.

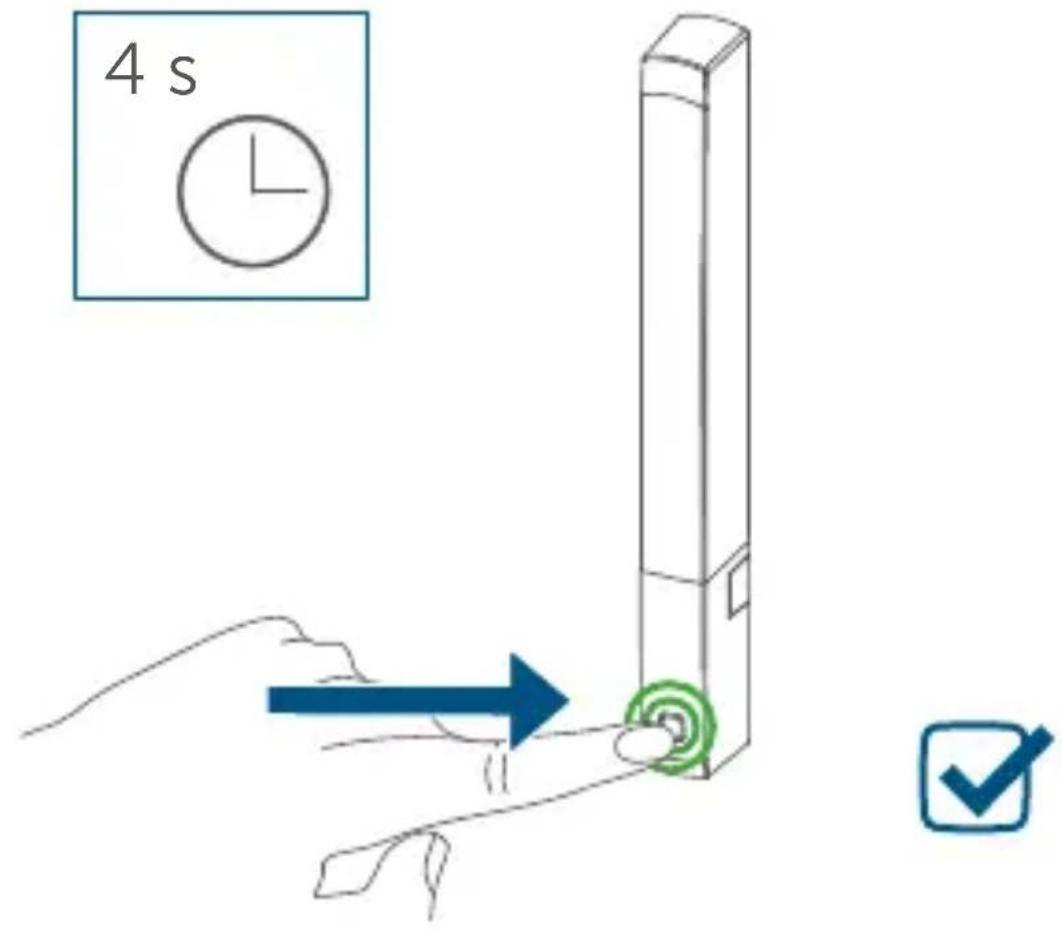

• Press and hold down the system button (F) for at least 4 seconds to activate the pairing mode (see figure 11). The device LED (F) starts to flash orange. The pairing mode is active for 3 minutes.

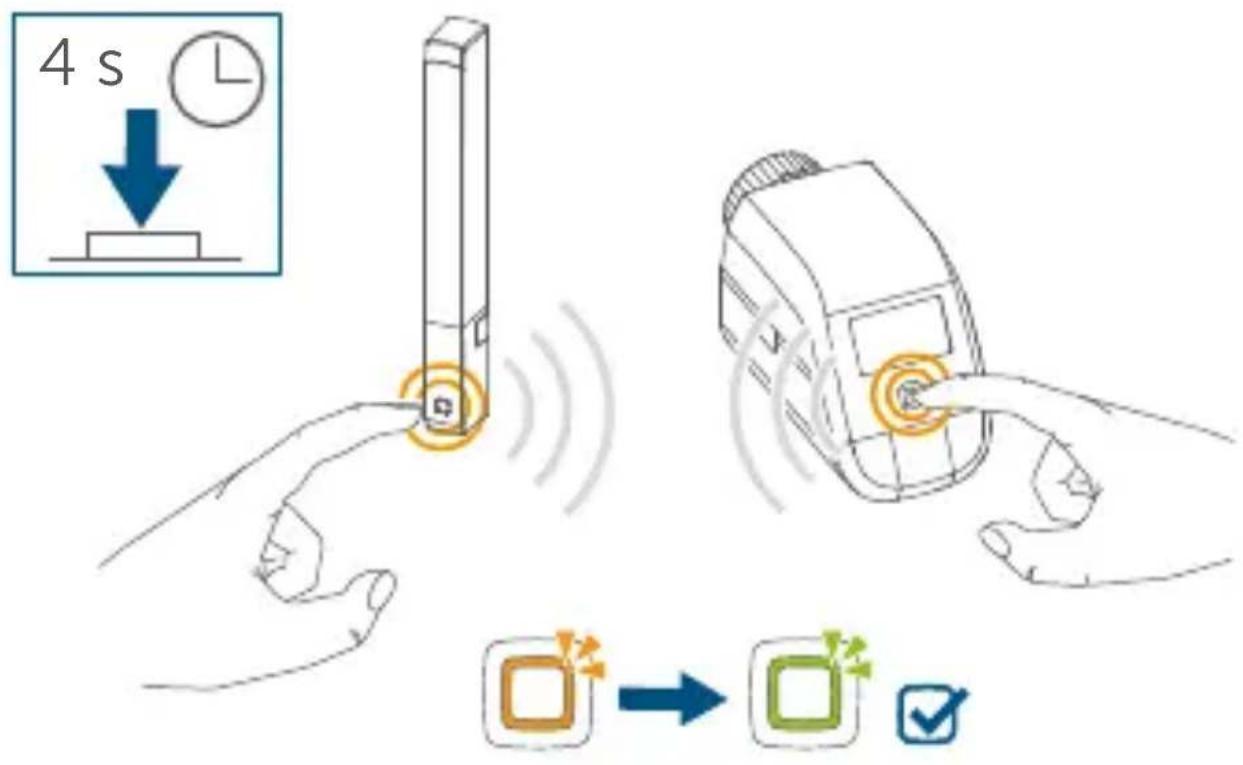

• Press and hold the system button of the device you want to connect (e.g. the Homematic IP Radiator Thermostat – basic (HmIP-eTRV-B-2)) for at least 4 seconds, to activate the pairing mode. The device LED starts to flash orange (see figure 11). For further information, please refer to the operating manual of the corresponding device.

The device LED lights up green to indicate that pairing has been successful.

If pairing has failed, the device LED lights up red. Please try again.

If no pairing operations are carried out, pairing mode is exited automatically after 3 seconds.

If you want to add another device to the existing devices, first activate the pairing mode of the existing device and afterwards the pairing mode of the new device.

If you are using several devices in one room, you should pair all devices with each other.

5.2 Mounting

Please read this entire section before starting to mount the device.

5.2.1 Selecting a suitable mounting location

• Select a window or door for mounting the window / door contact.
• Fasten the window / door contact on the side of the window or door where the handle is located, in the upper third of the window/door frame (see "5.2.2 Adhesive strip or screw mounting" on page 43) (see figure 4).

- The infra-red sensor (E) has to point into the direction of the window/door casement (see figure 4).

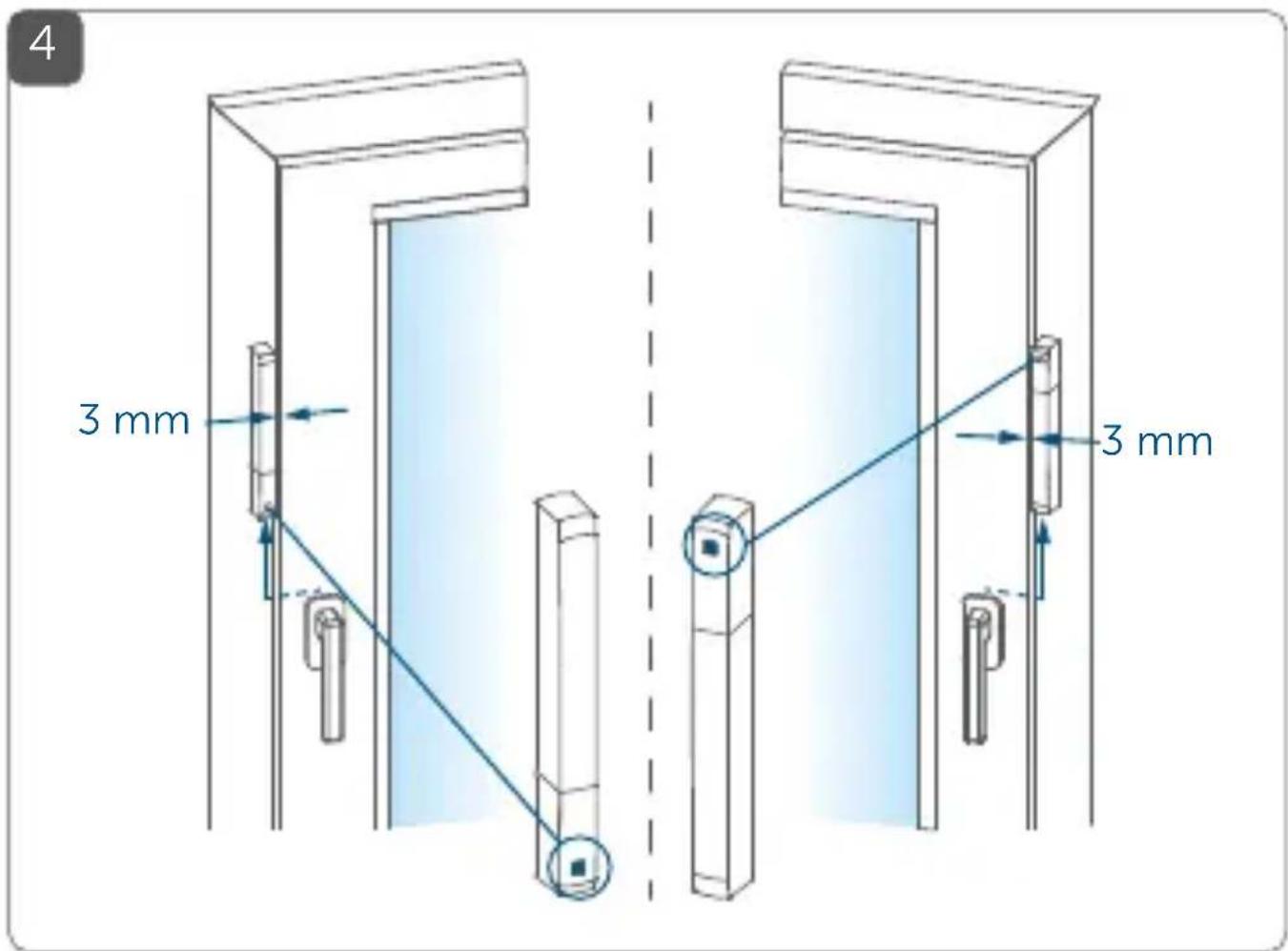

The ideal spacing between the housing edge of the window / door contact and the window/door casement should be 3 mm (see figure 4).

- If the window/door handle is located on the right side you have to turn around the window / door contact so that the infra-red sensor (E) points into the direction of the window/door casement also on this side (see figure 4).

If the window/door casement is too small, the device can not be mounted.

For poorly reflecting surfaces (e.g. dark window frames) the supplied reflecting sticker has to be fixed to the inner edge of the window/door case-ment on the opposite of the infra-red sensor of the window / door contact.

5.2.2 Adhesive strip or screw mounting

You can use

• the supplied double-sided adhesive strips or
  • the supplied screws

to fix the device to the window/door frame.

Adhesive strip mounting

Make sure that the mounting surface is smooth, solid, non-disturbed, free of dust, grease and solvents and not too cold to ensure long-time adherence.

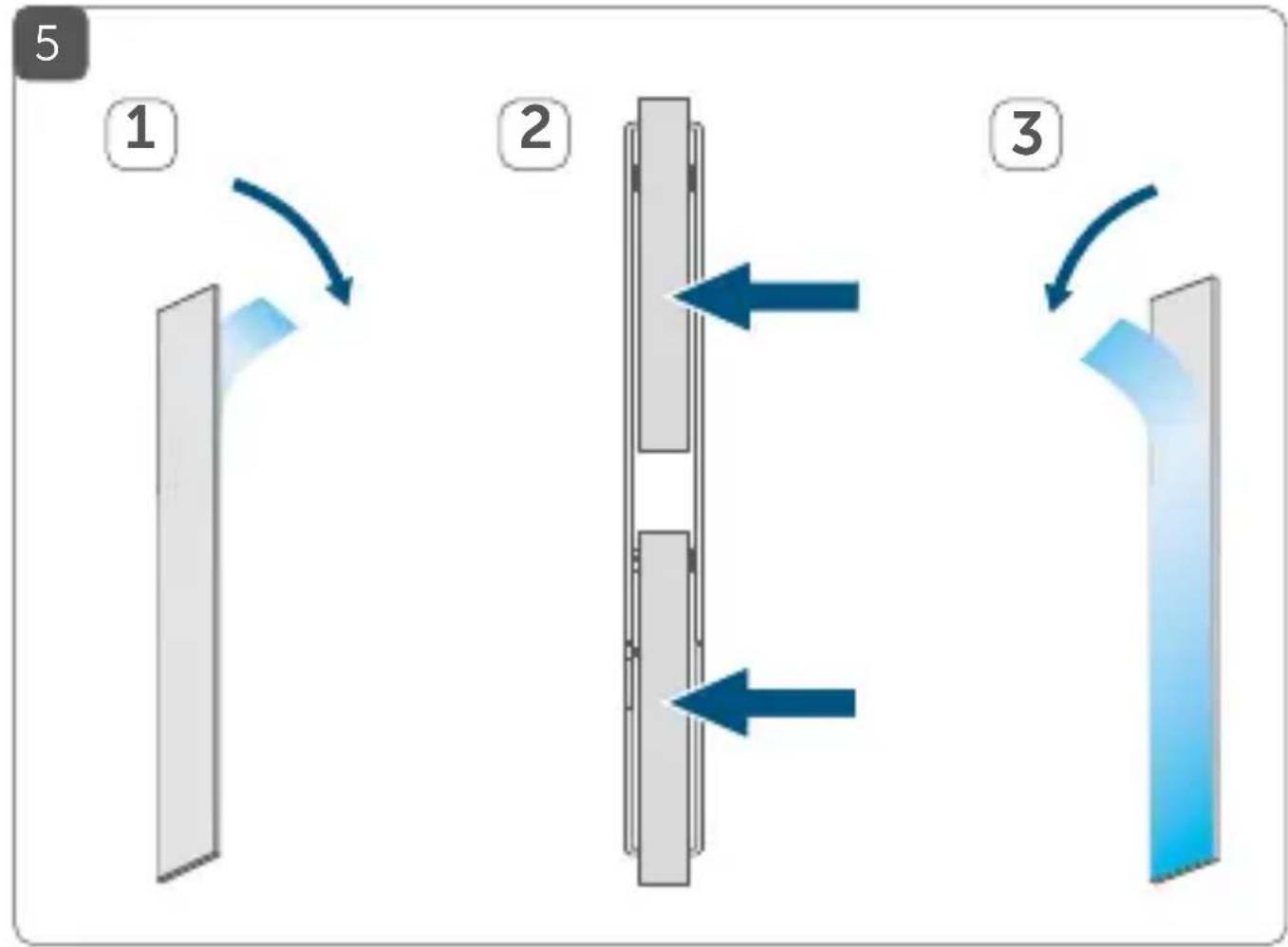

For mounting the device using the adhesive strips, please proceed as follows:

• Place the cap (B) on the electronic unit (A).
• Attach the double-sided adhesive strips to the back of the electronic unit (A), remove the film and press the device to the desired position of the window/door frame (see figure 5).

For residue-free and easy removal of the adhesive strips, allow the adhesive strips to protrude slightly over the edge of the housing.

Screw mounting

Using screws will damage the window and/or door. For those living in rented accommodation, this could lead to a landlord making claim for compensation or holding back a tenant's deposit. For mounting the device using screws proceed as follows:

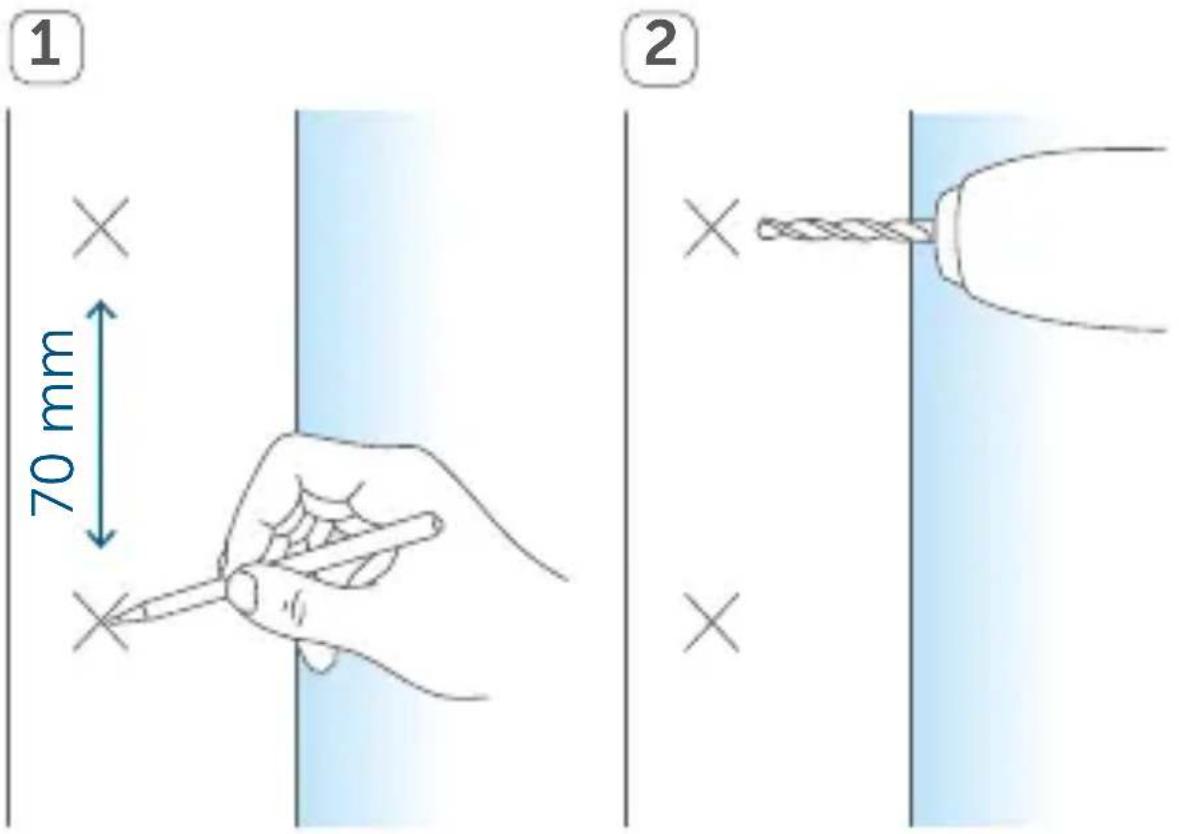

• For mounting the device on hard surfaces, mark the screw holes (D) at a distance of 70 mm from the desired position on the window/door frame (see figure 6).
• If you are working with hard surfaces you should pre-drill the holes marked using a 1.5 mm drill. This is not necessary for soft surfaces (see figure 6).

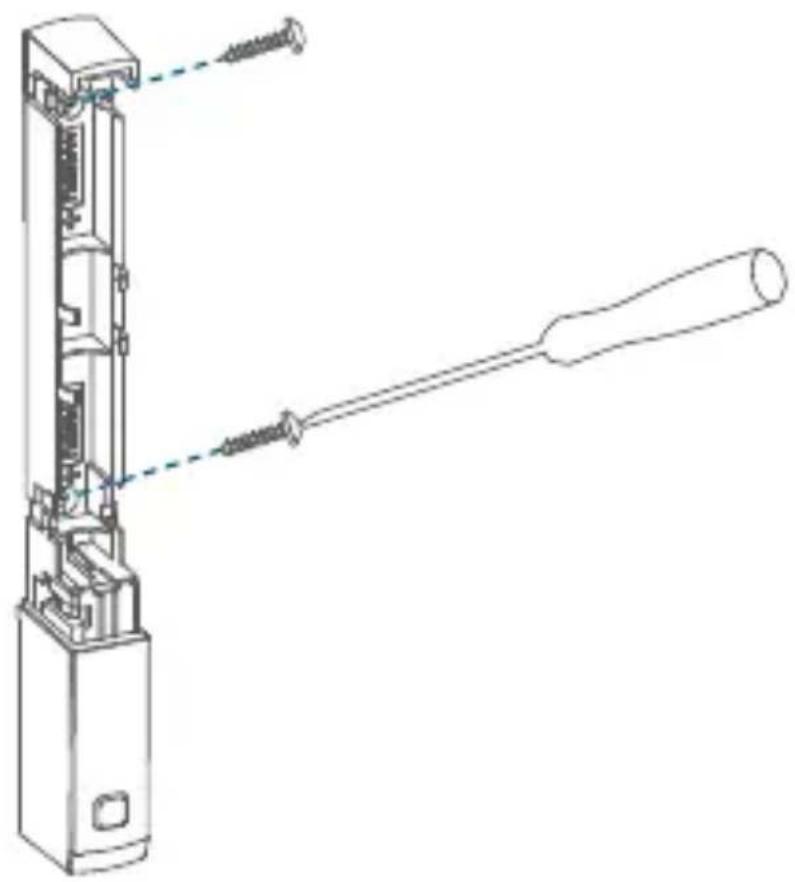

The screw holes (D) do not need to be pre-drilled. Simply screw in the screws through the plastic.

- Place the electronic unit (A) to the desired mounting location and turn both screws supplied into the window/door frame using the bore holes (see figure 7).

- Place the cap (B) to the electronic unit.

6 Replacing batteries

If an empty battery is displayed via the app or the device (see "7.4 Error codes and flashing sequences" on page 48), replace the used batteries by two new LR03/micro/AAA batteries. You must observe the correct battery polarity.

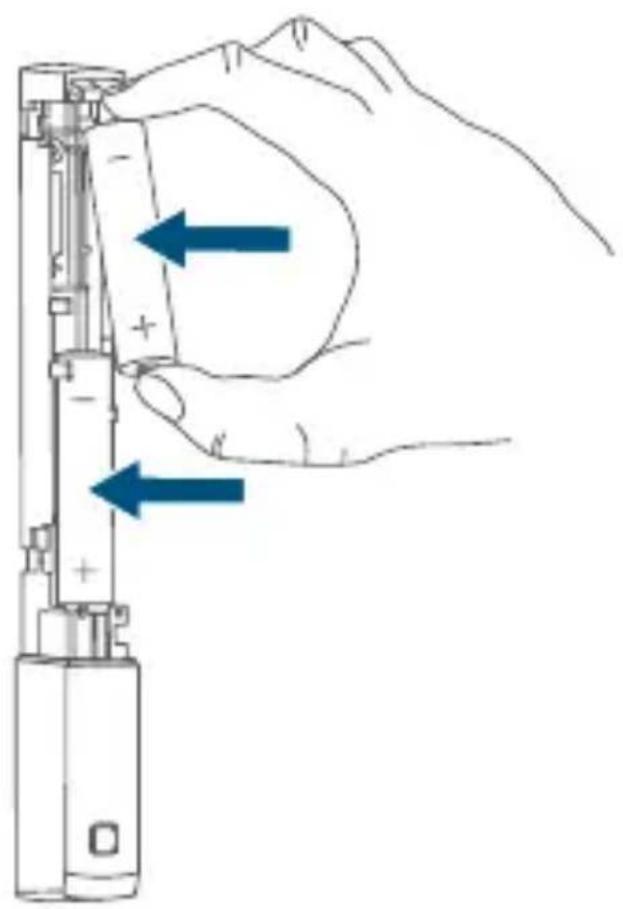

To replace the batteries, please proceed as follows:

• Open the battery compartment (C) by first pulling the cover cap (B) a little backwards and then upwards (see figure 2).
• Remove the empty batteries.
• Insert two new 1.5 V LR03/micro/AAA batteries into the battery compartment, making sure that you insert them the right way round (see figure 8).
• Pay attention to the flashing signals of the device LED (F) while inserting the batteries (see "7.4 Error codes and flashing sequences" on page 48).
• Put the cap back to the electronic unit (A).

Once the batteries have been inserted, the device will perform a self-test (approx. 2 seconds). Afterwards, initialisation is carried out. The LED test display will indicate that initialisation is complete by lighting up orange and green.

Caution! There is a risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type. Never recharge

non-rechargeable batteries. Do not throw the batteries into a fire. Do not expose batteries to excessive heat. Do not short-circuit batteries. Doing so will present a risk of explosion.

7 Troubleshooting

7.1 Weak batteries

Provided that the voltage value permits it, the device will remain ready for operation also if the battery voltage is low. Depending on the particular load, it may be possible to send transmissions again repeatedly, once the batteries have been allowed a brief recovery period.

If the voltage drops too far during transmission, this will be displayed on the device or via the Homematic IP app (see "7.4 Error codes and flashing sequences" on page 48). In this case, replace the empty batteries by two new batteries (see "6 Replacing batteries" on page 45).

7.2 Command not confirmed

If at least one receiver does not confirm a command, the device LED (F) lights up red at the end of the failed transmission process. The failed transmission may be caused by radio interference (see "10 General information about radio operation" on page 51). The failed transmission may also be caused by the following:

• Receiver cannot be reached.
• Receiver is unable to execute the command (load

failure, mechanical blockade, etc.).

- Receiver is defective.

7.3 Duty cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range.

In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation.

During normal operation, the duty cycle is not usually reached. However, repeated and radio-intensive teach-in processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by one long flash of the device LED (F), and may manifest itself in the device temporarily working incorrectly. The device starts working correctly again after a short period (max. 1 hour).

7.4 Error codes and flashing sequences

Flashing code	Meaning Solution
Short orange flashing	Radio transmission/at-tempting to transmit/data transmission	Wait until the transmis-sion is completed.
1x long green lighting	Transmission confirmed	You can continue operation.
1x long red lighting	Transmission failed or duty cycle limit is reached	Please try again (see sec. “7.2 Command not confirmed” on page 46 or “7.3 Duty cycle” on page 47).
Short orange flashing (every 10 s)	Teach-in mode active	Enter the last four num-bers of the device serial number to confirm (see “5.1 Pairing” on page 38).
Short orange lighting (after green or red confirmation)	Batteries empty	Replace the batteries of the device (see “6 Replacing batteries” on page 45).
Long and short orange flashing (alternating)	Device soft-ware update (OTAU)	Wait until the update is completed.
6x long red flashing	Device defective	Have a look at your app for error message or contact your retailer.
1x orange and 1 x green lighting (after inserting batteries)	Test display Once	Once the test display has stopped, you can continue.

8 Restore factory settings

The factory settings of the device can be restored. If you do this, you will lose all your settings.

To restore the factory settings of the device, proceed as follows:

• Open the battery compartment (C) by first pulling the cover cap (B) a little backwards and then upwards (see figure 2).
• Remove a battery.

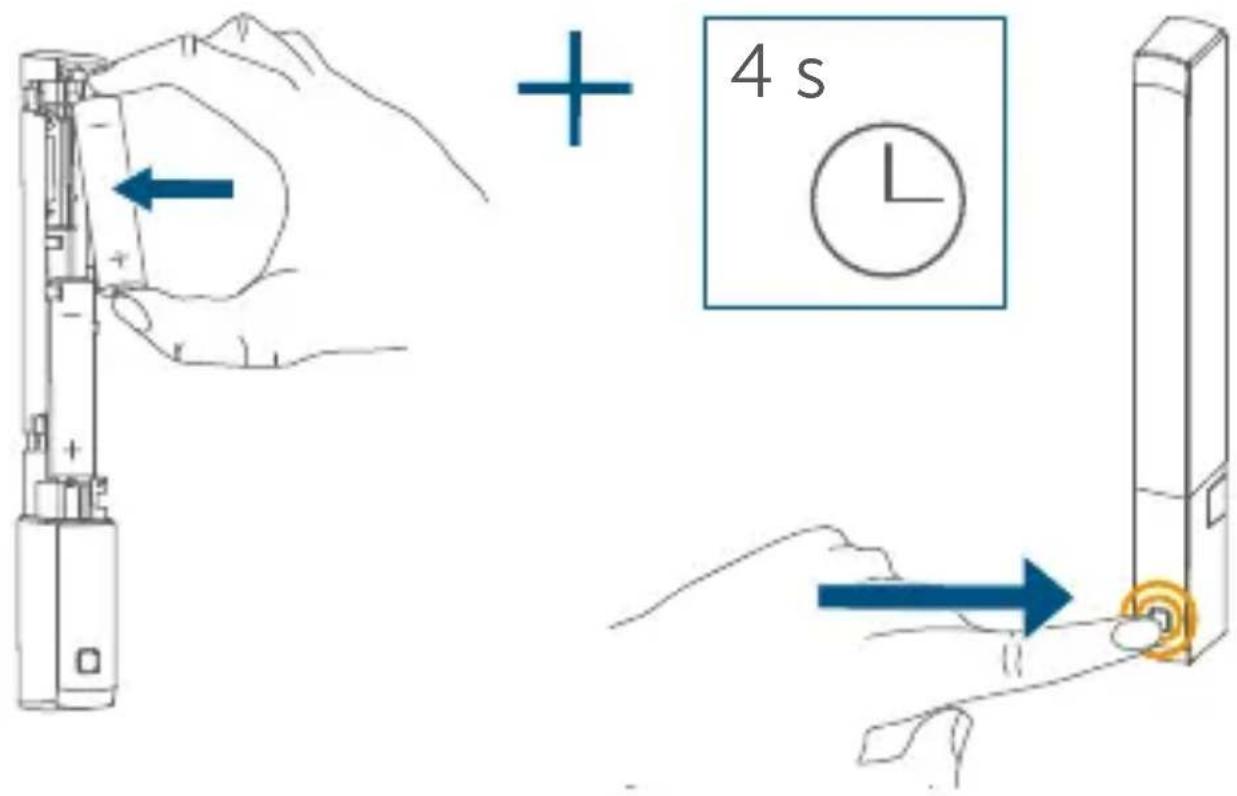

• Re-insert the battery making sure that it is right way around while pressing the system button (F) at the same time. Press and hold down the system button until the device LED (F) starts to flash quickly orange (see figure 9).

• Release the system button briefly and then press and hold the system button again until the orange flashing changes to a green lighting (see figure 10).

• Release the system button to finish the procedure.

The device will perform a restart.

9 Maintenance and cleaning

This product does not require you to carry out any maintenance other than replacing the battery when necessary. Enlist the help of an expert to carry out any repairs.

Clean the device using a soft, lint-free cloth that is clean and dry. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

10 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity have an important role to play, as do on-site structural/screening conditions.

Hereby, eQ-3 AG, Maiburger Str. 29, 26789 Leer/Germany declares that the radio equipment type Homematic IP HmlP-SWDO-PL-2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.homematic-ip.com

11 Technical specifications

Device short name: HmIP-SWDO-PL-2

Supply voltage: 2x 1.5 V LR03/micro/AAA

Current consumption: 30 mA max.

Battery life: 7 years (typ.)

Degree of protection: IP20

Ambient temperature: -20 to +55 °C

Dimensions (W x H x D): 147 x 20 x 16 mm

Weight: 47 g (including batteries)

Radio frequency band: 868.0-868.6 MHz 869.4-869.65 MHz

Maximum radiated power: 10 dBm

Receiver category: SRD category 2

Typ. open area RF range: 220 m

Duty cycle: < 1 % per h/< 10 % per h

Subject to technical changes.

Instructions for disposal

This symbol means that the device and the batteries or accumulators must not be disposed of as household waste, general waste, or in a yellow bin or yellow sack.

For the protection of health and the environment, you must take the product, all electronic parts included in the scope of delivery, and the batteries to a municipal collection point for old electrical and electronic equipment to ensure their correct disposal. Distributors of electrical and electronic equipment or batteries must also take back obsolete equipment or batteries free of charge.

By disposing of it separately, you are making a valuable contribution to the reuse, recycling and other methods of recovery of old devices and old batteries.

You must separate any old batteries and accumulators of old electrical and electronic devices from the old device if they are not enclosed by the old device before handing it over to a collection point and to dispose of them separately at the local collection points.

Please also remember that you, the end user, are responsible for deleting personal data on any old electrical and electronic equipment before disposing of it.

Information about conformity

The CE sign is a free trading sign addressed exclusively to the authorities and does not include any warranty of any properties.

For technical support, contact your specialist dealer.

Kostenloser Download der Homematic IP App! Free download of the Homematic IP app!

Blue QR code image, scannable for digital information retrieval

Blue QR code image containing encoded data

Bevollmächtigter des Herstellers: Manufacturer's authorised representative:

eQ-3 AG Maiburger Straße 29 26789 Leer / GERMANY www.eQ-3.de
