Product type	Radio remote control for ceiling fan (transmitter + receiver)
Brand	CasaFan
Model	FB-Powerboat
Code	85220
Rated voltage (receiver)	230 V ~ 50 Hz
Max. compatible motor power	115 W
Protection class	I
Number of motor speeds	3
Max. lighting power	300 W
Light dimmer	Yes (on model FB-Powerboat, adjustable via DIP 5)
Total weight (transmitter + receiver)	0.15 kg
Number of coding channels	4 (DIP switches 1-4)
Approximate range	30 m (free space)
Transmitter battery type	2 AAA batteries (not included)
Main functions	Motor On/Off, 3 speeds, lighting On/Off and dimmer control, selectable coding
Installation	Mounting in the suspension canopy or mounting plate depending on fan type; electrical installation by a specialist recommended
Safety	Cut off power before connection; do not use outdoors or in damp environments; comply with electrical standards
Maintenance	Clean with a dry cloth; do not use abrasive products
Package contents	1 transmitter with wall mount, 1 receiver
Intended use	Exclusively for controlling ceiling fans with or without lights

Frequently Asked Questions - FBPowerboat CasaFan

How to install the receiver of the FB-Powerboat remote control?

The receiver is mounted in the fan's suspension canopy (for rod models) or on the mounting plate (for FLAT, OFFICE FAN models). Follow the electrical connection diagram and ensure the fan's pull switch is set to the fastest speed before powering on.

How to code the transmitter and receiver?

Use DIP switches 1 to 4 on both the transmitter and receiver. Set them to the same position (all up by default). Switch 5 activates (ON) or deactivates (OFF) the light dimmer.

What to do if the remote control does not work?

Check the coding (DIP 1-4 identical), the transmitter batteries (not included), and that the fan's pull switch is on the fastest speed. Also ensure the power supply is properly connected.

Can I use this remote control with any CasaFan fan?

The FB-Powerboat remote control is designed for CasaFan ceiling fans. It is compatible with suspension rod models, FLAT, OFFICE FAN, and Vortice NORDIK. Check electrical compatibility (230 V, 50 Hz, max. motor power 115 W).

How to adjust the brightness of the light?

For FB-Powerboat models (with dimmer), press and hold the Light button to dim the light. Ensure that DIP switch 5 on the transmitter is set to ON. On the FB-Powerboat oD model, the light is On/Off only.

What to do if the fan only responds to certain commands?

Check the coding and batteries. If the problem persists, reset the coding by changing the position of the DIP switches on both devices. Also ensure the receiver is properly connected according to the diagram.

Can I use the remote control outdoors?

No, outdoor use, in garages, damp, or explosive environments is prohibited. The remote control is intended solely for indoor use in dry rooms.

How to clean the remote control?

Clean the transmitter with a dry, soft cloth. Do not use chemical or abrasive products. The receiver does not require any special maintenance.

What to do in case of malfunction after installation?

Immediately cut off the power supply. Check all connections and coding. If the problem persists, contact a qualified electrician. Damage due to improper installation is not covered by warranty.

How to change the fan rotation direction with this remote control?

The remote control does not allow changing the rotation direction. Use the direction switch (if present on the fan) only when the motor is completely stopped.

USER MANUAL FBPowerboat CasaFan

Close-up of a silver and black remote control device with four circular buttons (no visible text or symbols)

FB-Powerboat

Equipment Class 1 Sub-class 20 433,9 MHz

CE

Funk-Fernbedienung für Deckenventilatoren Radio remote control for ceiling fans Draadloze afstandsbediening voor plafondventilatoren Télécommande radio pour ventilateurs de plafond

Diagram showing three different cable connector configurations with arrows indicating assembly or movement (no text or symbols present)

Line drawing of a hand holding a cable with a small object inside, no text or symbols present

Simple line drawing of a container with a curved lid and a flat top, no text or symbols present.

Batterie Typ: 23A

About this operating instructions

Before using the CasaFan fan, read the operating instructions carefully. Keep the operating instructions within reach. Never pass the fan onto another person without the operating instructions.

Explanation of symbols:

ungerous electric voltage

urn the user of the dangers caused by electricity.

reful

rticular note for the user.

Describing the remote control FB-Powerboat

The CasaFan remote control FB-Powerboat is developed exclusively for controlling ceiling fans with and without light kits. The motor can be switched between 3 speeds and off. If present, a light kit could be switched independently from motor function on and off (FB-Powerboat oD) and dimmed by a full range dimmer (FB-Powerboat).

Technical data:	FB-Powerboat
Code	85220
Mains voltage 230 Volt ~ 50 Hz
Motor max power 115 Watt
Protection class I
No. of speeds 3
Power light kit max. 300 Watt
Full range dimmer selectable (DIP switch 5 in handpiece)
Weight app. 0,15 kg
Subject to change without notice

Content of packing box:

FB-Powerboat

1 Transmitter with holder

1 receiver

Batteries are not included.

tion

• Unpack the CasaFan fan, check if everything is contained and for signs of damage.
• Keep the packing out of reach of children and take the environment into account when disposing.

The pull chain switch of your fan must be set on highest speed. Damages as result of disregarding this rule are not covered by any warranty!

Only operate the unit when completely assembled!

Installation advice

rding to VDE 0100 rule this device should only be installed by a qualified nician.

• The voltage details on the nameplate are obliged to be conform with the available mains voltage. The building mains must be earthed!
• Do not damage the wires during the installation.
• The handling of the AC power line should ensure that it can not be damaged or pinched.
• Do not use this remote control in humid or wet rooms or rooms in danger of fire or explosion.
• Only for use with ceiling fans -
  Do not divert from its intended use!

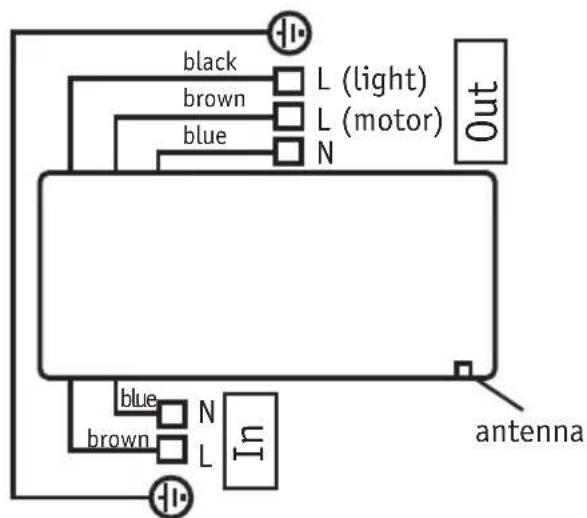

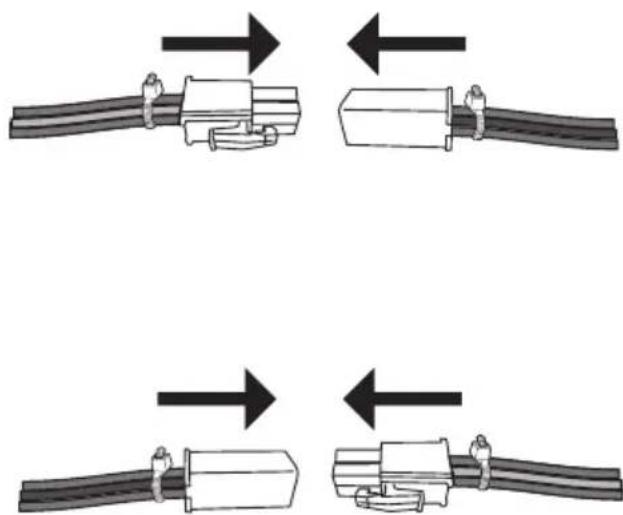

Electric wiring diagramm

Diagram showing four different cable connector configurations with arrows indicating assembly or movement (no text or symbols present)

CAUTION: Please follow the printing on the receiver!

Installation

Caution

-7 Disconnect the electricity before working on the electrics.

Prevent an accident switch on through a third party!

Positioning the remote control at fans with downrod

sketch 1

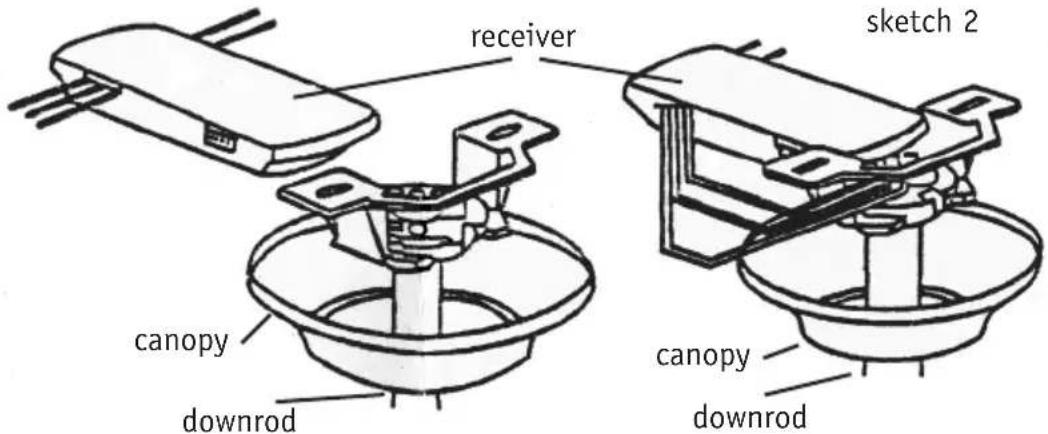

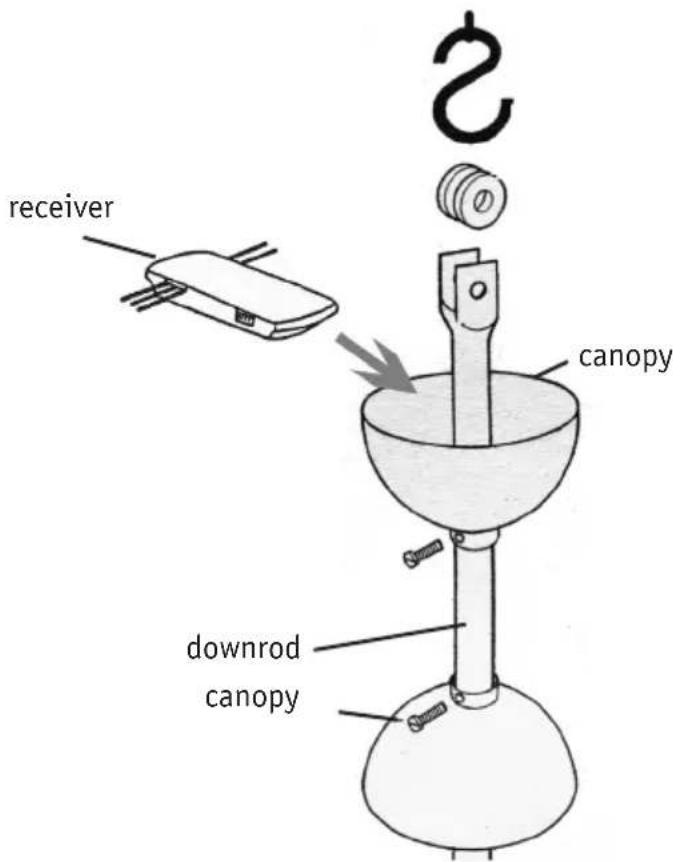

1. Place the receiver as shown in sketch 1 and 2 into the mounting bracket. Lay the back antenna wire on top of the receiver into the canopy.

2. Make the electrical connection to your fan as per wiring diagram on page 9. The handling of the AC power line should ensure that it can not be damaged or pinched!
   If the live to motor (L-motor) and live fan light (L-light) of your ceiling fan are connected combined, they must be separated BEFORE installing your remote control receiver.

3. Install the canopy on the monting bracket.

The pull chain switch of your ceiling fan must be set on highest speed.

After setting the mains supply back on your ceiling fan with the remote control it is ready to be used.

Positioning the remote control at CasaFan low profile fans as i.e. FLAT, GLASHAUS FLAT or OFFICE FAN

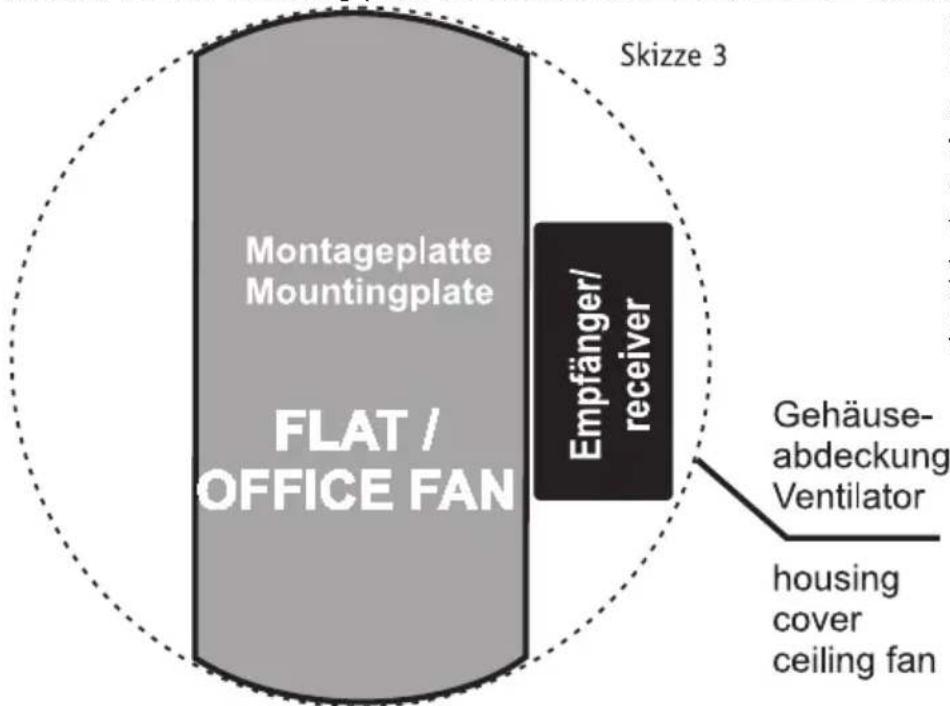

Please install the receiver of your remote control as shown schematically in sketch 3. After the electrical connection has been set up, use the self-adhesive stickers to attach the receiver onto the ceiling. If this is not possible, i.e. due to a rendering coat, cable straps need to be used for the mounting plate to assure that the receiver can not crash off the ceiling. Place the

antenna cable into the housing. The pull chain switch of your ceiling fan must be set on highest speed. After setting the mains supply back on your ceiling fan with the remote control it is ready to be used.

Positioning the remote control at Vortice ceiling fans of the NORDIK Series

For ceiling fans of Vortices NORDIK Series simply put the receiver into the upper canopy. Put the antenna wire into the upper canopy. Please secure the canopy against sliding downwards. Your ceiling fan with remote control is ready to be used.

Coding your FB-Powerboat

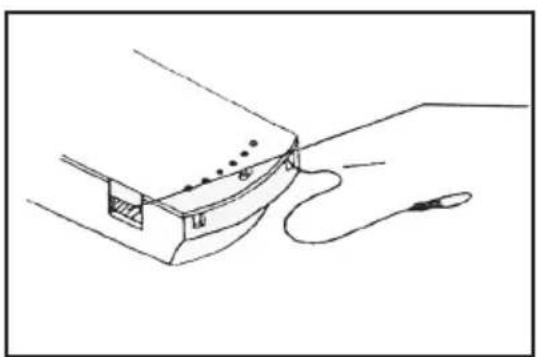

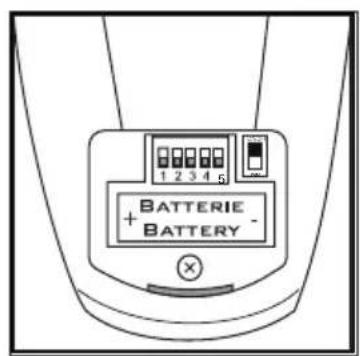

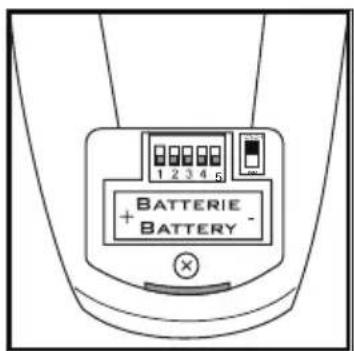

Receiver (sketch 4) and transmitter (sketch 5) must have the same code (1 - 4) setting! Slide code switches to your choice of up or down position.(Factory setting is all „up“). Use a small screwdriver or ball point pen to firmly slide up or down! The 5th pole of code switch is assigned as the special selection for light dimmer enable or light ON/OFF only (i.e. for using ESL-bulbs or non dimmable LED bulbs).

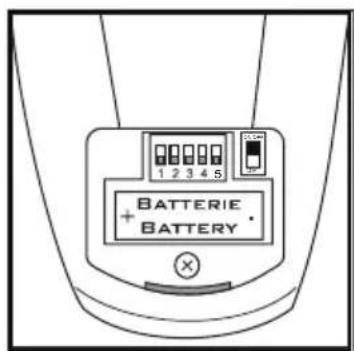

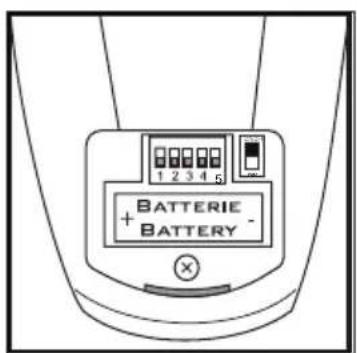

Sketch 4 Sketch 5

Line drawing of a hand holding a cable with a curved connector (no text or symbols)

Simple line drawing of a container with an inverted vise and a horizontal bar inside (no text or symbols)

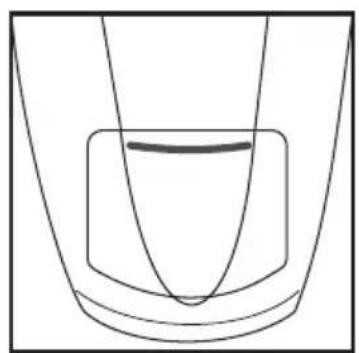

Battery Type: 23A

Functions of the remote control FB-Powerboat

Motor speeds: button 1 - lowest fan speed

button 2 - medium fan speed

button 3 - highest fan speed

button 0 - motor off

Light kit: button - Light on/off, continuous pressure on the light button dimms

light in a continuous cycle from lightest to darkest (FB-

Powerboat). No dimmer at model FB-Powerboat oD

STRICTLY

If your ceiling fan has a reverse function by slide switch, only reverse the fan while not in operation (motor OFF)! In case of nonobservance damages on the motor and/or the receiver they are not covered by the warranty.

IMPORTANT

This product conforms to EU Directive 2002/96/EC. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement.

It is the user's responsibility to dispose of this appliance trough the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials used in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance. Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.

Diagram showing three stages of connector assembly with arrows indicating direction (no text or symbols)

Line drawing of a cable being inserted into a device (no text or symbols)

Simple line drawing of a container with a curved lid and an inverted vise, no text or symbols present.

Batterij Typ: 23A

Diagram showing four different cable connector configurations with arrows indicating assembly or movement (no text or symbols present)

Line drawing of a cable being inserted into a device (no text or symbols)

Simple line drawing of a container with a curved lid and internal lines, no text or symbols present.

Batterie Typ: 23A

Declaration of Conformity in accordance with the Radio and Telecommunications Terminal Equipment Act (FTEG) and Directive 1999/5/EC (R&TTE Directive)

Hersteller/Manufacturer

EVT/Casafan-Ventilatoren

Above product complys at designated use with the basic requirements of § 3 and remaining regulations FTEG (Article 3 of R&TTE)

CasaFan reserves the right to make improving changes on products on sale.
