Product Type	2-zone Mixing Amplifier
Brand	Power Dynamics
Model	PRM1202
Mains Power Supply	220-240 VAC / 50 Hz (grounded plug, 10-16 A fuse)
DC Power Supply	24 VDC (screw terminals for mobile applications)
Output Power	120 W (Zone 1 and Zone 2, not specified per zone)
Speaker Impedance	8 Ω or 100 V (per zone selection)
Microphone Inputs	1 x XLR (Channel 1) + 2 x 6.35mm Jack (Channels 2/3, Micro or Line selectable)
Line Inputs	2 x RCA (Line 3 and Line 4), 2 x 6.35mm Jack (Line 1/2), 1 x USB, 1 x SD, BT
Line Outputs	2 x RCA (Zone 1 and Zone 2)
Speaker Outputs	Screw terminals Zone 1 and Zone 2 (COM, 8 Ω, 100 V)
Phantom Power	+20 V (via DIP switch on XLR mic input 1)
Micro Priority Function	VOX (DIP switch, mic 1 priority)
Equalization	Bass and treble per zone (Zone 1 and Zone 2)
Media Player	USB, SD, MP3, BT (Mode switch)
Wireless Connectivity	Bluetooth (name: PRM-AMPLIFIER, range 10 m)
Dimensions (approx.)	Not provided, estimated 48 x 30 x 10 cm
Weight (approx.)	Not provided, estimated 8-10 kg
Operating Temperature	5 °C to 35 °C (indoor)
Maintenance and Cleaning	Use a dry cloth, no chemicals
Maintenance Interval	Recharge battery every 3 months if not in use (if battery model)
Safety	Do not open, do not expose to moisture, disconnect before maintenance
Spare Parts	Use only original parts (fuse of same type and rating)
Repairability	Reserved for a qualified technician

Frequently Asked Questions - PRM1202 Power Dynamics

How to connect a Bluetooth device to the PRM1202?

Press the MODE button on the front panel to select the Bluetooth function. On your device (phone, tablet), enable Bluetooth and search for PRM-AMPLIFIER. Select it to establish the connection. If a code is requested, enter 0000. The maximum range is about 10 meters without obstacles.

Can I use condenser microphones with the PRM1202?

Yes, channel 1 (XLR input) has a +20 V phantom power that can be activated via the DIP switch marked Phantom. Connect your condenser microphone, set the switch to ON, and ensure the amplifier is turned off before changing this setting to avoid noise.

How to configure microphone priority (VOX)?

On the rear panel, next to the XLR mic 1 input, there are 4 DIP switches. The last one (marked VOX) enables the priority of mic 1: when set to ON, the sound from mic 1 temporarily cuts all other audio signals. Use this function for announcements or voice interventions.

What is the difference between 8 Ω and 100 V outputs?

The PRM1202 offers two types of output per zone: 8 Ω for low-impedance speakers (standard speakers) and 100 V for line systems (multiple speakers in parallel, typical for installed sound). You must choose one type per zone at installation, they cannot be used simultaneously.

How to connect 100 V line speakers?

Connect the + cable of the speaker to the 100V terminal and the - to the COM terminal of the desired zone. For multiple speakers, connect all + terminals together and all - terminals together (parallel). The total power of the speakers must not exceed 90% of the amplifier's power (about 108 W for a 120 W zone).

Can I power the PRM1202 with 24 V DC?

Yes, the PRM1202 has DC input terminals on the back (labeled DC INPUT + and -). You can connect it to a 24 VDC source (battery, external power supply) for mobile use (boat, fairground). Ensure correct polarity.

How to use the USB or SD player?

Insert a USB drive or SD card into the corresponding ports on the front panel. Press MODE to select USB or SD source. Use the Play/Pause, Previous, Next, Folder and Repeat buttons to control playback. MP3 files are supported.

What to do if the fuse blows?

First, disconnect the device from the mains. Open the fuse holder on the rear panel with a small screwdriver, remove the old fuse and replace it with a fuse of the same type and rating (see label). Replace the fuse holder. If the problem persists, consult a technician.

How to clean the PRM1202?

Use a dry cloth to clean the device. Never use chemicals, aerosols, or liquids, as they could damage the finish or cause a short circuit.

Can I repair the amplifier myself?

No, any repair must be carried out by a qualified technician only. Opening the case exposes you to dangerous voltages. Any unauthorized modification or repair voids the warranty.

USER MANUAL PRM1202 Power Dynamics

Power Dynamics Professional Audio

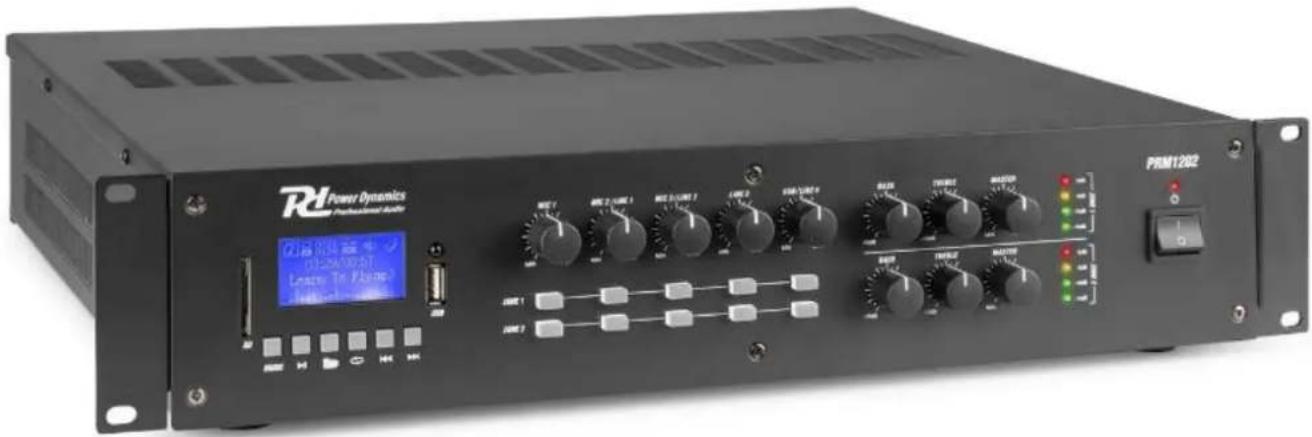

PRM1202 100V 2-Zone Mixer amplifier

Ref. nr.: 952.160

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

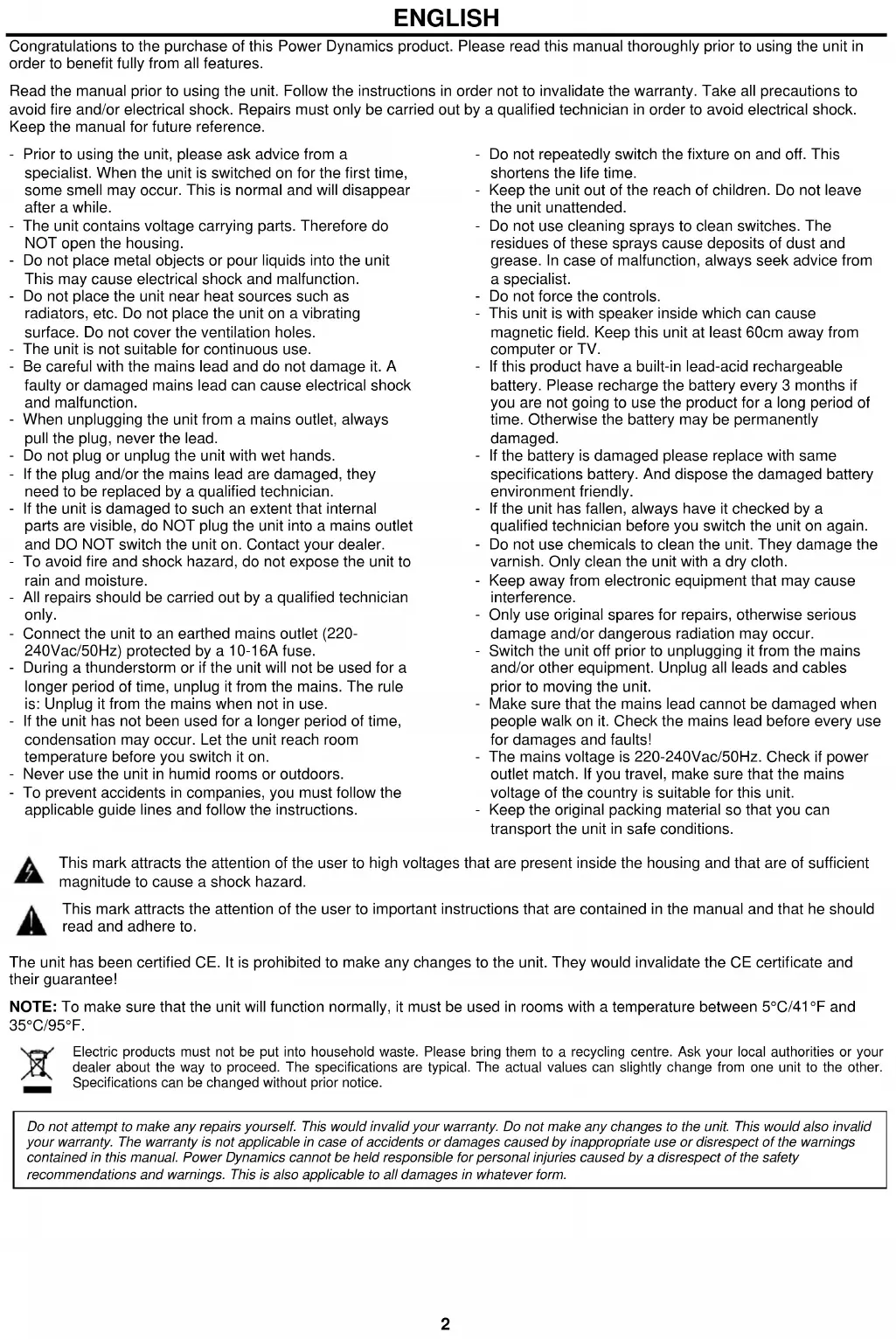

Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the device can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

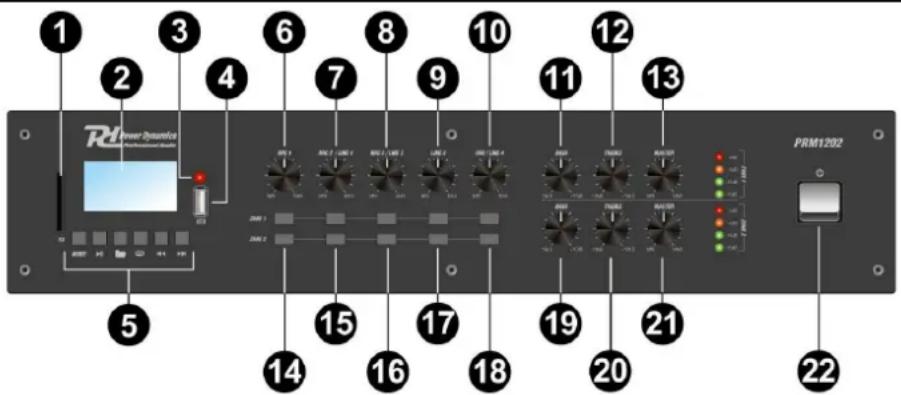

FRONT PANEL

1. Sd card slot
2. Mediaplayer display
3. Remote control sensor
4. USB Port
5. Media player buttons:

Mode - Press to change modes between playing SD, USB, MP3 and BT.

Play / pause - Press this button to start or pause play.

Folder - Press this button to enter FOLDER selection.

Repeat - Press the repeat button once to continually repeat ALL tracks, press repeat once more to repeat just the current track.

Previous - Press this button to go to the previous track. Press and hold to scan backwards within tracks.

Next - Press this button to go to the next track. Press and hold to scan forwards within tracks.

1. Microphone 1 level control
2. Microphone 2 or Line 1 level control
3. Microphone 3 or Line 2 level control
4. Line 3 level control
5. USB or Line 4 level control
6. Zone 1 Bass control
7. Zone 1 Treble control
8. Zone 1 Master volume control
9. Microphone 1 zone assign button
10. Microphone 2 or Line 1 zone assign button
11. Microphone 3 or Line 2 zone assign button
12. Line 3 zone assign button
13. USB or Line 4 zone assign button
14. Zone 2 Bass control
15. Zone 2 Treble control
16. Zone 2 Master volume control
17. Power on/off switch

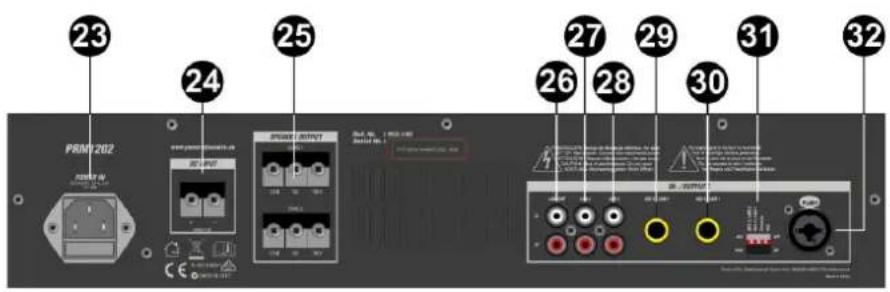

1. IEC Mains power inlet
2. 24V dc power terminals
3. Speaker output terminals Zone 1 and Zone2
4. Line output Zone 1 and Zone 2
5. Line 4 input (2x RCA)
6. Line 3 input (2x RCA)
7. Microphone 3 or Line 2 input 6.3mm jack
8. Microphone 2 or Line 1 input 6.3mm jack
9. Dip switch
10. Microphone 1 XLR input

DIP SWITCHES

Adjacent to the XLR microphone input for channel 1 is a bank of 4 DIP switches (31). The right-hand switch is marked 'VOX', which sets priority for Mic.1. When this is switched on, any sound through Mic.1 will temporarily mute other inputs.

The next DIP switch enables +20V phantom power on the Mic.1 XLR input. Some condenser microphones require this phantom power to operate.

The 2 remaining DIP switches are used to set channels to Mic or Line level.

Noted: Be sure to make these DIP switch settings when the amplifier is switched off. Making any changes when the amplifier is powered up may cause loud bangs through the system which can damage the speakers.

SPEAKER OUTPUTS

The PRM1202 has a separate speaker output for each zone (25) connected via a single terminal block.

Each zone output can be used to power either 100V line speakers or 8Ω speakers.

These configurations cannot be used together, so it is important to decide which will be used at the start.

DC INPUT

The PRM1202 can be operated by 24Vdc power for mobile applications (boats, fairgrounds etc.) For this type of application, connect the 24Vdc power source to the DC input terminals on the rear panel (24).

CONNECTING WITH BT

1. Activate the BT-function on your device (Mobile phone, tablet etc.) from which you want to play the music. See the operating instructions for that device.
2. Press the "BT" button and activate BT-function.
3. Select "PRM-AMPLIFIER" on your BT-device and make the BT-connection

If password is required, you can enter "0000".

Attention: The BT distance is approx. 10 meter without any barrier.

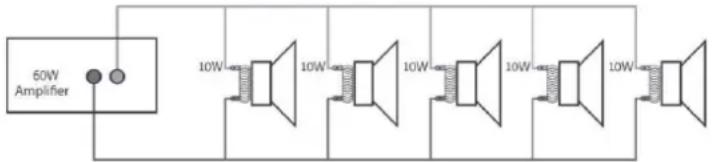

100V SYSTEM

For 100V line systems, connect the amplifier to the first speaker in the system using double-insulated speaker wire which has adequate current rating to handle the total output of the amplifier.

Connect the “100V” output terminal to the positive (+) connection of the speaker and “COM” output to the negative (-) connection of the speaker. Connect further speakers in parallel to the first speaker with all positive terminals and connected together and all negative terminals connected together as shown below.

A 100V line speaker system can comprise of many speakers connected together. The determining factor for how many speakers can be used on a single amplifier is the power rating. For most purposes, it is advised to connect as many speakers as needed with a combined wattage of no more than 90% of the amplifier's output power rating. The terminals of a 100V speaker are connected to a transformer and in some cases, this transformer may be "tapped" for different power ratings. These tapings can be used to adjust the wattage (and output volume) of each speaker in the system to help achieve the ideal total power of the system for the amplifier.

LOW IMPEDANCE SYSTEMS

Alternatively, each zone output of the PRM1202 can power a low impedance loudspeaker. There is an option on each zone for an 8Ω speaker output to determine the minimum impedance.

It is essential to select the correct output terminal when opting for low impedance speakers.

For a 8Ω speaker, connect the positive (+) wire to the "8Ω" terminal and the negative (-) wire to "COM"

Note: Lower impedance may cause irreparable damage to the amplifier.

The connected loudspeaker(s) must also have sufficient power to accept the zone output.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead. Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

1. Ranura para tarjeta Sd
2. Mediaplayer display
3. Sensor de control remoto
4. Puerto USB
5. Botones del Media player:

REPLACEMENT DU FUSIBLE

Dimensions (L x W x H) : 390 x 385 x 95mm (without feet 88mm)

Weight : 14,00kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.
