Congratulations to the purchase of this Power Dynamics product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on.
• Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Power Dynamics cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

OVERVIEW

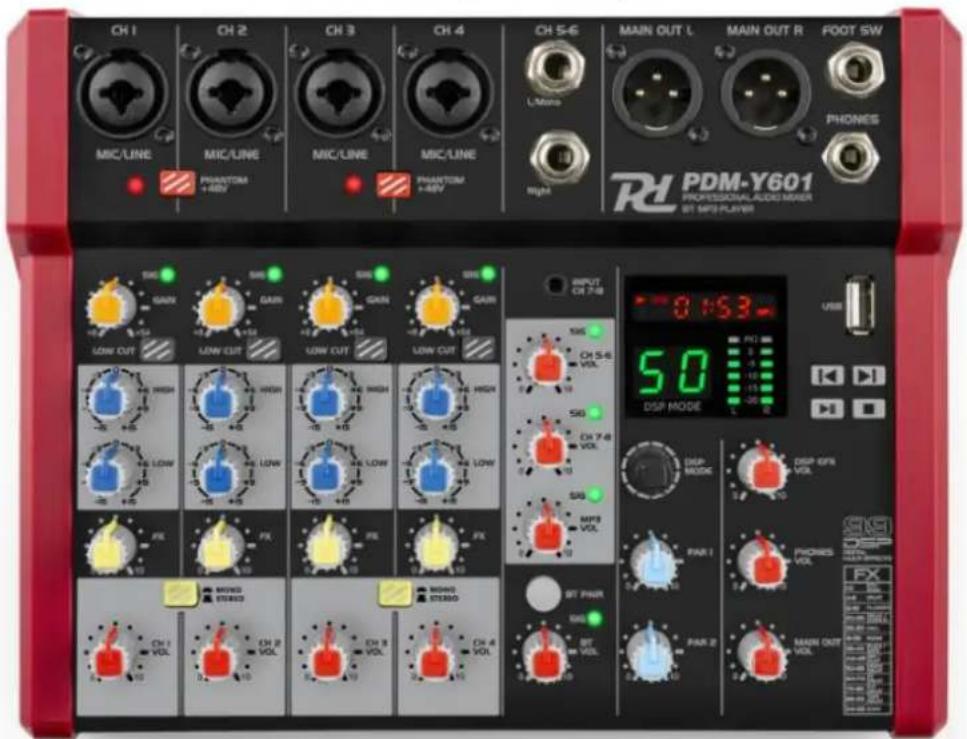

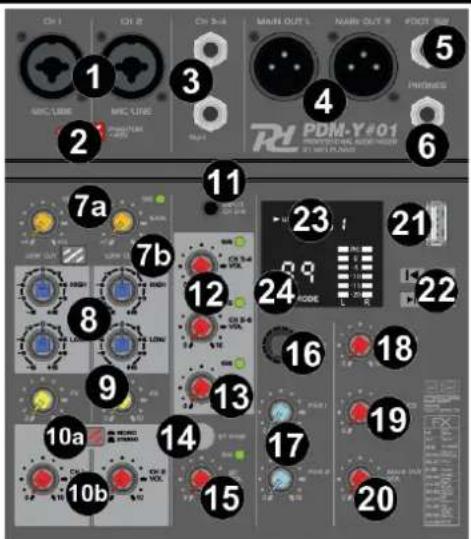

1. MICROPHONE/LINE/GUITAR INPUT

Balanced XLR and 6.3mm (1/4") combo input jacks for connecting microphone, musical instrument or audio device.

2. +48V PHANTOM SWITCH

This switch toggles phantom power on and off. When the switch is on the mixer supplies +48V phantom power to all channels that have XLR inputs. Turn this switch on when using one or more phantom-powered condenser microphones.

3. CHANNEL 3 AND 4 INPUT

6.3mm input jacks. For MONO, use left input.

4. MAIN OUTPUT

XLR connectors for main mix output.

5. FOOT SWITCH

6.3mm jack for DSP processor mute switch (foot).

6. HEADPHONE OUTPUT

6.3mm jack headphone monitor output.

7. GAIN AND LOW CUT

A. Channel 1 and 2 gain knob. Rotate to adjust the input sensitivity of the MIC/LINE input. B. Press the low cut button to "cut out" the low frequency sound input from the microphone.

8. HIGH AND LOW

Rotate to adjust the low- (bass) and high (treble) frequency levels.

9. FX

Rotate to adjust the volume level of the corresponding channel that is fed to the effects processor.

10. STEREO/MONO AND MAIN VOLUME

A. Press to select mono mode. Bump (up) to select stereo mode. When in mono mode, the signal of the 2 channels are equally sent to the left and right main mix. In stereo mode, both channels are kept separate. B. Rotate to adjust the channel signal level that is sent to the main mix.

11. CHANNEL 5 AND 6 INPUT

3.5mm TRRS input jack. TRRS schedule as below:

$$ T = \text { Left } R 1 = \text { Right } R 2 = \text { GND } S = \text { MIC } $$

12. CHANNEL 3/4 AND 5/6 VOLUME

Rotate to adjust the corresponding channel's volume level in the main mix.

13. MP3 VOLUME

Rotate to adjust the MP3 channel's volume level in the main mix.

14. BT PAIR

Press the button to initiate the searching state (the button will be blinking quickly). The PDM mixer will be findable on the BT streaming device. After successful pairing, the button will be illuminated. When playing via BT, the button will be blinking slowly. Long press the button to end the pairing, searching state will be initiated again.

15. BT VOLUME

Rotate to adjust the BT channel's volume level in the main mix.

16. DSP CONTROL

DSP effects mode selection- and confirmation knob.

17. PARA

Rotate to adjust the parameters of the DSP effects processor.

18. DSP VOLUME

Rotate to adjust the DSP effect volume level in the main mix.

19. HEADPHONE VOLUME

Rotate to adjust the headphone output volume.

Ch 1 Ch 2 Ch 3-4 MAIN OUT L MAIN OUT B FOOT OUT MIC LIME MIC LIME R1 PDM-Y#01 2 3 4 6 7a 7b 8 9 10a 10b 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

PDM-YY 2011 25 PDM- 26 CE C E PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2010 PDM-YY 2010 PDM-YY 2010 PDM-YY 2010 PDM-YY 2010 PDM-YY 2010 PDM-YY 2010 PDM-YY 2010 PDM-YY 2010 PDM-YY 2010 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2011 PDM-YY 2012 PDM-YY 2012 PDM-YY 2012 PDM-YY 2012 PDM-YY 2012 PDM-YY 2012 PDM-YY 2012 PDM-YY 2013 PDM-YY 2013 PDM-YY 2013 PDM-YY 2013 PDM-YY 2013 PDM-YY 2013 PDM-YY 2013 PDM-YY 2014 PDM-YY 2014 PDM-YY 2014 PDM-YY 2014 PDM-YY 2014 PDM-YY 2014 PDM-YY 2014 PDM-YY 2015 PDM-YY 2015 PDM-YY 2015 PDM-YY 2015 PDM-YY 2015 PDM-YY 2015 PDM-YY 2016 PDM-YY 2016 PDM-YY 2016 PDM-YY 2016 PDM-YY 2016 PDM-YY 2016 PDM-YY 2017 PDM-YY 2017 PDM-YY 2017 PDM-YY 2017 PDM-YY 2017 PDM-YY 2018 PDM-YY 2018 PDM-YY 2018 PDM-YY 2018 PDM-YY 2018 PDM-YY 2019 PDM-YY 2019 PDM-YY 2019 PDM-YY 2019 PDM-YY 2020

20. MAIN VOLUME

Rotate to adjust the main output volume.

21. USB

USB port interface for playback and connection with PC.

22. MEDIA PLAYER CONTROLS

Operating keys for controlling the media player.

Previous: press to change to previous track.

Next: press to skip to next track.

Play/pause: press to (re)start or pause playback.

Stop: press to stop playback.

23. MEDIAPLAYER DISPLAY

Shows playback state and -information.

24. DSP DISPLAY

Shows current DSP mode.

25. DC POWER SUPPLY INPUT SOCKET

5V/1A USB type C connector.

26. POWER ON/OFF

Press to turn the device on/off.

MEDIA PLAYER AND SOUND CARD

MEDIA PLAYER

Insert a USB drive into the USB port interface, playback will start automatically. Press previous or next to change tracks, press pause/play to switch between playback and pause state.

Press and hold play/pause during USB playback to switch between different repeat modes (all, one, shuffle).

ALL: repeat complete folder.

ONE: repeat current (one) track.

SHUFFLE: play folder in shuffle mode.

USB ALL MP3 USB ONE MP3 USB SHU MP3

SOUNDCARD

After connecting with a PC via a USB cable, the working mode will change to USB sound card.
