Product type	Manual winch
Brand	Toolland
Model	WHW250
Rated load capacity	250 kg
Gear ratio	3.1:1
Weight	1980 g (1.98 kg)
Frame thickness	3.2 mm
Gear thickness	7.0 mm
Material	Steel with electrostatic black coating
Color	Black
Sling type	Rope or steel cable (not included)
Maximum lifting angle	4° horizontally and vertically
Operating temperature	-10 °C to +50 °C
Minimum number of wraps on drum	4 to 6
Mounting	3 bolts of 3/8" (M10) (not included)
Use	Manual lifting and pulling of loads
Maintenance	Lubricate cable and gear regularly
Warranty	24 months (non-professional use)

Frequently Asked Questions - WHW250 Toolland

How to install the Toolland WHW250 winch?

Choose a solid mounting surface. Ensure it can support the winch and load. Mark the holes, drill, then fasten the frame with three 3/8" (M10) bolts, washers and lock nuts (not included). Verify that the crank can rotate freely 360°.

What is the maximum load capacity of the WHW250?

The rated capacity is 250 kg on a single layer of cable. Capacity decreases if multiple layers are wound on the drum. Never exceed this load.

How to install a rope on the winch?

Lower the pawl to release the drum. Thread the rope end under the drum hub, then through the holes on the side. Raise the pawl, then turn the crank clockwise to wind the rope. Attach the hook to the anchor after winding.

How to install a steel cable?

Use a cable clamp (not included). Lower the pawl, secure the cable clamp in the square holes of the drum. Thread the cable under the hub, into the round hole, then into the cable clamp leaving 2.5 cm protruding. Tighten the nut. Raise the pawl and wind the cable.

What are the essential safety precautions?

Never exceed the rated load. Do not wear loose clothing, tie up hair. Wear gloves and goggles. Do not release the crank under load. Always leave at least 4 to 6 wraps on the drum. Do not use if parts are damaged.

Can the winch be used for horizontal pulling?

No, the winch is designed for vertical lifting and hauling. Do not use for horizontal traction or to move people.

How to maintain the WHW250 winch?

Before each use, check that all fasteners are tight and the sling is not damaged. After use, clean surfaces with a cloth. Regularly lubricate the steel cable with light oil and the gear with grease.

What to do if the winch makes an abnormal noise?

Stop using immediately. Do not use damaged equipment. Have it inspected and repaired by a qualified technician using identical replacement parts.

How to remove an old cable?

Remove any load, lower the pawl, unwind the cable completely. Loosen the cable clamp nut and disconnect the cable. Caution: the cable may whip violently under tension. Inspect components before installing a new cable.

What is the warranty of the Toolland WHW250 winch?

The warranty is 24 months for non-professional use, against manufacturing or material defects. Normal wear, damage from neglect or incorrect use are excluded. Keep the receipt.

USER MANUAL WHW250 Toolland

Mechanical hand pump with black frame and gear mechanism (no text or symbols visible)

USER MANUAL 4

GEBRUIKERSHANDLEIDING 13

MODE D'EMPLOI 22

MANUAL DEL USUARIO 32

A B C D E F G Ø95

A	95 mm
B	104 mm
C	89 mm
D	50 mm
E	230 mm
F	205 mm
G	11 mm

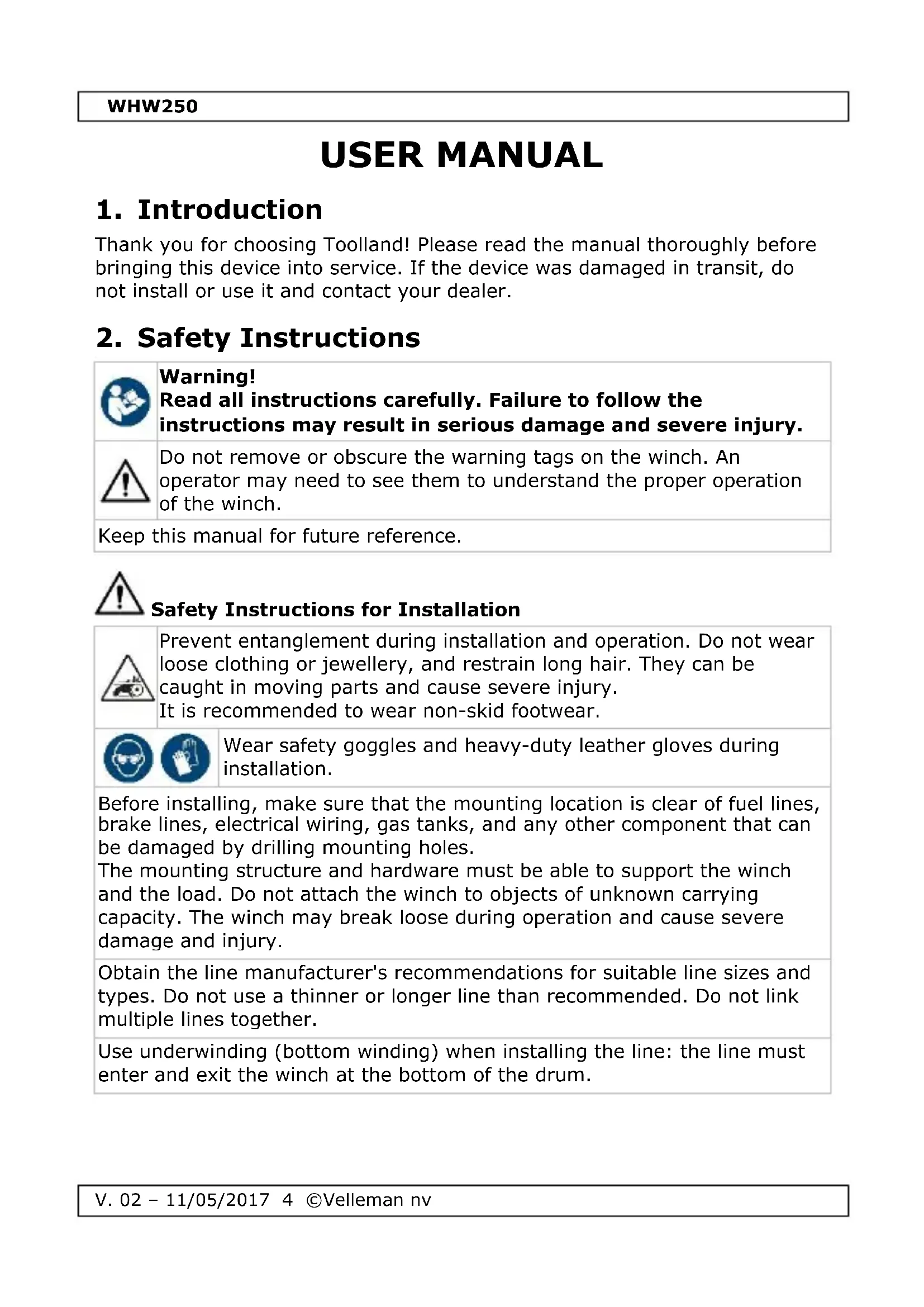

USER MANUAL

1. Introduction

Thank you for choosing Toolland! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Warning!

Read all instructions carefully. Failure to follow the instructions may result in serious damage and severe injury.

Do not remove or obscure the warning tags on the winch. An operator may need to see them to understand the proper operation of the winch.

Keep this manual for future reference.

Safety Instructions for Installation

Prevent entanglement during installation and operation. Do not wear loose clothing or jewellery, and restrain long hair. They can be caught in moving parts and cause severe injury. It is recommended to wear non-skid footwear.

Wear safety goggles and heavy-duty leather gloves during installation.

Before installing, make sure that the mounting location is clear of fuel lines, brake lines, electrical wiring, gas tanks, and any other component that can be damaged by drilling mounting holes.

The mounting structure and hardware must be able to support the winch and the load. Do not attach the winch to objects of unknown carrying capacity. The winch may break loose during operation and cause severe damage and injury.

Obtain the line manufacturer's recommendations for suitable line sizes and types. Do not use a thinner or longer line than recommended. Do not link multiple lines together.

Use underwinding (bottom winding) when installing the line: the line must enter and exit the winch at the bottom of the drum.

Safety Instructions for Operation

Do not load the winch beyond its rated capacity. The capacity is based on one layer of line around the drum. As the line builds on the drum, the capacity decreases.Be aware of dynamic loads! Sudden movements may create brief excessive loads that can cause product failure.If any part of the winch starts to bend, deform, or show any signs of damage, stop using the winch immediately.
Use the winch only for hauling or pulling loads. Do not use the winch for lifting loads vertically. Do not use the winch for moving people.
	Prevent entanglement during installation and operation. Do not wear loose clothing or jewellery, and restrain long hair. They can be caught in moving parts and cause severe injury.It is recommended to wear non-skid footwear.
		Wear safety goggles and heavy-duty leather gloves during operation.
Never try to guide the line while winching. Broken cable strands are sharp. Never slide cable through your hands, even if you are wearing gloves.
Keep away from the winching area during operation. If the line slips or breaks, it may whip back, which can cause damage and severe injury. Place a heavy blanket or rug (not incl.) over the line. The weight of the cloth acts as a damper and prevents the broken line from whipping.Do not step over the line with a load attached. Do not push against a load-bearing line; this may overload the line and cause it to break.Do not allow people to stand on or behind the load.
Examine the device for safe operation before each use. Make sure that all nuts and bolts are tight.Salts, chemicals, and rust can affect components. Do not use if you notice damaged or loose parts, structural cracks, bends, or any other condition that may affect the safe operation of the winch. Do not use the winch even if only minor damage appears.If the spring is broken or the locking system fails, stop using the winch immediately and contact your dealer for repair.

WHW250

Do not operate the winch if the line is knotted, twisted, kinked, frayed, corroded, or shows any sign of weakening. As soon as a loop starts to form in the line, stop the winch and straighten the loop. If you notice any damage to the line, replace it immediately.

Note that a kink permanently weakens a steel cable, even after you straighten it. Kinked cable can suddenly fail even before it reaches its load capacity. Never use cable that has been kinked.

Secure the load after moving. Winches are not designed to secure loads. Use tie-down ropes or straps to secure the load.

Warning! Never fully extend the line while under load.

Always keep at least 4 full turns of line on the drum to supply friction for proper anchoring. If not, the line may pull loose from the drum. Keep the line properly aligned on the drum.

Do not winch at an angle. This may damage the winch drum and the line. The recommended maximum winching angle is 4^ , both horizontally and vertically.

Do not operate the winch with other than manual power.

Never release the handle while winching a load. The handle may spin violently and cause serious injury. Never try to stop a spinning handle.

Boat trailers not equipped with keel and side hull rollers are designed to be submerged in the water when the boat is loaded; this means that the boat is "floated" onto the trailer. If the trailer is not submerged, attempts to drag the boat onto the trailer can cause winch failure and possible injury.

Keep hands and fingers clear of the winch and line during operation.

Always check the correct rotation direction before using the winch.

If used on a vehicle, do not move the vehicle to assist the winch. The combination of the winch and vehicle pulling together can overload the line.

Never hook the line back onto itself. This creates an unacceptable strain on the line. Do not loop the line around the load.

The ambient operating temperature is between -10 ^ and +50 ^ . Do not operate outside of these specifications.

Safety Instructions for Servicing

Wear safety goggles and heavy-duty leather gloves during maintenance.

When replacing a line, do not use a thinner or longer line than recommended by the manufacturer. Do not link multiple lines together.

Have the device repaired by a qualified service person using only identical replacement parts. This ensures that the safety of the device is maintained.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Keep this manual for future reference.

4. Features

• solid gear construction
- black electrostatic discharge coating finish against rusting
• internally lubricated drum and pinion gear bushings
- moulded handle for smooth rotation
- formed reinforcements in frame for added strength.

5. Overview

Refer to the illustrations on page 2 of this manual.

1	frame	4	drum
2	pawl	5	handle
3	shaft	6	mounting surface

6. Installation

Read the entire safety instructions at the beginning of this manual before installing the device.

1. Choose a suitable mounting location. Take care of the following points:

2. The mounting structure and hardware must be able to support the winch and the load without damage or weakening. If necessary, use steel reinforcement plates or additional bracing.
   ○ Make sure that the handle [5] can rotate freely by 360°.

3. Place the winch on the mounting surface [6] and mark the location of the mounting holes.

4. Before drilling, verify that there are no hidden parts or structural pieces in the mounting area that can be damaged.
5. Drill the holes at the marked locations.
6. Use three 3/8" (M10) bolts, washers, and lock nuts (not incl.) to fix the winch frame [1] on the mounting surface [6].

7. Installing the Winch Line

Make sure that the line is strong enough to move the load. Obtain the line manufacturer's recommendations for suitable line sizes and types. Use an appropriate end connection to attach the hook to the line. (Cable, rope, hook, and hardware for attaching are not included.) Always follow the line manufacturer's safety and operation instructions.

You can use the winch either with a rope or with a steel cable (wire rope). The attachment method differs depending on the type of line.

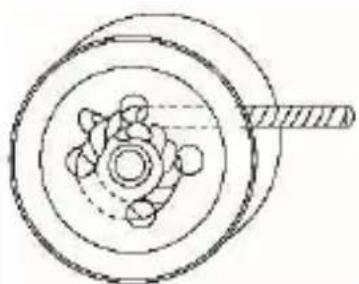

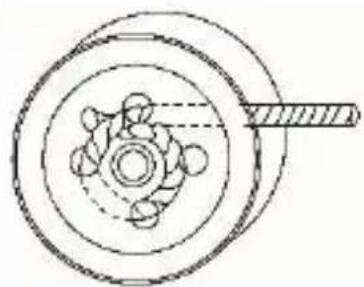

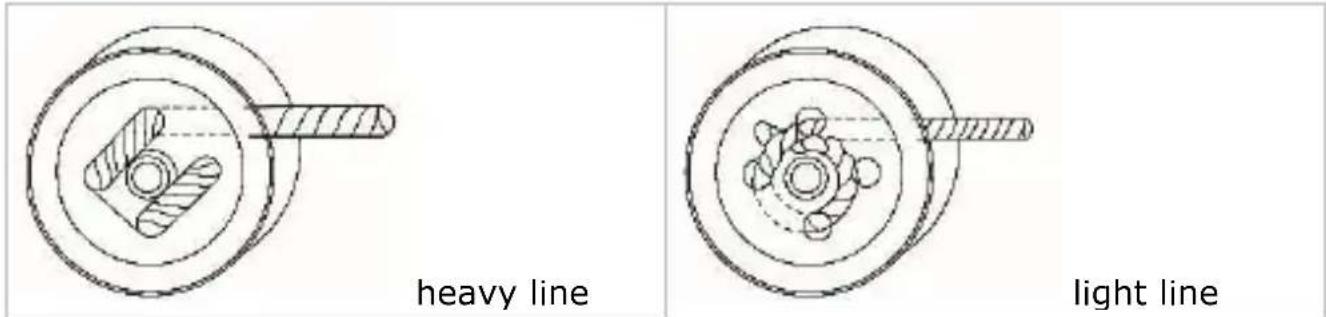

7.1 Rope

Attaching a rope to the winch drum requires no bolts, nuts, or rope clamp.

1. Push the pawl [2] down so that it is disengaged from the gear and the drum can rotate freely.
2. Guide the rope end under the hub of the drum [4].
3. Thread the rope through the round holes in the drum's side. There are two methods, depending on the weight of the line. See the illustration below for instructions.

1. Push the pawl [2] up so that it engages with the gear.
2. Turn the handle clockwise to reel in the rope. Pack the coils tightly side by side, so that the next layers cannot slip between the coils.
3. When you have reeled in the rope, attach the hook to the shaft [3] to prevent that the rope unwinds.

7.2 Cable

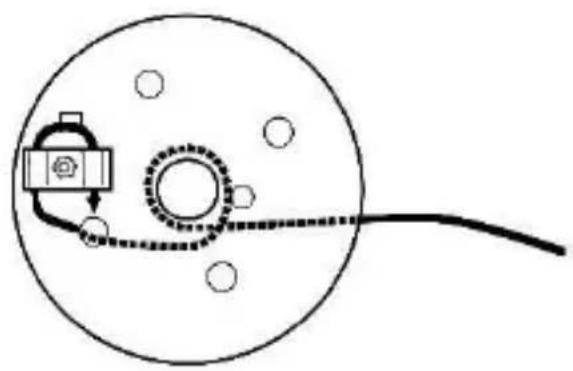

Attaching a Cable

Attaching cable requires a cable clamp (not incl.). To attach a cable to the winch drum, proceed as follows:

1. Push the pawl [2] down so that it is disengaged from the gear and the drum can rotate freely.
2. Attach the clamp with the bolt through the square hole in the drum's side. The bolt goes on the inside, the locking nut and washer on the outside. Do not tighten the nut yet.

Simple line drawing of a circular device with a central component and connected cable (no text or symbols)

1. Guide the cable end under the hub of the drum [4].
2. Thread the cable through a round hole in the drum's side.
3. Thread the cable further through the clamp and make sure that the end protrudes about 1" (2.5 cm).
4. Tighten the nut firmly.
5. Push the pawl [2] up so that it engages with the gear.
6. Turn the handle clockwise to reel in the cable. Pack the coils tightly side by side, so that the next layers cannot slip between the coils. Warning! Prevent kinks in the cable.
7. When you have reeled in the cable, attach the hook to the shaft [3] to prevent that the cable unwinds.

Detaching a Cable

Warning! Be very careful when you detach an old cable. The cable clamp holds the cable under tension, and the cable may spring back forcefully.

WHW250

To detach an old cable, proceed as follows:

1. Detach any load from the cable.
2. Push the pawl [2] down so that it is disengaged from the gear and the drum can rotate freely.
3. Reel out the entire cable.
4. Loosen the clamp nut and remove the cable from under the clamp.
5. Inspect all parts of the drum and clamp before installing a new cable.

8. Operation

8.1 Precautions

Warning! Read all instructions carefully. Failure to follow the instructions may result in serious damage and severe injury.

Warning! To prevent serious injury from winch failure, do not use damaged equipment. If you observe any abnormal noise or vibration, stop using the device immediately and have it serviced by a qualified technician.

Before use, make sure that the load is within the rated capacity. If any part of the winch starts to bend, deform, or show any signs of damage, stop using the winch immediately.

Warning! Do not let go of the handle when the pawl is in the unlocked position while there is a load on the winch. The handle can spin violently and cause serious injury. Never try to stop a spinning handle.

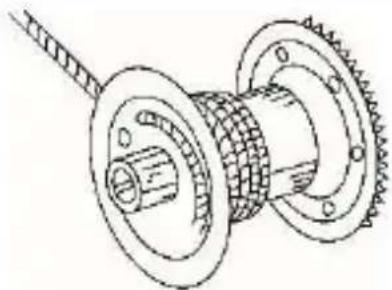

Never unwind the line fully when pulling a load. Always keep 4 to 6 complete turns of line around the drum; otherwise, the line may come loose from the drum.

Technical line drawing of a mechanical gear assembly with no visible text or symbols

8.2 Winching

To winch a load, proceed as follows:

1. Before connecting the line to the load, make sure that the winch and line are capable of pulling the load.
2. Push the pawl [2] down so that the drum can rotate freely.
3. Detach the hook from the shaft and pull the line to unroll it from the drum. The line and hook must be routed under the shaft [3].
   Warning! Make sure that the line does not get knotted, twisted, kinked or damaged.
   Warning! Leave at least 4 full turns of line on the drum.

WHW250

1. Attach the line to the load. For this purpose, carefully follow the instructions of the line/hook manufacturer.

2. Place a heavy blanket or rug (not incl.) over the line.

Simple line diagram showing a block connected to a rectangle via a line (no text or symbols)

Warning! Keep all bystanders away from the winch, the line, and the load.

1. Push the pawl [2] up so that it engages with the gear.

2. Turn the handle clockwise to reel in the load. When winding the line on the drum, pack the coils tightly side by side, so that the next layers cannot slip between the coils.

3. When the load is reeled in, secure it.

4. When the load is secured, push the pawl down and turn the handle counter-clockwise to release the strain on the line.

5. Remove the blanket or rug, and detach the line from the load.

6. Turn the handle clockwise to wind the line on the drum, and attach the hook to the shaft.

9. Inspection and Maintenance

Only perform the maintenance as described in this manual. Any other repair or maintenance must be performed by a qualified service person using only identical replacement parts. This ensures that the safety of the device is maintained.

Before Each Use

Salts, chemicals, and rust can affect components. Before each use, inspect the general condition of the winch and line. Check for the following aspects:

• All hardware is tightly fixed.
• Moving parts are properly aligned and free to move.
• Parts are not broken or cracked.
• The line is not frayed, kinked, or damaged in any other way.
• Check for any other condition that may affect safe operation.

After Each Use

After use, wipe the external surfaces of the winch clean with a cloth.

Periodical Maintenance

Periodically, lubricate the steel cable with a light oil.

Lubricate the gear with gear grease.

10. Technical Specifications

gear ratio		3.1:1
working capacity		250 kg
dimensions: see illustration on page 2
	body thickness	3.2 mm
	gear thickness	7.0 mm
weight		1980 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.toolland.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Simple diagram showing a block connected by a line with a gray block inside, no text or symbols present.

Simple line drawing of a circular object with internal components and a curved line extending from it (no text or symbols)

WHW250

Technical line drawing of a mechanical gear assembly with no visible text or symbols

8.2 Takelen

Simple line diagram showing a block connected to a rectangle via a diagonal line (no text or symbols)

Simple line diagram showing a block connected to a gray block and a rectangular block (no text or symbols)

Technical drawing of a mechanical component with concentric circles and a handle (no text or symbols)

élingue lourde

Technical line drawing of a mechanical bearing assembly (no text or symbols)

élingue légère

Simple line drawing of a circular object with internal components and a curved line extending from it (no text or symbols)

Technical line drawing of a mechanical gear assembly with no visible text or symbols

8.2 Treuillage

Simple diagram showing a block connected by a line with a shaded segment, no text or symbols present.

Simple line drawing of a circular object with internal components and a curved line extending from it (no text or symbols)

Technical line drawing of a mechanical gear assembly with shafts and housing (no text or symbols)

Simple line diagram showing a block connected to a gray block and a blank rectangle (no text or symbols)

Simple diagram showing a block connected by a line with a gray block inside, no text or symbols present.

WHW250

Technical drawing of a mechanical component with concentric circles and internal features (no text or symbols)

robustes Seil

Technical line drawing of a mechanical bearing assembly (no text or symbols)

leichtes Seil

Simple line drawing of a circular device with a central component and connected cable (no text or symbols)

Technical line drawing of a mechanical gear assembly with no visible text or symbols

Simple line diagram showing a block connected to a rectangle via a diagonal line (no text or symbols)

Simple line diagram showing a block connected to a rectangle via a cable (no text or symbols)

Technical drawing of a mechanical component with concentric circles and internal features (no text or symbols)

ciężka lina

Technical line drawing of a mechanical bearing assembly (no text or symbols)

lekka lina

Simple line drawing of a circular object with internal components and a curved line extending from it (no text or symbols)

Technical line drawing of a mechanical gear assembly with no visible text or symbols

8.2 Wciąganie

Simple line diagram showing a block connected to a rectangle via a line (no text or symbols)

Simple line diagram showing a block connected to a rectangle via a line (no text or symbols)

Simple line drawing of a circular object with a central mechanical component and dotted line, no text or symbols present.

Technical line drawing of a mechanical gear assembly with no visible text or symbols

8.2 Rebocar

Simple line diagram showing a block connected to a gray block and a blank rectangle (no text or symbols)

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
  You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

- Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
