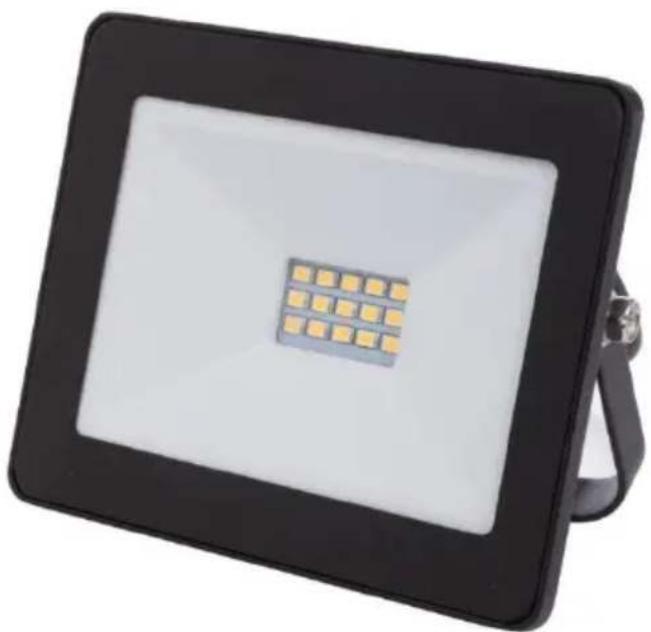

| Brand | Perel |
| Model | LEDA6003NWB |
| Product type | Outdoor LED projector |
| Rated power | 30 W |
| Luminous flux | 2400 lm |
| Color temperature | 4000 K (neutral white) |
| Beam angle | 120° |
| Color Rendering Index (CRI) | >70 |
| Rated lifetime | 25,000 hours |
| Number of switching cycles | 15,000 |
| Protection rating | IP65 (waterproof) |
| Power supply | 220-240 V~, 50/60 Hz |
| Power factor | >0.9 |
| Energy consumption | 30 kWh/1000 h |
| Start-up time | <0.5 s |
| Warm-up time (60%) | <1 s |
| Dimensions (W x H x D) | 179 x 146 x 33 mm |
| Weight | 650 g |
| Cable length | approx. 50 cm |
| Housing material | Aluminum, black |
| Mounting bracket | Adjustable |
| Use with dimmer | Not compatible |
| Minimum distance from illuminated surface | 1 m |
| Maintenance | Clean with a damp, lint-free cloth |
| Warranty | 2 years (consumer) |
Frequently Asked Questions - LEDA6003NWB Perel
User questions about LEDA6003NWB Perel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual LEDA6003NWB - Perel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LEDA6003NWB by Perel.
USER MANUAL LEDA6003NWB Perel
OUTDOOR LED FLOODLIGHT LED-SCHIJNWERPER VOOR BUITENSHUIS PROJECTEUR LED POUR L'EXTÉRIEUR PROYECTOR LED PARA EXTERIORES LED-STRAHLER FÜR DEN AUßENBEREICH ZEWNETRZNY REFLEKTOR LED HOLOFOTE LED PARA EXTERIOR
HANDLEIDING 6
MODE D'EMPLOI 10
MANUAL DEL USUARIO 14
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
 | Keep this device away from children and unauthorized users. | |
 | Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel. | |
 | This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure toelectrically isolatethe luminaire before installation or maintenance activities are performed. | |
 | DO NOTdisassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts. | |
 | Caution: possibly hazardous optical radiation emitted from this product. Do not look at operating lamp. Eye injury may result. | |
 | Caution: device heats up during use. | |
 | Respect a minimum distance of 1 m between the device’s light output and any illuminated surface. | |
- A qualified technician should install and service this device.
- Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
- Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
 | Keep this device away from extreme temperatures. |
 | Protect this device from shocks and abuse. Avoid brute force when operating the device. |
 | This device is not suitable for dimming. |
| Do not use the luminaire with a cracked or broken protective glass. Disconnect immediately from the mains and have it repaired by a qualified technician. |
LEDA600xNW-B
• Familiarise yourself with the functions of the device before actually using it.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Use the original packaging if the device is to be transported.
- Keep this manual for future reference.
4. Features
• economic version
- slim design
- adjustable bracket
• suited for outdoor use: IP65
5. Installation
5.1 Guidelines
- The construction to which the device is attached should be able to support 4 times the weight of the device for one hour without deformation.
- Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
- Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in serious injuries.
- This device is not suitable for dimming.
5.2 Distances
- Keep at least 20 cm distance at the top and 30 cm on either side.
- Respect a minimum distance of 1 m between the device's light output and any illuminated surface.
5.3 Choosing an appropriate location
- You can adjust the detection area according to your needs: turn the device to the left or right and aim it up or down. Note that the detector is much more sensitive to objects moving across the detection area than it is to objects coming straight at it. This is a very important consideration when selecting the mounting location.
- Please avoid installing the floodlight upside-down in order to ensure its watertightness.
- The floodlight should be fixed to a stable outdoor wall made of a non-flammable material approximately between 0.5-3.0 m above the ground and at an angle of ±60^ , preferably in a location under eaves where the unit is protected from the elements and shielded from direct sunlight.
- Do not block the front of the detection window and make sure the detection area holds no moving objects.
- Do not install the device close to air conditioning vents, radiators, etc.
LEDA600xNW-B
5.4 Mounting the lamp
-
This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.
-
Use the mounting bracket to determine the location of the mounting holes.
-
Drill the holes and secure the bracket using screws and wall plugs.
-
Connect the power cable to the screw terminal. Make sure there is no strain on the cable; leave sufficient slack.
E = earth, yellow/green
L = line, brown
Warning: if the power cable is damaged, it must be replaced by the manufacturer, his service agent, or a similar qualified person in order to avoid any hazard.
-
To point the lamp in the desired direction: loosen the hinges using a screwdriver.
-
Tilt the lamp in the desired angle and tighten the hinges.
6. Cleaning and Maintenance
- This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.
- All screws should be tight and free of corrosion.
- The housing, the visible parts, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting supports, do not change the location of the connections...
- The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
- If the protective glass is damaged, disconnect the lamp immediately from the mains. Have it repaired immediately by a qualified technician. Do not use the lamp with a cracked or broken protective glass.
- Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
• There are no user-serviceable parts. -
Contact your dealer for spare parts if necessary.
-
Technical Specifications
| LEDA6001NW-B | LEDA6002NW-B | ||
| body colour | black | ||
| electrical data | |||
| power LED module | 15x SMD 2835 LEDs | 28x SMD 2835 LEDs | |
| total nominal power | 10 W | 20 W | |
| nominal voltage driver | 220-240 V~ | ||
| power factor | >0.5 | ||
| energy consumption | 10 kWh/1000 h | 20 kWh/1000 h | |
| light technical data | |||
| colour | neutral white | ||
| colour temperature | 4000 K | ||
| beam angle | 120° | ||
| luminous flux | 800 lm | 1600 lm | |
LEDA600xNW-B
| colour rendering index | >70 | |
| starting time | < 0.5 s | |
| warm-up time (60 %) | < 1 s | |
| lifespan | ||
| nominal life time | 25 000 h | |
| number of switching cycles | 15 000 | |
| dimensions (W x H x D) | 116 x 94 x 30 mm | 145 x 119 x 32 mm |
| weight | 300 g | 410 g |
| cable length | ± 50 cm | |
| LEDA6003NW-B | LEDA6005NW-B | ||
| body colour | black | ||
| electrical data | |||
| power LED module | 42x SMD 2835 LEDs | 56x SMD 2835 LEDs | |
| total nominal power | 30 W | 50 W | |
| nominal voltage driver | 220-240 V~ | ||
| power factor | >0.9 | ||
| energy consumption | 30 kWh/1000 h | 50 kWh/1000 h | |
| light technical data | |||
| colour | neutral white | ||
| colour temperature | 4000 K | ||
| beam angle | 120° | ||
| luminous flux | 2400 lm | 3500 lm | |
| colour rendering index | >70 | ||
| starting time | <0.5 s | ||
| warm-up time (60 %) | <1 s | ||
| lifespan | |||
| nominal life time | 25 000 h | ||
| number of switching cycles | 15 000 | ||
| dimensions (W x H x D) | 179 x 146 x 33 mm | 208 x 178 x 37 mm | |
| weight | 650 g | 1250 g | |
| cable length | ±50 cm | ||
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
HANDLEIDING
1. Inleiding
E = aarding, geel/groen
L = fasedraad, bruin
N = Neutralleiter, blau
Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
• Not covered by warranty:
- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
- damage resulting from an inappropriate packing and shipping of the article;
- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
- The above conditions are without prejudice to all commercial warranties.
The above enumeration is subject to modification according to the article (see article's manual).
