Product type	Professional mobile LED projector
Brand	Brennenstuhl
Model	professionalLINE X 12000 M
Reference	917133 0 121 (DE/F) / 917133 1 121 (CH)
Usage	Indoor and outdoor (IP54)
Power	120 W
Rated voltage	220-240 V AC, 50/60 Hz
Rated current	0.52 A
Power factor	0.9
Protection rating	IP54 (protected against water splashes and dust)
Impact resistance rating	IK07
Protection class	I
Dimensions (L x W x H)	31 x 31 x 10.4 cm
Weight	4.15 kg
Cable length	5 m, type H07RN-F 3G1.5
Plug type	DE/F (Schuko) or CH depending on model
Maximum admissible power on integrated socket	3400 W (DE/F) / 2000 W (CH)
Operating temperature range	-20 °C to +50 °C
Maximum projection surface	0.096 m²
Functions	Step dimming (100% / 50%) and continuous dimming (progressive)
Tripod mounting	Yes (screws included, holes on the handle)
Carrying handle	Foldable and tilt adjustable
Light source	Non-replaceable LED (lamp lifespan)
Maintenance	Clean with a dry or slightly damp cloth; do not use solvents
Disposal	Do not dispose of with household waste; recycle according to WEEE

Frequently Asked Questions - professionalLINE X 12000 M BRENNENSTUHL

Can I use the projector in the rain?

Yes, because it is certified IP54, which protects it against water splashes. However, never immerse it and make sure the sealing cap is not damaged.

How to adjust the light intensity?

Use the rear switch: two presses switch from 100% to 50%; press and hold allows progressive dimming. Release to lock the level.

Can I plug another device into the integrated socket?

Yes, the rear socket â²µ delivers power even when the light is off. Observe the maximum load: 3400 W for DE/F models, 2000 W for CH models.

Can the LED lamp be replaced?

No, the light source is not replaceable. When it reaches the end of its life, the entire projector must be replaced. Do not open it.

How to clean the projector?

Turn off and unplug the device. Use a dry lint-free cloth. For stubborn stains, slightly dampen the cloth. Never use solvents or aggressive detergents.

Can I mount the projector on a tripod?

Yes, thanks to the holes on the handle and provided screws (M6x45, M6x60, washers and nuts). Use a suitable and stable tripod.

What to do in case of damaged cable or projector?

Do not use the device. Risk of electrocution. Contact an authorized professional or Brennenstuhl technical service. A damaged cap cannot be replaced.

What is the minimum distance to maintain?

Maintain a distance of at least 0.5 meters between the projector and any illuminated object to avoid overheating.

Can I use the projector in an explosive atmosphere?

No, prohibited. The device must not be used in the presence of flammable liquids, gases, or dust. Danger of death.

How to dispose of the projector at end of life?

Do not throw it in household waste. Follow the WEEE (2012/19/EU) directive and take it to an appropriate collection point for recycling.

USER MANUAL professionalLINE X 12000 M BRENNENSTUHL

X 8000 M · X 8001 M · X 8002 M (80W)

X 12000 M · X 12001 M · X 12002 M (120W)

brennenstuhl®

professionalLINE

Bedienungsanleitung

Mobiler LED Strahler

X 8000 M · X 8001 M · X 8002 M (80W)

X 12000 M · X 12001 M · X 12002 M (120W)

Operating instructions

Mobile LED light

X 8000 M · X 8001 M · X 8002 M (80W)

X 12000 M · X 12001 M · X 12002 M (120W)

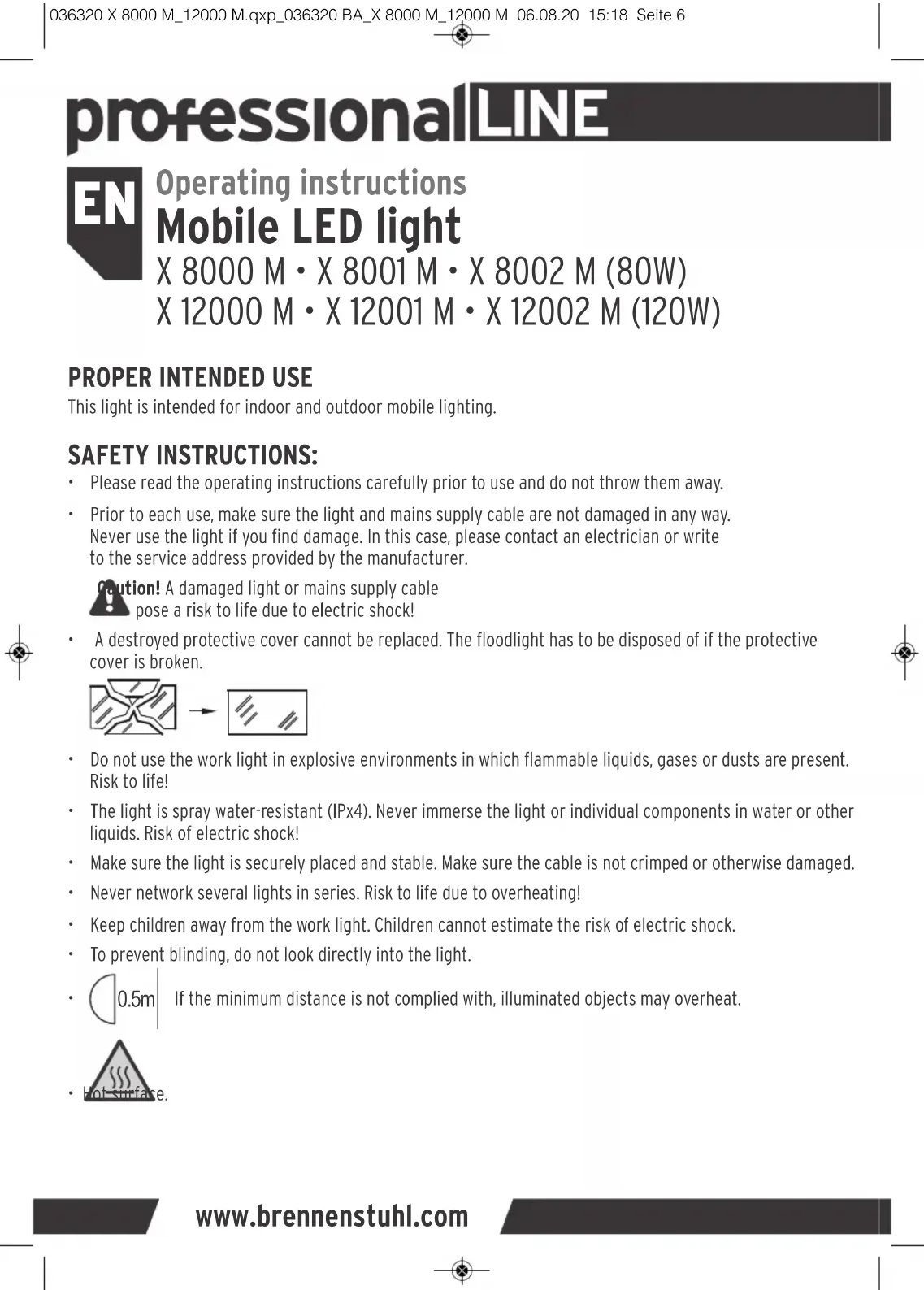

PROPER INTENDED USE

This light is intended for indoor and outdoor mobile lighting.

SAFETY INSTRUCTIONS:

• Please read the operating instructions carefully prior to use and do not throw them away.
• Prior to each use, make sure the light and mains supply cable are not damaged in any way. Never use the light if you find damage. In this case, please contact an electrician or write to the service address provided by the manufacturer.

tion! A damaged light or mains supply cable pose a risk to life due to electric shock!

- A destroyed protective cover cannot be replaced. The floodlight has to be disposed of if the protective cover is broken.

• Do not use the work light in explosive environments in which flammable liquids, gases or dusts are present. Risk to life!
• The light is spray water-resistant (IPx4). Never immerse the light or individual components in water or other liquids. Risk of electric shock!
  • Make sure the light is securely placed and stable. Make sure the cable is not crimped or otherwise damaged.
• Never network several lights in series. Risk to life due to overheating!
• Keep children away from the work light. Children cannot estimate the risk of electric shock.
  • To prevent blinding, do not look directly into the light.

. 0.5m

If the minimum distance is not complied with, illuminated objects may overheat.

brennenstuhl®

TECHNICAL SPECIFICATIONS

Type designation	X 8000 M/X 8001 M	X 8002 M	X 12000 M/X 12001 M	X 12002 M
Article no.	917133 0 801 /917133 1 801	917133 2 801	917133 0 121 /917133 1 121	917133 2 121
Power socket	DE/F	CH	DE/F	CH
Output	80 W	80 W	120 W	120 W
Nominal voltage	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz	220 - 240 V AC50/60 Hz
Power factor	0.9	0.9	0.9	0.9
Mains current	0,34 A	0,34 A	0,52 A	0,52 A
IP, IK	IP 54, IK 07	IP 54, IK 07	IP 54, IK 07	IP 54, IK 07
Protection class	I	I	I	I
Connection cable	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5	5m H07RN-F 3G1.5
Loading capacity socket	max. 3400 W	max. 2000 W	max. 3400 W	max. 2000 W
Operational temperature range	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C	-20°C - +50°C
Size	31 x 31 x 9.7 cm	31 x 31 x 9.7 cm	31 x 31 x 10.4 cm	31 x 31 x 10.4 cm
Weight	3.7 kg	3.7 kg	4.15 kg	4.15 kg
Maximum projected area	0.096 m^2	0.096 m^2	0.096 m^2	0.096 m^2

OPERATION

Setting up and turning on the light

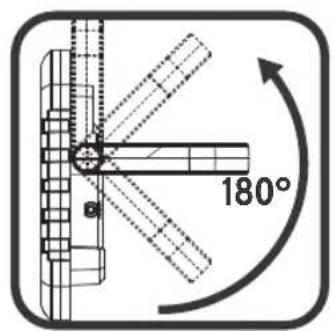

Place the light on a dry, flat surface. Only use the light with the bracket A extended. The adjustable bracket A can be adjusted to several levels and can be used to set the light at different tilt angles.

Tripod mounting material

A set of screws is included for mounting the spotlight on firing chair stands.

1x M6x45 screw + 1x washer, 2x M6x60 screws, 2x washers and 2x nuts.

Mounting the light on a tripod

The light can be mounted on a suitable tripod using the holes on bracket Ⓐ (mounting material not included!). Make sure the tripod is sufficiently stable and the light is securely mounted.

Switching and Dimming the light

Switch on the spotlight with the switch B n the back.

The light intensity can be adjusted in steps and continuously:

Steps dimming: by pressing the switch twice, 100 and 50% light can be adjusted.

Stepless dimming: press the switch permanently - the light intensity is slowly reduced.

Proceed in the same way to increase the intensity again.

If the switch is left in any of its "on" positions for longer than 3 seconds, then pressing it once again will always turn it off.

professionalLINE

Power socket

At the back side of the floodlight, there is a power socket by means of which it can also be used as power distributor. The power socket is also functional when the light is switched off.

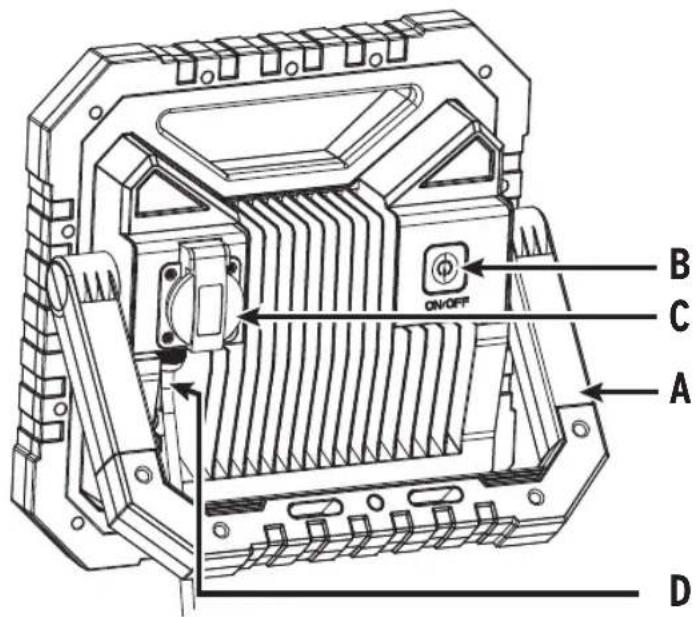

ILLUSTRATED COMPONENTS

A Folding clamp
B On/Off and function switch
C Power socket
D Connection cable

OPTIONAL STAND (not included in the scope of delivery)

Telescopic tripod ST 300 Article no. 1170310

Telescopic tripod TS 250 Article no. 1170610020

Telescopic tripod TS 170 Article no. 1170610010

Telescopic tripod TS 300 Article no. 9171991100

MAINTENANCE AND CLEANING

The LED light contains no components that require maintenance. The light source of this lamp is not replaceable. When the light source has reached the end of its service life, the entire lamp must be replaced. The lamp must not be opened.

Switch the light off and disconnect the power plug before cleaning. Clean the light regularly with a dry, lint-free cloth. To remove dirt, a damp cloth can be used. Do not use any solvents, caustic cleaning agents, etc.

brennenstuhl®

CONFORMITY

The conformity is stored at the manufacturer.

DISPOSAL

Dispose of electrical devices in an environmentally friendly way!

Electrical devices do not belong in the household rubbish! According to the European Directive 2012/19/EU on old electrical and electronic devices, used electrical devices must be collected separately and turned over for environmentally friendly recycling. You can find out about options for disposal of the out-of-service device at your town or city administration.

MANUFACTURER

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com
