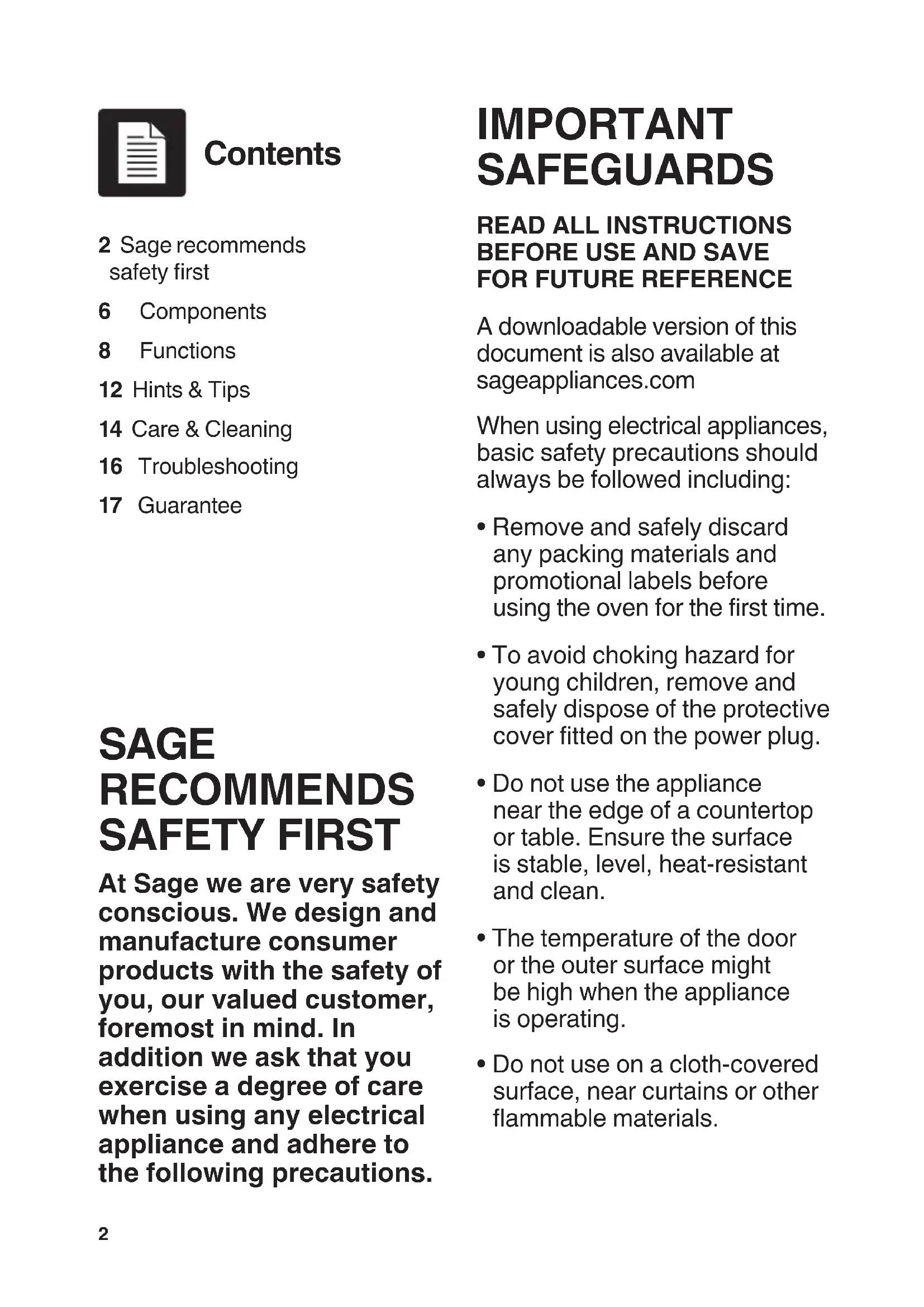

USER MANUAL the Smart Oven Pizzaiolo SPZ820 SAGE

A downloadable version of this document is also available at sageappliances.com When using electrical appliances, basic safety precautions should always be followed including:

• Remove and safely discard any packing materials and promotional labels before using the oven for the rst time.

• To avoid choking hazard for young children, remove and safely dispose of the protective cover tted on the power plug.

• Do not use the appliance near the edge of a countertop or table. Ensure the surface is stable, level, heat-resistant and clean.

• The temperature of the door or the outer surface might be high when the appliance is operating.

• Do not use on a cloth-covered surface, near curtains or other ammable materials. 2 Sage recommends safety rst 6 Components 8 Functions 12 Hints & Tips 14 Care & Cleaning 16 Troubleshooting 17 Guarantee Contents SAGE RECOMMENDS SAFETY FIRST At Sage we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.3

• A re may occur if the oven is covered or touches ammable materials, including curtains, draperies, walls, and the like, when in operation.

• Do not use the appliance on (or close to) a hot gas or electric burner, or where it could touch a heated oven or surface.

• Do not let the power cord hang over the edge of a table or counter, touch hot surfaces or become knotted. To avoid electric shock, do not immerse the cord, plug or motor base in water (or other liquids).

• When operating the oven, keep a minimum distance of 10cm of space on both sides of the appliance and 15cm above. Do not touch hot surfaces. To avoid burns, use extreme caution when removing the included pizza pan or stone deck as they might be very hot.

• Do not lay cooking utensils, roasting pans or dishes on the glass door.

• Do not leave the door standing open for extended periods of time.

• Do not store any item on top of the oven when in operation.

• Do not place cardboard, plastic, paper, or other ammable materials in the oven.

• Do not cover any part of the oven with metal foil. This will cause overheating of the oven.

• We recommend using the dedicated SPZ820 pan with the pizza oven, although other cast iron/carbon steel pans that t are also suitable for usage.

• Do not use non-stick or coated pans in the oven.

• Use caution when using stainless steel pans as they may discolour at high temperatures.

• Caution should be exercised when removing the pan from the oven. Pan should be placed on a heat proof material.

• No lid should be used in the oven on top of the pan.

• Oversized food and metal utensils must not be inserted in the oven as they may create re or risk of electric shock.

• To avoid any direct contact with the oven, the provided pizza peel should be used at all times when inserting a pizza into the cavity, unless cooking a pan pizza.

• The use of accessories and attachments not4 recommended or supplied with this oven may cause injuries.

• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

• Do not store any materials, other than manufacturers recommended accessories, in this oven when not in use.

• This appliance is for household use only. Do not use in any type of moving vehicles. Do not use the appliance outdoors, or for anything other than its intended use. Misuse can cause injury.

• If the appliance is to be cleaned, moved, assembled or stored, always switch the unit o and allow it to cool completely, before unplugging it from the power outlet.

• Do not clean with metal scouring pads. Pieces can break o the pad and touch electrical parts, creating a risk of electric shock.

• Close supervision is necessary when the appliance is used by or near children.

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• The appliance and its cord should be kept out of reach of children aged 8 years and younger.

• Longer detachable power- supply cords or extension cords are available and may be used if care is exercised in their use.

• It is recommended to regularly inspect the appliance and power cord. Do not use the appliance if there is damage to the power cord or plug, or after the appliance malfunctions or has been damaged in any way. Immediately stop use and call Sage Consumer Support.

• We recommend operating the oven on a dedicated circuit separated from other appliances. Consult a licensed and qualied electrician if you are unsure.5

• Servicing should be performed by an authorized service representative.

• This appliance is equipped with a power cord having a grounding wire with a grounding plug. The appliance must be used on a properly grounded outlet suitable for the plug. In the event of an electrical short circuit, grounding reduces the risk of electrical shock.

• Do not, under any circumstances, cut or remove the grounding contact from the plug. Please do not use an extension cord or adapter.

• Consult a qualied electrician if the grounding instructions are not completely understood, or if doubts exist as to whether the appliance or your power outlet is properly grounded.

• The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice. WARNING To prevent electric shock, unplug before cleaning.

SHORT CORD INSTRUCTIONS

Your Sage appliance is tted with a short power supply cord to reduce personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or table-top where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug.

A. Active Deck The stone deck is designed to move forward and down when you are opening the door; this system makes loading and unloading the pizza easy, while achieving ultimate performance. B. Ventilation Slots C. Pizza Pan with removable handle D. Pizza Peel E. Manual Mode alternate interface magnet Rating Information 220-240V ~50-60Hz 1735-2065W7

A D E B C A. TIME dial Ensure to press this dial to start the timer countdown. B. STYLE dial

• The char/darkness on the top of the pizza can be adjusted using the DARKNESS dial.

• The dial allows you to increase or decrease the temperature of the oven.

• Centre position is default. Turn the dial clockwise to increase the temperature and counter-clockwise to decrease it.

MANUAL MODE light Indicates when you are in Manual Mode. For further explanation, refer to the ‘Manual Mode’ section on page 10.

AT TEMPERATURE light Light will ash during the initial preheating of the oven or if the oven has fallen outside of the desired temperature for cooking (do not cook when ashing). When the oven has reached the desired temperature, the AT TEMPERATURE light will turn on.8 Functions

In order to remove any protective substances on the heating elements, it is necessary to run the oven empty for 20 minutes. Ensure the area is well ventilated as the oven may emit vapours. These vapours are safe and are not detrimental to the performance of the oven.

1. Remove and safely discard any packing

material, promotional labels and tape from the oven.

2. Remove the stone deck from its packaging.

Gently wipe the deck with a damp cloth. Dry thoroughly and place the stone deck in the oven cavity.

3. Wipe the interior of the oven with a soft,

4. Place the oven on a at, dry surface.

Ensure there is a minimum distance of 10cm of space on both sides of the oven and 15cm above.

5. Unwind the power cord completely and

insert the power plug into a grounded power outlet.

6. The oven alert will sound and the TIME

dial lights will illuminate and then turn o.

7. Turn the STYLE dial clockwise until the

indicator reaches the 400°C function.

8. Let the oven run for 20 minutes.

9. The oven is now ready to use.

10. Refer to seasoning the pan section on

page 14 for instructions for rst use of pan.

OPERATING YOUR SAGE OVEN

Due to the extremely high temperatures being achieved, please ensure to place the oven in a well-ventilated area, as it will emit smoke when cooking.

1. Insert the stone deck into the pizza

2. Turn the STYLE dial to the desired setting.

3. The TIME dial lights will illuminate with the

recommended time specic to the setting. The time can be adjusted by turning the time dial.

4. The AT TEMPERATURE light will ash

to indicate that the oven is preheating.

5. Allow the oven to preheat until the

AT TEMPERATURE light stops ashing, and stays on. The preheating time can vary between 10–20 minutes depending on the selected preset.

6. Use the pizza peel to place the pizza

be sure to remove the handle rst.

8. Press the TIME dial to start the countdown

9. At the end of the cooking cycle, the oven

alert will sound and the TIME dial lights will ash and then go out.

10. Remove your pizza and enjoy.

WARNING Always ensure that the stone deck is in place when the oven is on. NOTE When you intend to transport the product; remove the pizza deck from inside the oven and pack separately to avoid breakage. NOTE Make sure the oven is preheated before placing the pizza in the cavity. If cooking multiple pizzas, wait until the AT TEMPERATURE light turns solid on before loading your next pizza. NOTE For high temperature cooking functions, we recommend you monitor and stay close to the oven as your food can quickly become overdone and eventually ignite. See Troubleshooting for more information. WARNING After cooking, allow the oven to cool completely before unplugging from the wall. Fans will continue to run to cool the sensitive electronics. These fans will automatically turn o when the temperatures are at an acceptable level.9

TIME Timer to alert you when your pizza is ready. The recommended time will illuminate depending on the selected pizza style, but can be adjusted before or during cooking to suit your preference. Push dial to start timer. The countdown cycle can be stopped at any time by turning the dial down to zero. PIZZA STYLE 400°C Extremely intense heat. Ideal for cooking charred vegetables. Note that the cooking time can vary depending on the type of vegetable being cooked. “WOOD FIRED”

Achieve authentic Neapolitan pizza results at home! Extremely high heat. Expect a cooked but malleable crust with distinct blisters and charring (leopard spotting).

This product does not utilize any wood or wood by-product. The term “Wood Fired” refers to the specic heat performance characteristics of this oven that replicate that of a wood red brick oven. THIN & CRISPY This dough is rolled out thinly which gives the pizza a crisp result. The toppings should be right to the edge and the sauce can be spread to the very outside of the pizza. THICK CRUST This heat prole has been designed to work best with a less-hydrated, larger dough-ball that will form a uy yet sturdy foundation, enabling you to be generous with toppings. The pizza should be cooked directly on the stone deck and toppings & crust should be evenly browned. PAN Amazing crunchy base, uy dough and plenty of toppings with sauce almost to the edge. The ultimate pizza indulgence. This setting requires the use of the pan provided with your pizza oven. FROZEN Great frozen pizza results. 160°C Looking for a quick, simple snack? – Top your favourite at bread or wrap with some simple pizza toppings and cook for 8 to 10 minutes on this low-temperature oven function. DARKNESS If you prefer your pizza with a darker crust, this can be achieved thanks to the DARKNESS dial that allows you to adjust the temperature in your pizza oven. The centre position is the default. Turn the dial clockwise to increase the temperature and counter-clockwise to decrease it. ELEMENT iQ

The Sage Pizzaiolo oven features Element iQ

, a cooking technology that adjusts what heating elements are on, and the power of each of the heating elements to achieve the optimum cooking performance. Each of the oven’s functions is preset with our recommended power distribution, deck and top temperatures and cooking time, that are based on recipes and testing. Depending on the recipe, amount of food and your personal taste, these can be adjusted with the use of the DARKNESS and TIME dials.10

MANUAL MODE FUNCTION

Manual Mode is an alternative mode of operation that allows you to individually control deck and top temperatures, and to adjust the power distribution of the top heaters. This enables you to fully customize how the oven functions. For better use of the Manual Mode, the alternate interface magnet provided with the pizza oven should be placed on the front of the interface to indicate what temperatures you have set and what heaters you are using. To set the oven to “Manual Mode”

1. Press and hold the TIME/DECK TEMP dial.

2. Turn the STYLE/TOP TEMP dial from OFF to 160°C.

light will ash three times and then stay on.

When the Manual Mode is selected, the control dial situated on the far right will allow you to choose the heat distribution in each top element, in order to achieve dierent food results. If selecting the setting on the far left , the inner & outer top elements will have a similar heat distribution to allow an even cooking result. This setting is ideal if cooking a style of pizza that requires that both the toppings and the crust to be cooked evenly. By turning the dial from left to right, you will allow the heat to be more and more directed toward the outer and away from the inner top elements. If selecting the setting on the far right , the outside top element will have a much higher heat distribution than the inside top element. This setting is ideal if cooking a Neapolitan style pizza which requires higher heat in the crust, to achieve leopard-spotting, or if cooking with delicate ingredients.11

When using Manual Mode, refer to the table below for suggested times and temperature ranges depending on the style of pizza being cooked: PIZZA TIME mins DECK TEMP TOP TEMP TOP CONTROL Wood Fired 2 mins 370-400°C 370-400°C Thin & Crispy 7 mins 295-325°C 220-250°C Thick Crust 9 mins 295-325°C 235-265°C Pan 18 mins 325-355°C 205-235°C Frozen 12 mins 220-250°C 190-220°C NOTE The deck and top temperatures aect each other, so there are limitations on the possible combinations. To return to pre-set mode, simply turn the STYLE dial to OFF and then turn back on to select desired function.12 Hints & Tips

• Add our, yeast and salt to the bowl of a bench mixer. Stir to combine. Add the water and knead on low speed until the dough is smooth and elastic, 10 minutes.

• Cover with plastic wrap and proof until doubled in size 45–60 minutes.

• Divide dough into ~240g pieces. Using lightly oured hands , shape each piece into a smooth ball.

• Lightly dust two baking trays with semolina mix and place the dough balls on the trays, leaving 10cm between the balls. Lightly oil the top of each ball then thoroughly wrap each tray with plastic wrap. Refrigerate for at least 6 hours or up to 4 days.

• Let dough stand, still wrapped, at room temperature for 1 hour before use. Create a generous mound of semolina mix on a clean work surface. Use a bench scraper (or a spatula) to lift out one dough ball and place on top of the mound. Keep the remaining dough covered until ready to use.

• Working with one dough ball at a time, coat dough in a mix of our and semolina.

• Transfer to a lightly oured work surface, gently press out dough from the centre into a 15cm circle, leaving a 2cm border around the edge. Gently stretch dough into a 25–30cm circle. NOTE The dough can be hard to shape if it has not rested long enough or is still too cold. If the dough snaps back when shaping, let it rest for a further 15–30 minutes under a damp cloth. It will make the dough easier to manage. TIP If having diculty stretching the dough, place the oured dough on the top of an upside- down bowl, then gently stretch the dough down the sides. TIP The dough can also be kneaded by hand or by using a food processor. Dough is ready when it is possible to stretch a very thin (almost transparent) piece without tearing. TIP Extra pizza dough can be frozen for up to one month in airtight containers or zip-lock bags. Thaw pizza dough overnight in the refrigerator before using.

When cooking pizzas that do not require the use of the pan, it is essential to cook your pizza directly on the deck. This requires the use of the pizza peel to transfer your pizza into the oven. Ensure that the oven is already preheated before placing the dough on the pizza peel.

• Sprinkle a small amount (approximately ½ tsp) of our and semolina mix (half and half) over the surface of the peel before placing the dough on it.

• Place your stretched dough onto your peel and begin saucing/topping your pizza.

• WORK FAST! Add your sauce and toppings quickly. If not, the moisture in your dough will cause it to stick to the peel and make it dicult to slide your pizza onto the stone deck.

• Do not let the dough sit on the peel for more than about 2 minutes to prevent it from sticking.

• Once the pizza is topped and ready to cook, position the peel to the back of the oven. Let the tip of the peel rest on the deck and raise the handle so that the whole peel is tilting forward. Jiggle the peel back and forth gently to allow the tip of the pizza to touch the deck.

• Gradually jiggle the peel out of the oven stretching the pizza out on the deck as you go.

• Once cooked, slide the peel under the pizza to remove from the oven. TIPS The aim is to use just enough our and semolina to ensure the pizza doesn’t stick on the peel. If you use too much, the excess our will burn on the stone deck, causing a bitter taste and a yellow colour on the base of the pizza. This excess our will also increase the amount of smoke and chance of a re occurring in the oven after you have removed your pizza.13

NOTE The peel needs to remain cool and clean to prevent the dough from sticking. Do not sit the peel under the pizza oven, while waiting to load the pizza onto its surface.

CAUTION Ensure your pan is seasoned before use. See care section for details. Always ensure to have stone deck in place when using the pizza pan. For pan style pizza, the pizza should be prepared in the unheated and oiled pizza pan and then placed in a preheated oven. Alternatively the pan can be preheated before adding food, e.g. vegetables, to achieve better charring results.

TIPS FOR PERFECT TOPPINGS

• Remove bualo mozzarella from brine and press gently on paper towel to drain.

• Non-cured meats and thicker vegetables should be pre-cooked before using as pizza topping.

• Excessive amounts of sauce or toppings can make the crust soggy.

• Increasing salt content in your dough can help with achieving leopard spotting.

• Extra sauce can be frozen in smaller portions until required.14 Care & Cleaning Before cleaning, ensure the oven and all accessories are cool, and then remove the power plug from the power outlet. Cleaning the outer body and door

1. Wipe the outer body with a soft, damp

sponge. A non-abrasive liquid cleanser or mild spray solution may be used to avoid build-up of stains. Apply the cleanser to the sponge, not the oven surface, before cleaning.

2. To clean the glass door, use a glass cleaner

or mild detergent and a soft, damp sponge or soft plastic scouring pad. Do not use an abrasive cleanser or metal scouring pad as these will scratch the oven surface.

3. Let all surfaces dry thoroughly prior

to inserting the power plug into a power outlet and turning the oven on. NOTE If carbonized deposit occur due to food fume, please clean with detergent/water with a cloth or use an oven cleaning detergent available in the market (try on a sampled spot rst). Since this oven operates at very high temperatures, mild discoloration may occur on metal surfaces, which will not aect normal functioning of the oven. WARNING Do not immerse the body, power cord or power plug in water or any other liquid as this may cause electrocution. Cleaning the stone deck

1. In order to avoid damaging the stone deck,

we highly recommend wiping the surface with a soft, damp sponge after each use.

2. If the stone deck needs to be removed for

cleaning outside of the oven, we recommend handling the stone deck with extreme care.

3. The stone deck cannot be soaked or put

4. Always reinsert the stone deck into the oven

after cleaning and prior to inserting the power plug into a power outlet and turning the oven on. Cleaning the pizza peel

1. Wash the pizza peel in warm soapy water

with a soft sponge or soft plastic scouring pad. Rinse and dry thoroughly. Do not use abrasive cleansers, metal scouring pads or metal utensils to clean any of the accessories as they may damage the surfaces.

2. Alternatively, the peel can also be placed

in the dishwasher. Seasoning the pizza pan The pan provided with your pizza oven is made of carbon steel and requires special care. Please season the pan using the following instructions before rst use and at regular intervals to maintain its protective layer. WARNING It is important to note that during the seasoning process the oven will be at a temperature above the ash point of the oil used. This might cause the oil to spontaneously ash or ignite. To minimize this risk do not exceed the amount of oil described in the instructions below and keep the door fully closed at all times during the process. If re or ash is observed, do not be alarmed, keep the door closed and any ames will extinguish themselves quickly.

1. Set the STYLE dial to 400°C and allow the

2. Wipe the pizza pan with a dry paper towel

3. Add no more than ½ teaspoon of lard,

vegetable or axseed oil (not olive oil) to the paper towel and rub a thin layer of oil around the inside of the pan.

4. Put the pizza pan onto the deck in the

preheated oven (AT TEMPERATURE light will remain lit, and will cease ashing) for 10 minutes.

5. Remove the pan carefully and place

on a heat proof surface.15

6. Reapply no more than another ½ teaspoon

of lard, vegetable or axseed oil (not olive oil) to the paper towel and rub a thin layer of oil around the outside side of the pan.

7. Put the pan in a preheated 400°C pizza oven

for a further 10 minutes.

8. Repeat steps 3 to 7 for a second time.

Your pan is now ready for use. We recommend regular seasoning for best performance and to extend the life of your pan. Cleaning the pizza pan For regular cleaning, we recommend washing the pan by hand with warm water and mild soap, if necessary. Dry the pan thoroughly and season according to the seasoning guide. TIP If any rust develops, use a stainless steel or copper scouring pad and hot water to remove it, and then re-season the pan using the method above. WARNING Never put the pizza pan in the dishwasher. Storing the pizza oven

1. Ensure the oven and all accessories are

cool, clean and dry.

2. Ensure the stone deck is inserted into

3. Ensure the door is closed.

4. Store the appliance in an upright position

standing level on its support legs. Do not store the pan or anything else on top. The only exception is the pizza peel.16 Troubleshooting POSSIBLE PROBLEM EASY SOLUTION Oven will not switch “ON”

• Check that the power plug is securely inserted into the outlet.

• Insert the power plug into an independent outlet.

• Insert the power plug into a dierent outlet.

• Reset the circuit breaker if necessary. The AT TEMPERATURE light is ashing

• This indicates that the oven is outside the desired temperature for cooking. Wait till the AT TEMPERATURE light turns solid on before loading your pizza. Steam is coming out of the oven door

• This is normal. The door is vented to release steam created from high moisture content foods.

• If moisture is found on the bench top around the base of your product, simply wipe it dry. The heating elements appear to be pulsing/ some elements appear

• Element iQ™ accurately controls the heat inside the oven by pulsing the power and adjusting the power level in the heating elements in short bursts to give accurate temperature control. This is normal. There is a noise coming from the oven after it is turned o

• During cooking, cooling fans turn on to protect sensitive electronic components from overheating. Due to the extreme temperatures this oven gets to, these fans remain on after cooking has nished, until temperatures are low enough for the components. Please do not unplug the oven from the wall until these fans turn o. Smoke is coming out of oven

• This is normal during cooking due to the extreme high temperatures. To reduce this, try to limit the amount of our/semolina used on your peel. It is also recommended to use the oven in a well-ventilated area. Fire in the oven

• Don’t be alarmed. Close the door if it is still open. If the re does not self-extinguish within 20 seconds, unplug the unit and keep the door closed until the re is out.17

Sage Appliances guarantees this product for domestic use in specied territories for 2 years from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances). All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com. Guarantee18 Notesthe Smart Oven
