USER MANUAL Bolero DressCode Top 80 Inverter CECOTEC

1. Parts and components 77

6. Cleaning and maintenance 90

9. Disposal of old electrical appliances 94

10. Technical support and warranty 94

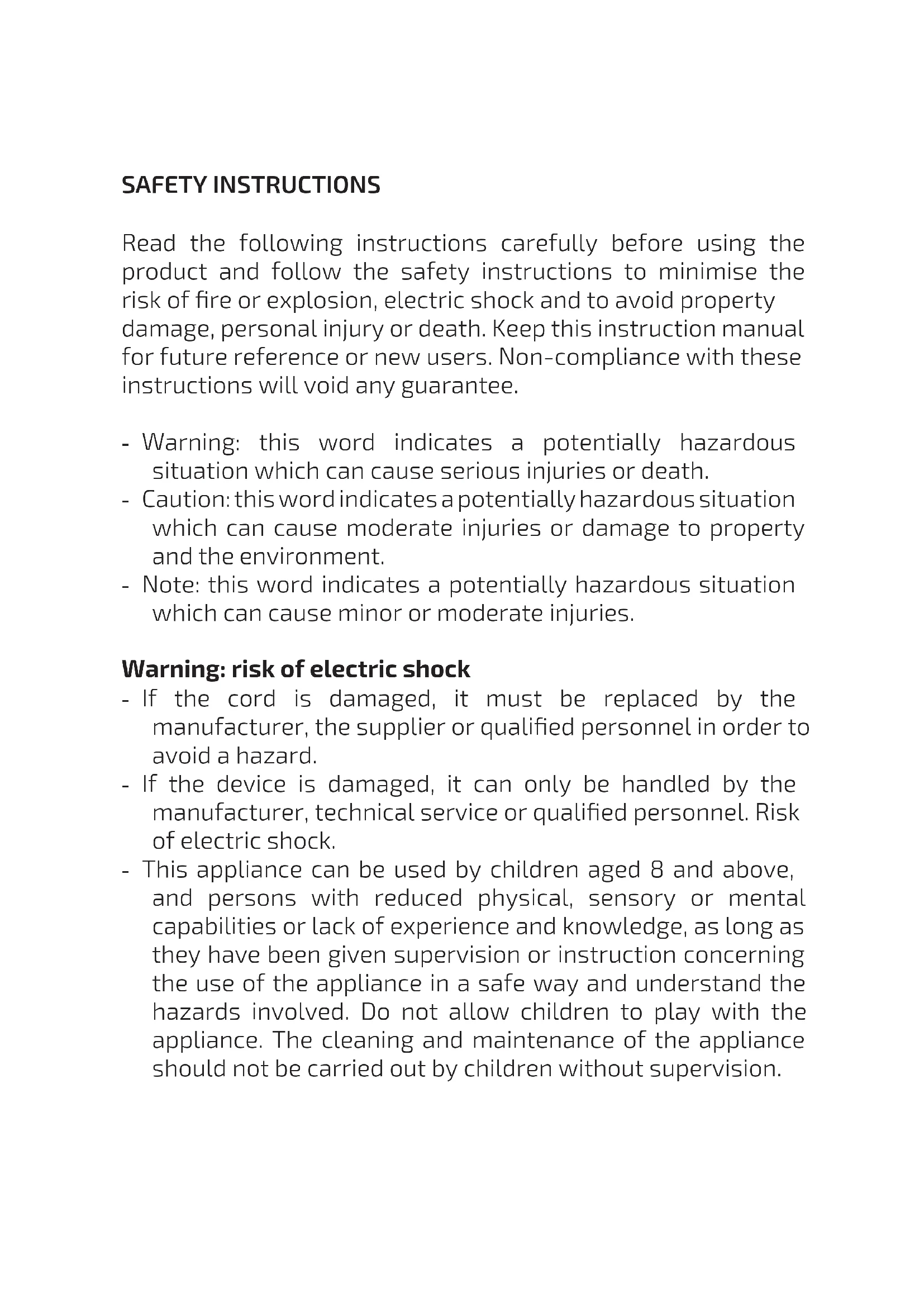

Warning: risk of electric shock

- If the cord is damaged, it must be replaced by the manufacturer, the supplier or qualied personnel in order to avoid a hazard. - If the device is damaged, it can only be handled by the manufacturer, technical service or qualied personnel. Risk of electric shock. - This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 1002380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 10 10/2/22 9:4310/2/22 9:43- Keep children under 3 years old away from the device or under continuous supervision. - Animals and children could climb on the machine. Check it before every washing. - Do not climb nor sit on the unit. Installation location and surrounding - Do not install the washing machine on a surface in which the base cannot air properly, like a carpet. Blockage of the openings can damage the machine. - Keep the device away from heat sources and direct sunlight to prevent the plastic and rubber pieces from getting damaged. - Do not use the device on wet areas or rooms containing explosive or corrosive gases. In case of water leakage or splashes, let the device dry on its own. - Do not install the device behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the device. - Do not use the machine in rooms with a temperature below 5ºC. This can damage its parts. If inevitable, make sure to completely drain the water in the device after every use (check the ‘Maintenance - Drain pump lter cleaning’ section) to prevent frost damage. - Never use sprays or ammable substances near the device. Installation - Remove all the packaging material and the transport bolts before using the device. Otherwise, it could cause serious damage. - ATTENTION: do not connect the washing machine to a hot water supply. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 1102380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 11 10/2/22 9:4310/2/22 9:43- The plug must be accessible after the installation. - Before using the wash machine, the product shall be calibrated. - Do not place excessively heavy objects on the device, as water containers or heating appliances. - You must use the new hose set provided with the device, do not reuse old hoses. - The maximum inlet water pressure is 1 MPa. The minimum inlet water pressure is 0.1 MPa. Electrical connections - Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded. - Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the ocial Technical Support Service of Cecotec in order to avoid any type of danger. - Do not operate the product if its cord, plug or structure show visible damage or do not operate properly. - In case of anomalies (abnormal noises, burning smell, smoke, etc.), immediately disconnect the power plug to stop the machine and contact the Cecotec Customer Service. - Make sure the power cord is not trapped under the machine, as it could be damaged. - The installation of an earthed socket must be carried out by a qualied electrician. - Make sure the machine is installed according to local regulations. - We recommend water and electrical devices are connected by qualied personnel in accordance with the manufacturer instructions and local safety regulations. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 1202380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 12 10/2/22 9:4310/2/22 9:43Do not use an extension cord or multiple sockets. - This device must not be controlled by external switching elements such as timers, or connected to electrical circuits that are continuously switched on and o. - Do not disconnect the plug from the socket if there is ammable gas near them. - Pull from the plug, not the cord to unplug it. Do not handle the cord or device with wet hands. Water connection - Check the water supply hose, the tap and the drain hose to detect any possible problem due to water pressure changes. If the connections are loose or leaking, close the tap and seek technical assistance. Do not use the device before the hoses are installed by qualied personnel. - The glass door may reach high temperatures during operation. Keep children and pets away from the machine while in use. - The water inlet and outlet hoses must be installed securely and undamaged. Otherwise, there may be water leakage. - Do not remove the drain pump lter while there is water in the device. Large quantities of water may be released, which may cause a risk of burns due to the hot water. Operation and maintenance - Never use ammable, explosive or toxic solvents. Petrol, alcohol, etc. should not be used as detergents. Use only detergents for washing machines. - Make sure that all pockets are empty. Sharp and rigid items such as coins, brooches, nails, screws or stones may cause serious damage to this machine. - Thoroughly rinse items that have been washed by hand. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 1302380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 13 10/2/22 9:4310/2/22 9:43- Items with stains from substances such as oils, acetone, alcohol, petroleum, paran, stain removers, turpentine, wax and wax cleaners should be washed hot with an extra amount of detergent before drying with the appliance. - Never try to force the door open. The door will unlock shortly after the end of a cycle. - Do not force the door when closing it. If you nd it dicult to close the door, please check if the laundry is well distributed and introduced. - Always unplug the device from the mains and close the water tap before carrying out any cleaning or maintenance task and after every use. - Do not pour water on the device to clean it. Risk of electric shock. - Repairs should only be carried out by the manufacturer or its service or similar qualied personnel in order to avoid possible hazards. The manufacturer shall not be liable for damage caused by unauthorised persons. Transport - Before transporting the product, you must place the transport bolts again in the machine and drain the water out of the machine. - This appliance is very heavy. Transport it with care. Do not hold the appliance by its protruding parts to lift it. Do not use the machine door as a handle. Recommended use - The product is exclusive for household use and moderate loads, and is designed for machine washable laundry only. Install the machine in the interior of a well-ventilated room. This product is not designed for installation as a built-in appliance. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 1402380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 14 10/2/22 9:4310/2/22 9:43- Do not install the washing machine on humid areas. - Any other use will be considered an incorrect use. Cecotec shall not be liable for any damage or injury resulting therefrom. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 1502380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 15 10/2/22 9:4310/2/22 9:43INSTRUCTIONS DE SÉCURITÉ Lisez attentivement les instructions suivantes avant d'utiliser le produit et suivez les consignes de sécurité pour minimiser les risques d'incendie ou d'explosion, de choc électrique et pour éviter les dommages matériels, les blessures corporelles ou même la mort. Gardez bien ce manuel pour de futures références ou pour tout nouvel utilisateur. Le non-respect de ces instructions annulera toute garantie. - Avertissement : ce mot indique une situation dangereuse qui pourrait entraîner la mort ou des blessures graves. - Attention : ce mot indique une situation dangereuse qui peut causer des blessures légères ou des dommages matériels et environnementaux. - Note : ce mot indique une situation dangereuse qui peut entraîner des blessures légères ou mineures.

3:44 1,498 71 60 53%/1300 Intensive 8.0

3:44 1,498 71 60 53%/1300 Intensive 8.0

Note: *The graphics in this manual are schematic representations and may not exactly match the product. Accessories Fig. 2

1. 4 plastic cups for the transport bolt holes

2. Cold water supply hose

- This product includes a package designed to protect it during transport. Unpack the appliance and keep the original packaging and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly. - Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the Technical Support Service of Cecotec. Box contents - Bolero DressCode Top 80 Inverter top-loading washing machine - Drain hose - Water supply hose - Instruction manual 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 7702380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 77 10/2/22 9:4310/2/22 9:4378 ENGLISH

Installation area Fig. 3 Previous steps - Place the washing machine on a stable, at and dry surface. Make sure the product does not stand on the power cord. - Avoid direct sunlight and ensure sucient ventilation. - The room temperature must be over 0ºC. - Choose a location away from heat sources, like gas or coal. - Remove the cardboard box and every packaging protecting the washing machine. Make sure to remove the small foam at the bottom. If this is not possible, rest the unit on one of the sides and remove it manually. - Remove the tape securing the power supply cord and drain hose. - Remove the water inlet hose from the drum. Step 1. Removing the transport bolts Warning - The transport bolts must be removed from the backside of the device before using the washing machine. The guarantee does not cover faults that occur due to the use of the machine without removing the transport bolts. - If you do not remove the bolts there may be strong vibrations, noise and defective operation. - Keep the transport bolts for future transport. Fig. 4-5

1. Loosen the transport bolts by turning them counterclockwise with a suitable spanner.

2. Remove the transport bolts by pulling them.

3. Insert the plastic caps provided in the holes where the transport bolts were located.

Step 2. Feet adjustment Warning The lock nuts on all four feet must be screwed tightly against the housing. Fig. 6

1. Loosen the lock nut.

2. Turn the foot until it touches the ground.

3. Adjust the feet and x the lock nuts with a spanner. Make sure the machine is levelled and

ENGLISH Step 3. Water supply hose connection Warning - Do not twist, crush or modify the water supply hose. Fig. 7-8 Connect the water supply hose to the water inlet valve (Fig. 7) and to a cold water tap (Fig. 8) as shown in the gures. Note Do not use tools for the connection, do it manually. Check the connection is rm. Step 4. Drain hose connection Warning - Do not kink or extend the drain hose. - Place the drain hose correctly; otherwise, there could be leaks. You can connect the end of the drain hose in 2 ways:

1. To a drain. Fig. 9

2. In a drain pipe located in a sink. The pipe height must be between 60 and 100 cm. Fig. 10

Note If the machine is equipped with a drain hose bracket, install it as shown in gure 11. Warning - When installing the drain hose, x it properly. - If the drain hose is too long, do not force it into the washing machine as it will cause abnormal noises.

Quick Start Warning - Before using the washing machine for the rst time, make sure it is correctly installed. - Your device was thoroughly checked before leaving the factory. To remove any water residue and to neutralise possible odours, it is recommended to clean the appliance before using it for the rst time. To do so, start the Cotton at 60ºC programme without laundry or detergent. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 7902380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 79 10/2/22 9:4310/2/22 9:4380 ENGLISH Before washing Fig. 12

1. Plug the appliance.

3. Load the washing machine.

5. Close the drum door.

6. Close the washing machine door.

Note - Add detergent in the compartment I if you have selected the pre-wash function. - Make sure the drum aps are correctly locked. Fig. 13 - All metal hooks must be securely hooked inside the ap of the rear door. Fig. 14 - Check the drum before each wash, it should roll smoothly. Washing Fig. 15

1. Turn on the washing machine.

Note If any of the default options is selected, step 3 can be skipped. After washing All the lights on the control panel will turn o. Before each washing - The washing machine must be used in a place where the temperature is between 5ºC and 40ºC. If used under 0°C, the inlet valve and draining system may get damaged. If the machine is installed at low temperatures, it should be moved to a normal room temperature to ensure that the water supply hose and drain hose defrost before use. - Check the care labels and detergent instructions before washing. Use non-foaming or less-foaming detergent suitable for machine washing. Fig. 16

1. Check the care label.

2. Sort laundry by colour and type of fabric.

3. Remove all the objects from the pockets.

4. Knot long textile straps and belts, and fasten zips and buttons.

5. Put small textiles in a laundry bag.

6. Turn over garments that are easily shredded and have long hair.

Warning - Do not wash items that have been cleaned, soaked or dampened with combustible or explosive substances such as wax, oil, paint, petrol, alcohol, paran and other ammable materials. - Washing too few items can easily create a large eccentricity and cause an imbalance alarm. Therefore, it is recommended that you add more items to the laundry so that the spin cycle runs smoothly. Detergent drawer Fig. 17

1. Pre-wash detergent compartment

2. Softener compartment

3. Main detergent compartment

Warning Do not exceed the MAX mark when pouring detergents, softener or other additives. Programme Pres-wash detergent Main wash detergent Softener Cotton Optional Necessary Optional Synthetics Optional Necessary Optional Mix Optional Necessary Optional Jeans Optional Necessary Optional Sportswear Optional Necessary Optional AutoClean - - - 20ºC - Necessary Optional Intensive - Necessary Optional Spin Only - - - Rinse&Spin - - Optional Wool - Necessary Optional Baby Care Optional Necessary Optional Express 15’ - Necessary Optional 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 8102380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 81 10/2/22 9:4310/2/22 9:4382 ENGLISH ECO 40-60 - Necessary Optional Rapid 45’ Optional Necessary Optional Detergent recommendations Recommended detergent Wash cycles Washing temp. Garment and textile type Strong detergent with bleaching agent and optical brighteners Cotton, ECO 40-60, Mix 20/40/60 White cotton or boil- resistant linen clothes Colour detergent without bleaching agent nor optical brighteners Cotton, ECO 40-60, Mix Cold/20/40 Coloured laundry made of cotton or linen Colour or mild detergent without optical brighteners Synthetics 20/40 Colour clothes made from easy-care bres or synthetic materials Mild washing detergent Synthetics 20/40 Delicate fabrics, silk, viscose Special wool detergent Wool 20/40 Wool Note - You can dilute concentrated detergents or additives in a little water before pouring them into the detergent dispenser, to avoid clogging the detergent dispenser inlet and causing water overow. - Choose the adequate detergent to get the maximum washing performance and the minimum water and energy consumption. - To obtain the best washing results it is important to use a correct detergent dose. - Use a reduced amount of detergent if the drum is not fully loaded. - Always adjust the detergent amount to the water hardness, if tap water is soft, use less detergent. - Dose according to the soiling level of the laundry. The less soiled laundry requires less detergent. - The highly concentrated compact detergent requires particularly precise dosing. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 8202380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 82 10/2/22 9:4310/2/22 9:43BOLERO DRESSCODE TOP 80 INVERTER

ENGLISH The following anomalies occur due to the use of a high detergent dose: - Abundant foaming - Poor washing and rinsing results The following anomalies occur due to the use of a low detergent dose: - Laundry turns gray - Build-up of limescale deposits on the drum, the heating element and/or laundry

1. On/o. It turns on or o the washing machine.

2. Start/Pause. Press the button to start or pause the washing cycle.

3. Additional functions. This button allows you to select an additional function which will

light up when selected.

4. Programmes. It is used to select a programme according to the type of laundry and its

5. Display. The display shows the settings, estimated time remaining, options, and status

messages of the washing machine. The display will remain on through the cycle. Fig. 19 A: Display B: Door lock C: Delay start D: Pre-wash E: Extra rinse Programme Max. recommended load (kg) Display time

1.031 57.4 40 52%/1300

- 2:48 0.559 46.6 31 53%/1300 - - 2:48 0.243 38.1 23 55%/1300 - The length, and energy and water consumption of each programme may vary according to the weight and type of laundry, the additional functions active, water and room temperature. - It is recommended the use of liquid detergent for washing programmes at low temperature. You can vary the quantity of detergent according to the quantity of laundry and its soiling level. Follow the detergent manufacturer recommendations for the quantity of detergent 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 8402380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 84 10/2/22 9:4310/2/22 9:43BOLERO DRESSCODE TOP 80 INVERTER

1.031 57.4 40 52%/1300

- 2:48 0.559 46.6 31 53%/1300 - - 2:48 0.243 38.1 23 55%/1300 - The length, and energy and water consumption of each programme may vary according to the weight and type of laundry, the additional functions active, water and room temperature. - It is recommended the use of liquid detergent for washing programmes at low temperature. You can vary the quantity of detergent according to the quantity of laundry and its soiling level. Follow the detergent manufacturer recommendations for the quantity of detergent 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 8502380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 85 10/2/22 9:4310/2/22 9:4386 ENGLISH you must use. - The information above are just references and can change according to the dierent use conditions. - The information given for the dierent programs of the ECO 40-60 programme are just indicative.

1. The highest temperature reached by the laundry in a washing cycle for at least 5 minutes.

2. Residual moisture after the wash cycle in percentage of water content and the spin speed

at which it was reached.

3. The ECO 40-60 programme can normally soiled clean cotton clothes declared as washable

at 40ºC or 60ºC, together in the same cycle. This programme is used to assess compliance with EU eco-design legislation. - The most ecient programmes in terms of energy consumption are generally those that are carried out at lower temperatures and longer duration. - Loading the washing machine up to the recommended capacity for the respective programmes will contribute to saving energy and water. - Noise and residual moisture content are inuenced by the spin speed: the higher the spin speed, the higher the noise and the lower the residual moisture content. Warning If there is an outage in the power supply while the appliance is in operation, the appliance will continue the programme when the power supply is restored. Programmes Cotton Hard-wearing and heat-resistant textiles made of cotton or linen. Synthetics Wash synthetic articles, for example shirts, coats, mix. While washing the knitting textiles, detergent quantity shall be reduced as the soft fabric is more prone to bubbles. Baby Care It ensures cleaner baby clothes, the rinse cycle is more intense so the baby skin is protected. Rapid 45’ It can be used to wash a few items of laundry or clothes that are not too dirty. Mix Mixed loads with cotton and synthetic clothes. Sportswear For washing sports clothes. Jeans Specially designed for denim clothing. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 8602380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 86 10/2/22 9:4310/2/22 9:43BOLERO DRESSCODE TOP 80 INVERTER

ENGLISH Quick 15’ Extra-short programme, suitable for lightly soiled washing or for small amounts of laundry. Wool Hand or machine-washable wool or rich-wool textiles. Gentle washing programme to prevent shrinkage, with longer programme pauses (with textiles soaking). Spin Only Extra spin with selectable spin speed. Rinse&Spin Extra rinse with spin. AutoClean Programme to clean the drum and hoses. Sterilisation temperature of 90°C to make the wash more environmentally friendly. When running this programme, you should not introduce laundry or clothes in general. If you use the appropriate amount of chlorine bleach product, the cleaning will be much more eective. The user can use this programme as many times as necessary. ECO 60-40 40°C by default, not selectable, suitable for washing clothes at about 40°C-60°C. Intensive To increase the washing eects, the washing time is increased. 20ºC For washing brightly coloured clothes, as it protects the colours better. Cycle Default temp. (ºC) Default spin speed in rpm Additional functions Wash cycles 1200 1300 Cotton 40 1200 1300 Delay start Synthetics 40 1200 1300 Delay start Mix 40 800 800 Delay start Jeans 60 800 800 Delay start Sportswear 40 800 800 Delay start 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 8702380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 87 10/2/22 9:4310/2/22 9:4388 ENGLISH 20ºC 20 1000 1000 Delay start Baby Care 60 800 800 Delay start AutoClean 90 -- -- Delay start Spin Only -- 800 800 Delay start Rinse&Spin -- 800 1000 Delay start Wool 40 600 600 Delay start Intensive 40 800 800 Delay start ECO 40-60 -- 1200 1300 Delay start Rapid 45’ 40 800 800 Delay start Express 15’ Cold 800 800 Delay start Note - To know the maximum spin speed, the programme time and other ECO 40-60 programme details, refer to the contents of the Product Sheet page. - You can access the product database where the information for this model is stored by scanning the QR code of the reference of your product (you will also nd the energy label). Reference: 02380 Model Bolero DressCode Top 80 Inverter QR code - The table shows the setting options for each cycle. Not all settings are possible for every cycle. Pre-Wash The pre-wash function is used to perform an extra wash before the main wash, it is suitable for washing the dust on the surface of the laundry; you should pour detergent into compartment I when you select it. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 8802380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 88 10/2/22 9:4310/2/22 9:43BOLERO DRESSCODE TOP 80 INVERTER

ENGLISH Extra rinse The laundry will undergo extra rinse once you select it. Delay start To set the Delay start function:

1. Select a programme, press the DelayEnd button to choose the time (the delay time can be

set in 0-24 hours in 3-hour intervals).

2. To activate the delay start, press the Start/Pause button.

Fig. 20 Choose a programme > Set the time > Start the programme To cancel the delay start function: Press the Delay button until the display shows 0H. You must do it before starting the programme. If the programme has already started, switch o programme to reset a new one. Temp. Press this button to select the desired temperature (Cold, 20ºC, 30ºC, 40ºC, 60ºC, 90ºC). Spin Press this button to change the spin speed. 1200: 0-600-800-1000-1200. 1300: 0-600-800-1000-1300 (depending on the model) Child lock system It is used to prevent children from operating the device. Choose a programme > Press Start/Pause > Hold down the Spin and DelayEnd buttons for 2 seconds until it beeps. Warning - When the child lock function is active, the device will beep 3 times when you press the buttons. - Hold down both buttons for 3 seconds to deactivate the child lock. - The child lock disables all the buttons except for the On/o button. - If the mains power is o, the child lock will be deactivated. Mute Choose a programme, then hold down the Spin button for 3 seconds to mute the device. To activate the sound again, hold down the same button for 3 seconds. The setting will stay active until you restart the device. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 8902380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 89 10/2/22 9:4310/2/22 9:4390 ENGLISH Warning If you mute the machine, the sounds will no longer be active. Favourites This function is used to save a frequently used programme. Once you have selected the programme and set the desired additional options, hold down the Temp. button for 3 seconds before starting the washing. The default programme is Cotton.

6. CLEANING AND MAINTENANCE

Warning Before starting any maintenance task, unplug the machine and close the tap. Exterior cleaning - Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overow, use a cloth to wipe it o immediately. - Do not use sharp objects. Note Formic acid and its solvents or any equivalent material such as alcohol, solvents, chemicals, etc. should not be used to clean the exterior of the product. Cleaning the drum - The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents. - Do not use steel wool pads. Note Do not put laundry in the washing machine during the drum cleaning. Cleaning the inlet lter Note Decreasing water ow is a signal to clean the lter. Fig. 21

1. Remove the water supply hose from the tap.

2. Clean the lter in the hose with a brush.

3. Loosen the water supply hose from the rear part of the washing machine. Remove the lter

4. Use a brush to clean the lter.

5. Install the lter again in the water supply and connect the water supply hose again.

6. Clean the inlet lter every 3 months to guarantee the normal operation of the device.

Detergent drawer cleaning Fig. 22

1. Press the softener cover in the direction of the arrow as shown in gure 22.

2. Lift the tab, remove the softener compartment cover and wash all the slots with water.

3. Place the softener cover again and gently push the drawer into position.

Note - Do not use abrasive or corrosive products to clean the plastic parts. - Clean the detergent drawer every 3 months to guarantee the normal operation of the device. Cleaning the drain pump lter Warning - Make sure the machine has nished the washing cycle and is empty. Turn it o and unplug it from the mains supply before cleaning the drain pump lter. - Be careful with hot water as when cleaning the drain pump lter it is common for water to be released. Wait for the water to cool down before cleaning this lter. Risk of burns - Clean the lter periodically every 3 months to guarantee the normal operation of the device. Fig. 23

1. Remove the cover in the lower part of the washing machine.

2. Remove the lter by turning it counterclockwise.

- Follow the indications on this table to try and solve the problem on your own before contacting the Cecotec Technical Support Service. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 9102380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 91 10/2/22 9:4310/2/22 9:4392 ENGLISH Problem description Possible causes Possible solutions The washing machine does not start The door is not closed properly Restart after the door is closed Check if there are clothes stuck You cannot open the door The protection system of the washing machine is active Unplug the device and restart the product Water leakage Poor connection between the inlet pipe and the drain hose Check the hoses and connect them properly Clean up outlet hose Detergent residues in the box Detergent is dampened or agglomerated Clean and wipe the detergent box Indicator or display does not light The printed circuit board is disconnected or there is a connection problem in the wiring Check if the power is shut down and the power plug is connected correctly Abnormal noise Check you have removed the transport bolts Check it is installed in a level and solid surface Check the washing machine is level Display warnings Error on the display Cause Solution E30 Door is not closed properly Restart after the door is closed Check if there are clothes stuck E10 Water injecting problem while washing Check if the water pressure is too low. Check the water supply hose is not twisted, rolled or crushed Check if the inlet valve lter is blocked 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 9202380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 92 10/2/22 9:4310/2/22 9:43BOLERO DRESSCODE TOP 80 INVERTER

ENGLISH E21 Overtime water draining Check if the drain hose is blocked E12 Water overow Restart the washing machine EXX Others Try again and contact the Cecotec Technical Support Service if the warning does not disappear Note After performing the necessary checks, restart the machine. If the problem persists or the display shows another error code, contact the Technical Support Service. Transport Important steps you must follow to transport the device: - Unplug the device and close the water inlet tap. - Check if the door and the detergent drawer are properly closed. - Remove the water inlet hose and drain hose from your home installation. - Let the water drain completely out of the appliance (check the ‘Drain pump lter cleaning’ section). - Important: Place the 4 transport bolts again in the rear part of the washing machine. - This appliance is very heavy. Transport it with care. Do not hold the appliance by its protruding parts to lift it. Do not use the machine door as a handle.

8. TECHNICAL SPECIFICATIONS

Reference: 02380 Model Bolero DressCode Top 80 Inverter QR code Power supply: 220-240 V~, 50 Hz Power: 2000 W Maximum power: 10 A IPX4 Maximum load (dry clothes): 8 Kg Maximum water pressure: 1 MPa 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 9302380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 93 10/2/22 9:4310/2/22 9:4394 ENGLISH Minimum water pressure: 0,1 MPa Manufactured in China | Designed in Spain (*) Technical specications may change without prior notication to improve product quality.

9. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities. Consumers must contact their local authorities or retailer for detailed information concerning the correct disposal of old electrical appliances and/or their batteries. Compliance with the above guidelines will help protect the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations. It is recommended that repairs are carried out by qualied personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec ocial Technical Support Service at [phone].

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L. 02380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 9402380_Bolero DressCode Top 80 Inverter_Manual_YV_01220209.indd 94 10/2/22 9:4310/2/22 9:43BOLERO DRESSCODE TOP 80 INVERTER
