Product type	Cordless insect lamp
Model	One+ RY18BZA
Brand	RYOBI
Power supply	18 V lithium-ion battery (One+ series, not included)
Main functions	Attracts and eliminates insects via high-voltage grid; LED lighting; USB-A port for charging
UV bulb	Yes, to attract insects
High-voltage grid	Yes, safe
Insect collection tray	Yes, removable
LED lighting	Yes, with dedicated button
USB-A port	Yes, for charging external devices
Hanging/carrying handle	Yes
Control buttons	USB/LED lighting function button; UV insect lamp button
Use	Indoor and outdoor under shelter (protected from rain or humidity)
Cleaning	With a dry soft cloth and the provided brush; remove battery before
Safety	Do not touch the high-voltage grid; remove battery before maintenance; do not look directly at UV LEDs
Warranty	24 months (extendable via online registration within 30 days)
Included accessories	Cleaning brush, user manual
Spare parts	Use only original manufacturer parts; repairs by authorized center

Frequently Asked Questions - One+ RY18BZA RYOBI

How does the RYOBI One+ RY18BZA insect lamp work?

The lamp uses a UV bulb to attract insects, then a high-voltage grid eliminates them. A removable collection tray collects dead insects.

Can I use this lamp outdoors?

Yes, but only under a shelter protected from rain and moisture. It is not suitable for barns, stables, or similar locations.

What type of battery does it use?

It uses an 18 V lithium-ion battery from the One+ series by RYOBI. The battery and charger are sold separately.

How to clean the high-voltage grid?

Turn off the lamp and remove the battery. Use the provided cleaning brush to gently brush the grid. Never spray liquid.

What to do if the lamp does not turn on?

Check that the battery is properly inserted and charged. Make sure the buttons are fully pressed. If the problem persists, contact an authorized after-sales service.

Is it safe to leave the lamp on overnight?

Yes, it can operate continuously as long as the battery is sufficient. However, never leave the lamp unattended near children or in a humid environment.

Can I charge my phone via the USB port?

Yes, the USB-A port allows charging external devices like a smartphone. Use the dedicated button to activate this function.

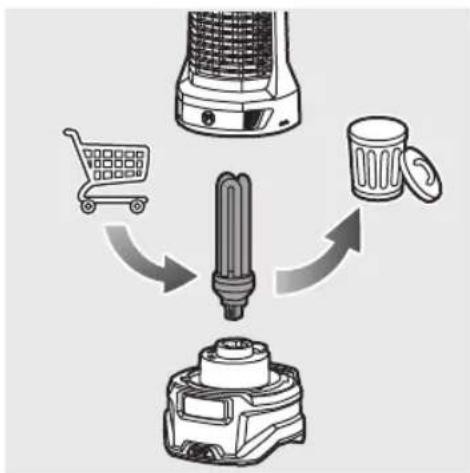

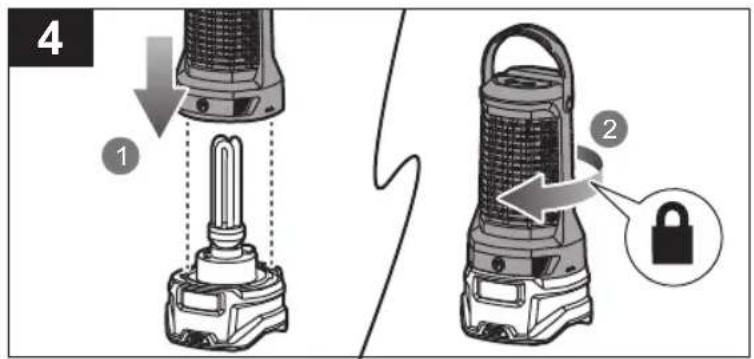

How to replace the UV bulb?

Remove the battery and disassemble the top housing cage. Replace the bulb with an original RYOBI part. For any repairs, contact an authorized center.

Where can I find spare parts?

Original spare parts are available from RYOBI dealers or authorized service centers. Visit www.ryobitools.eu for more information.

Does the warranty cover accidental damage?

The 24-month warranty covers manufacturing and material defects. Damages caused by improper use, modifications, or external influences are not covered.

USER MANUAL One+ RY18BZA RYOBI

Vertical striped pattern with diagonal lines, no text or symbols present

Close-up of diagonal striped pattern with uniform gray tones (no text or symbols)

Exterior view of a modern office building (no signage)

EN FR DE ES IT NL PT DA SV FI NO RU PL CS HU RO LV LT ET HR SL SK BG UK TR EL

RY18BZA

Important!	It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E’ importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și opera area produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminj, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımlı yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.
Прогохή!	Еівαι полú σημαντικό να διαβάσετε τις οδηγίες στο παρόν εγχειρίδιο πριν συναρμολογήσετε, συντηρήσετε ή λειτουργήσετε το προϊόν.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir | техvíków тротпотоїσεων.

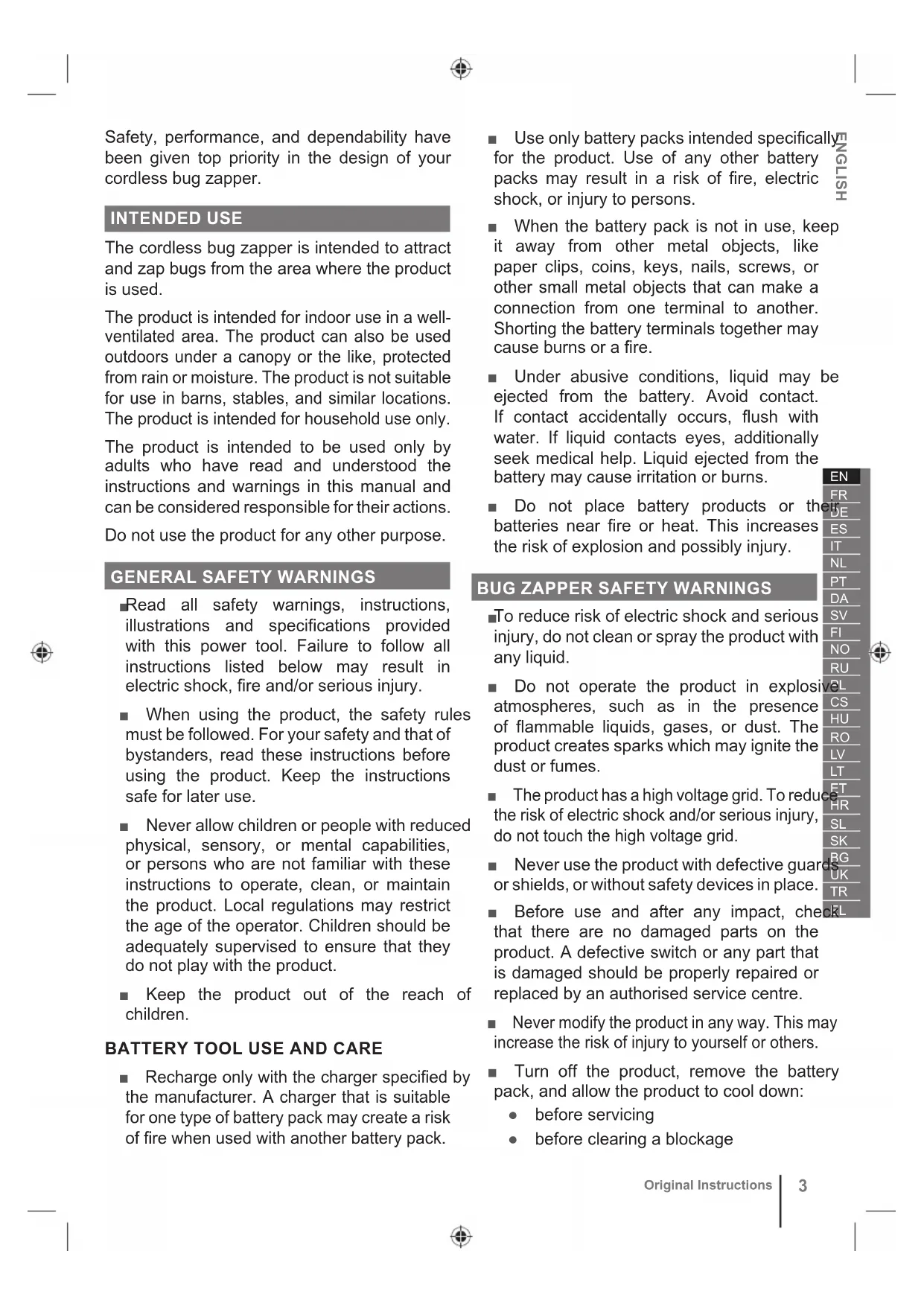

Safety, performance, and dependability have been given top priority in the design of your cordless bug zapper.

INTENDED USE

The cordless bug zapper is intended to attract and zap bugs from the area where the product is used.

The product is intended for indoor use in a well-ventilated area. The product can also be used outdoors under a canopy or the like, protected from rain or moisture. The product is not suitable for use in barns, stables, and similar locations. The product is intended for household use only.

The product is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions.

Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ When using the product, the safety rules must be followed. For your safety and that of bystanders, read these instructions before using the product. Keep the instructions safe for later use.
■ Never allow children or people with reduced physical, sensory, or mental capabilities, or persons who are not familiar with these instructions to operate, clean, or maintain the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure that they do not play with the product.
- Keep the product out of the reach of children.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Use only battery packs intended specifically for the product. Use of any other battery packs may result in a risk of fire, electric shock, or injury to persons.
- When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Do not place battery products or the batteries near fire or heat. This increases the risk of explosion and possibly injury.

BUG ZAPPER SAFETY WARNINGS

■To reduce risk of electric shock and serious injury, do not clean or spray the product with any liquid.
- Do not operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. The product creates sparks which may ignite the dust or fumes.
■ The product has a high voltage grid. To reduce the risk of electric shock and/or serious injury, do not touch the high voltage grid.
■ Never use the product with defective guard or shields, or without safety devices in place.
■ Before use and after any impact, che that there are no damaged parts on the product. A defective switch or any part that is damaged should be properly repaired or replaced by an authorised service centre.
■ Never modify the product in any way. This may increase the risk of injury to yourself or others.
■ Turn off the product, remove the battery pack, and allow the product to cool down:

• before servicing
  • before clearing a blockage

• before checking, cleaning, and workingconductive materials while in transport by on the product protecting exposed connectors with insulating,
  • before changing accessories
  • whenever performing maintenance
  gconductive materials while in transport by protecting exposed connectors with insulating, nonconductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

■ Immediately turn off the product and remove

the battery pack in the event of accident or breakdown. Never operate the product again until it has been fully checked by an authorised service centre.

■ To avoid injury, do not stare at the UV LED light.

ADDITIONAL BATTERY SAFETY WARNINGS

To reduce the risk of fi re, personal injury, and product damage due to a short circuit, never immerse the product, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

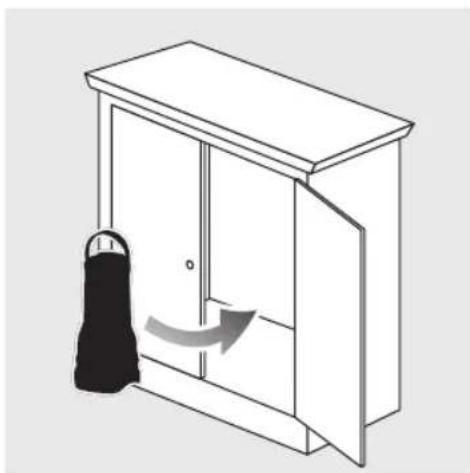

TRANSPORTATION AND STORAGE

■Turn off the product, remove the battery pack, and allow both to cool down before storing or transporting.
■ Remove all foreign materials from the product.
- Do not store or transport the product with the battery pack fitted. Remove the battery pack, and secure it separately. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.
■ For transportation in vehicles, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or

MAINTENANCE

• Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.
  ■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.
  ■ Turn off the product and remove the battery back before conducting any maintenance or cleaning work.
  ■ You may make adjustments and repairs described in this manual. For other repairs, contact an authorised service centre.
  ■ After each use, clean the product with a soft, dry cloth and clean the grid with the brush included with the product. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
• Check all nuts, bolts, and screws before each use and at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any part that is damaged should be properly repaired or replaced by an authorised service centre.
  ■ Bring the product to an authorised service centre to replace damaged or unreadable labels.

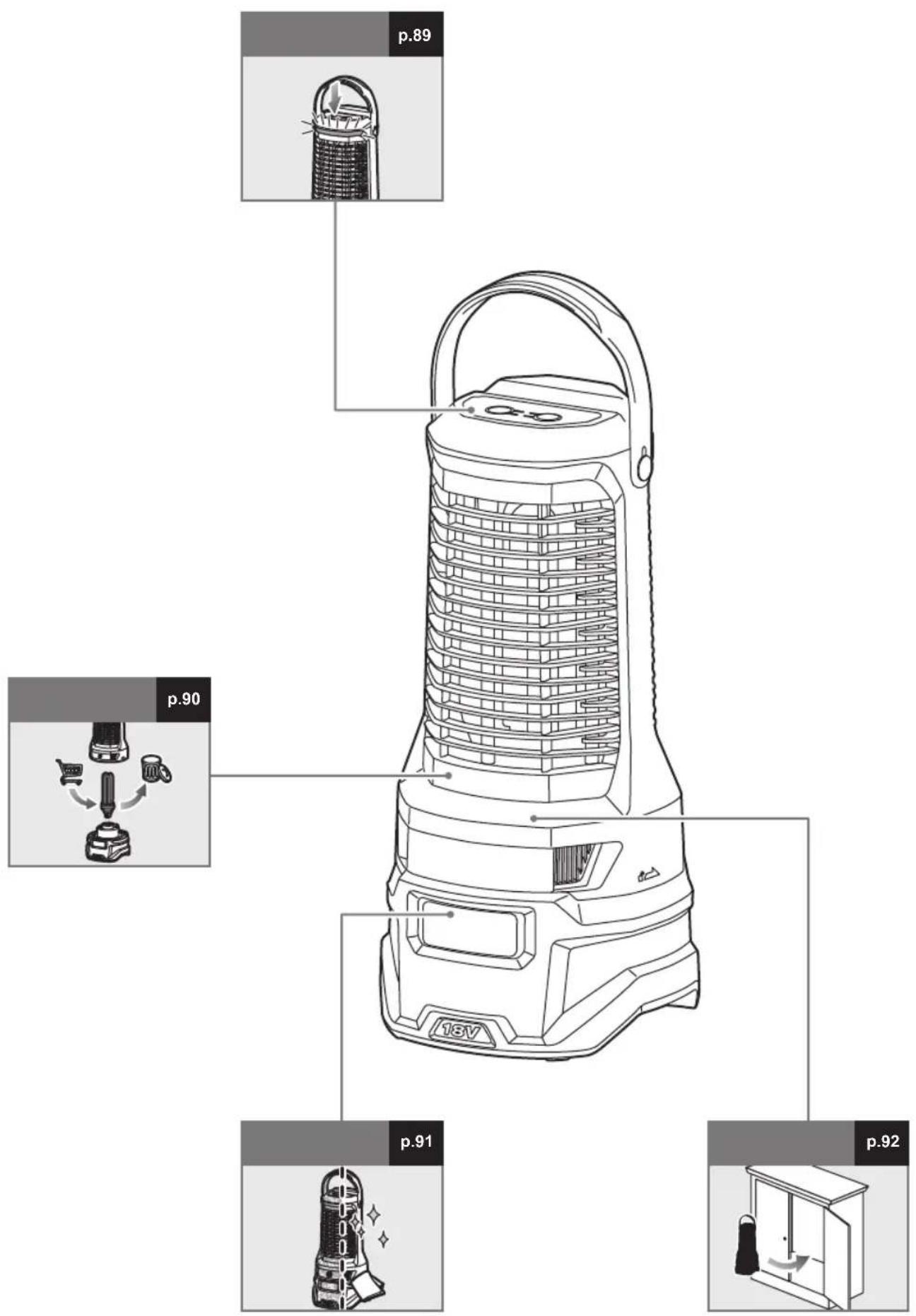

KNOW YOUR PRODUCT

See page 85.

1. Hanging/Carry handle
2. USB-A port
3. LED light / USB function button
4. UV zapper button
5. LED light
6. High voltage grid

7. Top housing cage

8. UV light bulb

9. Base housing
10. Bug collection tray
11. Cleaning brush
12. Operator's manual
13. Battery pack
14. Charger

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Do not expose the product to rain or damp conditions.

Remove the battery pack before starting any work on the product.

Electric shock hazard

European Conformity Mark

EurAsian Conformity Mark

British Conformity Mark

Ukraine Conformity Mark

Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

SYMBOLS IN THIS MANUAL

Note

Warning

Parts or accessories sold separately

SYMBOLES APPLIQUÉS SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 85.

SYMBOLE AUF DEM PRODUKT

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

VEILIGHEIDSWAARSCHUWINGEN ANTI-INSECTENLAMP

SYMBOLER PÅ PRODUKTET

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

SYMBOLER I MANUALLEN

OBS

Varning

KJENN PRODUKTET DITT

Se side 85.

SYMBOLER PÅ PRODUKTET

SYMBOLER I DENNE MANUALLEN

Merk

Advarsel

SUSIPAŽINKITE SU JRENGINIU

Žr. 85 psl.

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 85.

Technical diagram of a 18V battery with numbered parts and exploded view, including labeled components like battery pack, switch, and battery.

1 ① ②

2

6 C-XO

7

i No + +

©

p.89 p.90 p.91 p.92

Diagram of a woven basket with a handle and arrow indicating compression or drying process (no text or symbols)

1

2 1 2

i x1 2HR x2 4HR x3x4 ON 0HR

i 30% x1 60% x2 100% x3 0% x4


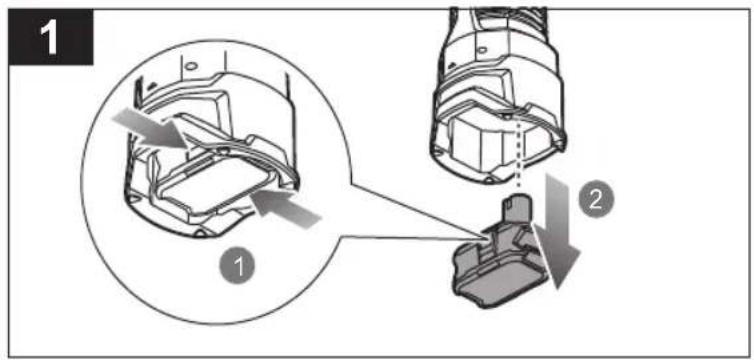

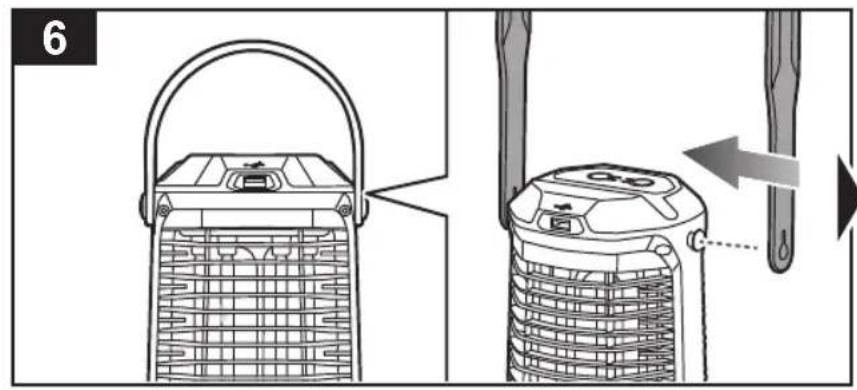

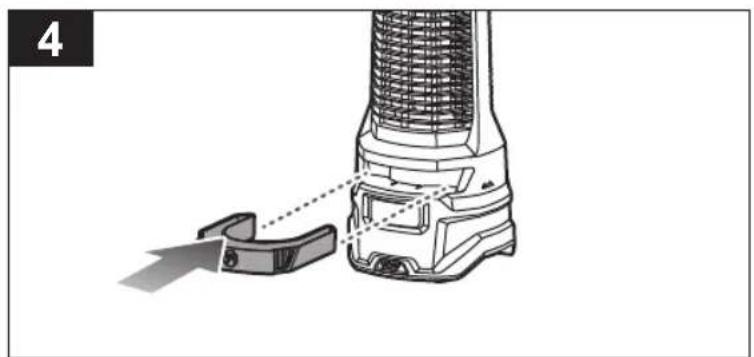

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Diagram illustrating the step-by-step installation of a portable device, showing lock mechanism and power outlet assembly.

3 1 2

4 ① ②

Illustration of a vacuum cleaner with decorative sparkles, no text or symbols present

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Illustration of two different household appliances, one with a cloth and the other with a tool, shown without any text or symbols.

Illustration of a spray gun spraying water onto a storage bag with warning symbols (no text or labels)

Diagram illustrating a hairdryer tool with labeled parts and process steps, showing step 1 and step 2 of the process.

Technical illustration of a robotic vacuum cleaner with a handle attachment (no text or symbols)

Simple line drawing of a cabinet with a hanging handle and arrow indicating rotation (no text or symbols)

Two identical line drawings of a portable electric shaver device, one with a checkmark and the other with an 'X' symbol (no text or labels present)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Diagram of a door with a bag hanging from the window, showing a curved arrow indicating motion (no text or symbols)

English Français Deutsch Español Italiano Nederlands Português
Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Características del producto	Caratteristiche del prodotto	Productgegevens Características do aparelho
Cordless bug zapper Lampe anti-insectes sans fil	Akku-Insektenfalle Exterminador de insectos inalámbrico	Trappola per insetti senza fili	Snoerloze anti-insectenlamp	Lâmpada de insetos sem fios
Model	Modèle	Modell	Modelo	Modello	Model	Modelo
Voltage	Tension	Spannung	Tensión	Voltaggio	Spanning	Voltagem
HV grid voltage	Tension de grille HT	Spannung Hochspannungsgitter	Tensión de red de alta tensión	Voltaggio griglia HV	Hoogspanningsrooster	Tensão da grelha de alta tensão
Weight	Poids	Gewicht	Peso	Peso	Gewicht	Peso
without battery pack	sans batterie	ohne Akku	sin batería	senza pacco batteria	zonder accu	sem bateria
with included battery pack	avec batterie inclue	mit dem mitgelieferten Akku	con batería incluida	con pacco batteria incluso	met bijgeleverde accu	com bateria incluída
High voltage grid	Grille haute tension	Hochspannungsgitter	Red de alta tensión	Griglia alto voltaggio	Spanningsrooster	Grelha de alta tensão
Height	Hauteur	Höhe	Altura	Altezza	Hoogte	Altura
Width	Largeur	Breite	Anchura	Larghezza	Breedte	Largura
LED brightness level	Niveau de luminosité de LED	LED-Helligkeit	Nivel de brillo de la luz LED	Livello luminosità LED	Led-helderheidsniveau	Nivel de luminosidade do LED
30%	30%	30%	30%	30%	30%	30%
60%	60%	60%	60%	60%	60%	60%
100%	100%	100%	100%	100%	100%	100%
USB type A output (max)	Sortie USB de type A (max)	Leistung USB-A-Ausgang (max.)	Salida USB tipo A (máx.)	Uscita A tipo USB (max)	USB type A output (max)	Saída USB tipo A (máx.)

Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore	Accu en oplader	Bateria e carregador
Model	Modèle	Modell	Modelo	Modello	Model	Modelo
Battery pack	Bloc de batterie	Akkupack	Bateria	Batteria	Accu	Bateria
Charger	Chargeur	Ladegerät	Cargador	Caricatore	Oplader	Carregador
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de batería compatibles	Gruppo batterie compatibili	Compatibele accupacks	Baterias compatíveis
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile	Compatibele oplader	Carregador compatível

Replacement parts	Pièces de rechange	Ersatzteile	Piezas de repuesto	Parti di ricambio	Vervangonderdelen	Peças de substituição
Manufacturer	Fabricant:	Hersteller	Fabricante	Ditta produttrice	Fabrikant	Fabricante
UV bulb	Ampoule UV	UV-Glühbirne	Bombilla UV	Lampadina UV	UV-lamp	Lâmpada UV
Dansk Svenska Suomi Norsk Русский Polski
Produktspecifikationer Produktspecifikationer		Tuotteen tekniset tiedot	Produktspesifikasjoner	Характеристики изделия	Parametry techniczne
Trådløs insektlampe	Sladdløs insektsdödare	Johdoton hyönteisansa	Trådløs insektdreper	Беспроводная электромухобойка	Bezprzewodowe urządzenie owadobójcze
Model	Modell	Malli	Modell	Модель	Model	RY18BZA
Spænding	Spänning	Jännite	Spenning	Напряжение	Napiecie	18 V d.c.
HV-netspænding	HV-nätspänning	Korkea verkkojännite	HV rutenettspenning	Напряжение высоковольтной сетки	Napięcie siatki wysokonapięciowej	2,2~2,6 kV
Vægt	Vikt	Paino	Vekt	Вес	Masa
uden batteri	utan batteripaket	ilman akkua	uten batteripakke	без аккумуляторного блока	bez akumulatora	1,2 kg
med medfølgende batteri	med medföljande batteripaket	toimitetulla akulla	med inkludert batteripakke	с аккумуляторным блоком из комплекта	z akumulatorem	1,7 kg
Højspændingsnet	Högspänningsnät	Suurjänniteverkko	Rutenett med høy spenning	Высоковольтная сетка	Siatka pod wysokim napięciem
Højde	Höjd	Korkeus	Høyde	Высота	Wysokość	140 mm
Bredde	Bredd	Leveys	Bredde	Ширина	Szerokość	73 mm
LED lysstyrkeniveau	LED-ljusstyrkenivå	LED-valojen kirkkaustaso	LED-lysstyrkenivå	Яркость светодиодной подсветки	Poziom jasności lampki LED
30%	30%	30%	30%	30%	30%	9 lm
60%	60%	60%	60%	60%	60%	18 lm
100%	100%	100%	100%	100%	100%	30 lm
USB type A udgang (maks.)	USB A-uteffekt (max) USB type A -teho (maks.)		USB type A effekt (maks)	Выходное напряжение порта USB A (макс.)	Wyjście USB A (maks.)	5 V d.c. / 2 A

Batteri og oplader Batteri och batteriladdare	Akku ja laturi	Batteri og lader Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka
Model	Modell	Malli	Modell	Модель	Model
Batteri	Batteri	Akku	Batteri	Аккумулятор	Akumulator
Oplader	Batteriladdare	Laturi	Lader	Зарядное устройство	Ladowarka
Kompatible batterier	Kompatibla batteripaket	Yhteensopivat akut	Kompatible batteripakker	Совместимая аккумуляторная батарея	Pasujace akumulatory
Kompatibel oplader	Kompatibel laddare	Yhteensopiva laturi	Kompatibel lader	Совместимое зарядное устройство	Zgodna ładowarka

Reservedele	Utbytesdelar	Varaosat	Erstatningsdeler	Запасные части	Części zamienne
Producent	Tillverkare	Valmistaja	Produsent	Изготовитель	Producent	RYOBI
UV-pære	UV-glödlampa	UV-lamppu	UV-pære	Ультрафиолетовая лампа освещения	Żarówka emitująca promieniowanie ultrafioletowe	RAC839
Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Technické údaje produktu	Termék muszaki adatai	Specificatiile produsului	Produkta specifikacijas	Gaminio technines savybes	Toote tehnilised andmed	Specifikacije proizvoda
Akumulátorový lapač hmyzu	Akkumulátoros rovarirtó	Aparat anti-insecte fárá fir	Akumulatoru kukainu iznčinátájs	Akumuliatoriné vabzdžių gaudyklé	Juhtmeta putukalôrjeseade	Bežični uređaj za uništavanje kukaca
Model Típus Model Modelis Modelis Mudel Model
Elektrické napeti	Feszültség	Tensiune	Spriegums	Itampa	Pinge	Napon
Napětí na mřížce	Nagyfeszültségů rács feszültsége	Tensiune grâtar de īnaltă tensiune	Augstspreguma sieta spriegums	Aukštos jtampos grotelių jtampa	HV vôrestiku pinge	Napon visokonaponske mreže
Hmotnost	Súly	Greutate	Svars	Svoris	Kaal	Težina
bez akumulátoru	akkumulátor nélkül	fărà acumulator	bez akumulatoru bloka	be akumuliatoriaus	ilma akuta	bez baterijskog sklopa
se zapojeným akumulátorem	mellékelt akkumulátorral	cu acumulator inclus	ar akumulatoru bloku	su pateiktu akumuliatoriumi	koos akuga	s priložením baterijskim sklopom
Mřížka pod vysokým napétím	Nagyfeszültségů rács	Grâtar de īnaltă tensiune	Augstspreguma siets	Aukštos jtampos grotelės	Kõrgepingevõre	Visokonaponska mreža
Výška	Magasság	Înálțime	Augstums	Aukštis	Kõrgus	Visina
Šířka	Szélesség	Láțime	Platums	Plotis	Laius	Širina
Svitivost LED	A LED fényerőszintje	Nivel de luminozitate LED	LED spilgtuma līmenis	Šviesos diodo šviesumo lygis	LED-tule tase Razina svjetline LED svjetla
30%	30%	30%	30%	30%	30%	30%
60%	60%	60%	60%	60%	60%	60%
100%	100%	100%	100%	100%	100%	100%
Výstupní USB typu A (max.)	A-típusů USB kimenete (max)	Ieşire USB tip A (max)	USB-A veida izejas jauda (maks.)	„A“ tipo USB išvadas (maks.)	A-tůüpi USB-väljund (max)	USB izlaz tipa A (maks.)

Nabiječka a baterie	Akkumulátor és töltő	Bateria și încărcătorul	Akumulators un lădëtăjs	Akumuliatorius ir jkroviklis	Aku ja laadija	Baterija i punjač
Model Típus Model Modelis Modelis Mudel Model
Baterie	Akkumulátor	Acumulator	Akumulators	Baterija	Aku paketiga	Baterija
Nabijecka	Tölto	Încarcator	Ladetajs	Ikroviklis	Laadija	Punjac
Kompatibilni akumulátory	Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	Ühilduvad akupaketid	Kompatibilna pakiranja baterija
Kompatibilni nabiječka	Kompatibilis töltő	Încărcător compatibil	Saderīgs lădëtăjs	Suderinamas jkroviklis	Ühilduv laadija	Kompatibilni punjači

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate

– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries

– any product connected to improper power supply (amps, voltage, frequency)

– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.
– Any periodic adjustments to or maintenance cleaning of carburettors
- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

EN EC DECLARATION OF CONFORMITY

Cordless bug zapper

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product mentioned below fulfills all the relevant provisions of the following European Directives, European Regulations and harmonised standards ^4

Authorised to compile the technical file:

FR DÉCLARATION CE DE CONFORMITÉ

Lampe anti-insectes sans fil

Max-Eyth-Straße 10, 71364 Winnenden, Germany

^2 RY18BZA

^2 48660301000001 - 48660301999999

4 2011/65/EU, 2014/30/EU, EN 60335-1: 2012 + A11: 2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021, EN 60335-2-59:2003+A1:2006+A2:2009+A11:2018, EN 60598-1:2015, EN 60598-2-4:2018, EN 62233:2008, EN 62368-1: 2014+A11:2017, EN IEC 55014-1: 2021, EN IEC 55014-2: 2021, EN 62471:2008

Todd Chipner

Vice President, Quality – Asia

^5 Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless bug zapper

Brand: RYOBI

Model number: RY18BZA

Serial number range: 48660301000001 - 48660301999999

fulfills all the relevant provisions of the following Regulations: S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), and that the following designated standards have been used:

EN 60335-1: 2012 + A11: 2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021,

EN 60335-2-59:2003+A1:2006+A2:2009+A11:2018. EN 60598-1:2015.

EN 60598-2-4:2018, EN 62233:2008, EN 62368-1: 2014+A11:2017,

BS EN IEC 55014-1: 2021, BS EN IEC 55014-2: 2021, EN 62471:2008

Todd Chipner

Vice President, Quality – Asia

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

Three vertical panels with diagonal striped patterns, each containing a central dot and a crosshair marker (no text or symbols)

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

099244002001-01
