USER MANUAL KVC 3122 A Koenic

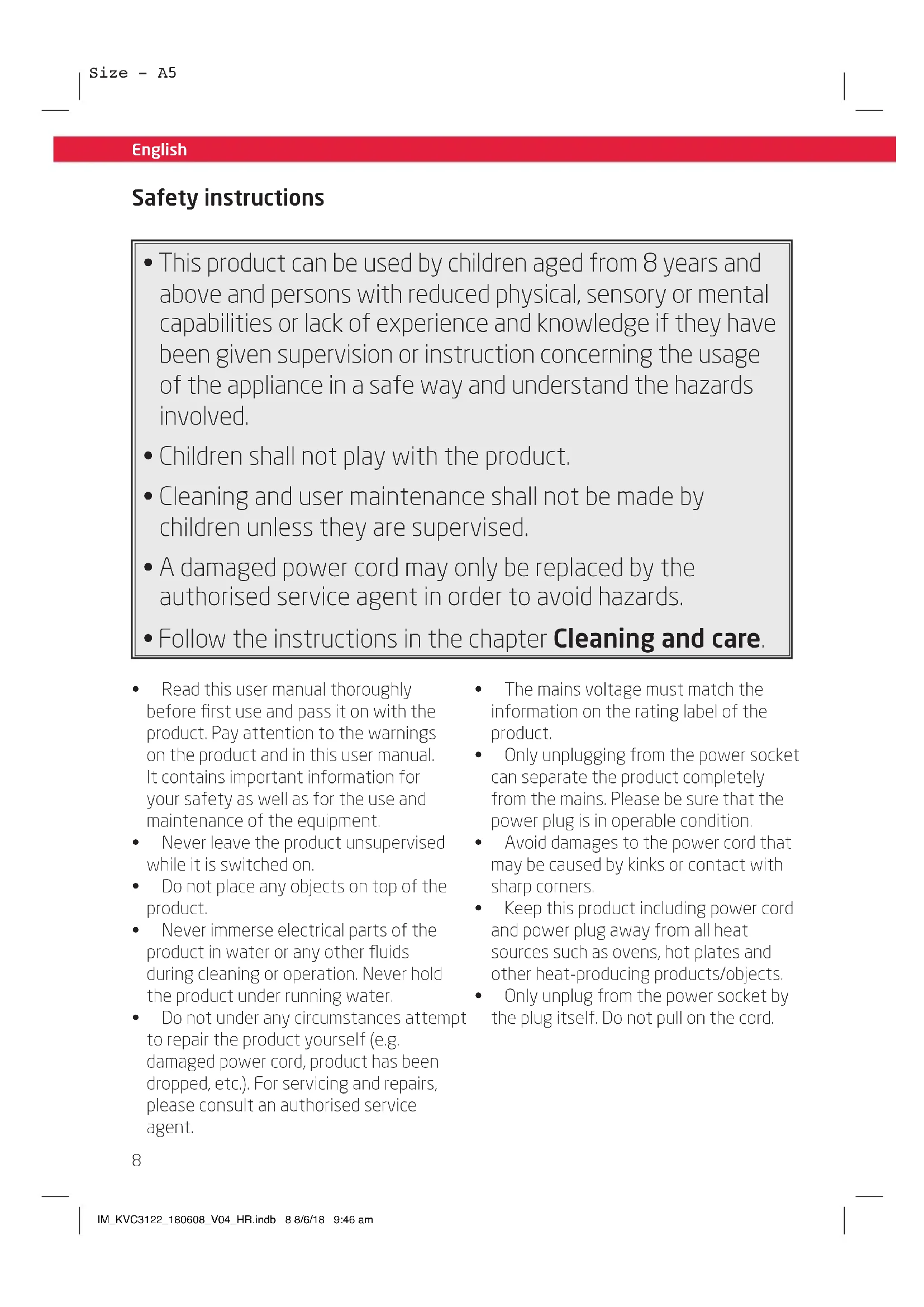

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the usage of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the product.

• Cleaning and user maintenance shall not be made by children unless they are supervised.

• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.

• Do not place any objects on top of the product.

• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.

• Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped, etc.). For servicing and repairs, please consult an authorised service agent.

• The mains voltage must match the information on the rating label of the product.

• Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord. IM_KVC3122_180608_V04_HR.indb 8 8/6/18 9:46 amEnglish

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the usage of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the product.

• Cleaning and user maintenance shall not be made by children unless they are supervised.

• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Follow the instructions in the chapter Cleaning and care.

• Unplug the product ... - when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• This product is not intended for commercial use. It is designed for household use only.

• Make sure that the motor unit and supply cord do not become wet.

• Use accessories supplied with the device or recommended by the manufacturer only!

• This product is suitable only for private use.

• Always switch the product o before disconnecting it from mains supply.

• Let the product cool down suciently before storing.

• Do not cover the product while in use. Fire hazard!

• Do not suck up liquids with the product. Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!

• Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.

• Be especially careful when cleaning the stairs.

• When in use, keep the product away from clothes and body parts (fingers, hair, face).

• Do not try to clean people or animals with the product.

• Ensure that the power supply cable does not become a tripping hazard. IM_KVC3122_180608_V04_HR.indb 9 8/6/18 9:46 amSize - A5

English Congratulations! Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference. Intended use The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specified purpose. Before first time use Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care. Disposal Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Content 1 x Vacuum cleaner 1 x Floor nozzle 1 x Crevice nozzle 1 x Upholstery nozzle round brush 1 x Upholstery nozzle square brush 1 x Hard floor brush 1 x User manual 1 x warranty card Controls and Components

Suction tube handle release button

Telescopic tube with locking mechanism

Upholstery nozzle round

Suction hose bracklet

• This is a general purpose vacuum cleaner

• The Erp test method is according to (EU) No 666/2013, (EU) No 665/2013 & EN 60312:2013

• Please refer to below website for detail technical information, or contact us for technical document: www.koenic-online.com IM_KVC3122_180608_V04_HR.indb 10 8/6/18 9:46 am11 English Content 1 x Vacuum cleaner 1 x Floor nozzle 1 x Crevice nozzle 1 x Upholstery nozzle round brush 1 x Upholstery nozzle square brush 1 x Hard floor brush 1 x User manual 1 x warranty card Controls and Components

Suction tube handle release button

Telescopic tube with locking mechanism

Upholstery nozzle round

Suction hose bracklet

• This is a general purpose vacuum cleaner

• The Erp test method is according to (EU) No 666/2013, (EU) No 665/2013 & EN 60312:2013

• Please refer to below website for detail technical information, or contact us for technical document: www.koenic-online.com Assembling the vacuum cleaner Fig.

Insert the suction hose into the hose connection. Make sure that it has clicked into place. Fig.

Place the floor nozzle on the lower end and the suction tube handle on the upper end (side with locking mechanism) of the telescopic tube. Fig.

Adjust the telescopic tube to the desired length by sliding up the locking mechanism and then pushing the telescopic tube out or squeezing it together. Use of the accessories provided Floor nozzle Fig.

To vacuum carpeted areas, press the toggle switch again in order to retract the brushes. Upholstery nozzle round/square Fig.

For vacuuming upholstered furniture, mattresses, cushions, curtains, etc. Crevice nozzle Fig.

For vacuuming folds, crevices and corners. Hard floor brush Fig.

For vacuuming hard and wooden floors. Use the hard floor brush to protect the floor from being scratched. Operation Fig.

Pull out the connection cable to the desired length and insert the power plug into a receptacle. Fig.

Press the On/O switch to turn the vacuum cleaner on/o. Use the power control buttons +/- to adjust then desired power. Tip: If the vacuum can only be guided with diculty over carpeted areas due to excessively high suction power, decrease the suction power by opening the auxiliary air flap on the handle. Fig.

Switch the vacuum cleaner o after use and unplug it when you have finished working. Fig.

Wind the power cable around the cable storage by pressing the automatic cable retraction switch. While you are doing this keep the cable taut, if possible. Parking system for pauses in vacuuming Fig.

You can store the telescopic tube with the floor nozzle on the vacuum cleaner for short pauses in vacuuming. Insert the floor nozzle with the parking attachment into the parking system. Transport and storage Fig.

To carry your vacuum cleaner grasp it by the handle. To store your vacuum cleaner, the suction tube with the floor nozzle can be mounted on the back of the vacuum cleaner in an upright position. Cleaning and care Warning!

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water. IM_KVC3122_180608_V04_HR.indb 11 8/6/18 9:46 amSize - A5

If the suction power diminishes, the dust canister must be emptied and the filters must be cleaned. We recommend to empty the dust canister outside of the house. a) Remove the suction hose from the vacuum cleaner. Press both dust container release buttons and remove the container by bringing it forward. b) To empty the dust canister, simply press the release on the bottom so that the bottom of the canister opens and the dust falls out. Hold the dust canister over a rubbish container whilst you are emptying it. c) Loosen the filter lid and remove the entire filter insert from the dust canister. Empty remaining dust from the dust canister. d) Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order. When put in the filter insert, be aware that the arrow of the filter points to the handle of the container. Cleaning the main filter Fig.

a) Loosen the filter lid and remove the entire filter insert from the dust canister. Break down the filter into all of its individual parts. Tap the filter to remove the dust and clean all other parts with water and dry them thoroughly. b) Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order. When inserting the filter insert, be aware that the arrow of the filter points to the handle of the container. Cleaning the motor filter Fig.

Remove the motor filter and tap it to remove the dust. Then re-insert it. Reassemble all of the components that have previously been removed. Assembly is carried out in reverse order. Warning! Never use the vacuum cleaner without a motor filter, as otherwise, the motor will soon get dirty and will be subject to wear. If the motor filter gets dirty, the suction power will diminish. Cleaning the exhaust air filter Fig.

Open the flap, take the filter out and tap it to remove the dust. Assembly is carried out in reverse order. Insert the filter in the right direction so that the correct side is facing the motor. Troubleshooting If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer. Problem Possible causes Solution Product does not work Interrupted power supply Check the power supply Product cannot absorb dust or loses suction power

• Filters are blocked with dirt

• Suction hose/ telescopic tube blocked with dirt

• Clean and wash all filters

• Reinig en was alle filters

• Energy eciency class: A

• Indicative annual energy consumption

24.4 kWh per year, based on

50cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.

• Carpet cleaning performance class: C

• Hard floor cleaning performance class: A

• Dust re-emission class: A

• Sound power level: 78 dB

• The rated input power: 700 W
