GP1300 Jet

DE	GartenpumpeOriginalbetriebsanleitung	6
GB	Garden pumpTranslation of the original instruction manual	18
FR	Pompe de jardinTraduction des instructions d'origine	27
LV	Üdens süknis därzamAz eredeti használati útmutató fordítása	37
LT	Vandens siurblysVertimas originali naudojimo instrukcija	46

Technical diagram of an electric pump with labeled components including motor, air vent, and internal structure

Close-up of a Schreppach electric pump with water being poured into it, no visible text or symbols on the device itself.

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read the operating and safety instructions before start-up and follow them!
	Wear hearing protection.
⚠ Attention!	We have marked points in these operating instructions that impact your safety with this symbol

Table of contents: Page:

1. Introduction....20
2. Device description (Fig. 1)....20
3. Scope of delivery 20
4. Proper use 20
5. General safety information 21
6. Residual risks 22
7. Technical data.... 22
8. Unpacking 23
9. Assembly 23
10. Start up 23
11. Electrical connection 24
12. Cleaning and maintenance.... 24
13. Storage 25
14. Transport....25
15. Disposal and recycling.... 25
16. Troubleshooting 26

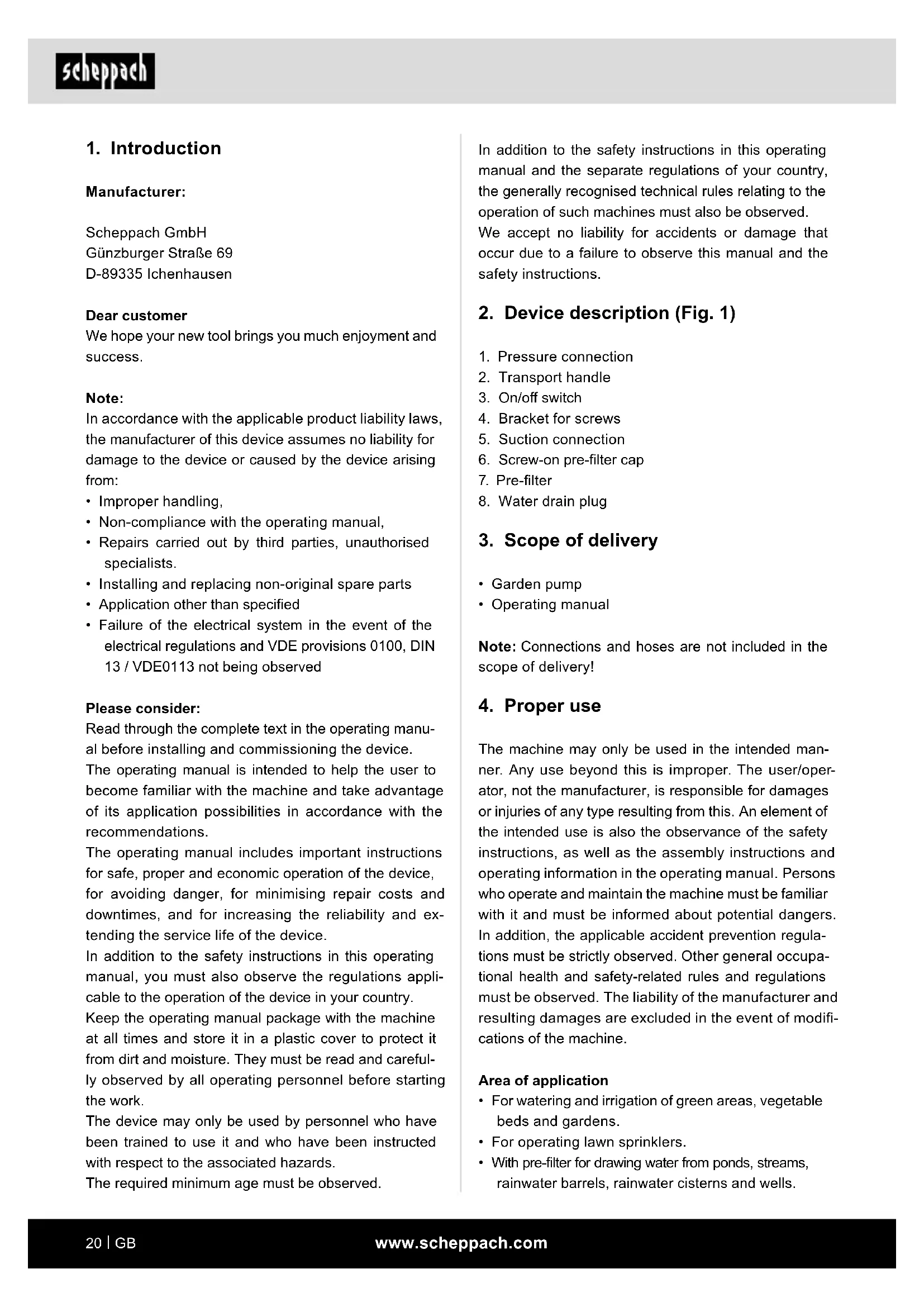

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
  • Non-compliance with the operating manual,
• Repairs carried out by third parties, unauthorised specialists.
  • Installing and replacing non-original spare parts
  • Application other than specified
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 13 / VDE0113 not being observed

Please consider:

Read through the complete text in the operating manual before installing and commissioning the device.

The operating manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

2. Device description (Fig. 1)

1. Pressure connection
2. Transport handle
3. On/off switch
4. Bracket for screws
5. Suction connection
6. Screw-on pre-filter cap
7. Pre-filter
8. Water drain plug

3. Scope of delivery

• Garden pump
• Operating manual

Note: Connections and hoses are not included in the scope of delivery!

4. Proper use

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this. An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual. Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers. In addition, the applicable accident prevention regulations must be strictly observed. Other general occupational health and safety-related rules and regulations must be observed. The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

Area of application

• For watering and irrigation of green areas, vegetable beds and gardens.
• For operating lawn sprinklers.
• With pre-filter for drawing water from ponds, streams, rainwater barrels, rainwater cisterns and wells.

Pumped media

For pumping clear water (fresh water), rainwater or light detergent solutions / domestic water.

• The maximum temperature of the pumped liquid must not exceed +35°C.
• This pump must not be used to pump flammable, gaseous or explosive liquids.
• The pumping of aggressive liquids (acids, lyes, silo seepage juice etc.), as well as liquids with abrasive (sanding) materials (sand) must also be avoided.

The machine may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

5. General safety information

WARNING! Read all safety information, instructions, illustrations and technical data for this electric tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term “power tool” used in the safety instructions refers to mains-powered electrical tools (with a mains cable) and battery-powered electrical tools (without a mains cable).

General safety information

• This product is not designed to be operated by persons (including children) with impaired physical, sensory or mental capabilities, or who have insufficient experience and/or insufficient knowledge unless they are being supervised by a person who is responsible for their safety or they are receiving instruction about how this Product is to be used. Children should not be left unattended, to ensure they do not play with the power tool.
• Persons who are unfamiliar with the operating manual may not use the product. The product is not to be used by persons under the age of 16.

• The product must not be operated if there are people in the water.

• Keep children away from the running engine.

• Dispose of the packaging material properly.
• Do not use the product in the vicinity of combustible fluids or gases. There is a risk of fire or explosion if disregarded.

- The pumping of aggressive, abrasive (scouring), corrosive, flammable (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted.

- Store the product in a dry place and out of reach of children.

- The temperature of the pumped liquid shall not exceed 35°C.

- Do not work with a damaged, incomplete or modified product without the consent of the manufacturer. Before commissioning, have a specialist check that the required electrical protective measures are in place.

- Supervise the product during operation in order to protect the pump for automatic shut-down and against running dry. Check the function of the float switch regularly (see chapter "Commissioning"). Failure to do so will invalidate warranty and liability claims.

- Please note that the pump is not suitable for continuous operation (e.g. for watercourses in garden ponds). Regularly check the product for proper function.

- Please note that lubricants are used in the product which, under certain circumstances, may cause damage or contamination due to leakage. Do not use the pump in garden ponds with fish or valuable plants. If lubricants leak out, they may contaminate the liquid.

- Do not carry or attach the product by the cable or hose.

- Protect the product against frost and running dry.

- Only use original spare parts and accessories and do not modify the product.

- Please read the information on "Cleaning, maintenance, storage" in the operating manual. All additional measures, in particular opening the product, must be carried out by a qualified electrician. In the event of repair, always contact our service centre.

Electrical safety instructions

- When operating the product, the power plug must be freely accessible after installation.

- Before you put your new pump into operation, have it professionally checked:

- Earthing, connection of the neutral line and residual current circuit breaker must comply with the safety regulations of the power supply companies and function properly,

• Protect the electrical plug connections from moisture.
• If there is a risk of flooding, fit the plug connections in the flood-proof area.
• Ensure that the mains voltage corresponds to the specifications on the type plate.
• Carry out the electrical installation in accordance with the national regulations.
• Only connect the product to a socket with a residual current circuit breaker (FI switch) with a rated residual triggering current of up to 30 mA; Fuse at least 6 amps.
• Before each use, always check the product, cable and plug for damages. Defective cables must not be repaired but replaced with a new ones. Have product damages repaired by a specialist.
• If the connection cable of this product is damaged it must be replaced by the manufacturer or their customer services personnel or by a similarly qualified person, in order to avoid hazards.
• Do not use the cable to pull the plug out of the outlet.
• Protect the cable from heat, oil and sharp edges.
• Do not carry or attach the product by the cable.
• Use only extension cables that are splash-proof and intended for outdoor use. Always unroll a cable drum completely before use. Check the cable for damage.
• Pull out the mains plug before all work on the product, in work breaks and when not in use.
• Mains connection cables shall not have a smaller cross-section than rubber hose lines with the designation H07 RN-F. The cable length must be 10 m. The conductor core cross-section of the extension cable must be at least 1.5 mm ^2 .

Lubricants are used inside the pump and can contaminate the drained fluids, if the product is improperly operated or damaged.

⚠ WARNING! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Safety information" and the "Proper use" together with the operating manual as a whole are observed.
- Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool attachment that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
- Keep your hands away from the work area, when the machine is in operation.

7. Technical data

Product L x W x H 440 x 200 x 300 mm

Mains connection 230 V~ / 50 Hz
Rated input 1300 W
Max. delivery flow 5400 l/h
Max. delivery height 50 m
Max. delivery pressure 5 bar
Max. suction height 8 m
Pressure and suction connection	G1"
Max. water temperature 35°C
Protection class	I
Protection category	IPX4
Operating mode*	S1
Weight	10.8 kg

Technical changes reserved!

Operating mode* S1: Continuous operation at constant load

Noise

⚠ Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection.

The noise emission values have been determined in accordance with EN ISO 3744:1995.

Noise data

Sound power level L_WA 85 dB

Sound pressure level L _pA 70.5 dB

Uncertainty K_WA/pA 2.17 dB

8. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Replacement parts can be obtained from your dealer.
• When ordering please provide our article number as well as type and year of manufacture for your equipment.

⚠ WARNING!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

9. Assembly

Warning!

Always pull out the mains plug before adjusting the product.

Installing a suction line (fig. 1)

1. Screw a suction hose (plastic hose min. 19 mm (3/4")) directly or with a threaded nipple, approx. 30.75 mm (G1"), to the suction connection (5) of the pump.

2. Lay the suction line from the water pick-up point to the pump in a continuously rising slope. Ensure that the suction line is not laid above the pump height. Air bubbles in the suction line delay and prevent the suction process.

3. Install the suction and pressure lines in order to avoid a mechanical pressure on the pump.

4. The suction line should be located deep enough in the water to prevent the pump from running dry if the water level drops.
5. A leaking suction line will prevent the water from being sucked in due to air ingress.
6. Avoid sucking in foreign bodies (sand etc.).

Filling the pump with water (fig. 3)

NOTE!

In order to reduce the start-up time of the pump and to prevent air being sucked in, the pump must be filled with water beforehand!

1. Therefore, the suction line should be installed to prevent water from flowing out of the suction connection (5).
2. Use the opening of the pressure connection (1) to fill the pump with water. Alternatively, you can fill in water through the opening of the pre-filter cap (6).
3. Slightly tilt the pump now and then to avoid air being trapped.
4. Now, attach the pressure line as described in the next point.

Installing a pressure line (fig. 1)

1. Connect a pressure line (min. 19 mm (3/4")) directly or with a threaded nipple, approx. 30.75 mm (G1"), to the pressure connection (1) of the pump.
2. During the suction process, completely open the consumers in the pressure line (spray nozzles, valves, etc.) to allow the air in the suction line to escape freely.

10. Start up

⚠ Attention!

Always make sure the product is fully assembled before commissioning!

1. Set up the product on solid, level and horizontal ground.
2. Open the pressure line.
3. Connect the mains cable.
4. Switch on the product using the on/off switch (3). At maximum suction height, the suction process can take up to 5 minutes.
5. After completing your work, switch off the product using the on/off switch (3).

NOTE!

The pump must be absolutely tight at the inlet and outlet. Therefore, regardless of your chosen connection, use a Teflon or any other sealing tape.

11. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

The printing of the type designation on the connection cable is mandatory.

For single-phase AC motors, we recommend a fuse rating of C 16A or K 16A for machines with a high starting current (from 3000 watts)!

AC motor 230 V\~ / 50 Hz

Mains voltage 230 V\~ / 50 Hz.

Mains power connection and extension leads must be 3-core = P + N + SL. - (1/N/PE).

Extension cables up to 25 m long must have a cross-section of 1.5 mm ^4 .

The mains power connection must be protected with a max. 16 A fuse.

12. Cleaning and maintenance

⚠ Attention!

Only carry out maintenance, cleaning and adjustment work when the mains plug is pulled out.

We recommend that you clean the product directly after every use.

Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the motor.

• We recommend regular inspections and care for a long service life.
- Before extended periods of inactivity or through the winter, the pump should be thoroughly flushed through with water, emptied completely and then stored dry.
- To empty the pump housing, loosen the water drain plug (8) and tilt the pump slightly.
- If there is a risk of frost the pump must be completely emptied.
• After longer periods of storage check the pump by switching on/off briefly in order to check that the rotor turns normally.
- In the event of the pump being jammed connect the pressure line to the water supply line and remove the suction hose. Open the water supply line. Switch the pump on for ca. two seconds several times. This method rectifies blockages in most cases.
• To clean the pre-filter (7) unscrew the pre-filter cap (6) and remove it. Afterwards, clean it with clear water.

Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Data of machine type plate
• Data of motor type plate

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: seals, pre-filter

* may not be included in the scope of supply!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

13. Storage

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 °C. Store the power tool in its original packaging. Cover the power tool to protect it from dust or moisture. Store the operating manual with the power tool.

14. Transport

Always use the transport handle (2) for transporting the product.

15. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards)

• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
• Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

16. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Motor does not start	No mains voltage Check mains voltage
	Pump impeller jammed Dismantle pump and clean
Pump does not suck	Suction valve not in the water Put the suction valve in the water
	No water in the pump housing Fill the pump housing with water
	Air in the suction line Check the suction line for leaks
	Suction valve leaking Clean suction valve
	Suction valve clogged Clean suction valve
	Max. suction height exceeded Check suction height
Inadequate pump delivery	Suction height too high Check suction height
	Suction valve is dirty Clean suction valve
	Water level dropping rapidly	Position suction valve lower
	Pump performance reduces due to hazardous substances	Clean pump and replace worn parts

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

Günzburger Straße 69

D-89335 Ichenhausen

Gerbiamas kliente,

Günzburger Straße 69

D-89335 Ichenhausen

Austatud klient!

Günzburger Straße 69

D-89335 Ichenhausen

Arvoisa asiakas

Günzburger Straße 69

D-89335 Ichenhausen

Bästa Kund!

Günzburger Straße 69

D-89335 Ichenhausen

Poštovani kupci

Exploded view diagram of a mechanical assembly with numbered components and exploded views

EC Declaration of Conformity

2014/29/EU 2004/22/EG 89/686/EWG_96/58/EG X 2014/35/EU 2014/68/EU 90/396/EWG X 2014/30/EU X 2011/65/EU* 2006/42/EG Annex IV Notified Body: Notified Body No.: Certificate No.: X 2000/14/EG_2005/88/EG Annex V Annex III Noise: measured LWA = 83,1 dB; guaranteed LWA = 85 dB P = xx KW; L/Ø = cm Notified Body: TÜV SÜD Certification and Testing (China) Co.,Ltd. Shanghai Branch Notified Body No.: 2016/1628/EU Emission. No:

Standard references:

EN 60335-1:2012+A11+A13; EN 60335-2-41:2003+A1+A2; EN 62233:2008; EN 55014-1:2007; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
