Product Type	Wireless Doorbell
Brand	Emos
Model	P5730
Transmission Frequency	433.92 MHz, max power 10 mW e.r.p.
Range in open field	Up to 180 meters
Indoor range	Approximately 20% of open field range (approx. 36 meters)
Power supply for chime (receiver)	3 AAA alkaline 1.5 V batteries (non-rechargeable)
Power supply for button (transmitter)	1 A23 alkaline 12 V battery
Button protection rating	IP56 (waterproof)
Number of pairable buttons	Up to 6 buttons (replacement model P5728T)
Number of melodies	52 melodies
Volume levels	4 levels: 100%, 75%, 50%, 25% and 0% (silent)
Pairing function	Self-learning
Package contents	1 transmitter button, 2 receiver chimes, double-sided adhesive tape
Chime usage	Indoor only, in a dry room
Cleaning	Soft damp cloth with mild soap, avoid harsh chemicals
Precautions	Do not expose to shocks, high temperatures, humidity or direct sunlight

Frequently Asked Questions - P5730 Emos

How to pair the doorbell button with the chime?

First insert the battery into the button (1 A23 12V battery) and into the chime (3 AAA 1.5V batteries). Press and hold the chime's pairing button (about 5 seconds) until the LED lights up. Then, within 25 seconds, press the doorbell button. The chime will ring and pairing is complete.

How to change the chime melody?

Repeatedly press the melody change button on the chime. Each press plays a new melody. The last melody heard is saved.

How to adjust the chime volume?

Press the chime volume adjustment button several times. Available levels: 100%, 75%, 50%, 25% and 0% (silent mode). The volume changes with each press.

What is the range of the doorbell?

In open field without obstacles, the range can reach 180 meters. Indoors or with obstacles (walls, metals, other radio devices), the range may be reduced to up to 20% of that value (approx. 36 meters).

What to do if the chime does not ring?

First check the distance between the button and the chime. If too far, bring them closer. Ensure the batteries are properly inserted and functional (new alkaline batteries). If necessary, re-pair the button after replacing batteries.

Is the doorbell button waterproof?

Yes, the button has a protection rating of IP56, meaning it is resistant to water jets and dust. However, it is recommended to install it in a sheltered location, such as a recess.

Can I add multiple buttons to the same chime?

Yes, you can pair up to 6 buttons (replacement model P5728T) on the same chime using the self-learning function. Repeat the pairing procedure for each button.

How to clear the memory of paired buttons?

Insert 2 AAA batteries into the chime, hold down the pairing button, then insert the third battery. The LED flashes then stays on. Release the button, the LED turns off, and the memory is cleared.

What type of batteries to use and how to replace them?

Use only alkaline batteries (non-rechargeable): 3 AAA 1.5V batteries for the chime and 1 A23 12V battery for the button. Observe polarity. To replace, open the compartment by inserting a screwdriver into the designated slot.

Where to install the button and chime for best reception?

Install the button on a non-metallic surface (wood, brick) and avoid metal structures (windows, metal-framed doors) as they interfere with the signal. Place the chime indoors, in a dry room, at a reasonable distance from the button.

USER MANUAL P5730 Emos

Technical line drawing of a mechanical component with labeled parts (no text or symbols beyond basic labels)

2

Technical line drawing of a device housing with internal components and a close-up view showing internal structure (no text or symbols)

GB | Wireless Doorchime

The set consists of a doorbell button (transmitter) and two chimes (receivers). The doorbell is powered by 3× 1.5 V AAA batteries. The transmission between the button and the chime is done via radio waves at a frequency of 433.92 MHz. The range depends on local conditions and reaches up to 180 m in open spaces without interference.

The set has a so-called “self-learning” function – the button is able to generate its own pairing code which is then received by the chime and stored in its memory. The set can thus be expanded with additional buttons. Their “self-learning” function also prevents them from affecting neighbouring doorbells.

For proper usage of the wireless doorbell, read the instruction manual thoroughly.

Specifications

Transmission range: up to 180 m in an open area (can drop down to one fifth in a busy area)

Transmission frequency: 433.92 MHz, 10 mW e.r.p. max.

Button: water resistant; enclosure rating IP56

Pairing of chime with buttons: self-learning function

Pairing capacity: maximum of 6 buttons (replacement button P5728T)

Number of ringtones: 52

Chime power supply: 3× 1.5 V batteries (type AAA)

Button power supply: 1× 12 V battery (type A23)

Includes: double-sided adhesive tape

Chime Description (see Fig. 1)

1 - bell LED

2 - battery compartment

3 – holes for hanging

Button Description (see Fig. 2)

1 - ring button

2 - button LED

4 – speaker

5 - ringtone change button

6 - pairing/volume setting button

3 – hole for opening the battery cover

4 – battery compartment

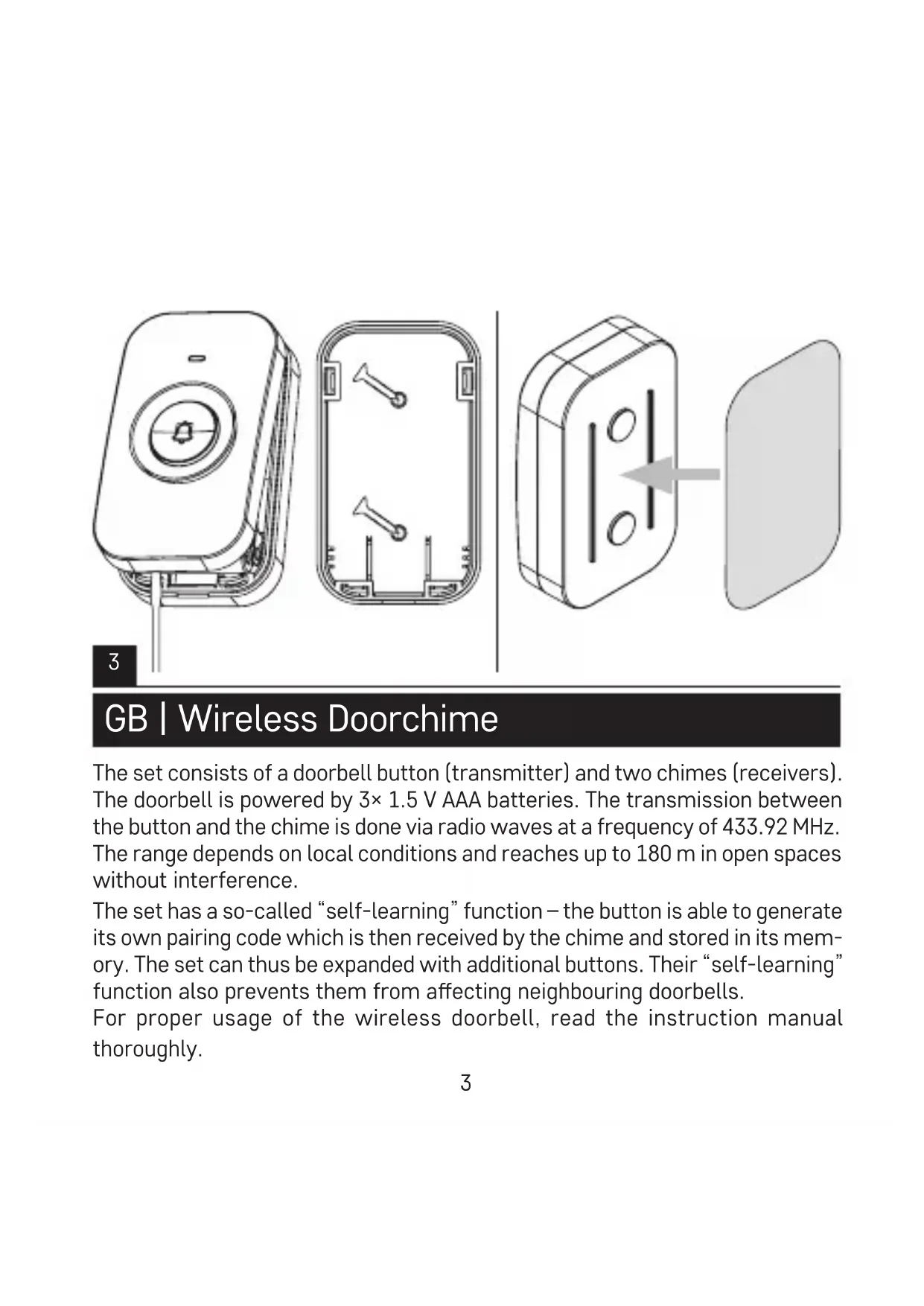

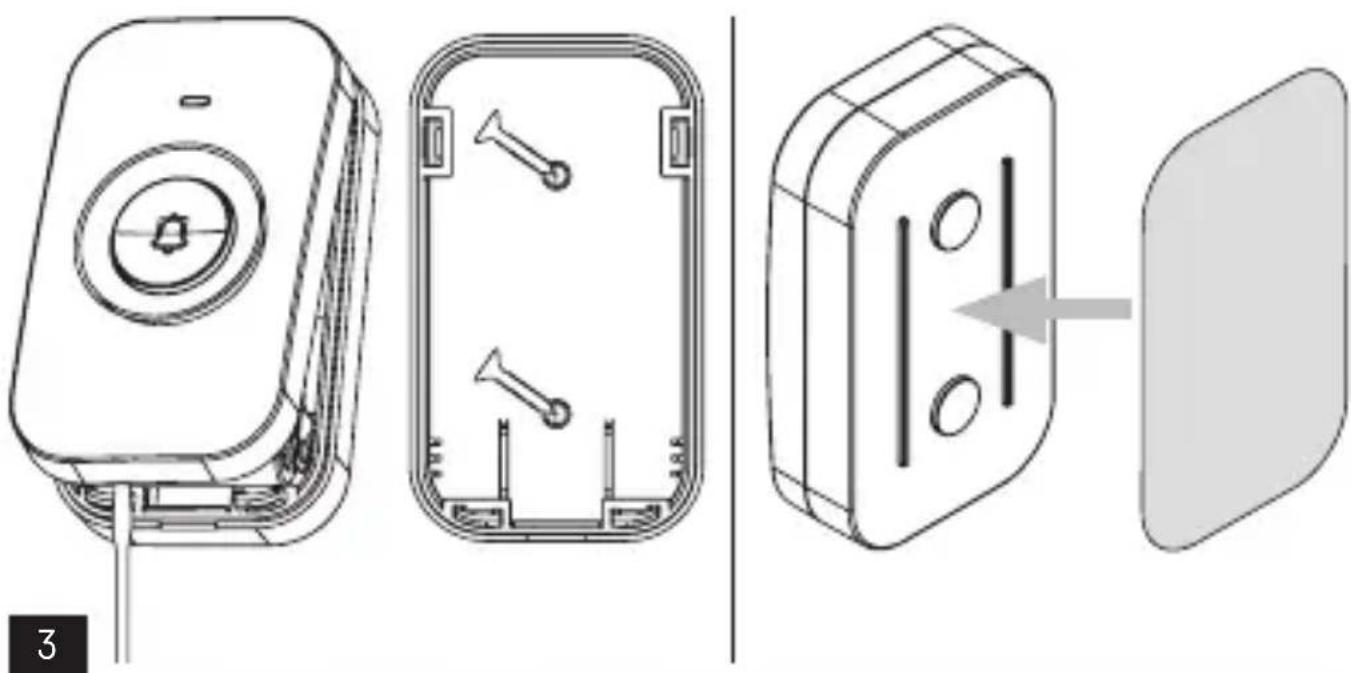

Button Installation (see Fig. 3)

Pairing the Button with the Chime

1. Remove the rear cover of the button by inserting a screwdriver into the hole on the bottom side. Insert a 12 V battery, type A23, into the button. When inserting a battery, make sure to observe the correct polarity!

2. Insert 3× 1.5 V AAA batteries into the chime. When inserting the batteries, make sure to observe the correct polarity.

Use alkaline batteries only; do not use re-chargeable batteries.

1. Then, long-press the pairing button Ⓞ on the chime for ca. 5 seconds.

The chime LED will light up; release the 📷 button.

The chime will switch to self-learning pairing mode which lasts for 25 seconds.

During this time, press the ring button. The chime will ring and the button is now paired with the chime.

This automatically ends self-learning mode.

1. Re-assemble the button.

2. To pair multiple buttons, repeat the process for each button from step 1. Note: The chime has an internal memory where it stores the codes of the currently paired buttons.

Therefore, there is no need to pair buttons again after replacing batteries. Every time batteries are changed in a doorbell, the currently set ringtone will sound.

Wiping the Memory of Paired Buttons

Insert 2 AAA batteries into the doorbell, then press and hold the button. Insert the remaining third AAA battery into the doorbell. The doorbell's LED will flash and then remain lit. Release the button; the LED will turn off. This will erase the memory of all paired buttons.

Ringtone Selection

1. Repeatedly press the ringtone change button or located on the chime.

2. Each press of the button will play a different ringtone. The last ringtone played is the one that will be used.

Setting the Bell Volume

Repeatedly press the @ button on the chime.

Each press changes the volume 100 % - 75 % - 50 % - 25 % - 0 %.

Installation of the Doorbell (Transmitter) Button

1. Begin by pairing the button with the chime.
2. Before installation, check that the pair works reliably in the chosen spot.
3. Remove the rear cover of the button by inserting a screwdriver into the hole on the bottom side.
4. Use the double-sided adhesive tape (included) or two screws to fix the rear portion of the cover to the wall. See Button Description/Installation. Although the button is weather resistant, choose a location where it is protected, e.g. in a wall recess.
5. Re-assemble the button.
6. Press the button to ring the chime. Pressing is accompanied by LED illumination indicating the button has sent a radio signal. The chime plays the selected ringtone.

Note: The doorbell button (transmitter) can be placed on wood or brick walls without issue. However, never place the button directly onto metal objects or materials containing metal, such as plastic windows or doors that have a metal frame. In such cases, the transmitter will not work properly.

Installing the Chime (Receiver)

1. The doorbell is intended for indoor use only.
2. The transmission range (max. 180 m) is influenced by local conditions, such as the number of walls through which the signal passes, metal door frames and other elements which affect the transmission of radio signals (presence of other radio devices operating at a similar frequency, such

as wireless thermometers, gate controls etc.). Transmission range can decrease drastically due to these factors.

Troubleshooting

The chime is not ringing:

• The chime may be out of range.
• Change the distance between the button and the chime; the range may be affected by local conditions.
• The button battery may be drained.
• Replace the battery. Make sure it has the correct polarity. Pair the button with the chime again.
  • The chime is not powered.
• Check the batteries in the chime, or replace with new ones.

Upkeep and Maintenance

The wireless digital doorbell is a sensitive electronic device. Therefore, it is necessary to observe the following precautions:

• The chime (receiver) is designed for indoor use in dry environments only.
• Periodically check the functioning of the doorbell button and replace the battery in a timely manner. Use only quality alkaline batteries with the prescribed parameters.
• When the doorchime is not used for a long time, remove the batteries from the chime and the button.
• Do not throw batteries into fire, disassemble or short-circuit.

• Keep out of reach of children. Ingestion can lead to chemical poisoning, soft tissue perforation and death. Severe poisoning may occur within two hours of trouble. Seek immediate medical attention.

• Do not subject the button or chime to excessive vibrations and shocks.

• Do not subject the button or chime to excessive heat and direct sunlight or moisture.
• To clean the device, use a slightly moistened cloth with a small amount of detergent; do not use aggressive cleaning agents or solvents.
• This device is not intended for use by persons (including children) whose physical, sensory or mental disability or lack of experience and expertise prevents safe use, unless they are supervised or instructed in the use of the appliance by a person responsible for their safety. Children must always be supervised and must never play with the device.

Hereby, EMOS spol. s r. o. declares that the radio equipment type P5730 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.emos.eu/download.
