Axkid Modukid Base Instruction manual Base for Axkid Modukid Modular system Read this instruction manual carefully before installing the Axkid Modukid Base and Axkid Modukid car seats. If in doubt, contact your retailer who can demonstrate a correct installation. An incorrect installation could endanger your child.Do not use a child car seat in a seating position where an active airbag is fitted. If you still wish to install the Axkid Modukid car seat in this location the airbag must be switched o according to the vehicle manufacturers instructions.Extensive research has shown that the risk of serious injury is five times greater for a young child when travelling in a forward-facing car seat compared to a rear-facing car seat.Should you have an accident, no matter how small, your child car seat should always be replaced. It may have damage that is undetectable and could seriously jeopardize your child’s safety. For this reason, Axkid does not recommend purchasing second hand car seats.Never leave your child unattended in the car.Ensure any luggage or loose objects are secured in your vehicle as they may cause injuries to passengers in the event of a collision.Keep this instruction manual for future reference. Ensure that the child car seat is installed in a way where no parts become trapped by movable seats, car doors, etc.The Axkid Modukid Infant is suitable for use from newborn up to when the child can sit steadily, approximately six to nine months of age.Never use the child car seat without its textile cover.This child car seat may ONLY be installed rear-facing.Read this instruction manual before installing the Axkid Modukid child car seat in your vehicle. For more information and installation videos visit www.axkid.com.Thank you for choosing an Axkid product. Our team has over 30 years combined experience within child safety, and we have done our utmost to make the Axkid Modukid child car seat as safe as possible. The Axkid Modukid child car seat is approved according to UN Regulation no 129/02. To maximize your child’s safety, it is important that you keep the following in mind: Important information4 The Axkid Modukid Module system consists of:

• Axkid Modukid Base – Base for easy installation in vehicles with ISOFIX connection points.

• Axkid Modukid Infant - Infant carrier for children from 40-75cm and up to 13kg.

• Axkid Modukid Seat- Rear-facing car seat for children from 61-105cm and up to 18kg.

WARNING: Only install the Axkid Modukid Infant or the Axkid Modukid Seat on the Axkid Modukid

Base. Trying to use products from other modular systems on this base can result in serious injury in the event of a collision. Parts The Axkid Modukid Module system Contents Parts The Axkid Modukid Module system Functions of the Axkid Modukid Base Allowed and disallowed positioning of the child car seat Installation in the car Installing the Axkid Modukid Infant on the base Installing the Axkid Modukid Seat on the base Care and maintenance Warranty

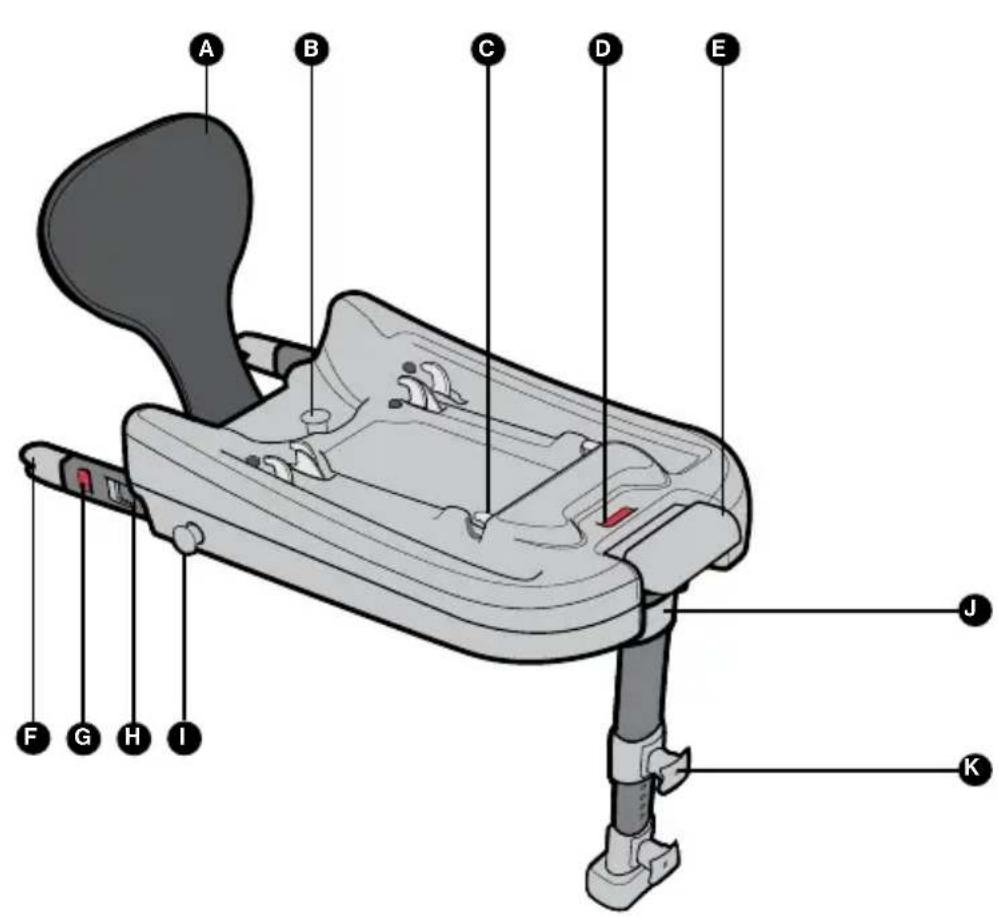

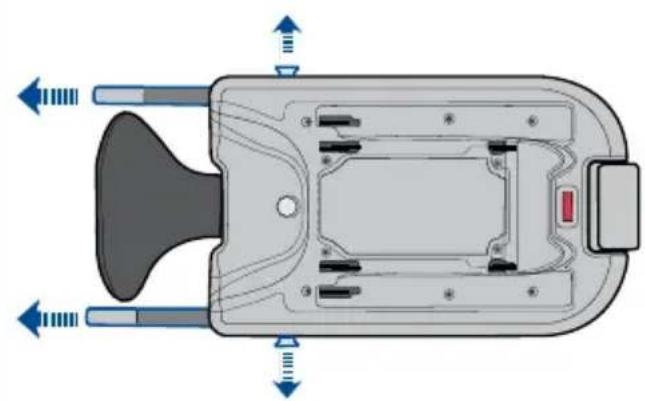

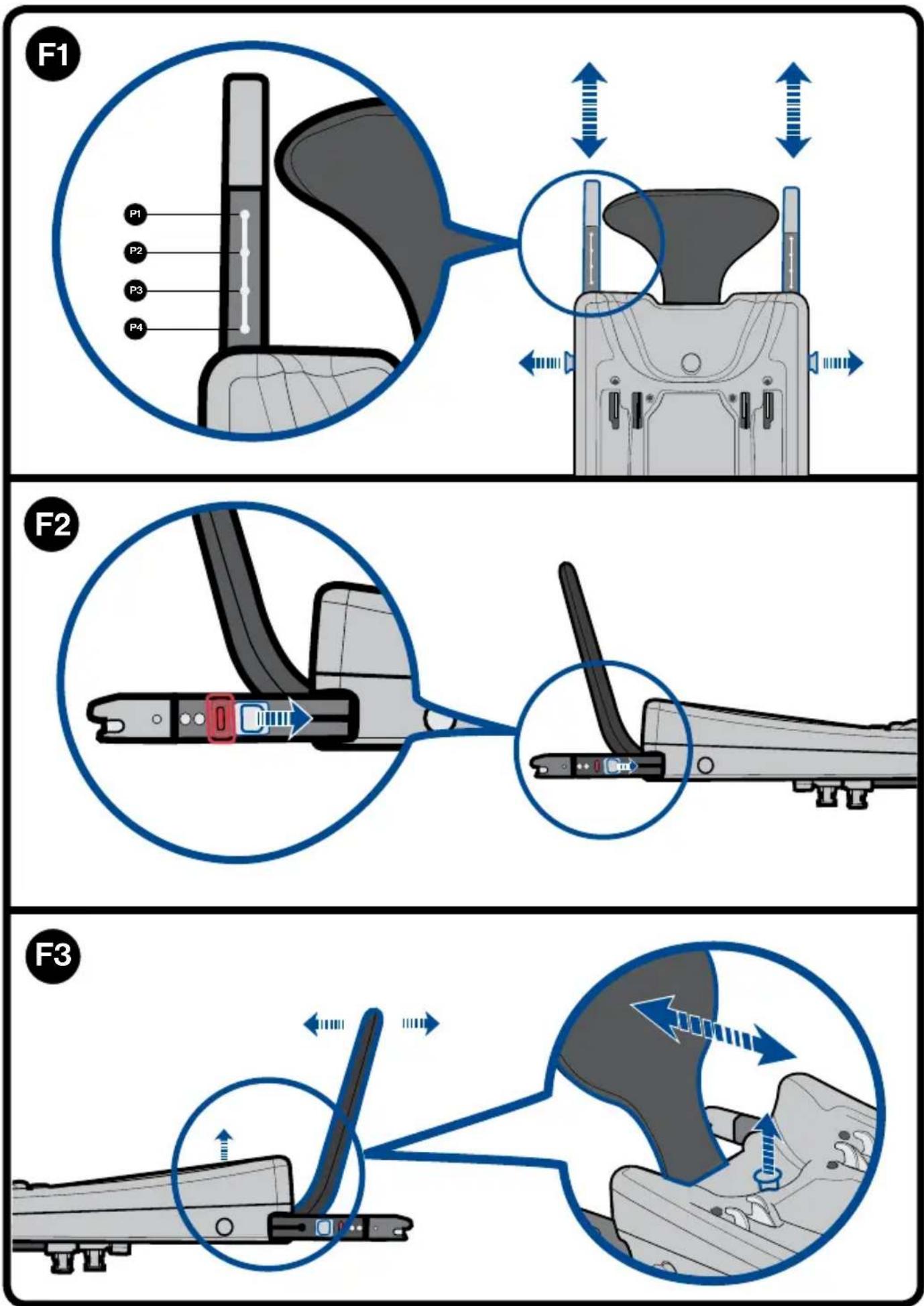

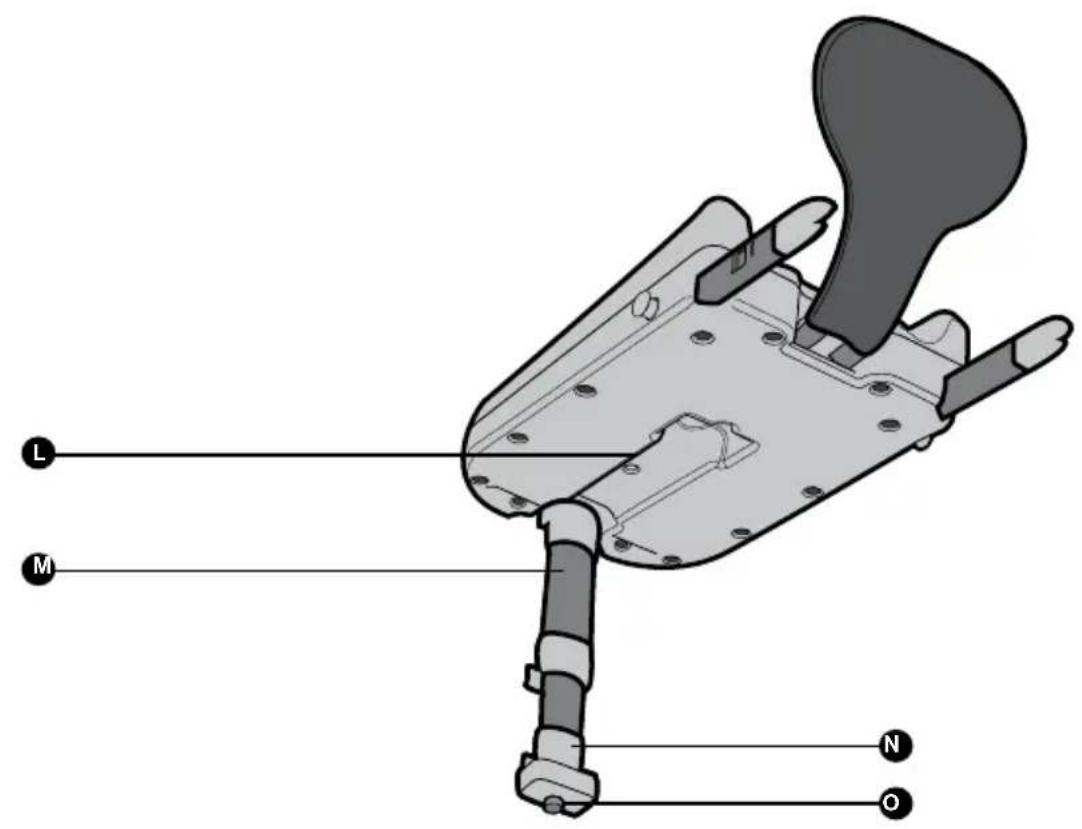

A Front brace I ISOFIX knob B Front brace release knob J Support leg installation indicator C Attachment hooks K Support Leg Knob D Seat attachment indicator L Support leg parking position E Seat release handle M Support leg F ISOFIX arm N Support leg foot G ISOFIX installation indicator O Support leg installation buzzer H ISOFIX release button5 The Axkid Modukid Base can be adjusted to provide more leg space for the child or to provide more space for the driver or passenger seat in your vehicle. This is done by adjusting the ISOFIX arms and the front brace. The ISOFIX arms (F) can be adjusted to dierent lengths to accommodate dierent seating positions. There are 4 positions, P1-P4. The ISOFIX arms (F) are adjusted by pulling the ISOFIX knob (I) The ISOFIX arms (F) locks to the ISOFIX connection points in the vehicle. The ISOFIX arms can be released from the vehicle connection points by pushing the ISOFIX release button (H). The ISOFIX installation indicator (G) turns green when there is a secure connection between ISOFIX arm and ISOFIX connection point. The front brace (A) is not installed on the base at delivery so it shall be inserted into the base. The Axkid Modukid Base may not be used without the front bracee. The front brace can be adjusted to dierent positions to accommodate dierent seating positions. There are 6 positions, P1-P6. The front brace (A) is released by pulling the front brace release knob (B). Make sure that the front brace release knob (B) clicks into position after adjusting the front brace The support leg (M) can be folded into a parking position underneath the base. This position of the support leg should only be used during storage, never when installed in a vehicle. When the support leg is unfolded the support leg installation buzzer (O) will start beeping. The beeping will stop after correct installation is completed. If no sound is emitted from the support leg installation buzzer (O) when the support leg is folded out, check the battery. The battery is checked by unscrewing the two screws under the support leg foot (N) and removing the cover. The battery is then accessible. Note that you can only replace the battery with a CR1632 size battery. By pulling the seat release handle (E), the attachment hooks (C) will open and enable attachment or detachment of an Axkid Modukid Infant or Axkid Modukid Seat. The attachment hooks (C) lock an Axkid Modukid Infant or Axkid Modukid Seat to the base.

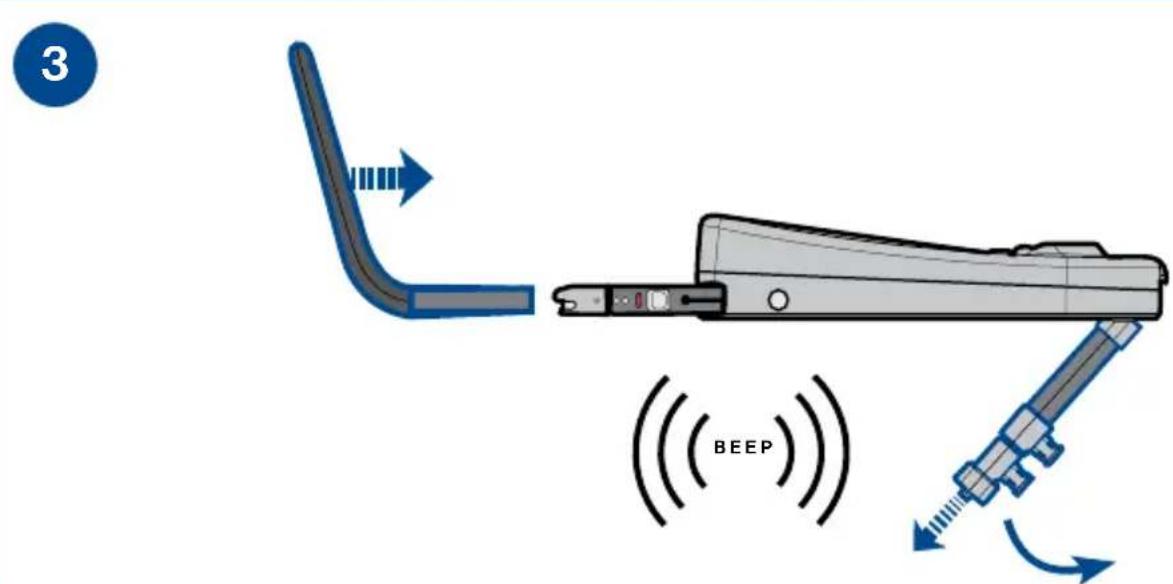

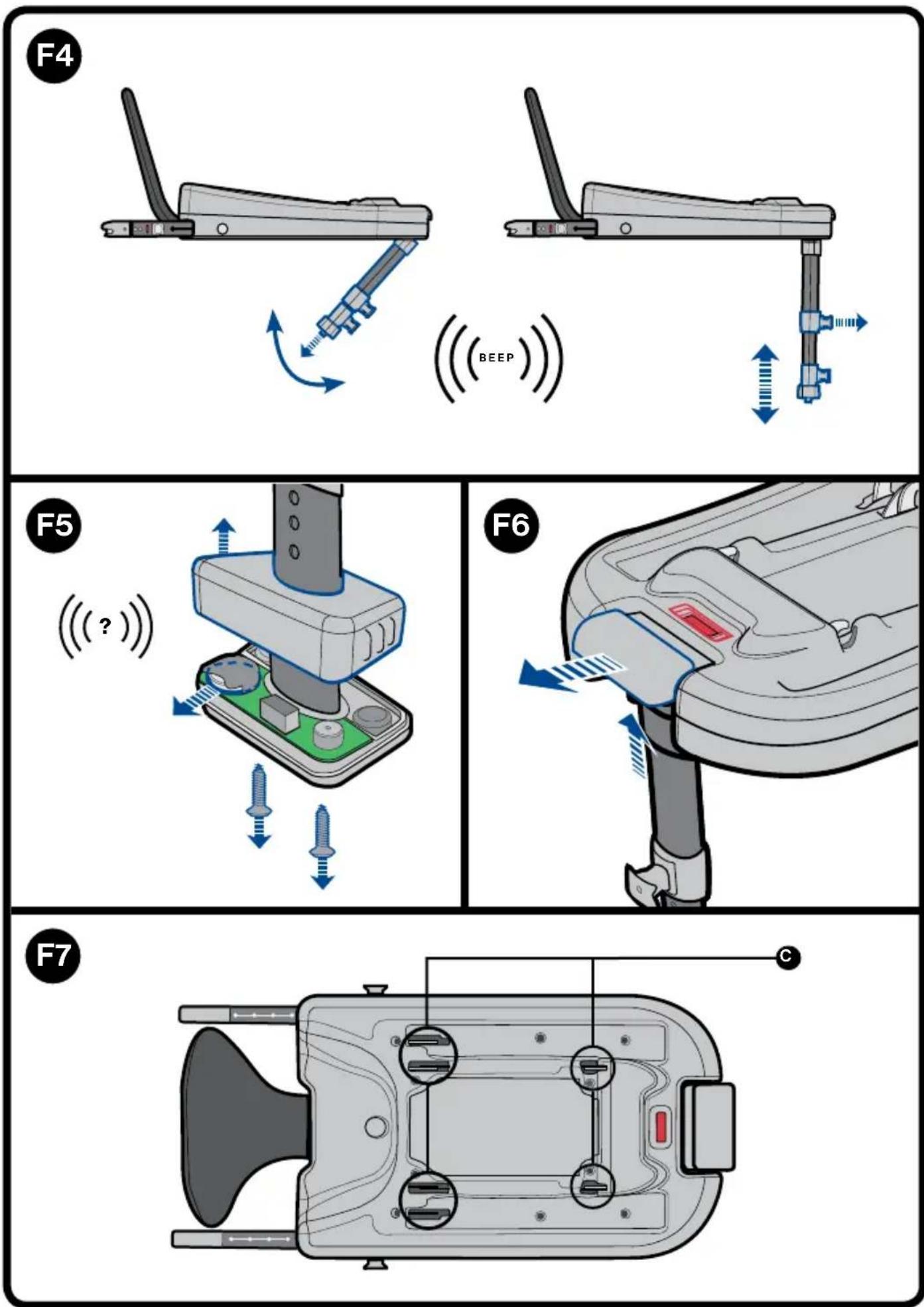

F76 Attach and adjust the front brace (A) to its innermost position. Fold out the support leg (M). When the support leg is unfolded the support leg installation buzzer (O) will start beeping. The beeping will stop after correct installation is completed. Extend the ISOFIX arms (F) to a suitable position P1-P4. The Axkid Modukid Base can be installed on any forward-facing passenger seat which has ISOFIX connection points IMPORTANT: If you wish to install your Axkid Modukid car seat in a location where an airbag is fitted, the airbag must be disconnected at an authorized service center. Some vehicles may be equipped with a switch which allows you to manually switch the airbag o. It is important to always check if the vehicle’s indicator light shows that the airbag is turned o.

WARNING: Never use on a seat with an active airbag

WARNING: Never use on rearward or side facing vehicle seats

WARNING: Air bags are designed for adults and can seriously harm your child in a crash

Allowed and disallowed positioning of the baby car seat

Installation in the car

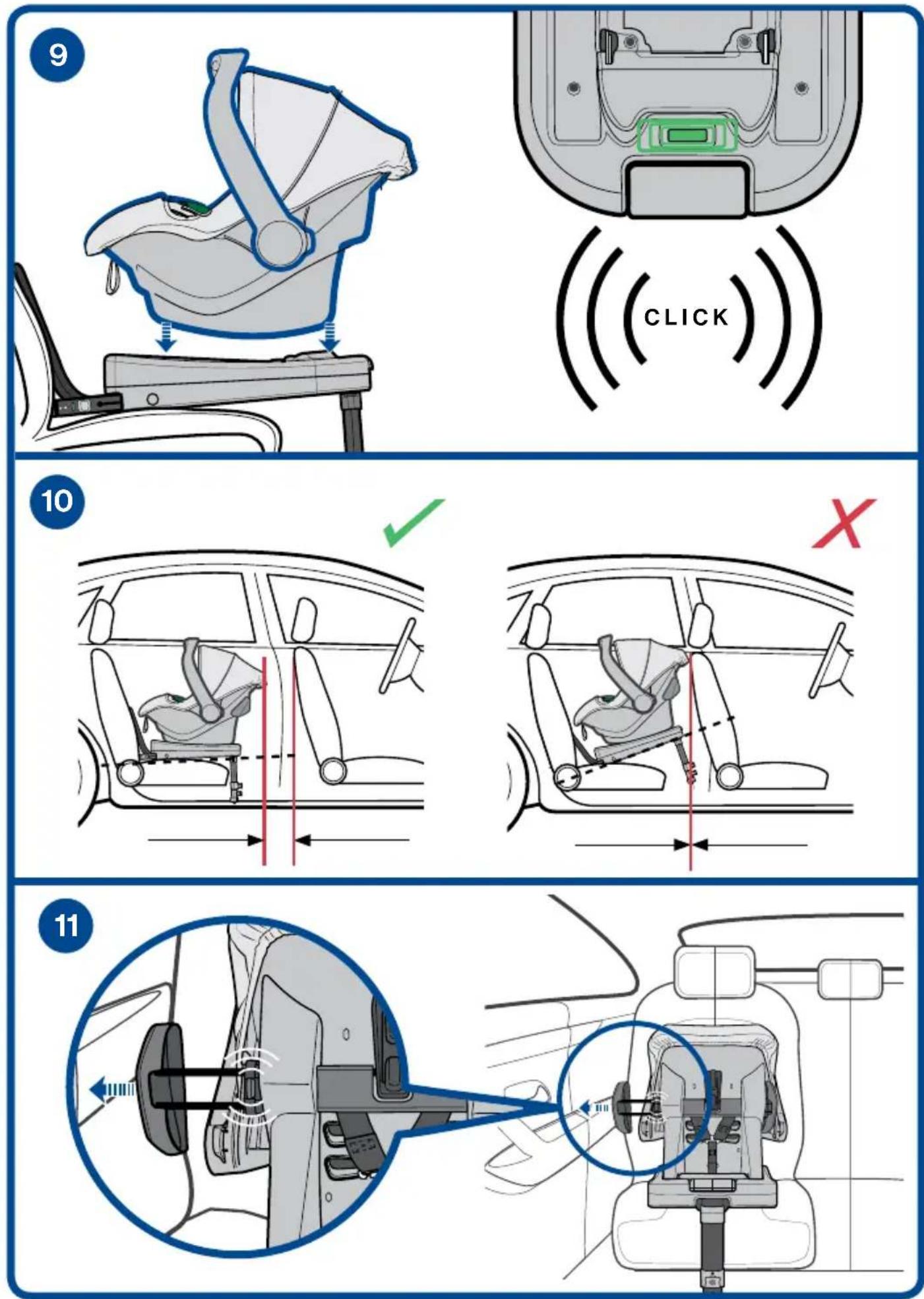

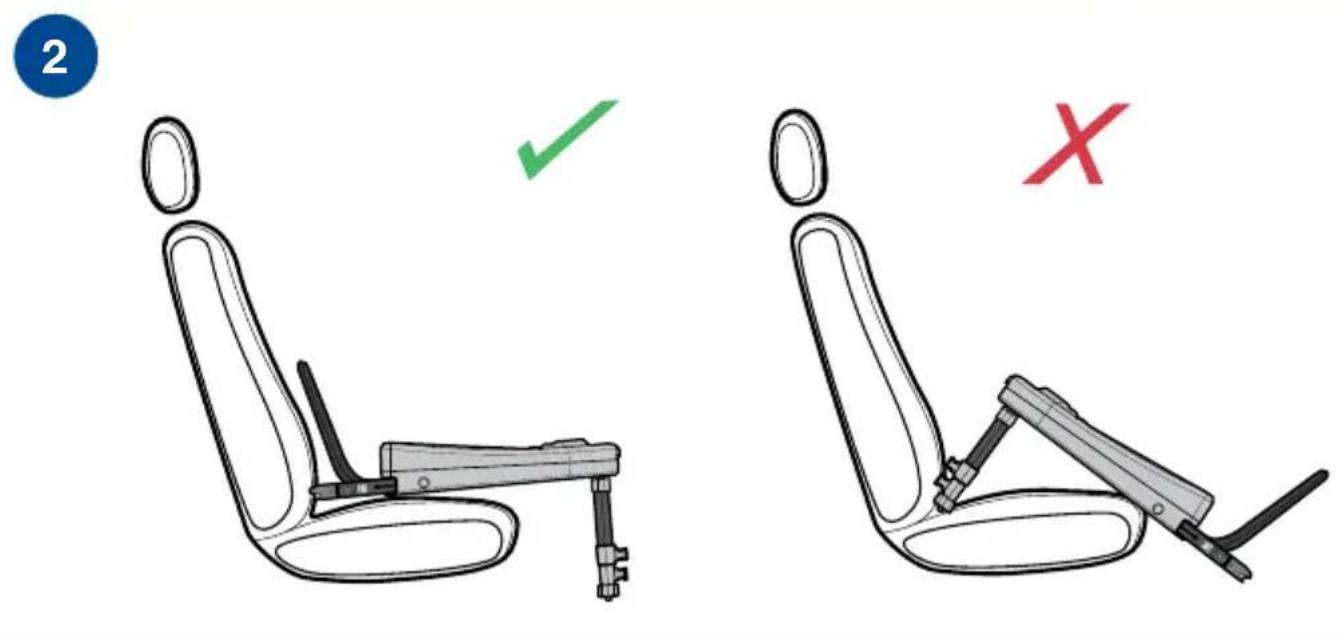

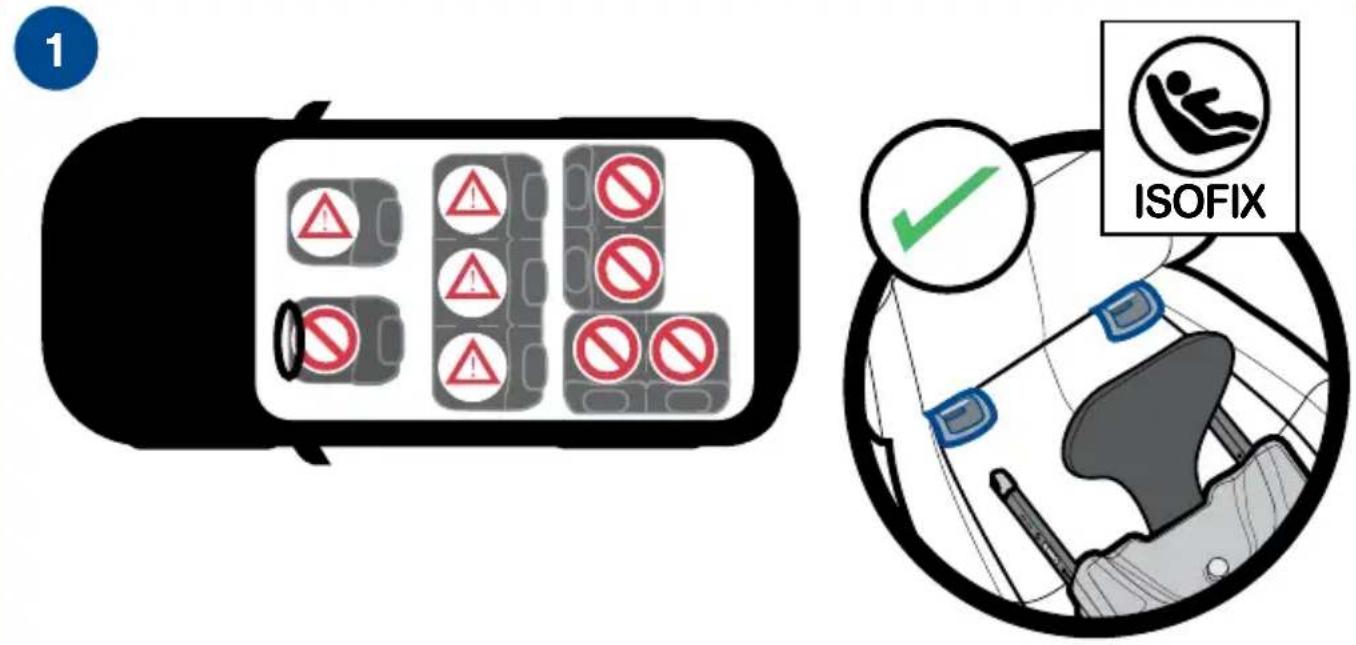

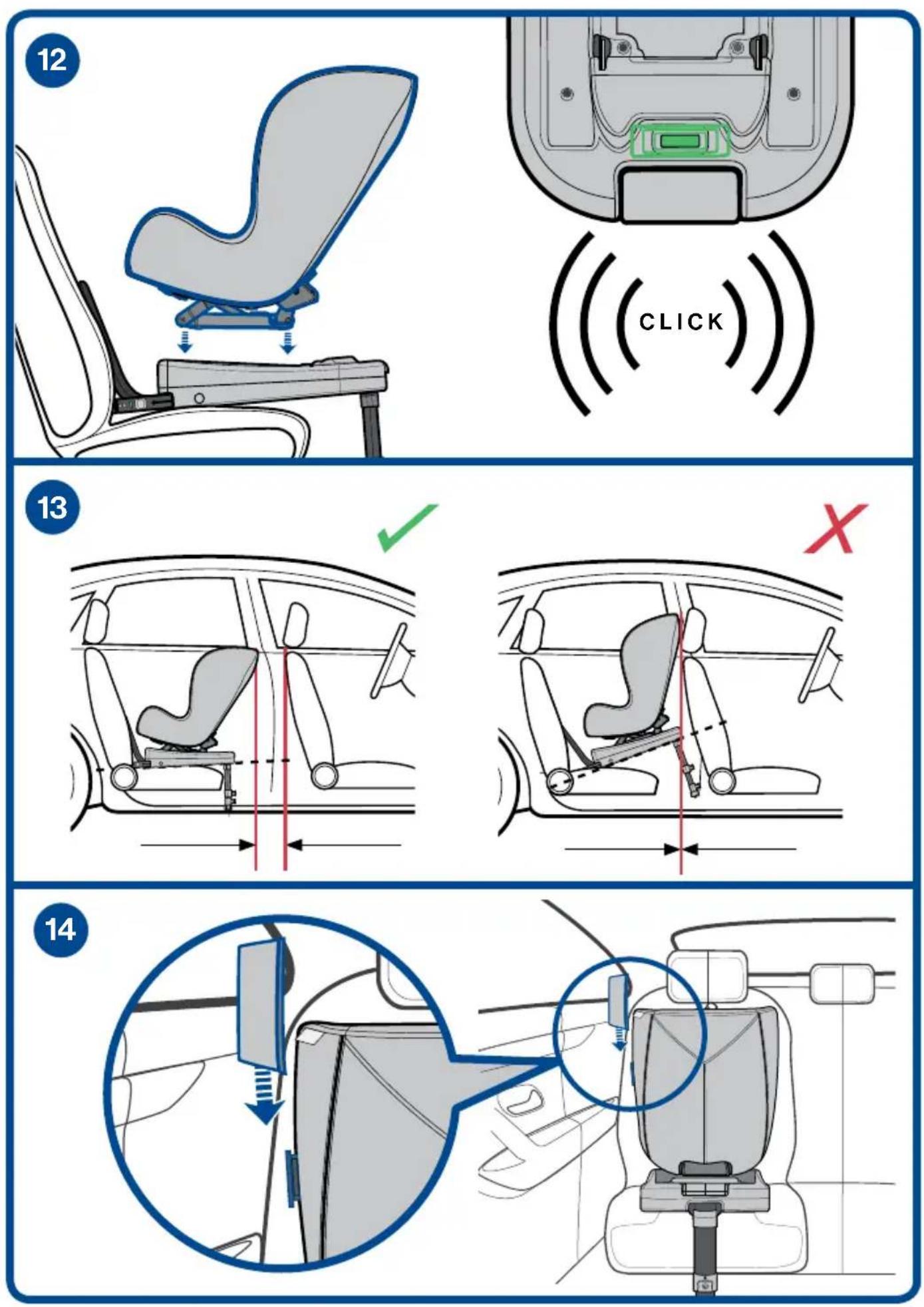

Allowed and disallowed positioning of the child car seat. This base is only allowed to be mounted rear-facing. Front passenger seat (no active airbag) Yes Front passenger seat (active airbag) NO Forward-facing seat with ISOFIX connection points Yes Seat without ISOFIX connection points NO Side facing seats NO Rear facing seats NO Never install a child restraint in a passenger seat where an active airbag is fitted.7 When installing an Axkid Modukid Infant to the base, pull the seat release handle (E) to its extended position (see F6) and push the infant carrier to the base. The infant carrier shall click into the base. Ensure that the Axkid Modukid Infant is not in contact with any adjacent vehicle seat and that the support leg is firmly clamped to the floor and that the support leg installation buzzer (O) has stopped buzzing. Axkid has equipped the Axkid Modukid Infant with a side impact protection system, ASIP (Axkid Side Impact Protection). Push the release button and pull the ASIP towards the door of the car until it locks into the outermost position that fits your car. IMPORTANT: See your Axkid Modukid Infant manual for full instructions on how to install the product and how to buckle your child in the seat. Installing the Axkid Modukid Infant on the base

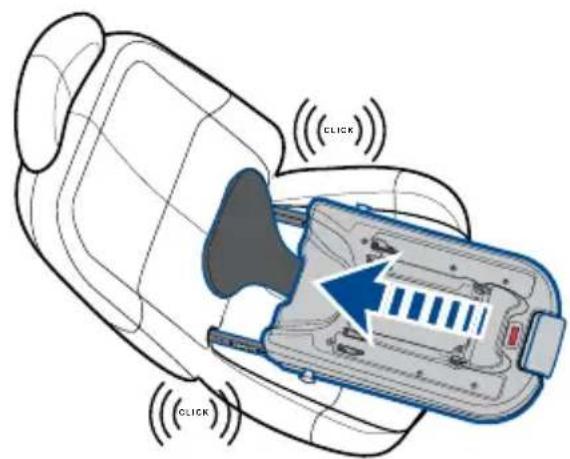

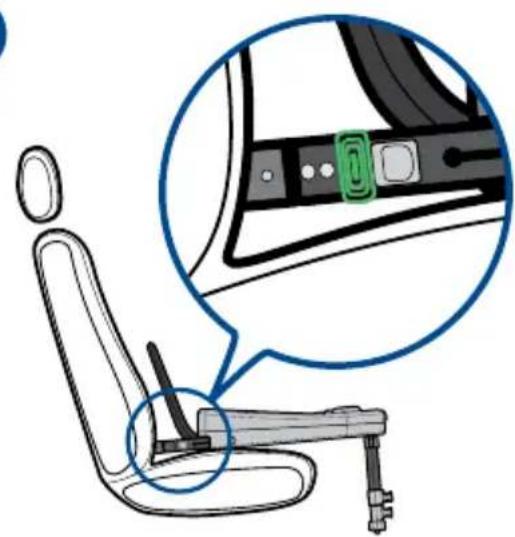

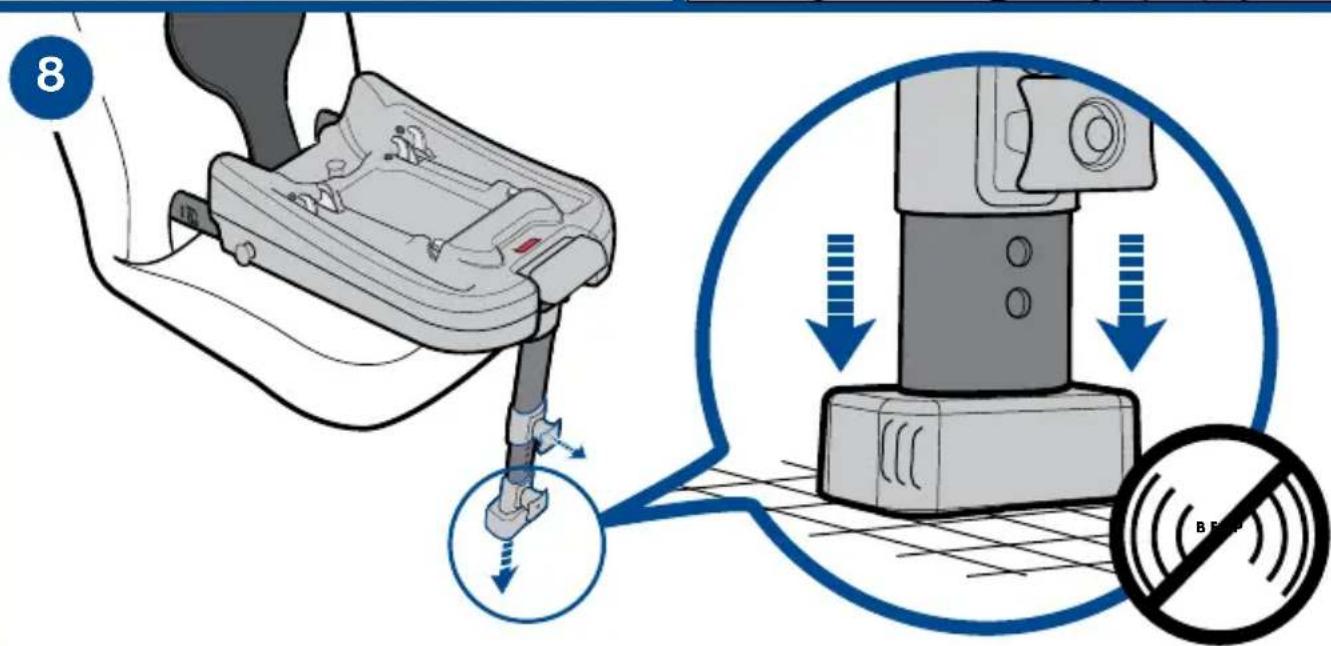

Attach the ISOFIX arms (F) to the vehicle ISOFIX connection points in the correct vehicle seat position, according to (1). You will hear a “click” when the ISOFIX arms lock into position. Make sure that the ISOFIX installation indicator (G) shows green. Extend the front brace (A) towards the vehicle seat by pulling the front base release knob (B) and pushing the front brace (A) towards the vehicle seat. Make sure to apply as much pressure as possible and that the front brace release knob (B) clicks into position. Extend the support leg (M) by pulling the support leg knob (K) to extend the support leg so the support leg foot (N) is in contact with the vehicle floor. Check that the noise from the support leg installation buzzer (O) stops, then the installations is done correctly. Make sure that the floor of the vehicle is suited for supporting an i-Size car seat. Check the vehicle manual for information. IMPORTANT: Make sure that all installation indicators shows green.8 When installing an Axkid Modukid Seat to the base, pull the seat release handle (E) to its extended position (see F6) and push the seat to the base. The seat attachment plate shall click into the base. Ensure that the Axkid Modukid Seat is not in contact with any adjacent vehicle seat and that the support leg is firmly clamped to the floor and that the support leg installation buzzer (O) has stopped buzzing. Axkid has equipped the Axkid Modukid Seat with a side impact protection system, ASIP (Axkid Side Impact Protection). To install the ASIP, locate the side impact pad connector on the child seat nearest to the side of the vehicle (i.e. closest to the door). Ensure the two triangular arrows on the side impact pad point in the same direction as the triangular arrow on the side impact pad connector. Place the upper of the two oval openings on the underside of the side impact pad over the side impact pad connector. Push the side impact pad against the side of the car seat and slide the side impact pad upwards onto the side impact pad connector. You will feel a slight click as the side impact pad locks in place. To remove: push the side impact pad downwards and remove. IMPORTANT: See your Axkid Modukid Seat manual for full instructions on how to install the product and how to buckle your child in the seat. Installing the Axkid Modukid Seat on the base

Care and maintenance The front brace cover can be removed and washed in a washing machine at 30º C on the “Gentle Cycle” program. Do not put the cover in a dryer as this can damage the cover and the padding may separate from the fabric. Any plastic parts of Axkid Modukid Base can be cleaned with mild detergent and water. Do not use aggressive chemicals containing solvents etc, as this can cause damage to the plastic and compromise the safety of the child car seat. All materials used in the Axkid Modukid Base are recyclable and should be recycled as per your local legislation. Ask your local recycling center for advice when recycling this product. Do not make any modifications or alterations to the Axkid Modukid child car seat other than those described in this instruction manual. Follow the instructions in this manual carefully. Any repairs must be carried out by the manufacturer or agent. If the seat cover needs replacing, ensure only original products from Axkid are used. If other products are used, the Axkid Modukid’s safety system may be compromised and could lead to severe injury in case of an accident. Warranty The warranty does not cover: Normal wear and tear Damage due to incorrect use, neglect or accident If repairs have been carried out by a third party All materials used have a very high UV-resistance rating. However, UV-light is very aggressive and will ultimately lead to fading of the seat cover. This is not covered by our warranty as it is considered normal wear and tear. The Axkid Modukid Base is covered by a 24-month warranty from date of purchase. Ensure you save your receipt and bring it to your place of purchase if you have any warranty issues.10
