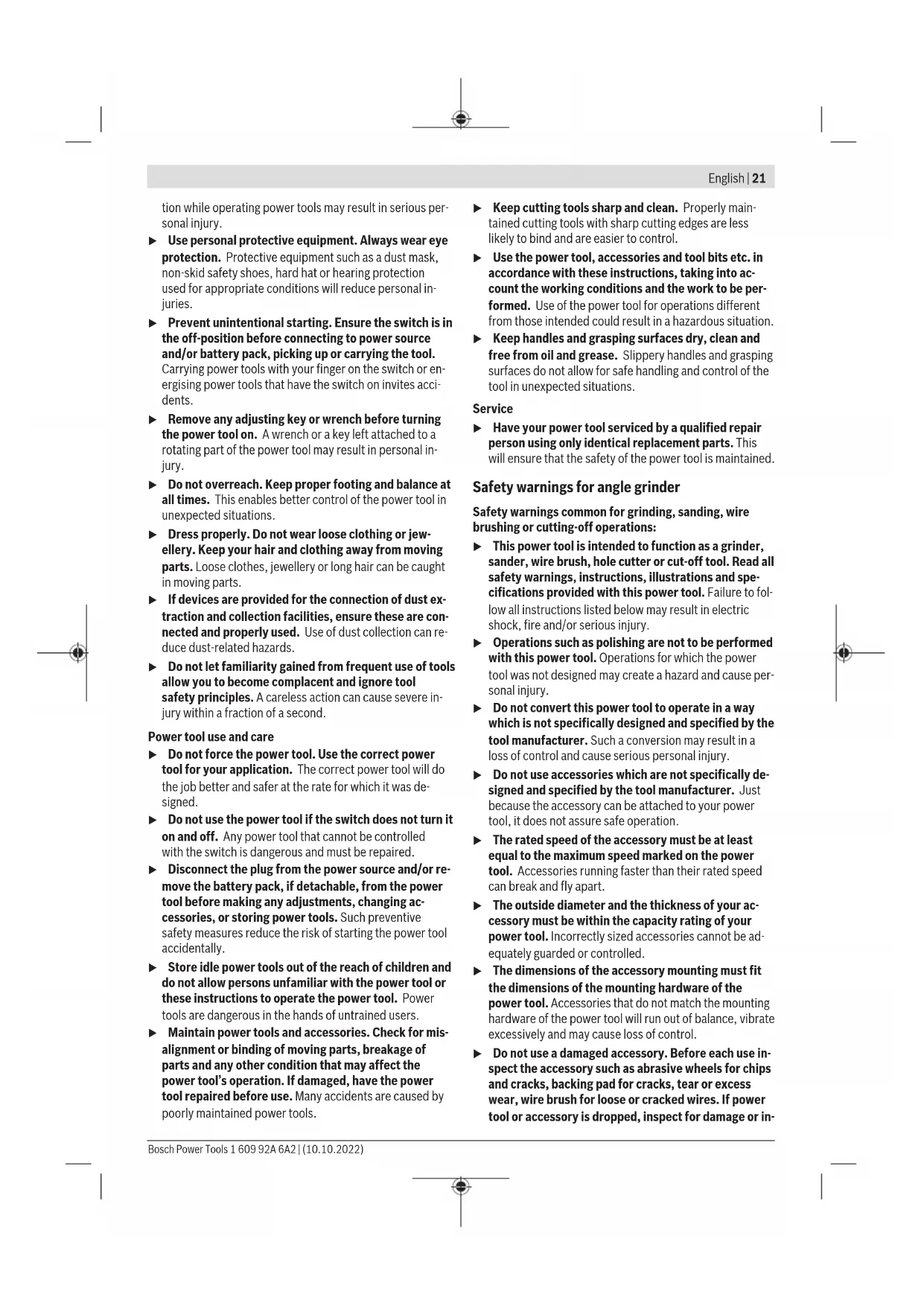

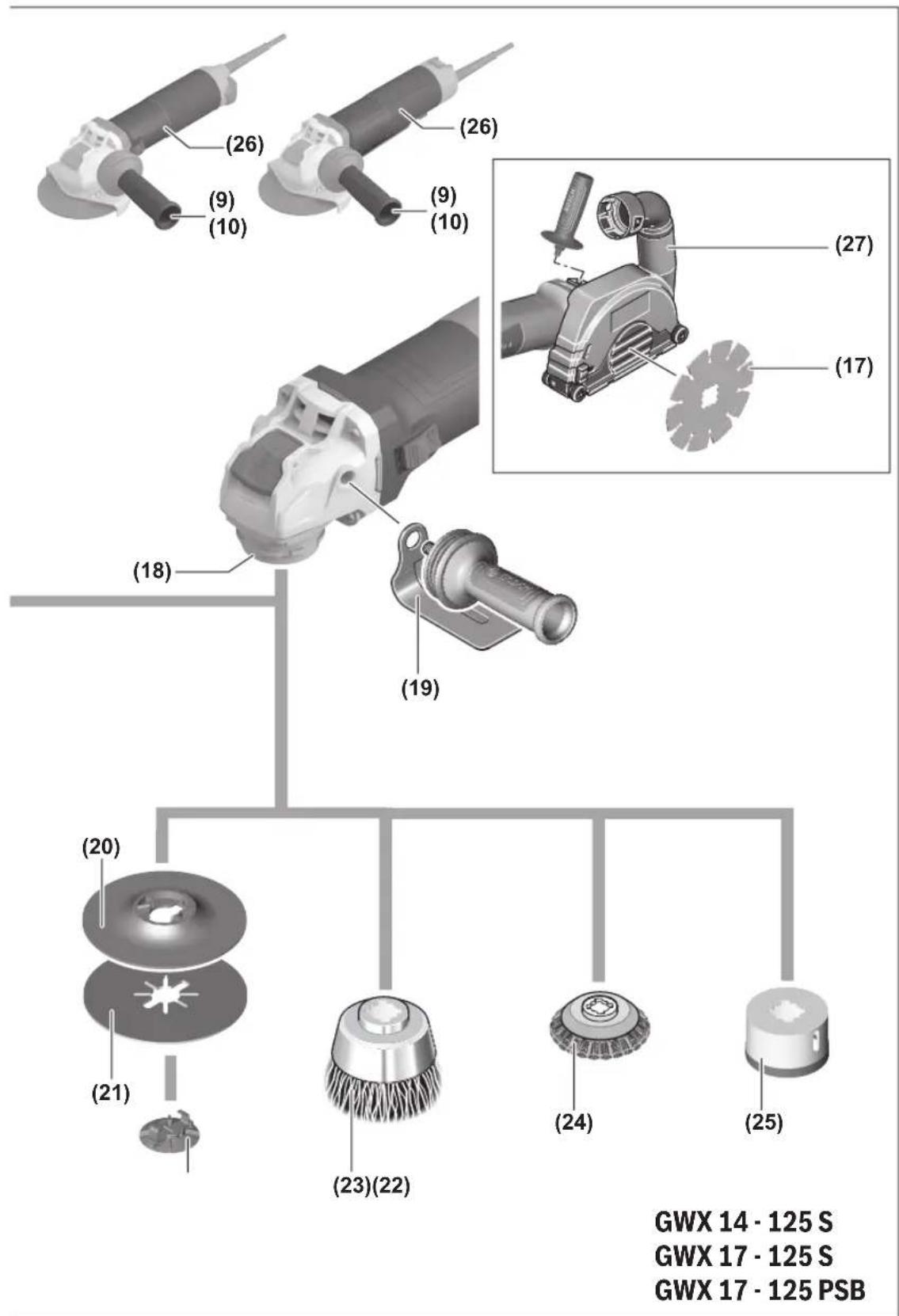

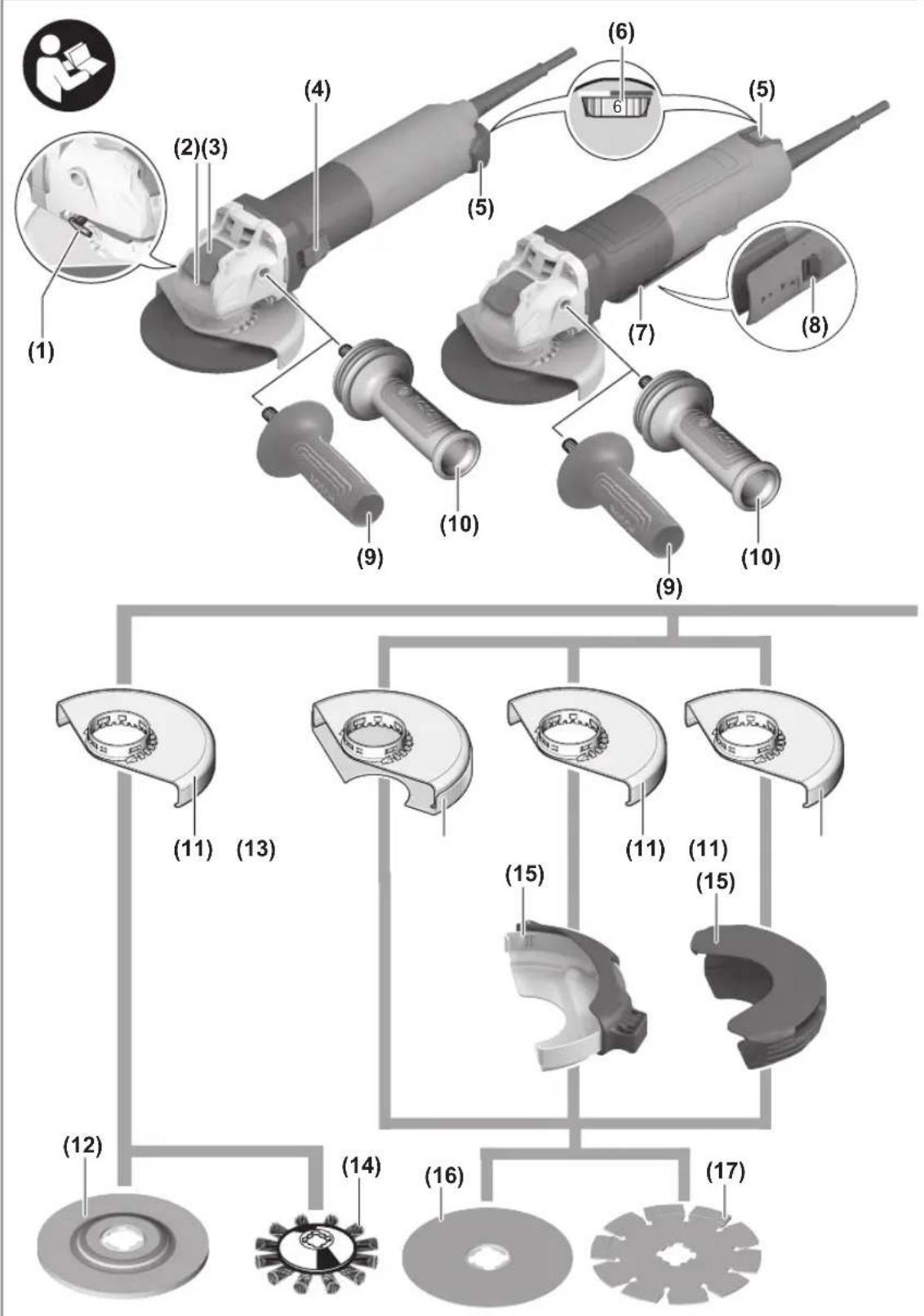

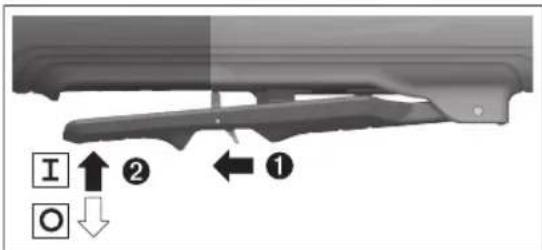

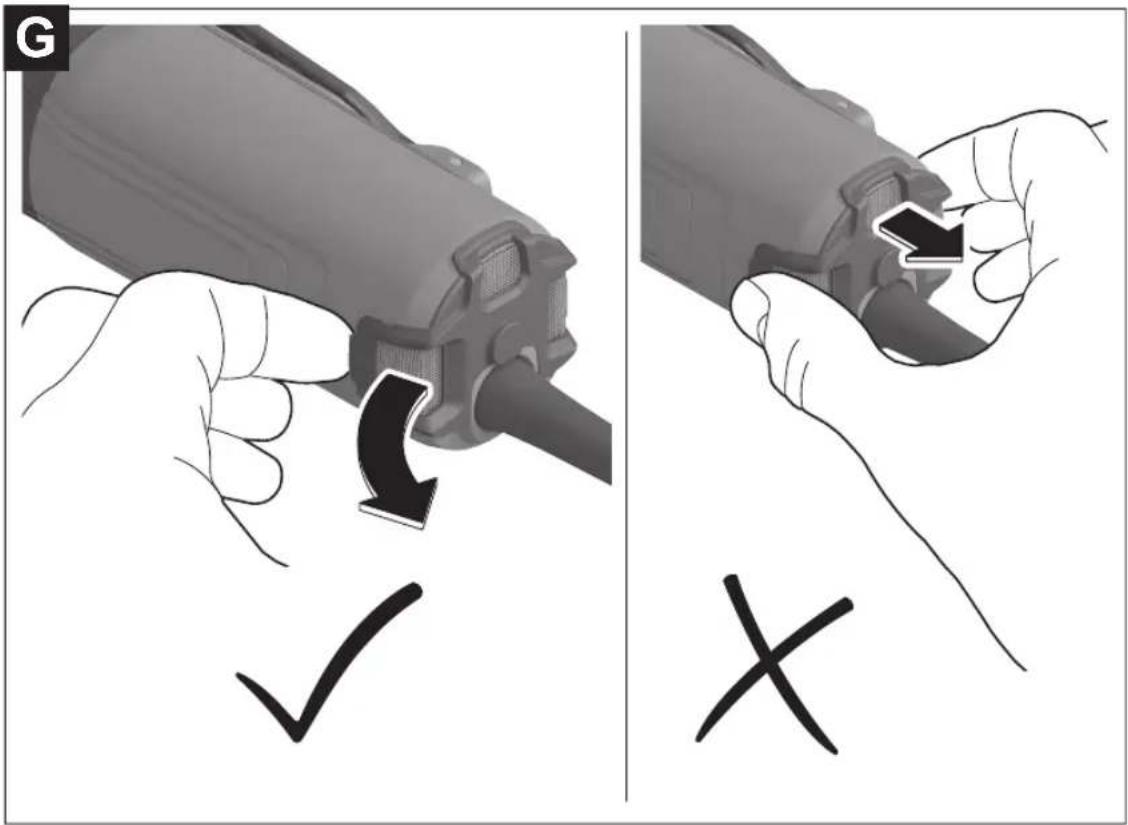

(5) Dust filter(GWX 17-125 S / GWX 17-125 PSB) (6) Speed preselection thumbwheel (7) On/off switch(GWX17-125PSB) (8) Unlocking lever for on/off switch(GWX17-125PSB) (9) Standard auxiliary handle (insulated gripping sur- face)

(10) Vibration-damping auxiliary handle (insulated grip- ping surface) (11) Protective guard for grinding (12) X-LOCK grinding disc/flap disc

(13) Protective guard for cutting

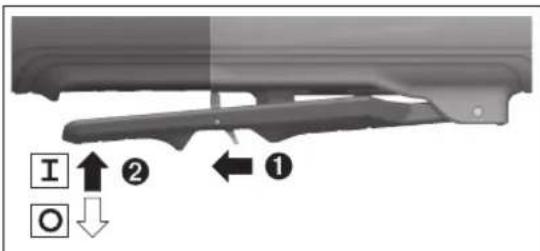

(15) Cover for cutting (16) X-LOCK cutting disc

(20) X-LOCK backing pad for fibre discs

(24) X-LOCK conical brush

(25) X-LOCK diamond core cutter

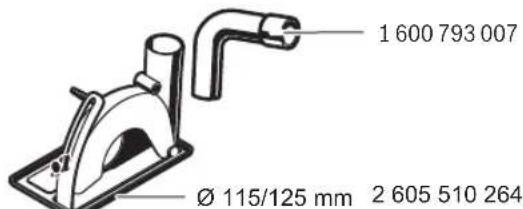

(26) Handle (insulated gripping surface) (27) Extraction guard for cutting with cutting guides

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Angle Grinder GWX 14-125 S GWX 17-125 S GWX 17-125 PSB Article number 3601GD21.. 3601GD23.. 3601GD37.. Rated power input W 1400 1700 1700 Power output W 830 1010 1010 Rated no-load speed

Speed adjustment range min

2800–11500 2800–11500 2800–11500 Max. grinding disc diameter/rubber sanding pad dia- meter mm 125 125 125 Speed preselection ● ● ● Restart protection ● ● ● Soft start ● ● ● Constant electronic control ● ● ● KickBack Control ● ● ● Run-out brake – – ● Drop Control – – ● Weight according to EPTA-Procedure 01:2014

kg 2.2–2.5 2.2–2.5 2.3–2.6 1 609 92A 6A2 | (10.10.2022) Bosch Power ToolsEnglish | 25 Angle Grinder GWX 14-125 S GWX 17-125 S GWX 17-125 PSB Protection class / II / II / II A) Rated no-load speed for the selection of appropriate application tools in accordance with ENIEC62841-2-3. The actual no-load speed must not exceed the rated no-load speed and is therefore lower.

Depends on protective guard((13), (11), (15)) and auxiliary handle((9), (10)) in use The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models. Noise/Vibration Information GWX 14-125 S GWX 17-125 S GWX 17-125 PSB 3601GD21.. 3601GD23.. 3601GD37.. Noise emission values determined according toENIEC62841-2-3. Typically, the A-weighted noise level of the power tool is Sound pressure level Sound power level UncertaintyK Wear hearing protection! dB(A) dB(A)

(triax vector sum) and uncertainty K determined according toENIEC62841-2-3: Surface grinding and abrasive cutting:

A) determined with medium-hard backing pad Grinding thin metal sheets or other materials that tend to easily vibrate with a large surface area can cause the noise emission value to increase by up to 15dB. Suitable, heavy damping mats can reduce the increased noise emissions. Increased noise emissions must be taken into considera- tion, both for the risk assessment of the noise output and for selecting suitable hearing protection. The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Restart protection The restart protection feature prevents the power tool from uncontrolled starting after the power supply to it has been interrupted. To restart the tool, set the on/off switch (4) to the off posi- tion and then switch the power tool on again. Soft start The electronic soft start limits the torque when the power tool is switched on and enables a smooth start-up. Note: If the power tool runs at full speed immediately after being switched on, this means that the soft start and restart protection mechanisms have failed. The power tool must be sent to the after-sales service immediately; see the "After- Sales Service and Application Service" section for ad- dresses. Constant Electronic control The Constant Electronic keeps the speed at no load and un- der load virtually consistent, guaranteeing uniform perform- ance. Bosch Power Tools 1 609 92A 6A2 | (10.10.2022)26 | English Kickback control If there is a sudden kickback in the power tool, e.g. jamming in a separating cut, the power supply to the motor will be interrupted elec- tronically. To restart the tool, set the On/Off switch (4) to the "off" po- sition and then switch the power tool on again. X-LOCK run-out brake (GWX17-125PSB) The power tool is fitted with an electronic run- out brake. When the power supply to the power tool is switched off or interrupted, the abrasive tool is brought to a complete stop within a few seconds.When Drop Control or Kickback Con- trol are triggered, the power tool will brake even faster than this. Drop control (GWX17-125PSB) DROP CONTROL The integrated impact shutdown switches the power tool off as soon as it hits the floor. Speed preselection You can preselect the required speed using the speed preselection thumbwheel(6), even during operation, provided the dust filter(5) is not fitted. Otherwise remove the dust filter(5) beforehand. The information in the table below describes the re- commended values. Material Application Application tool Thumbwheel position Metal Removing paint Sanding sheet 2–3 Metal Brushing, removing rust Cup brush, abrasive disc 3 Stainless steel Grinding Grinding disc/fibre disc 4–6 Metal Rough grinding Grinding disc 6 Metal Cutting Cutting disc 6 Stone Cutting Diamond cutting disc 6 u The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. Speed preselection level [min

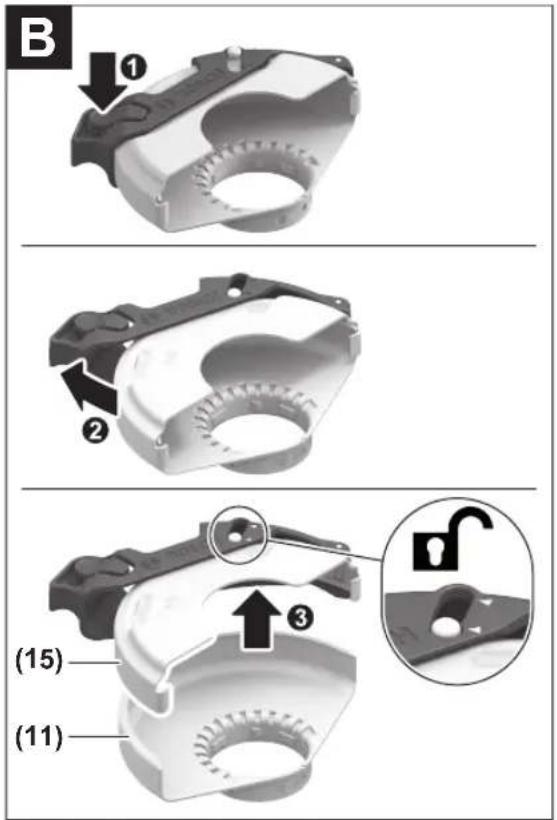

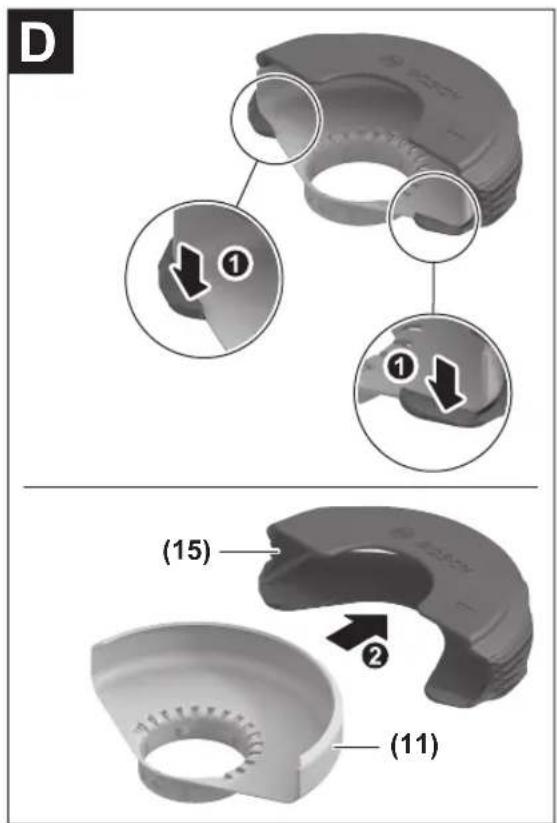

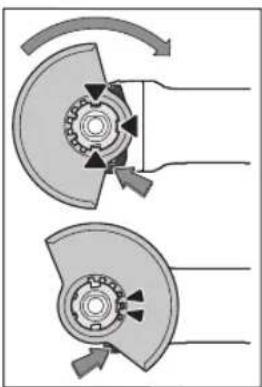

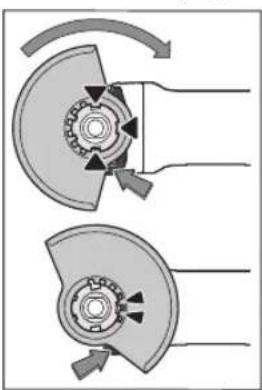

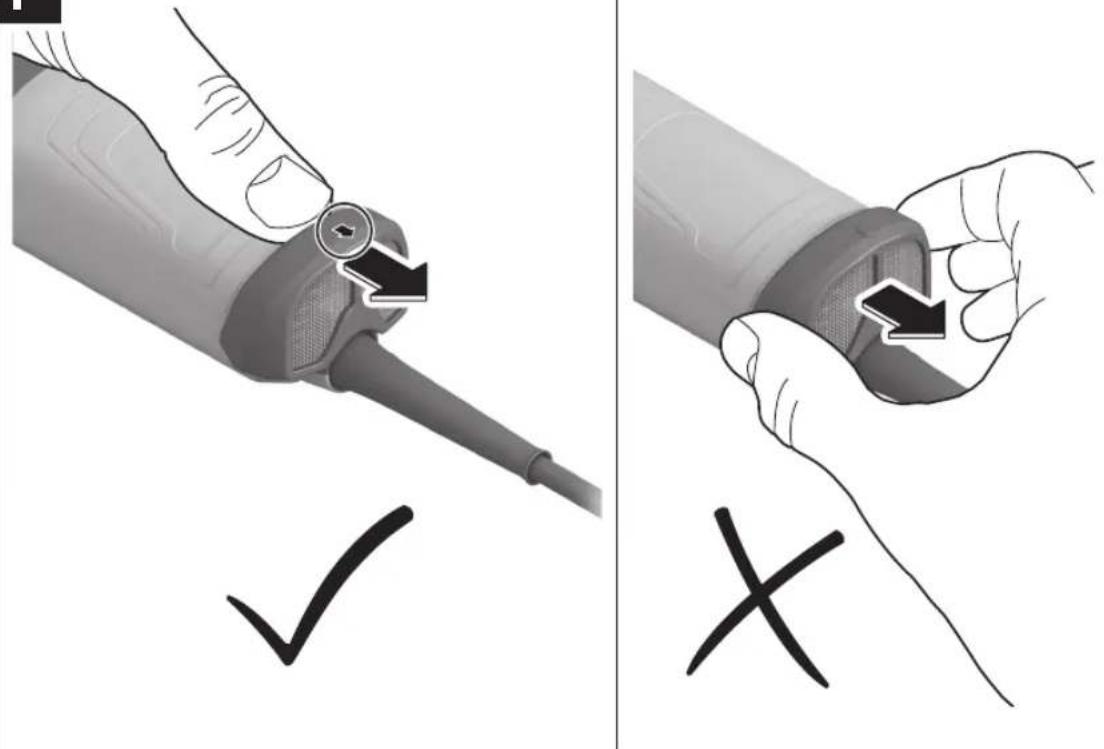

6 11,500 The values specified for speed levels are guide values. Fitting Fitting Protective Equipment u Pull the plug out of the socket before carrying out any work on the power tool. Note: If the grinding disc breaks during operation or the holding fixtures on the protective guard/power tool become damaged, the power tool must be sent to the after-sales ser- vice immediately; see the "After-Sales Service and Applica- tion Service" section for addresses. Protective guard for grinding Place the protective guard (11) onto the holder on the power tool until the coding cams of the protective guard are aligned with the holder. When doing so, press and hold the unlocking lever (1). Press the protective guard (11) onto the spindle collar until the shoulder of the pro- tective guard is sitting on the flange of the power tool and rotate the protective guard until it audibly clicks into place. Adjust the position of the protective guard (11) to meet the requirements of the operation. To do this, push the unlock- ing lever (1) upward and rotate the protective guard (11) into the required position. u Always position the protective guard(11) such that the two cams on the unlocking lever(1) engage in the corresponding openings on the protective guard(11). u Adjust the protective guard (11) such that sparking in the direction of the operator is prevented. u The protective guard (11) must only be adjustable while the unlocking lever (1) is actuated. Otherwise, 1 609 92A 6A2 | (10.10.2022) Bosch Power ToolsEnglish | 27 the power tool must not be used any more under any circumstances and must be sent to the after-sales ser- vice. Note: The coding cams on the protective guard (11) ensure that only a protective guard that is suitable for the power tool can be fitted. Protective guard for cutting u For cutting, always use the protective guard for cutting(13) or the protective guard for grinding (11) together with the cover for cutting(15). u Provide sufficient dust extraction when cutting stone. The protective guard for cutting(13) is fitted in the same way as the protective guard for grinding(11). Metal cover for cutting Fit the metal cover for cutting(15) on the protective guard for grinding(11) (see figureA): Swivel the tool retainer back (➊). Attach the cover(15) to the protective guard for grinding(11) (➋). Press the tool retainer firmly into place on the protective guard(11) (➌). To remove the cover (see figureB), press the button on the tool retainer (➊) and swivel it back (➋). Remove the cover(15) from the protective guard(11) (➌). Plastic cover for cutting Attach the plastic cover for cutting(15) to the protective guard for grinding(11) (see figureC). The cover(15) aud- ibly and visually engages on the protective guard(11). To remove the cover (see figureD), unlock the cover(15) on the left- or right-hand side of the protective guard(11) (➊) and remove the cover (➋). Extraction guard for cutting with a guide block The extraction guard for cutting with a cutting guide(27) is fitted in the same way as the protective guard for grinding. By securing the auxiliary handle(9)/(10) with the clip through the extraction guard on the gearbox housing, the power tool is firmly attached to the extraction guard. A suit- able Bosch dust extractor can be connected to the extraction guard with a cutting guide(27). To do so, insert the vacuum hose with dust extraction adapter into the provided receiv- ing connection of the extraction guard. Note: The friction generated by the dust in the vacuum hose and accessory during extraction causes an electrostatic charge that the user may experience as static discharge (de- pending on environmental factors and their physiological state). Bosch generally recommends using an anti-static va- cuum hose (accessory) to vacuum up fine dust and dry ma- terials. Hand guard u Always fit the hand guard (19) when working with the rubber sanding pad (20) or with the cup brush/conical brush/diamond annular cutter. Attach the hand guard (19) to the side handle (9). Standard auxiliary handle/low-vibration auxiliary handle Screw the auxiliary handle (9)/(10) on the right or left of the machine head depending on the working method. u Do not operate your power tool without the auxiliary handle(9)/(10). u Do not continue to use the power tool if the auxiliary handle (9)/(10) is damaged. Do not make any altera- tions to the auxiliary handle (9)/(10). The low-vibration auxiliary handle (10) reduces vibra- tion, enabling the tool to be used safely and more com- fortably. Fitting and removing abrasive tools Follow the special assembly instructions for X-LOCK application tools. u Pull the plug out of the socket before carrying out any work on the power tool. u Do not touch grinding and cutting discs until they have cooled down. The discs can become very hot while work- ing. u Only use original X-LOCK application tools that carry the X-LOCK logo. A maintained clamping gauge of max. 1.6mm can only be guaranteed with original X-LOCK ap- plication tools. A higher clamping gauge can lead to insec- ure clamping, potentially causing the clamp tool to come loose. u X-LOCK application tools do not need additional clamping flanges or support flanges. u Make sure that the application tool and the holder are not deformed and are free from dirt and particles. Pay attention to the dimensions of the abrasive tools. Make sure that both X-LOCK catches are open (see figure below) before fitting the X-LOCK application tool. If necessary, clean the area between the two X-LOCK catches. Fitting the abrasive tool ➊ Place the grinding/cutting/flap disc in a central position on the X-LOCK holder, parallel to the bearing surface and with the right side facing up. ➋ Push the disc into the holder. ➌ The disc audibly clicks into place. Do not actuate the lever (3) when doing so. Bosch Power Tools 1 609 92A 6A2 | (10.10.2022)28 | English (3) u After fitting, check that the edge of the abrasive tool

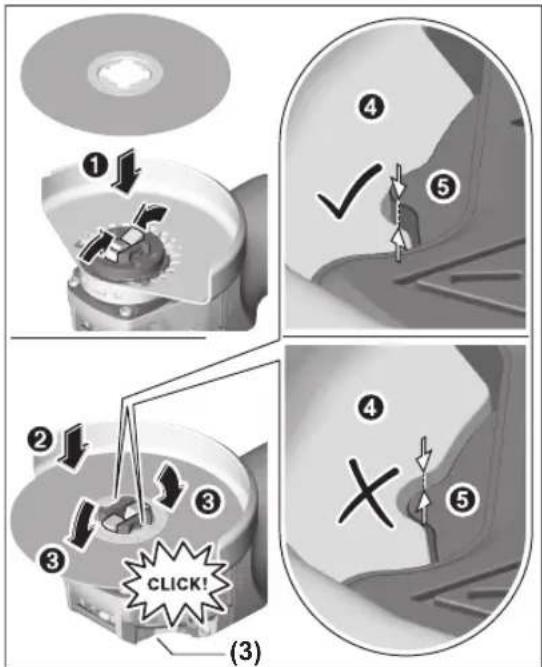

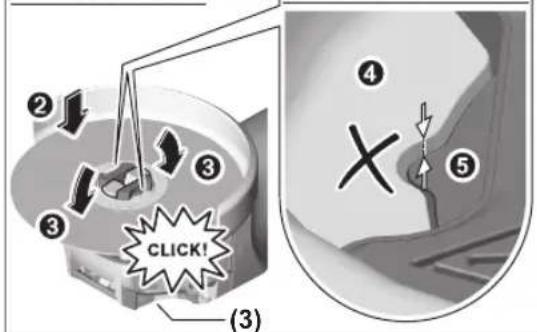

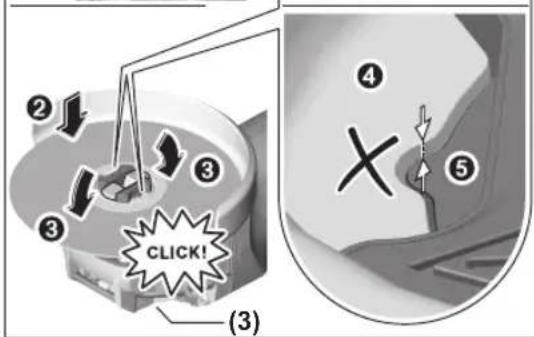

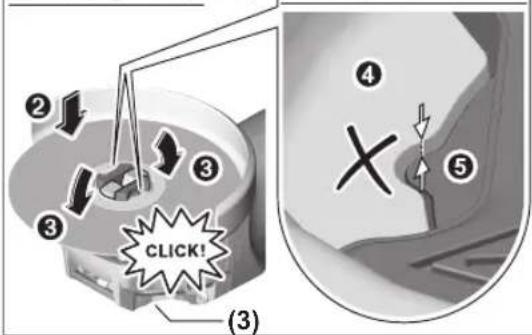

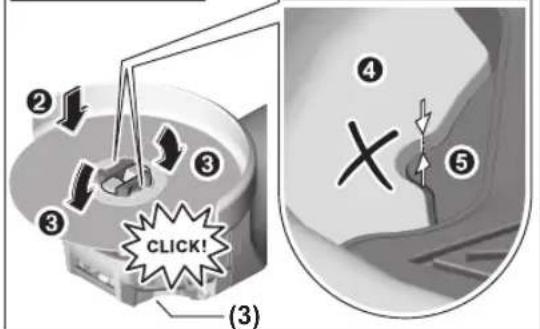

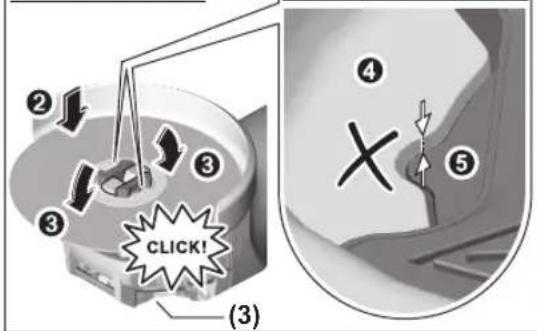

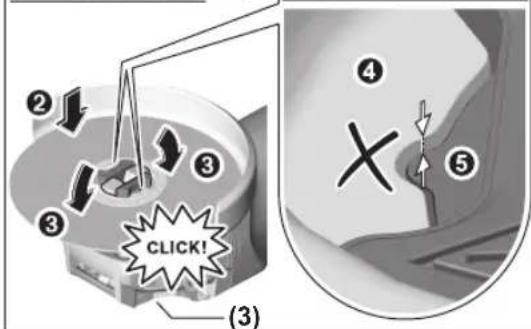

) is fitted correctly, i.e. is no higher than the refer- ence surface (

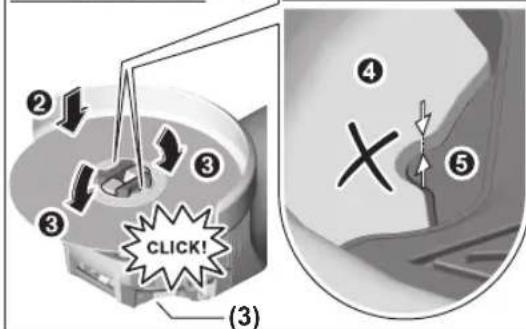

). If the edge is higher than the refer- ence surface, either the holder must be cleaned or the abrasive tool must not be used. Before removing the grinding/cutting/flap disc: Make sure that the power tool has come to a complete stop. Removing the abrasive tool

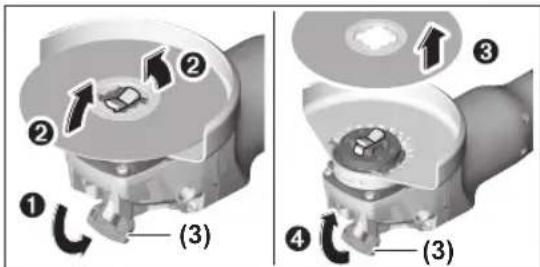

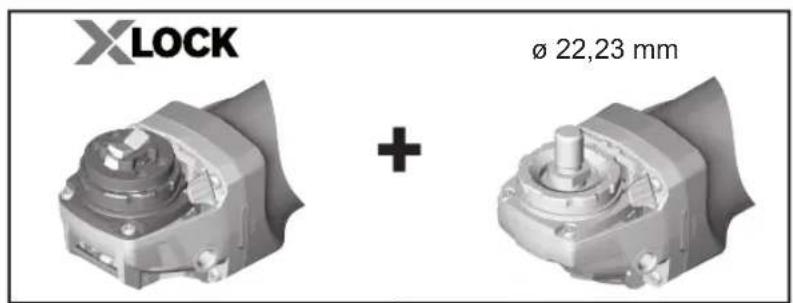

Open the lever (3). ➋ The grinding/cutting/flap disc will be released. ➌ The grinding/cutting/flap disc can be removed. (3) (3) Approved abrasive tools You can use all the abrasive tools mentioned in these operat- ing instructions. The permissible speed [min

] or the circumferential speed [m/s] of the abrasive tools used must at least match the val- ues given in the table. It is therefore important to observe the permissible rota- tional/circumferential speed on the label of the abrasive tool. Max. [mm] [mm] [°] D b s d α [min

(21) Disco in fibra X-LOCK

GWX 14-125 S GWX 17-125 S GWX 17-125 PSB

www.bosch-pt.com/serviceaddresses

GWX 14-125 SGWX 17-125 SGWX 17-125 PSB

11500–280011500–280011500–2800

GWX 14-125 SGWX 17-125 SGWX 17-125 PSB

GWX 14-125 SGWX 17-125 SGWX 17-125 PSB

(GWX 14-125 S / GWX 17-125 S) (GWX 17-125 PSB)

1 600 A01 2G0 1 609 92A 6A2 | (10.10.2022) Bosch Power Tools| 395 Licenses Copyright © 2020, Microchip Technology Inc. and its subsidiaries ("Microchip") All rights reserved. This software is developed by Microchip Technology Inc. and its subsidiaries ("Microchip"). Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. – Microchip's name may not be used to endorse or promote products derived from this software without specific prior writ- ten permission. THIS SOFTWARE IS PROVIDED BY MICROCHIP "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL MICROCHIP BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTI- AL DAMAGES (INCLUDING BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DA- TA OR PROFITS; OR BUSINESS INTERRUPTION) HOWSOEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Bosch Power Tools 1 609 92A 6A2 | (10.10.2022)396 | 1 609 92A 6A2 | (10.10.2022) Bosch Power ToolsI

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Angle Grinder Article number
