Product Type	2-way active vertical array loudspeaker
Brand	DB Technologies
Model	Ingenia IG2T
Dimensions (W x H x D)	228 x 646 x 315 mm
Weight	12.8 kg
Enclosure material	Reinforced PP polypropylene with internal metal structure
Protective grille	Varnished steel / CNC treatment
Amplification	Digipro G3, Class D, 400 W RMS, 800 W peak
DSP processor	56-bit, 24-bit/48 kHz
Frequency response (-10 dB)	59 Hz - 20 kHz
Max SPL	128 dB
Coverage (H x V)	100° x 80° (+15°/-65°) asymmetrical
LF driver	2 x 8" with 2" voice coil and neodymium magnet
HF driver	1" compression driver, 1.4" titanium voice coil, neodymium magnet
Crossover frequency	1900 Hz
Power supply	Auto-range 100-120V / 220-240V, Neutrik PowerCON TRUE1 connector
Supplied fuse	For 220-240 V (T2.5A L 250V) and 100-120 V (T3A L 250V)
Audio inputs	1x combo XLR / Jack (balanced/unbalanced)
Audio output	1x XLR LINK (balanced)
USB connectivity	Mini USB type B for firmware update
Display and control	Auto-rotating OLED screen with push-rotary encoder
Main features	Digital steering, 3-band acoustic correction, system delay, scene alignment, saveable presets, password, automatic standby
Optional accessories	Fly bar DRK-IG, brackets LP-IG, stand GSA-IG, wall mount WB-IG2, bag TC-IG2T, rain cover RC-M1
Safety	Do not open the amplifier, protect from moisture, use only Neutrik cables, do not suspend by handles

Frequently Asked Questions - Ingenia IG2T DB Technologies

How to update the firmware of the Ingenia IG2T?

Download the USB BURNER MANAGER from dbtechnologies.com, then the .zip file of the latest firmware. Open the software, select the file and click UPDATE. Use the front mini-USB type B port.

How to connect two IG2T speakers as a column?

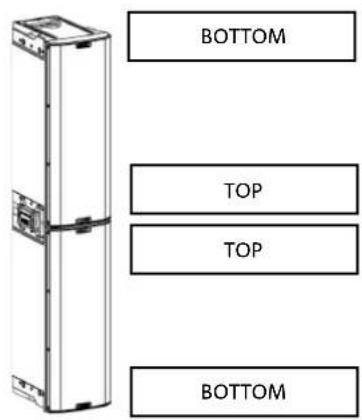

Use the pair of brackets LP-IG to fix the two modules on top of each other. Once assembled, the infrared ports on the handles automatically detect the configuration. Perform a Selfcheck System in the BUILD SYSTEM menu to identify them.

What to do if the speaker does not turn on?

Check that the power cable with Neutrik PowerCON TRUE1 connector is properly inserted and that the upstream power is present. Also check the fuse and replace it if necessary (use the appropriate fuse for your voltage).

How to adjust acoustic correction?

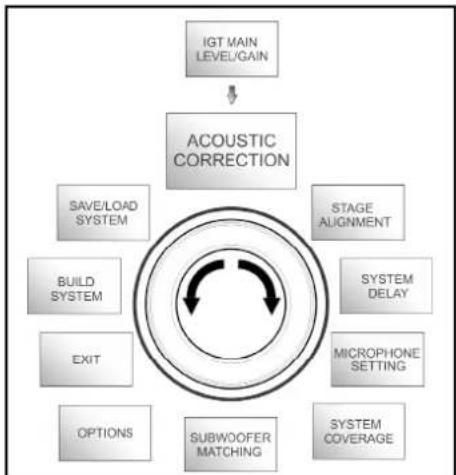

Access the ACOUSTIC CORRECTION menu. You can adjust three bands: LF (low) from -6 to +3 dB, MF (mid) from -6 to 0 dB, HF (high) from -6 to +3 dB, in 0.5 dB steps. Use the encoder to select and confirm.

What is digital steering and how to use it?

The digital steering allows you to orient the acoustic beam of two stacked IG2T speakers. It is adjusted via the SYSTEM COVERAGE menu, visible only when two speakers are detected. You can choose angles from -10° to +10° (UP or DOWN) or the FAR 0° position.

How to save and recall a preset?

In the SAVE/LOAD SYSTEM menu, select a memory location from 1 to 5, then choose SAVE to save the current parameters with a name (up to 14 characters). To recall, select the location and choose RECALL.

How to use a microphone with the IG2T?

Plug the microphone into the XLR/Jack combo input and set the INPUT SENSITIVITY selector to MIC. In the MICROPHONE SETTING menu, you can enable a high-pass filter (50-200 Hz) and an anti-feedback filter (260 Hz - 15 kHz).

How to configure a system delay?

In the SYSTEM DELAY menu, you can add a delay from 0 to 126 ms (equivalent to 0-43.7 m). This helps align multiple speakers in a large space to avoid echoes. Use the encoder to adjust the value.

What accessories are available for the Ingenia IG2T?

Optional accessories include: the fly bar DRK-IG, truss adapter TA-IG, linking brackets LP-IG, subwoofer stand GSA-IG, wall mount WB-IG2, carrying bag TC-IG2T, and rain protection RC-M1.

How to clean and maintain the speaker?

Disconnect the power before any maintenance. Clean the exterior with a damp cloth (no solvents). Avoid moisture and dust on the grilles and handles (infrared ports). Use only high-quality Neutrik cables. Do not attempt to open the amplifier.

USER MANUAL Ingenia IG2T DB Technologies

Technical line drawing of a multi-chamber electronic device with visible internal components and mounting holes (no text or symbols)

USER MANUAL - Section 1

The warnings in this manual must be observed together with the "User Manual - Section 2".

According to the standards EN 55103 this equipment is designed and suitable to operate in E3 (or lower E2, E1) Electromagnetic environments.

FCC CLASS B STATEMENT ACCORDING TO TITLE 47, CHAPTER I, SUBCHAPTER A, PART 15, SUBPART B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING

Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or properties. For safety reasons di not place one loudspeaker on top of another without proper fastening systems. Before hanging the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation. If you use the loudspeakers outdoor avoid spots exposed to bad weather conditions.

Contact dBTechnologies for accessories to be used with the speakers. dBTechnologies will not accept any responsibility for damages caused by inappropriate accessories or additional devices.

INGENIA IG2T Cod. 420120238 REV. 1.1

ITALIANO

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

INGENIA IG2T Cod. 420120238 REV. 1.1

INDICE

2. PRIMA ACCENSIONE.... 12

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a double refrigerator with front panel and side door (no text or symbols)

TA-IG truss adapter

Technical line drawing of a mechanical assembly with no visible text or symbols

Stand GSA-IG

WB-IG2

ATTENZIONE!

AUTO-RANGE MAINS INPUT MAINS LINK MAINS FUSE 100-200+ 3.645N 1.2A 100-200+ 3.645N 1.2A 100-200+ 3.645N 1.2A MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUS MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSE MAIN FUSED IN ITALY 8 9 10 DESIGNED & DEVELOPED IN ITALY 8 9 10 ALIMENTAZIONE RILANCIO

INGENIA IG2T Cod. 420120238 REV. 1.1

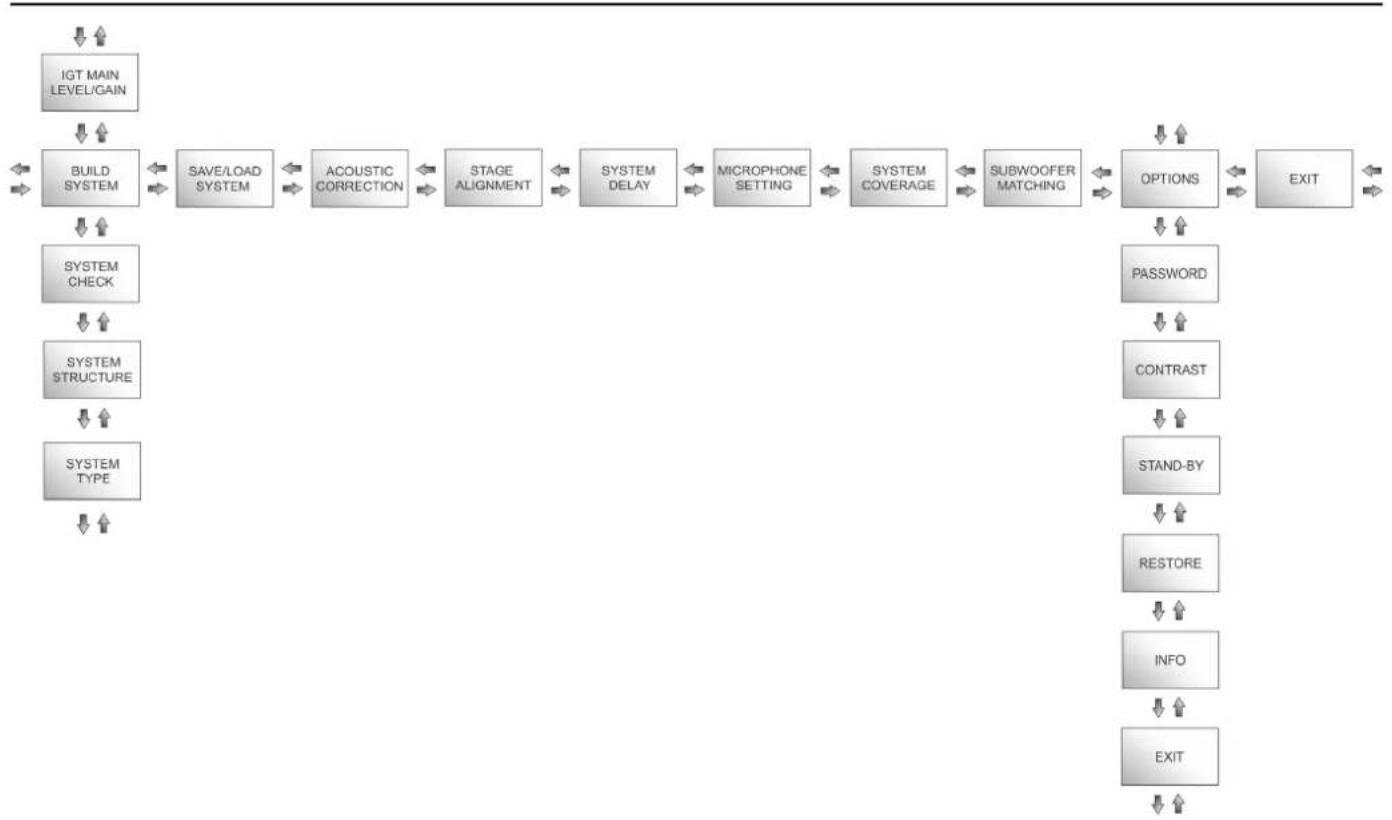

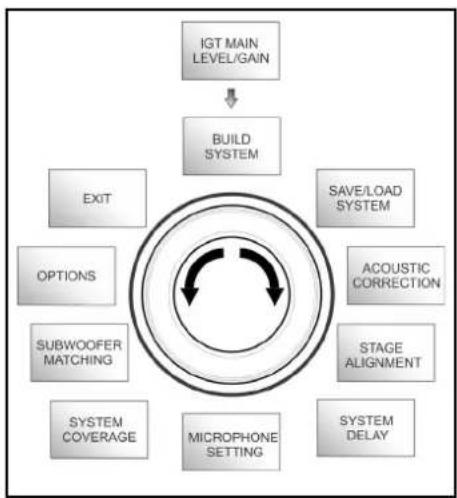

Stage Alignment Menu

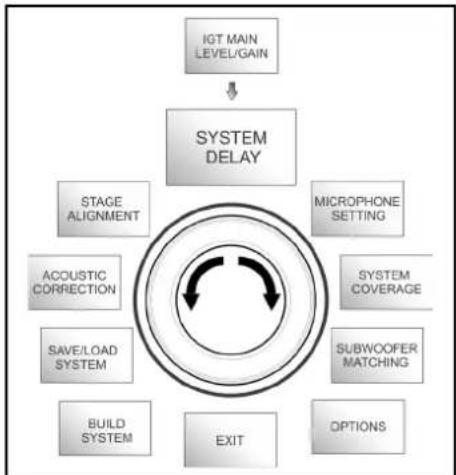

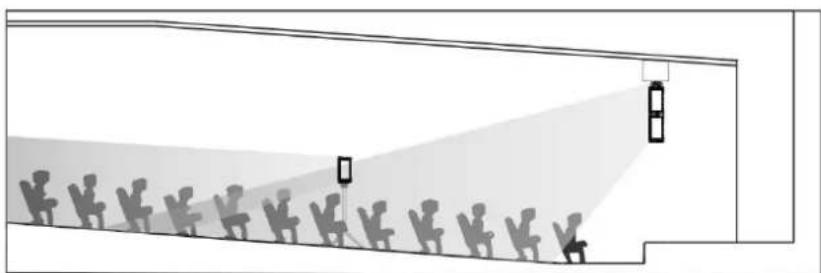

IL MENU SYSTEM DELAY

Diagram of a street scene with silhouetted figures and a light beam projecting onto a building facade (no text or symbols)

Microphone Setting Menu

HP Filter 342Hz Antifefeedback 342Hz

INGENIA IG2T Cod. 420120238 REV. 1.1

IL MENU SYSTEM COVERAGE

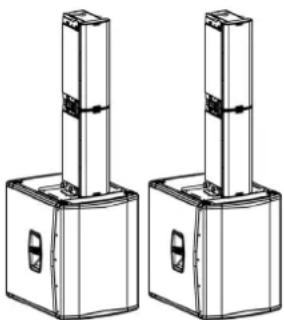

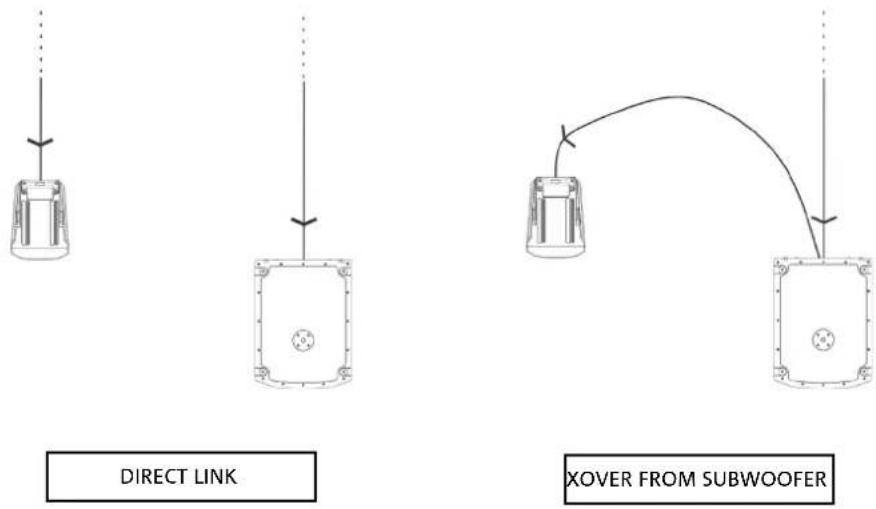

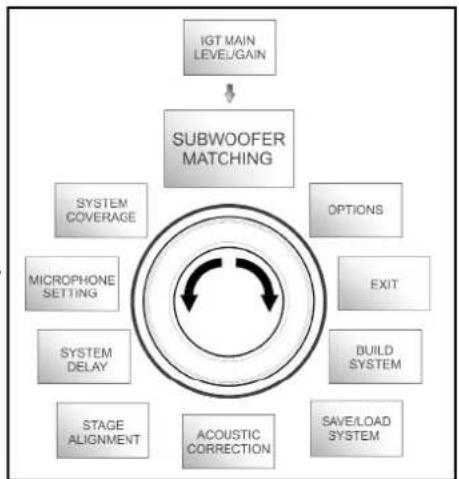

IL MENU SUBWOOFER MATCHING

Two simple line drawings of a portable electronic device mounted on a tripod stand, no text or symbols present.

INSTALLAZIONE SU SUBWOOFER

Two identical mechanical components with vertical cylindrical structures and mounting holes, shown from top and side views (no text or symbols)

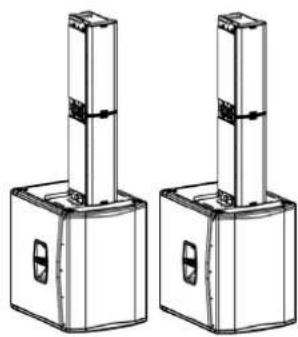

INSTALLAZIONE SU SUBWOOFER CON PALO

Two identical mechanical devices with vertical connectors and mounting holes, shown from different angles (no text or symbols visible)

INGENIA IG2T Cod. 420120238 REV. 1.1

Two identical structural column designs with mounting feet, shown from different angles (no text or symbols)

Two identical line drawings of cylindrical electronic components with mounting flanges (no text or symbols)

INSTALLAZIONE A MURO CON STAFFE

Two identical rectangular electronic components with mounting brackets and side connectors (no text or symbols visible)

INGENIA IG2T Cod. 420120238 REV. 1.1

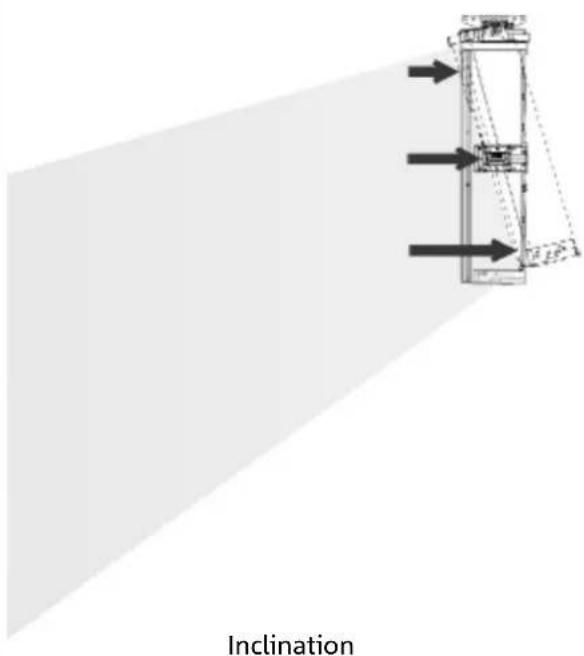

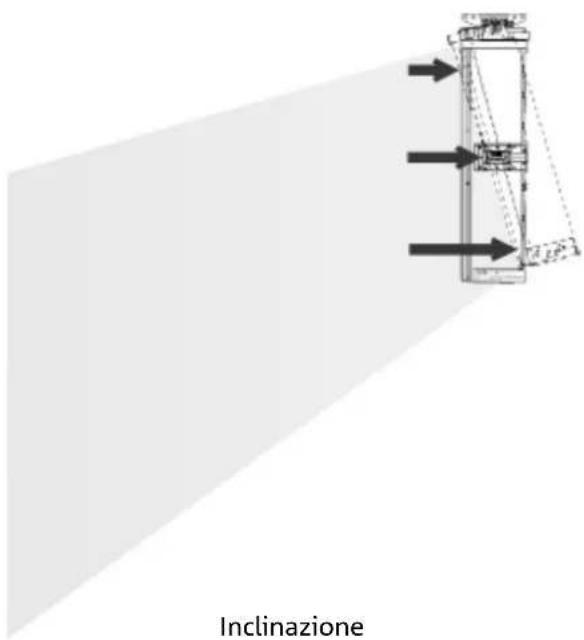

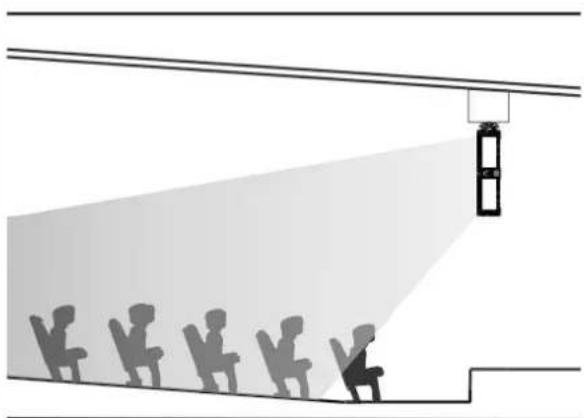

IL DIGITAL STEERING

Diagram showing a fire safety scene with silhouettes of people and a fire truck, no text or symbols present

Platea

SUBWOOFER MATCHING MENU 61

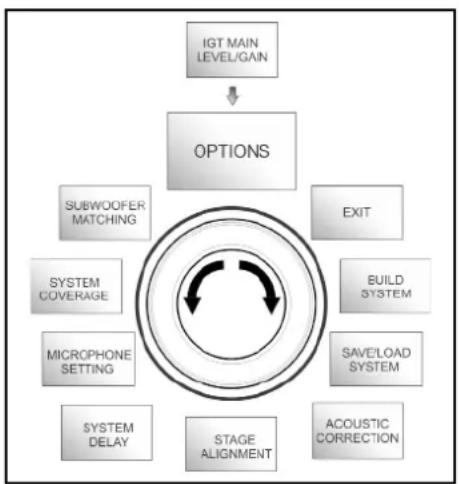

OPTIONS MENU....62

PASSWORD 62

CONTRAST....62

STAND-BY 62

RESTORE 62

INFO 62

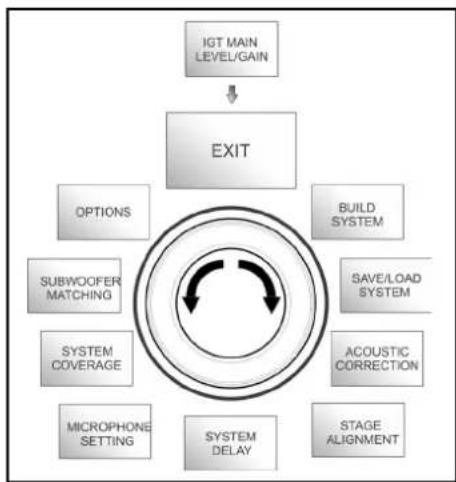

EXIT 62

EXIT MENU....63

4. INSTALLATION EXAMPLES....64

INSTALLATION ON STAND....64

INGENIA IG2T Cod. 420120238 REV. 1.1

INDEX

INSTALLATION ON SUBWOOFER....64

INSTALLATION ON SUBWOOFER WITH POLE 64

FLOOR INSTALLATION 65

FLOWN INSTALLATION....65

INSTALLATION WITH WALL BRACKETS....65

DIGITAL STEERING....66

1. UPDATING THE FIRMWARE....67

2. TROUBLESHOOTING....68

3. TECHNICAL SPECIFICATIONS ....70

GENERAL....70

ACOUSTIC DATA....70

AMPLIFIER....70

PROCESSOR....71

INPUTS....71

DIMENSIONS....71

INGENIA IG2T Cod. 420120238 REV. 1.1

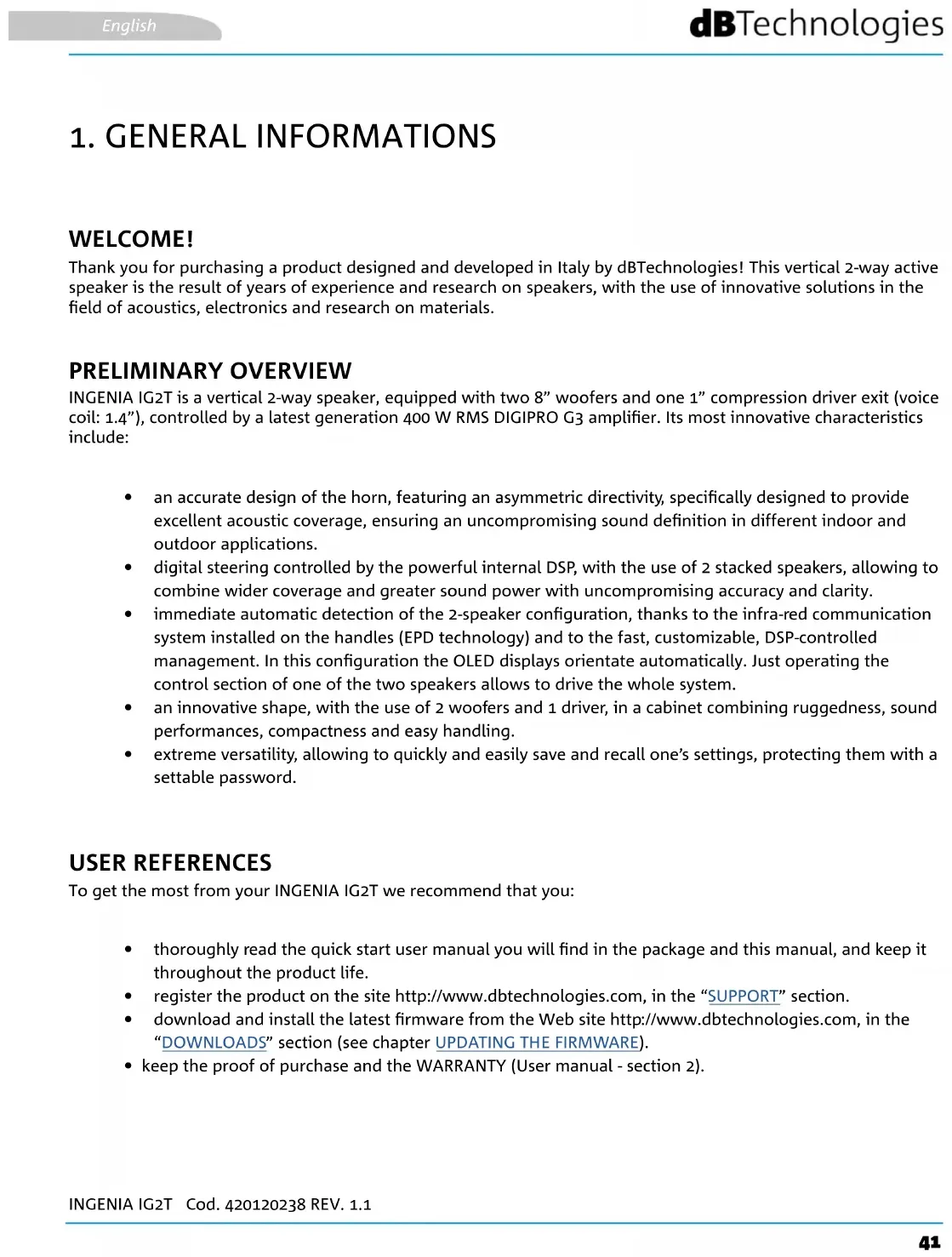

1. GENERAL INFORMATIONS

WELCOME!

Thank you for purchasing a product designed and developed in Italy by dBTechnologies! This vertical 2-way active speaker is the result of years of experience and research on speakers, with the use of innovative solutions in the field of acoustics, electronics and research on materials.

PRELIMINARY OVERVIEW

INGENIA IG2T is a vertical 2-way speaker, equipped with two 8" woofers and one 1" compression driver exit (voice coil: 1.4"), controlled by a latest generation 400 W RMS DIGIPRO G3 amplifier. Its most innovative characteristics include:

• an accurate design of the horn, featuring an asymmetric directivity, specifically designed to provide excellent acoustic coverage, ensuring an uncompromising sound definition in different indoor and outdoor applications.
• digital steering controlled by the powerful internal DSP, with the use of 2 stacked speakers, allowing to combine wider coverage and greater sound power with uncompromising accuracy and clarity.
• immediate automatic detection of the 2-speaker configuration, thanks to the infra-red communication system installed on the handles (EPD technology) and to the fast, customizable, DSP-controlled management. In this configuration the OLED displays orientate automatically. Just operating the control section of one of the two speakers allows to drive the whole system.
• an innovative shape, with the use of 2 woofers and 1 driver, in a cabinet combining ruggedness, sound performances, compactness and easy handling.
• extreme versatility, allowing to quickly and easily save and recall one's settings, protecting them with a settable password.

USER REFERENCES

To get the most from your INGENIA IG2T we recommend that you:

• thoroughly read the quick start user manual you will find in the package and this manual, and keep it throughout the product life.
• register the product on the site http://www.dbtechnologies.com, in the "SUPPORT" section.
• download and install the latest firmware from the Web site http://www.dbtechnologies.com, in the "DOWNLOADS" section (see chapter UPDATING THE FIRMWARE).
• keep the proof of purchase and the WARRANTY (User manual - section 2).

MECHANICAL AND ACOUSTIC CHARACTERISTICS

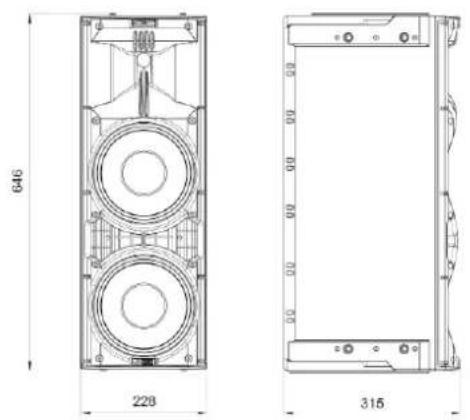

DIMENSIONS

INGENIA IG2T integrates, in a reinforced polypropylene cabinet weighing 10.8 kg (28.22 lbs.), two 8" woofers and a one 1.4" compression driver exit (voice coil: 1") with neodymium magnets featuring exceptional compactness, weight and performances. Internally, a lightweight metal structure improves mechanical rigidity and acoustic behaviour. The dimensions of each individual speaker are: 228 x 646 x 315 mm (8.98 x 25.43 x 12.40 inches). The handles allow to easily transport it; the unit can be displaced by a single person. Different configurations are possible, e.g. mounting on subwoofer, possibility to suspend a single or double speaker.

646 220 315

ACOUSTIC COVERAGE

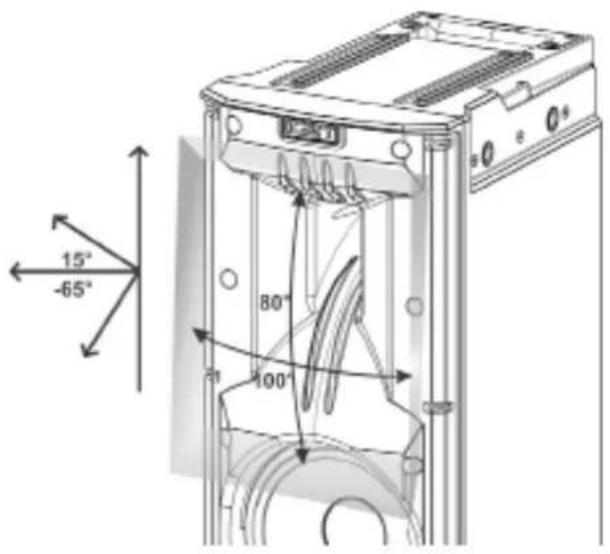

The special opening of the horn, outlined in the figure, ensures a total directivity of 100 × 80^ (+15^/-65^) . This asymmetric vertical directivity ensures excellent sound coverage, in indoor and outdoor contexts. Using 2 stacked IG2Ts, you can also control with the digital steering the full coverage of the speakers. This allows, even installing the IG2Ts vertically, to achieve the effect of a single inclined speaker, with all the ensuing benefits in terms of directivity.

15° -65° 80° 100°

INGENIA IG2T Cod. 420120238 REV. 1.1

ACCESSORIES

The following optional accessories are available for quick installation:

• Fly-bar DRK-IG (and the optional TA-IG) for vertical flown installation.
- LP-IG locking bracket pair allowing to fasten 2 stacked IG2T modules.
- Optional GSA-IG stand for installation on subwoofer (or on the floor).
• Wall bracket WB-IG2 for fixed installation on wall.
- A specially designed bag (TC-IG2T) and a rain cover (RC-M1) are available for speaker transport and protection.

Technical line drawing of a mechanical device with mounting brackets and mounting holes (no text or symbols)

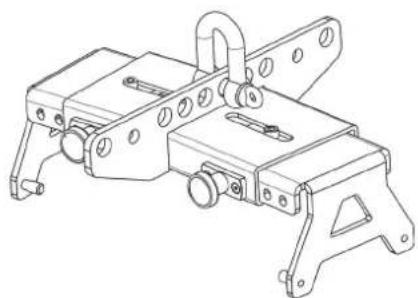

Fly Bar DRK-IG LP-IG Locking Bracket

ncsnv dB3500

Technical line drawing of a mechanical component with mounting brackets and no visible text or symbols

Line drawing of a vertical refrigerator with front panel and side door (no text or symbols)

TA-IG truss adapter

Technical line drawing of a mechanical component with no visible text or symbols

GSA-IG stand

WB-IG2

WARNING!

- Never use the handles to suspend the speaker!

For further information please refer to the relevant manuals.

INGENIA IG2T Cod. 420120238 REV. 1.1

CHARACTERISTICS OF THE AMPLIFICATION AND CONTROL SECTION

The D-class latest generation digital amplifier DIGIPRO G3 is the core of IG2T and can provide a sound power of 400 W RMS. Thanks to a switching power supply section featuring a particularly efficient auto-range function, the system is quiet, as it requires no active cooling system. The system is controlled by a powerful DSP, allowing to define different parameters, as well as to automatically manage the communication between the modules, in case of configuration with 2 stacked speakers. In the latter case, the DSP individually controls the acoustic components, to obtain a configurable directional sound focus (digital steering).

ATTENTION!

• Protect the module from humidity.
• Never try to open the amplifier.
• In case of malfunction, immediately cut off the power supply, by disconnecting the module from the mains, then contact an authorised repairman.

The DIGIPRO G3 panel consists of:

• INPUT AND CONTROL SECTION
• AMPLIFIER
  • POWER SUPPLY SECTION

INGENIA IG2T Cod. 420120238 REV. 1.1

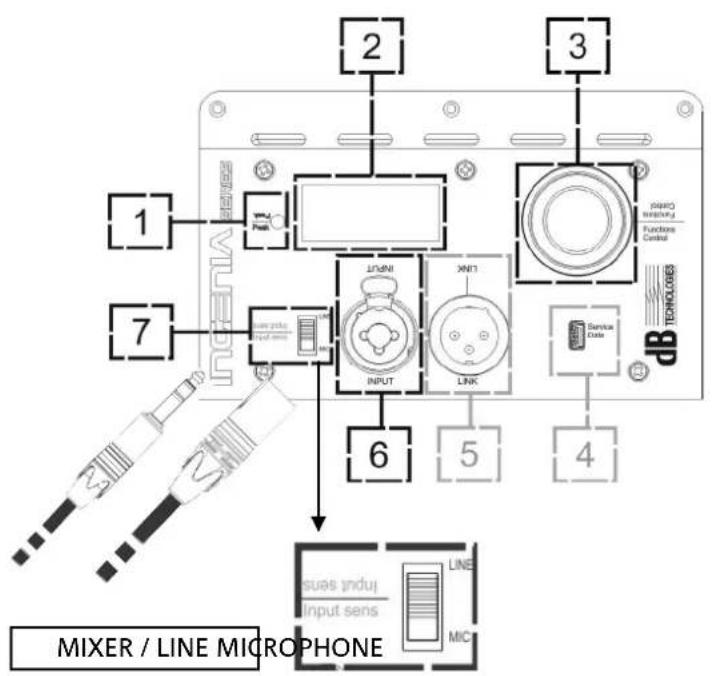

INPUT AND CONTROL SECTION

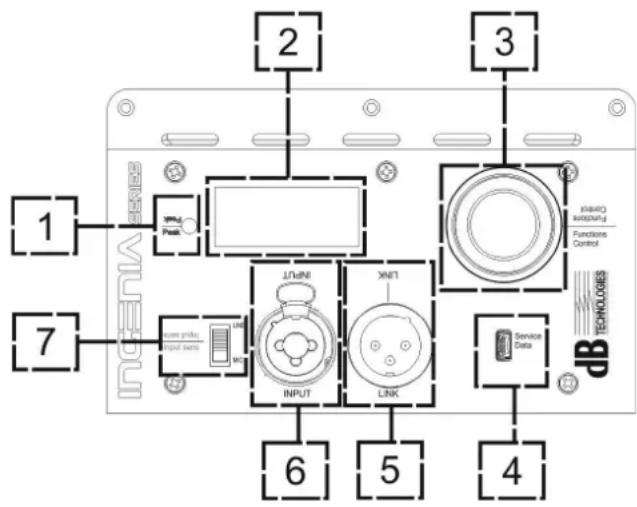

1. "PEAK" LED

Red LED that lights up briefly when connecting power or in case of audio limiter operation

ATTENTION!

Never use the speaker for a prolonged time while the limiter LED is on or blinking, indicating the equipment is running under excessive stress conditions with distorted sound.

1 2 3 7 6 5 4 Service Data INPUT LINK INTI PASIVO Interviziary Functions Control TECHNOLOGIES

2. OLED DISPLAY

The display automatically orientates according to the

accelerometer control, detecting whether the speaker has been installed

straight vertically or flipped. The user can configure a contrast adjustment and automatic power-off function (see chapter CONTROL PANEL AND SETTING MENUS).

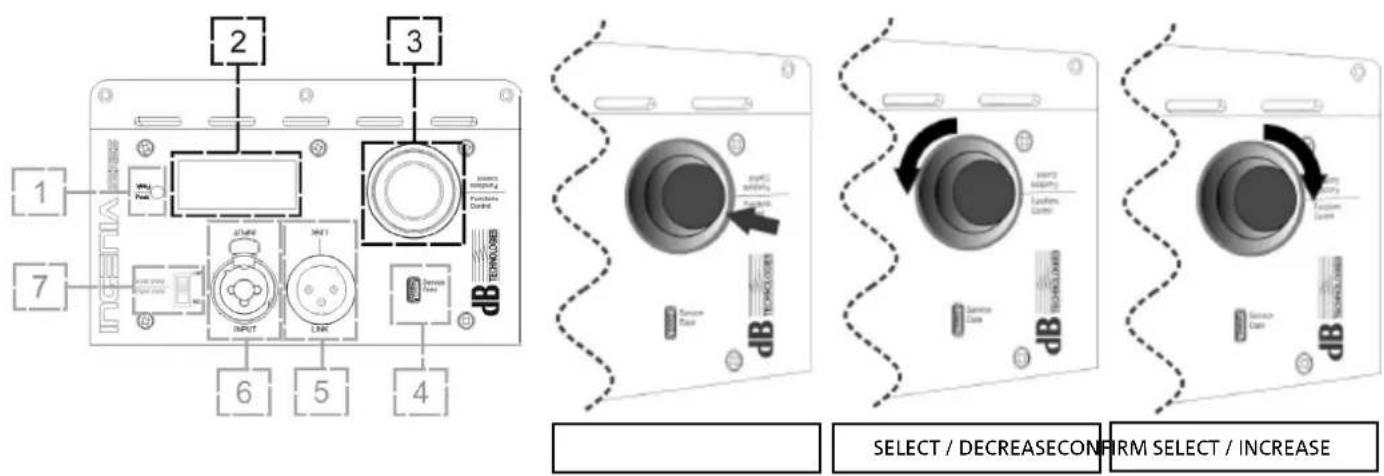

3. PUSH ROTARY ENCODER

The push rotary encoder allows both a rotary selection (selection of menus and values), and a push selection (selection confirmation) to navigate the menus.

4. USB SERVICE DATA

The type B mini-USB B port allows to update the product firmware. For further information, please refer to the Web site http://www.dbtechnologies.com in the "DOWNLOADS" section and to chapter UPDATING THE FIRMWARE)

ATTENTION!

The USB SERVICE DATA connection must only be used to update the product firmware; never connect any USB device to the equipment, to avoid possible damages or malfunctions.

5. "LINK" OUTPUT

Balanced "XLR" output, allowing to send the input audio signal to another amplified speaker.

6. "INPUT" COMBO INPUT

Combined XLR-TR-TRS audio signal input. It allows to use a balanced XLR connector, or a 14 " TS or TRS jack input.

ATTENTION!

Only use cables equipped with high-quality Neutrik ^® original connectors. Using different or poor-quality connectors might affect the speaker operation.

7. "INPUT SENSITIVITY" SELECTOR

A selector allowing to set whether the incoming signal comes from a mixer/a line (“LINE”) or from a microphone (“MIC”).

INGENIA IG2T Cod. 420120238 REV. 1.1

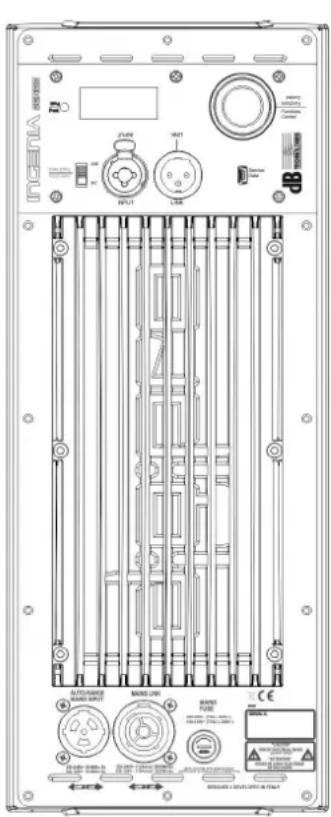

POWER SUPPLY SECTION

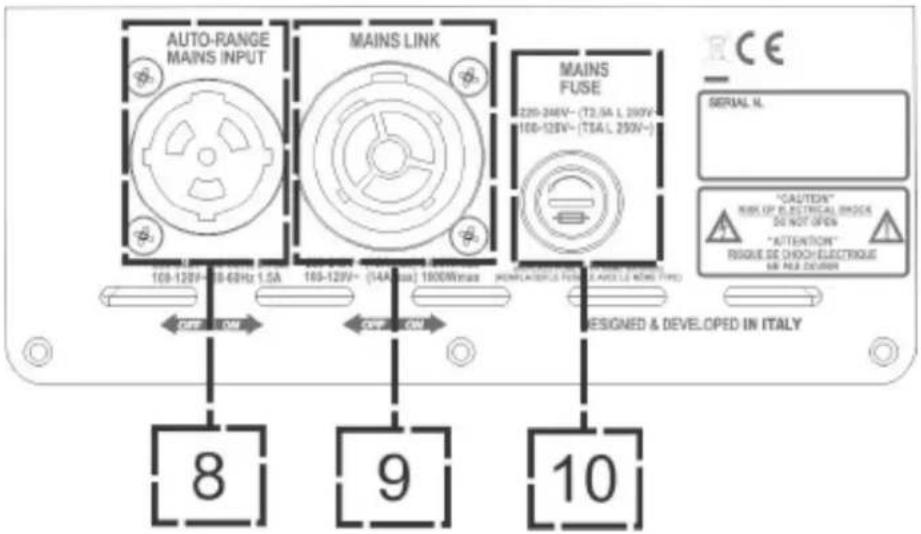

AUTO-RANGE MAINS INPUT MAINS LINK MAINS FUSE 1220-246V~ (72.5A L 250V~ 100-120V~ (73A L 250V~) 109-120V~ 108-60Hz 1.5A 169-120V~ (14A Max) 1800W Max DESIGNED & DEVELOPED IN ITALY 8 9 10 CE SERIAL N. "CAUTEN" WORK OF ELECTRICAL BIOS DO NOT OPEN "ATTENTION" ROSQUE DE CHOIC ELECTRIQUE AIR FLA DESIGN

1. "AUTO-RANGE MAINS INPUT" POWER SUPPLY INPUT Input for Neutrik® powerCON TRUE1® connector.

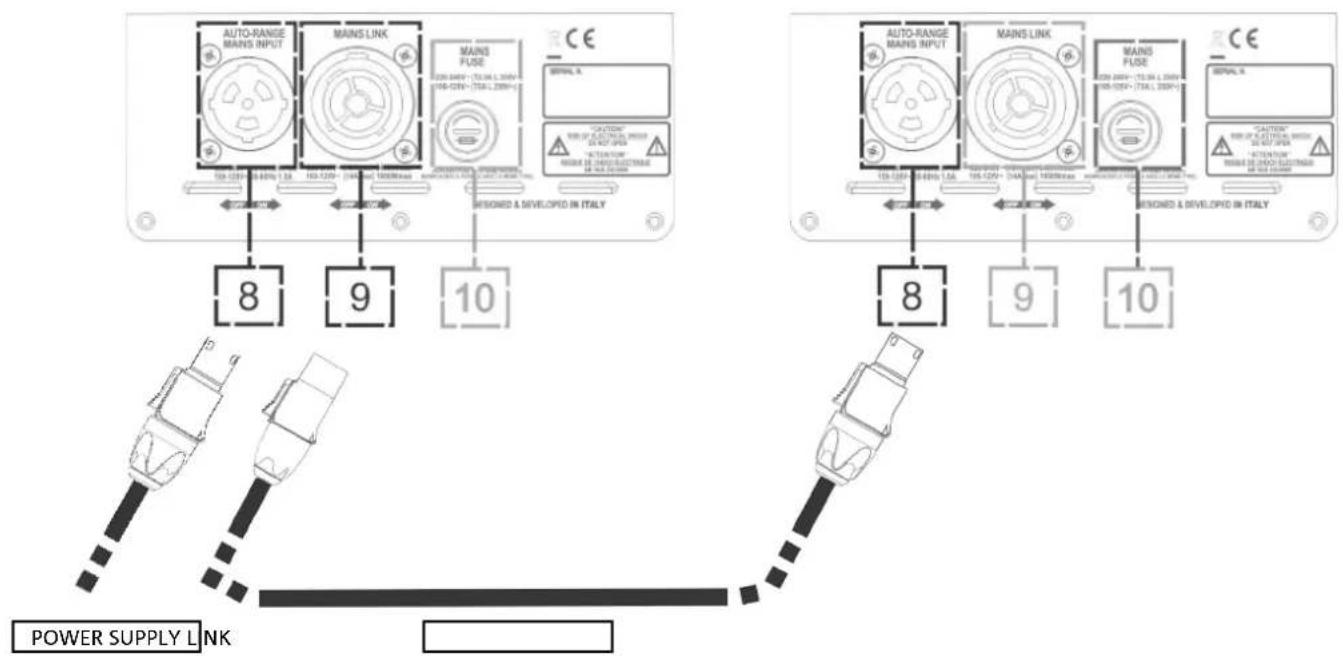

2. "MAINS LINK" POWER SUPPLY LINKING OUTPUT The connection provided by Neutrik® NAC3PX allows to link the power supply to a second module.

3. "MAINS FUSE" PROTECTION FUSE Mains fuse

ATTENTION!

The speaker is supplied equipped with a pre-installed fuse designed to operate within the 220-240 V range. If the system must operate within the 100-120 V range:

1. Disconnect all connections, including the power supply one
2. Wait 5 minutes.
3. Replace the fuse with the one included in the package for the 100-120 V range.
4. Only use the provided power cord.

INGENIA IG2T Cod. 420120238 REV. 1.1

2. FIRST SWITCH-ON

PACKAGE CONTENTS

Open the package and check that the INGENIA IG2T speaker packaging contains all the items included in the supply. The packaging includes:

• power cord with connector Neutrik® TRUE powerCON TRUE1®
• INGENIA IG2T
• quick start and warranty-related documents
• fuse to be installed if the system is to operate within the 100-120V range

ATTENTION!

The speaker is supplied equipped with a pre-installed fuse designed to operate within the 220-240 V range. If the system must operate within the 100-120 V range:

1. Disconnect all connections, including the power supply one
2. Wait 5 minutes.
3. Replace the fuse with the one included in the package for the 100-120 V range.
4. Only use the provided power cord.

INSTALLATION

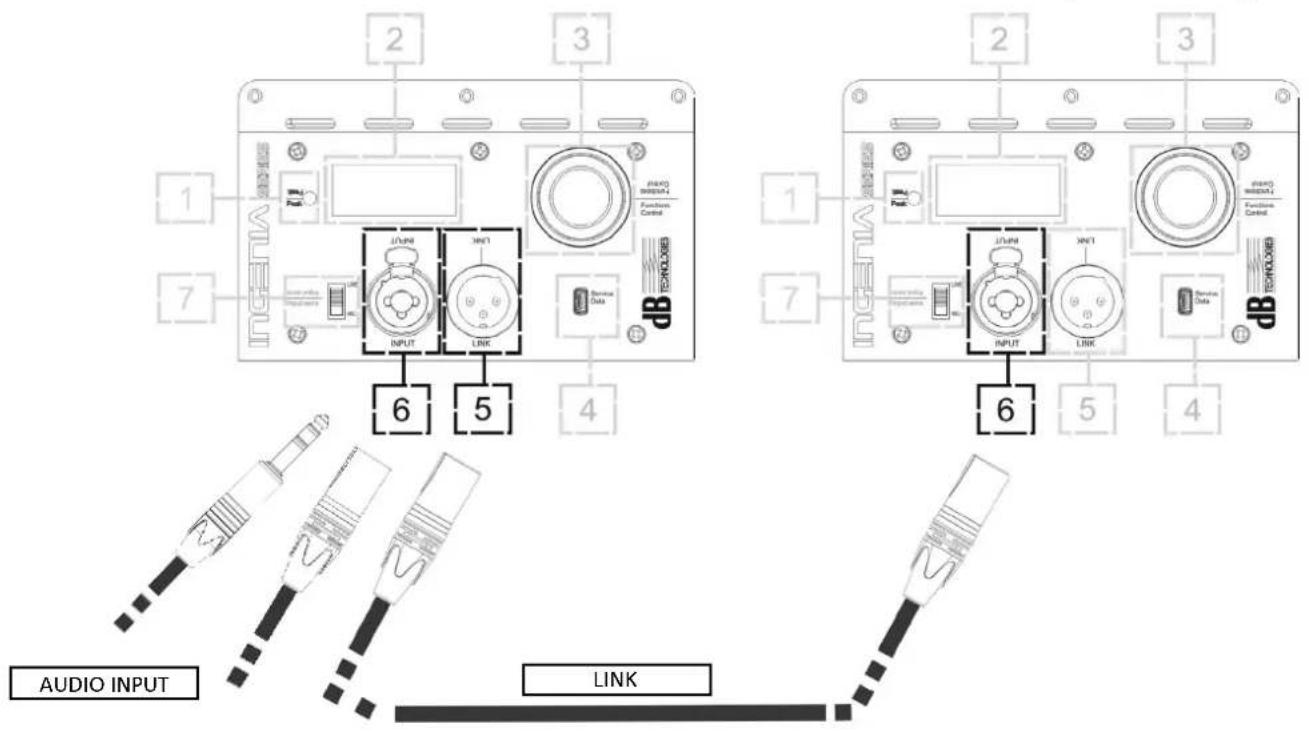

CONNECTING THE INPUTS

MIXER / LINE MICROPHONE 1 2 3 7 6 5 4 LINE MIC LINK INPUT XNT1 PROXO WARNING Functions Control TECHNOLOGS Service Data

1 2 7 6 5 issues induj Input sens LINE MIC

INGENIA IG2T Cod. 420120238 REV. 1.1

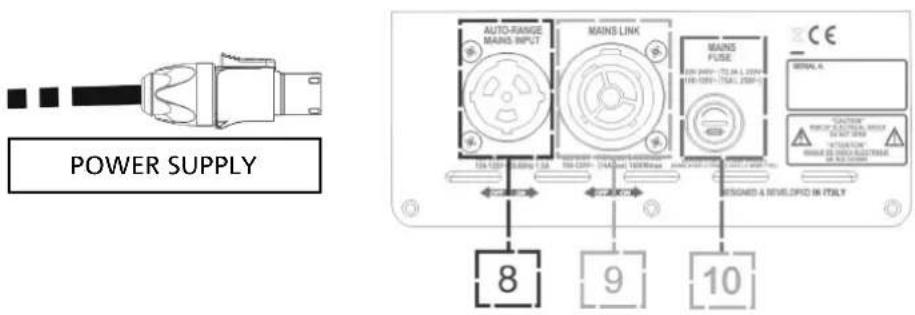

CONNECTING THE POWER SUPPLY

POWER SUPPLY AUTO-RANGE MAINS INPUT MAINS LINK MAINS FUSE 200-2401-72.14.1.200- 2401-2401-72.14.200- DESIGNED A DEVELOPED IN TELLY 8 9 10

ATTENTION!

Only use cables equipped with high-quality Neutrik® original connectors. Replace any damaged cables, to avoid malfunctions and poor sound quality.

To properly install the INGENIA IG2T speaker:

• Properly connect the audio input (6), using the "INPUT SENSITIVITY" (7) selector to set the source. If the input signal comes from a line or from a mixer output set the selector (7) to "LINE"; if the input signal comes from a microphone (use a dynamic microphone), set the selector (7) to "MIC". For a brief overview of audio cables, please refer to the table at page 48.
• Connect the power supply, connecting the cable equipped with Neutrik® powerCON TRUE1® connector to "MAINS INPUT" (8).
• At switch-on the peak LED blinks briefly and the OLED screen (2) activates, displaying the initial level and gain control screen:

Gain Level1 Enter Menu

• Turn the PUSH ROTARY ENCODER (3) to the left or to the right to adjust the system gain to an appropriate level.
• Verify the correct sound emission of IG2T.

INGENIA IG2T Cod. 420120238 REV. 1.1

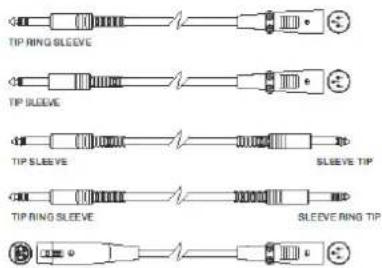

• Balanced

TIP RING SLEEVE SLEEVE RING TIP TIP RING SLEEVE

• Unbalanced


TIP RING SLEEVE TIP SLEEVE TIP SLEEVE SLEEVE TIP TIP RING SLEEVE SLEEVE RING TIP

CONNECTING OUTPUTS BETWEEN MULTIPLE MODULES (power supply linking)

NOTE FOR THE INSTALLER (100-120V). The nameplate data on the speaker panel refer to (and are limited to) the cable provided. If you do not use the supplied cable, the maximum allowed limits of currents (and powers) of LINK are indicated in the following table:

Model Current (100-120 V) Powers (100-120 V)
IG2T (100-120 V) 18 A 1900 W

The cables must be properly sized and design, installation and system testing should be performed exclusively by qualified personnel. A.E.B. Industriale accepts no responsibility in case of use of cables which are unsuitable, non-certified, non-compatible with the correct system sizing and the regulations in force in the country of use.

AUTO-RANGE MAINS INPUT MAINS LINK MAINS FUSE DESIGNED & DEVELOPED IN ITALY 8 9 10 AUTO-RANGE MAINS INPUT MAINS LINK MAINS FUSE DESIGNED & DEVELOPED IN ITALY 8 9 10 POWER SUPPLY LINK

INGENIA IG2T Cod. 420120238 REV. 1.1

The use of Neutrik® PowerCON TRUE1® connectors on IG2T allows to link the power supply of the first speaker with a subsequent one, up to a maximum current of 15 A (3400 W) for the countries where voltage is 220-240Vac, and of 14 A (1600 W), for the countries where voltage is 100-120Vac. To make this type of connection, simply plug the power cord supplied to the MAINS INPUT (8) of the first IG2T and connect the cable LINK powerCON TRUE1® (optional) between the MAIN LINK output (9) and the MAINS INPUT (8) of the next IG2T. It is possible to repeat this type of connection until it is achieved the maximum allowed current as indicated by the MAINS LINK connector (9) of the first speaker.

CAUTION!

The maximum allowed current indicated on the rating plate of IG2T (MAIN LINK) is calculated from the specification of the maximum current of the PowerCON TRUE1® connector; this value is not absolute but depends on the type of cable used for the connection to the power grid of the first IG2T (section and type of plug used) and on the subsequent LINK cables (section and type of cable). Always check during the design and sizing stage of the system and before making any connections in series among the products, the maximum allowable currents (and powers) and the exact sizing of the sections of the cables used.

CONNECTING OUTPUTS BETWEEN MULTIPLE MODULES (audio signal linking)

AUDIO INPUT LINK 6 5 4 3 2 1 7 INPUT LINK PRODUCTS FUNCTION Control INPUT LINK OUTPUT FUNCTION Control OUTPUT LINK OUTPUT LINK OUTPUT LINK OUTPUT LINK OUTPUT LINK OUTPUT LINK OUTPUT LINK OUTPUT LINK

To connect 2 or more speakers to the same audio source, it may be useful, in some installation configurations, to link the signal from the first one to a second one and so on. First of all connect a sound source of any type to the "INPUT" input (6) of the first speaker (for the "LINE" or "MIC" connection, which is different, please refer to section CONNECTING THE INPUTS). Using a balanced XLR cable, then, connect the "LINK" output (5) of the first speaker to the "INPUT" input (6) of the second one. This second operation can then be repeated to connect other speakers, to get the installation layout that is the most appropriate for the context.

INGENIA IG2T Cod. 420120238 REV. 1.1

USE OF A PAIR OF STACKED IG2T SPEAKERS

To properly couple and then use two stacked IG2T speakers, you need a pair of LP-IG connecting brackets. For further details please refer to the instructions of this accessory.

Once the two speakers are properly mounted, the infra-red detection system installed on the handles activates automatically; the user will just have to run the check in the initial configuration menus, that will be discussed in the next chapter.

ATTENTION!

• Only 2 identical speakers can be installed, interconnected and detected through the infra-red ports.
• Never use the handles to suspend the speaker!

BOTTOM TOP TOP BOTTOM

3. CONTROL PANEL AND SETTING MENUS

ACCESSING THE MENUS

The push rotary encoder (3) allows the user both to perform a selection by turning it and to confirm a selection by pressing it. These operations allow to navigate the menus and sub-menus available on the OLED display (2). Inside the menus and sub-menus, turning the encoder to the right or to the left also allows to increase or decrease the selected values.

1 7 2 3 INPUT INPUT1 LINK INTERS Pulsifier Control DB TECHNOLOGY 6 5 4 SELECT / DECREASE CONFIRM SELECT / INCREASE

Push rotary encoder use examples

The initial screen at switch-off displays the IG2T level and gain. All settings can be protected by a password.

• Once manually performed, the settings remain stored even after the speaker has been switched off.
• After approximately one minute has elapsed since the last selection or confirmation, the system returns to the initial screen (IG2T level/gain). The user can also return to the initial screen from any point, in 2 ways:

a. by selecting and confirming, when existing in a sub-menu, the symbol b. by holding the push rotary encoder pressed for a few seconds

- If the speakers are 2, correctly stacked, the system recognizes them, and you can control both of them using the rotary of one of them (mirroring OLED).

At switch-on, the IG2T display shows the initial screen, indicating the GAIN and the signal level, simulating a VU METER.

INGENIA IG2T Cod. 420120238 REV. 1.1

Gain Level1 Enter Menú

From this screen, pressing the rotary push encoder allows to access the different menus, whose general structure is shown in the figure.

The Structure of Menus

ATTENTION!

• The "SYSTEM COVERAGE" menu is only displayed when the system has automatically detected, through the infra-red ports installed on the handles, that there are 2 stacked speakers.
• The "SUBWOOFER MATCHING" menu is only displayed when the presence of a subwoofer has been selected in the settings.

INGENIA IG2T Cod. 420120238 REV. 1.1

The main menu structure can be represented in a circular form, as the push rotary encoder allows to browse the menus by rotating it both to the left and to the right.

Circular form representation

INGENIA IG2T Cod. 420120238 REV. 1.1

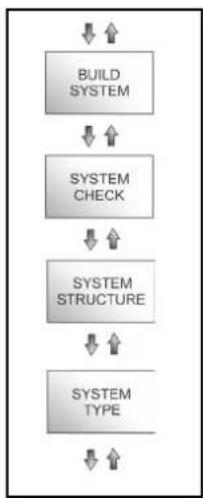

BUILD SYSTEM MENU

This menu automatically configures the system according to the number of speakers, to the presence or absence of a subwoofer, as well as to the location and inclination of the speakers. It consists of 3 sub-menus:

• SYSTEM CHECK
• SYSTEM STRUCTURE
• SYSTEM TYPE

Build System Menu

Sub-menus

SYSTEM CHECK

The system can detect, through infra-red communication (the communication ports are installed on the speaker handles and detection is automatic) whether the user is using one or two IG2T speakers. After accessing this screen:

Back IR Se1fcheck System NEXT

1. Turn the rotary encoder selecting → Selfcheck System, then confirm the choice by pressing the push rotary encoder.
2. After a short animation, the system automatically switches to the next menu (SYSTEM STRUCTURE).
3. If this operation doesn't need to be performed, select and confirm → NEXT; if you need to return to the main screen, select and confirm → BACK

SYSTEM STRUCTURE

The menu allows to manually update the configuration of the system in use, adding or removing one or more subwoofers. If you need to update the number of connected subwoofers:

BACK Speakers 1 Subwoofers 0 NEXT

1. turn the rotary encoder, select the "subwoofer" item and confirm it

2. select and confirm the number of subwoofers you want to use

3. select and confirm → NEXT to switch to the next menu; select and confirm → BACK to return to the SYSTEM CHECK sub-menu

INGENIA IG2T Cod. 420120238 REV. 1.1

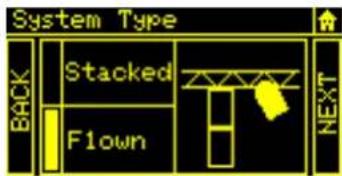

SYSTEM TYPE

The system types available when using the IG2T are 2:

• Stacked
• Flown

System Type BACK Stacked T Flown NEXT

In the “Stacked” configuration an IG2T speaker rests on a stand, or one or 2 speakers rest on a subwoofer (see chapter INSTALLATION EXAMPLES); in the “Flown” configuration, instead, one or two IG2T speakers are hanging. After accessing the SYSTEM TYPE menu, then:

- Select and confirm the desired mode, choosing between “Stacked” and “Flown”; select and confirm → NEXT to access the next screen (select and confirm → BACK to return to the previous one). Now, if the system has previously detected the presence of 2 speakers, it will switch to the SYSTEM COVERAGE menu, and if the presence of a woofer has been selected in the previous SYSTEM STRUCTURE sub-menu, it will then switch to the SUBWOOFER MATCHING menu; should that not be the case (Speakers 1, Subwoofer 0) the next screen will be the initial one, and the procedure will end.

ATTENTION!

• Never install the speaker directly resting on the ground, but always use an optional stand (not included in the supply) with a standard pole having a diameter of 35 mm and a tripod with the central foot forward. Always check that the installation is actually stable.
• When "Stacked" on a stand, the INGENIA IG2T cannot be mounted in the configuration with 2 speakers stacked, but only in a single speaker configuration, for safety reasons.

SAVE/LOAD SYSTEM MENU

This menu allows to save and then recall the system usage configurations. Even though at switch-off the IG2T retains all the information about the latest settings, it may be useful to have at one's disposal, for different contexts, a previously saved batch of appropriate settings, and to be able to quickly reload them. To this purpose, IG2T allows to save and rename 5 batches of settings, using the "SAVE" function, and to recall them using the "RECALL" function. Should you later have to edit the settings stored in one of the memory slots, you can later overwrite the previously saved slots.

Save/Load System Menu

INGENIA IG2T Cod. 420120238 REV. 1.1

To save a batch of settings, after setting the different parameters in the other menus, access the SAVE/LOAD SYSTEM menu and:

1. Select and confirm the number of one of the memory slots, from 1 to 5,
2. Select and confirm "SAVE".
3. Assign a title to the slot. You can only use an alphanumeric title consisting of up to 14 letters/digits. Select and confirm one letter at a time next to the slot number. To end the title just confirm (without selecting) the blank space character ().
4. Press "OK" at the next screen
5. The system then saves the settings in the slot number with the chosen title

To recall a batch of settings, loading it into the system:

1. Select and confirm the desired memory slot
2. Select and confirm "RECALL".
3. Press "OK" at the next screen
4. The system has loaded the settings associated with the desired memory slot and has returned to the main screen

To overwrite a previous batch of settings with a new one just select a pre-existing slot, then select and confirm "OK" in the overwrite confirmation screen.

ACOUSTIC CORRECTION MENU

In various cases it may be useful to perform a differentiated equalisation of the speaker output signal. The DSP installed in the IG2T also manages this option.

To this purpose access the ACOUSTIC CORRECTION menu and:

1. Select and confirm the frequency band to which the correction must be applied. You can operate on 3 bands:

A. LF - Low Frequency, with +3dB - 6 dB correction and 0.5 dB resolution
B. MF - Medium Frequency, with +0 dB - 6 dB correction and 0.5 dB resolution
C. HF - High Frequency, with +3 dB - 6dB and 0.5 dB resolution

1. Select and confirm the desired correction level
2. If the operation needs to be repeated for other bands return to point 1., otherwise select the home symbol and return to the main menu selection

- The acoustic correction can be used to improve intelligibility or attenuate frequencies which are predominant. It does not replace a proper speaker arrangement, which must be assessed taking into account the acoustic characteristics of the room or of the outdoor environment.

INGENIA IG2T Cod. 420120238 REV. 1.1

Acoustic Correction Menu

LF+3 MF+0 HF-6

STAGE ALIGNMENT MENU

In a live scenario with different sources of amplification, like guitar amplifiers on the stage, or natural sound sources like a battery, you can virtually “align” the IG2T speakers, specifying the distance of the sources in question, in metres or feet. This will allow to obtain a single acoustic wavefront without any delays, in all the live scenarios where this is required. The DSP will automatically delay the IG2T signal output, increasing the performance effectiveness. To this purpose, after accessing the STAGE ALIGNMENT menu:

1. Select and confirm the "DISTANCE" field
2. Select and confirm the desired distance value, with a range of 0-15 m and a resolution of 20 cm.
3. Return to the initial screen by selecting the "HOME" symbol

Stage Alignment Menu

SYSTEM DELAY MENU

If the IG2T speakers are used in environments requiring multiple amplification stages replicated at different distances - for example when they need to cover a particularly wide and long indoor environment, with various sound obstacles, the signal output by the speaker can be appropriately delayed, to ensure that the listener only perceives a single apparent wavefront, at any point in the room.

To this purpose, after accessing the SYSTEM DELAY menu:

1. Select and confirm the "DELAY" field
2. Select and confirm the desired delay value, with a range of 0-126 ms in terms of time or of 0-43.7 m / 0-143.4 ft (feet) in terms of distance
3. Return to the initial screen by selecting the "HOME" symbol

System Delay Menu

BACK Delay 126_5ms 43_7m 143_4f.t

INGENIA IG2T Cod. 420120238 REV. 1.1

Diagram of a street scene with silhouetted figures and a light beam projecting onto a building facade (no text or symbols)

Wide indoor environment setting

MICROPHONE SETTING MENU

The IG2T allows the input of a microphone with XLR connector. When using this source, it may be useful to apply a filtering to the signal to cut any unwanted frequencies (by a high-pass filter with adjustable cut frequency). Or it may be necessary to intervene (by a notch or band-stop filter with selectable band centre) to prevent any feedback (or Larsen effect). To perform one of these settings, or both of them, after accessing the MICROPHONE SETTING menu:

1. Select and confirm HP filter (high-pass filter)
2. Select and confirm the value of the high-pass filter cut frequency, with a range of 50 Hz – 200 Hz and a resolution of 10 Hz (select the "None" value if you wish to disable the filter)
3. Select and confirm "Antifeedback" (anti-feedback or anti-Larsen effect filter)
4. Select and confirm the value of the band centre frequency, with a range of 260 Hz – 15000 Hz and a resolution of 10 Hz (select the "None" value if you wish to disable the filter)
5. Return to the initial screen by selecting the "HOME" symbol

Microphone Setting Menu

HP Filter 342Hz Antifefeedback 342Hz

SYSTEM COVERAGE MENU

For information about the functions contained in this menu, only displayed if during SYSTEM CHECK the system has automatically detected 2 speakers, also refer to paragraph "DIGITAL STEERING" in the "INSTALLATION EXAMPLES" section. This menu allows to change the emitted wave beam and the relevant acoustic coverage, once the DSP has recognized the installation of 2 IG2T speakers:

- UP 10^ for an installation requiring an acoustic coverage from the bottom up, with mounting on stand or subwoofer and with as much inclination as possible.

- UP →+5° to orientate the wavefront with a medium upward inclination, with mounting on stand or subwoofer

- UP →2.5° to get an acoustic coverage with a slight upward inclination.

- FAR 0^ when you want a coverage getting as far as possible, when speakers are installed in front of the auditorium, at the height of the audience.

- DOWN 2.5^ to be used to orientate the acoustic coverage slightly downward (for example with the public not very far from the speakers and flown installation).

- DOWN 5^ for a directivity with a medium downward inclination (for example with public close to the speakers and flown installation).

- DOWN 10^ to incline the acoustic coverage as downward as possible (public very close to the speakers and flown installation).

System Coverage Menu

FAR 0° BACK

INGENIA IG2T Cod. 420120238 REV. 1.1

SUBWOOFER MATCHING MENU

This menu is only displayed if the presence of at least one subwoofer has previously been selected, in the BUILD SYSTEM→SYSTEM STRUCTURE sub-menu. In addition, in this case, this menu is accessed automatically after the “SYSTEM TYPE” settings have been performed, to complete the general system settings. First of all, the menu allows to identify the subwoofer in use, then to decide whether to use its crossover frequency or to set a frequency depending on the model (maximum range 70-120 Hz with a resolution of 5 Hz). This choice depends on the type of subwoofer-speaker connection, as shown in the figure below. The menu also suggests the delay to be set in the subwoofer. To select crossover frequency, after entering the SUBWOOFER MATCHING menu:

Subwoofer Matching Menu

1. Select and confirm the type of associated subwoofer in the system
2. Select and confirm HpFilter, then select and confirm the desired crossover frequency
3. According to the system settings, verify the delay value recommended for the subwoofer in the SubDelay field
4. Select "BACK" or "HOME" to respectively return to the menu selection or to the main screen

SUB15H HPFilter SubXover SubDelay 12ms

If necessary, you can directly set a value of HpFilter on IG2T, without using the crossover of a subwoofer. If instead you use the latter:

a) in the case of DIRECT CONNECTION, check the subwoofer crossover frequency, and replicate it on IG2T by setting its value in the HpFilter field.
b) In case of connection XOVER FROM THE SUBWOOFER, set "SubXover" in the field HpFilter of IG2T.

INGENIA IG2T Cod. 420120238 REV. 1.1

OPTIONS MENU

PASSWORD (ON/OFF and code selection)

1. →ON/OFF (select and confirm whether you wish to enable/disable the password-protection of settings).
2. →PASSWORD (by selecting and confirming this item you can specify an alphanumeric password, consisting of up to 6 digits/characters).

SUPERUSER PASSWORD

If you forget the password, use the code: Q2R5D9 to unlock the system.

Options Menu

CONTRAST

1. Select and confirm to adjust the OLED display contrast, with an increase in brightness ranging between 0 and 100% and a resolution of 5%.

STAND-BY (Enabling/disabling of automatic power-off and choice of the time period)

1. ON/OFF (select and confirm whether you wish to enable/disable the timed stand-by of the control panel).
2. →PASSWORD (by selecting and confirming this item you can specify a time period after which the control panels switches to stand-by mode, ranging between 0':10'' - 10':00 and with a resolution of 10'').

RESTORE

1. Select and confirm to restore the factory settings.

INFO

1. Select and confirm to display the information about the latest firmware version loaded into the system.

EXIT

1. Select and confirm to exit the OPTIONS menu.

INGENIA IG2T Cod. 420120238 REV. 1.1

EXIT MENU

When selected and confirmed, this menu allows to return to the initial screen of IG2T.

Exit Menu

4. INSTALLATION EXAMPLES

• To use 2 stacked speakers, you need the optional LP-IG accessory. For further information, please refer to the instructions of this accessory.
• Always check that the handles, allowing the infra-red communication, are not obstructed; never cover them and remove any dust or dirt deposits.
• No installation other than that shown here is allowed.

INSTALLATION ON STAND

1 INGENIA IG2T can be installed on an optional standard tripod stand, with a pole having a diameter of 35 mm. The maximum permissible height between the base of the speaker and the floor is 150 cm.

ATTENTION!

• Use an appropriately sized stand with the central foot forward to ensure proper stability.
• When "Stacked" on a stand, the INGENIA IG2T cannot be mounted in the configuration with 2 speakers stacked, but only in a single speaker configuration, for safety reasons.

INSTALLATION ON SUBWOOFER

Using the GSA-IG accessory during the installation, you can use the speakers (1 o 2) mounted on subwoofer. This allows to get an extremely compact system, with great output power over the whole range of sound frequencies, installed on the ground. Additional mechanical fixing, or fixing with straps, is required to properly secure the installation. Once the installation is completed, follow the subwoofer configuration instructions in the SUBWOOFER MATCHING section.

INSTALLATION ON SUBWOOFER WITH POLE

It is possible to use a single speaker mounted on 35 mm diameter pole. Additional mechanical fixing, or fixing with straps, is required to properly secure the installation. The maximum permissible height between the base of the speaker and the floor is 150 cm. Once the installation is completed, follow the subwoofer configuration instructions in the SUBWOOFER MATCHING section.

Two simple line drawings of a stand-mounted device with three legs, no text or symbols present.

Technical line drawing of two identical mechanical components with vertical posts and mounting holes (no text or symbols)

Two identical mechanical components with vertical supports and mounting holes, shown from different angles (no text or symbols)

INGENIA IG2T Cod. 420120238 REV. 1.1

FLOOR INSTALLATION

It is possible a floor installation of 1 or 2 INGENIA IG2T using the accessory GSA-IG. A mechanical fixing with screws or screw anchors suited to the type of flooring is required.

FLOWN INSTALLATION

Flown configuration provides for the hanging of 1 or 2 IG2T speakers, where the optional accessory DRK-IG allows the use of a shackle, and the combination of DRK-IG with the optional truss adapter TA-IG allows fixing on a specific device, such as a rig. When the speakers are in a flown configuration, it is very advisable to use both power supply and signal linking, to reduce the complexity of connections, as shown in the "FIRST SWITCH-ON" section.

ATTENTION!

• When used outdoors, anchor the speaker to prevent any oscillations due to atmospheric agents and wind.
• Never use the handles to suspend the speaker!

Two identical vertical structural supports with mounting brackets and side connectors (no text or symbols)

Two identical cylindrical mechanical components with mounting flanges, shown from top and side views (no text or symbols)

INSTALLATION WITH WALL BRACKETS

INGENIA IG2T can be installed on a wall using the optional brackets WB-IG2. Select the position so as to obtain optimal coverage. In the case of properly installed dual vertical speaker (it is mandatory in this case to use LP-IG), consider the possibility of using digital steering technology (see paragraph). For details, refer to the instructions of WB-2

Two identical mechanical components with mounting holes and internal fasteners, shown side by side (no text or symbols)

DIGITAL STEERING

Digital steering is a technology that can be suitably adopted to orientate the acoustic coverage of two stacked speakers, modifying it according to the usage context and installation. The DSP of INGENIA IG2T may operate on each individual transducer (whether compression driver or woofer), with differentiated signal output delays. This way the acoustic wavefront of 2 stacked speakers can be regarded as equivalent to that of a single angled speaker, as shown in the figure. In the setup stage, when it automatically detects the presence of 2 speakers through the infra-red ports installed on the handles, IG2T allows to modify the acoustic coverage through a specific menu, SYSTEM COVERAGE (not displayed if the speaker is in a single configuration):

FAR 0° BACK

For any further information please refer to the section SYSTEM COVERAGE MENU.

Diagram showing a person lighting a fire truck at an angle, with silhouettes of other people observing (no text or symbols)

Hall

Inclination

INGENIA IG2T Cod. 420120238 REV. 1.1

5. UPDATING THE FIRMWARE

It is very important that you keep the product firmware always up-to-date, to ensure its full functionality. Periodically check the Web site http://www.dbtechnologies.com, in the “DOWNLOADS” section. Once you verify that a new firmware version is available:

1. Download the USB BURNER MANAGER in the "SOFTWARE & CONTROLLER" section, then install it following the relevant instructions
2. Download the .zip file of the latest firmware in the "DOWNLOADS" section for INGENIA IG2T
3. In the top right section of the USB BURNER MANAGER screen, select "File Opening"
4. Select the previously downloaded firmware file (verifying that it is appropriate for your operating system)
5. Click UPDATE

ATTENTION!

When the firmware is updated the presence of the old saved settings at the next switch-on is not guaranteed.

6. TROUBLESHOOTING

The speaker doesn't turn on:

1. Check that the power supply upstream of the system is working properly.
2. Verify that the power cord equipped with Neutrik® powerCON TRUE1® connector is properly plugged.

The speaker turns on but it doesn't output any sound:

1. Verify that the audio signal input connections have been performed properly, using cables equipped with Neutrik® connectors.
2. Check that the cables in use are not damaged.
3. Check that the mixer or the audio source are on and that they clearly indicate the presence of an output signal.
4. Verify that the gain level in the initial screen is set to an appropriate value.

The speaker is connected, but the control panel is off, including the OLED screen:

1. Turn the push rotary encoder to exit any previously activated display standby.
2. Verify that the power cord equipped with Neutrik® powerCON TRUE1® connectors is properly plugged.
3. Check that the power supply upstream of the system is not cut off.

The speaker outputs a distorted sound:

1. Adjust the source volume first, then set the IG2T input gain to an appropriate value.
2. Check that the cables in use are not damaged; should that be the case, replace them (a damaged cable may result in a signal loss or alteration).
3. Verify the menu settings affecting the frequency content of the output signal and in particular:

a) ACOUSTIC CORRECTION
b) MICROPHONE SETTING if a microphone is connected to the input

The system doesn't detect 2 stacked speakers, and only 1 speaker is displayed in the SYSTEM STRUCTURE screen:

1. Verify that you properly mounted the 2 speakers, stacked, with the upper one flipped, and that you used and properly fastened the LP-IG connecting brackets as described in the instructions of this accessory.
2. Verify that the upper and lower handles of the speakers, containing the infra-red communication ports, are not covered in any way.
3. Repeat the "Selfcheck System" procedure in SYSTEM CHECK, as described in the relevant paragraph.

The settings of the different menus in the control panel cannot be modified, though the speaker is clearly on:

1. Verify if any lock password has previously been set.
2. Verify that the push rotary encoder operates properly when rotated and pressed.

INGENIA IG2T Cod. 420120238 REV. 1.1

There is a delay in the sound output of the speaker, with respect to that of the source:

1. Verify the menu settings affecting the delay of the audio signal and in particular:

The display doesn't clearly show the menu settings:

1. Access the menu allowing to adjust the display brightness, OPTIONS → CONTRAST (see the relevant information in the OPTIONS MENU paragraph).

7. TECHNICAL SPECIFICATIONS

GENERAL

Type:

Vertical 2-way speaker

ACOUSTIC DATA

Frequency Response [-10dB]:	59 - 20.000 Hz
Frequency Response [-6dB]:	63 - 19200 Hz
Max SPL:	128 dB
HF compression driver (exit):	1”
HF Voice Coil:	1.4” (Titanium)
HF Type:	Neodymium compression driver
Directivity:	Vertical asymmetric
Crossover Frequency:	1900 Hz
Coverage (HxV):	100° x 80° (+15°/-65°)
LF:	2 x 8”
LF Voice coil:	2”
LF Type:	Neodymium

AMPLIFIER

Type:	Digipro® G3
Amplification class:	D class

INGENIA IG2T Cod. 420120238 REV. 1.1

RMS amplification power:	400 W
Peak power:	800 W
Interface:	Push rotary encoder + OLED display
Automatic rotation display:	Yes
Position detection:	EPD
Mirroring control (for 2 speakers with IR control):	Yes
Inrush current: 18,64 A

PROCESSOR

Internal controller:	DSP 56 bit
A/D D/A Converter:	24 bit/48 kHz
Settings:	Factory settings and customisable settings that can be saved and recalled
Limiter:	Peak, RMS, Thermal

INPUTS

Inputs:	1x Combo (XLR/Jack) balanced/unbalanced
Outputs:	1x XLR link OUT
USB:	Mini US, B type

DIMENSIONS

Material:	Reinforced PP Polypropylene Painted steel / CNC machining
Grid:	Yes
Ready for fly-bar:

INGENIA IG2T Cod. 420120238 REV. 1.1

Handles:	1 upper / 1 lower with IR interface
Installation on pole:	Yes, 36 mm
Width:	228 mm (8.98 in)
Height:	646 mm (25.43 in)
Depth:	315 mm (12.40 in)
Weight:	12.8 kg (28.22 lbs)

INGENIA IG2T Cod. 420120238 REV. 1.1

Features, specification and appearance of products are subject to change without notice. dBTechologies reserves the right to make changes or improvements in design or manufacturing without assuming any obligation to change or improve products previously manufactured.

AEB

A.E.B. Industriale Srl

Via Brodolini, 8

MENÜ SUBWOOFER MATCHING 96

MENÜ OPTIONS....97

PASSWORD 97

CONTRAST....97

STAND-BY 97

RESTORE 97

INFO 97

EXIT....97

MENÜ EXIT....98

INGENIA IG2T Cod. 420120238 REV. 1.1

INHALTSVERZEICHNIS

INSTALLATION AUF STATIV....99

INSTALLATION AUF SUBWOOFER....99

INSTALLATION AUF SUBWOOFER MIT STÄNDER....99

BODENINSTALLATION ....100

HÄNGE- INSTALLATION ....100

WANDINSTALLATION MIT BÜGELN....100

DIGITAL STEERING....101

5. AKTUALISIERUNG DER FIRMWARE....102

6. TROUBLESHOOTING....103

Technical drawing of a rectangular frame with mounting holes and side brackets, labeled '315' at bottom (no text or symbols within the diagram itself)

AKUSTISCHES BESCHALLUNGSFELD

Technical line drawing of two mechanical components with mounting holes and mounting brackets (no text or symbols)

Fly Bar DRK-IG LP-IG

Incenix dB SCH025

incsnx dB X B20000

Line drawing of a tall rectangular cabinet or refrigerator with front panels and side panels (no text or symbols)

TA-IG truss adapter

Technical line drawing of a mechanical assembly with cylindrical components and mounting brackets (no text or symbols)

Ständer GSA-IG

WB-IG2

ACHTUNG!

AUTO-RANGE MAINS INPUT MAINS LINK MAINS FUSE 8 9 10 SANDARD A DEVELOPED IN ITALY

ACHTUNG!

Stage Alignment Menü

Diagram of a street scene with silhouetted figures and a light beam projecting onto a building facade (no text or symbols)

großen Innenraum

MENÜ MICROPHONE SETTING

System Coverage Menü

FAR 0° BACK

MENÜ SUBWOOFER MATCHING

Two identical stand-mounted devices with tripod legs, no text or symbols visible

INSTALLATION AUF SUBWOOFER

Two identical mechanical or electrical components with vertical posts and mounting holes, shown from different angles (no text or symbols visible)

INSTALLATION AUF SUBWOOFER MIT STÄNDER

Two identical mechanical devices with vertical supports and mounting holes, shown from different angles (no text or symbols)

INGENIA IG2T Cod. 420120238 REV. 1.1

BODENINSTALLATION

Two identical vertical structural columns with mounting feet, no text or symbols visible

Two identical 3D schematic diagrams of cylindrical mechanical components with mounting flanges (no text or symbols)

Two identical cylindrical electronic components with mounting holes and internal circuitry (no text or symbols)

INGENIA IG2T Cod. 420120238 REV. 1.1

DIGITAL STEERING

Illustration of a fire safety scene with silhouettes of people and a fire extinguisher emitting a beam (no text or symbols)

Halle

Pure mechanical diagram showing a vertical structure with arrows indicating direction, no text or symbols present.

Neigung

5. AKTUALISIERUNG DER FIRMWARE

LE MENU SUBWOOFER MATCHING ....131

LE MENU OPTIONS....132

PASSWORD 132

CONTRAST....132

STAND-BY 132

RESTORE 132

INFO 132

EXIT....132

LE MENU EXIT....133

RÉSUMÉ

4. EXEMPLES D'INSTALLATION....134

INSTALLATION SUR STATIF 134

INSTALLATION SUR CAISSON DE GRAVES....134

INSTALLATION SUR CAISSON DE GRAVES AVEC POTENCE ....134

INSTALLATION AU SOL....135

INSTALLATION EN SUSPENSION....135

INSTALLATION SUR PAROI AVEC ÉTRIERS ......135

LE DIGITAL STEERING ....136

5. MISE À JOUR DU FIRMWARE ....137

6. DÉPANNAGE ....138

7. SPÉCIFICATIONS TECHNIQUES ....140

GÉNÉRAL 140

DONNÉES ACOUSTIQUES 140

AMPLIFICATEUR 140

PROCESSEUR 141

ENTRÉES 141

DIMENSIONS....141

INGENIA IG2T Cod. 420120238 REV. 1.1

1. INFORMATIONS GÉNÉRALES

BIENVENUE!

Technical line drawing of a rectangular frame with mounting holes and dimension label (315), no readable text or symbols present.

COUVERTURE ACOUSTIQUE

Technical line drawing of two mechanical components with mounting holes and mounting brackets (no text or symbols)

Fly Bar DRK-IG LP-IG

Technical line drawing of a mechanical component with no visible text or symbols

ncsn4 dB DCR-002

→

Line drawing of a tall refrigerator with front panel and side door (no text or symbols)

TA-IG truss adapter

Technical line drawing of a mechanical component with no visible text or symbols

Stand GSA-IG

WB-IG2

ATTENTION!

ALIMENTATION AUTO-RANGE MAINS INPUT MAINS LINK MAINS FLUSE MAIN: 200V (200V - 72.1A, 1.20V) MAIN: 200V (200V - 72.1A, 1.20V) MAIN: 200V (200V - 72.1A, 1.20V) MAIN: 200V (200V - 72.1A, 1.20V) MAIN: 200V (200V - 72.1E, 1.20V) MAIN: 200V (200V - 72.1E, 1.20V) MAIN: 200V (200V - 72.1E, 1.20V) MAIN: 200V (200V - 72.1E, 1.20V) MAIN: 200V (201E, 1.20E, 1.50E) MAIN: 200V (201E, 1.20E, 1.50E) MAIN: 200V (201E, 1.20E, 1.50E) MAIN: 200V (201E, 1.20E, 1.50E) MAIN: 200V (201E, 1.2E, 1.5E) MAIN: 200V (201E, 1.2E, 1.5E) MAIN: 200V (201E, 1.2E, 1.5E) MAIN: 200V (201E, 1.2E, 1.5E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.9E) MAIN: 200V (201E, 1.2E, 1.9E) MAIN: 200V (201E, 1.2E, 1.9E) MAIN: 200V (201E, 1.2E, 1.9E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.6E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.2E, 1.8E) MAIN: 200V (201E, 1.4E, 3M) MAIN: 200V (201E, 1.4E, 3M) MAIN: 200V (201E, 1.4E, 3M) MAIN: 200V (201E, 1.4E, 3M) MAIN: 200V (201E, 1.4E, 3M) MAIN: 200G MAIN: 2 MAIN: 8 MAIN: 9 MAIN: 10 RESIGNED A DEVELOPED IN ITALY

ATTENTION!
INGENIA IG2T Cod. 420120238 REV. 1.1

Line drawing of a vertical rectangular device with internal components and mounting holes (no text or symbols)

PARTIE INFÉRIEURE

PARTIE SUPÉRIEUR

PARTIE SUPÉRIEUR

PARTIE INFÉRIEURE

3. PANNEAU DE COMMANDE ET MENUS DE CONFIGURATION

ACCÈS AUX MENUS

System Type BACK Stacked T Flown NEXT

Stage Alignment Menu

Diagram of a street scene with silhouetted figures and a light beam projecting onto a building facade (no text or symbols)

Grande Salle Setting

LE MENU MICROPHONE SETTING

Microphone Setting Menu

HP Filter 342Hz Antifefeedback 342Hz

LE MENU SYSTEM COVERAGE

LE MENU SUBWOOFER MATCHING

Two simple line drawings of a stand-mounted device with three legs and a central base (no text or symbols)

INSTALLATION SUR CAISSON DE GRAVES

Two identical mechanical or electrical components with vertical posts and mounting holes, shown from different angles (no text or symbols visible)

INSTALLATION SUR CAISSON DE GRAVES AVEC POTENCE

Two identical mechanical components with vertical posts and mounting holes, shown from different angles (no text or symbols)

INGENIA IG2T Cod. 420120238 REV. 1.1

INSTALLATION AU SOL

Two identical line drawings of vertical cylindrical electronic components with mounting flanges (no text or symbols)

INSTALLATION SUR PAROI AVEC ÉTRIERS

Two identical 3D rectangular blocks with internal connectors and mounting holes, shown side by side (no text or symbols)

LE DIGITAL STEERING

Illustration of a safety camera emitting a beam of light from multiple silhouettes of people, no text or symbols present

Salle

Pure mechanical diagram showing a vertical structure with arrows indicating direction, no text or symbols present.

Inclinaison

INGENIA IG2T Cod. 420120238 REV. 1.1

5. MISE À JOUR DU FIRMWARE

EL MENu SUBWOOFER MATCHING....166

EL MENU OPTIONS....167

EL MENU EXIT....168

EL DIGITAL STEERING ....171

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Fly Bar DRK-IG Abrazaderas de sujeción LP-IG

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a tall refrigerator with front panels and side door (no text or symbols)

TA-IG truss adapter

Technical line drawing of a mechanical assembly with mounting flanges and cylindrical components (no text or symbols)

Stand GSA-IG

WB-IG2

¡ATENCIÓN!

System Type BACK Stacked T Flown NEXT

Menu Stage Alignment

EL MENU SYSTEM DELAY

Diagram of a street scene with silhouetted figures and a light beam projecting onto a building facade (no text or symbols)

Menu Microphone Setting

HP Filter 342Hz Antifefeedback 342Hz

INGENIA IG2T Cod. 420120238 REV. 1.1

EL MENU SYSTEM COVERAGE

EL MENU SUBWOOFER MATCHING

Two identical stand-mounted devices with tripod legs, no text or symbols visible

Two identical mechanical or electrical component diagrams with vertical shafts and mounting holes, shown side by side (no text or symbols)

Two identical mechanical devices with vertical connectors and mounting holes, shown from different angles (no text or symbols)

Two identical vertical structural columns with mounting feet, shown side by side (no text or symbols)

Two identical mechanical components with mounting flanges and internal brackets, shown from different angles (no text or symbols visible)

Two identical cylindrical electronic components with mounting flanges and a central shaft (no text or symbols visible)

INGENIA IG2T Cod. 420120238 REV. 1.1

EL DIGITAL STEERING

Illustration of a street scene with silhouettes of people and a traffic light (no text or symbols)

Platea

Pure mechanical diagram showing a vertical structure with arrows indicating direction, no text or symbols present.

Inclinación
