BBM BP5 - Speaker ANT - Free user manual and instructions

Product type	2-way bass-reflex passive speaker
Brand	ANT
Model	BBM BP5
Woofer (LF)	5-inch custom, 1-inch voice coil
Tweeter (HF)	1-inch neodymium dome
Frequency response	100 Hz - 20 kHz (+/-10 dB)
Rated power (RMS)	40 W at 8 Ω
Power on 70/100 V line	10 W / 20 W / 40 W / 80 W
Impedance	8 Ω (low impedance) or 70/100 V line
Input connection	Bare cable 2x1 mm², white (+) / black (-)
Protection rating	IP55 (dust-tight and protected against water jets)
Housing material	ABS
Color	Black (BP5)
Dimensions (W x H x D)	170.5 x 272 x 171.8 mm
Net weight	3 kg
Mounting points	2 x M6 (top/bottom) for U-bracket, 4 x M5 (rear) for Y-bracket or tripod
Included accessories	User manual (sections 1 and 2)
Optional accessories	U-bracket kit BBM WB3U, Y-bracket BBM-368Y, tripod kit BBM-SA50
Usage	Indoor and outdoor, small and medium spaces
Installation	Wall, ceiling, on tripod (optional accessories)
Operating temperature	Suitable for outdoor use IP55

Frequently Asked Questions - BBM BP5 ANT

How to connect the BBM BP5 speaker to an amplifier?

Use the two bare wires white (+) and black (-) at the back of the speaker. Connect them to the corresponding terminals on the amplifier, respecting polarity. Make sure the amplifier is turned off when connecting.

How to choose the power mode (low impedance or constant voltage line)?

Use the waterproof power selector at the back of the speaker with a flathead screwdriver. For low impedance use, set to 8 Ω. For a 70V or 100V line, choose the desired power (10W, 20W, 40W or 80W) according to the line.

What to do if no sound comes out of the speaker?

Check that the connection cable between the speaker and the amplifier is properly plugged in and working. Make sure the power selector is set correctly (not on too low a power). Also check that the amplifier is on and the audio source is working.

Can I use the speaker outdoors?

Yes, the BBM BP5 speaker has an IP55 protection rating, which protects it against dust and water jets. It can be used outdoors, but avoid prolonged exposure to extreme conditions.

What accessories are available for mounting?

Optional accessories include: U-bracket kit BBM WB3U for wall mounting, Y-bracket BBM-368Y for rotation and tilt, and tripod mounting kit BBM-SA50 (for 35 mm diameter).

How to clean and maintain the speaker?

Use a soft, dry cloth to clean the ABS housing. Never use solvents or abrasive products. Regularly check the condition of the input cable and mountings. Refer to the manual for safety instructions.

What is the maximum power supported by the speaker?

In low impedance mode, the rated power is 40 W RMS at 8 Ω. On a constant voltage line (70V or 100V), the power can be adjusted from 10 W to 80 W via the selector.

How to install the speaker in a 70V/100V system?

Set the power selector to the desired value (10W, 20W, 40W or 80W). Connect the white wire (+) to the 70V or 100V line of the amplifier, and the black wire (-) to the common (COM) terminal. The total power of all speakers must not exceed the amplifier's power.

What to do in case of sound distortion?

Make sure the power selector is set correctly (not on too high a power). Check the audio source level and reduce it if necessary. Also ensure that the total impedance of the speakers is not lower than the amplifier's impedance.

Is the speaker supplied with an input cable?

Yes, the speaker is supplied with a bare cable 2x1 mm² (white (+) and black (-)) integrated at the back. It is ready to be connected to the amplifier.

USER MANUAL BBM BP5 ANT

Line drawing of a rectangular electronic device with a hexagonal top and circular base (no text or symbols)

ES MANUAL DE USO | SECCION 1

IT MANUALDE DUso | SEZIONE 1 DE BIDLENUGESANETLUNG | KAPITEL 1

FR NOTICE D:\EPM\OLI | SECTION 1

IT MANUALÉ D'USO | SEZIONE 1

BBM BP/WP SERIES

PASSIVE MINIBOX SPEAKERS

DIFFUSORI MINIBOX PASSIVI

ENCEINTES MINIBOX PASSIVES

PASSIVE MINIBOX-LAUTSPRECHER

DIFUSORES MINIBOX PASIVOS

BBM 3BP/WP | BBM 5BP/WP | BBM 8BP/WP

BBM BP/WP SERIES

TABLE OF CONTENTS

1	Introduction	3
2	Installation	4
3	Description	5
3.1	Inputs & controls 5
4	Connections	6
4.1	Constant voltage 6
4.2	Constant impedance	7
5	Troubleshooting	8
6	Technical specifications 9
7	Optional accessories 10
8	Notes 11

PACKAGE CONTENT

• 1x Passive minibox speaker
• 1x User manual - Section 1
• 1x User manual - Section 2

The warnings in this manual must be observed together with the "USER MANUAL - SECTION 2".

1 | INTRODUCTION

Thank you for choosing a A.N.T - Advanced Native Technologies - product!

In BBM BP/WP speaker series we have put our passion and our technological background gained over the years, to offer products that meet your needs, maintaining the quality over time.

Specifically designed for an immediate and user-friendly application, meeting the needs of those looking for a compact constant impedance or voltage (70-100V) audio system, providing excellent performance and the best value for money possible in its category.

Characterized by an elegant look and compact dimensions, these speakers are able to amplify indoors and outdoors - thanks to IP55 protection - small and medium-sized environments. All models are available in two colors, black (BBM BP) and white (BBM WP).

Are also available, specifically engineered for BBM speakers wall or ceiling installation, the bracket kits BBM WBU and BBM 358Y in black or white, as well as the SA-30/50/80 black kits specific tripod mounting.

Please, dedicate some minutes to read this instruction manual in order to quickly achieve the best performances from this product.

For safety precautions, warranty and disposal, please refer to attached Section 2.

For further information about all A.N.T products catalog, please visit our website: www.ant-intomusic.com.

2 | INSTALLATION

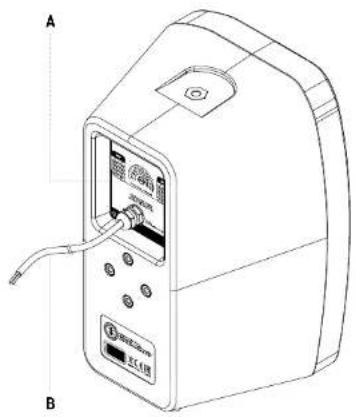

Each speaker is equipped with:

A | Sealed power selector.
B | Headed input cable.
C | Non-slip rubber feet.

Technical line drawing of a mechanical component with mounting holes and a central hexagonal feature (no text or symbols)

WARNING:

For installation please contact qualified personnel. In order to avoid any danger, place and fasten the speaker in a stable and secure way. Install the speaker as explained in this instruction manual.

WARNING:

For safe use of the accessory, check functionality and integrity before installation and periodically.

4 User manual | BBM BP/WP Series

3 | DESCRIPTION

3.1 | INPUTS & CONTROLS

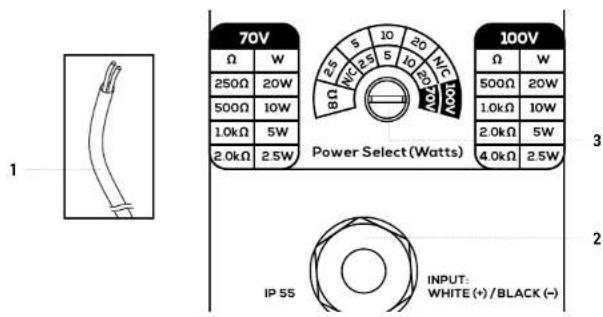

1 HEADED INPUT CABLE

Connect the signal from amplifier outputs to these two wires. To ensure correct sound reproduction, the speakers must be connected in phase. Match the positive and negative polarities of the amplifier with the positive (White +) and negative (Black -) polarity of the speaker input.

2 CABLE GLAND

The cable gland guarantees IP55 protection of electrical connections inside the speaker.

3 SEALED POWER SELECTOR

IP55 Selector with seven positions for constant impedance (8Ω) or constant voltage (10W, 20W, 40W or 80W on 70V or 100V) connections. Use a flat-blade screwdriver to select the desired mode.

NOTE:

All the BBM BP/WP series speakers guarantee IP55 protection, in particular.
• Total protection against item introduction.
- Protection against liquids entry in any form like drops, vapors, sprays and weak jets of water in any direction.
• Dust and liquids intrusion must not damage the equipment.

BBM BP/WP Series | User manual

4 | CONNECTIONS

For the installation of the speaker and to guarantee its proper operation, strictly apply the instructions below:

• It is recommended to contact qualified personnel, i.e. personnel with sufficient technical knowledge, experience or specific instructions, able of properly making the connections and preventing the dangers of electricity. The entire sound system must be made in compliance with existing standards and laws concerning electrical systems.
  • To avoid the risk of electric shock, connect the speaker with the amplification system turned off.
• Before operating the speaker, carefully check the correct connection to avoid accidental short circuits that can cause electric sparks. The speaker can be connected to 70V or 100V constant voltage (high impedance) or B Ohm constant impedance (low impedance) audio lines.

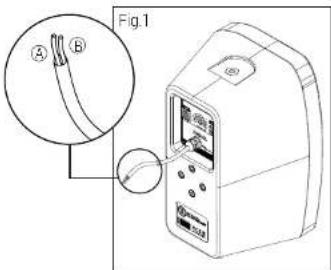

Make the connections using the White (+) and Black (-) wires in the back of the speaker. (Fig.1)

Ⓐ COM - Black (-) Ⓑ 70V/100V/8Ω - White (+)

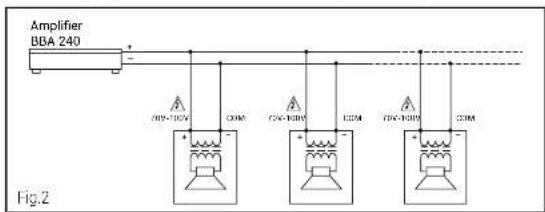

4.1 | CONSTANT VOLTAGE SYSTEMS (Fig.2)

The input voltage of the speaker must match the voltage selected on the amplifier, and the sum of the power of all the speakers connected to the audio line must not exceed the nominal power of the amplifier.

Make the connections taking into consideration the following indications:

• Use cables of adequate section. A greater distance between the amplifier and the speakers requires larger section cables. This avoids signal losses due to line length.
  • To prevent inductive phenomena from causing buzzing and disturbs, and compromising the proper functioning of the system, the connection cables must

not be placed in the same cable duct or close to devices producing strong magnetic fields (e.g. power transformers), conductors of electricity and lines that power speakers. Furthermore, to minimize the inductive effects due to coupling with electric fields, use cables with twisted conductors.

• To ensure correct sound reproduction it is necessary to connect the speakers "in phase", I. e. the positive and negative polarities of the amplifier must correspond to the positive (70-100V) and negative (COM) polarity of the speaker input.
• To simplify the connection, it is possible to use bipolar cables with a marking (e.g. different colors) which distinguishes the polarity.

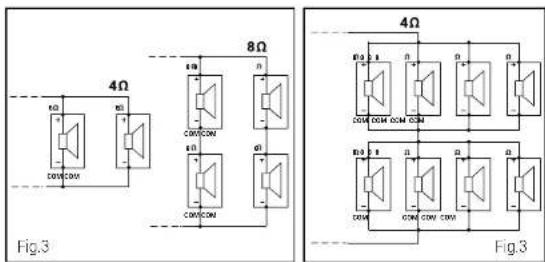

4.2 | CONSTANT IMPEDANCE SYSTEMS (Fig.3)

The total load impedance of all the speakers must be higher than nominal impedance of the amplifier and the length of the connection cables must be reduced to the minimum.

5 | TROUBLESHOOTING 6 | TECHNICAL SPECIFICATIONS

PROBLEM SOLUTION
No sound or too low sound	Make sure that the connection cable between the speaker and the amplifier is working and properly connected.
	Make sure the loudspeaker power selector is set correctly, ie too low power has not been chosen.
Distortion	Make sure that the speaker power selector is set correctly, which means that too high power has not been chosen.
Sound quality problem Check the source signal
	Make sure the loudspeaker power selector is properly set, i.e. has not been chosen power too low or too high.

BBM-3BP/3WP BBM-5BP/5WP BBM-8BP/8WP
System 2-way vented box 2-way vented box 2-way vented box
LF 3.5" custom speaker1" V.C	5" custom speaker1" V.C	8" custom speaker1" V.C
I.F 0.8" neodymium dome driver	1" neodymium dome driver	1" neodymium dome driver
Frequency response(+/-10dB)	140Hz-20kHz 100Hz-20kHz 55Hz-20kHz
Nominal power 20W RMS/8Q -10W/20W/40W/80W@ 70V and 100V	40W RMS/8Q -10W/20W/40W/80W@ 70V and 100V	80W RMS/8Q -10W/20W/40W/80W@ 70V and 100V
Input cable Headed cable 2x1White (+) Black (-)	Headed cable 2x1White (+) Black (-)	Headed cable 2x1White (+) Black (-)
Suspension system	2 M6 - top/under for U bracket mount4 M5 - rear for Y and SA brackets	2 M6 - top/under for U bracket mount4 M5 - rear for Y and SA brackets	2 M6 - top/under for U bracket mount4 M5 - rear for Y and SA brackets
Cabinet material ABS ABS ABS
Available colours	WhiteBBM 3WP model	WhiteBBM 5WP model	WhiteBBM 8WP model
	BlackBBM 3BP model	BlackBBM 5BP model	BlackBBM 8BP model
Dimensions(W x H x D)	134.3 x 220.4 x 136.4mm	170.5 x 272 x 171.8mm	250 x 400 x 251mm
Net weight	2.1Kg	3Kg	6Kg
OPTIONAL ACCESSORIES
U bracketskit for wall mounting	BBM-WB3U(black or white)	BBM-WB3U(black or white)	BBM-WB3U(black or white)
Y bracketsrotation and tilting kit for wall/celling mounting	BBM 358Y(black or white)	BBM 358Y(black or white)	BBM 358Y(black or white)
Tripod mount kit	BBM-SA30 (D25mm)	BBM-SA50 (D35mm)	BBM-SA80 (D35mm)

7 | OPTIONAL ACCESSORIES 8 | NOTES

Line drawing of a rectangular device with a circular top and base (no text or symbols)

U brackets kit for wall mounting

Line drawing of a mechanical device with a clamped bracket and mounting bracket (no text or symbols)

Y brackets rotation and tilting kit for wall/ceiling mounting

Technical line drawing of a mechanical device with mounting bracket and housing (no text or symbols)

Tripod mount kit

BBM BP/WP SERIES

INDICE

Technical line drawing of a mechanical component with mounting holes and a central hexagonal feature (no text or symbols)

ATTENZIONE:

Ⓐ COM - Nero (-)
⑧ 70V/100V/8Ω - Bianco (+)

4.1 | IMPIANTI A TENSIONE COSTANTE (Fig.2)

Line drawing of a rectangular device with a circular button and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a clamped bracket and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and housing (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central hexagonal feature (no text or symbols)

ATTENTION :

Ⓐ COM - Noir (-)
⑧ 70V/100V/8Ω - Blanc (+)

Line drawing of a rectangular device with a circular button and mounting bracket (no text or symbols)

Line drawing of a rectangular electronic device with mounting bracket and control panel (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and cylindrical components (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central hexagonal feature (no text or symbols)

① COM - Schwarz (-) ② 70V/100V/8Ω - weiß (+)

Line drawing of a rectangular device with a circular top and base (no text or symbols)

Line drawing of a mechanical device with a bracket and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and housing (no text or symbols)

Stativ-Adaptersatz

BBM BP/WP SERIES

ÍNDICE

Technical line drawing of a mechanical component with mounting holes and a hexagonal base (no text or symbols)

ATENCIÓN:

Ⓐ COM - Negro (-)
⑧ 70V/100V/8Ω - Blanco (+)

4.2 | SISTEMAS DE IMPEDANCIA CONSTANTE (Fig.3)

Line drawing of a 3D rectangular device with a circular button and mounting bracket (no text or symbols)

Line drawing of a mechanical device with a flanged arm and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and control panel (no text or symbols)

ENG The information contained in this manual have been carefully drawn up and checked. However no responsibility will be assumed for any incorrectness. This manual cannot cover all the possible contingencies which may arise during the product installation and use. Should further information be desired, please contact us or our local distributor: A.E.D. Industrials Srl can not be considered responsible for damages which may be caused to people and things when using this product. Specifications and features are subject to change without notice.
