USER MANUAL ASM 12 ANT

• 1 x active coaxial stage monitor
• n.1 mains cord (VDE)
• 1x User manual - Section 1
• 1x User manual - Section 2

The warnings in this manual must be observed together with the "USER MANUAL - SECTION 2".

2 User manual ASM Series

ASM Series | User manual

ASM SERIES

2 INSTALLATION

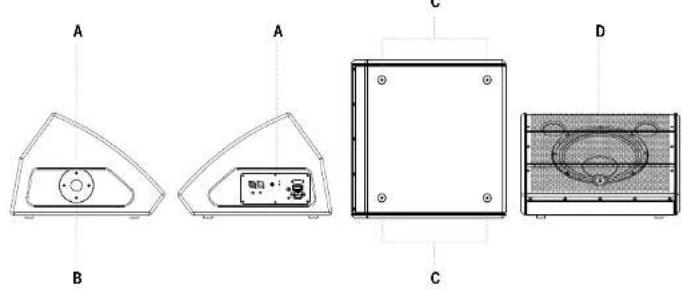

Each speaker is equipped with:

A Recessed side handles
B | 35mm. flange for pole mounting
C Non-slip rubber feet
D | Front metal protection grille

For speaker installation and to guarantee its correct performance, strictly follow the instructions below.

• Place the speaker in a horizontal position on a flat and stable surface, making sure that all the lower rubber feet are perfectly adhering to the floor or to the supporting surface. The speaker is designed for use on the floor (wedge monitor configuration).
• Never install the speaker on mobile carts, chairs, tables or similar objects that are not stable or unable to withstand the weight.
• To allow for proper heat dissipation of the amplification, leave sufficient distance between the rear panel of the speaker and other objects such as walls, corners, curtains, and never place the appliance near sources of heat of any kind.
• When used outdoors, avoid places exposed to bad weather.

CAUTION: Install the speaker in a stable and safe way, so as to avoid any dangerous condition for the safety of people and structures.

3 | DESCRIPTION

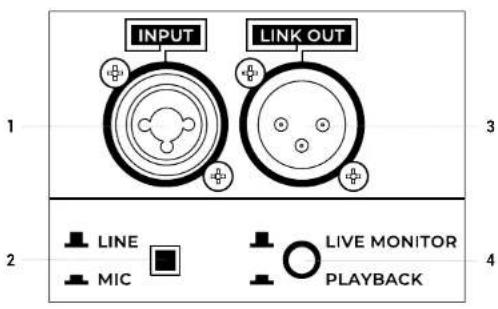

3.1 INPUTS & CONTROLS

ASM SERIES

LIVE MONITOR

Perfect for live performances with the speaker positioned on the ground as a wedge stage monitor. Suitable for musicians and singers.

PLAYBACK

It emphasizes the low and high frequencies, and is ideal for listening and using reproduced music (MP3 players, CDs etc.), both for use as a main system mounted on a tripod but also as a reinforcement monitor.

5 LEVEL

This control adjusts the speaker output volume. Turn the knob clockwise to increase the volume or counterclockwise to lower it. For optimal adjustment always consider the acoustics of the environment and the musical genre.

6 INDICATORS ON & SIG /CLIP

Led ON: the unit is powered.

SIG/CLIP Green LED: the signal is present in the MIC/LINE INPUT channel. In normal operation the LED acts as a Vu meter indicating the audio level.

SIG/CLIP Red LED: the input signal is very high and is close to distortion.

If the red LED lights up continuously, it's necessary to reduce the LEVEL level or reduce the levels of the devices connected to the MIC / LINE INPUT input.

CAUTION: the unit must never work with levels causing the SIG/CLIP LED to flash red almost constantly.

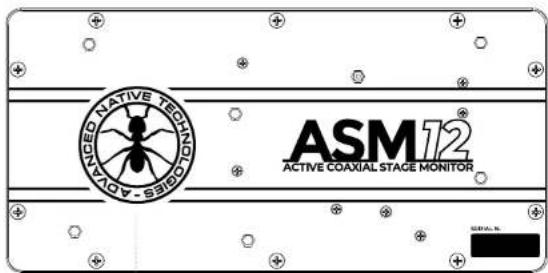

7 REAR PANEL

The cooling process of the amplifier and temperature control within laws limits are ensured by proper ventilation of the system, thus it's recommended to don't obstruct or cover in any way the rear panel of the speaker.

7
8 RECESSED HANDLES FOR LIFTING AND TRANSPORT

Use these recessed handles (Fig.1) for transporting and positioning the speaker. Do not use them to hang the speaker or to lock it in any position.

Fig.1 - Recessed handles for transport

ASM SERIES

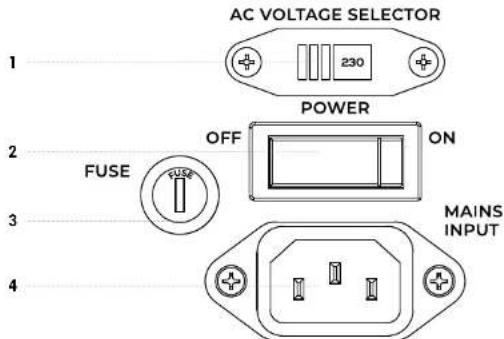

3.2 POWER SUPPLY

1 AC VOLTAGE SELECTOR

Operating voltage selector. Generally it is not necessary to act on this command since it is set at the factory.

WARNING! Before switching on the unit, make sure that the mains voltage and that of the device match.

2 POWER ON/OFF

Use this switch to turn ON/OFF the system.

NOTE: For proper operation always switch on the system last and switch it off first. Before turning on the system, make sure the LEVEL knob is at minimum.

3 FUSE

Protection fuse.

CAUTION: Replace the fuse only with one of the same type and with the same values. If the fuse blows repeatedly, contact an authorized service center.

4. MAINS INPUT

IEC mains socket with integrated EMI filter. Each package is supplied with the necessary power cord, specific for your area. Insert the mains cable into this socket, but make sure the unit is switched off before connecting the cable to the mains. For your safety, never disconnect the ground lead...

CAUTION: To reduce the risk of electric shock, never connect the power supply to the appliance while the grille is removed.

4 | TROUBLESHOOTING

PROBLEM LED SOLUTION
No sound	Power LED turned off	Make sure the system is properly connected to the main's outlet. Make sure that mains plug is firmly inserted into the socket.
very low sound level	Power LED turned on, but low MAIN LEVEL	Turn the MAIN LEVEL knob clockwise. Make sure the SIG LED is on Check the signal cable
Distortion	SIG/CLIP LED lit red	Lower the level of LEVEL knob or input sources. When using input line signals, make sure that the LINE / MIC button is not pressed in the MIC position.
	ON/LIMIT LED lit green	Check the source level.
Booming sound		Put the selector in LIVE MON TDR position Check source signal.
Harsh sound		Put the selector in PLAYBACK position Check source signal.

ASM SERIES

5 | TECHNICAL SPECIFICATIONS

	ASM10 ASM12 ASM15
System 2-way vented box 2-way vented box 2-way vented box
LF Custom 10" Wooler,	2" VC	Custom 12" Wooler,	Custom 15" Wooler,
		2.5" VC	3" VC
HF 1" compression driver,	1" VC	1" compression driver,	1" compression driver,
		1.35" VC	1.35" VC
Amplification Class-D + Class-A/B Class-D + Class-A/B Class-D + Class-A/B
Peak power (LF+HF) 400W 600W 600W
Frequency response (+/-10dB)	70Hz-20kHz 65Hz-20kHz 55Hz-20kHz
MAX SPL 122dB 124dB 126dB
DSPI 569L	568L	568L
AD/DA conversion	24Bit / 48kHZ	24Bit / 48kHZ	24Bit / 48kHZ
EQ 2 Presets 2 Presets 2 Presets
Input and output connectors	MIC/LINE COMBO(XLR F + 2 x jack6.35mm, 1/4")LINK output: XLR-M	MIC/LINE COMBO(XLR F + 2 x jack6.35mm, 1/4")LINK output: XLR-M	MIC/LINE COMBO(XLR F + 2 x jack6.35mm, 1/4")LINK output: XLR-M
Controls	LEVELLINE/MIC switchON PEAK/SIGN LEDs PRESET button	LEVELLINE/MIC switchON PEAK/SIGN LEDs PRESET button	LEVELLINE/MIC switchON PEAK/SIGN LEDs PRESET button

	ASM10	ASM12	ASM15
Operating mains	220-240V~50-60HzT2A L 250V~	220-240V~50-60HzT2A L 250V~	220-240V~50-60HzT2A L 250V~
Fuse	110-120V~50-60HzT4A L 250V~	110-120V~50-60Hz-T4A L 250V~	110-120V~50-60HzT4A L 250V~
Max power consumption	300 W	300 W	300 W
Cabinet	2 recessed handlesPole mount2.35mm, hole	2 recessed handlesPole mount0.35mm hole	2 recessed handlesPole mount0.35mm hole
Cabinet material	15mm plywood	15mm plywood	15mm plywood
Cabinets finishing	Anti scratch paint with high mechanical resistance	Anti scratch paint with high mechanical resistance	Anti scratch paint with high mechanical resistance
Dimensions(W x H x D)	380 x 333 x 480mm	450 x 338 x 610mm	495 x 405 x 610mm
Net weight 12 Kg	19 Kg	20.5 Kg
Optional accessories	CV SM10 padded cover	CV SM12 padded cover	CV SM15 padded cover

ASM SERIES

INDICE

6 INDICATORI ON & SIG/CLIP

Led ON: l'unità é alimentata.

ENG The information contained in this manual have been carefully drawn up and checked. However no responsibility will be assumed for any incorrectness. This manual cannot cover all the possible contingencies which may arise during the product installation and use. Should further information be desired, please contact us or our local distributor. AEG Industries Srl can not be considered responsible for damages which may be caused to people and things when using this product. Specifications and features are subject to change without prior notice.
