Product type	Ultrasonic cleaner
Brand	Blaupunkt
Model	BPUSC06
Device dimensions	188 x 97 x 85 mm
Tank dimensions	167 x 63 x 46 mm
Tank capacity	400 ml
Ultrasonic frequency	50 kHz
Power supply	220-240 V~, 50/60 Hz
Weight	0.58 kg
Power cord length	1 m
Tank material	Stainless steel SUS304
Protection rating	IPX0
Noise level	< 75 dB
Automatic shut-off	After 5 minutes
Main functions	Ultrasonic cleaning, fixed 5-minute cycle
Intended use	Cleaning of hard non-delicate objects (e.g., mechanical parts, instruments)
Safety instructions	Do not use for jewelry, non-waterproof watches, lenses, etc.; empty operation limited to 15 seconds
Maintenance and cleaning	Empty and wipe the tank after each use; do not use corrosive cleaners
Spare parts and repairability	No user-serviceable parts; power cord replaceable by a professional
General information	Indoor use only; class II; ensure a flat and level surface

Frequently Asked Questions - BPUSC06 BLAUPUNKT

What objects can I clean with the Blaupunkt BPUSC06?

This ultrasonic cleaner is ideal for hard objects such as mechanical parts, instruments, sturdy jewelry (except delicate stones), and glass lenses. Avoid porous materials, semi-precious stones, ivory, coral, non-waterproof watches, and electronic devices.

How long does a cleaning cycle last?

The cleaning cycle lasts 5 minutes and stops automatically. You can stop it prematurely by pressing the on/off button.

Can I use a cleaning agent other than water?

Yes, for thorough cleaning, add a few drops of dish soap (without emollient additives). Avoid corrosive or abrasive cleaners that could damage the tank.

Can the device run empty?

No, never run the device empty for more than 15 seconds. This can damage the device. Always fill the tank with water before turning it on.

How to maintain the cleaner after use?

Unplug the device, empty the tank, and wipe it with a soft cloth. Do not clean it with corrosive products. Store it in a dry, cool place away from sunlight.

Can I clean jewelry like silver rings?

Yes, but avoid delicate stones like emeralds, pearls, coral, or ivory. Resistant metals (gold, silver, steel) withstand ultrasound well.

What is the maximum tank capacity?

The maximum capacity is 400 ml. Do not exceed the MAX mark to avoid overflow.

Is the device noisy?

The noise level is below 75 dB, comparable to a slight hum. It is quiet for an ultrasonic cleaner.

Can I leave the device on unattended?

No, never leave it on unattended. Always unplug it after use or before cleaning.

What if the power cord is damaged?

The damaged cord must be replaced by the manufacturer, an authorized repairer, or a qualified person to avoid any risk. Do not attempt to repair it yourself.

USER MANUAL BPUSC06 BLAUPUNKT

Technical diagram of a portable device with numbered parts for identification and assembly reference.

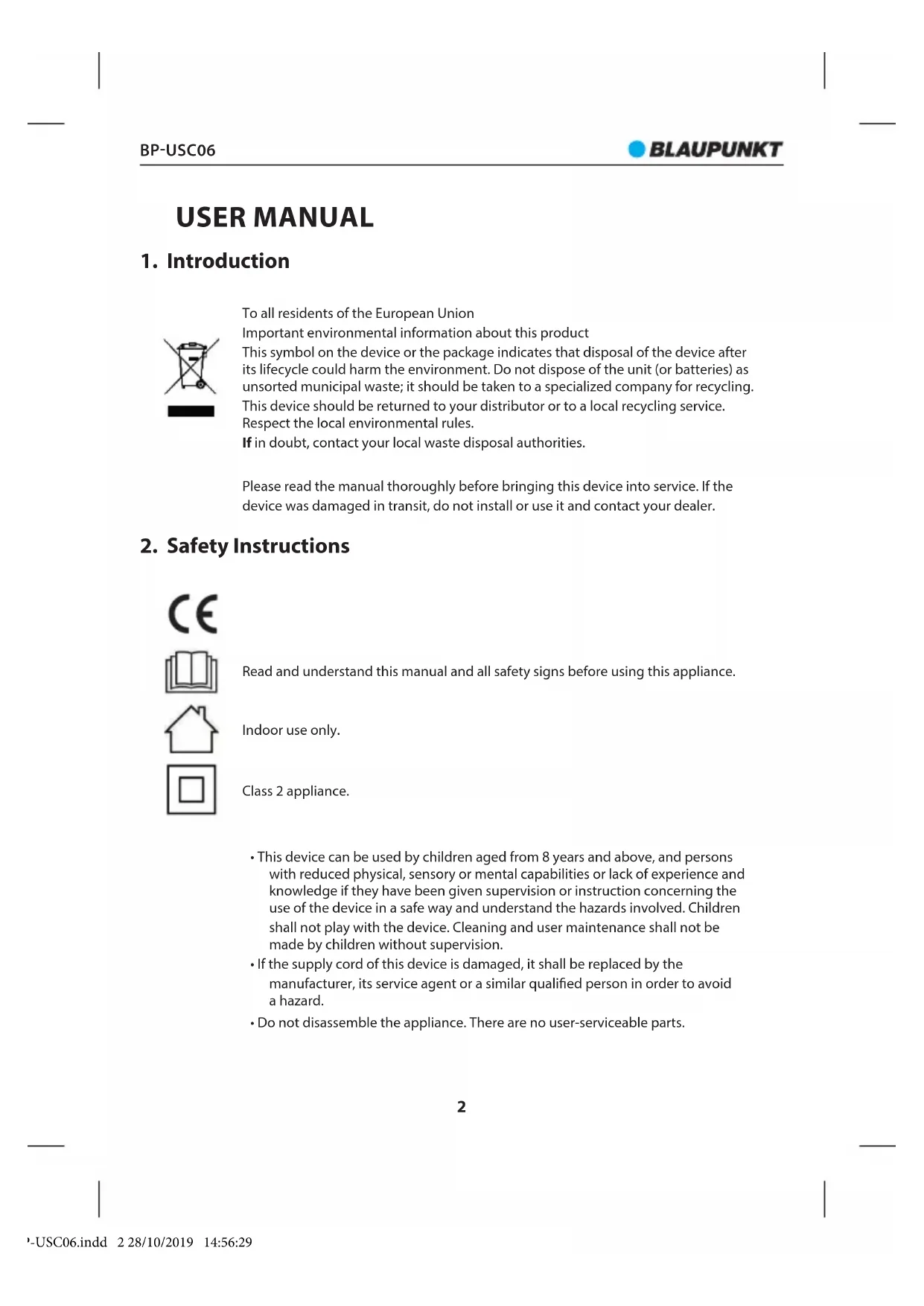

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local recycling service.

Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

Class 2 appliance.

- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord of this device is damaged, it shall be replaced by the manufacturer, its service agent or a similar qualified person in order to avoid a hazard.

- Do not disassemble the appliance. There are no user-serviceable parts.

• This appliance is for household use only.

- Never clean the tank with abrasive or corrosive materials.

- Unplug the appliance from the mains before filling up the tank. Fill the tank up to the limit level only.

- Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.

- Disconnect the appliance from the mains to clean it or when it is not in use. Handle the power cord by the plug only. Avoid touching the power cord with wet hands.

- Only use the appliance when the tank is filled with water.

- Never leave the appliance unattended when plugged in.

- Keep the appliance away from heat sources such as radiators. Operate only on a dry and level surface.

- Do not immerse the appliance.

- This appliance is suited to clean a wide range of materials. However, we recommend not to clean following items:

• delicate materials such as glass frames, (semi-) precious stones, jewellery, hawksbill, pearl, emerald, ivory, coral, agate...;

- objects, which can easily be discoloured, waterlogged or damaged;

• brittle materials such as electronic devices, solder;

• non water-resistant watches, mobile phones;

- other materials such as wood, leather, fabric, contact lenses, polycarbonate lenses, coated plastic lenses, ceramic, camera filters...

3. General Guidelines

- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

- Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.

- Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1 shell 5 indication LED

2 tank 6 power cord input

3 lid 7 power cord

4 on-off switch

5. Operation

Principle

Ultrasonic cleaning is based on the cavitation effect, caused by the vibration of high-frequency ultrasonic waves in the liquid.

As microscopic bubbles are formed, these implode and cause cavitation. This cavitation creates an intense scrubbing action on the surface of the item being cleaned. The bubbles are small enough to penetrate microscopic crevices, cleaning them thoroughly and consistently.

Ultrasonic cleaning is extremely effective in removing dirt and grime, which would normally require tedious manual cleaning. Use an ultrasonic cleaner to clean a wide variety of instruments and mechanical parts, returning them to almost brand new condition without damage to delicate parts.

General operation

1. Open the lid and fill the tank with water. Running the cleaner without water will damage the appliance. Do not exceed the MAX mark.
2. Put the item to be cleaned in the water and make sure it is completely immersed.
3. Close the lid and connect the cleaner to the mains. Press the on-off switch to switch on the cleaner. The cleaner will start the cleaning process. The cleaner will automatically switch off after 5 minutes of cleaning. Press the on-off switch to switch off the cleaning process prematurely.
4. Disconnect the cleaner from the mains. Open the lid and take out the cleaned item. Finally, empty the tank and wipe dry.

Cleaning Methods

General Cleaning

Use clear water for general cleaning. The object should be completely immersed. However, the water should not exceed the maximum fill level.

Thorough Cleaning

In order to obtain better results, you may add a few drops of universal detergent. We recommend using commercial dishwashing detergent – preferably without any lipid-replenishing substances (balm).

Partial Cleaning

For partial cleaning of larger objects, use the cleaner with its lid open. Make sure not to touch the liquid during operation!

Ultra-Cleaning

When items require extensive cleaning, use the thorough cleaning procedure first, refresh the water and repeat until the items are cleaned to satisfaction.

6. Cleaning and Maintenance

General

Before starting any cleaning or maintenance activities:

1. Unplug the appliance's power cord from the outlet.

2. Let the appliance cool down.

Cleaning

Do not turn on the ultrasonic cleaner without water in the tank. Running it for more than 15 seconds with an empty tank will damage the cleaner or severely reduce its life.

Do not run the ultrasonic cleaner continuously or for a long period of time. It is recommended to let it cool down for 20 minutes after every 45 minutes of continuous use.

Do not keep water in the cleaning tank after use. Empty the tank from the cleaning solution and wipe the tank dry.

Storage

Do not expose the ultrasonic cleaner to direct sunlight for a long period of time. Keep it in a dry, cool and ventilated place.

7. Technical Specifications

input.....220-240 V\~, 50/60 Hz

power consumption.... 30 W

tank volume....400 ml

ultrasonic frequency 50 kHz

IP rating IPX0

low noise ....../< 75 dB

weight....0.58 kg

cable length....1 m

dimensions

device 188 x 97 x 85 mm

tank.... 167 x 63 x 46 mm

tank material .... stainless steel SUS304

Use this device with original accessories only. The importer cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. The information in this manual is subject to change without prior notice.
