Product Type	Alarm Clock Radio
Brand	Blaupunkt
Model	CR5WH
Dimensions (approx.)	180 x 100 x 70 mm
Weight (approx.)	300 g
Power Supply	AC 230 V ~ 50 Hz
Battery Backup	CR2032 (for time/alarm memory)
Radio Bands	FM 87.5 – 108 MHz
Alarm Type	Dual alarm with radio or buzzer
Snooze Function	Yes (9-minute snooze)
Sleep Timer	Yes (up to 90 minutes)
Display	LED with adjustable brightness
Controls	Buttons on top, rotary dial for tuning/volume
Alarm Sound	Buzzer or last tuned radio station
Gradual Wake	Buzzer volume increases gradually
Weekend Programming	Some models support separate weekend alarm
Cleaning	Wipe with a soft, dry cloth
Safety	Do not expose to water or high humidity
Spare Parts	Not user-serviceable; contact support
Repairability Index	Low (sealed unit)

Frequently Asked Questions - CR5WH BLAUPUNKT

How do I set the time on the Blaupunkt CR5WH?

Press and hold the Time Set button until the hour flashes, then use the +/- buttons to adjust. Press Time Set again to set minutes, and press Time Set once more to confirm.

How do I set the alarm?

Press the Alarm Set button (Alarm 1 or 2). Use the +/- buttons to set the hour and minute. Choose alarm mode: radio or buzzer. Press Alarm Set to confirm. The alarm icon will appear on the display.

How do I tune to a radio station?

Press the Radio button to turn on the radio. Use the Tuning dial to manually search for stations. For automatic tuning, press and hold the Scan button. To save a station, press and hold a preset number button.

Why is my alarm not sounding?

Check that the alarm is enabled (alarm icon displayed). Ensure the volume is not turned to minimum. If using radio mode, confirm that the radio is tuned to a strong station. Also, verify that the time and alarm time are correctly set.

How do I replace the backup battery?

Open the battery compartment on the bottom of the unit. Remove the old CR2032 battery and insert a new one with the positive (+) side facing up. Replace the cover. The battery maintains time and alarm settings during power outages.

Can I use the radio without an antenna?

The FM radio uses an internal antenna. For better reception, fully extend the built-in wire antenna. Avoid placing the unit near metal objects or electronic interference.

What does the snooze function do?

When the alarm sounds, press the Snooze button to silence it for 9 minutes. The alarm will repeat after the snooze interval. You can snooze multiple times.

How do I adjust the display brightness?

Press the Dim button repeatedly to cycle through brightness levels: high, medium, low, and off. This is useful for reducing light disturbance at night.

My clock loses time. What should I do?

If the clock loses time, the backup battery may be low or dead. Replace the CR2032 battery. Also, ensure the unit is plugged into a stable power source without frequent interruptions.

How do I reset the unit to factory settings?

To reset, unplug the unit from the AC outlet and remove the backup battery for about 30 seconds. Reinsert the battery and plug the unit back in. You will need to set the time and alarms again.

USER MANUAL CR5WH BLAUPUNKT

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

- This safety and operating instruction should be retained for future reference. - The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

○ Do not install the product in the following areas:

- Places exposed to direct sunlight or close to radiators.

○ On top of other stereo equipment that radiate too much heat.

○ Blocking ventilation or in a dusty area.

○ Areas where there is constant vibration.

○ Humid or moist places.

• Do not place near candles or other naked flames.

• Operate the product only as instructed in this manual.

- Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.

2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.

3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow instructions - All operating and users' instructions should be followed.

5. Installation - Install in accordance with the manufacturer's instructions.

6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.

8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.

9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.

10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.

11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.

12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).

13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.

14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.

15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.

16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.

18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.

19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.

21. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.

23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.

24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.

25. Try to install the product near a wall socket or extension cord and shall be easily accessible.

26. The highest environmental temperature suitable for this product is 35°C.

27. ESD hints - The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

28. Battery

1). The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

2). The batteries should be drawn to the environmental aspects of battery disposal.

3). Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

- Install all batteries correctly, + and - as marked on the apparatus.

- Do not mix batteries (old and new or carbon and alkaline, etc.)

- Remove batteries when the unit is not used for a long time.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.

2. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.

3. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.

4. Do not place this unit close to a strong magnetic field.

5. Do not place the unit on a amplifier or receiver.

6. Do not place this unit in a damp area as the moisture will affect the life of electric components.

7. If the clock is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.

8. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

CE

This product complies with the radio interference requirements of the European community.

Your products is designed an manufactured with high quality materials and components, which can be recycled and reused

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard(box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

LOCATION OF CONTROL

1. VOLUME + / AI2
2. VOLUME - / AI1
3. SNOOZE / DIMMER / SLEEP
4. MEMORY / TIME SET
5. ⏻/FUNCTION
6. TUNING +/ MINUTE
7. TUNING - / HOUR
8. PM INDICATOR
9. ALARM
10. AL1 INDICATOR
11. AL2 INDICATOR
12. ALARM
13. SLEEP INDICATOR

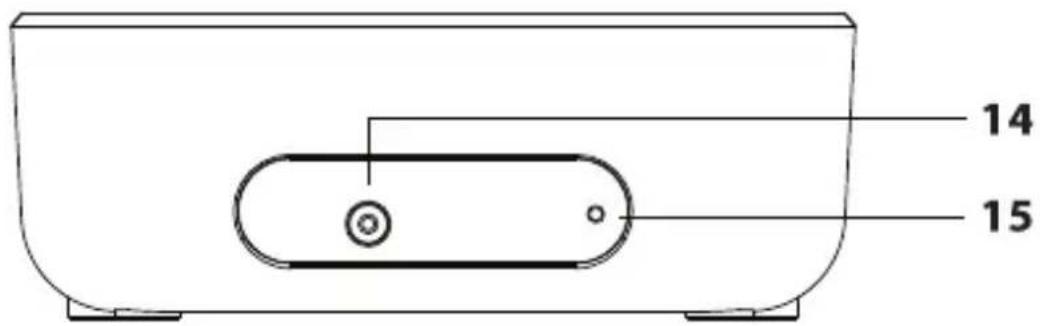

14. AC POWER
15. FM ANTENNA WIRE

CONNECT POWER CAUTION

• Risk of product damage! Ensure that the power voltage corresponds to the voltage printed on the back or underside of the clock radio.
• Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket. Never pull the cord.

BOTTOM OF SET: Battery compartment for 1.5 volt (LR2, AA) battery 2pcs. (not included) for temporary time storage.

SET TIME

1. Press and hold TIME SET for two seconds.
2. Press HOUR or MINUTE to select 12/24 hours and then press TIME SET again to confirm setting.
3. Press HOUR and MINUTE to set hour and minute respectively.
4. The setting will be confirmed automatically if no button is used within 3 seconds.

LISTEN TO FM RADIO

For better reception, fully extend and adjust the position of the FM antenna wire.

1. Press / FUNCTION to turn on FM radio.
   · [FM frequency] is displayed.
2. Press TUNING +/- for two seconds.
   · The FM Tuner tunes to a station with strong reception automatically.

To search for a radio station manually:

Press TUNING +/- repeatedly to tune to a radio station.

STORE FM RADIO STATIONS MANUALLY

1. Tune to an FM radio station.
2. Press MEMORY and hold to activate the storing mode.

3. Press TUNING +/- to select the preset number.
   · [P 01 \~ P 20] is preset station numbers.
   · If this position is occupied, the previous stored frequency will be displayed.
   · To remove a pre-stored FM radio station, store another station in its place.

4. Press MEMORY to confirm and save the current FM station.

LISTEN TO A PRESET FM RADIO STATION

Press MEMORY to select a preset number and play FM radio.

Note:

The digit display return to clock display if no buttons is pressed for 5 seconds.

SET ALARM TIMER

Make sure that you have set the clock correctly.

You can set two separate alarm timers. For the alarm sound, you can select the radio or the buzzer.

1. Press / FUNCTION to Clock mode.

2. Press and hold AL1/AL2 for two seconds.

· [0:00] Hour digit is blink.

1. Press HOUR to set the alarm hour and MINUTE to set the alarm minute.

2. Press AL1/AL2 again to select a sound source: RADIO or BUZZER.

· The Radio indicator is blink if radio source is selected and AL1 / AL2 indicator is light up.

· The buzzed indicator is blink if the buzzer sound is selected and AL1 / AL2 indicator is light up.

1. Press Time Set to confirm the ALARM TIMER.

2. Turn off the alarm.

- Press AL1/AL2 for two seconds and see the time is blink.

- Press AL1/AL2 for twice until the AL1/AL2 indicator is gone.

- Press Time Set to back clock.

* When the alarm sound is ring up, press ⏻ / FUNCTION to cancel the sound, and the alarm will ring up again tomorrow when time is on.

Note:

please do not remove the power, otherwise the alarm will be disappeared base on no battery power inside.

SNOOZE ALARM

When alarm sounds, press SNOOZE to activate the snooze time for 9 minutes.

· The AL1 / AL2 indicator keeps blinking.

SET SLEEP TIMER

This clock radio can switch to standby mode automatically after a preset period.

1. Press / FUNCTION to radio mode.

2. Press SNOOZE/DIMMER/SLEEP multi-function button repeatedly for 2 seconds to select the sleep timer period (in minutes).

To deactivate the sleep timer, press SNOOZE/DIMMER/SLEEP multi-function button repeatedly until back to OFF.

Sleep Timer period circle as follow:

ADJUST VOLUME

While listening, press + VOLUME – to adjust volume.

Press DIMMER repeatedly to select high or low brightness levels.

BATTERY BACK-UP

(For Temporary Time Storage Only)

Install 2 x LR06, AA or EU-3 battery (not included) according to polarity shown inside the battery compartment. In the event of a power interruption, your set will not work normally from the mains supply but there is now the advantage

that your clock will continue to work. The clock display will not light up, as the clock time will be held in the memory. This also enables you to move the set from place to place without re-setting the clock every time. The battery

back-up system is only meant to be used from short temporary power interruption. For longer durations, the battery may become exhausted or there may be some deviation in accuracy. When the battery is exhausted, it should be removed from the set to prevent leakage. If you do not wish to take advantage of the battery back-up system, your set will work normally without a battery.

However, if disconnected from the mains, the clock figures will flash when the mains are re-connected and you must re-set the clock as described in the Electronic Clock Operation paragraph. Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.

Attention should be drawn to the environmental aspects of battery disposal. Electrical products should not be disposal of with household waste. Please recycle where facilities exist. Check with your Local Authority of retailer for recycling device. (Batteries pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

SPECIFICATION

Power Source: AC 230V\~50Hz

Tuner Range: FM 87.5-108.0MHz

Power Consumption: 3.5 Watt

WAŻNE INFORMACJE

Press DIMMER repeatedly to select high or low brightness levels.

ZÁLOHOVÉ NAPÁJENÍ BATERIEMI

Rozsah FM rádia: FM 87.5-108.0MHz

Spotřeba energie: 3.5 Watt

DÔLEŽITÉ UPOZORNENIA
