BPUSC02 - Ultrasonic cleaner BLAUPUNKT - Free user manual and instructions

Product type	Ultrasonic cleaner
Brand	Blaupunkt
Model	BPUSC02
Device dimensions	173 x 82 x 41 mm
Tank dimensions	186 x 100 x 59 mm
Weight	0.53 kg
Input power	100-240 V~, 50/60 Hz, 800 mA max
Output power (adapter)	12 V DC, 2000 mA
Tank capacity	450 ml
Ultrasonic frequency	48 kHz
Protection rating	IP54
Noise level	< 60 dB
Cable length	1.5 m
Tank material	Stainless steel SUS304
Cleaning cycle duration	5 minutes automatic, can be stopped via on/off button
Main functions	Ultrasonic cleaning (cavitation), automatic shut-off, operating indicator
Maintenance and cleaning	Unplug before cleaning, empty and wipe the tank after use, do not use abrasive cleaners
Safety instructions	Do not use empty, do not immerse the device, use only indoors, do not clean delicate items (pearls, ivory, etc.)
Spare parts and repairability	No user-serviceable parts. The power adapter is included. Contact the manufacturer for any replacement.
General information	Electrical class II, indoor use only, compatible with dishwashing liquid for deep cleaning

Frequently Asked Questions - BPUSC02 BLAUPUNKT

How to use the Blaupunkt BPUSC02 ultrasonic cleaner?

Open the lid, fill the tank with water to the MAX mark, place the object to be cleaned in the water, close the lid, plug in the device and press the on/off button. The cleaning cycle lasts 5 minutes and stops automatically. Then unplug the device, remove the object and empty the tank.

What types of liquids can I use?

Use plain water for general cleaning. For deep cleaning, add a few drops of common dishwashing liquid, preferably without emollient additives. Never use flammable or corrosive liquids.

What objects can I clean with this device?

This device is suitable for cleaning many instruments and mechanical parts. Avoid cleaning delicate items such as pearls, ivory, coral, emeralds, non-waterproof watches, mobile phones, contact lenses, polycarbonate lenses, wood, leather, fabrics, etc.

Can I leave the device on unattended?

No, never leave the device on unattended. Always unplug it after use or before cleaning.

What should I do if the device does not work?

Check that the tank is filled with water (never run empty), that the adapter is correctly plugged in and that the power outlet is active. If the problem persists, contact the manufacturer or a qualified technician - do not attempt to repair the device yourself.

How to maintain the ultrasonic cleaner?

After each use, unplug the device, empty the tank and wipe it with a soft cloth. Never use abrasive cleaners. Allow the device to cool before storing it in a dry, cool place.

What is the tank capacity?

The maximum capacity is 450 ml. Do not exceed the MAX mark to avoid overflow.

Can I partially clean large objects?

Yes, for partial cleaning of large objects, you can use the device with the lid open. However, never touch the liquid during operation and keep your distance.

What is the lifespan of the device?

With proper maintenance, the device can last a long time. Avoid running it empty for more than 15 seconds and do not use it continuously for more than 45 minutes without a 20-minute break.

Is this cleaner suitable for contact lenses or jewelry?

No, it is not recommended for contact lenses, jewelry with precious or semi-precious stones (emerald, pearl, ivory, etc.), as well as fragile items such as glass frames or tortoiseshell. Use it for sturdy mechanical parts.

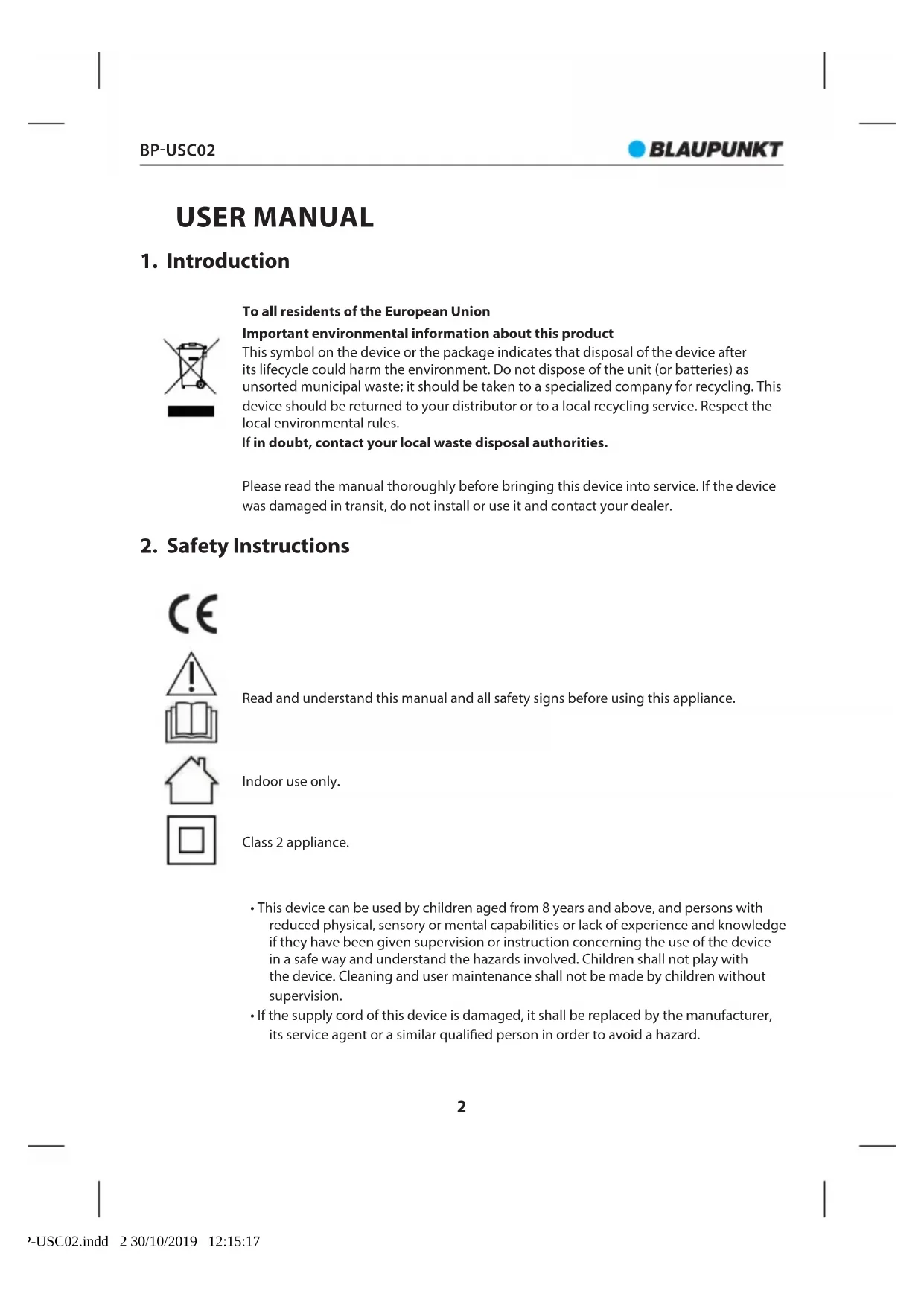

USER MANUAL BPUSC02 BLAUPUNKT

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

Class 2 appliance.

- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord of this device is damaged, it shall be replaced by the manufacturer, its service agent or a similar qualified person in order to avoid a hazard.

• Do not disassemble the appliance. There are no user-serviceable parts.
  • This appliance is for household use only.
• Never clean the tank with abrasive or corrosive materials.
• Unplug the appliance from the mains before filling up the tank. Fill the tank up to the limit level only.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Disconnect the appliance from the mains to clean it or when it is not in use. Handle the power cord by the plug only. Avoid touching the power cord with wet hands.
• Only use the appliance when the tank is filled with water.
• Never leave the appliance unattended when plugged in.
• Keep the appliance away from heat sources such as radiators. Operate only on a dry and level surface.
• Do not immerse the appliance.
• This appliance is suited to clean a wide range of materials. However, we recommend not to clean following items:
• delicate materials such as glass frames, (semi-) precious stones, jewellery, hawksbill, pearl, emerald, ivory, coral, agate...;
• objects, which can easily be discoloured, waterlogged or damaged;
  • brittle materials such as electronic devices, solder;
  • non water-resistant watches, mobile phones;
• other materials such as wood, leather, fabric, contact lenses, polycarbonate lenses, coated plastic lenses, ceramic, camera filters...

Special Safety Instructions

• Make sure to fill the tank with water before use.
• Never fill the tank with flammable or combustible materials.
• Do not use the appliance if you have a pacemaker.
• Only use the included adapter or an exact equivalent.

3. General Guidelines

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1 lid 3 on-off switch

2 tank 4 shell

5. Operation

Principle

Ultrasonic cleaning is based on the cavitation effect, caused by the vibration of high-frequency ultrasonic waves in the liquid.

As microscopic bubbles are formed, these implode and cause cavitation. This cavitation creates an intense scrubbing action on the surface of the item being cleaned. The bubbles are small enough to penetrate microscopic crevices, cleaning them thoroughly and consistently.

Ultrasonic cleaning is extremely effective in removing dirt and grime, which would normally require tedious manual cleaning. Use an ultrasonic cleaner to clean a wide variety of instruments and mechanical parts, returning them to almost brand new condition without damage to delicate parts.

General operation

1. Open the lid and fill the tank with water. Running the cleaner without water will damage the appliance. Do not exceed the MAX mark.

2. Put the item to be cleaned in the water and make sure it is completely immersed.

3. Close the lid and connect the cleaner to the mains. Press the on-off switch to switch on the cleaner. The cleaner will start the cleaning process. The cleaner will automatically switch off after 5 minutes of cleaning. Press the on-off switch to switch off the cleaning process prematurely.

4. Disconnect the cleaner from the mains. Open the lid and take out the cleaned item. Finally, empty the tank and wipe dry.

Cleaning Methods

General Cleaning

Use clear water for general cleaning. The object should be completely immersed. However, the water should not exceed the maximum fill level.

Thorough Cleaning

In order to obtain better results, you may add a few drops of universal detergent. We recommend using commercial dishwashing detergent – preferably without any lipid-replenishing substances (balm).

Partial Cleaning

For partial cleaning of larger objects, use the cleaner with its lid open. Make sure not to touch the liquid during operation!

Ultra-Cleaning

When items require extensive cleaning, use the thorough cleaning procedure first, refresh the water and repeat until the items are cleaned to satisfaction.

6. Cleaning and Maintenance

General

Before starting any cleaning or maintenance activities:

1. Unplug the appliance's power cord from the outlet.

2. Let the appliance cool down.

Cleaning

Do not turn on the ultrasonic cleaner without water in the tank. Running it for more than 15 seconds with an empty tank will damage the cleaner or severely reduce its life.

Do not run the ultrasonic cleaner continuously or for a long period of time. It is recommended to let it cool down for 20 minutes after every 45 minutes of continuous use.

Do not keep water in the cleaning tank after use. Empty the tank from the cleaning solution and wipe the tank dry.

Storage

Do not expose the ultrasonic cleaner to direct sunlight for a long period of time. Keep it in a dry, cool and ventilated place.

7. Technical Specifications

input.... 100-240 V\~, 50/60 Hz, 800 mA max.

output....12 VDC, 2000 mA

power consumption....15 W

tank volume....450 ml

ultrasonic frequency 48 kHz

IP rating.... IP54

low noise ....../< 60 dB

weight....0.53 kg

adaptor......included

cable length....1.5 m

connector....2.1 x 5.5 mm

dimensions

device 173 x 82 x 41 mm

tank....186 x 100 x 59 mm

tank material .... stainless steel SUS304

Use this device with original accessories only. The importer cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
