USER MANUAL AC 3100 RVKT TAURUS

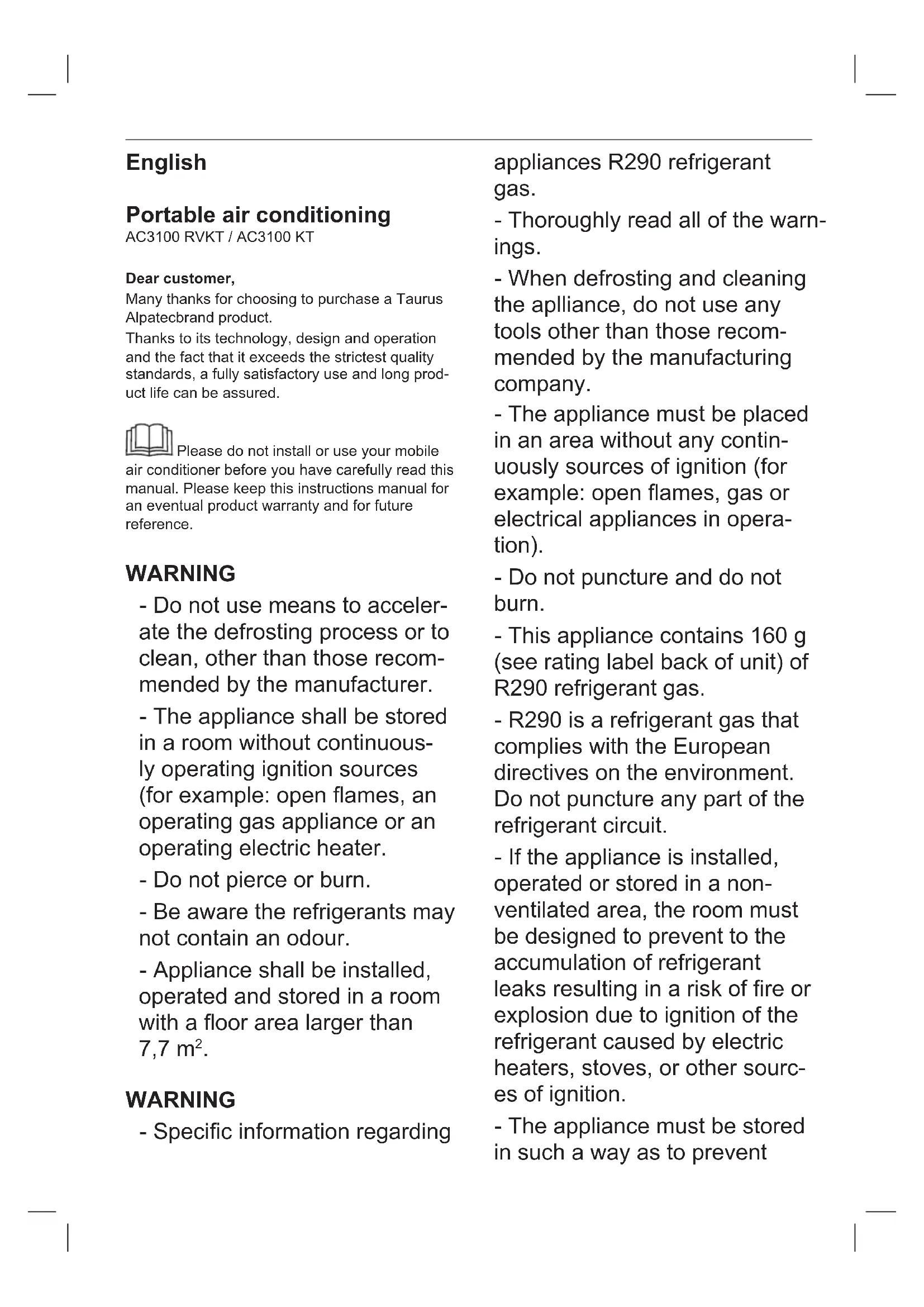

Dear customer, Many thanks for choosing to purchase a Taurus Alpatecbrand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long prod- uct life can be assured. Please do not install or use your mobile air conditioner before you have carefully read this manual. Please keep this instructions manual for an eventual product warranty and for future reference. WARNING - Do not use means to acceler- ate the defrosting process or to clean, other than those recom- mended by the manufacturer. - The appliance shall be stored in a room without continuous- ly operating ignition sources (for example: open ames, an operating gas appliance or an operating electric heater. - Do not pierce or burn. - Be aware the refrigerants may not contain an odour. - Appliance shall be installed, operated and stored in a room with a oor area larger than 7,7 m

WARNING - Specic information regarding appliances R290 refrigerant gas. - Thoroughly read all of the warn- ings. - When defrosting and cleaning the aplliance, do not use any tools other than those recom- mended by the manufacturing company. - The appliance must be placed in an area without any contin- uously sources of ignition (for example: open ames, gas or electrical appliances in opera- tion). - Do not puncture and do not burn. - This appliance contains 160 g (see rating label back of unit) of R290 refrigerant gas. - R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit. - If the appliance is installed, operated or stored in a non- ventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks resulting in a risk of re or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sourc- es of ignition. - The appliance must be stored in such a way as to preventmechanical failure. - Individuals who operate or work on the refrigerant circuit must have the appropriate certica- tion issued by an accredited organization that ensures com- petence in handling refrigerants according to a specic evalua- tion recognized by associations in the industry. - Repairs must be performed based on the recommendation from the manufacturing com- pany. Maintenance and repairs that require the assistance of other qualied personnel must be performed under the super- vision of an individual specied in the use of ammable refrig- erants.

SAFETY ADVICE AND WARN-

INGS - This appliance may be used by children aged 8 years and over and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge, if they have been given appropriate supervi- sion or training in the use of the appliance in a safe and Under- stand the dangers involved. - This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance. - Do not allow children to perform cleaning and maintenance with- out supervision. - Install the appliance in ac- cordance with national wiring regulations. - Leave a space of 30cm be- tween walls or other obstacles and the appliance. Do not cover or obstruct the sides of the ap- pliance, leaving at least 30 cm space around the appliance. - The product requires adequate ventilation in order to function properly. - The fuse used in the appliance is type: AC2A, electrical charac- teristics: 250V. - If the mains connection is dam- aged, it must be replaced. Take the appliance to an authorized service center. Do not attempt to disassemble or repair it your- self as it may be dangerous. - Before connecting the appliance, check that the voltage indicated on the nameplate matches the voltage on the rating plate. - Connect the appliance to a power socket that supports at least 16 amps. - The appliance plug must match the electrical socket of the socket. Never modify the plug. Do not use plug adapters. - Do not force the connecting cable. Never use the power cord to lift, carry or unplug the appliance. - Do not wrap the power cord around the appli- ance. - Check that the power cord is not pinched or bent. - Do not allow the connecting cord to hang or touch the hot surfaces of the appliance.- Check the condition of the electrical connection cable. Damaged or entangled cables increase the risk of electric shock. - It is recommended as an additional protection in the electrical installation that feeds the device, the use of a differential current device with a maximum sensitivity of 30 mA. Consult with an installer. - Do not touch the plug with wet hands. - Do not use the appliance with the damaged power cord or plug. - If any of the enclosures of the appliance breaks, immediately switch off the appliance - To avoid the possibility of electric shock. - Do not use the appliance if it has fallen, if there are visible signs of damage, or if there is a leak. - Use the appliance in a well-ventilated area. - If the appliance is used in the same room with other gas or fuel appliances, it must be well ventilated. - Do not place the appliance in direct sunlight. - Place the appliance on a horizontal, at, stable surface away from sources of heat and possible splashing water. - Do not use or store the appliance outdoors. - Do not expose the appliance to rain or mois- ture. Water entering the appliance will increase the risk of electric shock. - WARNING: Do not use the appliance near water. - Do not force the connecting cable. Never use the power cord to lift, carry or unplug the appli- ance. Keep the device away from heat sources and sharp edges. USE AND CARE: - Before each use, completely unplug the power cable from the power supply. - Do not use the appliance if its start / stop device does not work. Do not remove the legs from the appliance. Do not move the appliance while it is in use. - Use the handles to take or transport the appli- ance. - Do not turn the appliance over while it is in use or connected to the mains. - Unplug the power supply from the mains when not in use and before performing any cleaning operations. - This appliance is intended for household use only, not for pro- fessional or industrial use. - Keep this appliance out of the reach of children and / or persons with reduced physical, sensory or mental abilities or who are unfamiliar with its use. - Do not expose the appliance to extreme tem- peratures. Keep the device in a dry, dust-free place protected from direct sunlight. Never leave the appliance unattended. It will also save energy and prolong the life of the device. - Any improper use, or in disagreement with the instructions for use, can be dangerous, voiding the manufacturer’s warranty and liability. SERVICE - Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories. - Any improper use, or in disagreement with the instructions for use, can be dangerous, voiding the manufacturer’s warranty and liability. DESCRIPTION A On / Off B Temperature / Time + C Temperature / Time - D Cooling mode / dehumidier / fan / heat * E Power F Timer G Display (*) Only available in AC3100RVKT model INDICATORS a Water tank full b Power 1 c Power 2 d Timer e Cold mode f Dehumidier mode g Fan h Heating mode* (*) Only available in AC3100RVKT model REMOTE CONTROL 1 Power 2 + Temperature / Time

3 - Temperature / Time

4 Mode 5 Timer 6 On / Off INSTALLATION - Be sure to remove any packing material from the inside of the appliance.- Respect the legal provisions regarding safety distances with other elements such as pipes, electric conductors, etc. - Make sure the appliance is level with the oor - Do not cover or obstruct any openings in the appliance. - The plug must be easily accessible in order to disconnect it in case of emergency. MOUNTING THE EXHAUST PIPE: - Stretch the tube, and screw its end to the air outlet connector. - The length of the air outlet pipe conforms to the technical characteristics of the appliance. Do not use air outlet tubes of different sizes or materials, as they may cause faults.

USE: - Unwind the cable completely before plugging in. - Plug the appliance into the mains. - Orient the appliance to direct the air ow to the desired direction. - Switch the appliance on by pressing the On / Off button (A). - Select the desired mode (D). - Select desired speed (E). TIMER FUNCTION: SETTING THE TIMER ON: - When the air conditioner is off, press the “F” button and select the desired power-on time through the temperature and time adjustment buttons. - The on time can be set up to 24 hours. - The programmed time or remaining time will appear in the display (G). SETTING THE TIMER OFF: - When the air conditioner is on, press the “F” button and select the desired sleep time through the temperature and time adjustment buttons. - The shut-off time can be set up to 24 hours. - The programmed time or remaining time will appear in the display (G). COLD MODE: - Press mode (D) to select cold mode, the cold mode indicator will light up (e). - Press + or - to set the temperature in a range of 16 ~ 31 ° C (61 ~ 88 ° F). - Pressing + or - once, the temperature will increase or decrease gradually. - Press (E) to select high or low fan speed. HEATING OPERATION * - Press the “D” button till the “h” icon appears. - Press the “TEMP+”or“ TEMP-” button to select a desired room temperature (16 ºC - 31 ºC) - Press the “E” button to select wind speed. (*) Only available in AC3100RVKT model FAN MODE: - Press mode (D) to select the fan mode and the fan indicator will light up. Power (g) power to increase or decrease power speed. DEHUMIDIFIER MODE: - Press (D) to select the mode - Dehumidication mode indicator, and the dehu- midication mode indicator will light up (f). COMPRESSOR PROTECTION: - Three minutes after pressing on / restarting, the compressor will start to operate. PROTECTION OF THE WATER TANK: - When the water level in the lower water plate is below the warning level, the appliance will notify you automatically. - Please pour the water in the machine accord- ing to the instructions in the chapter “water drainage”. WATER DRAINAGE: - When the inside of the water tank is full, the indicator will light up on the display. - The device enters the standby mode. - Remove the plug to remove the water, turn the machine off and on again, the machine will operate normally. - This model has a self-evaporating function, in the cold mode, please do not make continuous drains to get a greater effect of cold. ONCE THE APPLIANCE HAS BEEN USED: - Stop the appliance by pressing button (A) on/off - Unplug the appliance from the mains. - Unplug the appliance from the mains and allow it to cool down before starting any cleaning operation. - Clean the electrical assembly and the mains plug with a damp cloth and dry them after- wards. NEVER SUBMIT THEM IN WATER OR

ANY OTHER LIQUID.CLEANING

- Wipe the appliance with a damp cloth impreg- nated with a few drops of detergent. Do not use solvents or products with an acidic or basic pH factor such as bleach or abrasive products to clean the apparatus. - Do not immerse the connector in water or other liquid or place it under the tap. If the appliance is not maintained in good condition - Cleaning, its surface can be degraded and inex- orably affect the life of the appliance and lead to a dangerous situation. CLEANING THE AIR FILTER: - Clean the air lters every 2 weeks. If the air lter is blocked with dust, its effectiveness will be reduced. - Washing the air lters by submerging them - Carefully in warm water with a neutral deter- gent, rinse them off and let them dry completely in a shady place. - Install the lters carefully after having them cleaned. AFTER PERIODIC MAINTENANCE: - Switch off the appliance and remove the plug. - Separate the exhaust pipe from the air and store it carefully. - Put the appliance in a dry place. - Remove the batteries from the remote control and store them carefully.

ANOMALIES AND REPAIR

- In the event of a fault, take the appliance to an authorized service center. Do not attempt to dis- assemble or repair it as there may be danger. - Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certicate from an industry-ac- credited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specication. - Servicing shall only be performed as recom- mended by the equipment manufacturer. Main- tenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of ammable refrigerants. - If any fault is detected, refer to the following table: Problem Causes Solutions Product is not working No llega corriente. Indicador de llenado de agua iluminado Switch on device Empty water tank Start device after empty water tank Seems device is not working Windows or doors are open Dirty lter Air inlet or outlet are block Room temperature is lower than the programated Close courtains Close windows Clean or change air lter Clean container Change temperature setting Devide noise too loud Device is not in a at surface Change device in a at surface Compressor is not working Overheat protection is activa- ted Switch on device after 3 minutes, when temperature is lower Detection codes Meaning E0: Temperature sensor problem E2/E4: Water tank fullThe appliance contains ammable refrigerant. FOR EU VERSIONS OF THE PRODUCT AND / OR IF APPLICABLE IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE

PRODUCT - The materials that constitute the packaging of this apparatus, are integrated in a system of collection, classication and recycling of the same. If you want to dispose of them, you can use the appropriate public containers for each type of material. - The product is exempt from concentrations of substances which may be considered harmful to the environment. This symbol means that if you want to dispose of the product, after the end of its life, you must deposit it by the appropriate means at the disposal of an authorized waste manager for the selective collection of Waste Electrical and Electronic Equipment (WEEE). This symbol means that the product may have batteries or batteries inside it, which must be removed before disposing of the product. Remember that batteries must be disposed of in special autho- rized containers. And they should never be thrown into the re. This appliance complies with Directive 2014/35/ EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/ EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products. Model AC3100RVKT/ AC3100KT Rated capacity for cooling (P rated for cooling) 3,0 kW Rated capacity for heating (P rated for heating)* 2,8 kW Rated power input for cooling (P EER ) 1,149 kW Rated power input for heating (P COP )* 1,217 kW Rated Energy efciency ratio (EER

) 0,5W Rated Coefcient of performance (COPd) 2,61 Power Consumption in Standby mode (P

) 2,30 Electricity consumption of single/double duct appliances (Q

eq. (*) Only available in AC3100RVKT modelINSTRUCTIONS FOR REPAIR-

- Prior to beginning work on systems containing ammable refrigerants, safety checks are nec- essary to ensure that the risk of ignition is mi- nimised. For repair to the refrigerating system, the following precautions shall be complied with prior to con-ducting work on the system. WORK PROCEDURE - Work shall be undertaken under a controlled procedure so as to minimise the risk of a am- mable gas or vapour being present while the work is being performed.

- All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in conned spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of ammable material.

CHECKING FOR PRESENCE OF REFRIGERANT

- The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially ammable atmospheres. Ensure that the leak tection equipment being used is suitable for use with ammable refrigerants, i.e. nonsparking, adequately sealed or intrinsically safe.

PRESENCE OF FIRE EXTINGUISHER

- If any hot work is to be conducted on the refrigeration equipment or any associated parts, propriate re extinguishing equipment shall be available to hand. Have a dry powder or CO 2 re extinguisher adjacent to the charging area.

- No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained ammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of re or explosion. All possible ignition sources, including igarette smoking, should be kept sufciently far away from the site of installation, repairing, removing and disposal, during which ammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equip- ment is to be surveyed to make sure that there are no ammable hazards or ignition risks. “No Smoking” signs shall be displayed. VENTILATED AREA - Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmo- sphere.

CHECKS TO THE REFRIGERATION EQUIPMENT

- Where electrical components are being changed, they shall be t for the purpose and to the correct specication. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult the manufacturer’s technical department for as- sistance.The following checks shall be applied to installations using ammable refrigerants: the charge size is in accordance with the room size within which the refrigerant containing parts are installed; the ventilation machinery and outlets are operating adequately and are not obstruct- ed; if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

CHECKS TO ELECTRICAL DEVICES

- Repair and maintenance to electrical compo- nents shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. - Initial safety checks shall include: that capac-itors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that there no live electrical components and wiring are exposed while charging, recovering or purging the system; that there is continuity of earth bonding.

REPAIRS TO SEALED COMPONENTS

- During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolute- ly necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation. - Particular attention shall be paid to the following to ensure that by working on electrical compo- nents, the casing is not altered in such a way that the level of protection is affected. - This shall include damage to cables, excessive number of connections, terminals not made to original specication, damage to seals, incor- rect tting of glands, etc. Ensure that appara- tus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of prevent- ing the ingress of ammable atmospheres. Replacement parts shall be in accordance with the manufacturer’s specications. - NOTE The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

REPAIR TO INTRINSICALLY SAFE COMPO-

NENTS - Do not apply any permanent inductive or ca- pacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a ammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specied by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak. CABLING - Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

DETECTION OF FLAMMABLE REFRIGE-

RANTS - Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked ame) shall not be used.

LEAK DETECTION METHODS

- The following leak detection methods are deemed acceptable for systems contain- ing ammable refrigerants. Electronic leak detectors shall be used to detect ammable refrigerants, but the sensitivity may not be adequate, or may need recalibration. (Detection equipment shall be calibrated in a refriger- ant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrig- erant employed and the appropriate percentage of gas (25 % maximum) is conrmed. Leak detection uids are suitable for use with most refrigerants but the use of detergents contain- ing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked ames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

REMOVAL AND EVACUATION

- When breaking into the refrigerant circuit to make repairs – or for any other purpose – con- ventional procedures shall be used. However, it is important that best practice is followed since ammability is a consideration. The following procedure shall be adhered to: remove refriger- ant; purge the circuit with inert gas; evacuate; purge again with inert gas; open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylin- ders. The system shall be “ushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum inthe system with OFN and continuing to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the nal OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipework are to take place. - Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available. CHARGING PROCEDURES - In addition to conventional charging proce- dures, the following requirements shall be followed. - Ensure that contamination of different refrig- erants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. - Cylinders shall be kept upright. - Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. - Label the system when charging is complete (if not already). - Extreme care shall be taken not to overll the refrigeration system. - Prior to recharging the system, it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site. DECOMMISSIONING - Before carrying out this procedure, it is essen- tial that the technician is completely familiar with the equipment and all its detail. It is rec- ommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before attempting the procedure ensure that: mechanical handling equipment is available, if required, for handling refrigerant cylinders; all personal protective equipment is available and being used correctly; the recovery process is supervised at all times by a competent person; recovery equipment and cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a mani- fold so that refrigerant can be removed from various parts of the system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer’s instructions. h) Do not overll cylinders. (No more than 80 % volume liquid charge).

i) Do not exceed the maximum working pressure

of the cylinder, even temporarily. j) When the cylinders have been lled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked. LABELLING - Equipment shall be labelled stating that it has been de-commissioned and emptied of refriger- ant. The label shall be dated and signed. - Ensure that there are labels on the equipment stating the equipment contains ammable refrigerant. RECOVERY - When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refriger- ant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrig- erant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. - The recovery equipment shall be in good work- ing order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of ammable refriger- ants. In addition, a set of calibrated weighing scales shall be available and in good workingorder. Hoses shall be complete with leak-free disconnect couplings and in good condition. Be- fore using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult man- ufacturer if in doubt. - The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compres- sors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that ammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out pri- or to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

COMPETENCE OF SERVICE

PERSONNEL GENERAL - Special training additional to usual refrigerat- ing equipment repair procedures is required when equipment with ammable refrigerants is affected. - In many countries, this training is carried out by national training organisations that are accred- ited to teach the relevant national competency standards that may be set in legislation. - The achieved competence should be docu- mented by a certicate. TRAINING - The training should include the substance of the following: - Information about the explosion potential of ammable refrigerants to show that ammables may be dangerous when handled without care. - Information about potential ignition sources, especially those that are not obvious, such as lighters, light switches, vacuum cleaners, electric heaters. - Information about the different safety concepts: - Unventilated – (see Clause GG.2) Safety of the appliance does not depend on ventilation of - the housing. Switching off the appliance or opening of the housing has no signicant effect on the safety. Nevertheless, it is possible that leaking refrigerant may accumulate inside the enclosure and ammable atmosphere will be released when the enclosure is opened. - Ventilated enclosure – (see Clause GG.4) Safe- ty of the appliance depends on ventilation of - the housing. Switching off the appliance or opening of the enclosure has a signicant effect - on the safety. Care should be taken to ensure a sufcient ventilation before. - Ventilated room – (see Clause GG.5) Safety of the appliance depends on the ventilation of - the room. Switching off the appliance or open- ing of the housing has no signicant effect on - the safety. The ventilation of the room shall not be switched off during repair procedures. - Information about the concept of sealed compo- nents and sealed enclosures according to IEC 60079-15:2010. - Information about the correct working proce- dures: COMMISSIONING - Ensure that the oor area is sufcient for the refrigerant charge or that the ventilation duct is assembled in a correct manner. - Connect the pipes and carry out a leak test before charging with refrigerant. - Check safety equipment before putting into service. MAINTENANCE - Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with ammable refrigerants. - Ensure sufcient ventilation at the repair place. - Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrig- erant leak is possible. - Discharge capacitors in a way that won’t cause any spark. The standard procedure to short circuit the capacitor terminals usually creates sparks. - Reassemble sealed enclosures accurately. If seals are worn, replace them. - Check safety equipment before putting into service. REPAIR - Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with ammable refrigerants. - Ensure sufcient ventilation at the repair place. - Be aware that malfunction of the equipmentmay be caused by refrigerant loss and a refrig- erant leak is possible. - Discharge capacitors in a way that won’t cause any spark. - When brazing is required, the following proce- dures shall be carried out in the right order: - Remove the refrigerant. If the recovery is not required by national regulations, drain - the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not oat back into the building. - Evacuate the refrigerant circuit. - Purge the refrigerant circuit with nitrogen for 5 min. - Evacuate again. - Remove parts to be replaced by cutting, not by ame. - Purge the braze point with nitrogen during the brazing procedure. - Carry out a leak test before charging with refrigerant. - Reassemble sealed enclosures accurately. If seals are worn, replace them. - Check safety equipment before putting into service. DECOMMISSIONING - If the safety is affected when the equipment is putted out of service, the refrigerant charge shall be removed before decommissioning. - Ensure sufcient ventilation at the equipment location. - Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrig- erant leak is possible. - Discharge capacitors in a way that won’t cause any spark. - Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not oat back into the building. - Evacuate the refrigerant circuit. - Purge the refrigerant circuit with nitrogen for 5 min. - Evacuate again. - Fill with nitrogen up to atmospheric pressure. - Put a label on the equipment that the refrigerant is removed. DISPOSAL - Ensure sufcient ventilation at the working place. - Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not oat back into the building. - Evacuate the refrigerant circuit. - Purge the refrigerant circuit with nitrogen for 5 min. - Evacuate again. - Cut out the compressor and drain the oil.

TRANSPORTATION, MARKING AND STOR-

FLAMMABLE REFRIGERANTS - Attention is drawn to the fact that additional transportation regulations may exist with re- spect to equipment containing ammable gas. The maximum number of pieces of equipment or the conguration of the equipment, permitted to be transported together will be determined by the applicable transport regulations.

MARKING OF EQUIPMENT USING SIGNS

- Signs for similar appliances used in a work area generally are addressed by local regulations and give the minimum requirements for the provision of safety and/or health signs for a work location. - All required signs are to be maintained and em- ployers should ensure that employees receive suitable and sufcient instruction and training on the meaning of appropriate safety signs and the actions that need to be taken in connection with these signs. - The effectiveness of signs should not be dimin- ished by too many signs being placed together. - Any pictograms used should be as simple as possible and contain only essential details.

- The storage of equipment should be in accor- dance with the manufacturer’s instructions. - Storage of packed (unsold) equipment- Storage package protection should be con- structed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. - The maximum number of pieces of equipment permitted to be stored together will be deter- mined by local regulations.Français Climatiseur portable
