Brand	Taurus
Model	Unlimited 29.0 Lithium
Appliance type	Cordless stick vacuum cleaner
Battery technology	Lithium-ion
Charger input voltage	100-240 V ~ 50/60 Hz
Charger output voltage	36 V
Charger output current	0.5 A
Charging time	4 to 6 hours
Number of speeds	2 (ECO and TURBO)
Filter type	Fabric filter (washable)
Included accessories	Hand vacuum, tube, rotating brush (Turbobrush), upholstery brush, charging base, charger
Features	Folding handle, parking position, charge indicator, removable hand vacuum
Maintenance	Empty the dust container after use, clean the filter regularly, clean the rotating brush
Safety	Do not vacuum liquids, do not use without filter, do not immerse, unplug before cleaning
Warranty	Complies with applicable legislation, approved technical service
Manufacturer	Electrodomésticos Taurus, S.L., Avda. Barcelona, s/n, 25790 Oliana, Lleida, Spain
Certifications	Complies with directives 2014/35/EU, 2014/30/EU, 2011/65/EU, 2009/125/EC
Use	Household use only

Frequently Asked Questions - Unlimited 29.0 Lithium TAURUS

How to charge the appliance?

Place the appliance on its charging base (O) or plug the charger directly. The indicator flashes during charging and stays solid when complete. Full charging time is 4 to 6 hours. Use only the supplied charger.

How to use the hand vacuum?

Press the release button (H) to remove the hand vacuum from the main body. You can then use the accessories (upholstery brush, flat nozzle) by clipping them on directly. Press the On/Off button (I) to start.

How to empty the dust container?

When the container is full or suction decreases, remove the hand vacuum, then detach the reservoir by pressing the release button (J). Empty the contents into a trash bin. Clean the fabric filter regularly.

How to clean the filter?

Remove the dust reservoir, then extract the fabric filter and the protective piece. Wash the filter with warm water and let it dry completely before reassembling. Do not use harsh detergents.

How to clean the rotating brush?

Remove the transparent cover of the Turbobrush base, lift the brush by the end. Remove tangled hair or threads. To reassemble, insert the brush into its housing, align the cover and press until it clicks.

What to do if suction decreases?

Check that the dust container is not full. Clean the fabric filter. Check that the rotating brush is not blocked. If the problem persists, contact an approved technical service.

Can I vacuum liquids?

No, this vacuum is designed only for dry dust. Never vacuum water or liquid to avoid damaging the appliance.

How to store the appliance?

The appliance has a parking position and a folding handle for easy storage. You can also place it on its wall charging base.

What to do in case of breakdown?

Do not attempt to repair the appliance yourself. Entrust it to an approved technical support service. Use only original spare parts.

How to remove the battery for recycling?

Unplug the appliance and fully discharge the battery. Open the top housing with a screwdriver, cut the battery cables while insulating the ends with adhesive tape, then remove the battery. Dispose of the battery in a special container.

USER MANUAL Unlimited 29.0 Lithium TAURUS

Stick vacuum cleaner

Aspirateur balai

Bodenstaubsauger

Scopa elettrica

Line drawing of a vacuum cleaner with long handle and base mount (no text or symbols)

Diagram showing a mechanical assembly with a cutaway view and directional arrows, labeled Fig.1 (no text or symbols on the diagram itself)

Fig.2 Fig.3

Line drawing of a mechanical device with an arrow indicating rotation, labeled 'Fig.4 F' (no text or symbols on the diagram itself)

Fig.4 Fig.5

Line drawing of a mechanical component with a cylindrical top and rectangular base, labeled Fig.6 (no text or symbols on the diagram itself)

Diagram of a mechanical component with two curved arrows indicating motion or force direction (no text or symbols)

Technical line drawing showing hands operating a mechanical device with a tool, no text or symbols present

Español

Aspirador escoba

Unlimited 29.0 Lithium

Inedit 29.6 Lithium

Guzzler 29.0 Lithium

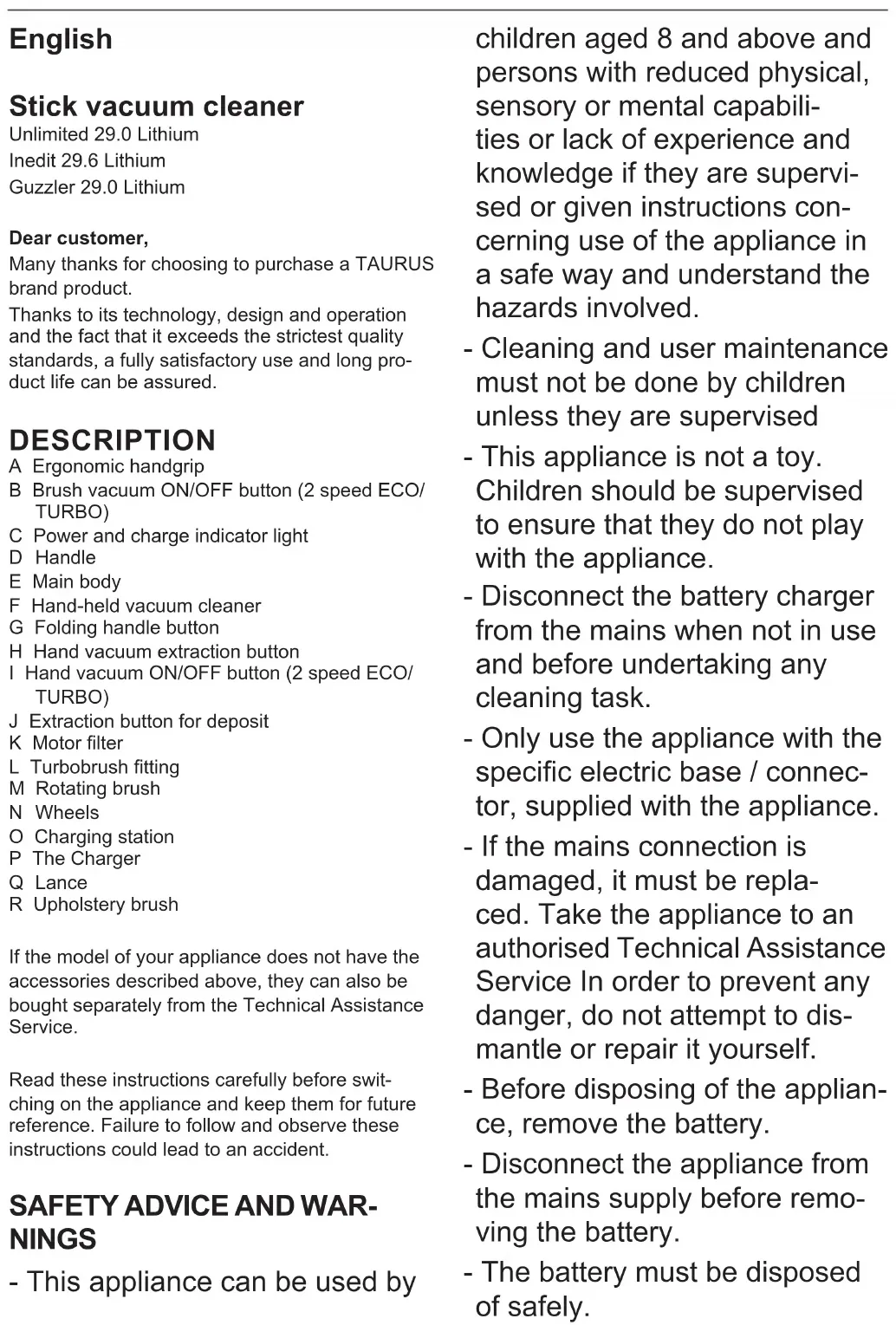

Stick vacuum cleaner

Unlimited 29.0 Lithium

Inedit 29.6 Lithium

Guzzler 29.0 Lithium

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

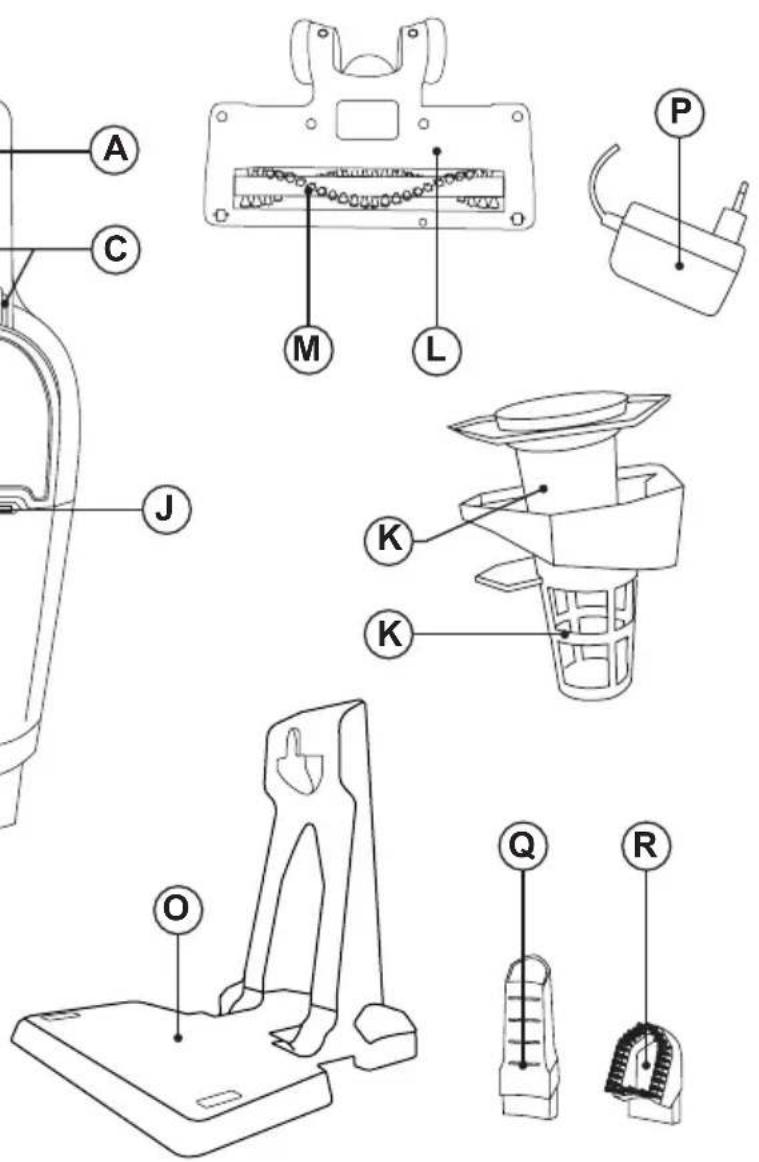

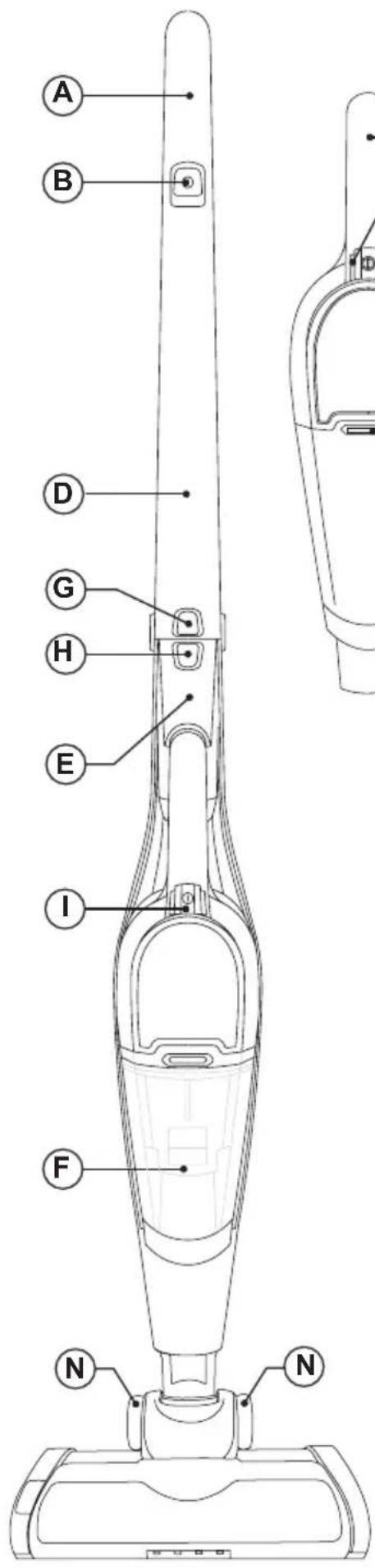

DESCRIPTION

A Ergonomic handgrip

B Brush vacuum ON/OFF button (2 speed ECO/TURBO)

C Power and charge indicator light

D Handle

E Main body

F Hand-held vacuum cleaner

G Folding handle button

H Hand vacuum extraction button

I Hand vacuum ON/OFF button (2 speed ECO/TURBO)

J Extraction button for deposit

K Motor filter

L Turbobrush fitting

M Rotating brush

N Wheels

O Charging station

P The Charger

Q Lance

R Upholstery brush

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR- NINGS

- This appliance can be used by

children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or given instructions concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance must not be done by children unless they are supervised

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Disconnect the battery charger from the mains when not in use and before undertaking any cleaning task.

- Only use the appliance with the specific electric base / connector, supplied with the appliance.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.

- Before disposing of the appliance, remove the battery.

- Disconnect the appliance from the mains supply before removing the battery.

- The battery must be disposed of safely.

• Ensure that the voltage indicated on the charger rating label matches the mains voltage before plugging in the charger
• The plug on the battery charger must fit into the power outlet socket properly. Do not modify the plug. Do not use plug adaptors.
• Do not force the power cord. Do not force the power cord. Never use the power cord to lift up, carry or unplug the battery charger.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Avoid all contact with the liquid that could be released from the battery. In case of contact with eyes, wash them thoroughly and seek medical advice. The liquid spilled from the battery may accuse irritation or burns

USE AND CARE:

• Do not use the appliance if its filter(s) are not correctly in place.
• Do not use the appliance to vacuum up water or any other type of liquid.
• Respect the MAX level indicator
• This appliance is for household use only, not professional or industrial use.
• This appliance should be stored out of reach of children and/or those with reduced physical, sensorial or mental abilities or who are unfamiliar with its use.
• Use the appliance, its accessories and tools in accordance with these instructions. Take working conditions and job to be carried out into consideration. Using the appliance for anything other than its intended use can create hazards.
• Do not operate on areas which contain metal objects such as nails and/or screws.
• Never vacuum hot or sharp objects (cigarette butts, ash, nails, etc.).
• Do not open the battery/ies under any circumstances whatsoever.
• Do not use the appliance with pets or animals
• Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery

- Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories
• Any misuse or failure to follow the instructions for use may be dangerous, rendering the guarantee and the manufacturer's liability null and void.

INSTALLATION

- Be sure to remove all packaging material from inside the appliance.

Assembling the charger station:

• The appliance has a charger station (O) which should be fix to a wall.

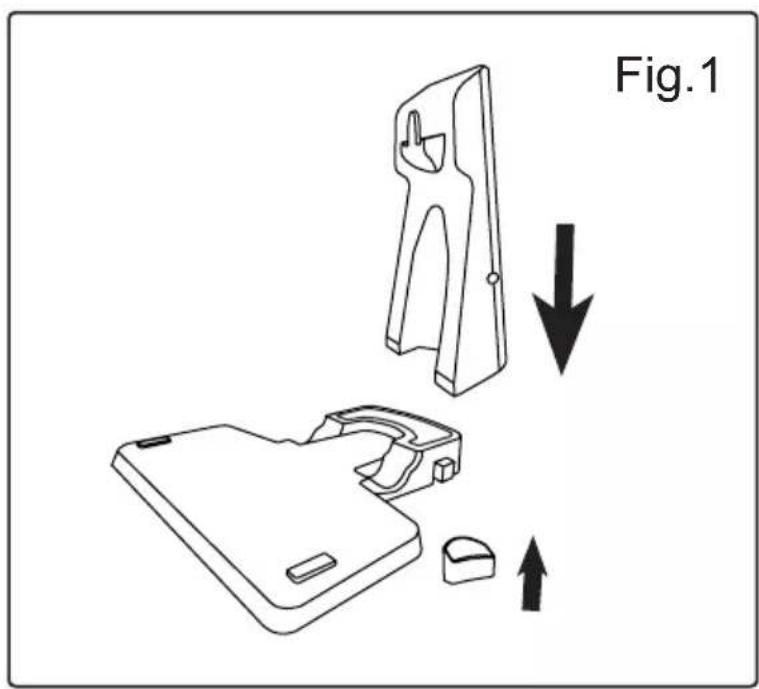

• Connect the two parts for the bottom of the charger station. (Fig.1)
• Fit the appliance into its charger station. (O)

CHARGING THE BATTERY

Caution: The new battery does not come completely charged and must be charged up to the maximum before using the appliance for the first time.
- Charge the battery at room temperature between 4 and 40°C.
- Plug the charger (P) into the mains.
- Approximately 4-6 hours are needed for a complete charge of the battery Never attempt to over-charge the batteries
- While the battery is charging, the pilot light will flash, indicating that the charger is charging the battery. (C)
- The pilot lamp will remain permanently on when the charge is complete. Disconnect the charger from the mains supply.

INSTRUCTIONS FOR USE

USE:

• Remove the appliance from its charger station.
• Turn the appliance on, by using the on/off switch. (B)
• The ON indicator lamp will light up. (C)
• Select the desired power.

• Press once for ECO speed / press twice for TURBO speed.

• To use the hand vacuum:

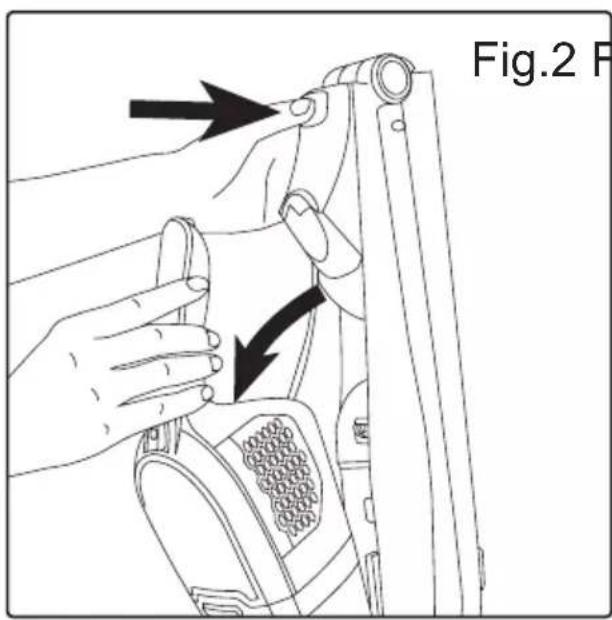

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Turn the appliance on, by using the on/off switch. (I)

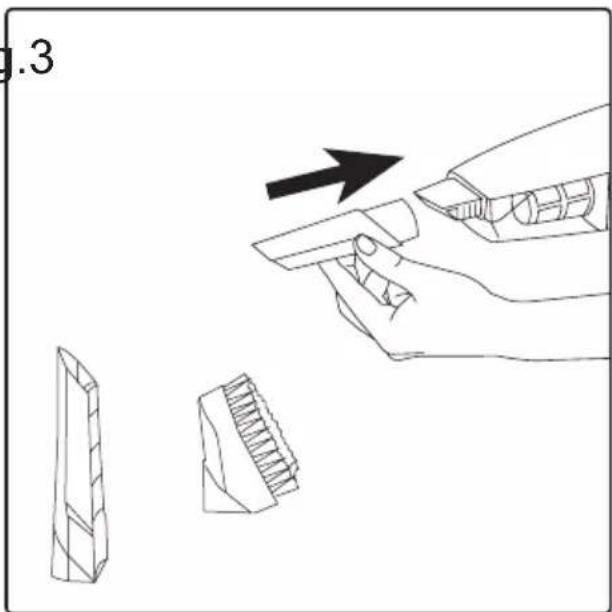

FITTING AN ACCESSORY TO THE HAND VACUUM:

• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• The hand vacuum is designed in such a way that it allows the following accessories to be fitted: (use the combination that best meets your requirements). (Fig.3)
• Furniture brush: Equipped with a brush at the end, which brushes the surface as it is used.
• Crevice nozzle: Specially designed for getting into cracks and difficult corners.

PARKING POSITION:

- This appliance has one parking position for comfortable and straightforward storage.

FOLDING HANDLE:

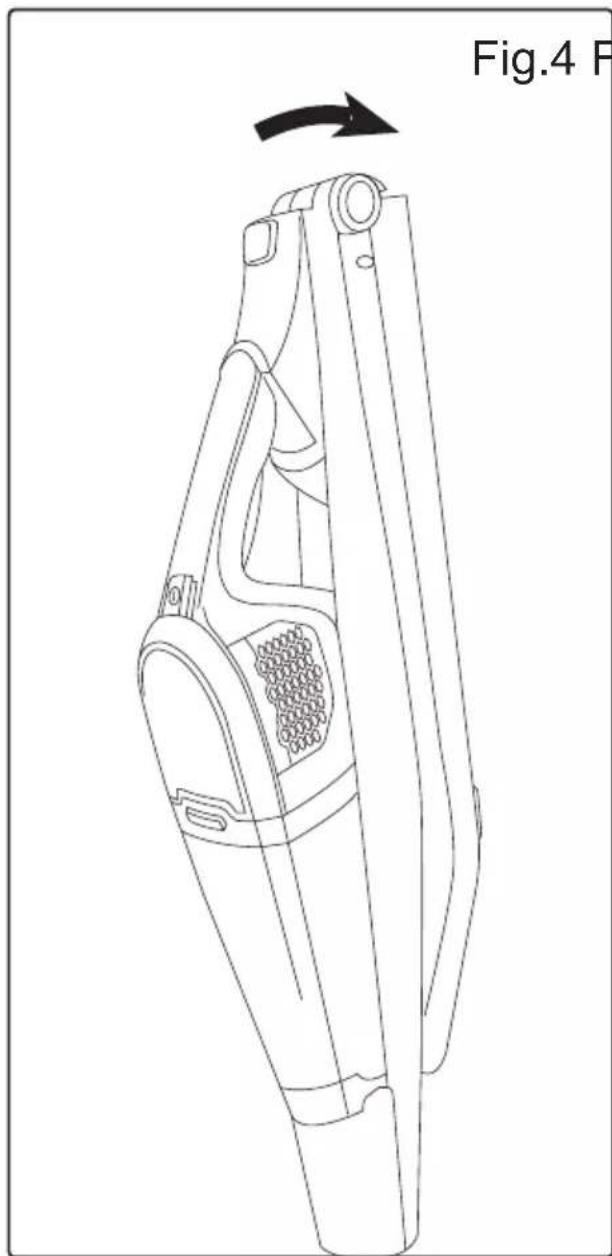

- This appliance has a folded handle position for easy storage. (Fig.4)

CLEANING

• Disconnect the charger from the mains and let it cool before undertaking any cleaning task.
• Clean the appliance using a damp cloth with a few drops of detergent and then dry it.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

• Empty the vacuum deposit when dust is visible though the transparent walls, when it is full, or when the vacuum cleaner does not work to its full potential.
• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)

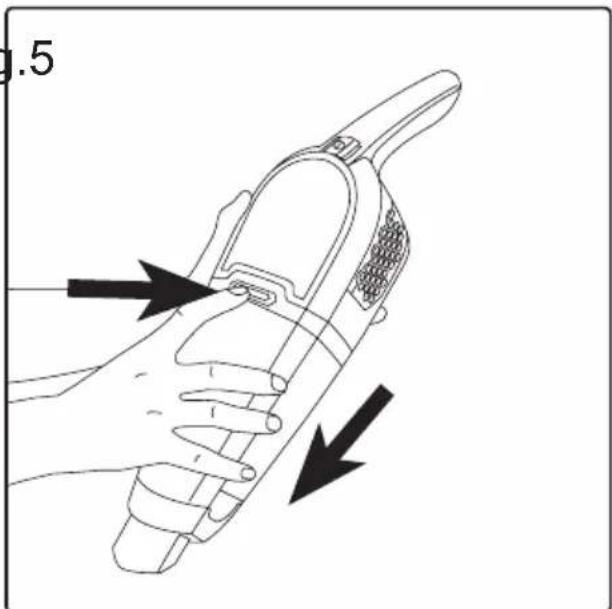

  Disconnect the dust box from the appliance. (Fig. 5)

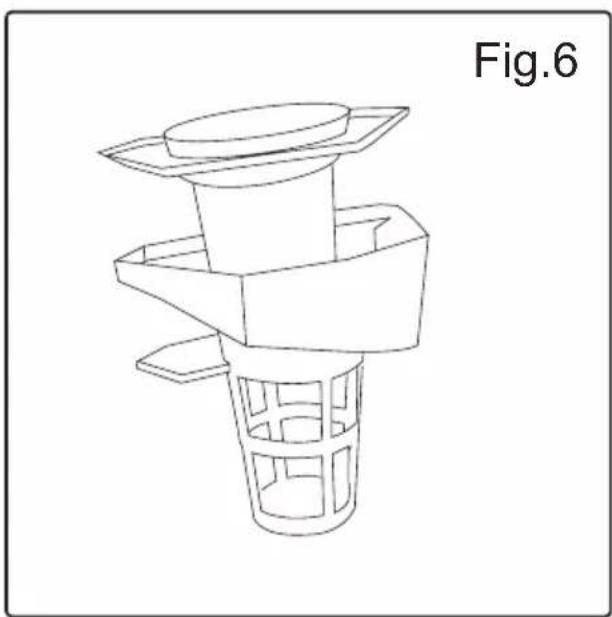

• Remove the cloth filter and its protector. (Fig. 6)
• Empty the contents into a suitable rubbish container.
• Clean the dust box filter.
• Attach the dust box to the appliance.
  To reassemble, follow the above instructions but

in reverse.

CHANGING THE FILTERS:

• To remove filters:
• Press the hand vacuum extraction button (H) on the brush vacuum's main body (E). (Fig. 2)
• Disconnect the dust box from the appliance. (Fig 5)
• Remove the cloth filter and its protector. (Fig. 6)
• To reassemble the filter, proceed with the above instructions, in reverse order.

CLEANING THE ROTARY BRUSH:

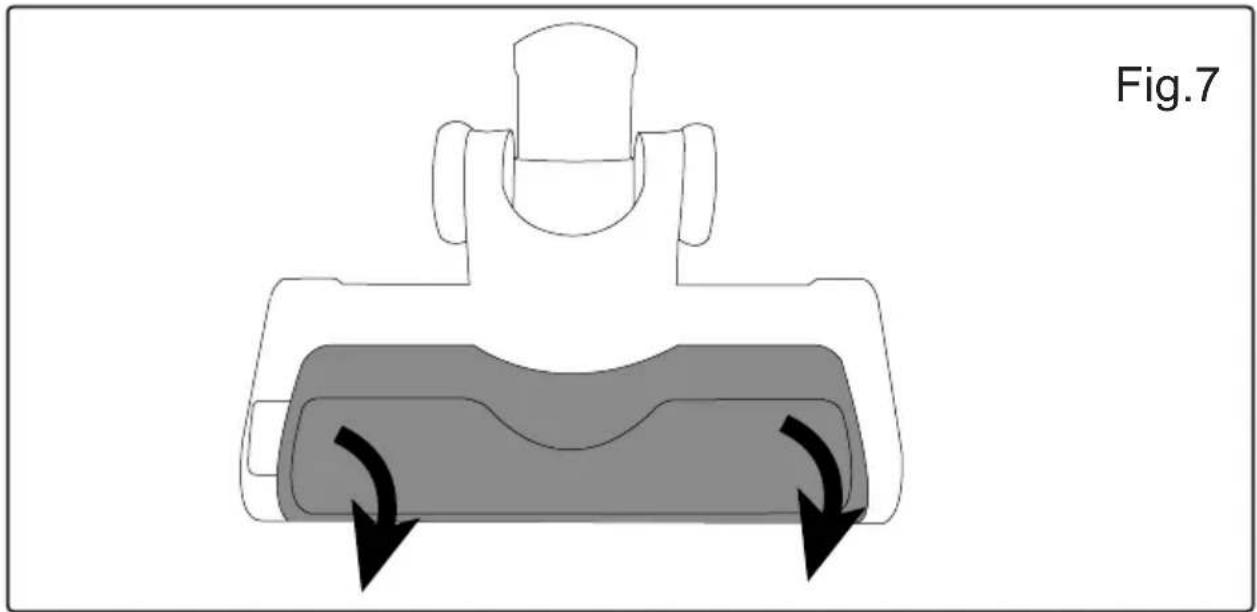

• Remove the transparent cover from the top of the motorized brush. (Fig. 7)
• Lift the brush by the piece at the end of the brush.
• To mount, insert the brush into the anchor, align the cover with the tabs on the front and press until you hear the click.

SUPPLIES

• Supplies can be acquired from distributors and authorised establishments (such as filters, etc.) for your appliance model.
• Always use original supplies, designed specifically for your appliance model.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This symbol means that the product may include a battery or batteries; the user must remove them before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in fire.

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

Caution: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.

Caution: the appliance must be disconnected from the mains when removing the batteries.

TO REMOVE THE BATTERIES, ONCE THE LIFE OF THE APPLIANCE, PROCEED AS FOLLOWS:

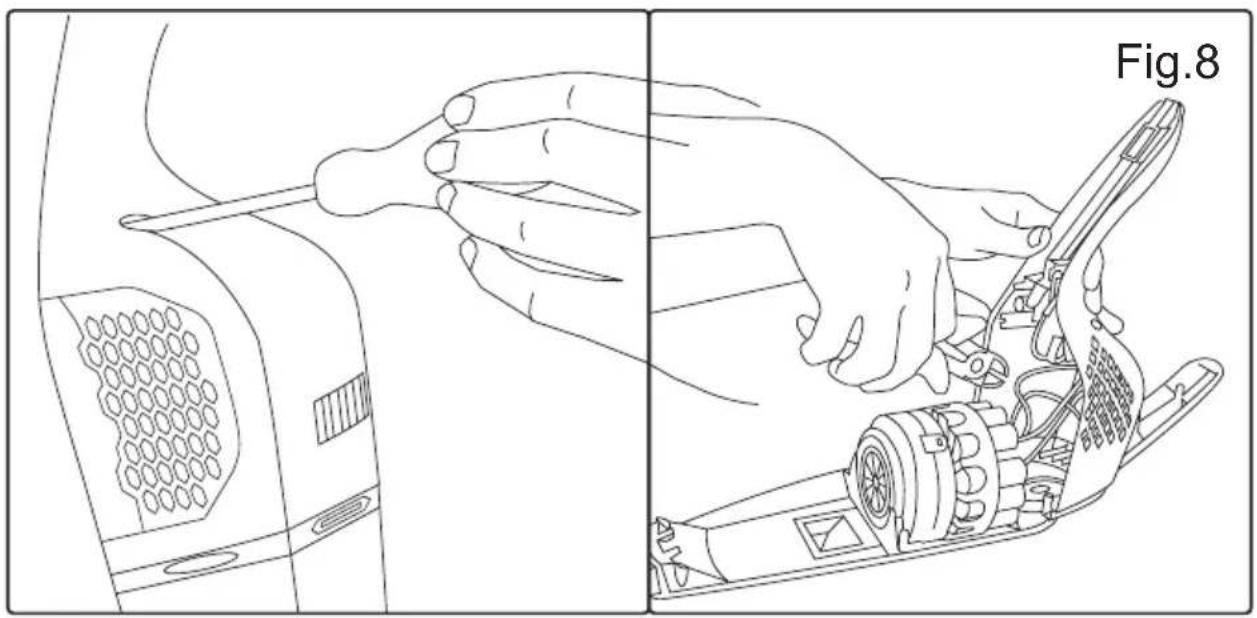

• Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws (Fig 8)
• Identify the battery wires and cut their. To prevent the risk of short-circuiting from possible

residual power in the battery, after cutting each cable use insulation tape to protect the tip. (Fig 8)

- Safely remove the battery from its housing.

This appliance complies with Directive 2014/35/EU on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.

- The following information is regarding to energy labelling and ecodesign:

Trademark and address	Electrodomésticos Taurus, S.L. Avda. Barcelona, s/n, 25790 Oliana, Lleida, Spain
Model	UNLIMITED 29.0 LITHIUM INEDIT 29.6 LITHIUM
Input Voltage 100-240 V
Input AC frequency 50/60 HZ
Output voltage 36,0 V
Output current	0,5 A
Output power	18 W
Average Active Efficiency	85,78 %
Efficiency at low load (10%)	73,47 %
No-load power consumption	0,059 W

To establish compliance with the ecodesign requirements and for calculation of energy labelling parameters the appliance the European standard EN 50563 is used as reference.

Français

Aspirateur balai

Unlimited 29.0 Lithium

Inedit 29.6 Lithium

Guzzler 29.0 Lithium

Cher Client,

L Tamburo Turbobrush

M Spazzola rotante

N Rotelle

O Base di ricarica

P Caricatore

Q Lancia

يستوي هذا但他از توحيه UE/07/11.٢ UE/٠٣/٤١.٢ ل节假日 المنخفض، وتجيه UE/٠٣/٤١.٢Two hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel Hotel HotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHospitalHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHotelHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospitalHospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital Hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospital hospitals

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus 20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos		35722711300
Czech Republic Milady Horakove 357/4, 568 02, Svitavy 420 461 540 130
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España	Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]	902 118 050
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar	11 Horse Barrack Lane, 54000, Gibraltar	00350 200 75397 / 00350 200 41023
Greece Sapfous 7-9, 10553, Athens		[phone]
Hong Kong	Unit H,13/F., World Tech Centre, Hong kong	(852) 2448 0116 / 9197 3519
Hungary	Késmárk utca 11-13, 1158, Budapest	[phone]
India	C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi	([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Luxembourg Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Marruecos Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca		([phone]
Mauritania 134 Avenue Gamal Abdener Ilot D, Nouakchott 2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro Rastovac bb, 81400, Niksic [phone]
Netherlands Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos 23408023360099
Paraguay Denis Roa 155 c/ Guido Spano, Asunción 21665100
Peru Calle los Negocios 428, Surquillo, Lima [phone]
Portugal	Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa	[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic [phone]
Slovakia	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam	Lot 7 Ind. Zone for, Ha Noi	84437658111 / 84437658110
