USER MANUAL BD 4335 C Classic Ep Kärcher

Line drawing of a cleaning or cleaning service robot (no text or symbols present)

Deutsch 3

English 9

Français 15

Italiano 22

Nederlands 29

Español 35

Português 41

Dansk 47

Norsk 53

Svenska 59

Suomi 65

Ελληνικά 71

Türkçe 78

Русский 84

Magyar 92

Čeština 98

Slovenščina 104

Polski 110

Românește 116

Slovenčina 122

Hrvatski 128

Srpski 134

Български 140

Eesti 147

Latviešu 153

Lietuviškai 159

Українська 165

Indonesia 172

中文 178

ไทย 184

Technical line drawing of a mechanical assembly with rotating components and alignment arrows (no text or symbols)

Mechanical assembly diagram showing a vehicle suspension system with rotating components and mounting brackets (no text or labels)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a mechanical device with a close-up inset of its internal components (no text or symbols)

Diagram of a hand holding a flexible hose connected to a device with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with a circular head and flange (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a cleaning or cleaning machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Typ: 1.127-xxx 1.515-xxx

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

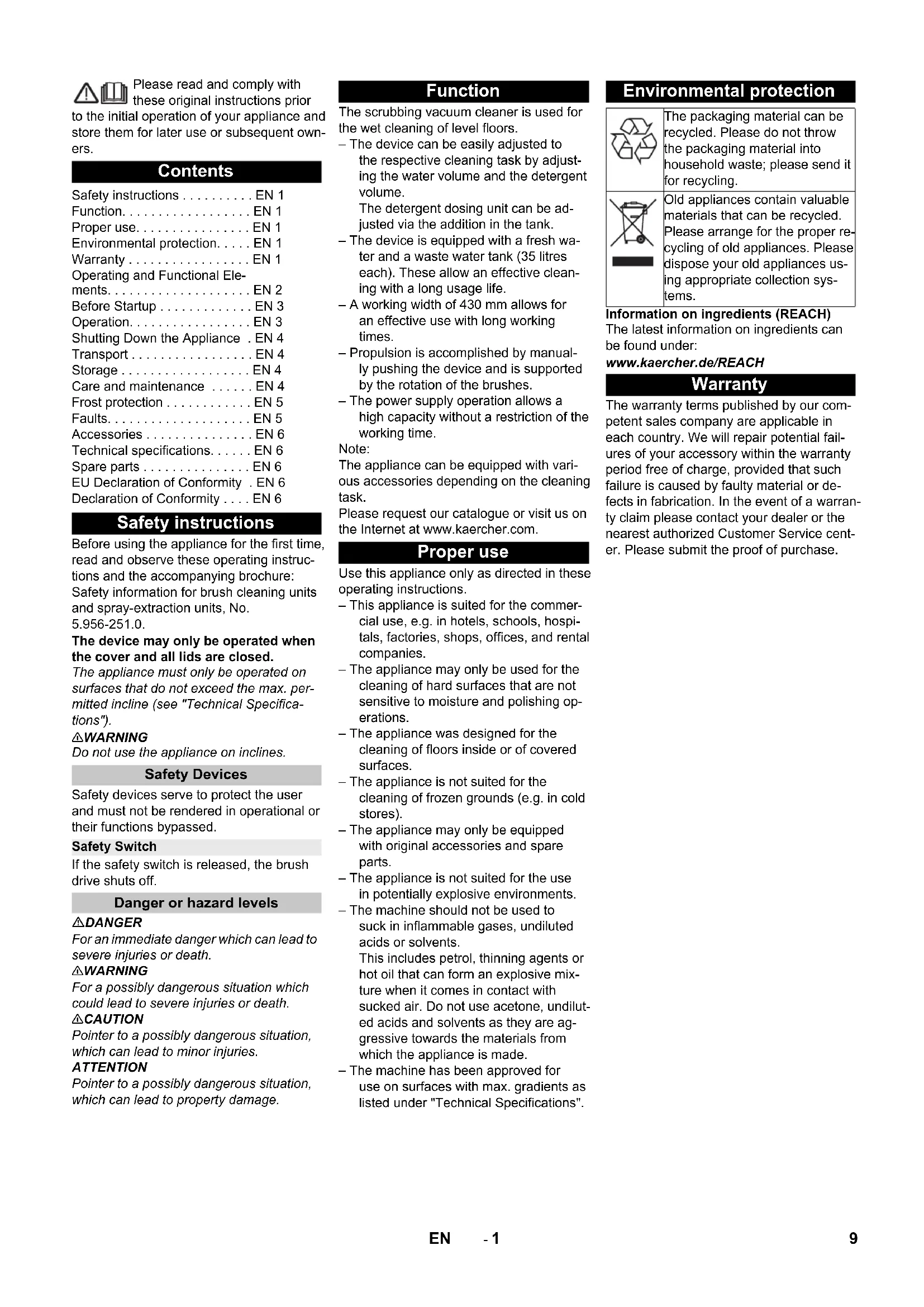

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Contents

Safety instructions	EN 1
Function	EN 1
Proper use	EN 1
Environmental protection	EN 1
Warranty	EN 1
Operating and Functional Elements	EN 2
Before Startup	EN 3
Operation	EN 3
Shutting Down the Appliance	EN 4
Transport	EN 4
Storage	EN 4
Care and maintenance	EN 4
Frost protection	EN 5
Faults	EN 5
Accessories	EN 6
Technical specifications	EN 6
Spare parts	EN 6
EU Declaration of Conformity	EN 6
Declaration of Conformity	EN 6

Safety instructions

Before using the appliance for the first time, read and observe these operating instructions and the accompanying brochure: Safety information for brush cleaning units and spray-extraction units, No. 5.956-251.0.

The device may only be operated when the cover and all lids are closed.

The appliance must only be operated on surfaces that do not exceed the max. permitted incline (see "Technical Specifications").

△WARNING

Do not use the appliance on inclines.

Safety Devices

Safety devices serve to protect the user and must not be rendered in operational or their functions bypassed.

Safety Switch

If the safety switch is released, the brush drive shuts off.

Danger or hazard levels

△DANGER

For an immediate danger which can lead to severe injuries or death.

△WARNING

For a possibly dangerous situation which could lead to severe injuries or death.

△CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Function

The scrubbing vacuum cleaner is used for the wet cleaning of level floors.

- The device can be easily adjusted to the respective cleaning task by adjusting the water volume and the detergent volume. The detergent dosing unit can be adjusted via the addition in the tank.

• The device is equipped with a fresh water and a waste water tank (35 litres each). These allow an effective cleaning with a long usage life.
  – A working width of 430 mm allows for an effective use with long working times.
• Propulsion is accomplished by manually pushing the device and is supported by the rotation of the brushes.
• The power supply operation allows a high capacity without a restriction of the working time.

Note:

The appliance can be equipped with various accessories depending on the cleaning task.

Please request our catalogue or visit us on the Internet at www.kaercher.com.

Proper use

Use this appliance only as directed in these operating instructions.

• This appliance is suited for the commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.
• The appliance may only be used for the cleaning of hard surfaces that are not sensitive to moisture and polishing operations.
• The appliance was designed for the cleaning of floors inside or of covered surfaces.
• The appliance is not suited for the cleaning of frozen grounds (e.g. in cold stores).
• The appliance may only be equipped with original accessories and spare parts.
  – The appliance is not suited for the use in potentially explosive environments.
• The machine should not be used to suck in inflammable gases, undiluted acids or solvents.

This includes petrol, thinning agents or hot oil that can form an explosive mixture when it comes in contact with sucked air. Do not use acetone, undiluted acids and solvents as they are aggressive towards the materials from which the appliance is made.

- The machine has been approved for use on surfaces with max. gradients as listed under "Technical Specifications".

Environmental protection

The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Information on ingredients (REACH)

The latest information on ingredients can be found under:

The warranty terms published by our competent sales company are applicable in each country. We will repair potential failures of your accessory within the warranty period free of charge, provided that such failure is caused by faulty material or defects in fabrication. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service center. Please submit the proof of purchase.

Operating and Functional Elements

1 Fluff filter
2 Safety button
3 Drain hose for wastewater with dosing unit
4 Holding rail for home base
5 Float
6 Fresh water tank
7 Fresh water tank lock
8 Recessed grip
9 Cleaning head
10 Disc brush
11 Fresh water reservoir filler neck
12 Bow brush change
13 Waste water tank
14 Fresh water level display
15 Rotary handle to incline the vacuum bar
16 Height adjustment of suction bar *
17 Wing nuts for fastening the vacuum bar
18 Vacuum bar *
19 Suction hose
20 Water quantity regulator

21 Mains cable with mains plug
22 Vacuum bar lowering lever
23 Operator console
24 Push handle
25 Storage surface for cleaning set "Home base box"
26 Cover waste water tank

* not included in the delivery

Colour coding

• The operating elements for the cleaning process are yellow.
  – The controls for the maintenance and service are light gray.

Operator console

1 OFF

Device is switched off

2 Normal mode

Wet clean the floor and vacuum up dirt water.

3 Intense mode

Wet clean the floor and allow the detergent to react.

4 Vacuum mode

Suck in the dirt fleet.

5 Program selection switch

6 Indicator light voltage supply

Glows when the mains plug is inserted and when there is mains voltage.

Symbols on the machine

	Mains plug
	Lashing point
	Mop holder **
	Filling level fresh water tank 25%
	Bow brush change
	Vacuum bar lowering lever
	Drain outlet fresh water tank
	Dirt water discharge hose

** option

Before Startup

Unloading

→ Employ 2 persons to lift the device off the pallet and set it on the floor.

Installing the Vacuum Bar

→ Insert the vacuum bar into the vacuum bar suspension in such a manner that the profiled sheet is positioned above the suspension.
→ Tighten the wing nuts.

Technical line drawing of a mechanical assembly with rotating components and alignment arrows (no text or symbols)

→ Insert the suction hose.

Operation

△DANGER

Risk of injury!

In dangerous situations, release the safety switch/drive lever.

Filling in detergents

Fresh water

→ Open the lock of the fresh water reservoir.
→ Fill fresh water (maximum 60 °C) until the lower edge of the filling nozzle.
→ Close the lock of the fresh water reservoir.

Detergent

⚠ WARNING

Risk of damage. Only use the recommended detergents. With other detergents, the operator bears the increased risk regarding the operational safety and danger of accident. Only use detergents that are free from solvents, hydrochloric acid and hydrofluoric acid. Follow the safety instructions for using detergents.

Note:

Do not use highly foaming detergents.

Recommended detergents:

Application Detergent
Routine cleaning of all water resistant floors	RM 746RM 780
Routine cleaning of glossy surfaces (e.g. granite)	RM 755 es
Routine cleaning and basic cleaning of industrial floors	RM 69 ASF
Routine cleaning and basic cleaning of fine stoneware tiles	RM 753
Routine cleaning of tiles in sanitary areas	RM 751
Cleaning and disinfection in sanitary areas	RM 732
Removal of coating from all alkali-resistant floors (e.g. PVC)	RM 752
Removal of coating from linoleum floors	RM 754

→ Add the detergent to the fresh water reservoir.

Note:

If the fresh water tank is empty, the cleaning head continues working without liquid supply.

Setting the water quantity

→ Adjust the water quantity using the regulating button according to the dirt on the floor covering.

Note:

Carry out initial cleaning attempts with low water volume. Increase water volume step-by-step until the desired cleaning result is achieved.

Setting the Vacuum Bar

Oblique position

To improve the vacuuming result on tiled floors the vacuum bar can be turned to an oblique position of up to 5°.

→ Loosen the wing nuts.
→ Turn the vacuum bar.

Mechanical assembly diagram showing a vehicle suspension system with rotating components (no text or labels)

→ Tighten the wing screws.

Inclination

If the vacuum result is unsatisfactory the inclination of the straight vacuum bar can be modified.

→ Adjust the rotary handle to incline the suction bar.

Height

The bend of the suction lips upon contact with the floor is influenced with the height adjustment.

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

→ Try adjusting the twist handles of the height adjustment until the best vacuuming result is achieved.

Cleaning

ATTENTION

Risk of damage to the floor covering. Do not operate the appliance on the spot.

Diagram showing a car interior with a valve and connector, no text or symbols present

→ Insert the end of the extension cable as a loop in the strain relief clamp.
→ Connect the mains plug of the device to the extension cable.
→ Insert the mains plug of the extension cable into a socket.
→ Turn the program selection switch to the desired cleaning program.
→ Operate the safety switch.

Lower the vacuum bar

→ Pull the lever out and press it down; the vacuum bar is lowered.

Note:

• For cleaning tiled floors, adjust the straight suction bar in such a way that cleaning is not done at an angle of 90 degrees to the joints.
• The inclined position and the inclination of the suction bar can be adjusted to achieve better suction results (see "Adjusting the suction bar").
• If the waste water tank is full, the float closes the suction opening and the suction turbine runs at an increased speed. If this is the case, shut the vacuum off and drive to empty the waste water tank.

Shutting Down the Appliance

→ Set the program selection switch to suction or vacuuming.
→ Briefly drive forward and suck of the remaining water.
→ Raise the vacuum bar.
→ Set the programme selector switch to "OFF".
→ Disconnect the mains plug from the socket.

Drain off dirt water

⚠ WARNING

Please observe the local provisions regarding the wastewater treatment.

→ Take the water discharge hose from the support and lower above a suited collection device.

Illustration of a hand holding a flexible hose with arrows indicating force or movement (no text or symbols)

→ Crush or bend the dosing equipment.
→ Open the lid of the dosing equipment.
→ Drain off the dirt water - regulate the water quantity by pressing or bending.
→ Rinse the waste water tank with clear water.

Drain off clean water

Technical line drawing of a vehicle wheel assembly with no visible text or symbols

→ Unscrew the lock of the fresh water reservoir.

Transport

DANGER

Risk of injury! When loading or unloading the machine, it may only be operated on gradients up to the maximum value (see "Technical Specifications"). Drive slowly.

△CAUTION

Risk of personal injury or damage! Mind the weight of the appliance during transport.

→ Press down and push the device using the push handle.

Technical line drawing of a mechanical device with no visible text or symbols

→ When transporting in vehicles, secure the appliance according to the guidelines from slipping and tipping over.

Storage

△CAUTION

Risk of personal injury or damage! Consider the weight of the appliance when storing it.

This appliance must only be stored in interior rooms.

Care and maintenance

△DANGER

Risk of injury! Set the programme selector switch to "OFF" and disconnect the mains plug prior to performing any work on the device.

→ Drain and dispose of the dirt water and the residual fresh water.

Maintenance schedule

After each operation

ATTENTION

Risk of damage. Do not sluice the appliance with water and do not use aggressive detergents.

→ Drain off dirt water.
→ Rinse the waste water tank with clear water.
→ Clean the outside of the appliance with a damp cloth which has been soaked in mild detergent.
→ Check the fluff filter, clean if required.
→ Clean the vacuum lips and the wiping lips, check for wear and replace if required.
→ Check the brush for wear and replace if required (see "Maintenance tasks").

Monthly

→ Clean the seals between waste water tank and cover and check for tightness, replace if required.
→ Clean sieve.

Yearly

→ Have the prescribed inspection carried out by the customer service.

Maintenance Works

Cleaning the sieve

1 Cover
2 Cover

→ Open the cover.
→ Turn cover the clockwise and remove it.
→ Remove and clean the sieve lying beneath it.
→ Insert the sieve.
→ Replace the cover and lock it by turning it anti-clockwise.
→ Close cover.

Replace or turn vacuum lips

1 Wear indicator
2 Vacuum lip

The vacuum lips must be replaced or reversed if they are worn down to the wear indicator.

→ Remove the vacuum bar.
→ Unscrew the star grips.

→ Remove the plastic parts.
→ Remove the vacuum lips.
→ Insert new or reversed vacuum lips.
→ Insert the plastic parts.
→ Screw in and tighten the star grips.

Replacing the disk brushes Removing the waste water tank

→ Push down the device holding the push handle so that the cleaning head is raised.
→ Press the pedal for changing the brushes downward beyond its resistance.

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

→ Pull the device towards the back so that the disc brush becomes accessible.
→ Place a new disc brush on the floor in front of the device.
→ Drive the device with the raised cleaning head over the new disc brush and lower the cleaning head. The brush locks into the drive.

→ Drain off dirt water.

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

→ Lift up the waste water tank and put it aside.

Maintenance contract

To ensure a reliable operation of the appliance maintenance contracts can be concluded with the competent Kärcher sales office.

Frost protection

In case of danger of frost:

→ Empty the fresh and waste water tank.
→ Store the appliance in a frost-protected room.

Faults

△DANGER

Risk of injury! Set the programme selector switch to "OFF" and disconnect the mains plug prior to performing any work on the device.

→ Drain and dispose of the dirt water and the residual fresh water.

Failure Correction
Appliance cannot be started	Turn the program selection switch to the desired programme.
	Operate the safety switch.
	Insert the mains plug into the socket.Is the indicator light voltage supply on?
Insufficient water quantity	Check fresh water level, refill tank if necessary.
	Increase the water volume on the regulating knob for water volume.
	Clean sieve.
Insufficient vacuum performance	Clean the seals between waste water tank and cover and check for tightness, replace if required.
	Check the seals between waste water tank and fresh water tank for damage, replace if necessary.
	Wastewater reservoir is full; shut off the appliance and empty the wastewater reservoir
	Clean the fluff filter.
	Clean the vacuum lips on the vacuum bar, replace if required
	Check if the cover on the dirt water discharge hose is closed
	Check the setting of the vacuum bar.
	Check suction hose for blockages; clean if required.
	Check the suction hose for tightness; replace if required.
Insufficient cleaning result	Check the brushes for wear, replace if required.
Suction turbine is running rough	Clean the swimmer.
Brush does not turn Check	ck if foreign objects block the brush; remove foreign object if required.
	Release the safety switch.Wait for a while.Operate the safety switch.
Vibrations during cleaning	You might need to use a softer brush.
In case of faults that cannot be remedied using the table below please contact the customer service.

Accessories

Description Part no.: Description
Disk brush, red (medium, standard) 4.905-022.0 For the use with all common cleaning tasks.
Disk brush, natural (white) 4.905-023.0 Made of natural fibres for spot cleaning and polishing.
Disk brush, black (hard) 4.905-025.0 For heavy soiling and for deep cleaning. For robust floorings only.
Driver plate pad 4.762-533.0 For cleaning with pads. With quick change coupling and center lock.
Pad, white 6.369-469.0 For polishing floors.
Pad, red (medium soft) 6.369-470.0 For cleaning and cleaning of all floors.
Pad, green (medium hard) 6.369-472.0 For cleaning heavily soiled floors and for deep cleaning.
Pad, black (hard) 6.369-473.0 With stubborn soiling and for deep cleaning.
Pad, beige (natural hair proportion) 6.371-081.0 For polishing and refreshing of hard and flexible floorings.
Suction bar, 850 mm, straight 4.777-401.0
Suction bar, 850 mm, bent 4.777-411.0
Set homebase box	4.035-406.0
Mop holder	9.753-023.0

Technical specifications

Power
Nominal voltage	V	230
Frequency	Hz	50
Average power consumption	W	1400
Rated power suction turbine	W	550
Rated power brush drive	W	850
Vacuuming
Vacuum power, air volume (max.)	l/s 20
Vacuuming power, negative pressure (max.)	kPa (mbar)	12,0 (120)
Cleaning brushes
Brush speed	1/min	235
Brush diameter	mm	430
Dimensions and weights
Theoretical surface cleaning performance	m^2/h	1800
Max. working range incline	%	2
Fresh/waste water tank volume	l	35/35
Max. water temperature	°C	60
Ambient temperature	°C	5...40
Net weight (transport weight)	kg 56
Total weight (ready to operate)	kg	91
Values determined as per EN 60335-2-72
Total oscillation value	m/s^2	<1,3
Uncertainty K	m/s^2	0,2
Sound pressure level L_pA	dB(A)	70
Uncertainty K_pA	dB(A)	2
Sound power level L_WA + Uncertainty K_WA	dB(A)	86
Exception according to Regulation (EU) 2019/1781 Annex I Section 2 (12): j)

Spare parts

- Only use accessories and spare parts which have been approved by the manufacturer. The exclusive use of original accessories and original spare parts ensures that the appliance can be operated safely and trouble free.

- At the end of the operating instructions you will find a selected list of spare parts that are often required.

- For additional information about spare parts, please go to the Service section at www.kaercher.com.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: Floor cleaner

Type: 1.127-xxx

1.515-xxx

Relevant EU Directives

2006/42/EG (+2009/127/EG)

2014/30/EU

2011/65/EU

Commission regulation(s)

(EU) 2019/1781

Applied harmonized standards

EN 60335-1

EN 60335-2-72

EN 62233: 2008

EN 55014-1:2006 + A1: 2009 + A2:2011

EN 55014-2:1997 + A1: 2001 + A2: 2008

EN 61000-3-2:2014

EN 61000-3-3:2013

Applied national standards

The signatories act on behalf of and with of the authority of the company management.

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Declaration of Conformity

We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval.

Product: Floor cleaner

Type: 1.127-xxx

1.515-xxx

Currently applicable UK Regulations

S.I. 2008/1597 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2012/3032 (as amended)

Commission regulation(s)

(EU) 2019/1781

Designated standards used

EN 60335-1

EN 60335-2-72

EN 62233: 2008

EN 55014-1:2006 + A1: 2009 + A2:2011

EN 55014-2:1997 + A1: 2001 + A2: 2008

EN 61000-3-2:2014

EN 61000-3-3:2013

National standards used

The signatories act on behalf of and with of the authority of the company management.

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/02/01

Entreposage .... FR 4

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with springs and brackets (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a component being lifted by ropes and a valve (no text or symbols present)

Illustration of a hand holding a flexible hose connected to a device with arrows indicating force or movement (no text or symbols)

Technical line drawing of a vehicle wheel assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Capot
2 Capot

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Type : 1.127-xxx 1.515-xxx

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Mechanical assembly diagram showing a vehicle suspension system with hoses and springs (no text or labels)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing two mechanical setups with ropes and a magnified inset of a rope knot (no text or symbols)

Illustration of a hand holding a device with a coiled cable, showing directional arrows (no text or symbols)

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with springs and brackets (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components and springs (no text or symbols)

Diagram showing a mechanical device with a belt switch and a hanging container, no text or symbols present

Diagram showing a hand pressing down on a flexible hose with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Afdekking

2 Deksel

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

→ Vuilwaterreservoir optillen en opzij zetten.

Onderhoudscontract

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a vehicle suspension system with rotating components and mounting brackets (no text or labels)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a car interior with hoses and a valve, no text or symbols present

Diagram showing a hand holding a flexible hose with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with a circular head and handle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Cubierta
2 Tapa

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a step (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Leia o manual de manual original antes de utilizar o seu apare-

Technical line drawing of a mechanical assembly with rotating components and guide rails (no text or symbols)

Mechanical assembly diagram showing a spring-loaded component mounted on a rail track with clamps (no text or symbols visible)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Technical diagram showing mechanical components with no visible text or symbols

Diagram showing a hand holding a flexible hose with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with a circular head and cylindrical body (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Cobertura

2 Tampa

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a step (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vehicle suspension system with hoses and brackets (no text or symbols)

→ Stram vingeskruerne.

Hældning

Mechanical assembly diagram showing a motor with rotating arms and spring components (no text or labels)

Diagram showing two steps of a medical or laboratory procedure: one with a device and tubing, the other with a device inserted into a container (no text or symbols present)

Diagram showing a hand pressing down on a device with a coiled cable, indicating fluid or mechanical components (no text or symbols present)

→ Tryk doseringsanordningen sammen eller knæk den.

Technical line drawing of a mechanical component with a circular head and handle (no text or symbols)

→ Skru friskvandtankens låg af.

Transport

⚠️FARE

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

→ Monter slangen.

Drift

△FARE

Fare for personskade!

Technical line drawing of a mechanical assembly with springs and brackets (no text or symbols)

Technical line drawing of a mechanical assembly with springs and levers (no text or symbols)

Diagram showing a car interior with a valve and bucket, no text or symbols present

Illustration of a hand connecting a flexible hose to a grid device (no text or symbols)

Technical line drawing of a mechanical component with a circular head and cylindrical body (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Deksel
2 Deksel

→ Ta av kunststoffdelene.
→ Trekk av sugeleppen.
→ Skyv inn de nye elle snudde sugelippene.
→ Sett på plass kunststoffdelene.
→ Sett på plass kryssgrepskruen og skru den godt til.

Skifte skivebørste

Technical line drawing of a cleaning or cleaning machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vehicle suspension system with rotating components (no text or symbols)

→ Dra fast vingskruvar.

Lutning

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing two mechanical setups with a valve and belt, no text or symbols present

Diagram showing a hand holding a device with a coiled cable, indicating fluid or electrical connection (no text or symbols present)

Technical line drawing of a vehicle wheel assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

1 Skydd
2 Lock

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

→ Liitä imuletku.

Käyttö

⚠ VAARA

Loukkaantumisvaara!

Mechanical assembly diagram showing a vehicle suspension system with rotating components and mounting brackets (no text or labels)

Mechanical assembly diagram showing a vehicle with springs and rotating components (no text or symbols)

Diagram showing a car interior with a valve and belt, including a magnified inset of the valve mechanism (no text or symbols present)

Illustration of a hand holding a device with a coiled cable, showing fluid flow direction (no text or symbols)

Technical line drawing of a vehicle wheel assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Peite

2 Kansi

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a vehicle suspension system with springs and rotating components (no text or labels)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols present)

Diagram showing a hand connecting a device with a coiled cable, indicating fluid or electrical connection (no text or symbols present)

Technical line drawing of a vehicle wheel assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 κάλυμμα
2 Κάλυμμα

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

Line drawing of a cleaning or cleaning machine with no visible text or symbols

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

→ Emme hortumunu takin.

Çalıştırma

TEHLIKE

Technical line drawing of a mechanical assembly with springs and brackets (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing two views of a vehicle's seatbelt mechanism, with no visible text or symbols

Diagram showing a hand pressing down on a flexible hose with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with a circular head and handle (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Kapak
2 Kapak

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a step (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with rollers and a housing component (no text or symbols)

Mechanical assembly diagram showing a vehicle suspension system with springs and brackets (no text or labels)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols present)

Illustration of a hand holding a flexible hose with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Кожух
2 Крышка

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Technical line drawing of a mechanical assembly with springs and connectors (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing two steps of a car interior with hoses and a valve, no text or symbols present

Illustration of a hand holding a flexible hose connected to a device with a grid-like panel (no text or symbols)

Technical line drawing of a mechanical component with a circular head and cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Borítás
2 Fedél

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with rollers and guide rails (no text or symbols)

→ Nasad'te sací hadici.

Provoz

⚠NEBEZPEČÍ

Nebezpečí úrazu!

Technical line drawing of a mechanical assembly with springs and brackets (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a car interior with a handbag and valve, no text or symbols present

Diagram showing a hand pressing down on a flexible hose onto a device (no text or symbols present)

Technical line drawing of a mechanical component with a circular head and cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Kryt

2 Kryt

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Pred prvo uporabo Vaše napra- ve preberite to originalno navo-

Technical line drawing of a mechanical assembly with no visible text or symbols

→ Nataknite gibko sesalno cev.

Obratovanje

⚠NEVARNOST

Nevarnost poškodbe!

Technical line drawing of a vehicle suspension system with rotating components (no text or symbols)

→ Pritegnite krilate vijake.

Nagib

Technical line drawing of a mechanical assembly with rotating components and spring-loaded parts (no text or symbols)

Diagram showing a car interior with a valve and pump, highlighting a mechanical component (no text or symbols present)

Illustration of a hand inserting a flexible hose into a device with arrows indicating force (no text or symbols)

→ Dozirno pripravo stisnite skupaj ali jo prepognite.
→ Odprite pokrov dozirne priprave.
→ Izpustite umazano vodo - s stisnjenjem ali prepognjenjem regulirajte količino vode.
→ Rezervoar za umazano vodo izperite s čisto vodo.

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Pokrov
2 Pokrov

→ Odprite pokrov.
→ Pokrov zavrtite v smeri urnega kazalca in ga snemite.
→ Odstranite in očistite sito, ki je pod pokrovom.
→ Vstavite sito.
→ Namestite pokrov in ga privijte v nasprotni smeri urinega kazalca.
→ Zaprite pokrov.

→ Snemite plastične dele.
→ Izvlecite sesalne brisalce.
→ Vstavite nove ali obrnjene sesalne nastavke.
→ Nataknite plastične dele.
→ Privijte zvezdaste ročaje in jih zategnite.

Zamenjava kolutne krtače

→ Napravo za potisno streme pritisnite navzdol, da se čistilna glava dvigne.
→ Pedal za zamenjavo krtač potisnite navzdol preko upora.

Technical line drawing of a cleaning or cleaning machine component with a black arrow indicating a detail (no text or symbols present)

→ Napravo povlecite nazaj, tako da je kolutna krtača dostopna.
→ Novo kolutno enoto postavite pred na-pravo na tla.
→ Napravo z dvignjeno čistilno glavo za- peljite čez novo kolutno krtačo in spusti- te čistilno glavo. Krtača se zaskoči v pogon.

Snemanje rezervoarja za umazano vodo

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

→ Rezervoar za umazano vodo dvignite in postavite na stran.

Vzdrževalna pogodba

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a vehicle suspension system with springs and rotating components (no text or labels)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a car interior with a seatbelt and bucket, no text or symbols present

Diagram showing a hand holding a flexible hose connected to a device with arrows indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with a circular head and cylindrical shaft (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Ostona

2 Pokrywa

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Typ: 1.127-xxx 1.515-xxx

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a car suspension system with rotating components (no text or labels)

→ Strângeti şuruburile-fluture.

Înclinatie

Technical line drawing of a mechanical assembly with springs and rotating components (no text or symbols)

Diagram showing two mechanical components with a belt and valve mechanism, no text or symbols present

Diagram showing a hand connecting a device with a coiled cable, indicating fluid or electrical connection (no text or symbols present)

Technical line drawing of a vehicle wheel assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Capac
2 Capac

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Directive UE respectate:

2006/42/EG (+2009/127/EG)

2014/30/EU

2011/65/EU

Regulamente aplicabile

(EU) 2019/1781

Norme armonizate utilize:

EN 60335-1

EN 60335-2-72

EN 62233: 2008

EN 55014-1:2006 + A1: 2009 + A2:2011

EN 55014-2:1997 + A1: 2001 + A2: 2008

EN 61000-3-2:2014

EN 61000-3-3:2013

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

→ Nasad'te saciu hadicu.

Prevádzka

⚠NEBEZPEČENSTVO

Technical line drawing of a mechanical assembly with springs and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a car interior with hoses and a valve, no text or symbols present

Diagram showing a hand connecting a component with a coiled hose, indicating fluid or electrical connection (no text or symbols present)

Technical line drawing of a vehicle wheel assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

1 Kryt
2 Veko

→ Otvorte kryt.
→ Kryt otočte v smere pohybu hodinových ručičiek a odoberte ho.
→ Vyberte sito pod ním a očistite ho.
→ Vložte sito.
→ Nasad'te kryt a zablokujte ho otočením proti smeru pohybu hodinových ručičiek
→ Uzavrite kryt.

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Prije prve uporabe Vašeg uređaja pročitajte ove originalne

Technical line drawing of a mechanical assembly with rotating components and alignment arrows (no text or symbols)

→ Nataknite usisno crijevo.

U radu

△OPASNOST

Mechanical assembly diagram showing a vehicle suspension system with rotating components and mounting brackets (no text or labels)

→ Zategnite krilne vijke.

Nagib

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

→ Pomičite okretnu ručku namještanja visine tako da dobijete najbolji rezultat usisavanja.

Čišćenje

PAŽNJA

Diagram showing a car interior with a seatbelt, seatbelt plug, and exhaust pipe (no text or symbols)

→ Objesite kraj produžnog kabela na kao omču na kuku za vlačno rasterećenje.
Strujni utikač uređaja spojite s produžnim kabelom.
→ Utikač produžnog kabela utaknite u utičnicu.
→ Sklopku za odabir programa okrenite na željeni program čišćenja.
→ Aktivirajte sigurnosnu sklopku.

Spuštanje usisne konzole

→ Izvucite polugu i pritisnite je prema dolje; usisna konzola se spušta.

Napomena:

– Za čišćenje popločanih površina ravnu usisnu konzolu namjestite tako da se ne čisti pod pravim kutom u odnosu na spojeve između pločica.
- Za poboljšanje rezultata usisavanja usisna se konzola može nagnuti odnosno zakrenuti u odgovarajući položaj (vidi "Podešavanje usisne konzole").
- Ako je spremnik prljave vodu pun, plovak zatvara usisni otvor i usisna turbina radi s povećanim brojem okretaja. U tom slučaju isključite usisavanje i ispraznite spremnik prljave vode.

Diagram showing a hand connecting a flexible hose to a device with arrows indicating motion (no text or symbols)

→ Sabijte ili preklopite dozator.
→ Otvorite poklopac dozatora.
→ Ispustite prljavu vodu - pritiskanjem ili presavijanjem prilagođavajte količinu vode.
→ Spremnik prljave vode isperite čistom vodom.

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

→ Odvijte zatvarač spremnika svježe vo- de.

Transport

△OPASNOST

Opasnost od ozljeda! Uređaj se radi utovara i istovara smije voziti samo na nagibima manjim od dozvoljenog maksimuma (vidi "Tehničke podatke"). Vozite polako.

△OPREZ

Technical line drawing of a mechanical device with no visible text or symbols

1 Poklopac
2 Poklopac

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

→ Izvucite uređaj unatrag da pločasta četka bude lako dostupna.
→ Položite novu pločastu četku na tlo ispred uređaja.

→ Uređaj s podignutim blokom čistača na- vezite na novu pločastu četku pa spusti- te blok čistača.

Četka se uglavljuje u pogon.

Skidanje spremnika prljave vode

→ Ispustite prljavu vodu.

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

→ Podignite spremnik prljave vode i stavite ga u stranu.

Ugovor o servisiranju

Radi osiguranja pouzdanog rada stroja možete s nadležnim prodajnim uredom Kärcher sklopiti ugovor o servisiranju.

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Pre prve upotrebe Vašeg uređaja pročitajte ove originalno

Technical line drawing of a mechanical assembly with no visible text or symbols

→ Nataknite usisno crevo.

Rad

△OPASNOST

Opasnost od povreda!

U slučaju opasnosti pustite sigurnosni prekidač odnosno voznu polugu.

Punjenje radnih medija

Sveža voda

→ Otvorite zatvarač rezervoara sveže vode.
→ Dolijte svežu vodu (najviše 60°C) do donje ivice nastavka za punjenje.
→ Zatvorite zatvarač rezervoara sveže vode.

Deterdžent

⚠UPOZORENJE

Opasnost od oštećenja. Koristite samo preporučene deterdžente. Za druge deterdžente korisnik na sebe preuzima povećan rizik od nesreća i remećenja sigurnosti pri radu.

Technical line drawing of a mechanical assembly with springs and connectors (no text or symbols)

→ Zategnite leptir zavrtnje.

Nagib

Ako je rezultat usisavanja nezadovoljavajući, moguće je promeniti nagib ravne usisne konzole.
→ Namestite obrtnu ručku za naginjanje usisne konzole.

Visina

Podešavanje visine utiče na savijanje gumica za usisavanje prljavštine pri kontaktu s tlom.

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

→ Pomičite obrtnu ručku namještanja visine tako da dobijete najbolji rezultat usisavanja.

Čišćenje

PAŽNJA

Diagram showing two mechanical setups with hoses and a valve, no text or symbols present

Kraj produžnog kabla obesite kao petlju na kuku za vučno rasterećenje.
Strujni utikač uređaja povežite sa produžnim kablom.
→ Strujni utikač produžnog kabla utaknite u utičnicu.
→ Prekidač za izbor programa okrenite na željeni program čišćenja.
→ Pritisnite sigurnosni prekidač.

Spuštanje usisne konzole

→ Izvucite polugu i pritisnite je na dole; usisna konzola se spušta.

Napomena:

• Za čišćenje popločanih površina ravnu usisnu konzolu namestite tako da se ne čisti pod pravim uglom u odnosu na spojeve između pločica.
• Za poboljšanje rezultata usisavanja usisna konzola može da se nagne odnosno zakrene u odgovarajući položaj (vidi "Podešavanje usisne konzole").
• Ako je rezervoar za prljavu vodu pun, plovak zatvara usisni otvor i usisna turbina radi uz povećan broj obrtaja. U tom slučaju isključite usisavanje i ispraznite rezervoar za prljavu vodu.

Diagram showing a hand pressing down on a flexible hose with arrows indicating force or movement (no text or symbols)

→ Sabijte ili preklopite dozator.
→ Otvorite poklopac dozatora.
→ Ispustite prljavu vodu - pritiskanjem ili presavijanjem prilagođavajte količinu vode.
→ Rezervoar prljave vode isperite čistom vodom.

Ispuštanje sveže vode

Technical line drawing of a vehicle wheel assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

→ Prilikom transporta vozilima osigurajte uređaj od klizanja i nakretanja u skladu sa odgovarajućim važećim propisima.

Skladištenje

△OPREZ

Opasnost od povreda i oštećenja! Pri skladištenju imajte u vidu težinu uređaja. Ovaj uređaj se sme skladištiti samo u zatvorenim prostorijama.

Nega i održavanje

△OPASNOST

Opasnost od povreda! Pre bilo kakvih zahvata na uređaju prekidač za izbor programa postavite u položaj "OFF" i izvucite strujni utikač.

→ Ispustite i uklonite prljavu i preostalu svežu vodu.

Plan održavanja

Posle svake primene

PAŽNJA

1 Oplata
2 Poklopac

→ Skinite plastične delove.
→ Skinite gumice za usisavanje.
→ Umetnite nove ili prevrnute gumice za usisavanje.
→ Nataknite plastične delove.
→ Zavijte i zategnite zvezdaste pričvrsnike.

Zamena pločaste četke

→ Uređaj pritisnite na dole držeći ga za potisnu ručku kako bi se blok čistača podigao.
→ Pedalu za zamenu četke pritisnite na dole prelazeći pritom preko osetnog otpora.

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

→ Izvucite uređaj unazad da pločasta četka bude lako dostupna.
→ Položite novu pločastu četku na tlo ispred uređaja.

→ Uređaj sa podignutim blokom čistača navezite na novu pločastu četku pa spustite blok čistača.
Četka se uglavljuje u pogon.

Skidanje rezervoara za prljavu vodu

→ Ispustite prljavu vodu.

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

→ Podignite rezervoar za prljavu vodu i sklonite ga na stranu.

Ugovor o servisiranju

Radi osiguranja pouzdanog rada mašine možete sa nadležnim prodajnim centrom Kärcher sklopiti ugovor o servisiranju.

Tip: 1.127-xxx 1.515-xxx

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a car suspension system with rotating components and mounting brackets (no text or labels)

→ Затегнете крилчатите винтове.

Наклон

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols present)

Illustration of a hand holding a device with a coiled cable, showing directional arrows (no text or symbols)

Technical line drawing of a vehicle wheel assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Капак
2 Капак

Technical line drawing of a cleaning or repair machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

→ Pange imivoolik kohale.

Käitamine

A OHT

Vigastusoht!

Mechanical assembly diagram showing a vehicle suspension system with rotating components and mounting brackets (no text or labels)

→ Pingutage tiibmutreid.

Kalle

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing two steps of a car interior with hoses and a valve, no text or symbols present

Diagram showing a hand holding a flexible hose connected to a device with arrows indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

→ Kruvige maha puhta vee paagi lukk.

Transport

△OHT

Technical line drawing of a mechanical device with no visible text or symbols

1 Kate
2 Kaas

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a step (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a vehicle suspension system with rotating components and mounting brackets (no text or labels)

→ Pievelciet spärnskrüves.

Slīpums

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a car interior with a seatbelt, lifting weights, and a valve mechanism (no text or labels)

Diagram showing a hand pressing down on a flexible hose with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with a circular housing and a knob (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Pärsegs
2 Vāks

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with springs and brackets (no text or symbols)

→ Atsukite sparnuotasias veržles.

Pakreipimas

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing two views of a car interior with hoses and a valve, no text or symbols present

Diagram showing a hand pressing down on a flexible hose with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical component with circular and ring features (no text or symbols)

→ Nusukite švaraus vandens talpyklos dangtelj.

Transportavimas

⚠PAVOJUS

Technical line drawing of a mechanical device with no visible text or symbols

1 Dangtis
2 Dangtis

Technical line drawing of a cleaning or cleaning machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a vehicle suspension system with springs and rotating components (no text or labels)

1 Кожух

2 Кришка

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/09/01

Bacalah panduan

pengoperasian asli sebelum

Technical line drawing of a mechanical assembly with no visible text or symbols

→ Pasang selang penyedot.

Pengoperasian

⚠BAHAYA

Bahaya kecelakaan!

Lepaskan tombol pengaman/engkol layan saat bahaya.

Mengisi cairan pengoperasian

Air bersih

Technical line drawing of a vehicle suspension system with hoses and brackets (no text or symbols)

→ Kencangkan sekrup sayap.

Kecondongan

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols present)

Diagram showing a hand holding a flexible hose connected to a device with arrows indicating force or connection (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

1 Penutup
2 Penutup

Technical line drawing of a cleaning or repair machine component with a downward arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

→ 插上抽吸软管。

设备运作

△危险

存在受伤危险！

现危险情况时松开安全开关 / 操纵杆。

加入工作材料

新鲜水

→ 打开净水箱的盖子。

Mechanical assembly diagram showing a vehicle suspension system with rotating components (no text or labels)

→ 拧紧翼型螺栓。

倾斜度

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Diagram showing a hand holding a flexible hose connected to a tray with slots, indicating fluid or electrical connection (no text or symbols present)

Technical line drawing of a vehicle wheel assembly (no text or symbols)

→ 拧下净水箱的盖子。

运输

危险

Technical line drawing of a mechanical device with no visible text or symbols

1 盖
2 顶盖

Technical line drawing of a cleaning or cleaning machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

→ 抬起污水箱并置于一侧。

保养合同

Technical line drawing of a mechanical assembly with no visible text or symbols

→ เสบสายยางดูด

การใช้งาน

อันตราย

Mechanical assembly diagram showing a vehicle suspension system with rotating components and mounting brackets (no text or labels)

→ ขันสกรหางปลา

ความเอียง

Technical line drawing of a mechanical assembly with springs and rotating components (no text or symbols)

Diagram showing a car interior with a handbag and cable, highlighting a mechanical component (no text or symbols present)

Diagram showing a hand pressing down on a flexible hose with arrows indicating force or movement (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 ผ่าครอบ

2 ฝาปิด

Technical line drawing of a cleaning or cleaning machine component with a black arrow indicating a detail (no text or symbols present)

Technical line drawing of a cleaning or cleaning machine (no text or symbols)

Black silhouette of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]
