USER MANUAL Hub M2 Aqara

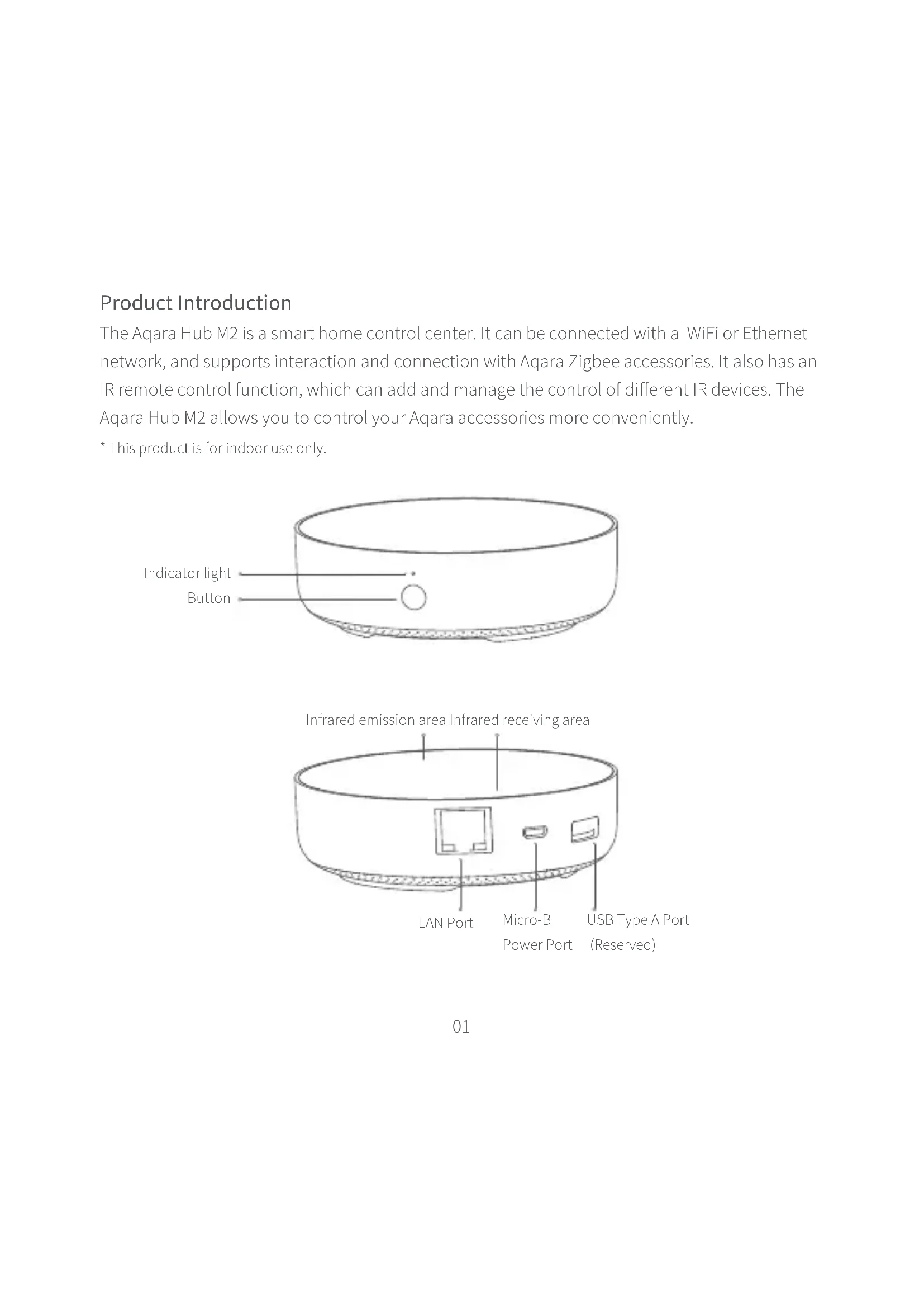

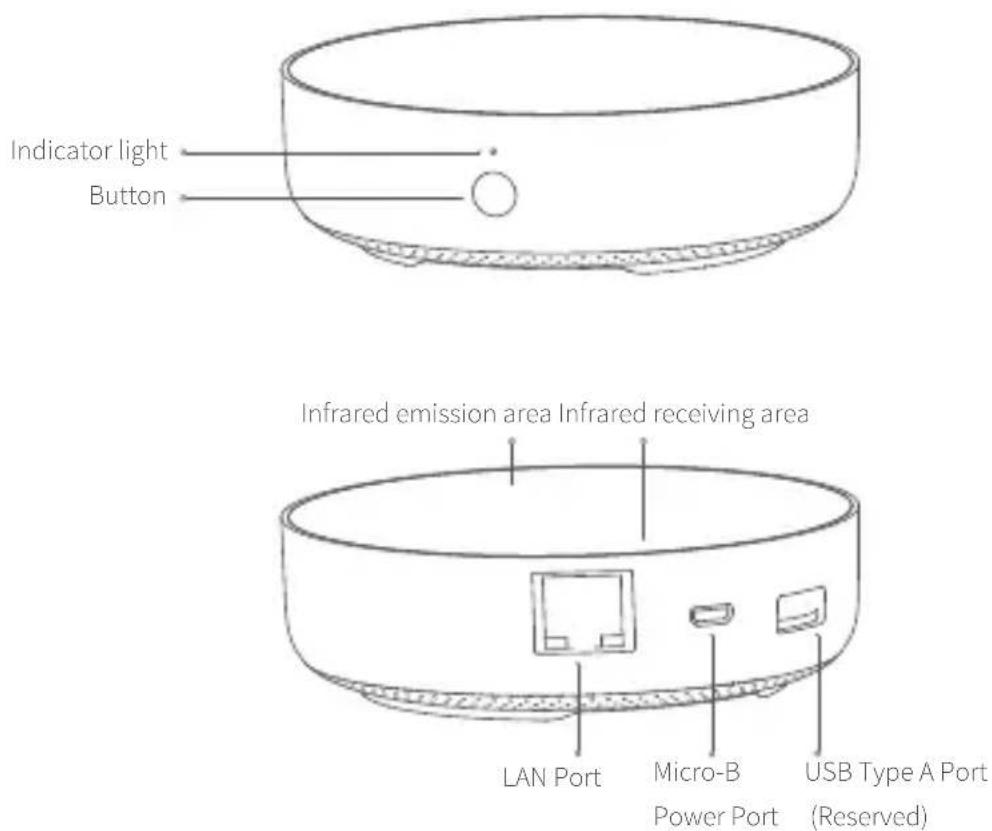

• 67* This product is for indoor use only. Product Introduction The Aqara Hub M2 is a smart home control center. It can be connected with a WiFi or Ethernet network, and supports interaction and connection with Aqara Zigbee accessories. It also has an IR remote control function, which can add and manage the control of different IR devices. The Aqara Hub M2 allows you to control your Aqara accessories more conveniently. Indicator light Button LAN Port Micro-B Power Port USB Type A Port (Reserved) Infrared emission area Infrared receiving area

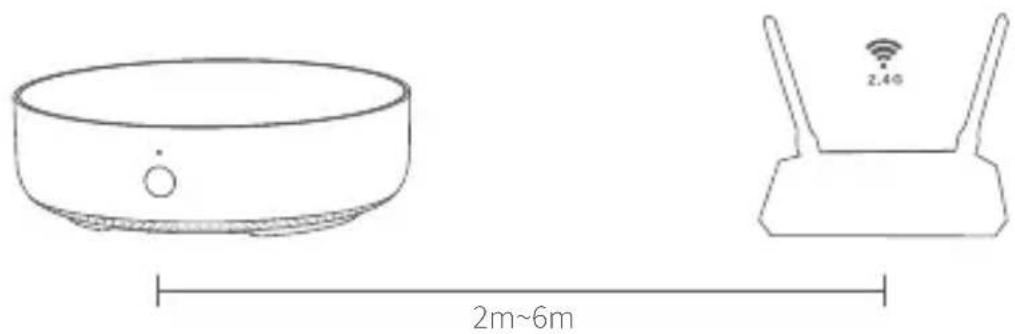

Choose the installation location of the hub: the hub should be 2-6 meters away from the router in the house, and avoid metal obstacles between the hub and the router or around the hub.

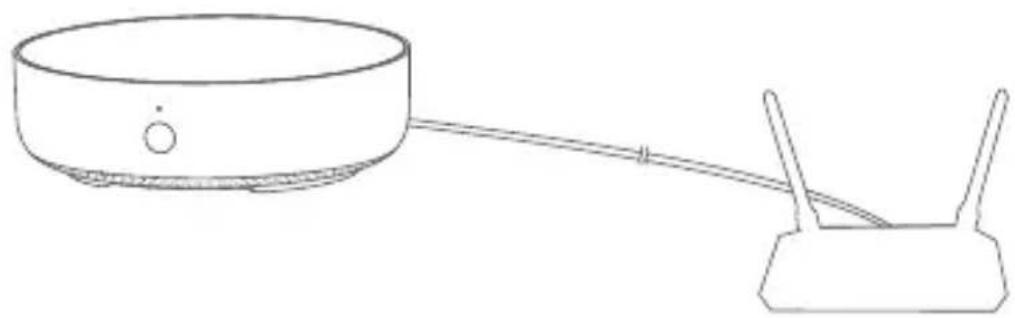

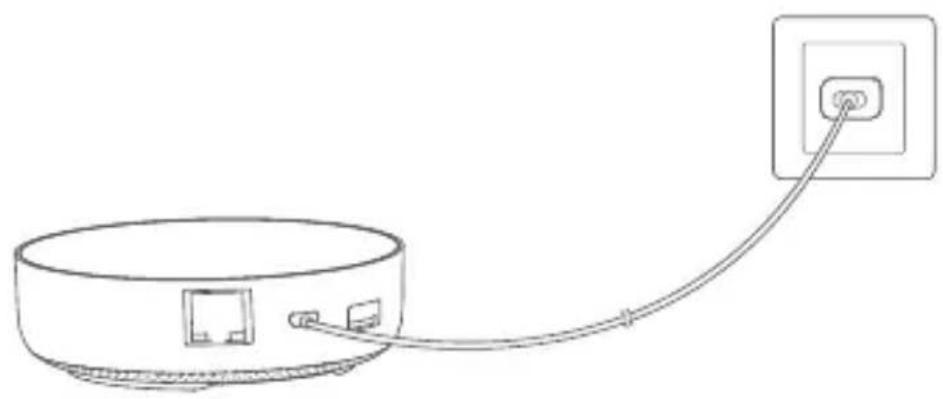

• If you need to use wired network communication between the hub and the router, please use a network cable with RJ45 network port to connect the LAN ports of the hub and your router, and wait for the orange and green lights on the side of the network port to light up. Power the hub on: please use the 5V-1A or 5V-2A adapter (purchase it separately) and the USB power cable to power the hub on.

Wait for the yellow/red hub indicator light to change from always on to flashing. Make sure that the mobile phone is connected with the 2.4GHz Wi-Fi network.

If you use a dual-band router, please make sure your phone is connected with 2.4GHz Wi-Fi or disable 5GHz Wi-Fi. Keep your phone close to the hub and make sure both of them are connected with the same Wi-Fi network.

• For iOS users, if you want to realize Apple HomeKit control, please scan or manually enter the HomeKit Setup Code (keep the code in a safe place in case you need to add it again) on the bottom of the hub or on the manual according to the app instructions during the hub adding process, and bind the hub to HomeKit. Aer it is bound successfully, you can view the added hub in Apple Home app. Please open the Aqara Home app, click “+” in the upper right corner, select “Hub M2” and follow the instructions to complete adding the hub. If you fail to add the hub, please press the button on the hub for more than 10 seconds until the yellow/red light flashes quickly, and then add it again. If you need any help, please contact www.aqara.com/en/support.html.

Please make sure the device is connected with the 2.4GHz Wi-Fi network. Wi-Fi name or password may contain special characters. Please replace them with ordinary characters and try again. The device does not support the WAP/WAP2 Wi-Fi network. Please check whether the router turns on the Wi-Fi connection watcher function, which causes network connection failures. Please check whether the router turns on the AP isolation function, which causes the phone to not be able to search for the hub within the LAN. It is recommended not to connect it to a bridge network. If the device could not be added, please follow these steps:05

”Failed to add accessory”. Due to multiple adding failures, the error information of iOS cache cannot be removed. Please restart the iOS device and reset the hub. ”Accessory already added”. Aer restarting the iOS device and reset the hub, you can manually enter the HomeKit setup code and add it again. ”Accessory not found”. Please wait for 3 minutes aer resetting the hub. You can manually enter the HomeKit setup code and add it again. Trouble adding to HomeKit :

3. Device Operations

Add an accessory: aer the hub is successfully added, please refer to the accessory installation guide to add an accessory. Control IR home appliances: please configure the brands and models of the IR home appliances you need to control in the app according to the app guidelines, and then perform the corresponding app control and automation control.

Quick press the button on the hub ten times.06 Indicator Light Description Light Color Description Yellow/Red Aer the hub powers on, the system is starting up. The hub enters the initialization status, waiting for network connection; Flashing appears aer the first use or within fieen minutes aer the reset Light Status Steady on Flashing Blue Wi-Fi is connecting; the hub is connecting to the network. Working normally White The hub enters the network connection failure status; only aer you power the hub on/off or reset the hub, it can enter the status to wait for the network connection Purple The hub is allowed to add accessoriesFlashing Steady on Flashing Steady on Flashing Wi-Fi is connecting; app is connecting to the hub; the network is down; the hub is reconnecting to the network aer it is powered off and on

Federal Communications Commission (FCC) compliance statement:

1. This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. RF Exposure statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 08IC: 22635-HM2G01

Hereby, [Lumi United Technology Co., Ltd.] declares that the radio equipment type The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by [Lumi United Technology Co., Ltd.] is under license. Other trademarks and trade names are those of their respective owners. Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user. EU Declaration of Conformity All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points. WEEE Disposal and Recycling Information [Hub M2, HM2-G01] is in compliance with Directive2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.aqara.com/DoC/產品介紹 Aqara Hub M2是智能家庭控制中心，支持WiFi或者以太網網絡接入；支持和Zigbee子設備 進行互聯互通；具備紅外外能遙控器功能，可以添加和管理不同的紅外設備的控制。讓你更 加便捷的控制插座，燈泡，窗簾，空調，風扇等。 *本產品僅限室內使用。

• 장치펌웨어업그레이드및업데이트로인해실제동작은위의설명과약간다를수있으므로현재앱의지침 또는실제장치상태프롬프트를따르십시오.3. Works with Apple 로고를사용한다는것을이제품이로고에표시된기술과연동하여 사용할수있도록디자인되었다는것을의미하며, 개발자에의해인증되었고, Apple의성능 기준에부합합니다. Apple은해당제품의조작또는그에적합한안전기준에책임을지지 않습니다.Warnings 1.This product is NOT a toy. Please keep children away from this product. 2.This product is designed for indoor use only. Do NOT use in humid environments or outdoors. 3.Beware of moisture, do NOT spill water or other liquids onto the product. 4.Do NOT place this product near a heat source. Do NOT place it in an enclosure unless there is normal ventilation. 5.Do NOT attempt to repair this product by yourself. All repairs should be performed by an authorized professional. 6.This product is only suitable for improving the entertainment, convenience of your home life and reminding you about the device status. It should NOT be used as security equipment for home, building, warehouse or any other places.If a user violates the product use instructions, the manufacturer will NOT be liable for any risks and property losses.Online Customer Service: www.aqara.com/support Email: [e-mail] Manufacturer: Lumi United Technology Co., Ltd Address: 8th Floor, JinQi Wisdom Valley, No.1 Tangling Road, Liuxian Ave, Taoyuan Residential District, Nanshan District, Shenzhen, China. производитель：Lumi United Technology Co., Ltd. адрес：8th Floor, JinQi Wisdom Valley, No.1 Tangling Road, Liuxian Ave, Taoyuan Residential District, Nanshan District,Шэньчжэнь, Китай 고객센터: 02-6949-2662 홈페이지: www.aqara.com/kr/support.html 제조사: Lumi United Technology Co., Ltd 제조사주소: 선전시남산구도원거리유선대도당영로1호금기지곡빌딩 8층 판매자: 아카라코리아주식회사
