Camera Hub G2H - Surveillance Camera Aqara - Free user manual and instructions

Product Type	Surveillance Camera / Zigbee Hub
Power Supply	5V DC, 1A (Micro USB)
Video Resolution	1080p (H.264)
Viewing Angle	140° (wide angle)
Connectivity	Wi-Fi 2.4 GHz IEEE 802.11 b/g/n, Zigbee
Zigbee Hub	Built-in for Aqara sub-devices
Local Storage	Micro SD card up to 32 GB (Class 4+)
Compatibility	Apple HomeKit, Aqara Home App (Android 4.0+ / iOS 13.0+)
Smart Features	Motion detection, sound detection, video intercom, iCloud recording (HomeKit Secure Video)
Status Indicator	Solid blue (connected), flashing blue (network), solid red (startup), flashing red (standby)
Operating Temperature	-10°C to +40°C (14°F to 104°F)
Installation	On flat surface, wall (magnetic mount with iron plate and 3M adhesive), max height 2 m
Maintenance and Cleaning	Clean with a soft dry cloth, do not use liquids
Safety	Indoor use only, do not use as a safety device, keep out of reach of children
Box Contents	G2H Hub Camera, USB cable, power adapter, iron plate, 3M adhesives, quick start guide
Model	CH-H01

Frequently Asked Questions - Camera Hub G2H Aqara

How to reset the camera to factory settings?

Press and hold the reset button (hole) for 5 seconds until the indicator flashes red. Factory settings will be restored.

What to do if the status indicator does not flash red at startup?

Make sure the power is plugged in. If the indicator remains off or another color, press and hold the reset button to force a restart.

Why won't my camera connect to Wi-Fi?

Check that the network is on 2.4 GHz (the camera does not support 5 GHz). Avoid special characters in the Wi-Fi name or password. Disable AP isolation and router Wi-Fi protection.

Adding to Apple HomeKit fails, what to do?

Restart your iPhone/iPad, reset the camera, then manually enter the HomeKit code (located on the back of the camera). If the message 'Accessory already added' appears, reset again and wait 3 minutes.

What does a flashing blue indicator mean?

The flashing blue indicator means the camera is connecting to the network or the network connection is abnormal.

Can I use a Micro SD card larger than 32 GB?

No, the camera supports Micro SD cards up to 32 GB maximum. Use a Class 4 or higher card.

Where is the HomeKit setup code located?

The HomeKit code is located on the back of the camera on a label. Keep it safe for future connections.

Is the device waterproof or can it be used outdoors?

No, this product is designed for indoor use only. Do not use it in a humid or outdoor environment.

How to install the camera on a wall?

Use the provided iron plate and 3M adhesive to stick the mount onto a smooth surface (glass, tile). The magnetic base of the camera attaches to the iron plate. Limit the height to 2 meters to prevent falls.

How to clean the camera?

Use a soft dry cloth to wipe the lens and housing. Never use liquids or abrasive products.

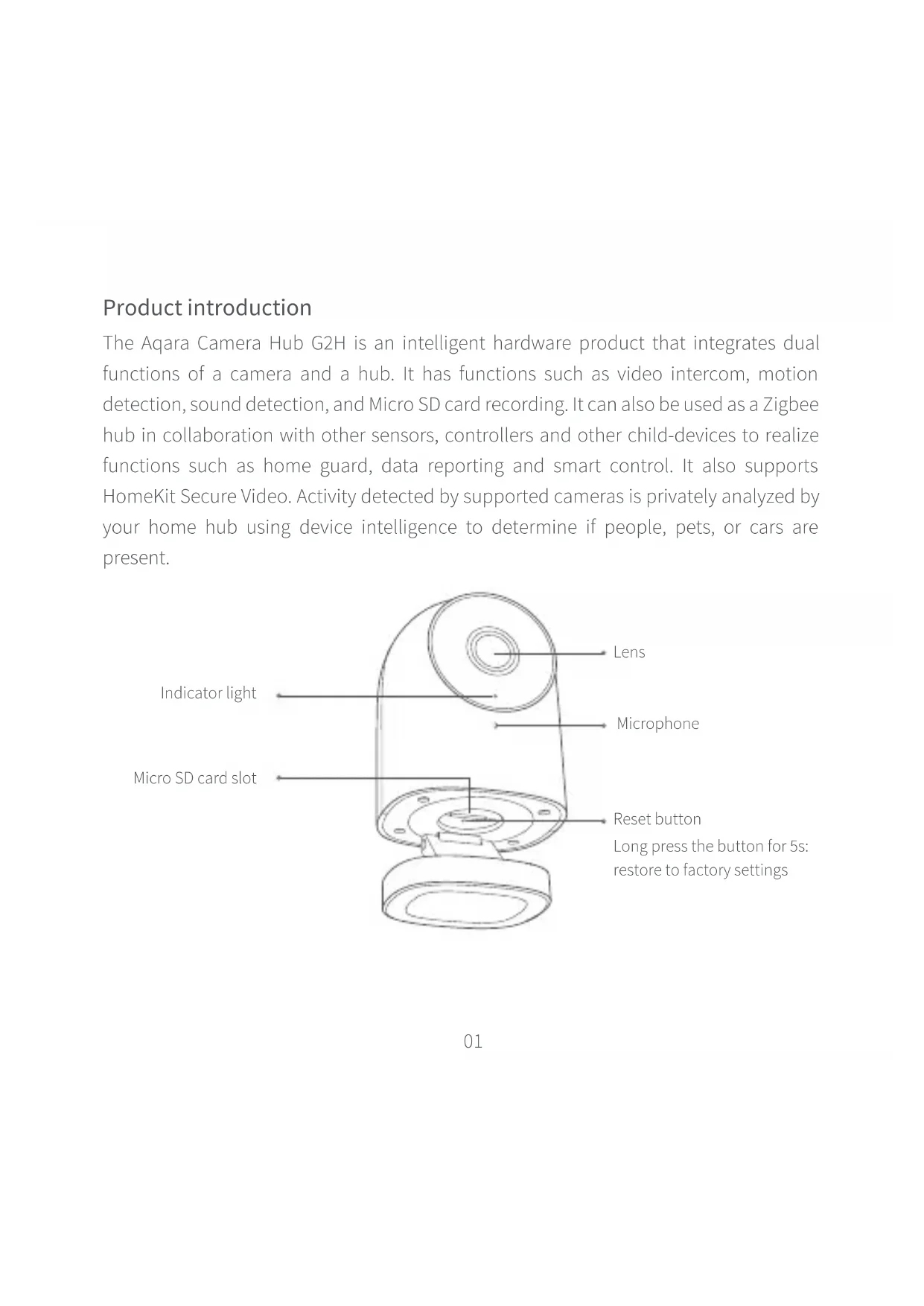

USER MANUAL Camera Hub G2H Aqara

The Aqara Camera Hub G2H is an intelligent hardware product that integrates dual functions of a camera and a hub. It has functions such as video intercom, motion detection, sound detection, and Micro SD card recording. It can also be used as a Zigbee hub in collaboration with other sensors, controllers and other child-devices to realize functions such as home guard, data reporting and smart control. It also supports HomeKit Secure Video. Activity detected by supported cameras is privately analyzed by your home hub using device intelligence to determine if people, pets, or cars are present.

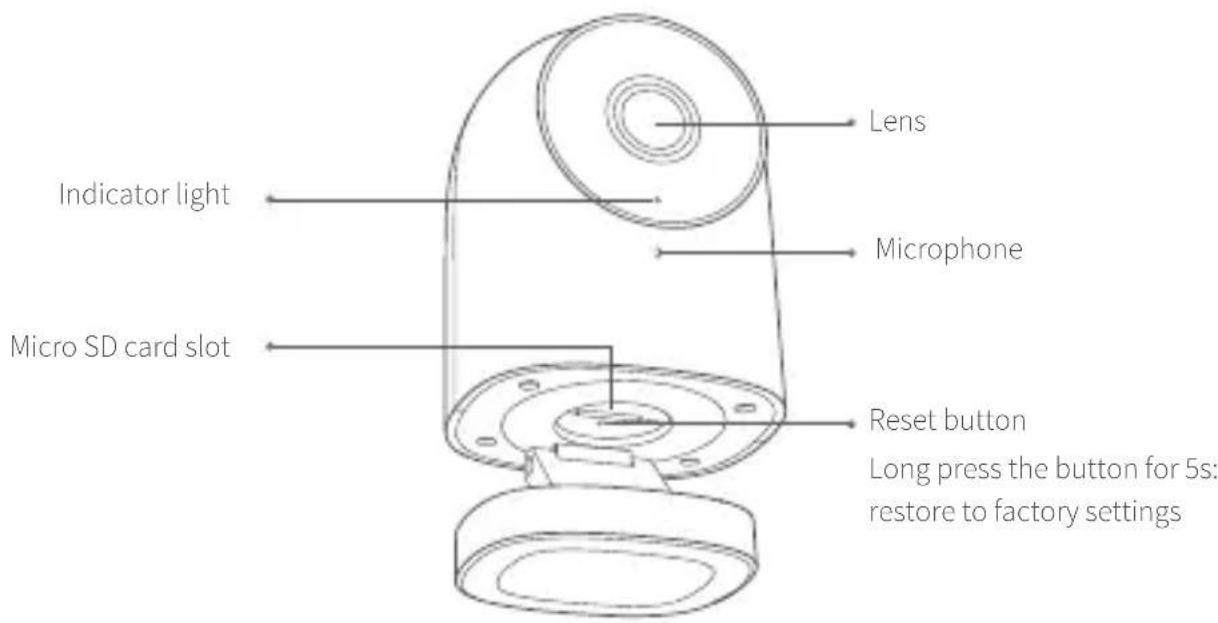

Lens Indicator light Micro phone Micro SD card slot Reset button Long press the button for 5s: restore to factory settings

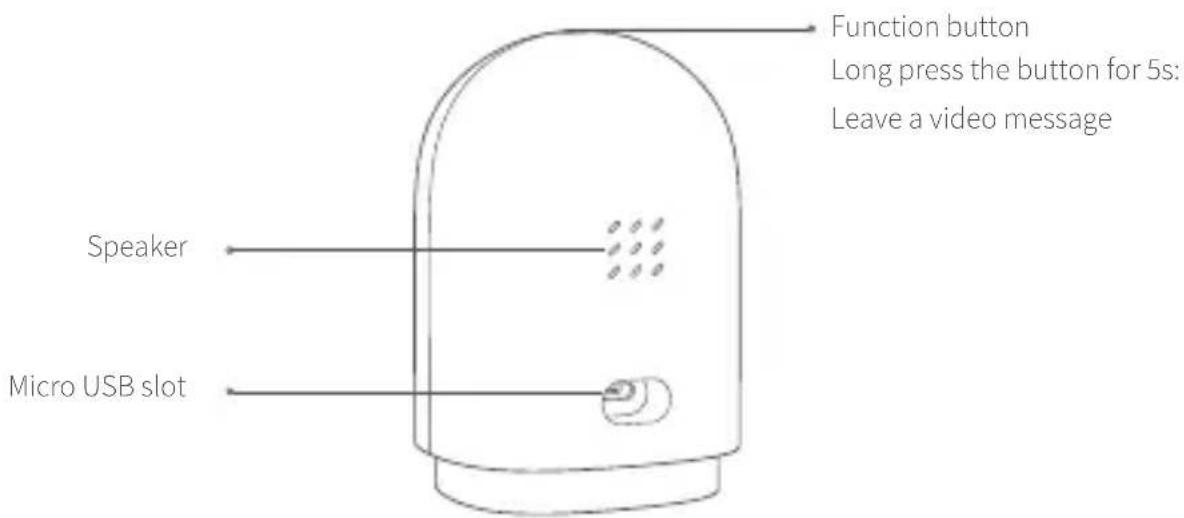

Function button Long press the button for 5s: Leave a video message Speaker Micro USB slot

Warnings

* This product is NOT a toy. Please keep children away from this product.
* This product is designed for indoor use only. Do NOT use in humid environments or outdoors.
* Beware of moisture, do NOT spill water or other liquids onto the product.
* Do NOT place this product near a heat source. Do NOT place it in an enclosure unless there is normal ventilation.
* Do NOT attempt to repair this product by yourself. All repairs should be performed by an authorized professional.
* This product is only suitable for improving the convenience of your home life and reminding you about the status of your devices. It should NOT be used as security equipment for home, building, warehouse or any other places. If a user violates the product use instructions, the manufacturer will NOT be liable for any risks and property losses.
* The base of this product has been designed with strong magnetic properties, which

can ensure that the product will not fall off when it is installed on the wall. In order to prevent the product falling off and possibly causing personal injury, we recommend that the installation height of the device should be less than 2 meters.

Quick Setup

1. Download the App

Scan the QR code, or search for "Aqara Home" on the App Store, or on Google Play. Download and install the Aqara Home app.

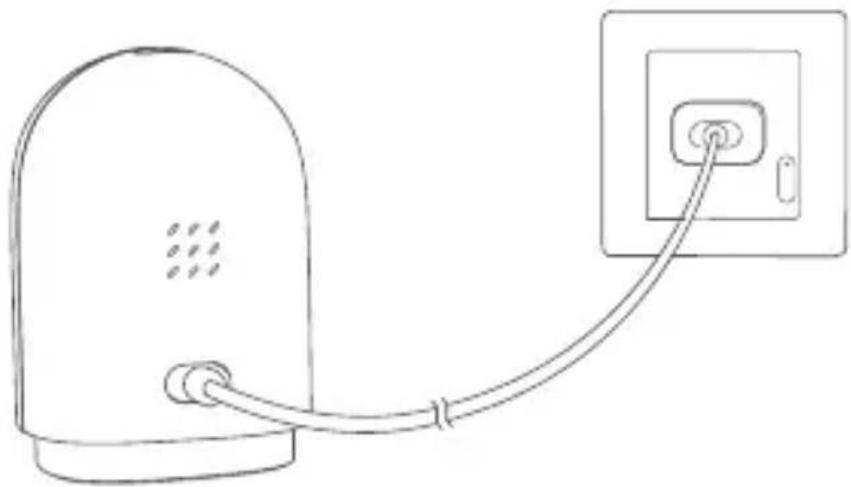

2. Power on and start up

QR code image containing encoded data, no visible human-readable text

Find the power jack on the back of the product and connect the USB power cable. Then power on the power adapter. After the camera starts up successfully, the red indicator light of the camera will flash.

Line drawing of a device connected to an electrical outlet (no text or symbols)

* If the red indicator light does not flash, please long press the reset button and try again.

3. Add camera

Connect to Aqara Home

Open the Aqara Home app, and click “+” on the upper right corner of the homepage.

Select “Camera Hub G2H”, and operate it as the app prompts. After the device is connected successfully, the blue indicator light will be steady on.

If the device failed to be added, please check the following steps:

* Please make sure the camera is connected with the 2.4GHz Wi-Fi network.
* Wi-Fi name or password may not contain special characters or spaces. Please replace them with ordinary characters and try again.
* Please make sure the phone is not less than 4 inches away. The camera can't scan the QR code under back-lighting.
* Please check whether the router turns on the Wi-Fi connection watcher function, which causes the network connection failures.
* Please check whether the router turns on the AP isolation function, which causes the phone cannot search the camera within LAN.
* It is recommended not to connect it to a bridge network.

Connect to Apple HomeKit

Open Apple Home app, click “+” on the upper right corner, and then enter the “Add Accessory” page. Scan or manually enter the HomeKit Setup Code at the bottom of the camera to bind the camera to HomeKit.

Failed to add to HomeKit guide:

* "Failed to add accessory". Due to multiple adding failures, the error information of iOS cache cannot be removed. Please restart the iOS device and reset the camera.
* "Accessory already added". After restarting the iOS device and reset the camera, you can manually enter the HomeKit setup code and add it again.

* "Accessory not found". Please wait for 3 minutes after resetting the camera. You can manually enter the HomeKit setup code and add it again.
* Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
* A 10-day recording history from your Camera Hub G2H is securely stored in iCloud and available to view in the Apple Home app on your iPhone, iPad, or Mac. You can add one camera to your 200GB plan or up to five cameras to your 2TB plan at no additional cost. Camera recordings don’t count against your iCloud storage limit.
* Communication between iPhone, iPad, Apple Watch, HomePod, or Mac and the HomeKit-enabled Camera Hub G2H is secured by HomeKit technology.

4. Add child-device

After the camera is added successfully, please open the Aqara Home app and add the child-devices as the user manual shows.

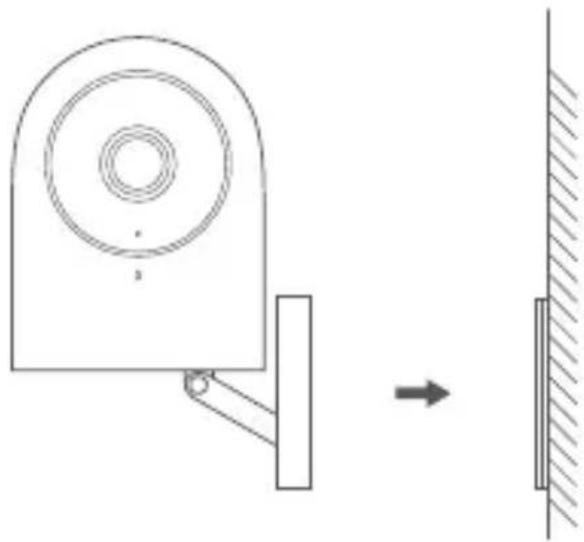

5. Product installation

1 Please make sure the camera is added successfully, and then install it onto the wall.
② You can place the camera on the horizontal surface, such as desk, table, bookcase, etc.
3 The base of the camera contains a magnet, which can be attached to a metal surface, such as a refrigerator, iron door etc. Do not place it near the main unit of the computer or hard disc.
4 You can use the 3M double-sided tape to attach the metal plate to a smooth, non-metal surface, such as glass, tile, latex wall, etc. and then attach the magnetic camera base to the metal plate.

Technical diagram showing a mechanical component with a circular top and a vertical support, next to a wall-mounted block with an arrow indicating motion (no text or symbols)

* Please make sure the installation position is within the coverage range of the Wi-Fi.
* Do not place it near strong electromagnetic interference sources.
* The product is only meant to be used indoors. Please do not use it in humid environment or outdoors.
* Please make sure there is no obstacle around the device.

Indicator Light Status

Indicator Light Status	Status Description
Blue light is steady on	Connected successfully / works normally
Blue light flashes	Connecting to network / network is abnormal
Red light is steady on	Starting up / Live streaming / recording
Red light flashes	Waiting for connection
Off	Sleep mode / the indicator light is off

Basic Parameters

Model: CH-H01

Resolution: 1080p

Lens: 140^ wide angle

Video Code: H.264

Input Power: 5V==1A

Power Consumption: 5W(MAX)

Wireless Protocol: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, Zigbee

Local Storage: Micro SD card (CLASS 4 or above is supported, up to 32GB storage)

Supported device: Android 4.0 or iOS13.2 and above

Operating Temperature: -10°C \~ 40°C

Hereby, [Lumi United Technology Co., Ltd] declares that the radio equipment type [Camera Hub G2H, CH-H01] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: https://www.aqara.com/DoC

Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

Wi-Fi Operation Frequency 2412-2472 MHz
Wi-Fi Maximum Output Power	≤20 dBm
Zigbee Operation Frequency	2405-2480 MHz
Zigbee Maximum Output Power	≤13 dBm

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, Appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

FCC ID: 2AKIT-G2H

Federal Communications Commission (FCC) compliance statement:

1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

RF Exposure statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IC: 22635-G2H

IC NOTICE TO CANADIAN USERS

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES - 003.

This device complies with RSS - 247 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Online Customer Service: www.aqara.com/support

Manufacturer: Lumi United Technology Co., Ltd.

Address: 8th Floor, JinQi Wisdom Valley, No.1 Tangling Road, Liuxian Ave, Taoyuan Residential District, Nanshan District, Shenzhen, China.
