Product Type	Smart Lock
Dimensions	70 x 160 x 85 mm (exterior); 70 x 160 x 65 mm (interior)
Weight	1.5 kg (including interior and exterior assemblies)
Power Supply	4 x AA alkaline batteries (not included)
Battery Life	Approximately 12 months under normal usage
Unlocking Methods	Fingerprint, PIN code, NFC card, mechanical key, and app via Bluetooth
Fingerprint Sensor	Semiconductor capacitive, 360° recognition
User Capacity	Up to 100 fingerprints, 50 PIN codes, and 50 NFC cards
Connectivity	Bluetooth 5.0; compatible with Aqara Hub (Zigbee) via app
Smart Home Integration	Works with Apple HomeKit, Amazon Alexa, Google Assistant, and IFTTT
Safety Features	Anti-peep password, false code input, auto-lock after 10 seconds
Emergency Power	Micro-USB port for emergency power supply
Material	Zinc alloy body, tempered glass touch panel
Weather Resistance	IP54 rated (exterior unit)
Installation	Fits most standard doors (35-55 mm thickness); easy DIY with included screws and template
Maintenance	Clean with a soft, dry cloth; avoid solvents and abrasive cleaners
Spare Parts	Batteries, mechanical keys, and mounting screws available from Aqara
Repairability	Replaceable batteries and mechanical key cylinder; user-serviceable

Frequently Asked Questions - U100 Aqara

How to install the Aqara U100 smart lock?

Installation is DIY-friendly. Follow the included template to drill holes for the deadbolt and latch. Attach the exterior and interior units with the supplied screws. Insert 4 AA batteries and pair the lock with the Aqara app. For detailed steps, refer to the user manual.

What apps are compatible with the U100?

The Aqara U100 works with the Aqara Home app, and also integrates with Apple HomeKit, Amazon Alexa, Google Assistant, and IFTTT for smart home automation.

How to reset the lock to factory settings?

Press and hold the reset button on the interior unit for 5 seconds until the lock beeps twice. This will delete all user data and restore default settings. Confirm in the app if needed.

What to do if the lock fails to recognize my fingerprint?

Ensure your finger is clean and dry. Re-enroll your fingerprint by going to the app's fingerprint management and pressing the sensor firmly. Avoid registering the same finger multiple times. If issues persist, clean the sensor with a soft cloth.

How long do the batteries last?

Under normal usage (about 10 operations per day), the 4 AA batteries last approximately 12 months. The lock will give low-battery alerts in the app and via beeps.

Can I use the U100 without a smart home hub?

Yes, the lock can be used standalone via fingerprint, PIN, NFC, or mechanical key. However, for remote access and notifications, an Aqara Hub (Zigbee) is required.

What if the lock is jammed or stuck?

Check if the door is properly aligned and the deadbolt is not obstructed. Use the mechanical key to unlock manually. If the issue continues, remove the lock and inspect the mounting plate and screw alignment. Contact Aqara support if necessary.

How to add or delete user codes?

In the Aqara app, go to the lock settings and select 'User Management'. You can add or delete PIN codes, fingerprints, and NFC cards. The lock supports up to 100 fingerprints, 50 PIN codes, and 50 NFC cards.

Is the U100 weather-resistant?

The exterior unit has an IP54 rating, protecting it against dust and water splashes. It is suitable for covered outdoor installations but not for direct rain exposure.

How to update the lock firmware?

Firmware updates are delivered via the Aqara Home app. When an update is available, you will receive a notification. Ensure the lock has good battery level and keep your phone close to the lock during the update process.

USER MANUAL U100 Aqara

U100 is an IoT-enabled smart lock that supports multiple unlocking methods, such as fingerprint, password, NFC card and Apple Home Key, etc. Through in-depth customization of the fingerprint module and deep optimization algorithm, it provides a smooth experience of unlocking the door through fingerprints. The door lock can be configured through the Aqara Home app. Along with other Aqara smart devices, it can realize various smart automation for your connected home, and provide you with a convenient and safe experience.

* An Aqara Hub is required. Some functions require specific models of the Aqara Hub. Please visit www.aqara.com/en/support.html for more details.

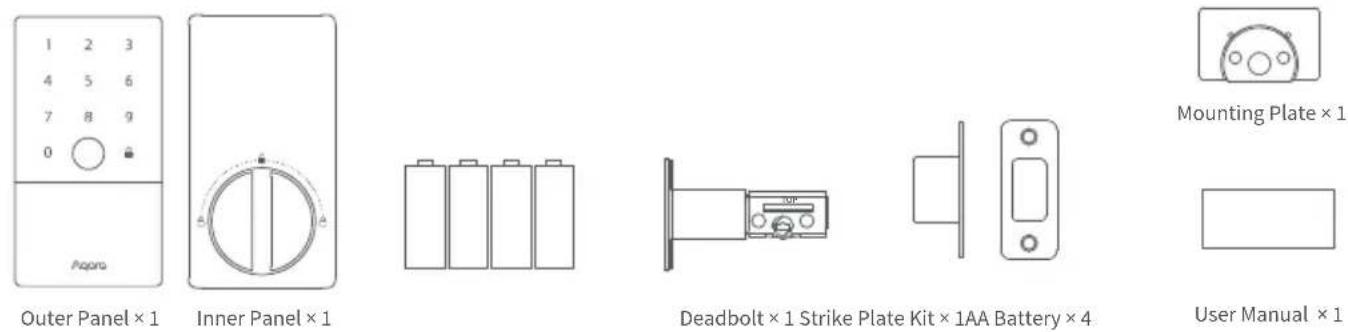

What's in the Box

Mechanical Key × 2

Knob Removal Tool × 1

Installation Diagram ×1

Opposite-Pull Screw Kit × 1

Bolt & Strike Plate Screw Kit × 1

Mounting Plate Screw Kit × 1

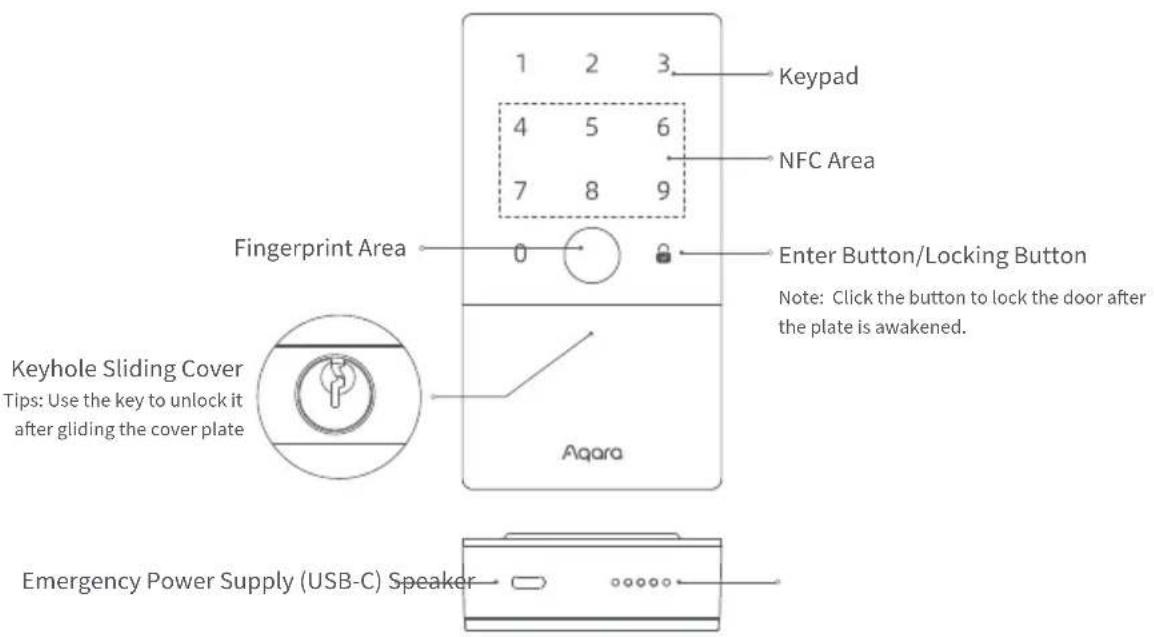

1 2 3 Keypad 4 5 6 NFC Area 7 8 9 Fingerprint Area 0 Enter Button/Locking Button Note: Click the button to lock the door after the plate is awakened. Keyhole Sliding Cover Tips: Use the key to unlock it after gliding the cover plate Aqara Emergency Power Supply (USB-C) Speaker

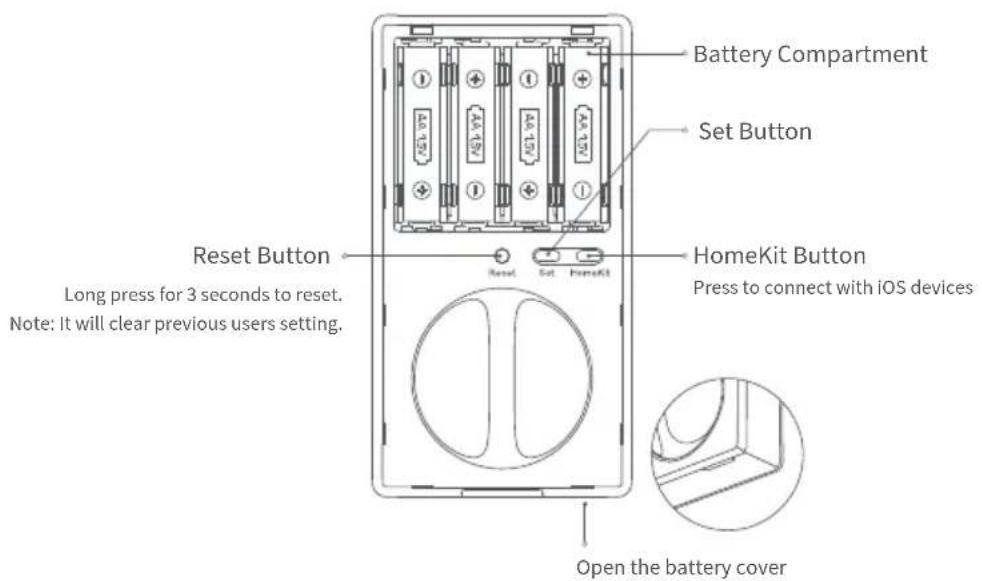

Battery Compartment Set Button Reset Button Reset Set HomeKit HomeKit Button Press to connect with iOS devices Long press for 3 seconds to reset. Note: It will clear previous users setting. Open the battery cover

Instructions before Installation

Before using this product, you need to download the Aqara Home app and register an account. No such operations are required if you directly connect this product with the Apple Home app, however, unique features such as fingerprint recognition, auto-lock, and others will not be able to be experienced.

Aqara Home Installation Videos

Sign up for Aqara Home account, then add Smart Lock U100 and follow the app installation tutorial to install.

Or scan the following QR code to check the installation video.

A PH1 standard Phillips head screwdriver is required for installation.

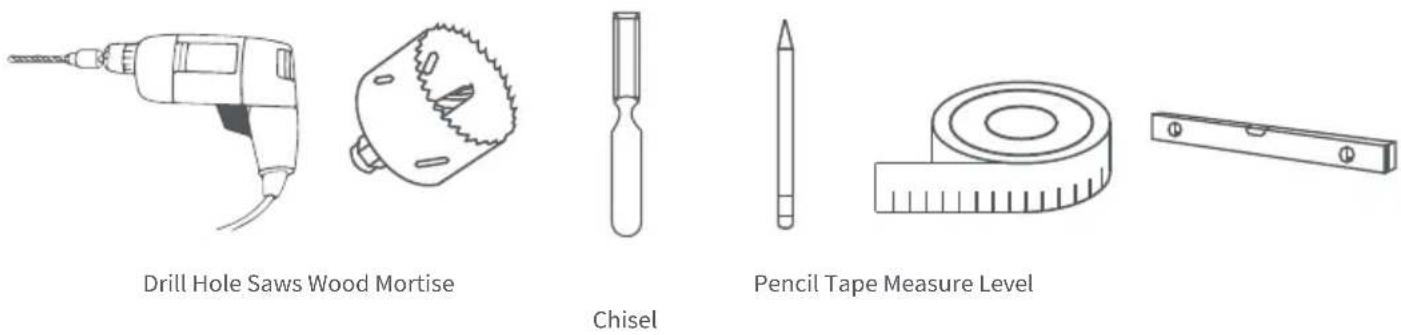

Tools necessary only for new doors or adjusting existing door holes: Drill, Hole Saws, Wood Mortise Chisel, Pencil, Tape Measure, Level

Device Installation

1. Measure the backset: the distance from the edge of the door to the center of the deadbolt hole. It should be 238 in (60 mm) or 234 in (70 mm).

2 ¾ in (60 mm) or 2 ¾ in (70 mm)

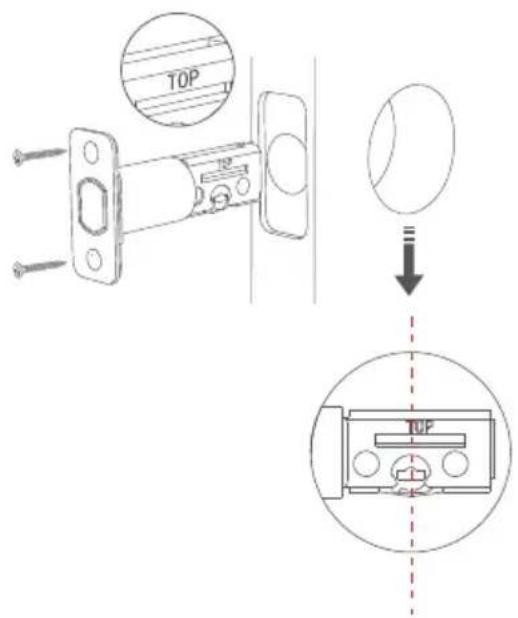

1. Fix the latch. Make sure that the "TOP" is facing up.

TOP TOP

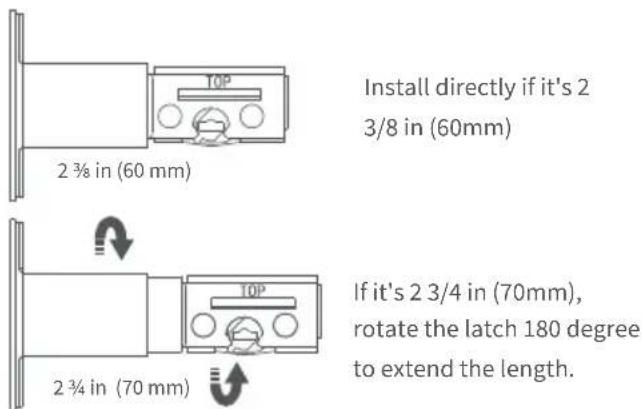

1. Adjust the latch according to the measurements.

Install directly if it's 2 3/8 in (60mm) 2 ¾ in (60 mm) If it's 2 3/4 in (70mm), rotate the latch 180 degree to extend the length. 2 ¾ in (70 mm)

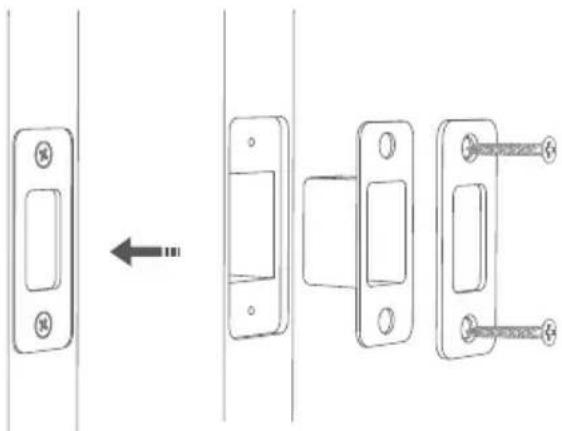

1. Install the strike plate to the door frame.

Diagram showing a door lock mechanism with three sequential steps (no text or symbols)

1. Pass the outer panel connector cable through the deadbolt inside the door and strengthen the outer panel with the mounting plate and opposite-pull screw.

After installation, please rotate the tail smooth when locking or unlocking. If t check if the tailpiece is placed in the co

After installation, please rotate the tailpiece to check if it is smooth when locking or unlocking. If there is a jam, please check if the tailpiece is placed in the center of the mounting plate opening and if there is no interference with other parts.

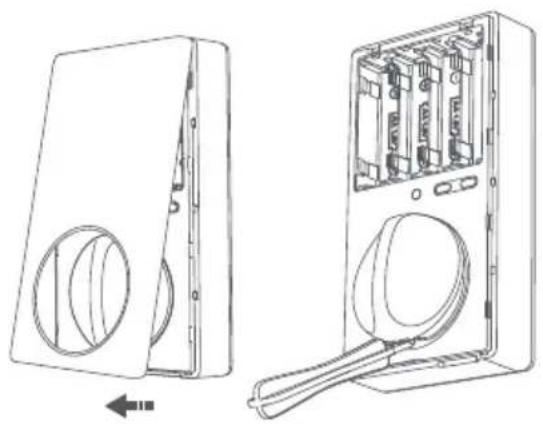

1. Remove the battery cover, then take off the knob cover with the removal tool.

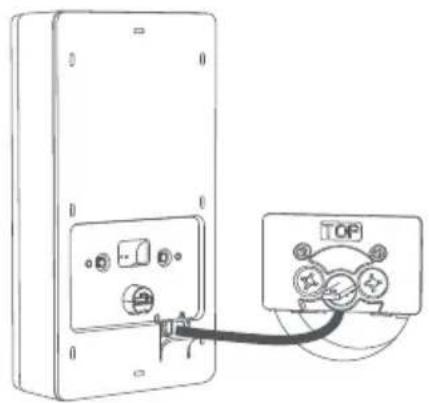

2. Fix the connector cable of the outer panel to the inner panel.

Technical line drawing of a device showing front and side views of a device casing with internal components (no text or symbols)

Diagram of a device with two connectors and a cable, showing electrical connections (no text or symbols)

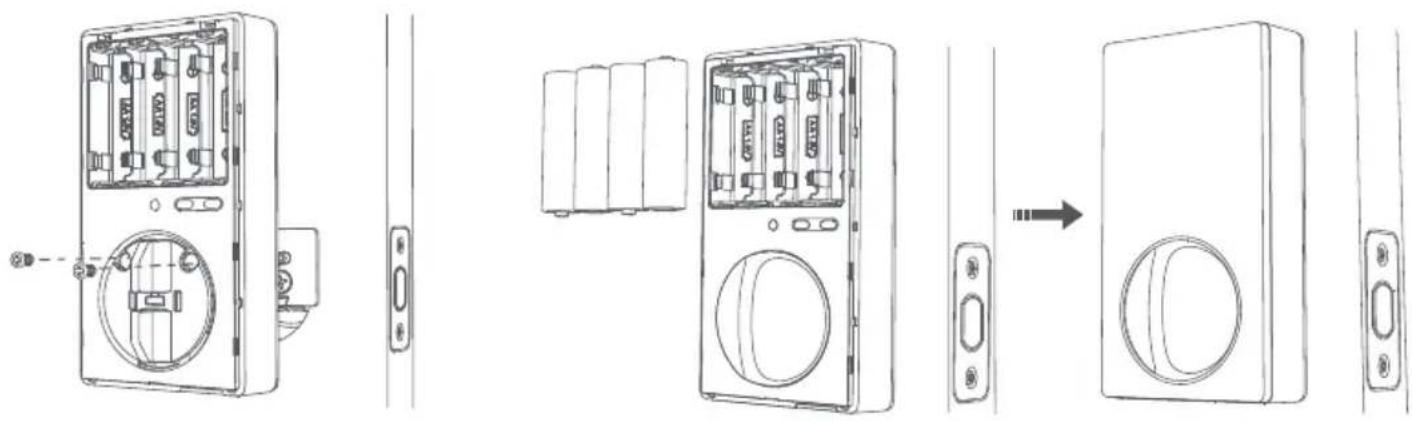

1. Fix the inner panel to the mounting plate indoors and cover the knob.

2. Once the battery installed successfully, a voice prompt will be played to indicate the installation is completed.

Line drawing of a wall-mounted electronic device showing internal components and assembly steps (no text or symbols)

Preparation before Use

1. A smartphone or tablet that supports Wi-Fi or a cellular network (with iOS or Android system) is required.
2. Please make sure that there is a 2.4G Wi-Fi connection and your internet connection is stable.
3. Please open the battery cover and put in 4 AA batteries

Note: It is recommended to use original batteries or alkaline batteries, as others may leak and thus cause damage to the product when used for a long time. [Warning] Please replace the battery when it is low. Otherwise, verification and door opening will fail when the battery runs out. In this case, you can charge the lock with USB-C emergency power supply or unlock with the key.
4. Long press the "Reset" button for 3 seconds, and release the button after you hear the voice prompt. Then the reset completes.

Notes: The door lock cannot be locked normally as the user information will be cleared after reset. Please set the door lock by following instructions as soon as possible.

Device Binding & Initialization

Download the Aqara Home app: Search for "Aqara Home" in the Apple App Store or Google Play. Or scan the following QR code to download the Aqara Home app.

Open the app, tap "+" in the upper right corner of the homepage to enter the page of "Add the device". Choose "Smart Lock U100" and then install the door lock device according to the instructions.

The actual operations are subject to change due to the updates of the Aqara Home app. Please following the instructions of the app.

Add the User

Enter the page of the door lock device and add the door lock owner according to the instructions on the app. Notes: The door lock cannot be locked normally without adding users.

Add the Device to HomeKit (for iOS users)

After the door lock is powered on for the first time, click "+" at the upper right corner of the Apple Home app in the iOS, select "Add Accessory" or open Aqara Home app. Tap "Bind HomeKit" in the "General Settings" column of the setting on the detail page of the door lock. Scan or manually input the HomeKit code as prompted (HomeKit code can be found when you open the battery cover of the indoor door lock). Then add users according to the instructions. HomeKit only supports the lock and unlock, smart automation setting and Apple Home Key.

Add to Apple Home Key (for iOS users)

After it is connected with HomeKit, one virtual door card will be automatically generated in the Apple "Wallet" app. You can use an iPhone or Apple Watch, which supports the Apple Home Key function to unlock by holding it close to the door lock.

Product Instructions

1. To control this HomeKit-enabled accessory, the latest version of iOS or iPadOS is recommended. Controlling this HomeKit-enabled accessory automatically and away from home requires a HomePod, HomePod mini, or Apple TV set up as a home hub. It is recommended that you update to the latest software and operating system.
2. To use home keys, iPhone XS or later with iOS 15 or later and Apple Watch Series 4 or later with watchOS 8 or later are required.
3. Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Connect Google or Alexa app

To unlock via Google or Alexa, please first, buy and bind the Aqara hub. For details, please scan the code and learn how to bind.

Product Specifications

Smart Lock U100

Model: SDL-D01 / DL-D01D

Wireless Protocols: Zigbee, Bluetooth 5.0, NFC

Powering Modes: 4 AA Batteries (6V---); USB-C Emergency Port (5V---)

Dimensions: 5.3 × 2.9 × 3.5 in. (135.8 × 74.8 × 88.4 mm)

Operating Temperature: -35°C \~ 66°C (-31°F \~ 150.8°F)

Operating Humidity: 0 \~ 93% RH, no condensation

FCC ID: 2AKIT-SDLD01

Federal Communications Commission (FCC) compliance statement:

1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

1. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

RF Exposure statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IC:22635-SDLD01

IC:22635-DLD01D

IC NOTICE TO CANADIAN USERS

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES - 003.

This device complies with RSS - 247 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Manufacturer: Lumi United Technology Co., Ltd.

Address: Room 801-804, Building 1, Chongwen Park, Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang Community, Taoyuan Residential District, Nanshan District, Shenzhen, China

Email: [e-mail]
