USER MANUAL LED Light Bulb (Tunable White) Aqara

Line drawing of a light bulb with a standard filament (no text or symbols)

LED Light Bulb (Tunable White)

LED Light Bulb (Tunable White) Quick Start Guide

Product Introduction

LED Light Bulb (Tunable White) is a brightness and color temperature adjustable light bulb with Zigbee wireless communication module built in. After it is bound to a Hub, smart controls such as, remote control, schedule to switch on or off and other smart options are enabled.

* A hub is required.
* Aqara Hub is required to enable LED Light Bulb (Tunable White) to work with HomeKit technology. See www.aqara.com for more details.

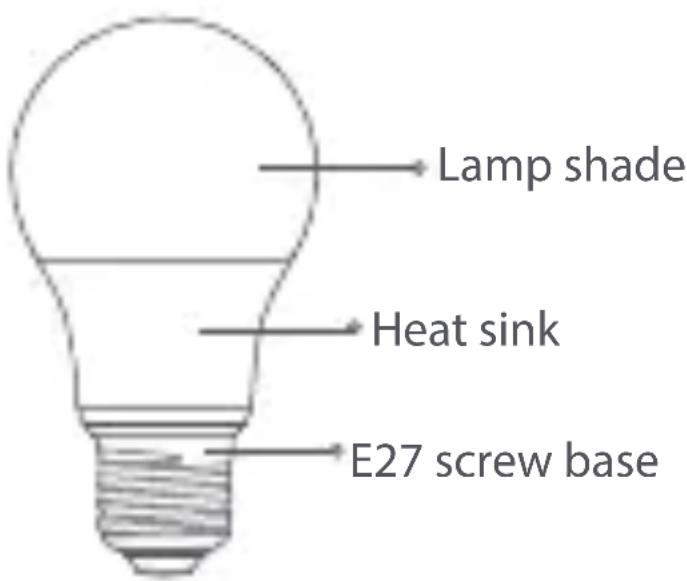

Lamp shade Heat sink E27 screw base

Warnings

1. The installation of this product involves strong electric currents, please install according to the instruction manual;
2. This product is designed for indoor use only, do not use in humid environments or outdoors;
3. Beware of moisture, do not spill water or other liquids onto the product;
4. Do not place this product near a heat source;
5. Do not attempt to repair the product by yourself, all repairs should be performed by authorized personnel.

Installation

Directly install the Light Bulb into the E27 lamp holder.

Simple line drawing of a light bulb with a rotating arrow above it, mounted on a base (no text or symbols)

Quick Setup

1. Before activating the accessory, please make sure you have the Aqara Home app downloaded and Aqara hub installed.
2. Please open the app, tap "Home" and then tap "+" in the top right corner to enter "Add Device (Accessory)" page. Select "LED Light Bulb (Tunable White)" and add it according to instructions.

* If adding fails, please move the Hub closer to the product and try again.

Effective Range Test: Switch on and off the light bulb 3 times in a row, If the Hub makes voice prompts, it indicates that the accessory can communicate effectively with the Hub.

Specifications

Model: ZNLDP12LM

Dimensions: 60×120 mm (2.36×4.72 in.)

Input: 220-240 V\~ 50/60 Hz

Power: 9 W (18 × 0.9 W/LED module)

Color Temperature: 2700 K \~ 6500 K

Luminous Flux: 806 lm

Lamp Holder: E27

Power Factor: 0.7

Wireless Protocol: Zigbee

Operating Temperature: -20° – +40°C

(4^ - 104^)

Operating Humidity: 0 – 85% RH,

no condensation

Maximum Transmit Power (Zigbee): 9.99 dBm

Working Frequency: 2400 MHz – 2483.5 MHz

Online Customer Service:

www.aqara.com/support

Email: [e-mail]

Manufacturer: Lumi United Technology Co., Ltd.

Address: 8th Floor, JinQi Wisdom Valley, No.1 Tangling

Road, Liuxian Ave, Taoyuan Residential District,

Nanshan District, Shenzhen, China.

C€

Hereby, [Lumi United Technology Co., Ltd.] declares that the radio equipment type [LED Light Bulb (Tunable White), ZNLDP12LM] is in

compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.aqa-ra.com/DoC/

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment

by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

LED Light Bulb (Tunable White) – Schnellstartanleitung

Produktübersicht

Simple line drawing of a light bulb with a base, no text or symbols present

Schnelleinrichtung

www.aqara.com/support

E-Mail: [e-mail]

Hersteller: Lumi United Technology Co., Ltd.

Adresse: 8th Floor, JinQi Wisdom Valley, No.1

Tangling Road, Liuxian Ave, Taoyuan

Residential District, Nanshan District,

Shenzhen, China.

CE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a light bulb with a rotating top and base, no text or symbols present.

Configuration rapide

www.aqara.com/support

Courriel : [e-mail]

Fabricant : Lumi United Technology Co., Ltd.

Adresse : 8th Floor, JinQi Wisdom Valley, No.1

Tangling Road, Liuxian Ave, Taoyuan Residential

District, Nanshan District, Shenzhen, China.

CE

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a light bulb with a rotating arrow above it, mounted on a base (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Simple line drawing of a light bulb with a rotating top and base, no text or symbols present.

Connessione Wireless: Zigbee

www.aqara.com/support

Email: [e-mail]

Ltd.ndirizzo: 8th floor, JinQi Wisdom Valley, No.1

Tangling Road, Liuxian Ave, Taoyuan Residential

District, Nanshan District, Shenzhen, China.

C€

Con la presente, [Lumi United

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a light bulb with a rotating arrow above it, mounted on a base (no text or symbols)

Быстрая настройка

www.aqara.com/support

Email: [e-mail]

Адрес: 8th Floor, JinQi Wisdom Valley, No.1 Tangling

Road, Liuxian Ave, Taoyuan Residential District,

Nanshan District, Shenzhen, China.

Сделано в Китае

EAC
