Product Type	Children's balance bike (without pedals)
Brand	Lionelo
Model	Bart Air
Recommended age	From 2 years
Maximum user weight	30 kg
Frame material	Steel
Adjustable seat height	Yes, by fixation clamp
Adjustable handlebar height	Yes, by fixation clamp
Insertion depth mark	Must remain hidden inside the frame
Number of wheels	2
Brakes	No, stop by feet contacting ground
Bike weight	Approximately 3.5 kg
Dimensions (L x W x H)	Approximately 85 x 40 x 55 cm
Assembly	Requires adult, Allen wrench included
Maintenance and cleaning	Damp cloth, no corrosive products
Safety	Helmet and knee pads recommended, adult supervision required
Standards	EN 71-1:2014+A1:2018, EN 71-2:2020, EN 71-3:2019+A1:2021
Warranty	Detailed conditions on the manufacturer's website

Frequently Asked Questions - Bart Air Lionelo

How to assemble the handlebar of the Lionelo Bart Air bike?

Insert the stem with cap into the handlebar opening, then insert the handlebar into the front fork. Make sure the depth mark remains invisible (inside the frame). Tighten the stem with the supplied Allen wrench until resistance, then check stability.

How to adjust the seat height?

Loosen the nut of the seat fixation clamp, insert the seatpost into the frame opening, adjust the height according to the child (the depth mark must be hidden), then firmly tighten the nut.

From what age is this bike suitable?

The bike is intended for children over 2 years and weighing up to 30 kg. It allows learning balance before moving to a pedal bike.

What is the maximum supported weight?

The maximum user weight is 30 kg. Do not exceed this limit to avoid risk of breakage or injury.

Does the bike have brakes?

No, this balance bike is without brakes. The child brakes by placing feet on the ground. It is essential to wear protective equipment (helmet, knee pads) and be supervised by an adult.

What are the important safety instructions?

Always wear a helmet and knee pads. Supervise the child constantly. Do not use near roads, pools, or inclined surfaces. Check the bike condition before each use.

How to clean the bike?

Clean the bike with a damp cloth, then wipe it dry. Do not use corrosive or abrasive cleaning products that could damage surfaces.

What to do if a part is broken or missing?

Do not use the bike. Contact the manufacturer's service at [e-mail] to obtain spare parts or assistance.

Is this bike compliant with safety standards?

Yes, it has been tested and complies with EN 71-1, EN 71-2 and EN 71-3 standards, ensuring the safety of children's toys.

Where to find warranty conditions?

The detailed warranty conditions are available on the Lionelo manufacturer's website. Check the dedicated page for more information.

USER MANUAL Bart Air Lionelo

Black and white bicycle with visible wheels and seat, no text or symbols on the bike body

1

1 2 8 3 9 6 5 7 4

2

Technical diagram illustrating mechanical assembly with labeled parts B and C, showing directional movement and rotation arrows.

3

9 → 9 A

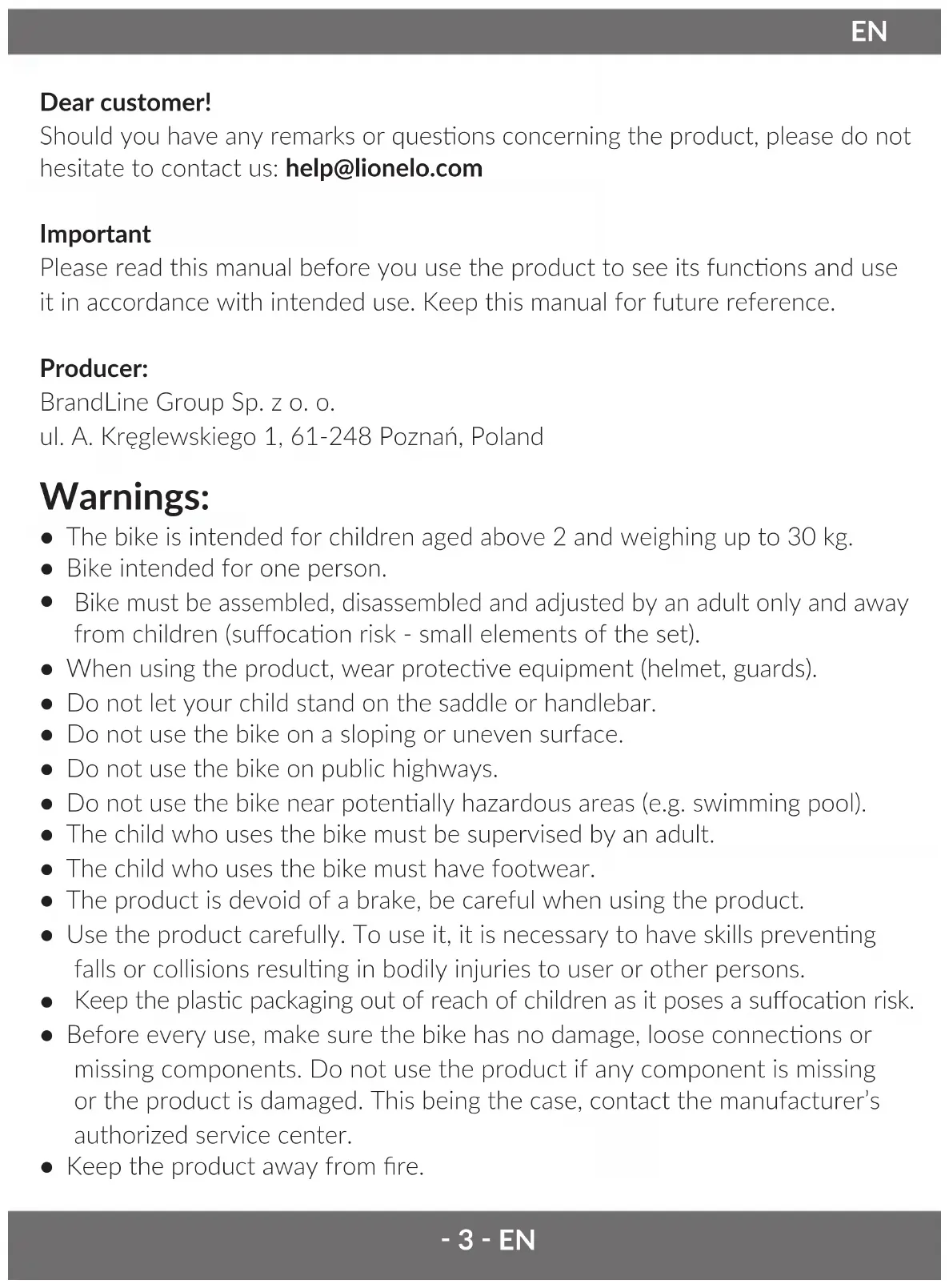

Dear customer!

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Important

Please read this manual before you use the product to see its functions and use it in accordance with intended use. Keep this manual for future reference.

Producer:

BrandLine Group Sp. z o. o.

• The bike is intended for children aged above 2 and weighing up to 30 kg.
• Bike intended for one person.
• Bike must be assembled, disassembled and adjusted by an adult only and away from children (suffocation risk - small elements of the set).
• When using the product, wear protective equipment (helmet, guards).
• Do not let your child stand on the saddle or handlebar.
• Do not use the bike on a sloping or uneven surface.
• Do not use the bike on public highways.
• Do not use the bike near potentially hazardous areas (e.g. swimming pool).
• The child who uses the bike must be supervised by an adult.
• The child who uses the bike must have footwear.
• The product is devoid of a brake, be careful when using the product.
• Use the product carefully. To use it, it is necessary to have skills preventing falls or collisions resulting in bodily injuries to user or other persons.
• Keep the plastic packaging out of reach of children as it poses a suffocation risk.
• Before every use, make sure the bike has no damage, loose connections or missing components. Do not use the product if any component is missing or the product is damaged. This being the case, contact the manufacturer's authorized service center.

• Keep the product away from fire.

• Do not drag the bike behind the car or other vehicle.

• Keep the product away from sources of heat, high temperatures, hot surfaces, sources of ignition, naked flame, oil and sharp edges.
• Store the bike in a dry place.
• Do not use the product in unfavorable weather (e.g. frost, rain, snow, black ice).

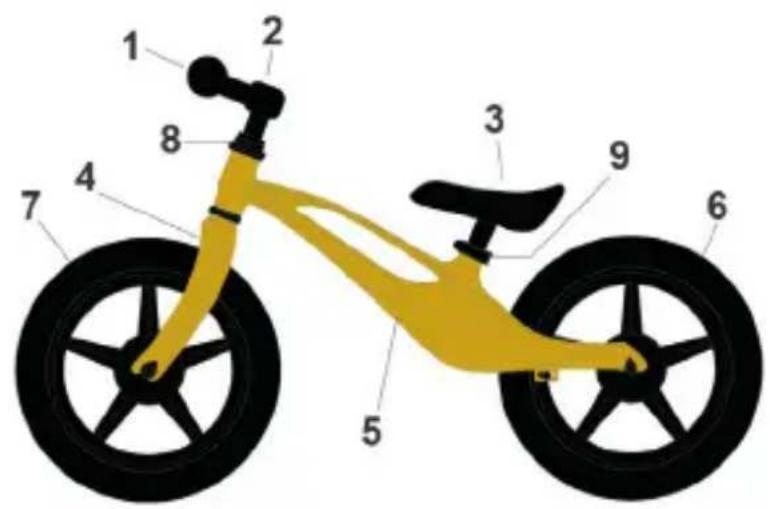

Product description (fig. 1)

1. Handlebars grips
2. Saddle
3. Front fork
4. Crossbar
5. Rear wheel
6. Front wheel
7. Wheel clamping ring

8. Saddle clamping ring

9. Handlebars with shank hole

How to assemble

The bike must be assembled, disassembled and adjusted by an adult only.

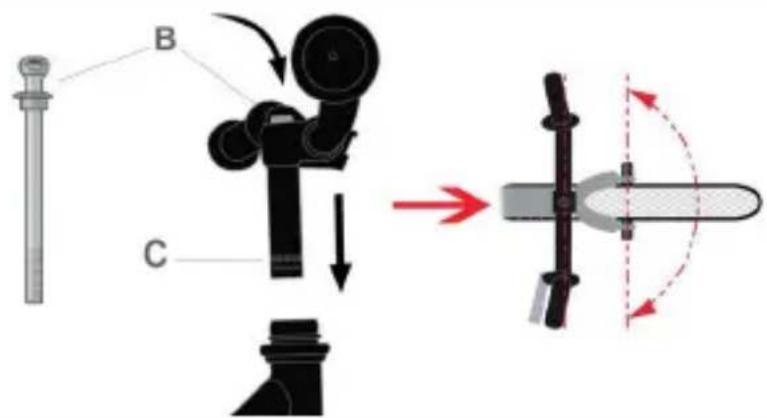

1. Handlebars (fig. 2)

Insert the shank with a cap (marked as B in fig. 2) into the handlebars hole. Next insert the handlebars into the front fork of the bike. Make sure the handlebars have been fixed properly and the wheels are in a forward position (see: fig. 2) Adjust the handlebars height to your child's height - the handlebars depth marker (marked as C in fig. 2) must not be visible, it must be inside the bike crossbar. Use an Allen wrench (included in the set) to screw the shank in the handlebars until it resists. When the procedure is done, make sure the handlebars have been mounted securely. If not, tighten up the shank so that the handlebars get stable.

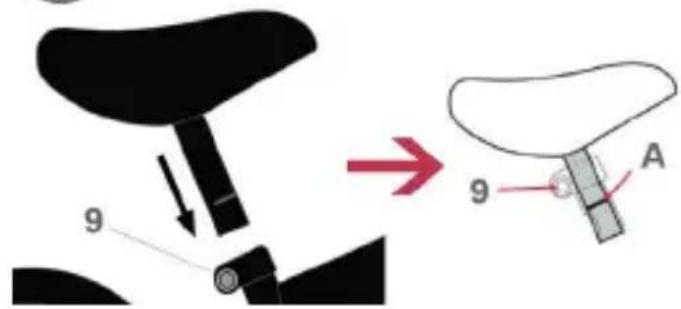

2. Saddle (fig. 3)

Release the nut on the saddle clamping ring (9). Insert the saddle tube into the saddle hole in the crossbar. Adjust the saddle height to your child's height - the saddle depth marker (marked as A in fig. 3) must not be visible, it must be inside the crossbar. Tighten up the nut on the saddle clamping ring (9) properly. When

the procedure is done, make sure the saddle has been fixed securely. If not, tighten up the nut on the ring so that the required stability is guaranteed.

3. Wheels

Pay attention to the front-wheel tread direction – it should be the same as in the rear wheel. Put the wheel in the fork by sliding one end of the wheel centre into the dedicated opening. Repeat the procedure with the other wheel centre. Avoid excessive tilting of the fork! Tighten the screws to connect the wheel centres to the fork. The grooved side of the pad should be on the side of the frame.

How to use

Sit on the saddle, grab both handlebars grips firmly and push your feet against the ground alternately. When you get some speed, lift your feet to ride freely. This is how your child should learn how to keep its balance. To turn, it is necessary to turn the handlebars in a relevant direction and keep your balance. To brake, feet must touch the ground.

How to maintain and clean

Clean the bike with a wet cloth and wipe it dry. Do not use caustic or abrasive agents to clean the product.

The product has been tested and complies with the following standards: EN 71-1:2014+A1:2018, EN 71-2:2020, EN 71-3:2019+A1:2021

The pictures are for reference only. The real design of the products may differ from the pictures presented.

PL

Drogi Kliencie!

Detailed warranty conditions are available on the website:
