Product Type	Stroller
Brand	Lionelo
Model	Lea
Dimensions (open)	Approx. 85 x 60 x 105 cm
Dimensions (folded)	Approx. 75 x 60 x 35 cm
Weight	Approx. 10.5 kg
Maximum Load	15 kg (child) + 5 kg (basket)
Age Range	From birth up to 36 months
Safety Harness	5-point adjustable harness
Brake System	Rear wheel parking brake, one-pedal action
Suspension	Front wheel suspension for smoother ride
Canopy	Adjustable, UV-protective, with peek-a-boo window
Recline Positions	Multi-position reclining backrest, including fully flat
Seat Orientation	Forward and rearward facing
Handlebar	Height-adjustable, faux leather grip
Folding Mechanism	One-hand compact fold with auto-lock
Storage Basket	Large, accessible from rear
Wheels	Puncture-proof, all-terrain, front swivel with lock
Cleaning Instructions	Wipe frame with damp cloth; fabric seat cover removable and machine washable at 30°C
Compatibility	Compatible with Lionelo Lea carrycot and car seat (sold separately)
Spare Parts Availability	Available via Lionelo official website or authorized service centers

Frequently Asked Questions - Lea Lionelo

How do I assemble the Lionelo Lea stroller?

Assembly is simple: attach the rear wheels until they click, then front wheels. Unfold the frame until it locks. Attach the seat and canopy. Always refer to the user manual for detailed steps.

What is the weight limit for the stroller seat?

The maximum child weight is 15 kg. The storage basket can hold up to 5 kg.

Can I use the Lea stroller from birth?

Yes, the seat reclines to a fully flat position, making it suitable for newborns. For extra comfort, you can also use the optional Lionelo Lea carrycot (sold separately).

How do I clean the stroller?

The frame can be wiped with a damp cloth and mild soap. The seat cover is removable and machine washable at 30°C. Do not use bleach or harsh chemicals.

Is the stroller compatible with car seats?

Yes, with the appropriate adapters (sold separately), the Lea stroller is compatible with selected Lionelo car seats. Check the manual for compatible models.

How do I fold the Lionelo Lea stroller?

First, collapse the canopy and recline the seat. Then press the fold buttons on the handle while pushing forward. The stroller will fold compactly and lock automatically. Always ensure the stroller is unlocked before use.

What type of wheels does the stroller have?

The Lea features puncture-proof wheels suitable for various terrains. The front wheels can swivel for maneuverability or be locked for straight-line stability.

How do I adjust the handlebar height?

Press the button located on the handlebar center, then slide the handle up or down to your preferred height. Release the button to lock it in place.

Can I get spare parts for the Lea stroller?

Yes, spare parts such as wheels, canopy, and seat fabrics can be ordered through the Lionelo website or authorized service centers. Use the model number to find the correct parts.

Is the stroller suitable for jogging?

No, the Lionelo Lea is not designed for jogging. It is a standard all-terrain stroller for everyday use, not for running.

USER MANUAL Lea Lionelo

Woman pushing a baby stroller on a cobblestone sidewalk, with modern glass building in background (no visible text or symbols)

Red circular logo with a white animal face and blue dot, resembling a stylized lion's head (no text or symbols)

lionelo

PL

Wstep

Drogi Kliencie!

Illustration of a blue folding chair with an arrow indicating rotation, shown alongside a detailed close-up of the interior (no text or symbols)

PL

Blue stroller with directional arrow indicating rotation (no text or symbols)

Thank you for placing your trust in us and choosing Lionelo. Our products are made with the utmost care to ensure comfort and above all, maximum safety of your child. Implementation of high quality materials and modern technologies allows us to provide users with a product that is perfectly suited for everyday use.

Before using the product, please read the included user manual carefully.

Manual:

Note: The assembly of the product must be performed by an adult. Failure to comply with this provision and the assembly instructions could result in serious injury or even death.

EN

Note:

• The stroller is suitable for children from 0 to 36 months old and weighing less than 15 kg.
- Failure to follow the instructions in the manual could result in serious injury or death of your child.
- While using the stroller, a child should be always secured with a 5-point safety harness system.
- Do not ever leave your child unattended in the stroller.
- If the stroller is damaged in any way, please stop using it immediately and contact your dealer.
- Do not allow your child to stand in the stroller. A child must be always secured with a 5-point safety harness system.
- The stroller is a single user product.
- Only the spare parts supplied by the manufacturer can be used with this stroller.
- All the components of the stroller should be regularly checked to ensure they operate properly.
- Do not hang or place any heavy objects on the stroller's bar. Otherwise it can cause the stroller to overturn and hurt the child.
• The product is not designed for running, skating, etc.
- Before you start using the stroller, make sure the folding mechanisms are properly locked.
• To prevent a child from injury, do not allow it to stay near the

EN

stroller when the product is being assembled or disassembled.

• Do not allow children to play with the product.
• When placing / removing a child into / from the stroller, the brake must be pulled.
• The seat is NOT suitable for children younger than 6 months.

- Keep the product away from fire.

• The maximum load of the shopping basket is 5 kg.

- Do not use the mattress thicker than 25mm.

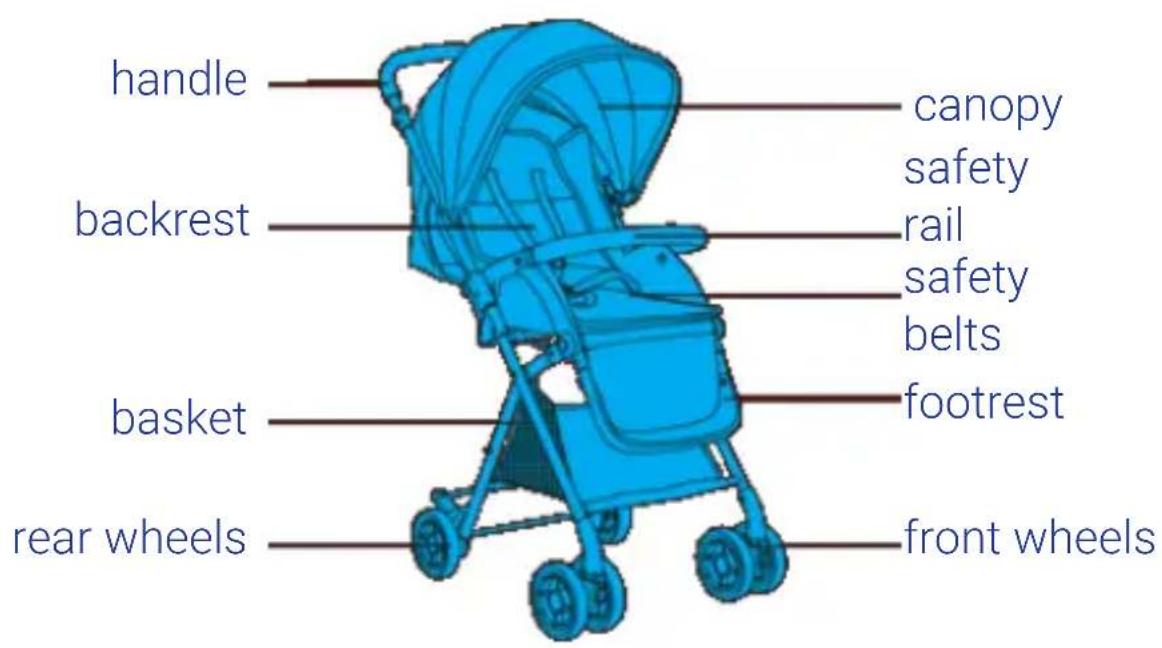

Description:

handle backrest basket rear wheels canopy safety rail safety belts footrest front wheels

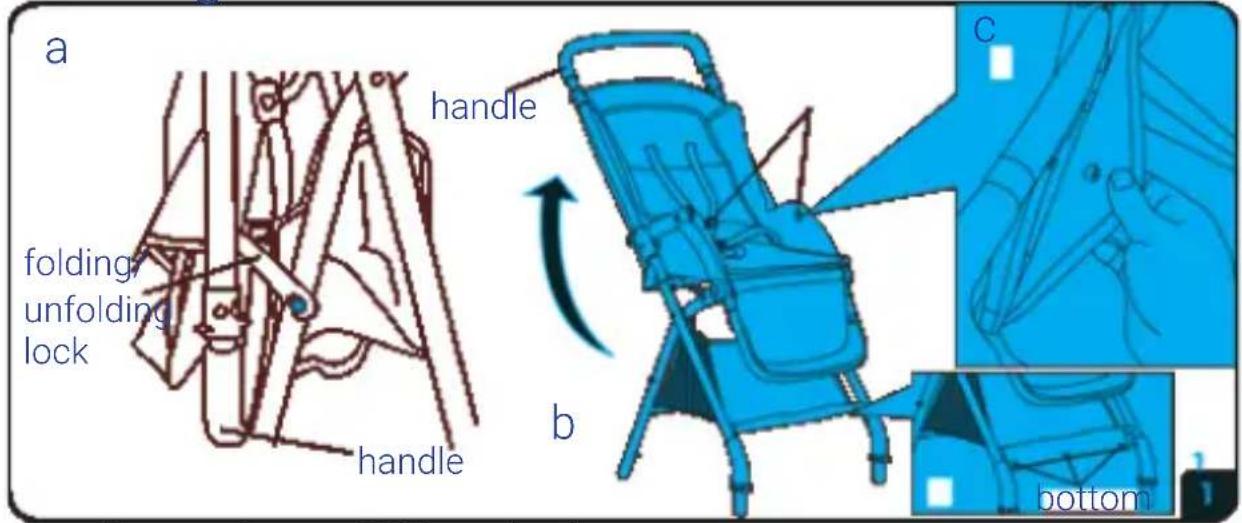

Unfolding:

a handle folding/ unfolding lock handle b c bottom

EN

a. Release the unfolding lock.
b. Move the handle up, while pushing the rear lock down.
c. Fasten the snaps inside the seat and at the bottom under the footrest.

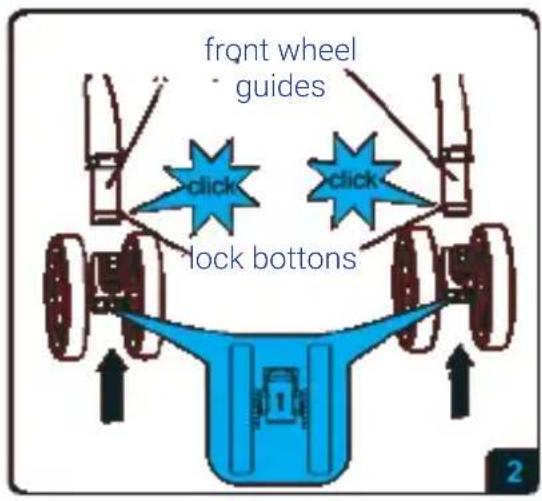

Insert the front wheel's stem into the front guide and push the wheel's stem until the lock snaps into place. You will hear the click sound.

Please ensure that the wheel has been properly installed and locked in the guide.

front wheel guides click click lock bottoms 2

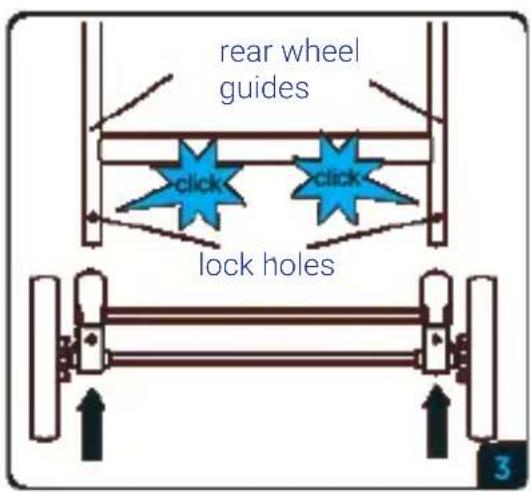

Insert the rear wheel's stem into the front guide and push the wheel's stem until the lock snaps into place. You will hear the click sound.

Please ensure that the wheel has been properly installed and locked in the guide.

rear wheel guides click click lock holes 3

EN

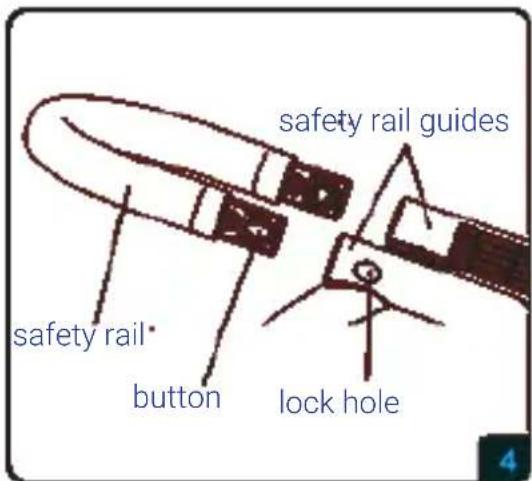

Push the safety rail into the guides in the central part of the stroller's frame.

In order to detach the safety rail, press the lock latch at the outside of the tray handles, and then pull out the safety rail.

safety rail guides safety rail button lock hole

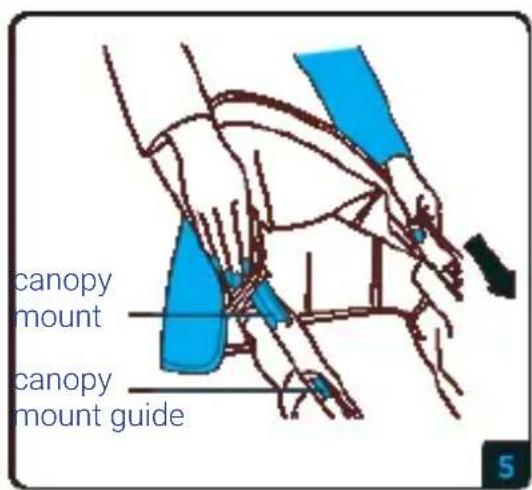

Slide the canopy mount into the guide in the central part of the stroller's frame. Push it until it locks in place.

canopy mount canopy mount guide

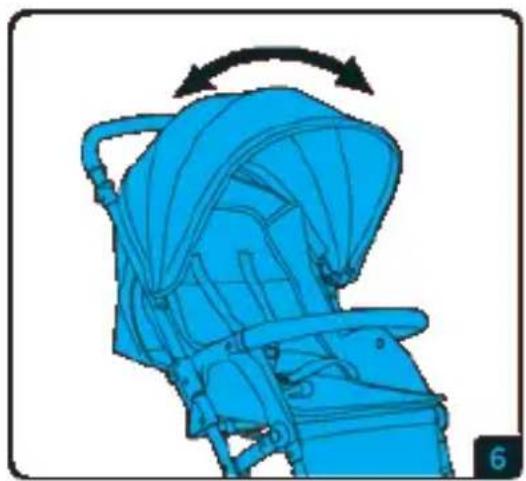

Move the canopy forward to unfold it. Move it backward to fold it.

Blue stroller with arrow indicating rotation (no text or symbols)

The footrest can be a two different positions buttons Press the buttons on the footrest and choo position

The footrest can be adjusted into two different positions.

Press the buttons on the sides ofthe footrest and choose a desirableposition

EN

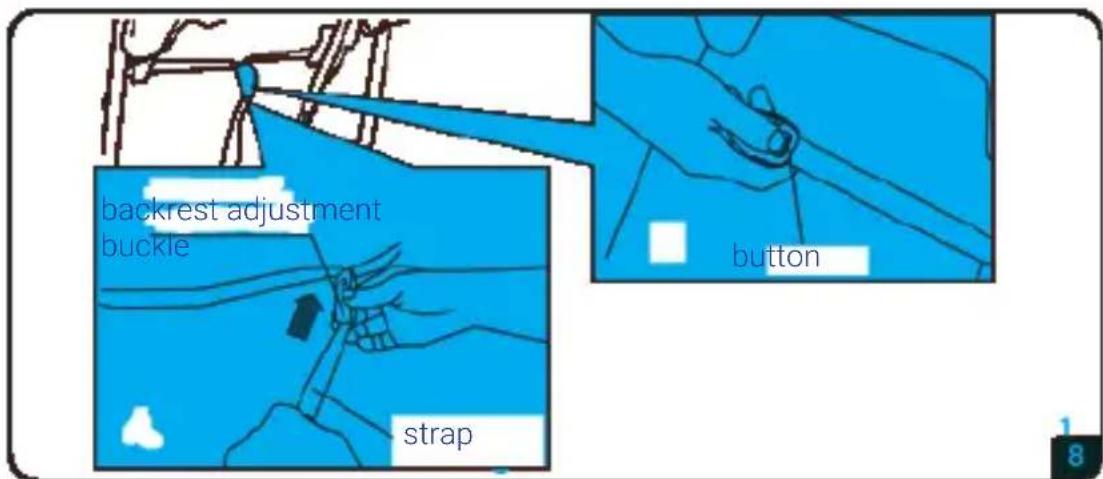

backrest adjustment buckle button strap

In order to adjust the backrest, find the strap with a buckle located behind the backrest. Move the buckle forward to lift the backrest. Press the buckle button and move the buckle backward to lower the backrest.

click click

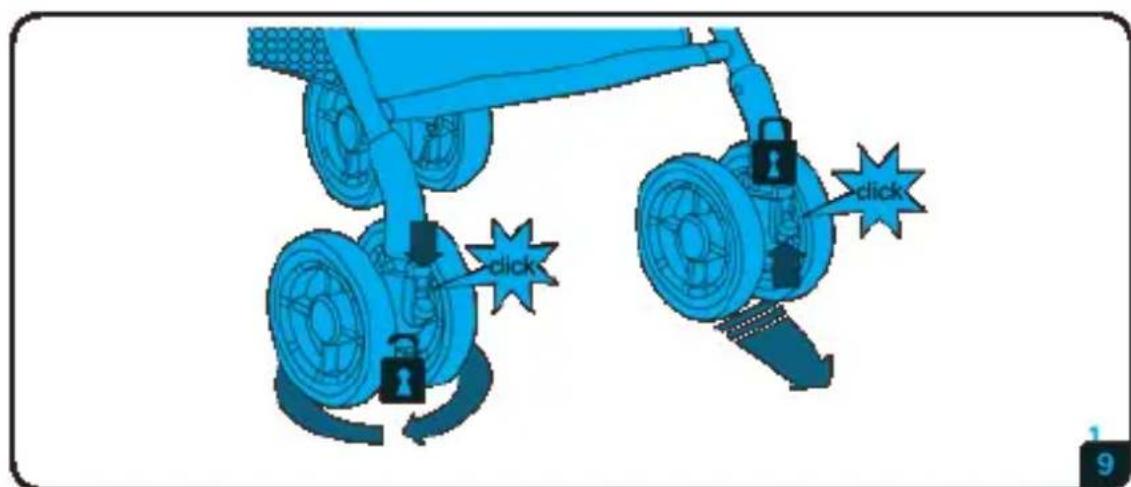

The stroller is equipped with a front wheel turning locking system. To activate it, set the front wheels to the forward direction, and then slide up the lock between the wheels. Move the lock down so that the wheels can be turned again.

EN

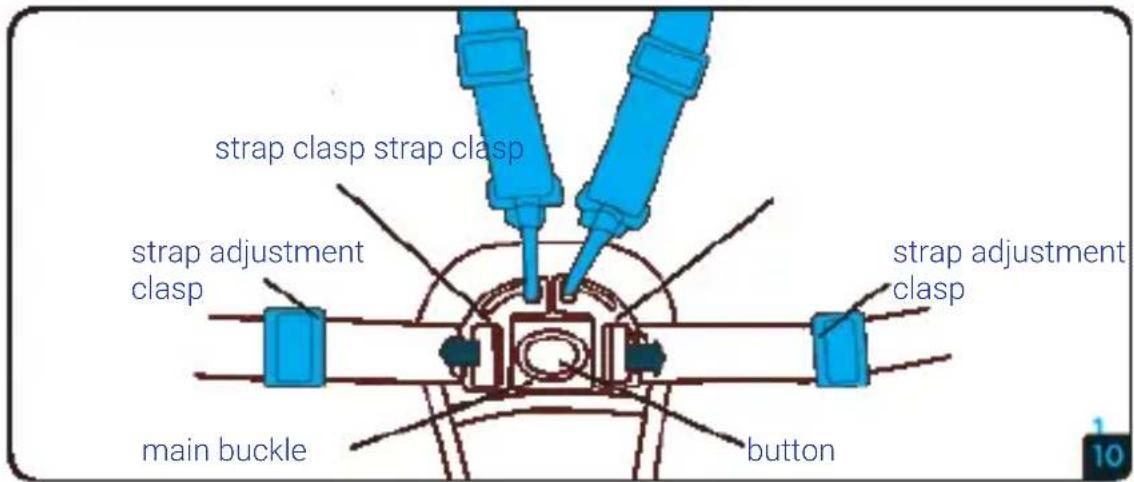

strap clasp strap clasp strap adjustment clasp main buckle button strap adjustment clasp

Insert the left and right clasp into the main buckle. You should hear a “click sound” indicating that the belts have been properly fastened.

In order to unfasten the safety belts, press the button on the middle of the buckle and pull the clasps out.

Belts length adjustment Move the clasps on the right and left belt to adjust the length.

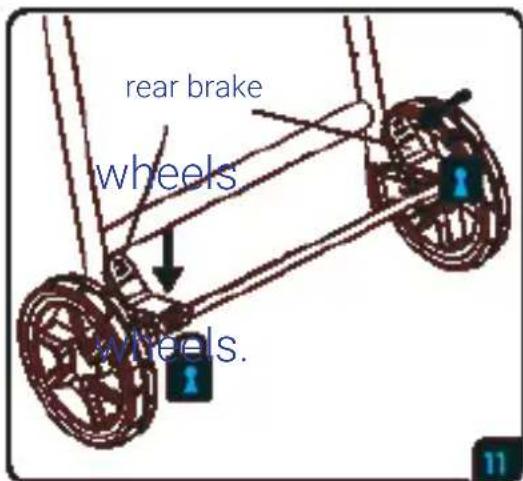

rear brake wheels wheels.

Move the brake down to lock the

Move the brake up to unlock the

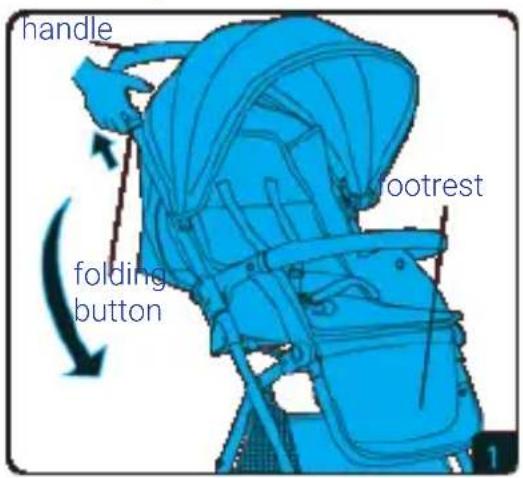

Folding:

handle footrest folding button

Before folding the stroller, fold the canopy and lower the footrest (to the lower position). Slide up the folding buttons at the both sides of the stroller's frame and push the handle down. Fold the stroller.

EN

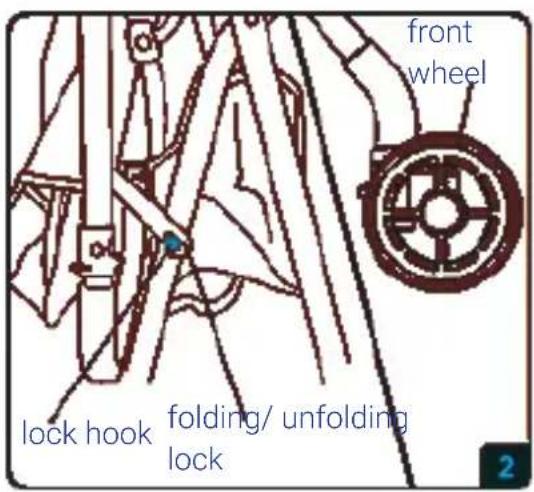

front wheel lock hook folding/ unfolding lock

Secure the folded stroller with the folding lock and place the front wheels as shown in the picture on the left. It will allow you to keep it in an upright position.

Maintenance:

The stroller's frame can be cleaned with a damp cloth. Clean the padding with a soft brush. Do not machine wash the padding.

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.

The product was tested and complies with the standards:

EN 1888:2012

Stylized cartoon lion head inside a red scalloped border (no text or symbols)

lionelo

WARRANTY CARD KARTA GWARANCYJNA

Model: ....

SN: ....

May be sold in: BE CZ DK DE EE IE EL ES FR HR IT LV LT HU MT NL AT PL PT RO SI SK FI SE UK

Warunki gwarancji:

Warranty conditions:

1. The Lionelo brand with its registered office at Dziadoszańska 10, 61-248 Poznań, Poland guarantees that the equipment is operational in accordance with the technical-operating conditions described in the manual.
2. The warranty is granted for a 60 months period from the date of sale. If the Buyer is a company (VAT invoice), the warranty is granted for a 12-month period.
3. The warranty is valid in the country of purchase.
4. Revealed manufacturing defects shall be removed during the warranty period free of charge by the Authorised Manufacturer Service.
5. Any defects or damages discovered and reported within the warranty period will be removed free of charge within 21 working days, but in justifiable cases (for instance, spare parts must be brought from abroad) this period may be extended by another 30 days.
6. Any defects or damages to the equipment should be reported and delivered to the service site immediately after being revealed.
7. Accessories included with the devices are under 3-month warranty from the date of purchase.
8. In case of an unjustified complaint (a complaint of efficient product or the mechanically damaged one), the person who reports a complaint shall be charged for transportation cost.
9. The Customer is entitled to replacement of the product to another with the same or similar specifications (and) colours if the Service determines that the removal of defects is not possible.
10. The service is not responsible for any loss of data.
11. The warranty will be respected only if the customer attaches (to the faulty device) a damage description, all of the accessories received at the moment of the equipment purchase, and proof of purchase containing the date of sale.
12. The warranty does not cover: natural wear of the product related to its normal operation, damage resulted from improper usage or non-compliance

of the instructions described in the manual, tears or cracks caused by the Customer, fading of fabric resulting from prolonged exposure to sunlight or washing the product or its parts in the wrong temperature, mechanical, electrical, thermal and intentional damages and defects caused by them, as well as damage caused by unauthorised modifications or repairs.

1. The Service may refuse to repair products in case of any traces of unauthorised repair.
2. If the fault is not covered by the manufacturer's warranty, paid repair may be offered by the Service.
3. Neither the Manufacturer nor the Authorised Service is responsible for any damages or losses arising from the inability to use the device that is being repaired.
4. The product that has not been collected from the service site within 3 months can be charged with storage cost appropriate to the storage time.
5. Delivery of the product which is incomplete or lack of proper packaging is equivalent to the failure of the warranty conditions by the Buyer, and it can provide a basis to refusal of the repair or extension of the repair period.
6. In case of sending the product for repair, when no defect is found, the expenses for the expert assessment shall be fully borne by the consumer.
7. If the product (sent for repair) works properly, and the reason of its invalid operation is, for instance, a low battery, the Consumer shall bear the cost of the expert assessment.
8. The product warranty shall not exclude, limit or suspend the Customer rights resulting from the guarantee.
9. Only clean products in original or replacement packagings can be reclaimed.
